Metro Series Sliding Windows

VANTAGE Windows & Doors

All products

For high-performance double-glazing, explore AGP’s product range available now Explore

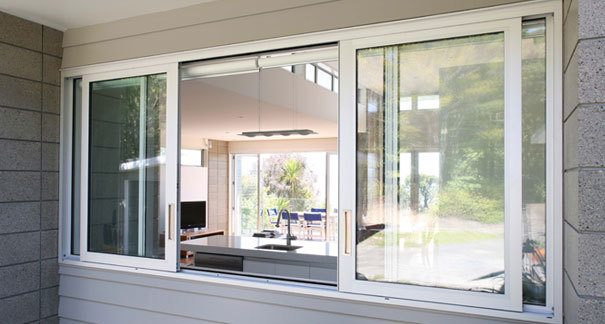

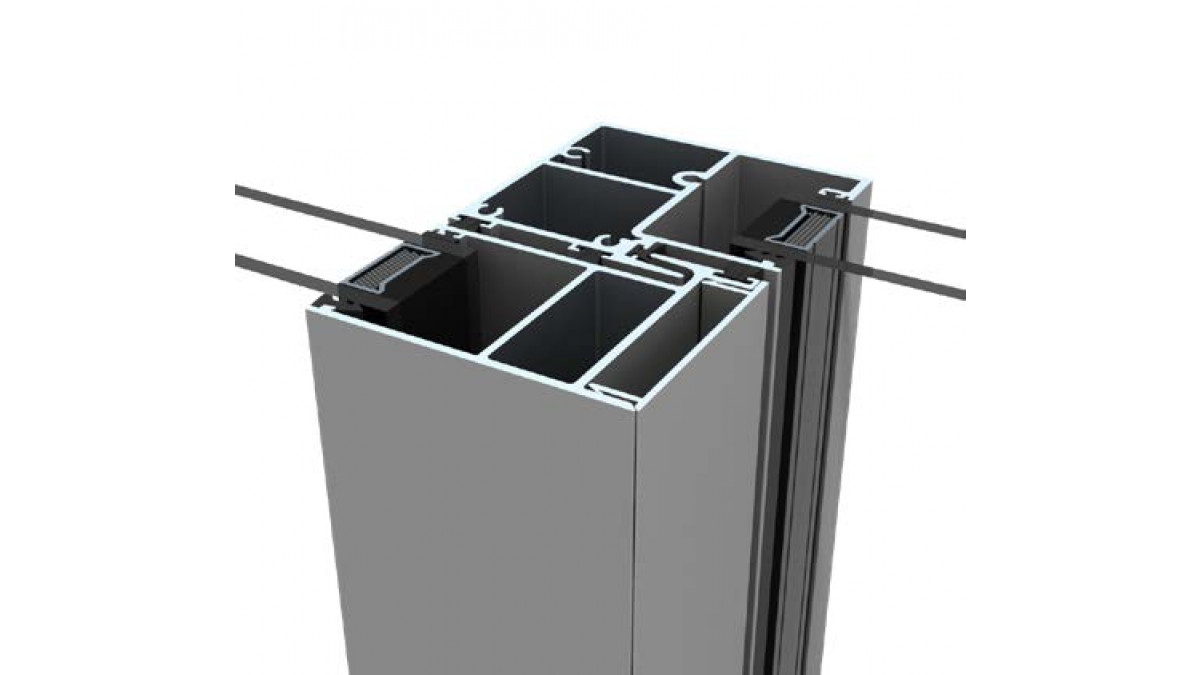

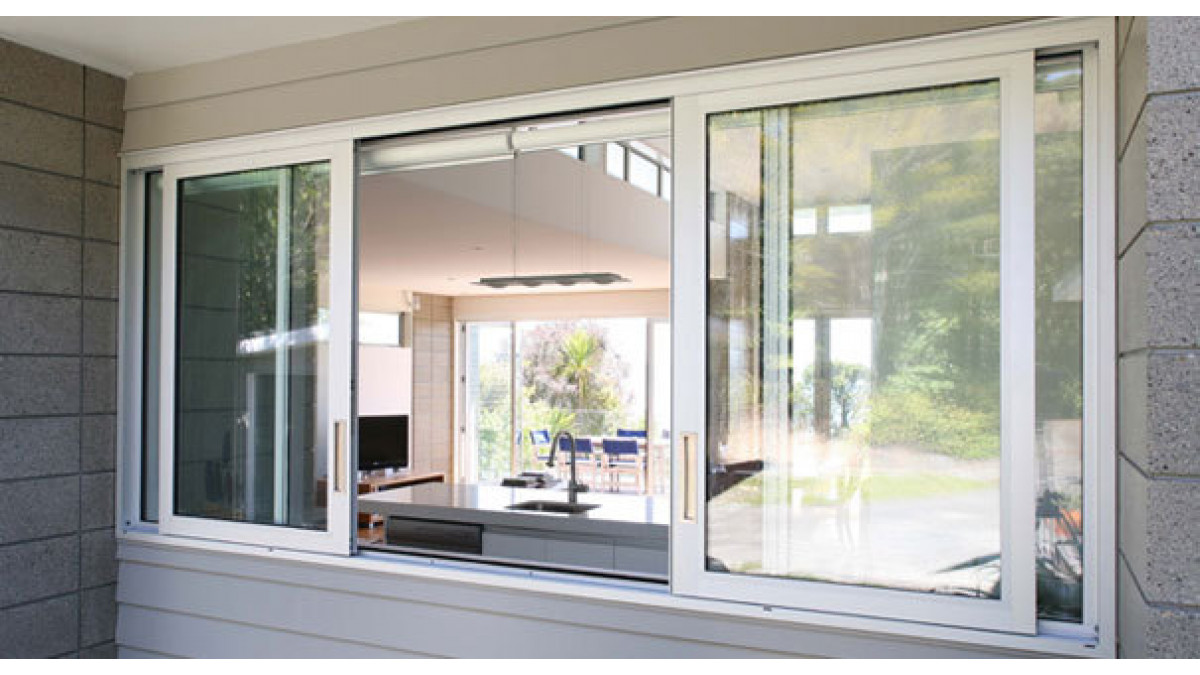

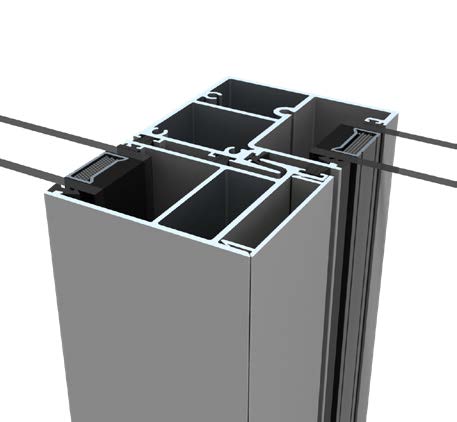

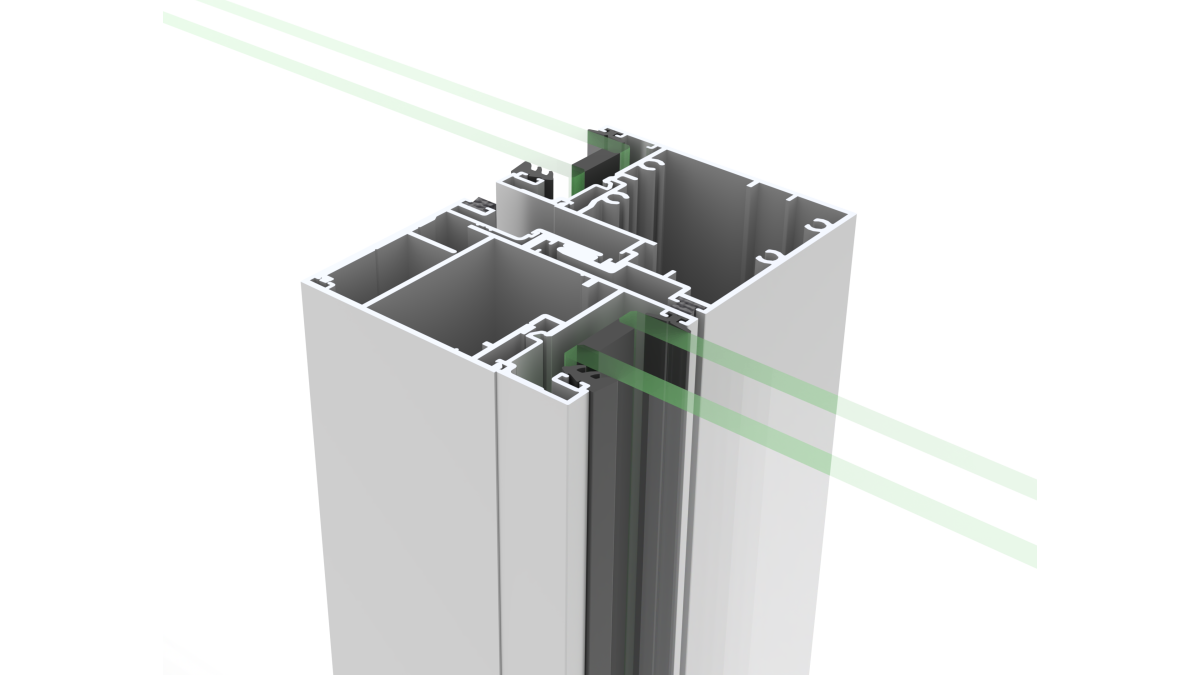

Metro Series sliding window interlockers are flush in the closed position

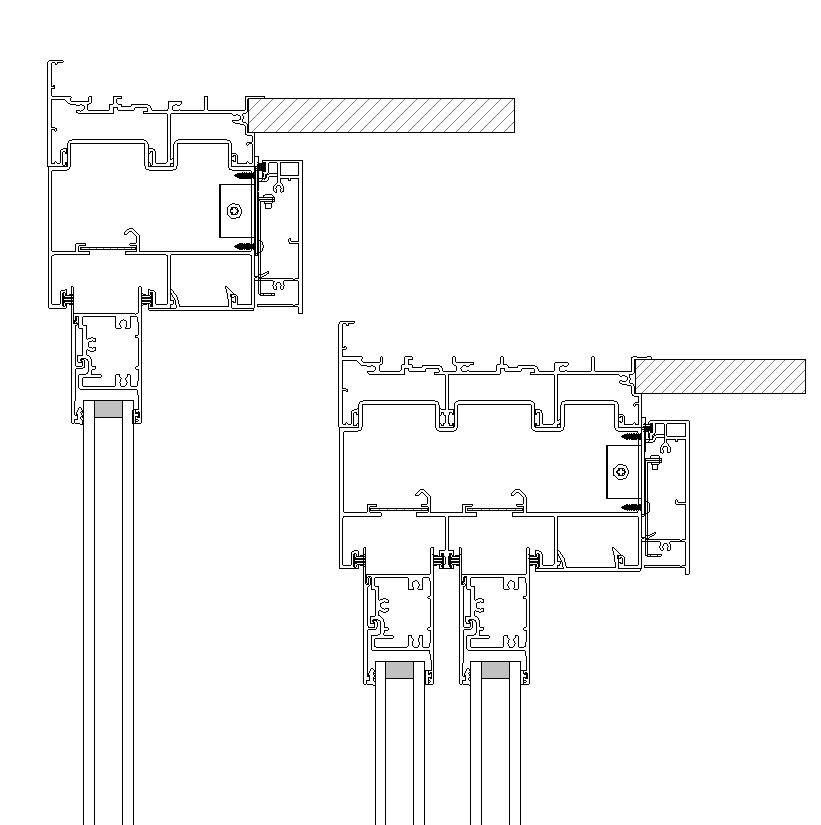

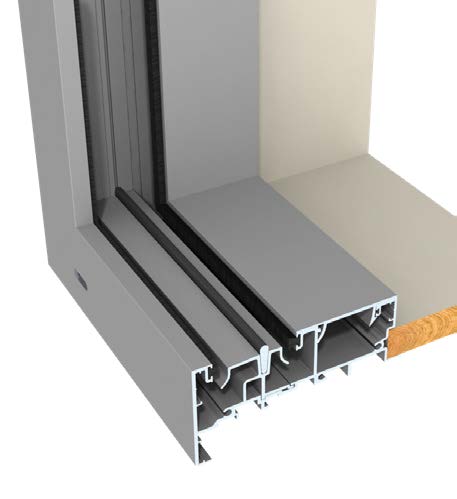

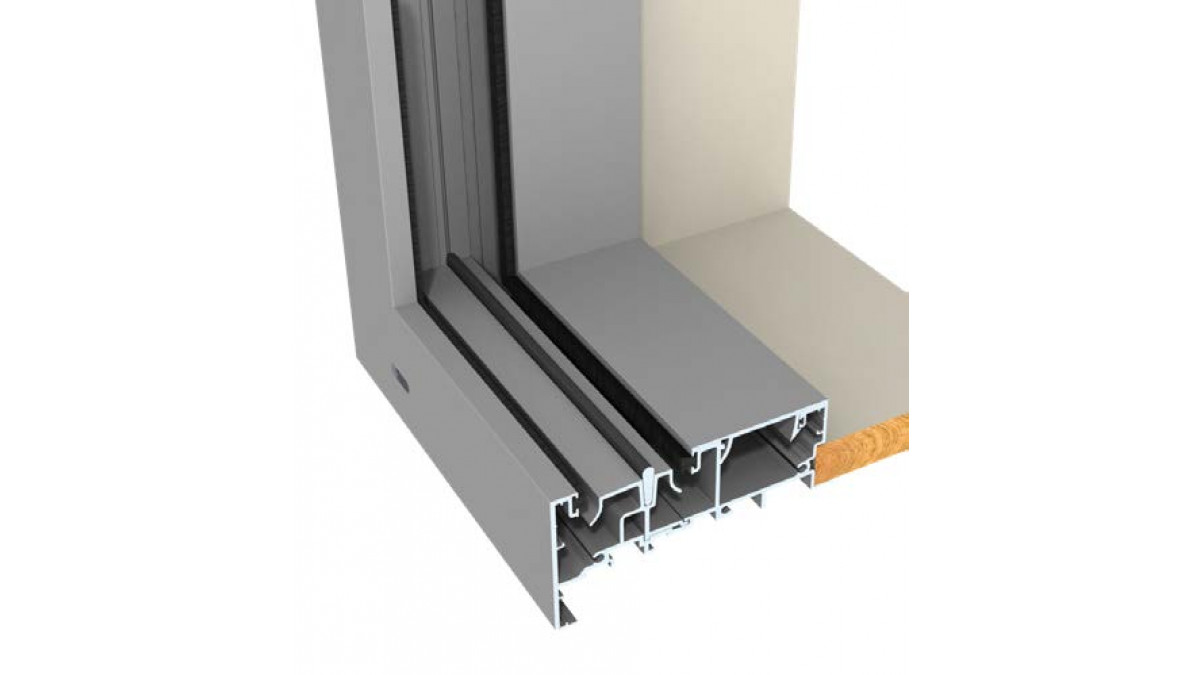

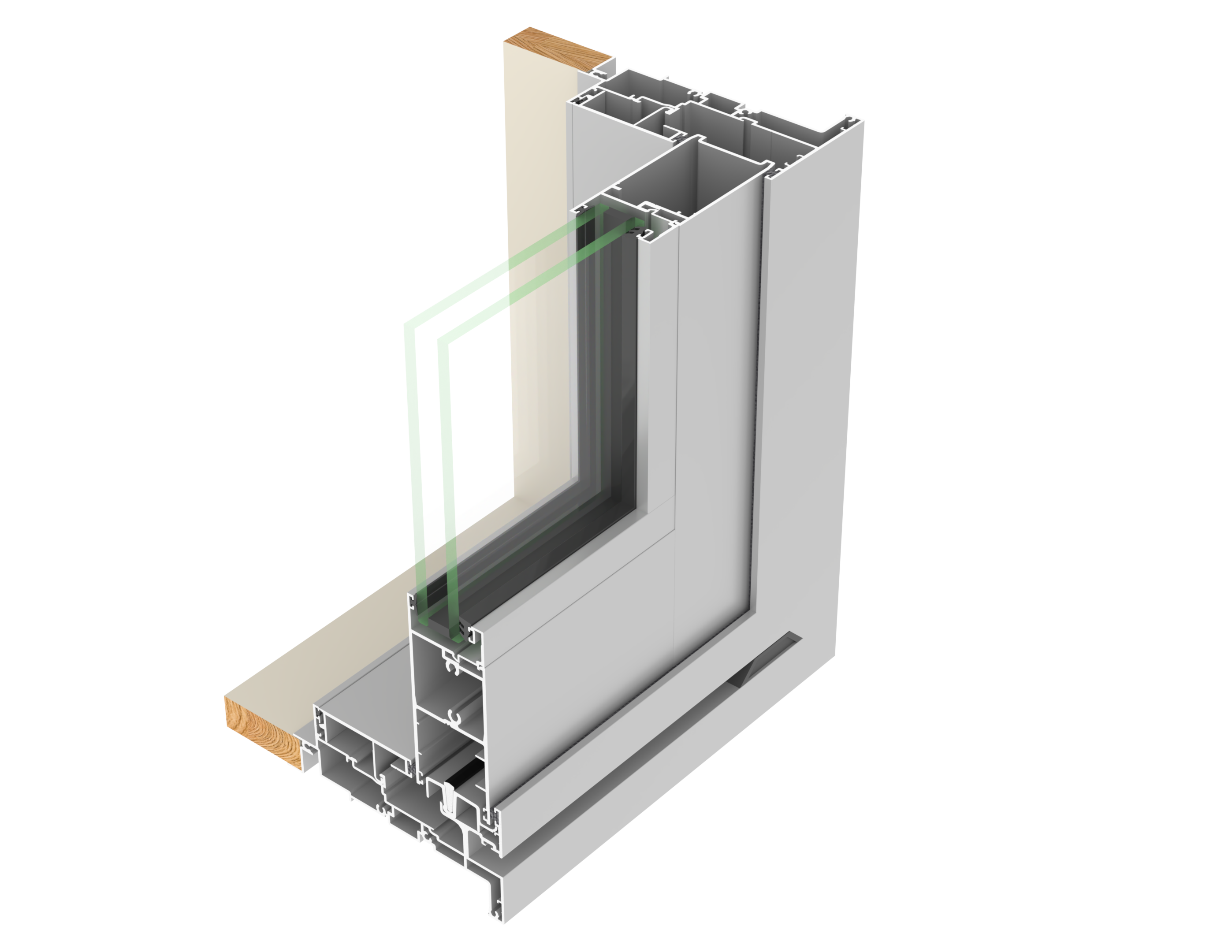

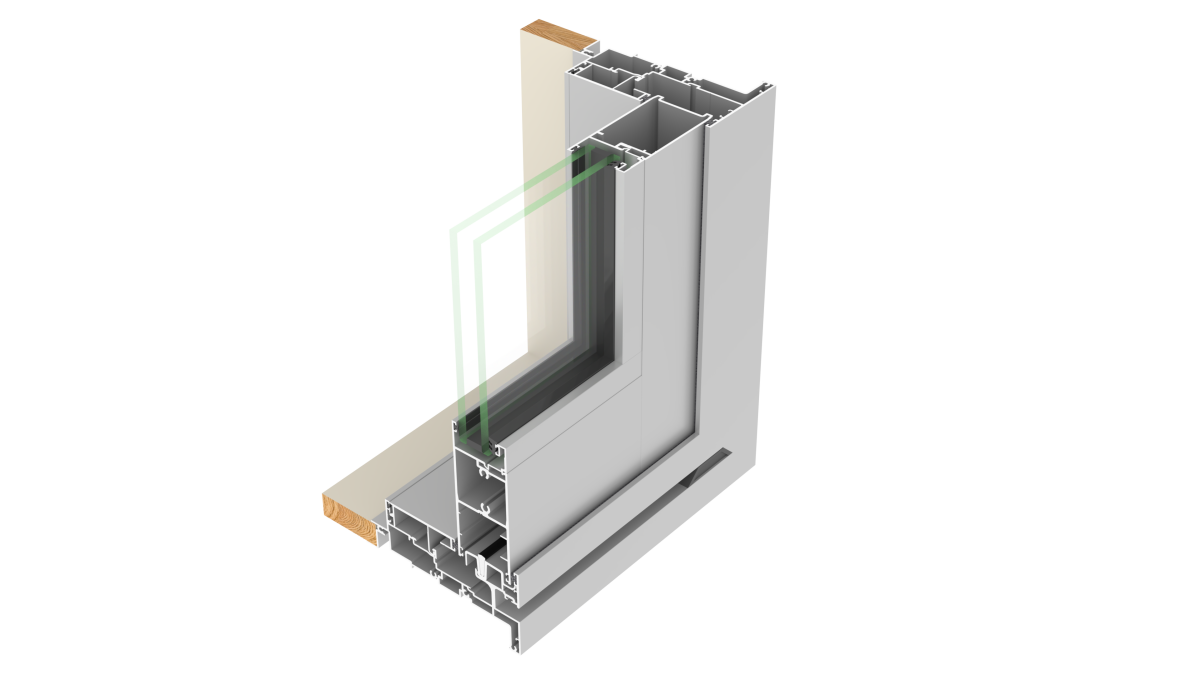

Sliding window sill and jamb single slider

Product Enquiries

Description

Metro Series sliding windows use the sliding door frame but have smaller sliding panel rails, interlocker stiles and mullions. Stiffening boxes on interlocker stiles and mullions are flush in the closed position.

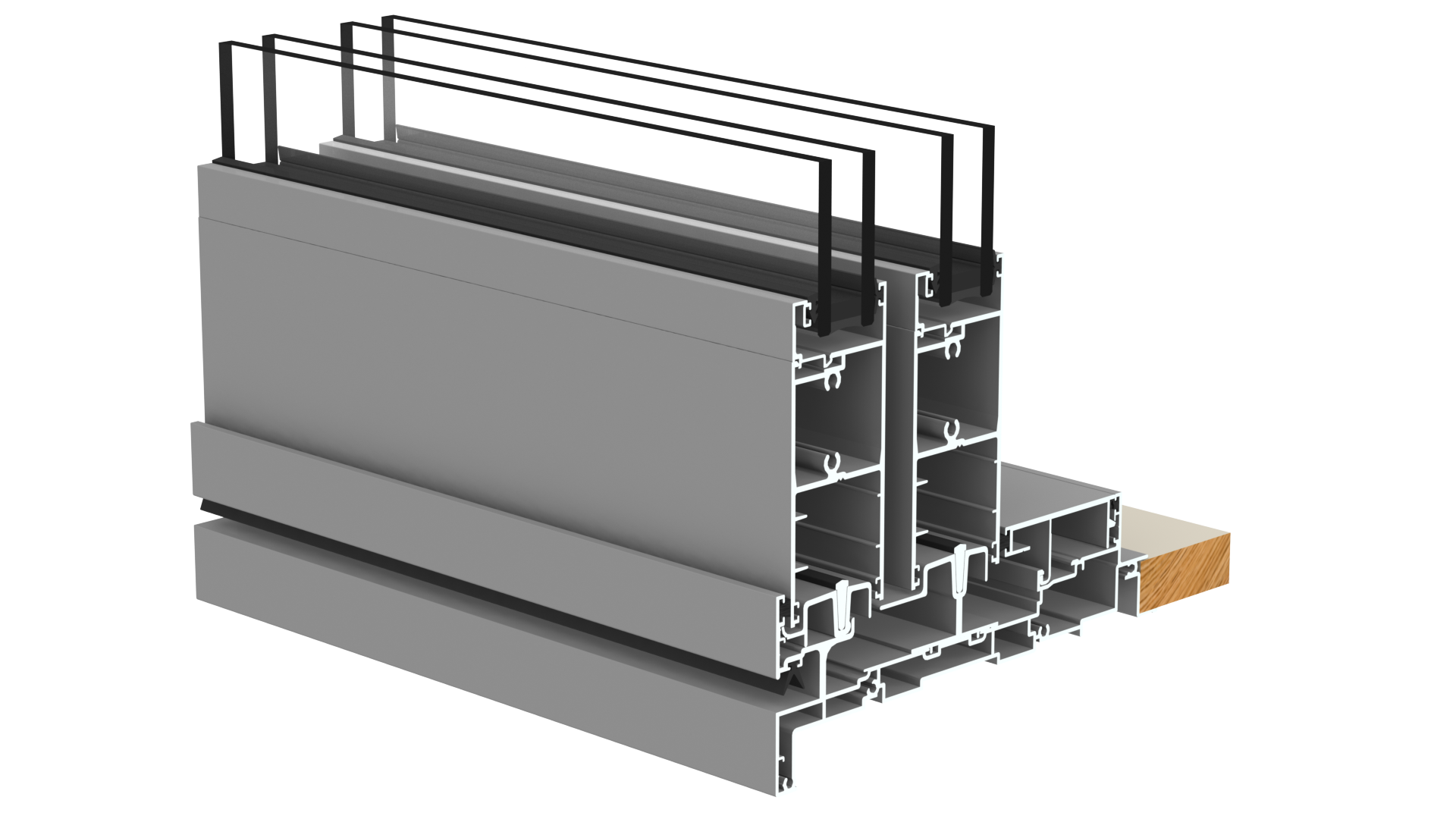

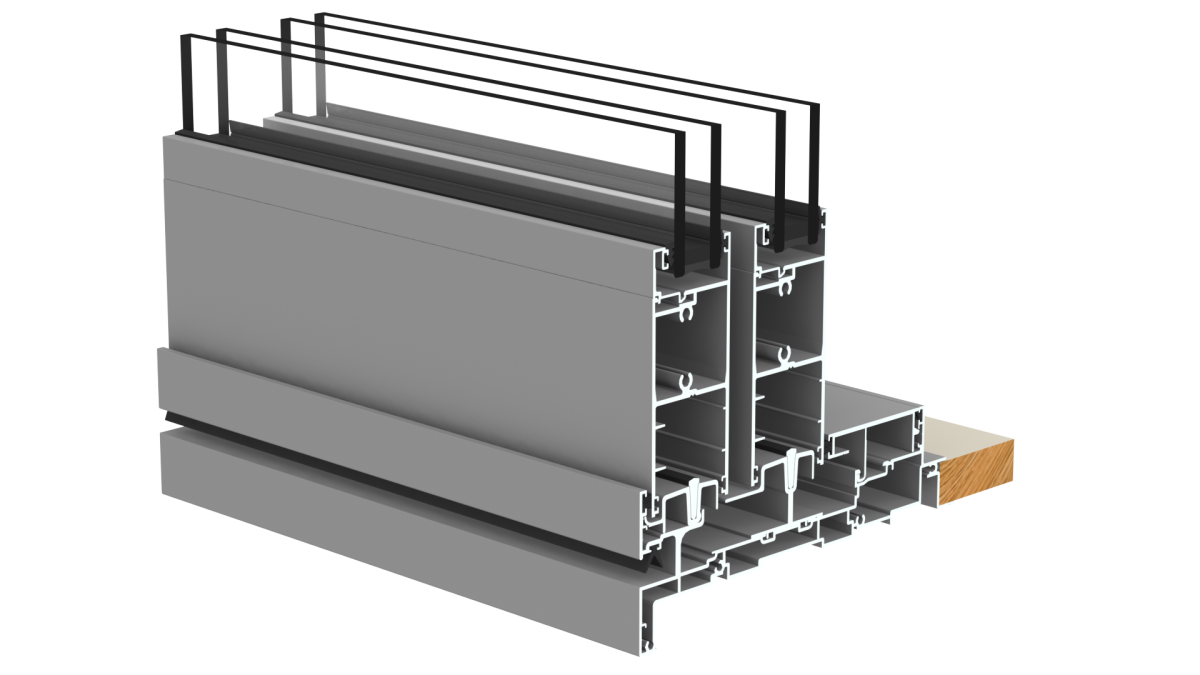

Wide formats are possible with a maximum of six panels — two stacking towards one jamb and two stacking the other way.

Key Features

Metro Series occupies an intermediate position between Vantage Residential and the APL Architectural Series

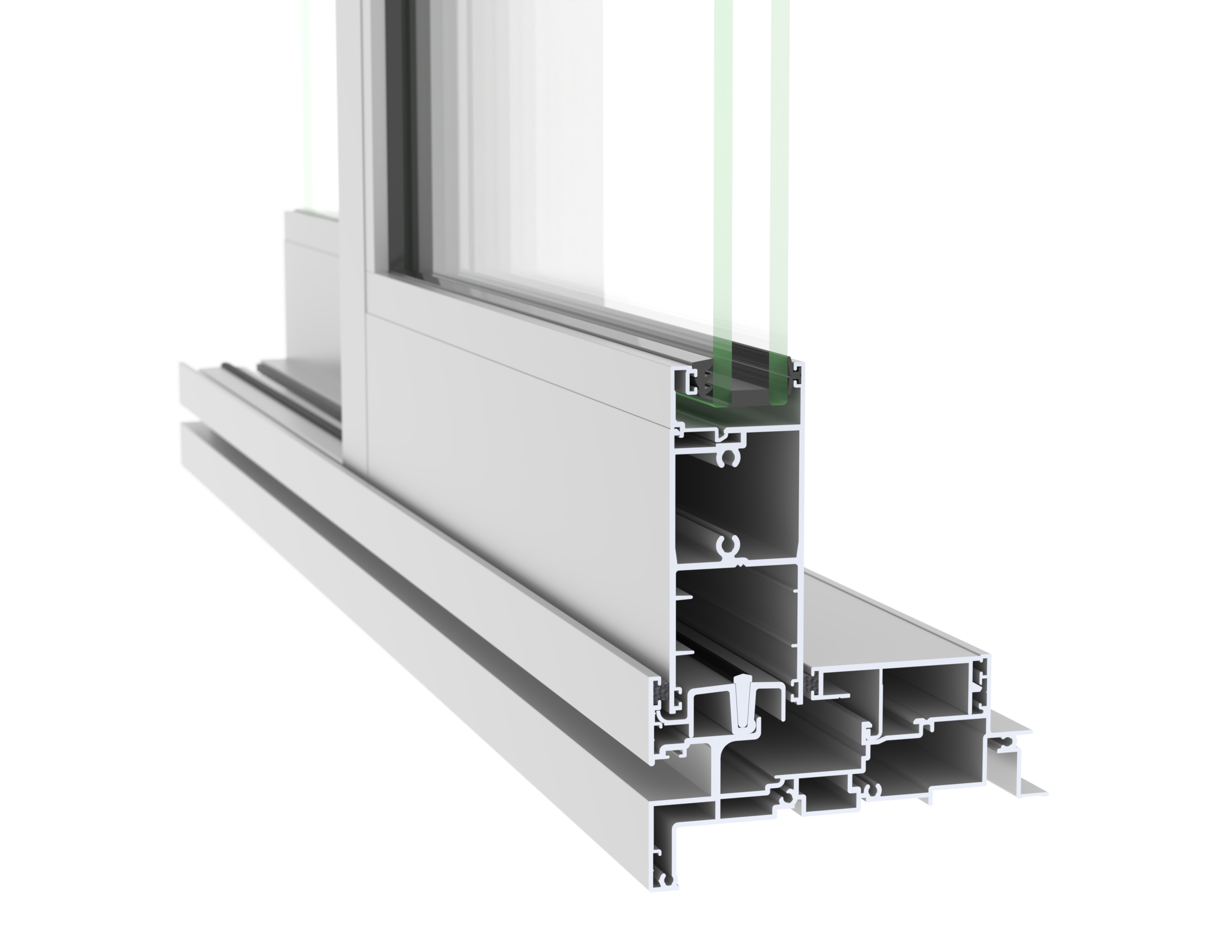

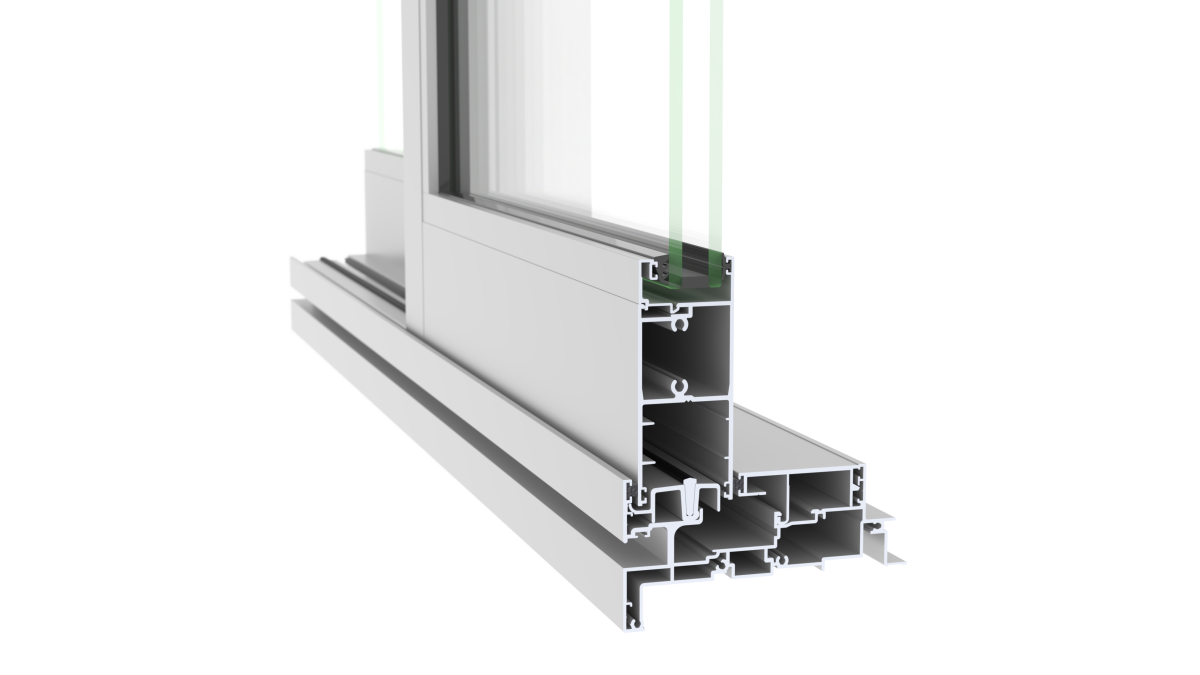

Metro sliding windows use the sliding door system frame but have smaller interlocker stiles, mullions and bi-parting meeting stiles

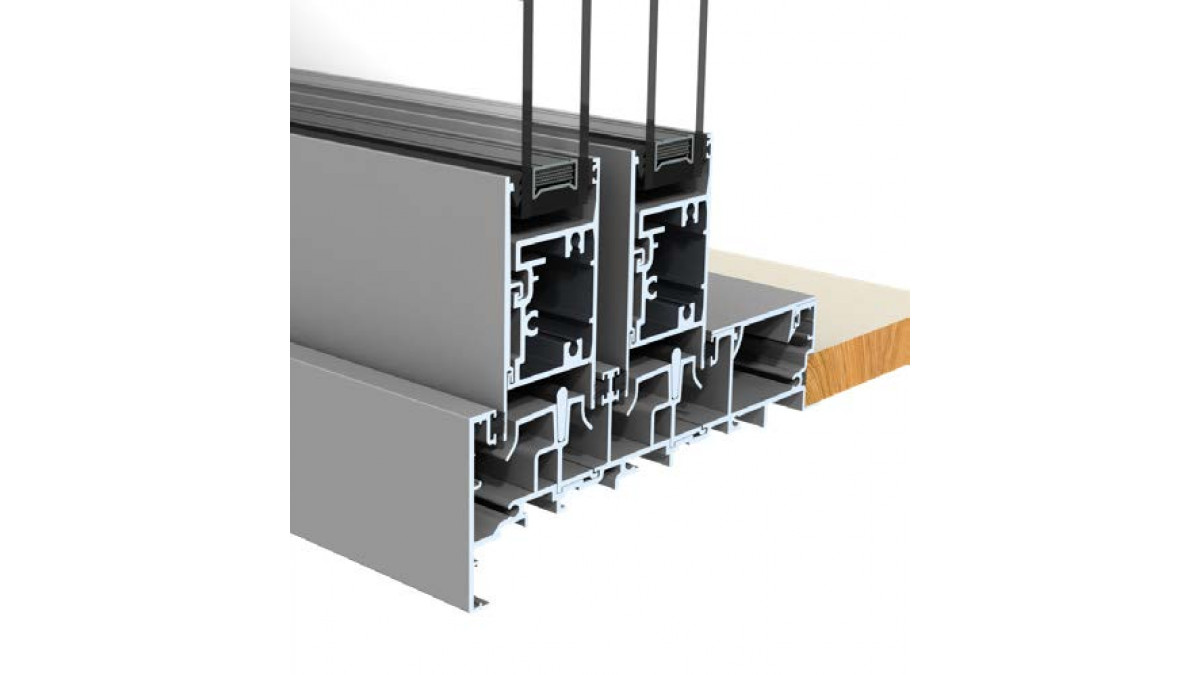

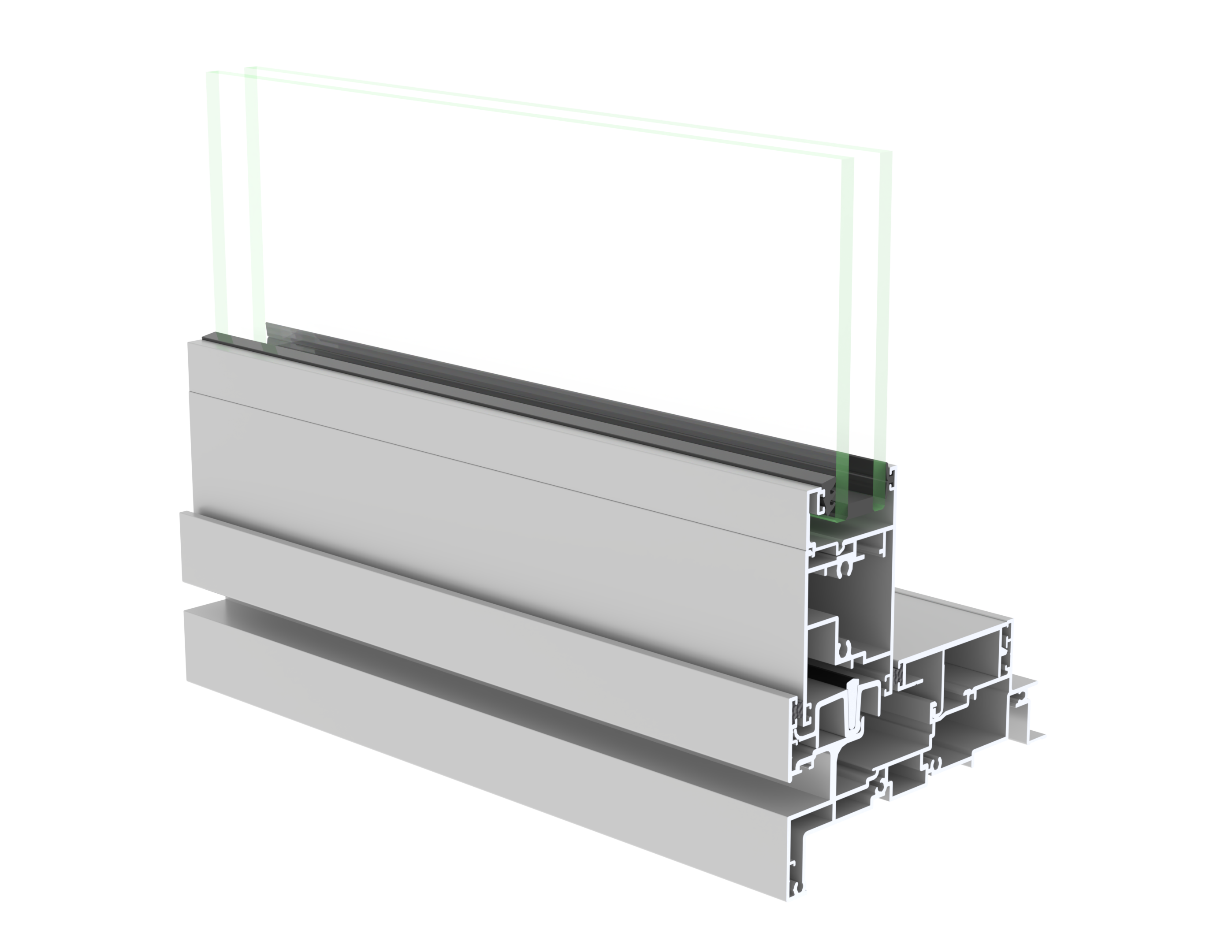

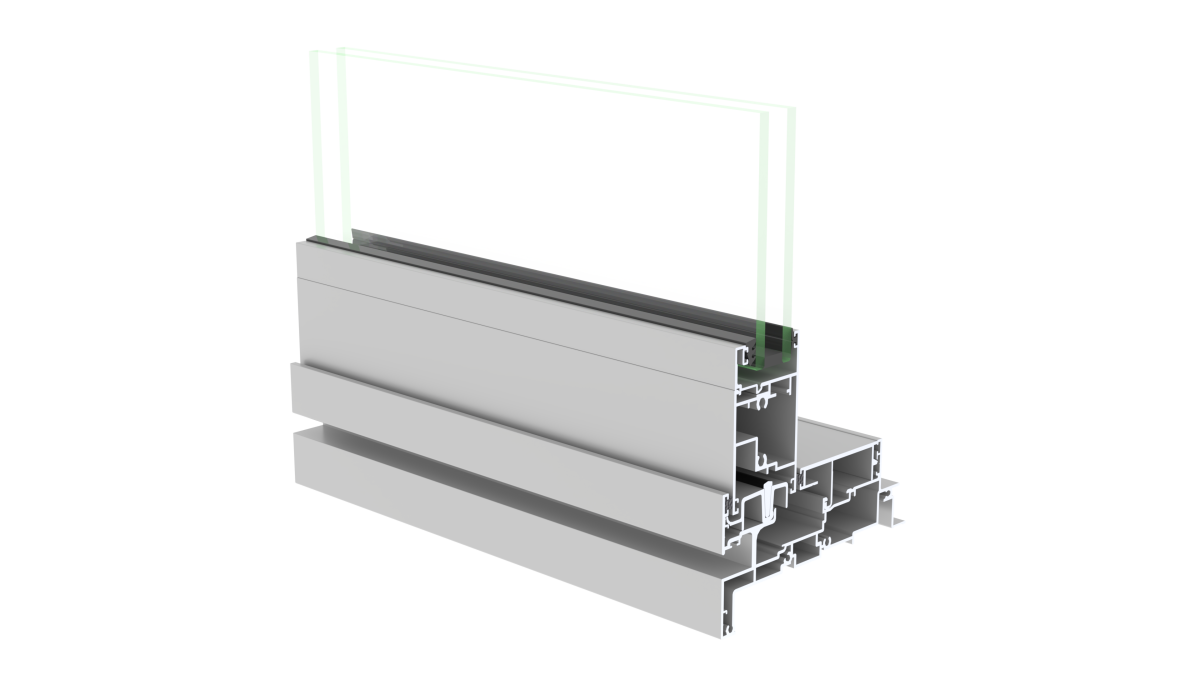

The sill frame has a flush track

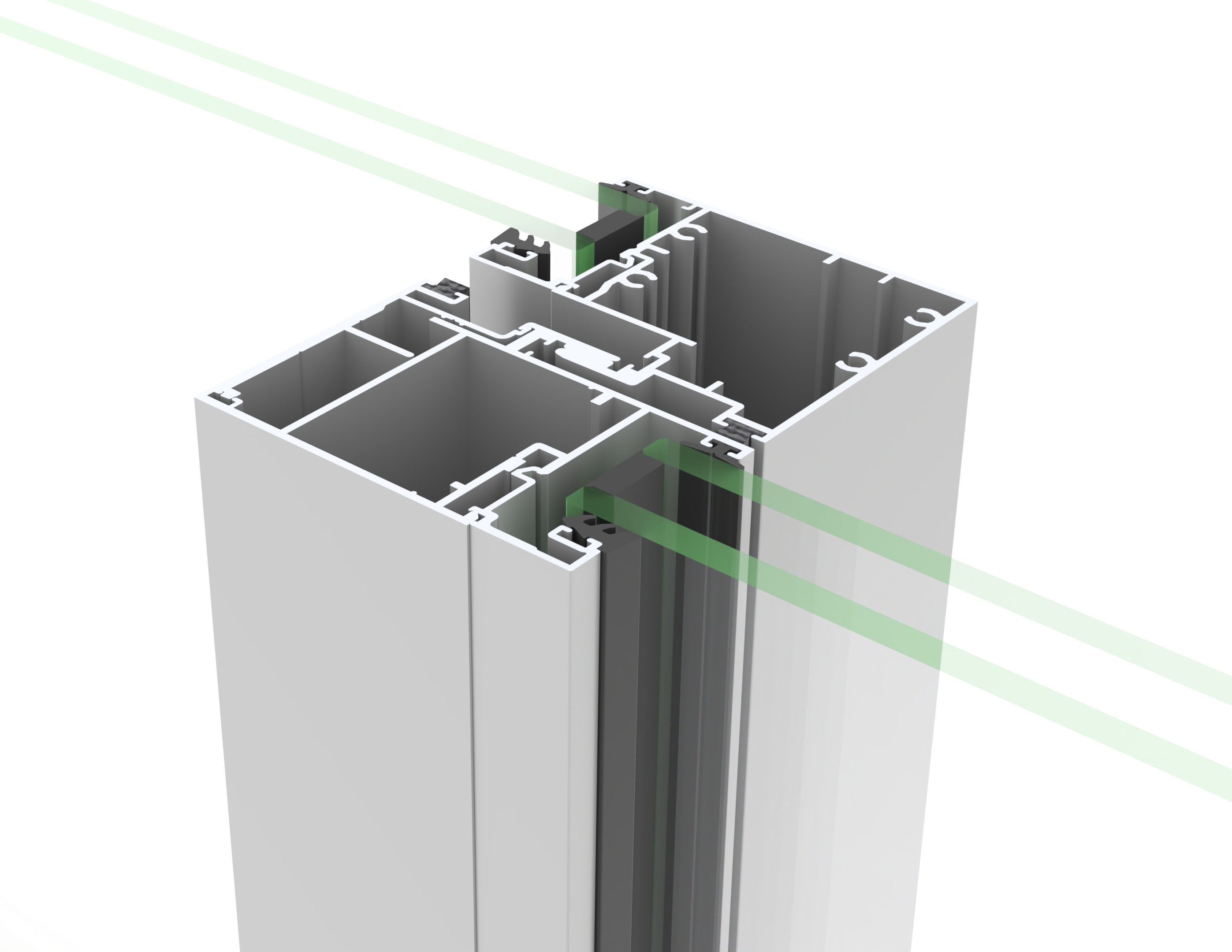

Interlocker stiles and mullions are flush in the closed position
Corner sliders (90º) are available with no corner post (exterior and interior corners)
Ideal for non-projecting or servery windows
Wide opening is possible in bi-parting or stacking configurations

Ranges

Metro Series

Scope of Use

Suitable for most applications where non-projecting windows are desired
Need to be used in defined maximum sizes according to the wind exposure
A good option for servery windows
Work well with insect screens

Limitations on Use

Consider the ease of reaching to the window catch if the sliding panel is placed beyond a bench
Some weather protection above e.g. wide eaves recommended to protect open windows

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2

In-Service History

Launched in 2006
Design upgrades regularly released
Widely used by homeowners, builders, Group home builders and specifiers

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

Case Studies

A Central Otago Vineyard with a Surprising New Cellar Door Building

VANTAGE Windows & Doors

October 2020

Case Studies

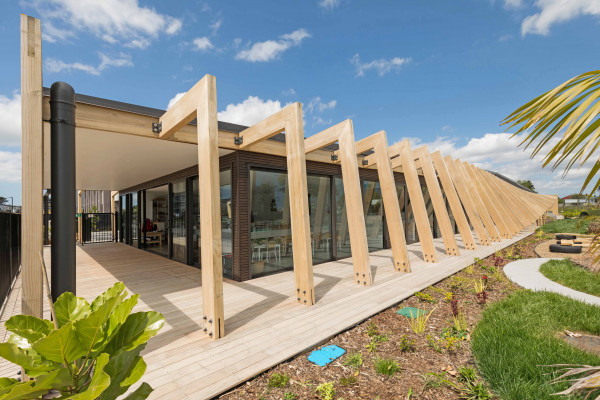

Vantage Products Feature in Sustainable Preschool Centres

VANTAGE Windows & Doors

July 2019

Case Studies

Documents

Data Sheet

pdf

Span Tables

pdf

Specifier Guide

pdf

Vantage on Masterspec

URL

Declare Label

2022

pdf

Manufacturer Contact List

URL

WGANZ Guide to E2/AS1

1 August 2019

pdf

Vantage Care, Maintenance & Warranty Brochure (with AGP)

2020

URL

Vantage Brochure

URL

AGP Cleaning & Maintenance

pdf

AGP Condensation Guide

pdf

AGP Visual Quality of Glass

pdf

APL and Sustainability

2019

URL

CAD/PDF Details

View full

Full Set of Drawings

VMSW

pdf

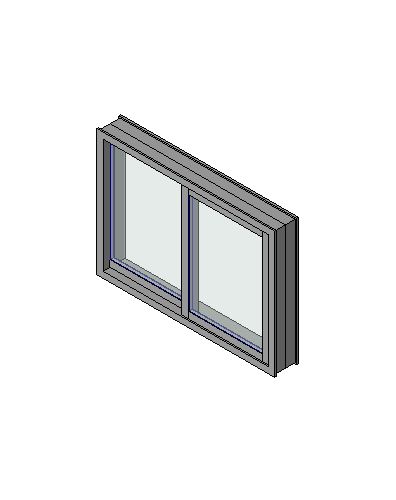

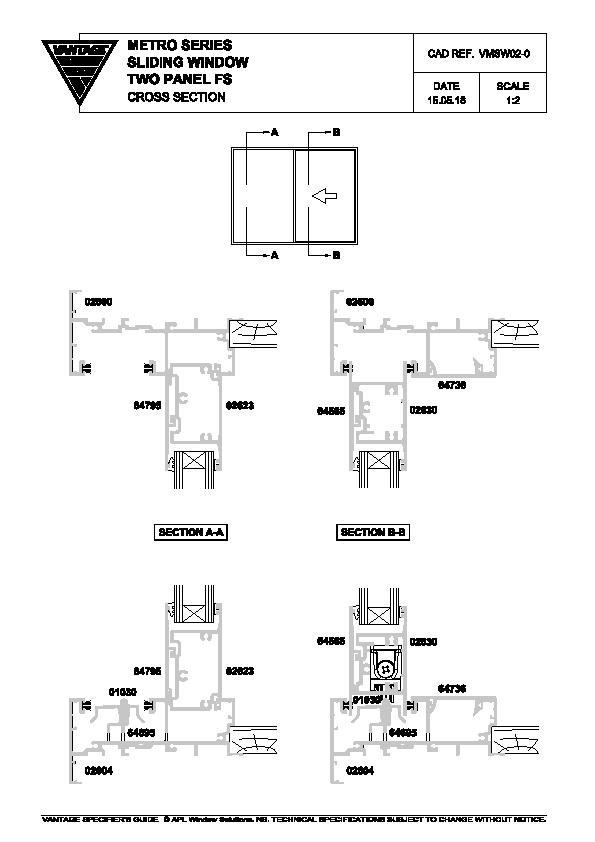

Vantage Metro Series Sliding Window Two Panel SF

VMSW02-0

dwf

dwg

dxf

pdf

Vantage Metro Series Sliding Window Two Panel SF

VMSW03-0

dwf

dwg

dxf

pdf

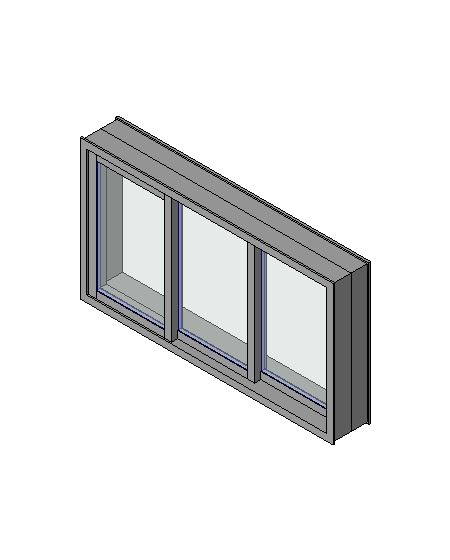

Vantage Metro Series Sliding Window Three Panel SSF

VMSW04-0

dwf

dwg

dxf

pdf

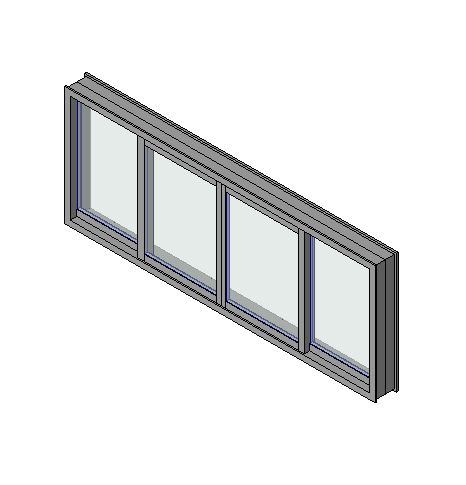

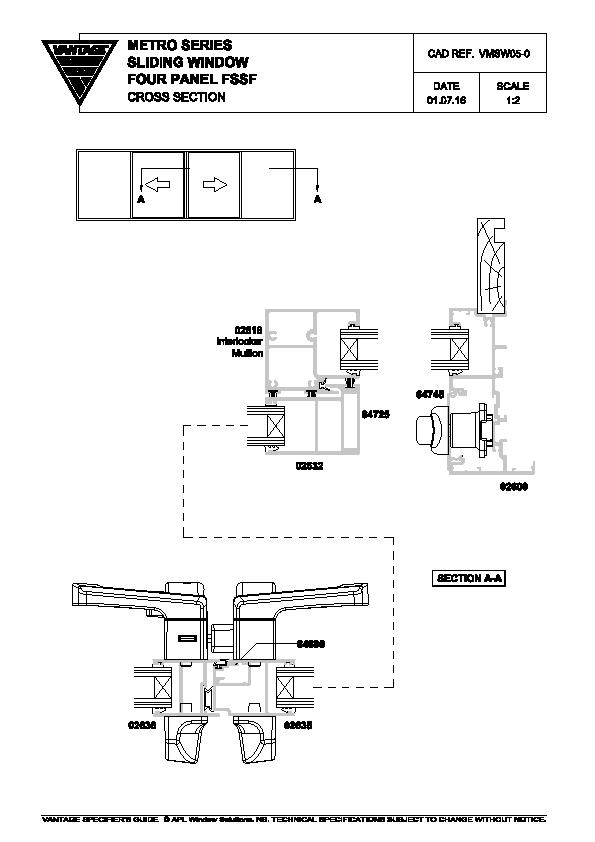

Vantage Metro Series Sliding Window Four Panel FSSF

VMSW05-0

dwf

dwg

dxf

pdf

Vantage Metro Series Sliding Window Three Panel SSF

VMSW06-0

dwf

dwg

dxf

pdf

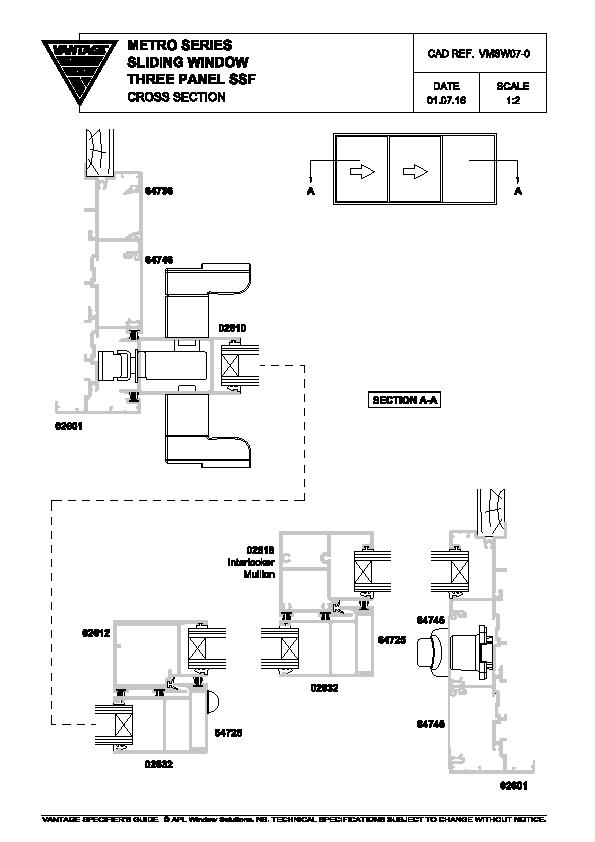

Vantage Metro Series Sliding Window Three Panel SSF

VMSW07-0

dwf

dwg

dxf

pdf

Installation Details

View full

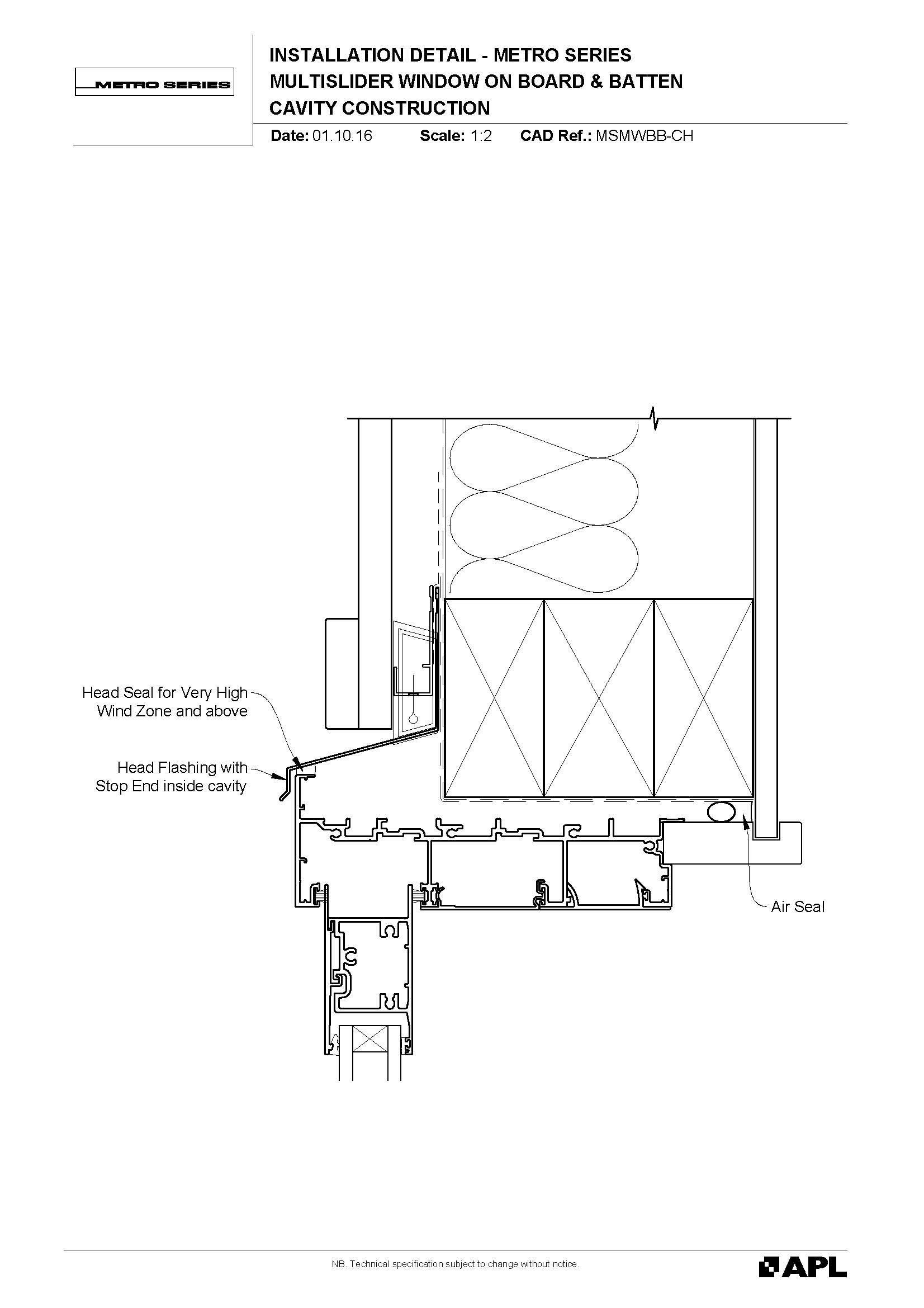

Vantage Metro Series Multislider Window on Board and Batten

MSMWBB

dwg

pdf

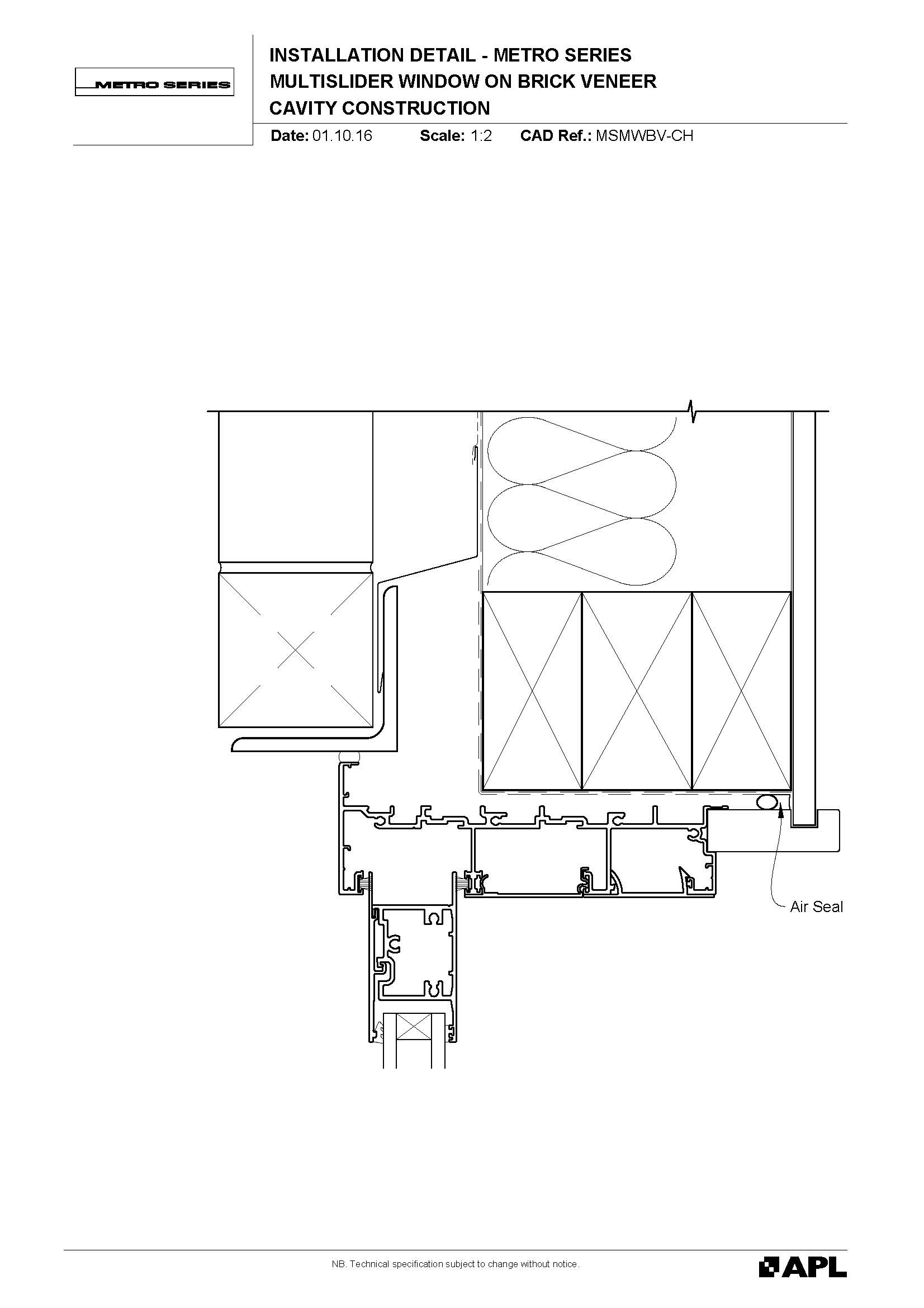

Vantage Metro Series Multislider Window on Brick Veneer

MSMWBV

dwg

pdf

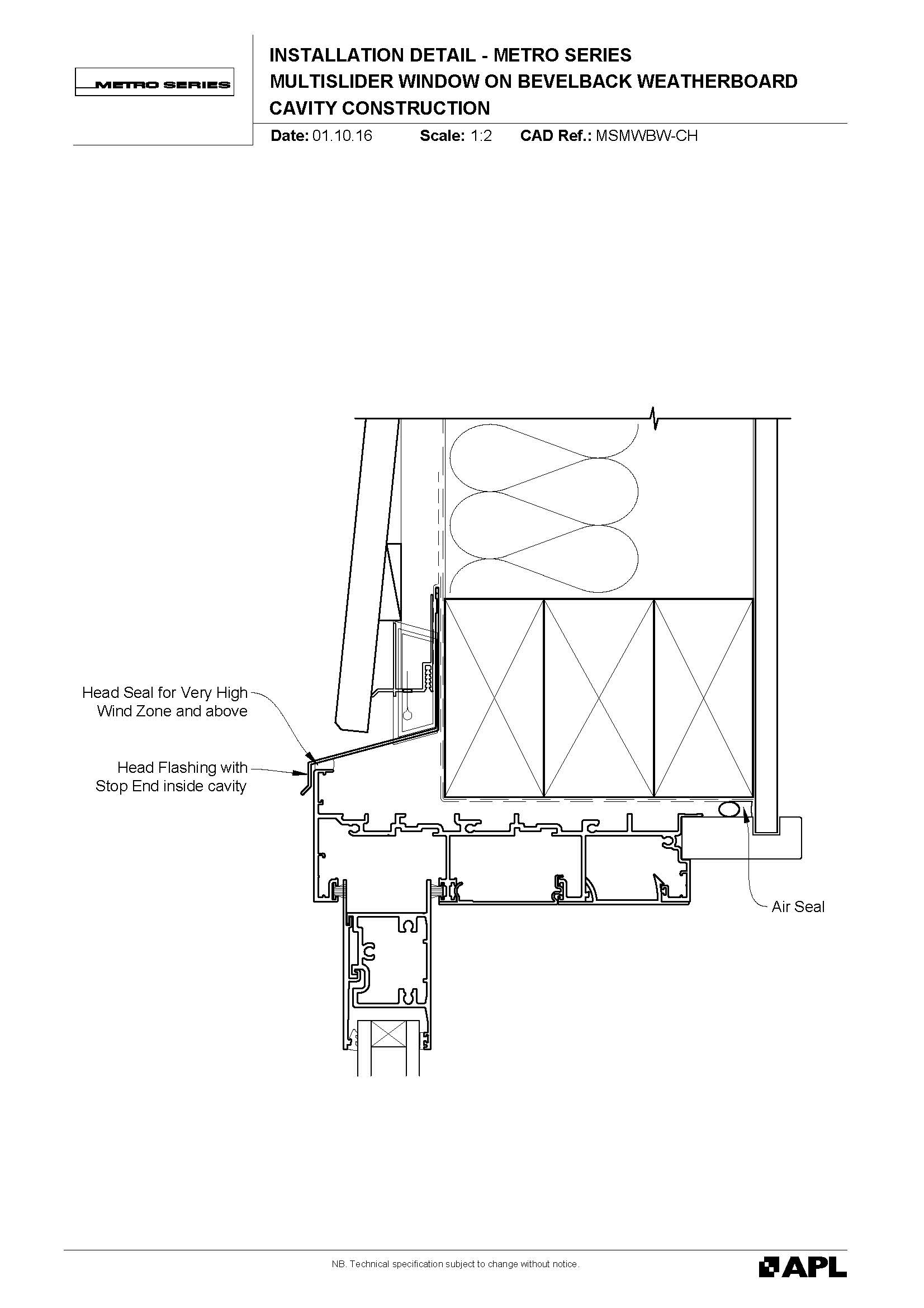

Vantage Metro Series Multislider Window on Bevelback Weatherboard

MSMWBW

dwg

pdf

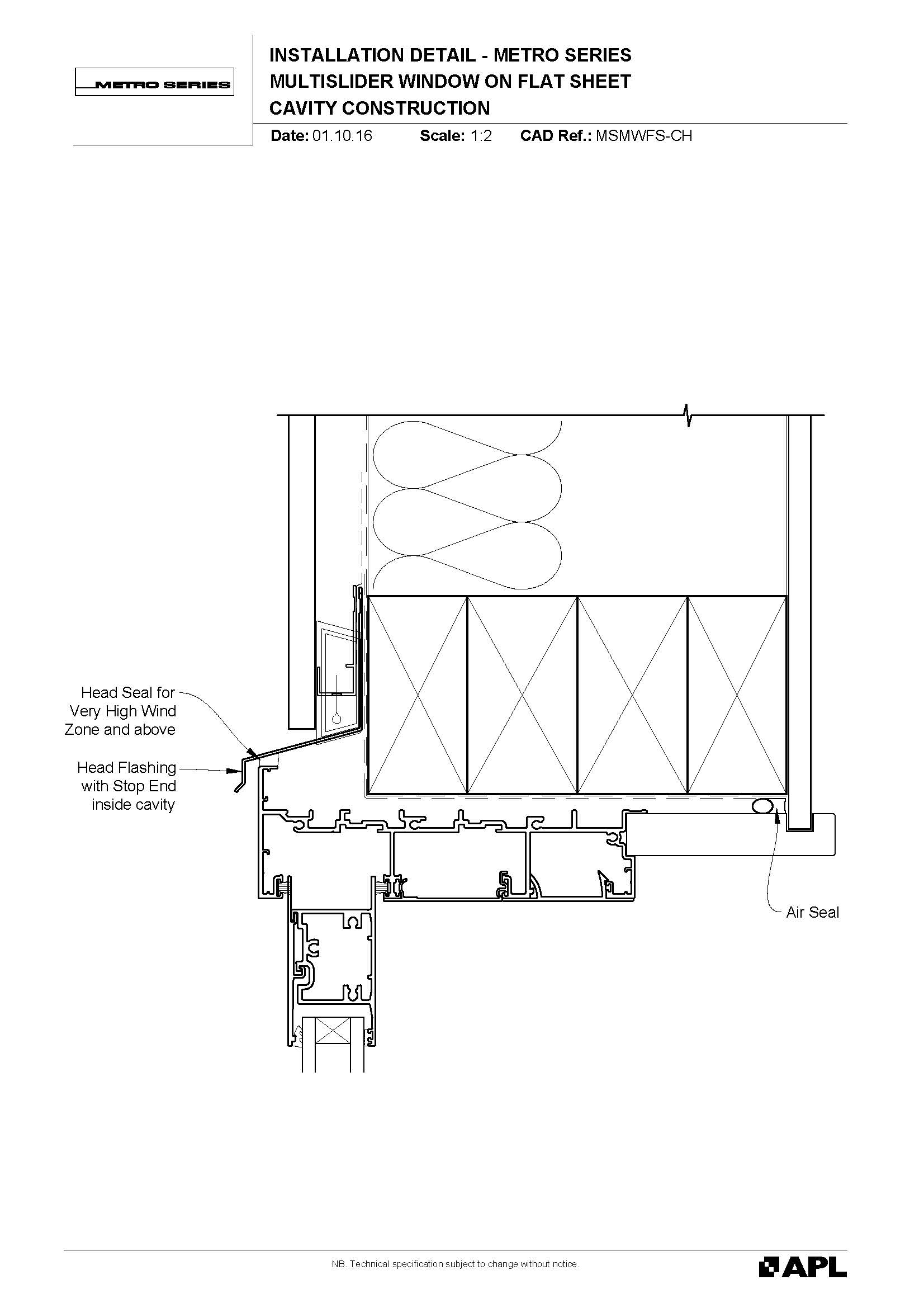

Vantage Metro Series Multislider Window on Flat Sheet

MSMWFS

dwg

pdf

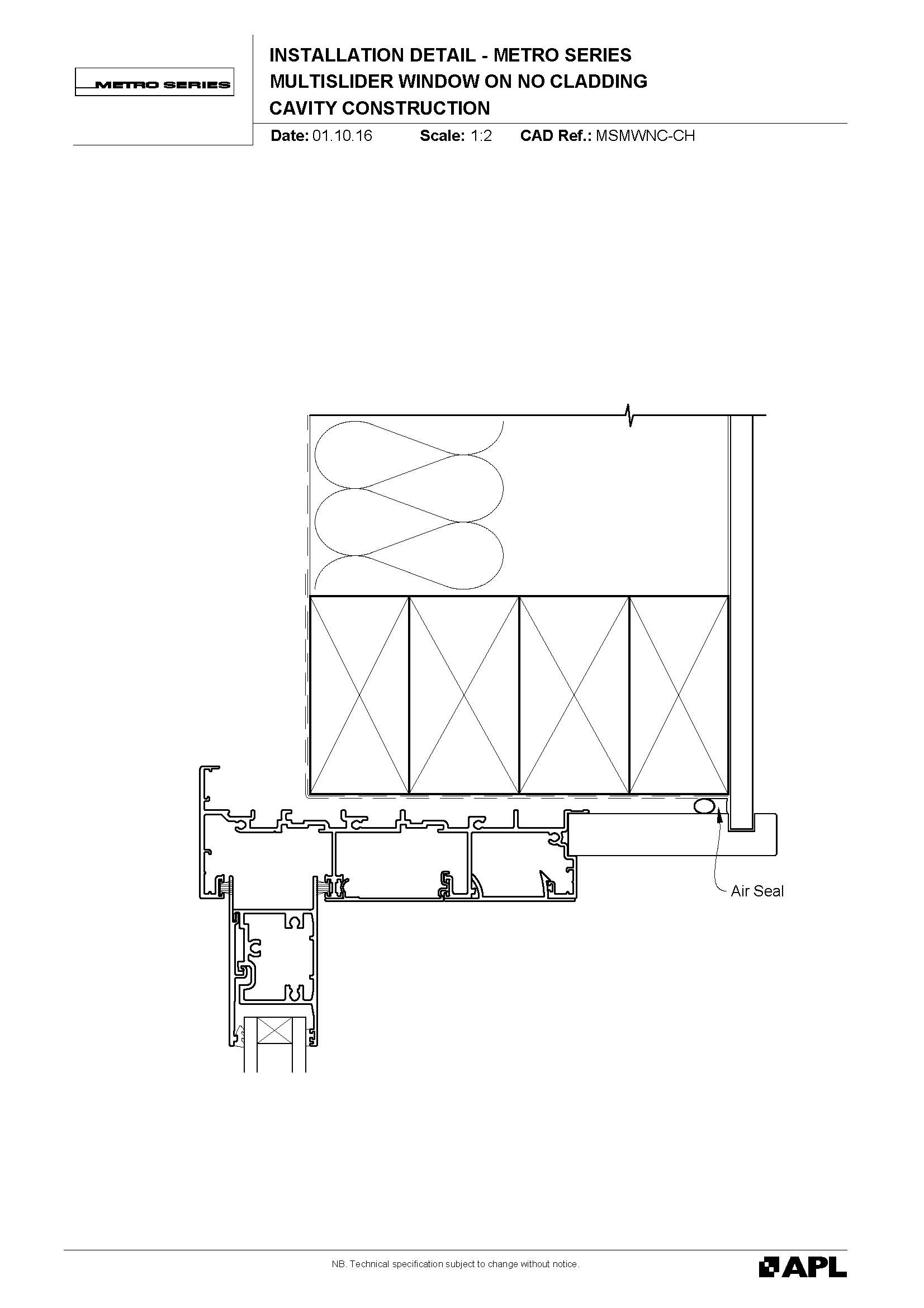

Vantage Metro Series Multislider Window on No Cladding

MSMWNC

dwg

pdf

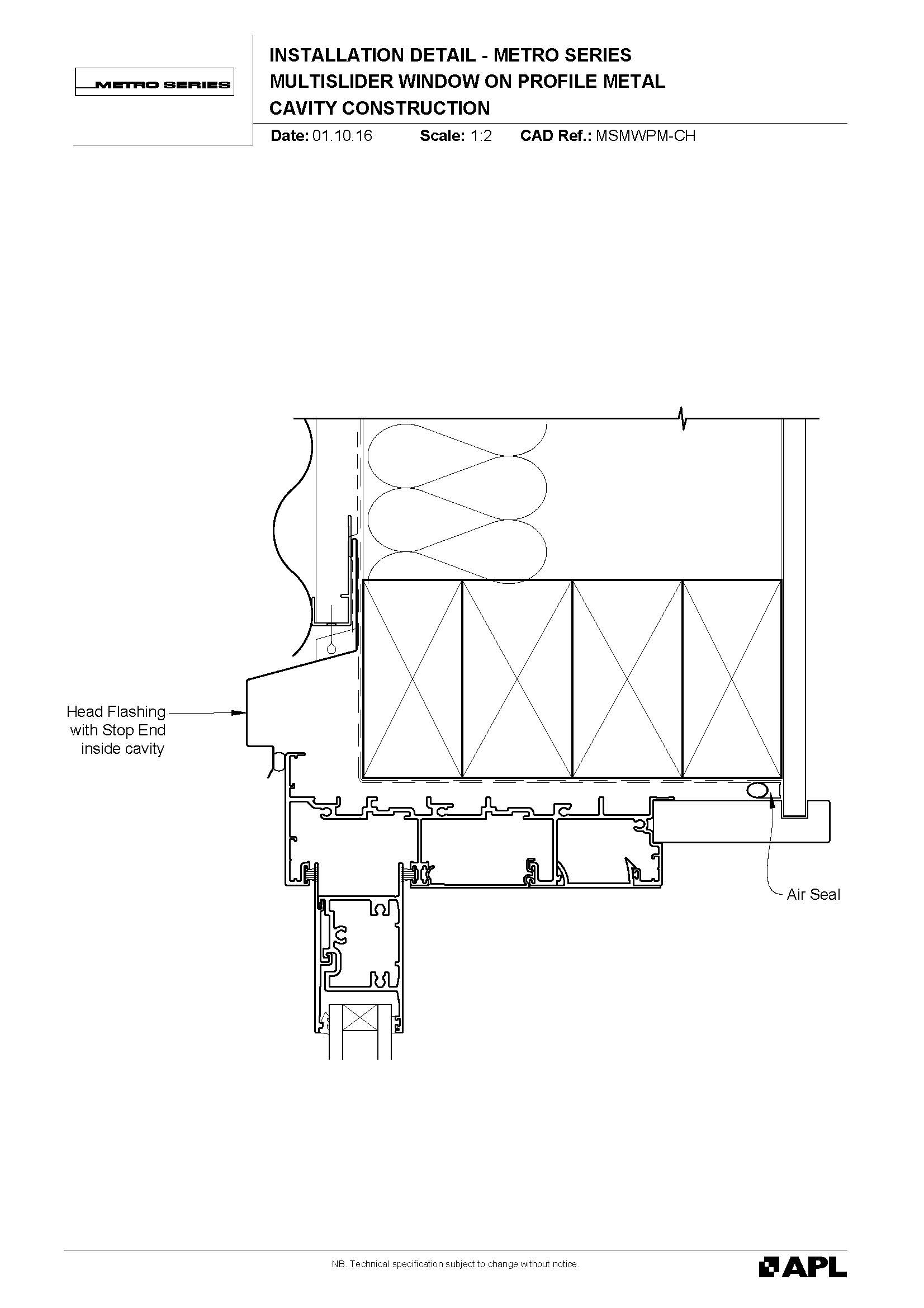

Vantage Metro Series Multislider Window on Profile Metal

MSMWPM

dwg

pdf

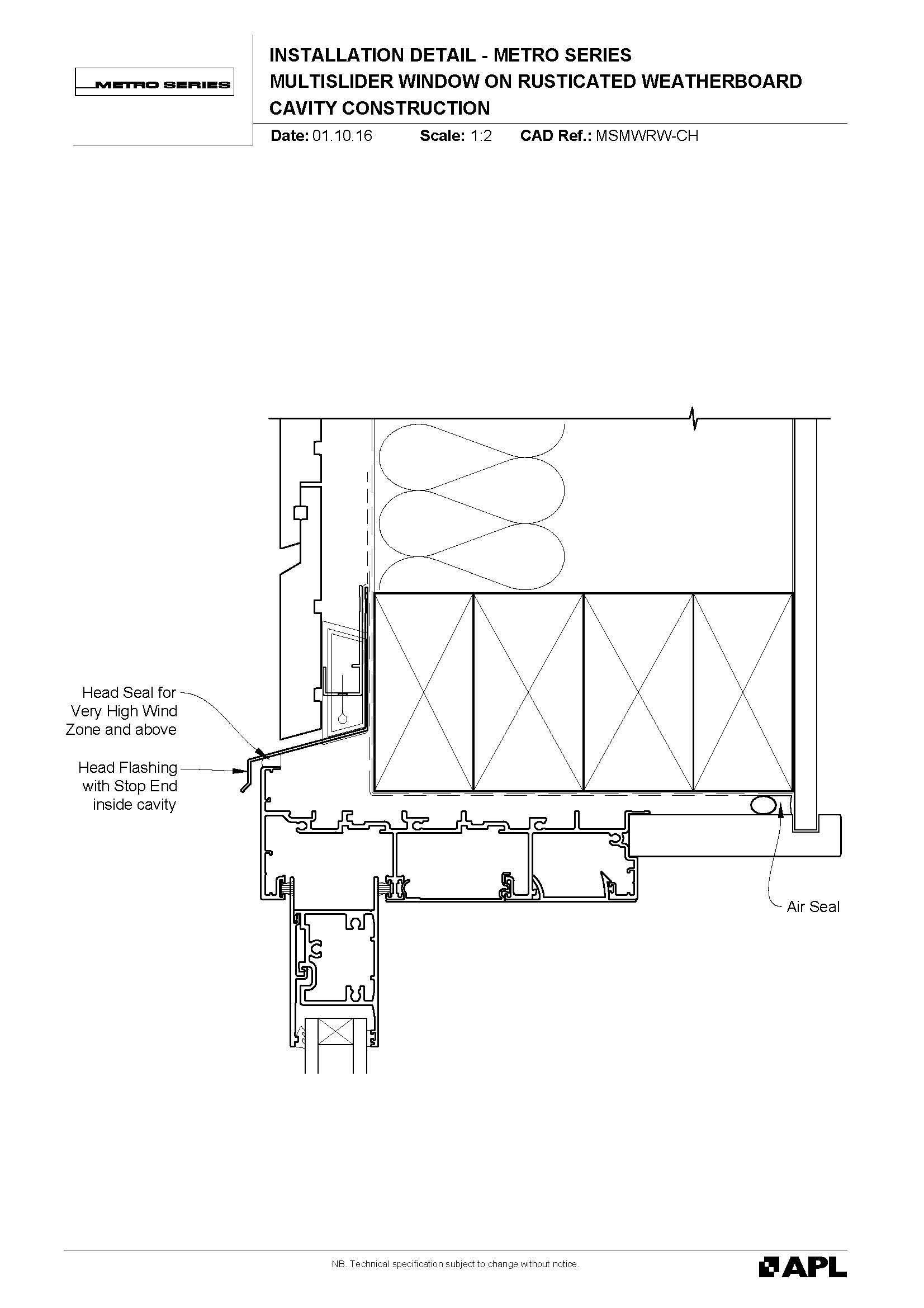

Vantage Metro Series Multislider Window on Rusticated Weatherboard

MSMWRW

dwg

pdf

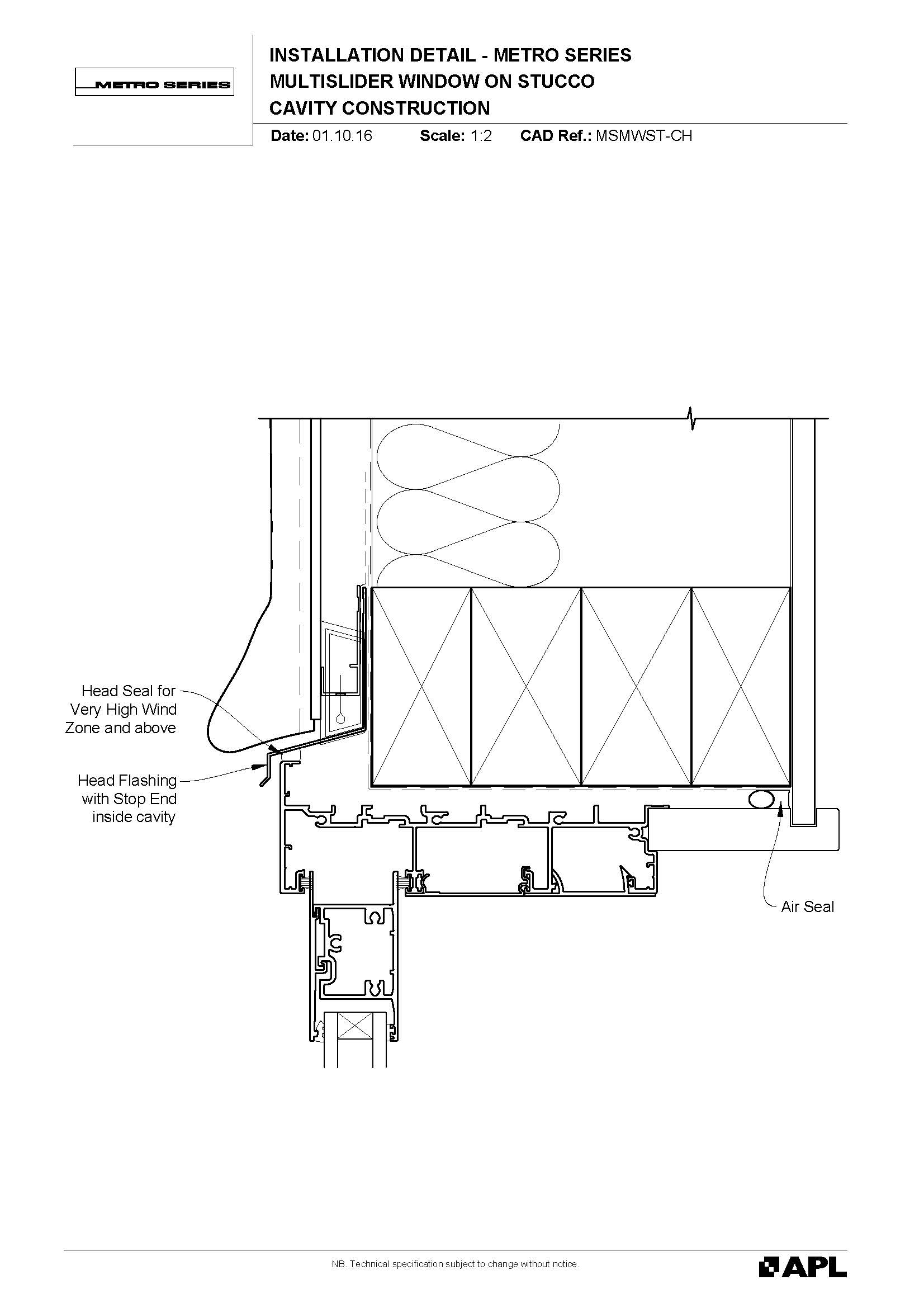

Vantage Metro Series Multislider Window on Stucco

MSMWST

dwg

pdf

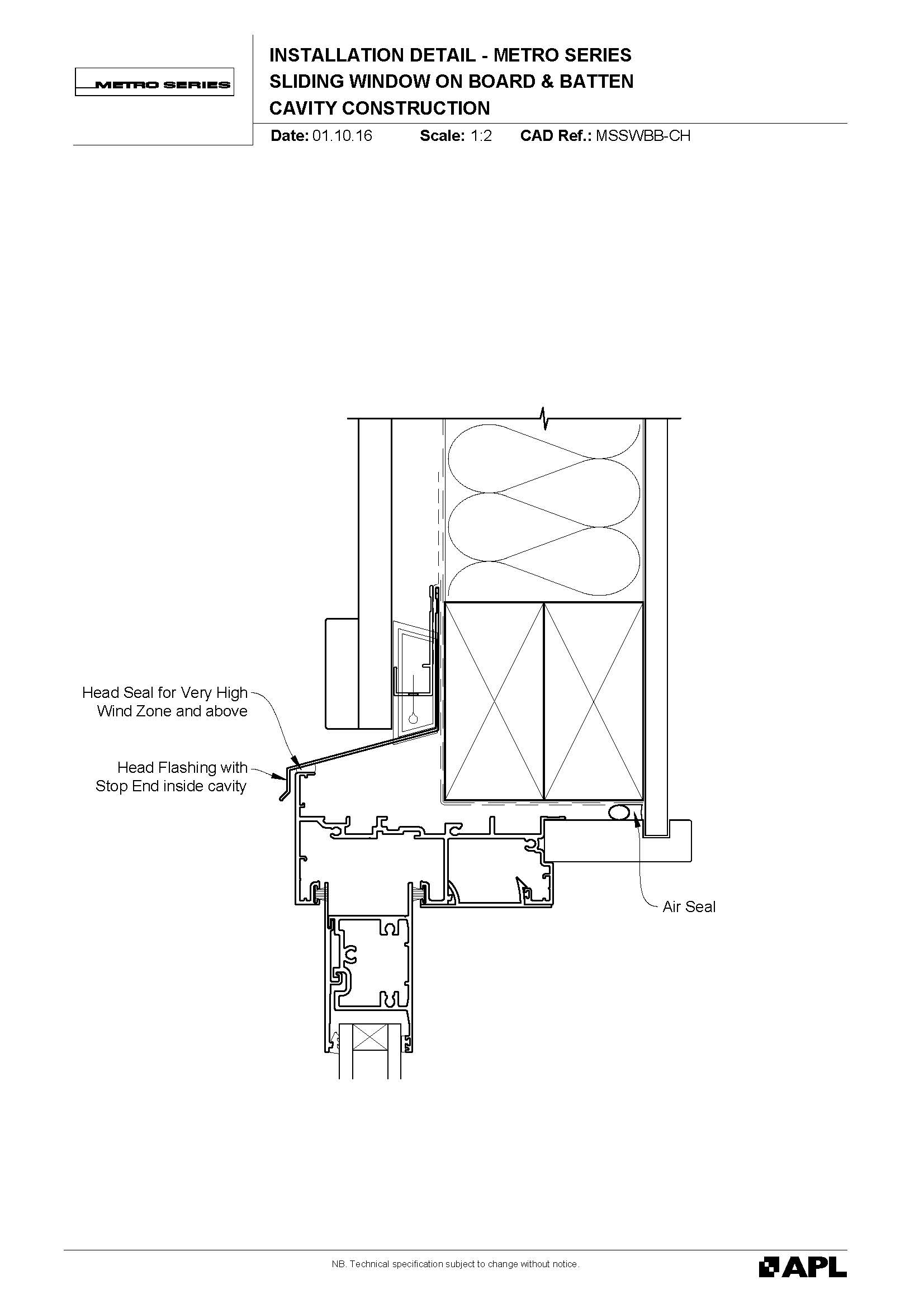

Vantage Metro Series Sliding Window on Board and Batten

MSSWBB

dwg

pdf

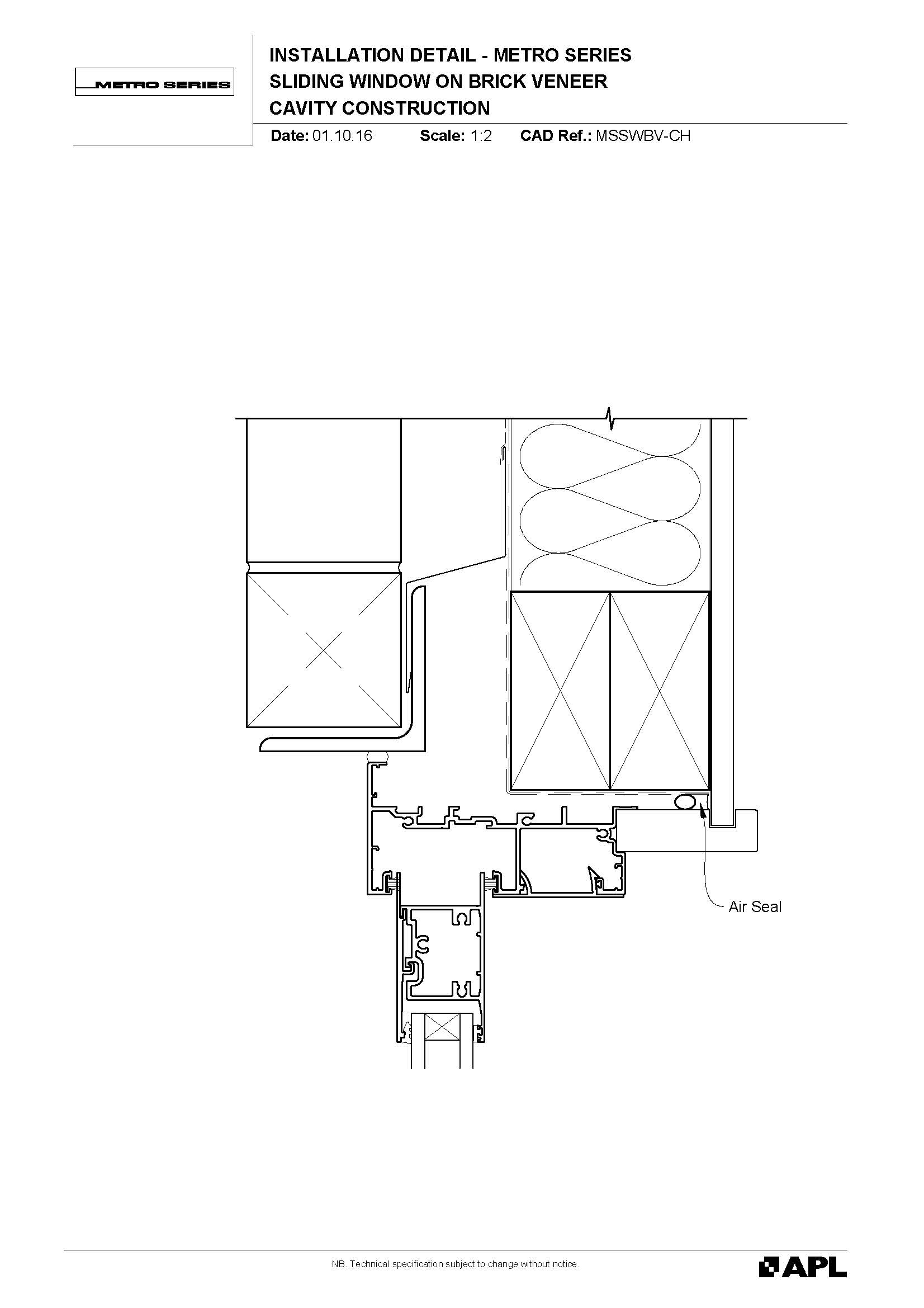

Vantage Metro Series Sliding Window on Brick Veneer

MSSWBV

dwg

pdf

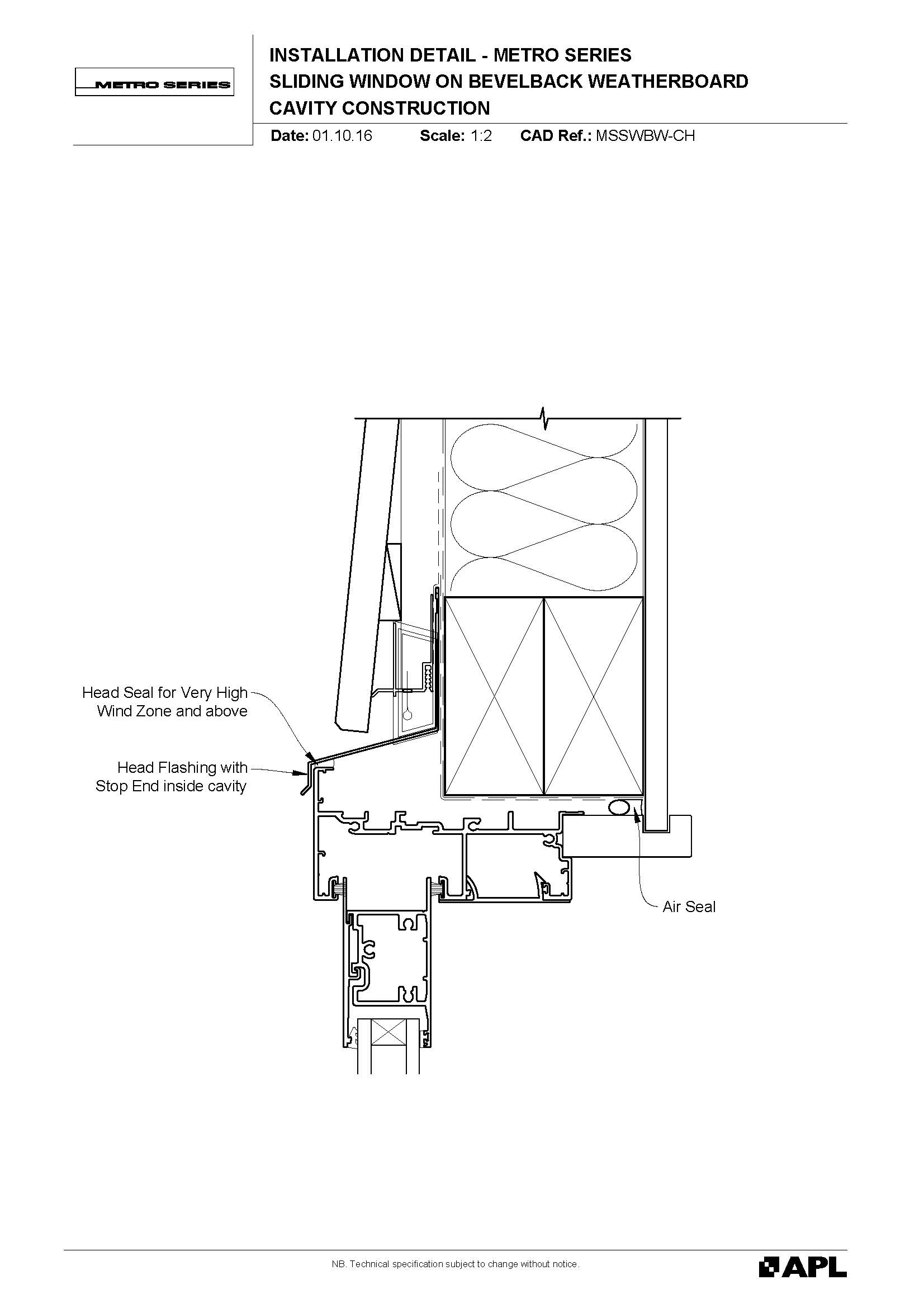

Vantage Metro Series Sliding Window on Bevelback Weatherboard

MSSWBW

dwg

pdf

Vantage Metro Series Sliding Window on Flat Sheet

MSSWFS

dwg

pdf

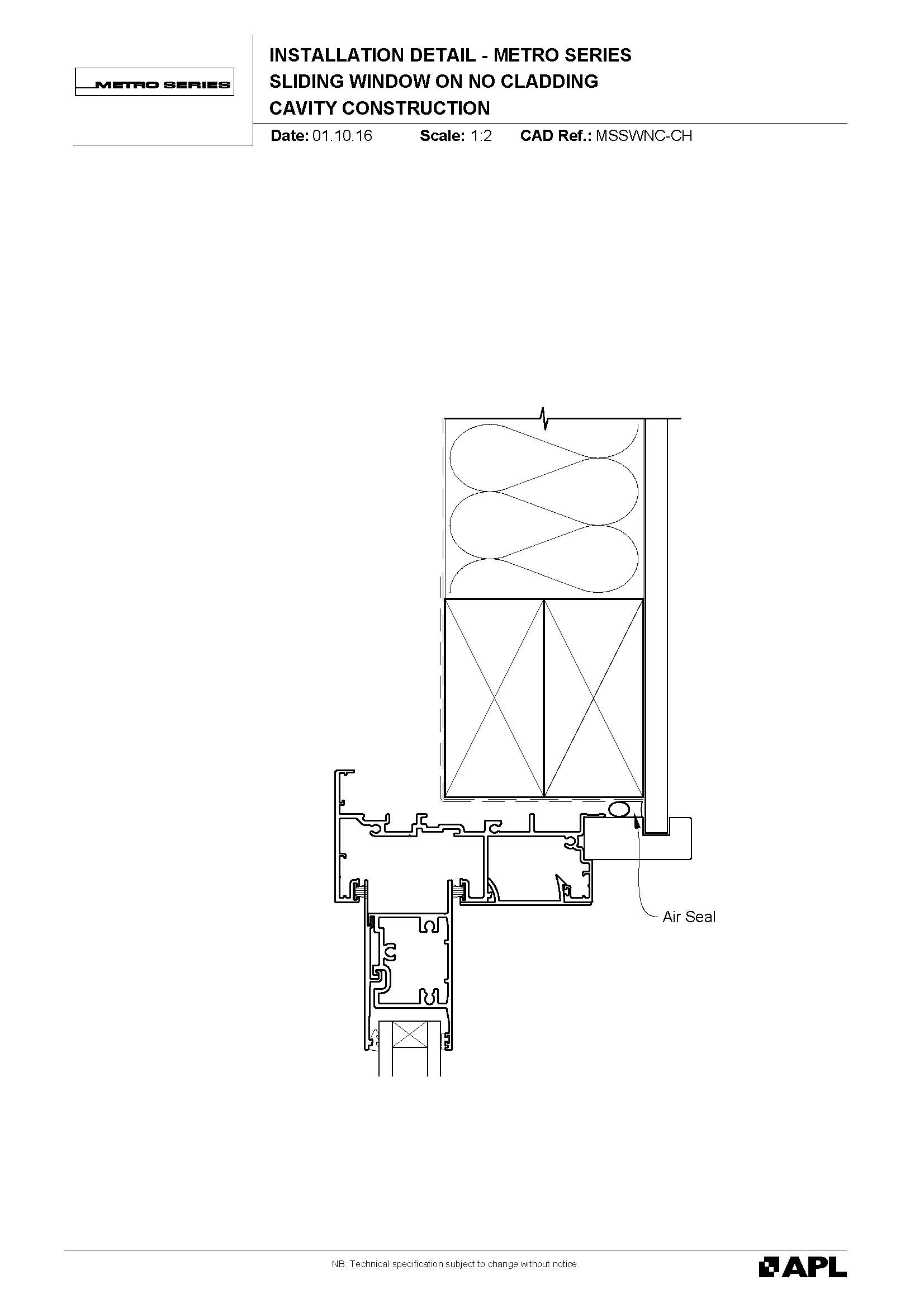

Vantage Metro Series Sliding Window on No Cladding

MSSWNC

dwg

pdf

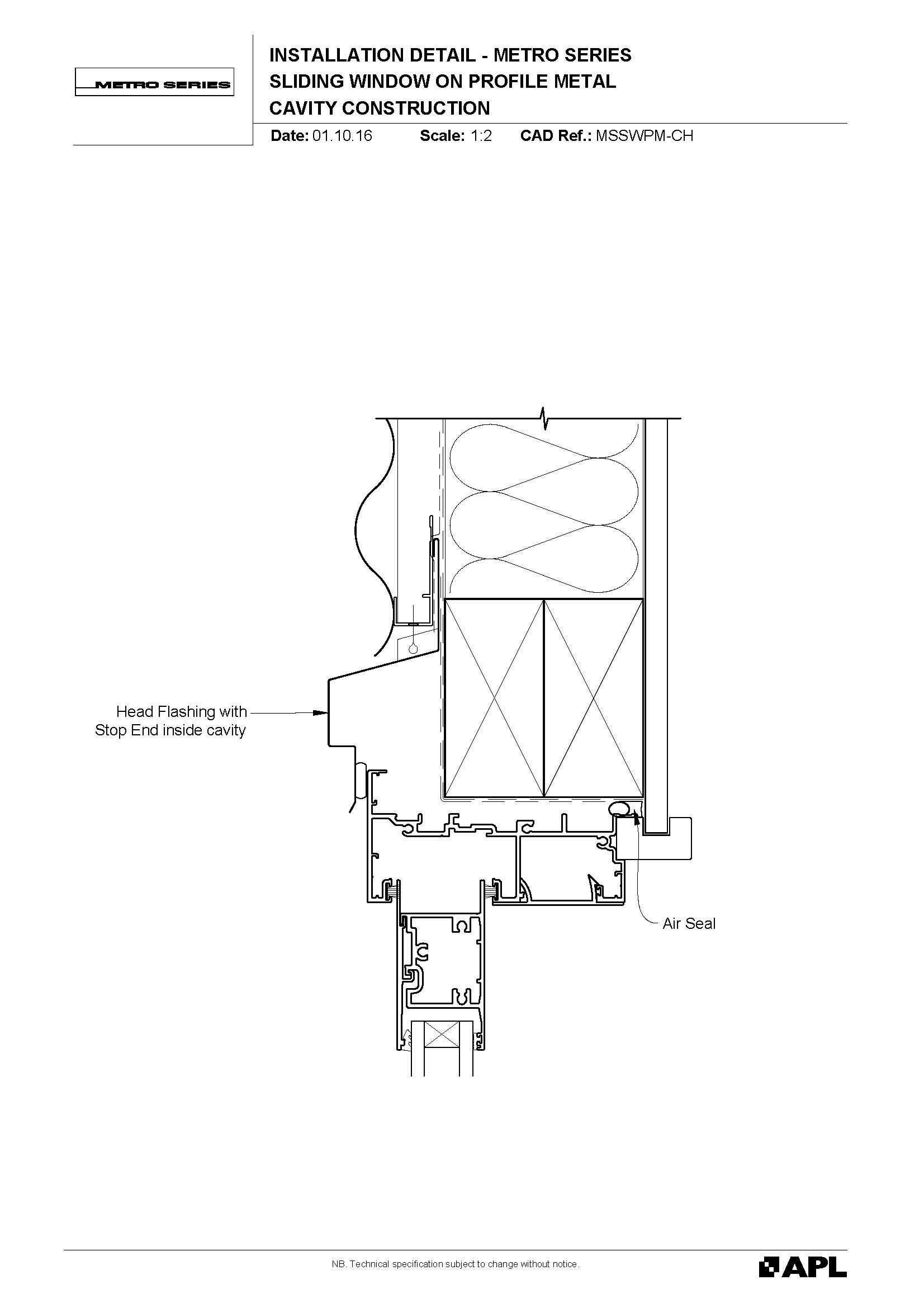

Vantage Metro Series Sliding Window on Profile Metal

MSSWPM

dwg

pdf

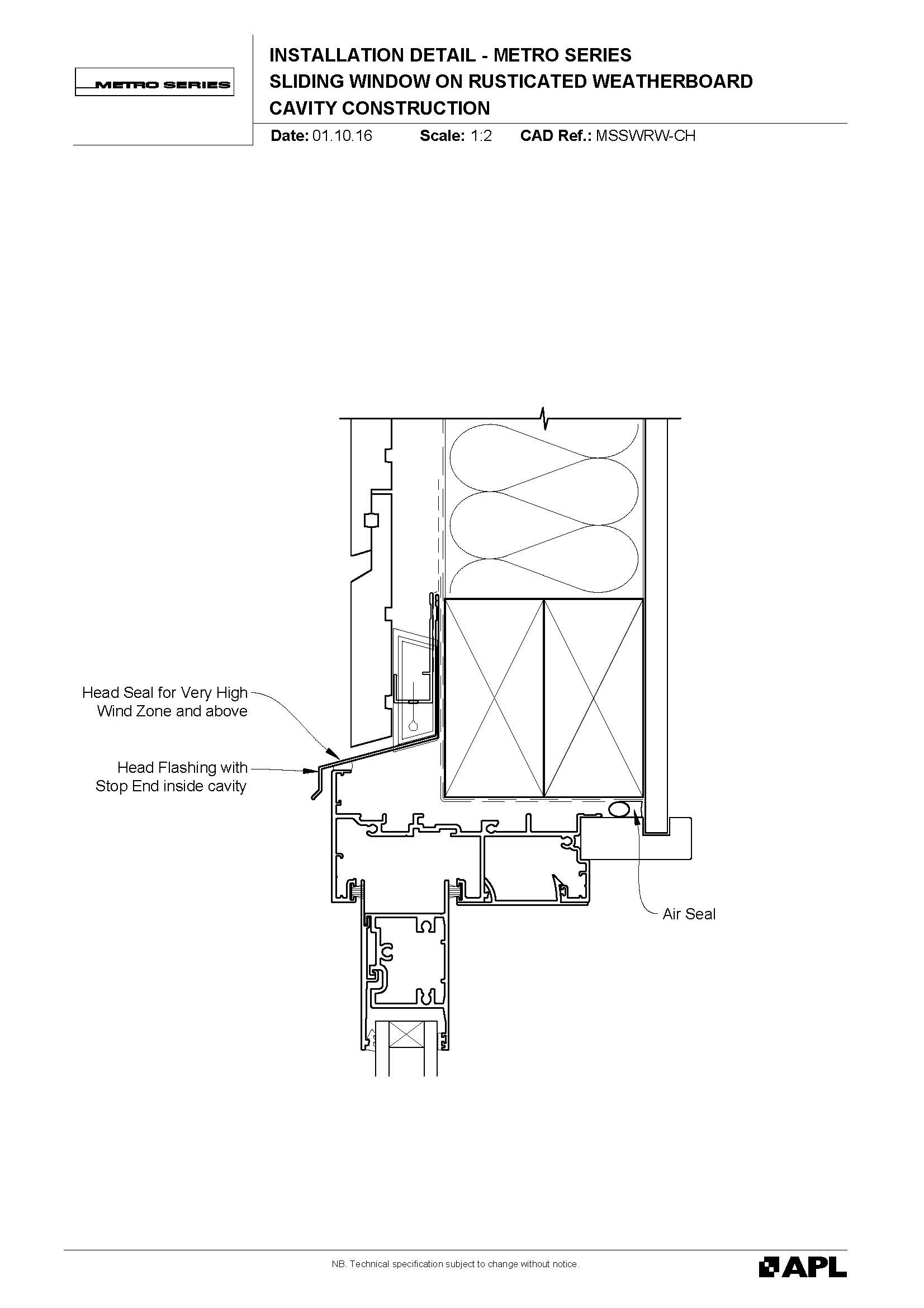

Vantage Metro Series Sliding Window on Rusticated Weatherboard

MSSWRW

dwg

pdf

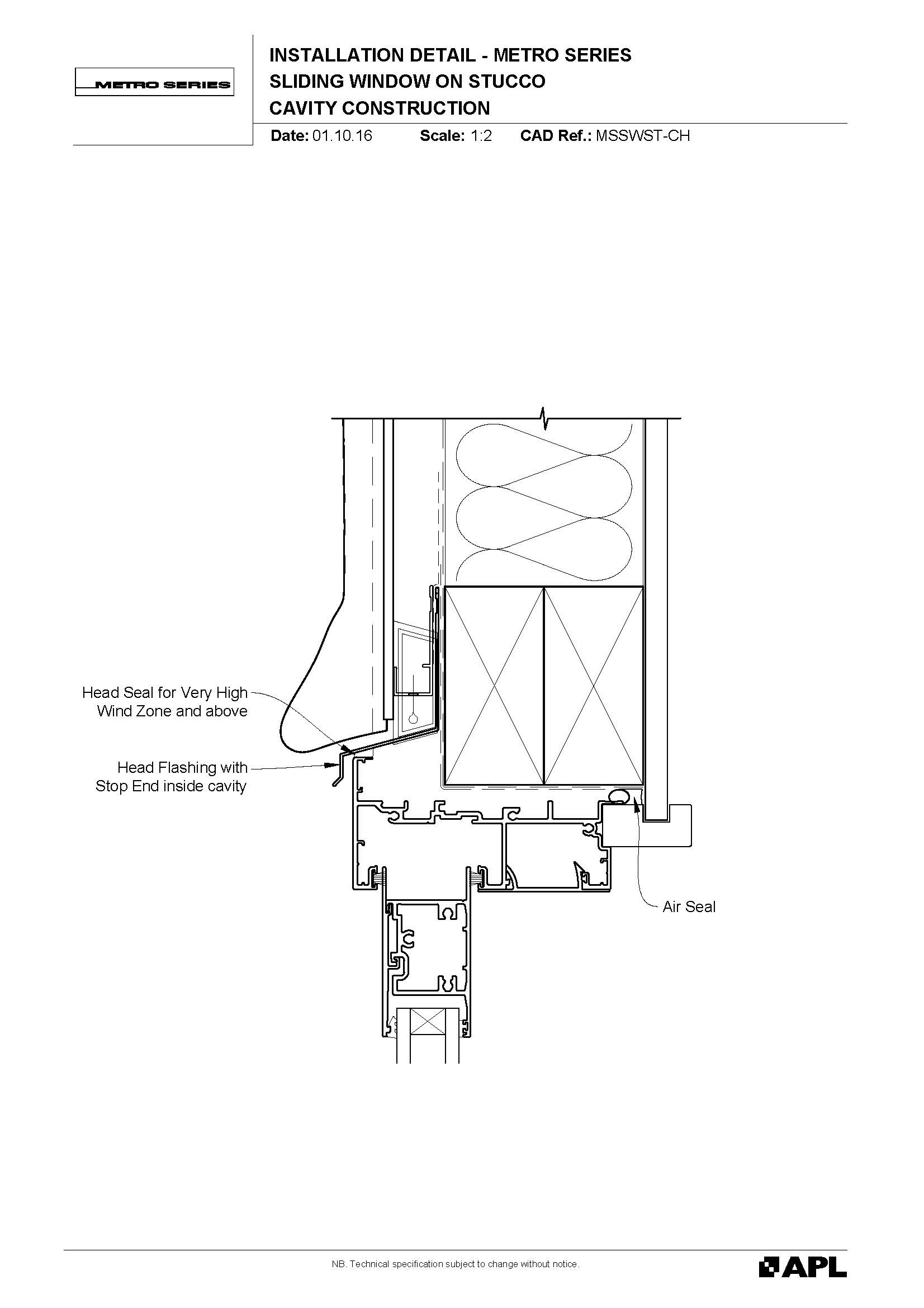

Vantage Metro Series Sliding Window on Stucco

MSSWST

dwg

pdf

BIM

View full

Metro Series Sliding Doors/Windows Ventient

Revit LT 2020

rfa

Vantage Windows & Doors' locally made joinery is found in more New Zealand homes than any other brand, and Vantage are always refining and innovating solutions to meet changing needs.
