APL Architectural Series Hinged & French Doors
VANTAGE Windows & Doors
All products
For high-performance double-glazing, explore AGP’s product range available now Explore

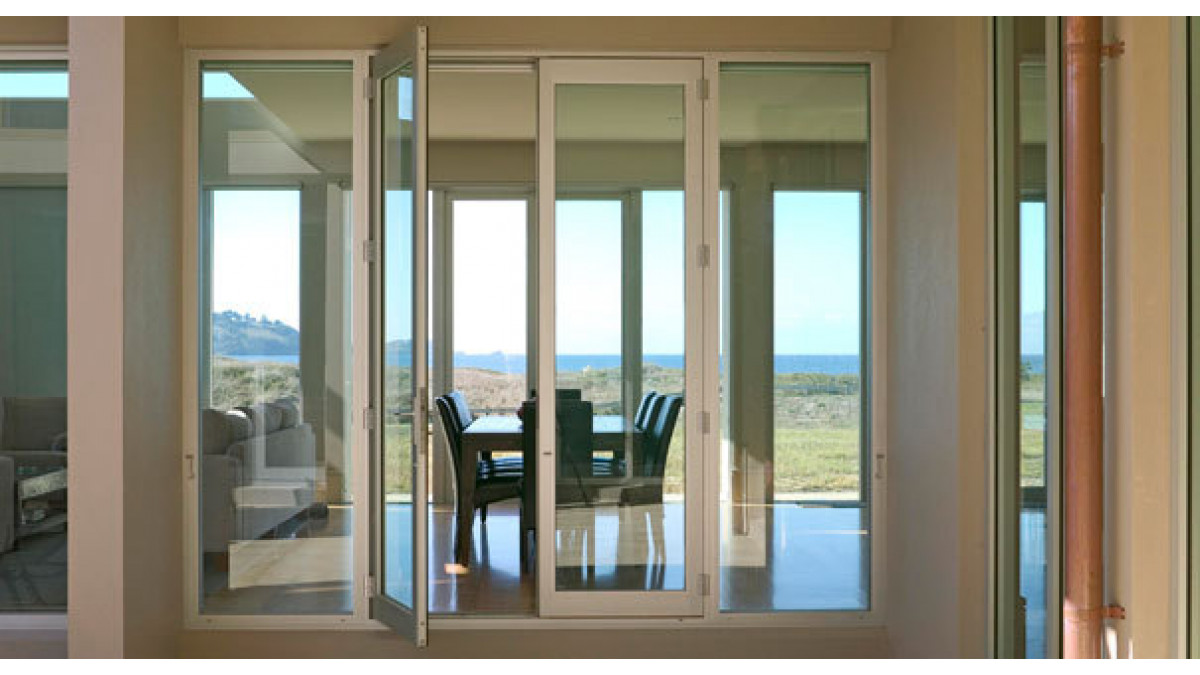

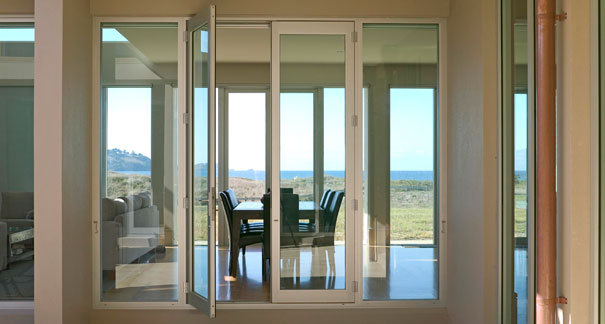

AS Hinged French Drs C26V7617 copy

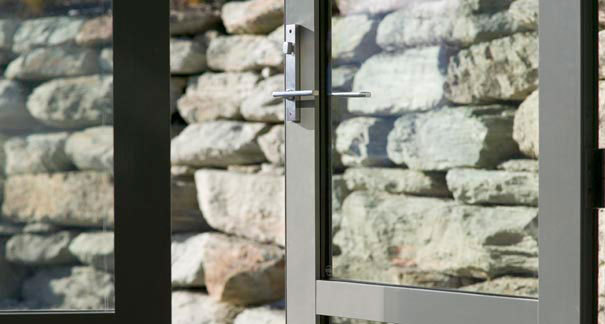

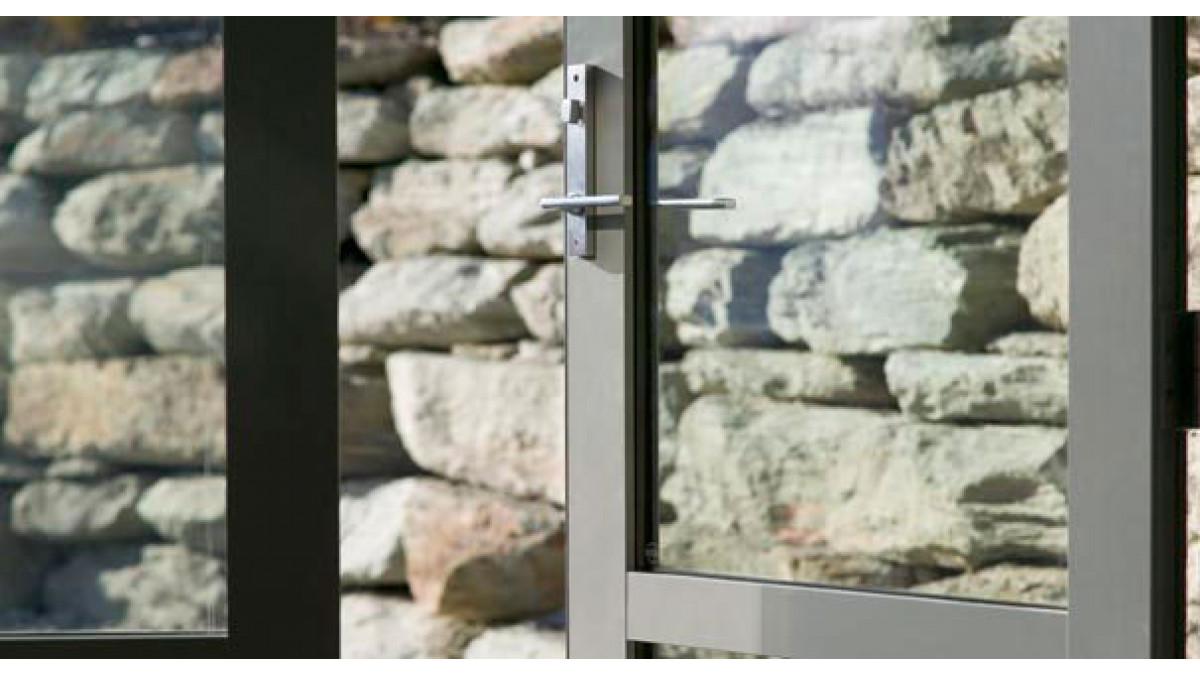

AS Hinged French Drs C26V9009
VAHD07 0

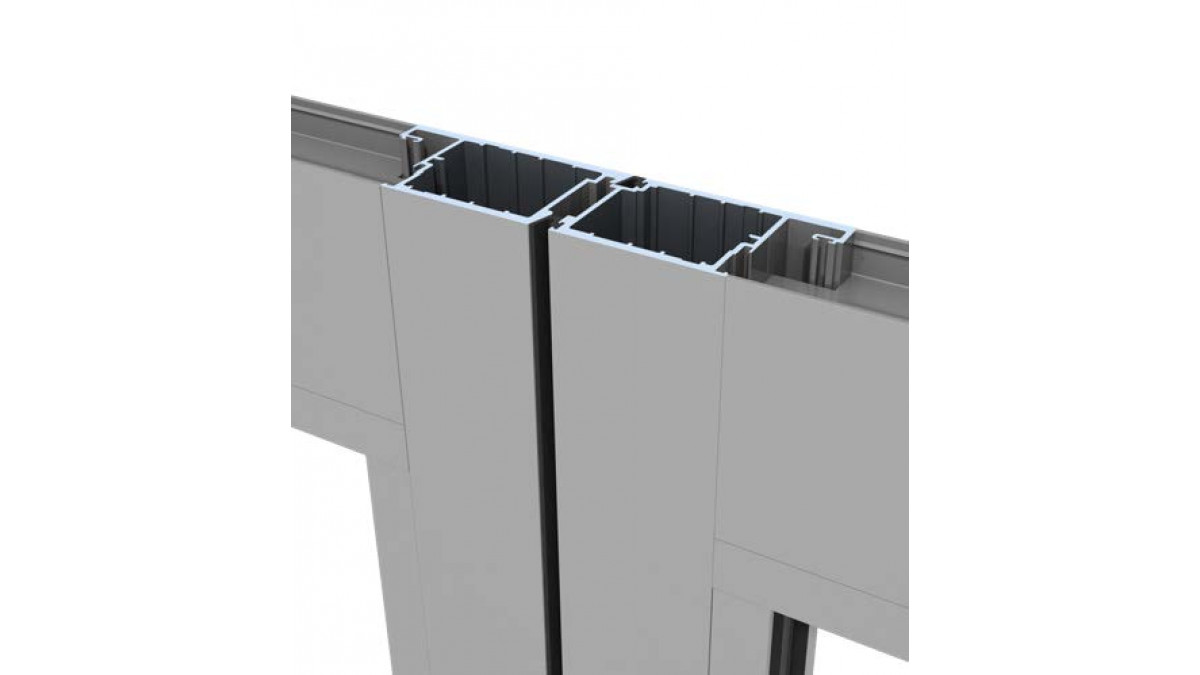

French door meeting stiles

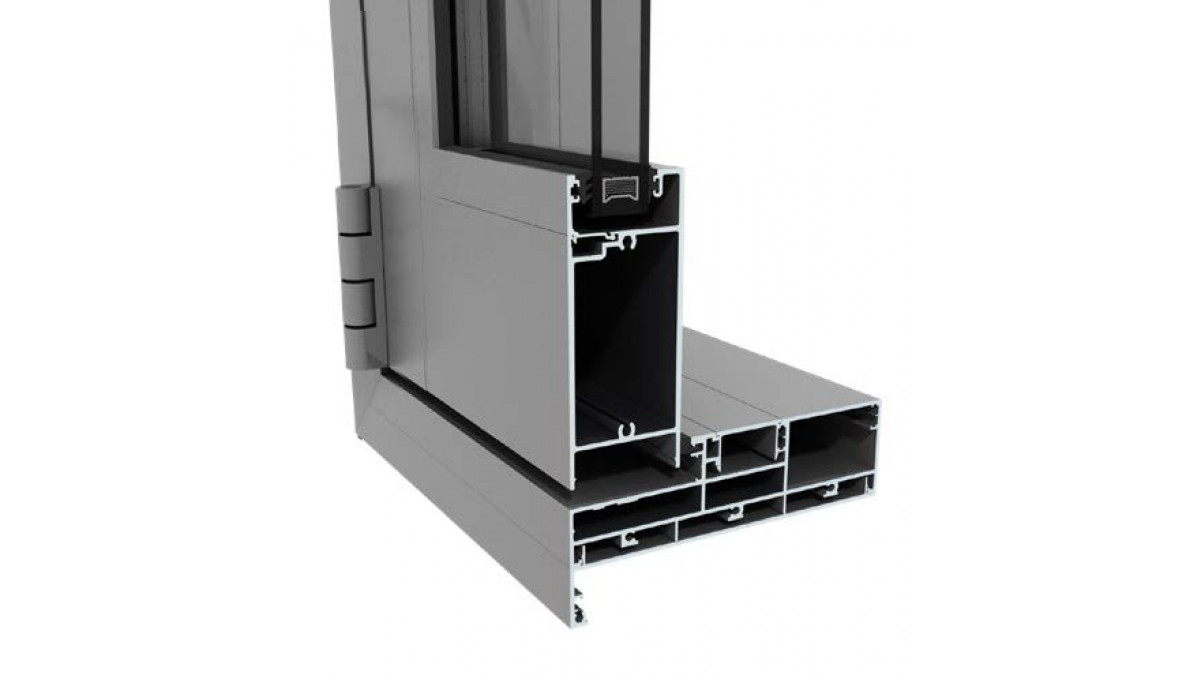

Hinged door frame 158mm open out

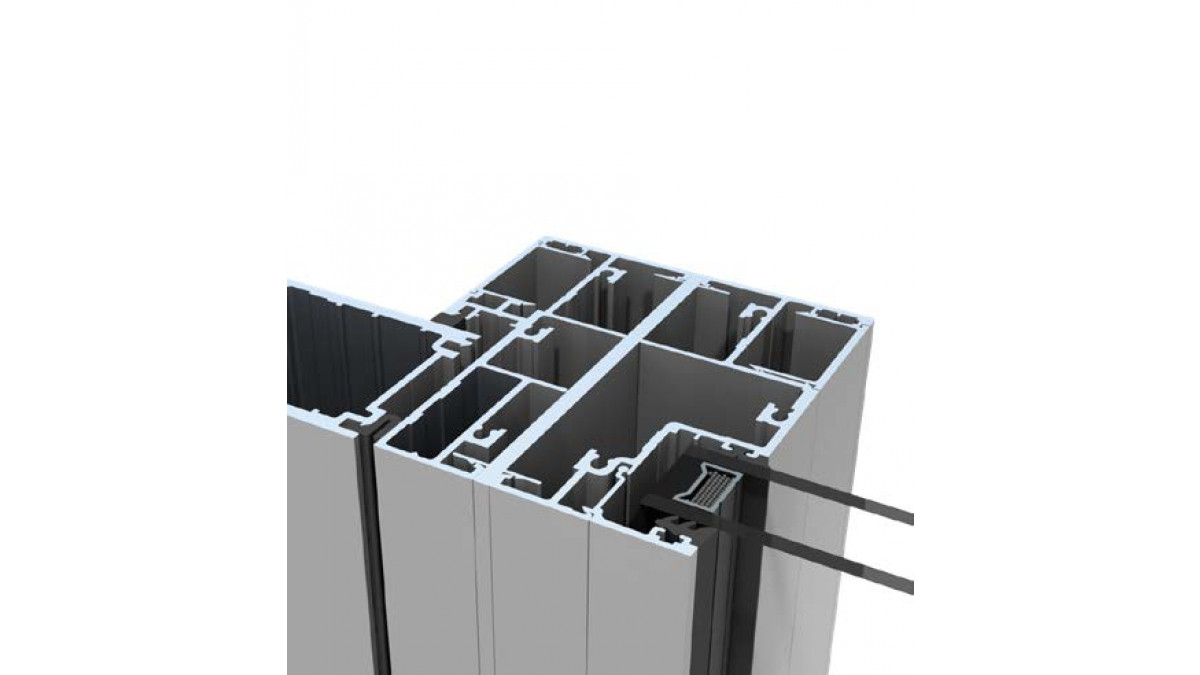

Hinged door coupling bar and sidelight on right

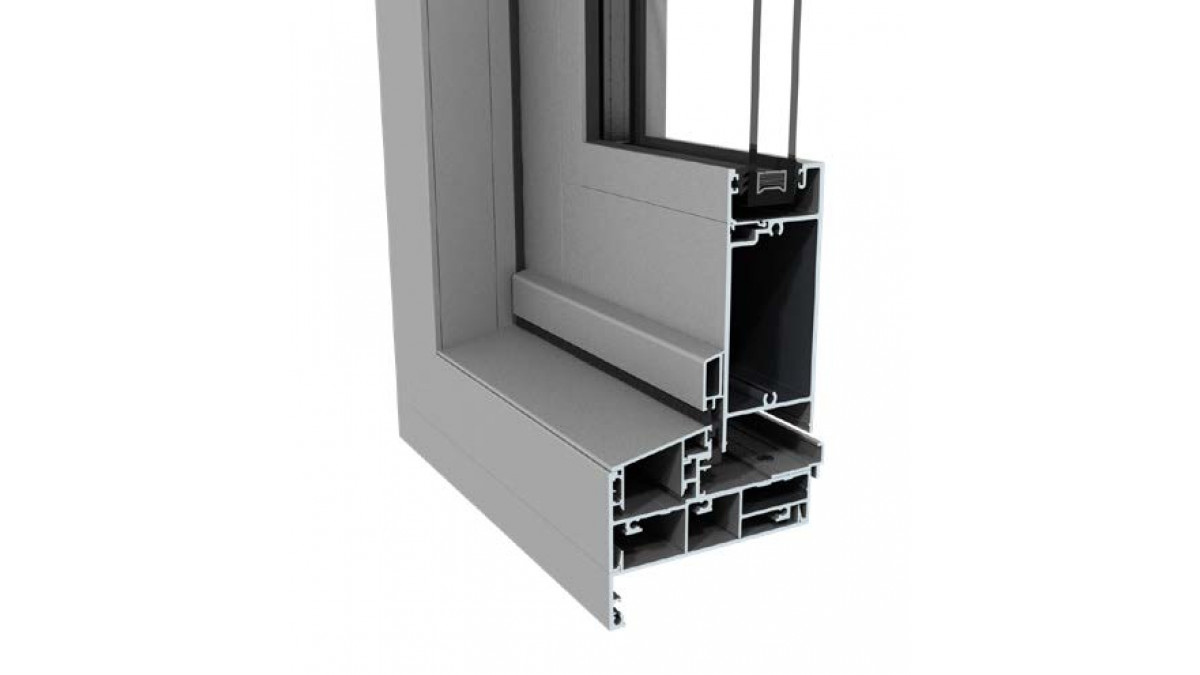

Open in door with weather bar on door rail
Description

Hinged door panels are 50mm deep and are bead glazed externally on all sides. Hinged doors are open-out and open-in. The open-out door is available in the two frame options while the open-in door is available in one frame only. French doors have rebated meeting stiles for a flush look.

Key Features
  • Recommended maximum 2700mm high doors in Extra High wind zones
  • Flush meeting stiles for French doors
  • Open-out and open-in frames available
  • Frame facing adaptors available
  • Parliament hinges allow doors to open outwards a full 180º in brick veneer situations
  • French door flush bolts are concealed from view in the leading edge of the 'lazy' door panel
  • Overlights and sidelights are possible
Categories
Hinged and French Doors
Ranges
APL Architectural Series
Scope of Use
  • Suitable for most residential environments in larger sizes
  • Need to be used in defined maximum sizes according to the wind exposure
  • Single panels ideal as utility doors
  • Overlights and sidelights are possible
Limitations on Use
  • Open-in frame available but open-out applications will generally be preferred for utility and French doors
  • Recommended maximum 2700mm high doors in 'Extra High' wind zones



Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2



In-Service History
  • Launched in 2004
  • Design upgrades regularly released
  • Widely used by homeowners, builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • Case Studies
Documents
Data Sheet
pdf
Span Tables
pdf
Declare Label

2022

pdf
Specifier Guide
pdf
Vantage on Masterspec
URL
Manufacturer Contact List
URL
WGANZ Guide to E2/AS1

1 August 2019

pdf
Vantage Care, Maintenance & Warranty Brochure (with AGP)

2020

URL
Vantage Brochure
URL
AGP Cleaning & Maintenance
pdf
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
APL and Sustainability

2019

URL
CAD/PDF Details
View full
Full Set of Drawings
pdf

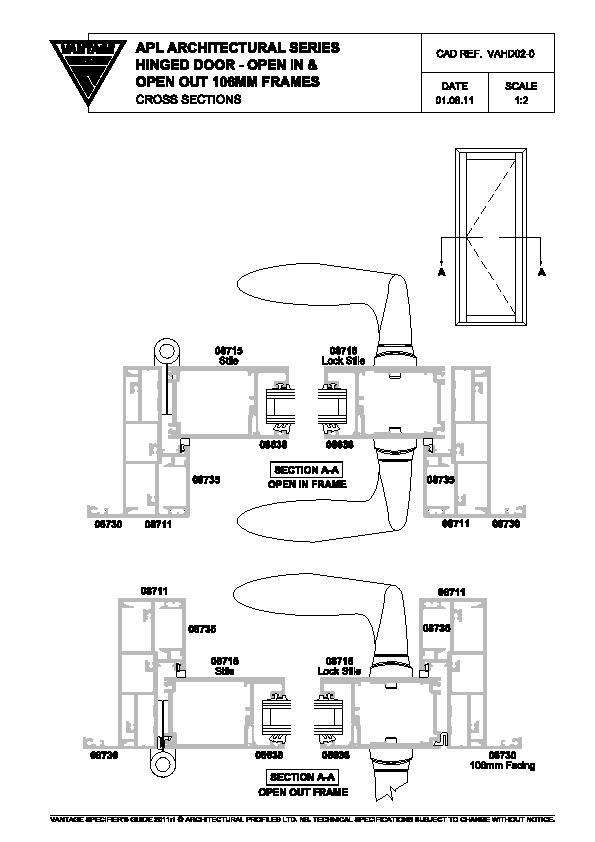

Vantage APL Architectural Series Hinged Door - Open In and Open Out 106mm Frames

VAHD02-0

dwf
dwg
dxf
pdf

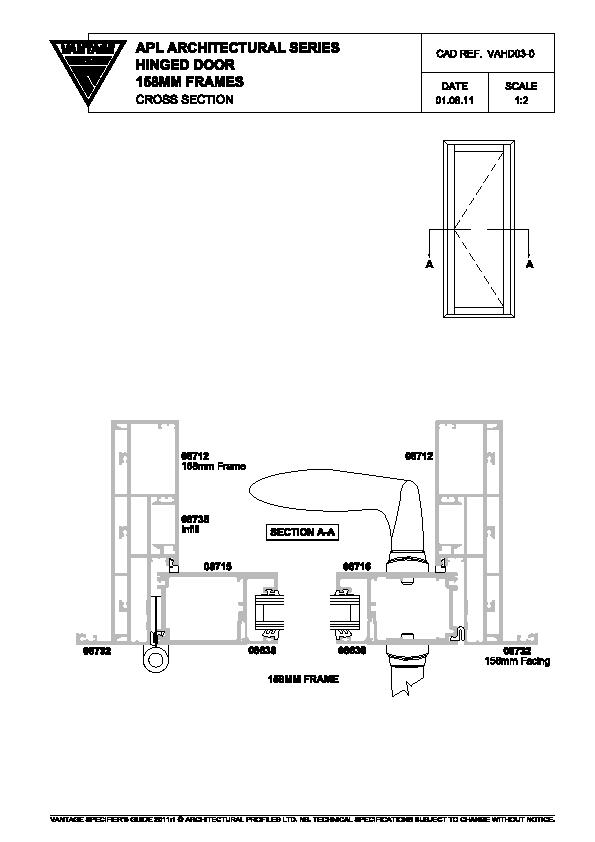

Vantage APL Architectural Series Hinged Door 158mm Frames

VAHD03-0

dwf
dwg
dxf
pdf

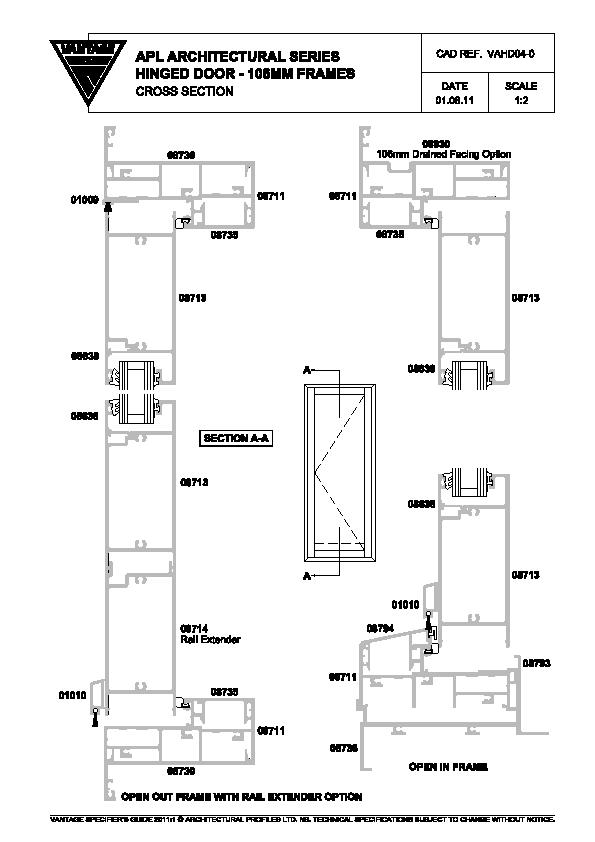

Vantage APL Architectural Series Hinged Door - 106mm Frames

VAHD04-0

dwf
dwg
dxf
pdf

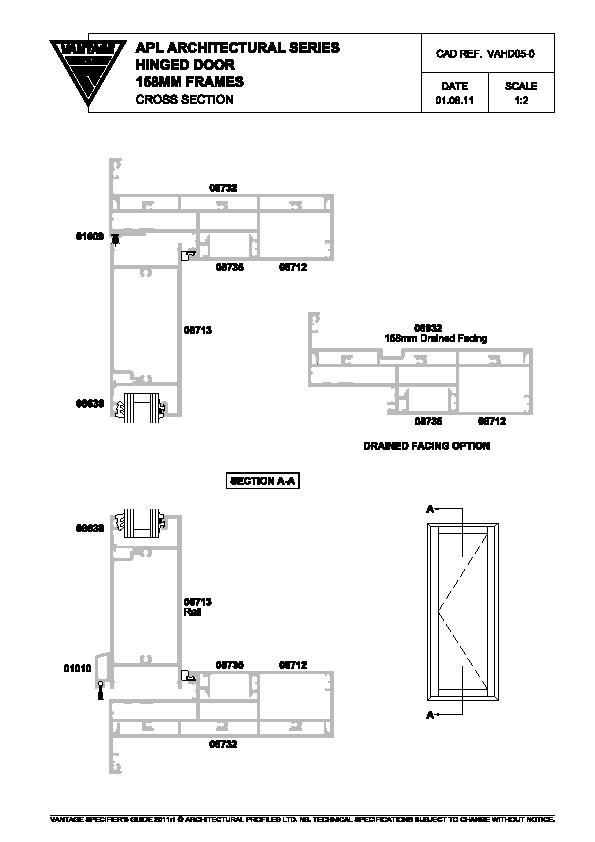

Vantage APL Architectural Series Hinged Door 158mm Frames

VAHD05-0

dwf
dwg
dxf
pdf

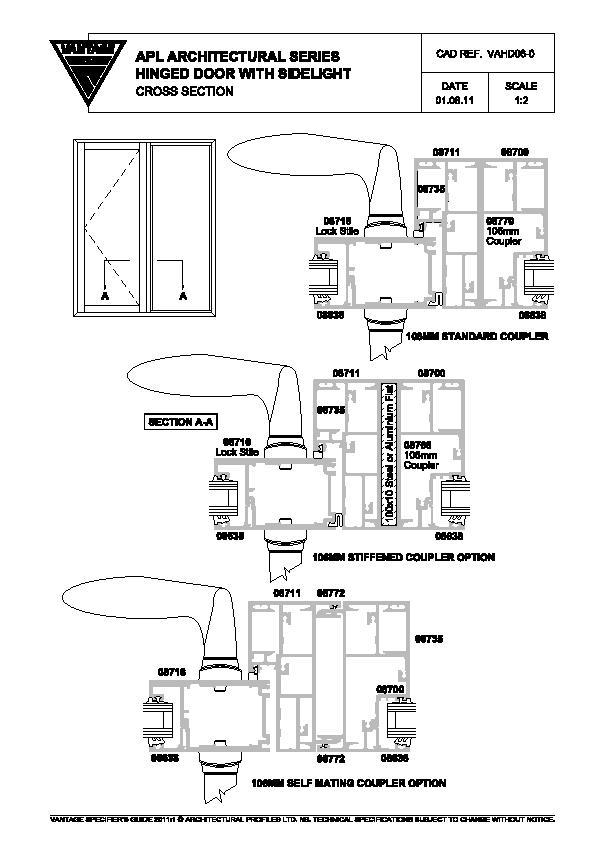

Vantage APL Architectural Series Hinged Door with Sidelight

VAHD06-0

dwf
dwg
dxf
pdf

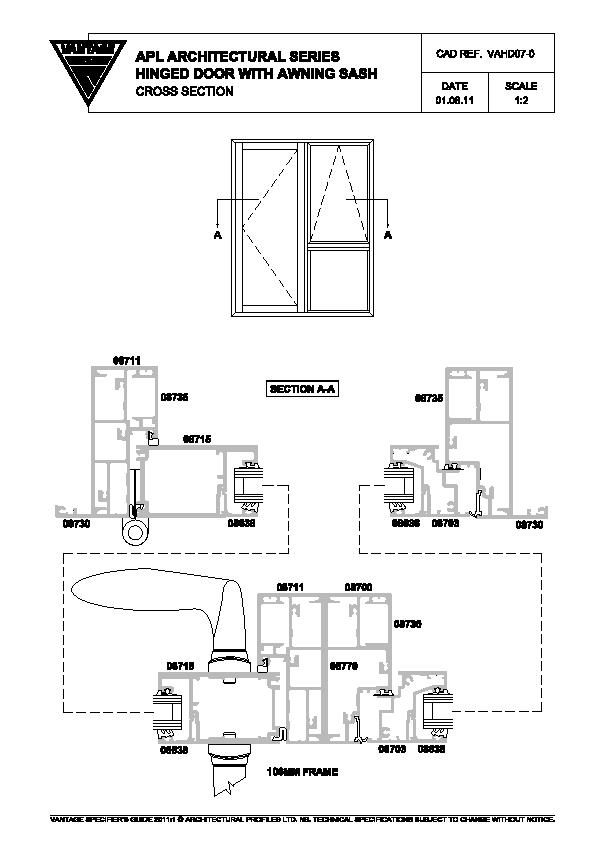

Vantage APL Architectural Series Hinged Door with Awning Sash

VAHD07-0

dwf
dwg
dxf
pdf

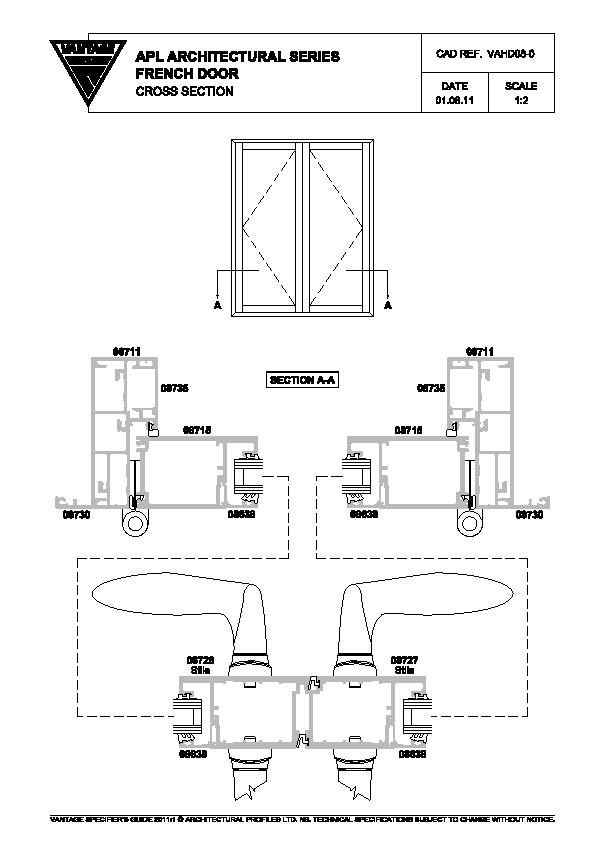

Vantage APL Architectural Series French Door Cross Section

VAHD08-0

dwf
dwg
dxf
pdf

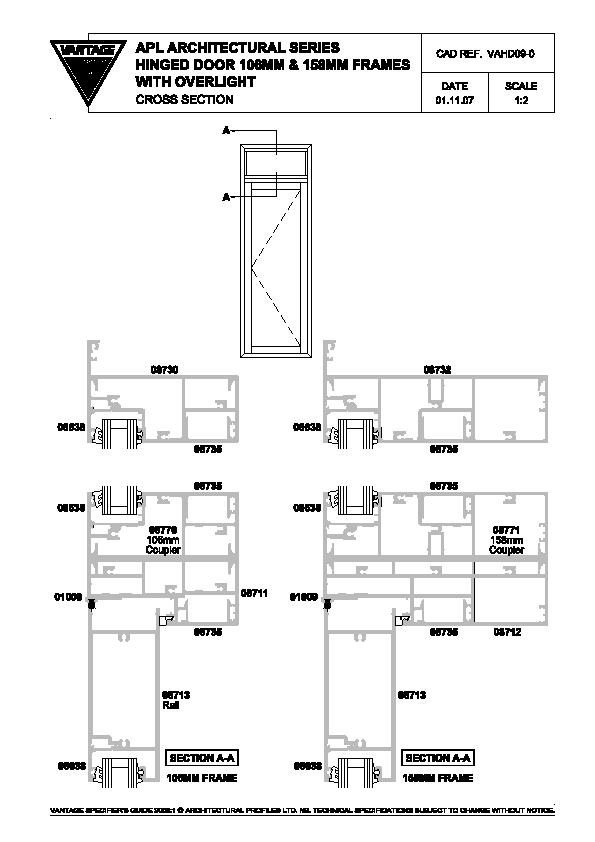

Vantage APL Architectural Series Hinged Door 106mm & 158mm Frames with Overlight

VAHD09-0

dwf
dwg
dxf
pdf

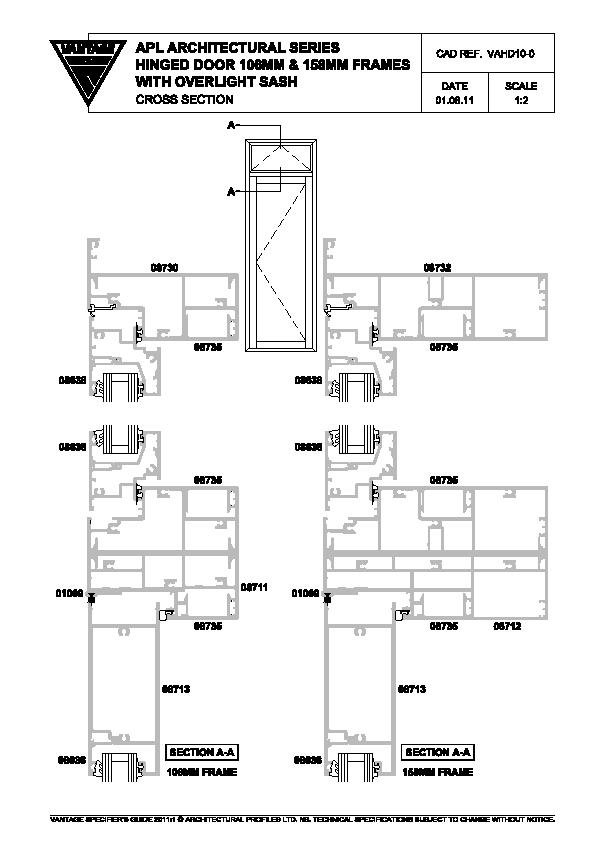

Vantage APL Architectural Series Hinged Door 106mm & 158mm Frames with Overlight Sash

VAHD10-0

dwf
dwg
dxf
pdf
Installation Details
View full

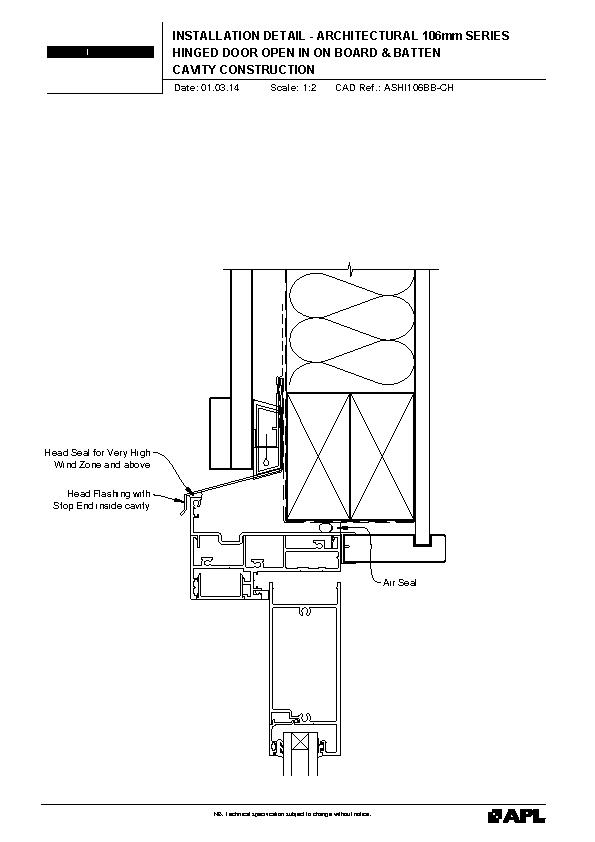

Vantage APL Architectural Series Hinged Door Open In 106mm on Board and Batten

ASHI106BB

dwg
pdf

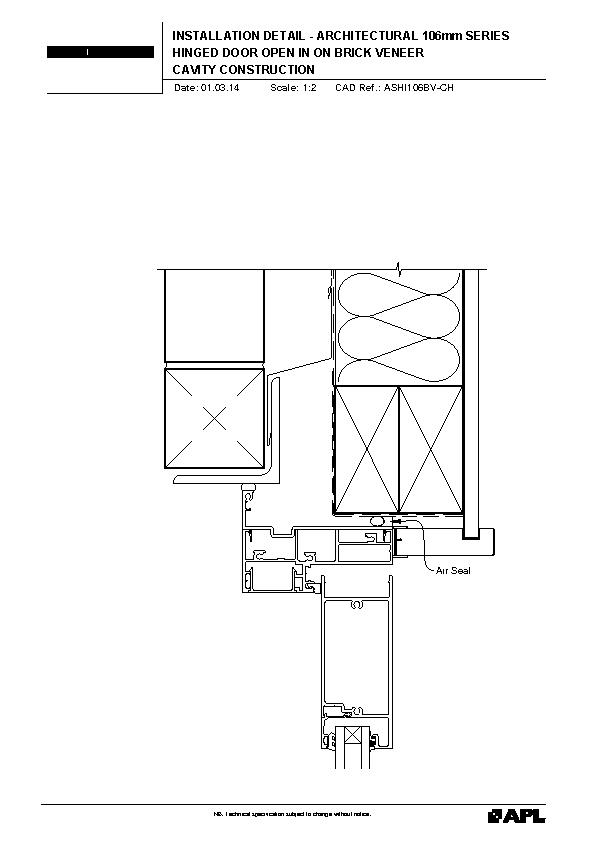

Vantage APL Architectural Series Hinged Door Open In 106mm on Brick Veneer

ASHI106BV

dwg
pdf

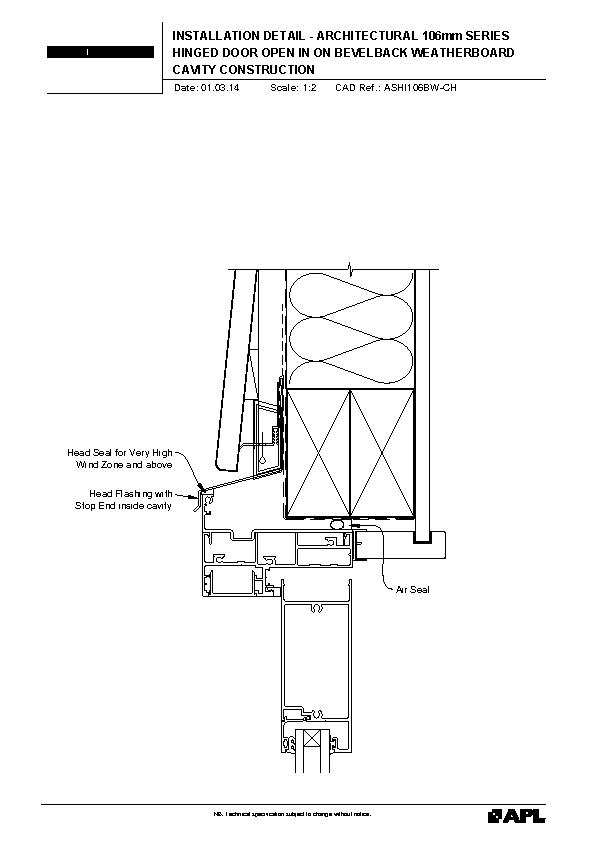

Vantage APL Architectural Series Hinged Door Open In 106mm on Bevelback Weatherboard

ASHI106BW

dwg
pdf

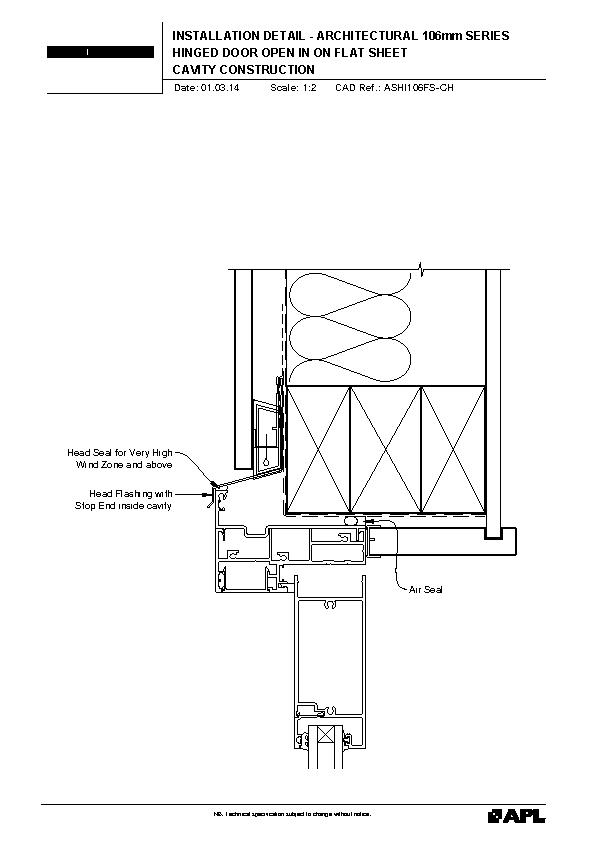

Vantage APL Architectural Series Hinged Door Open In 106mm on Flat Sheet

ASHI106FS

dwg
pdf

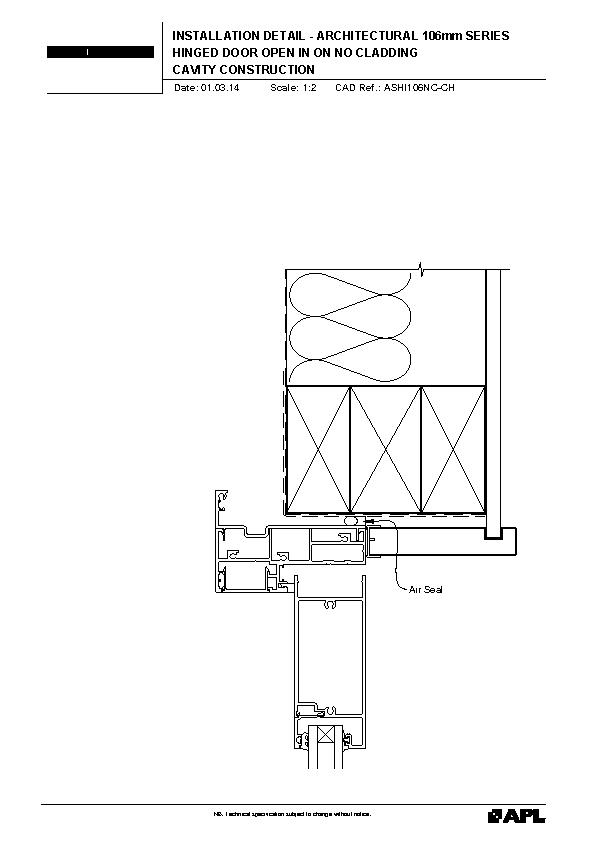

Vantage APL Architectural Series Hinged Door Open In 106mm No Cladding

ASHI106NC

dwg
pdf

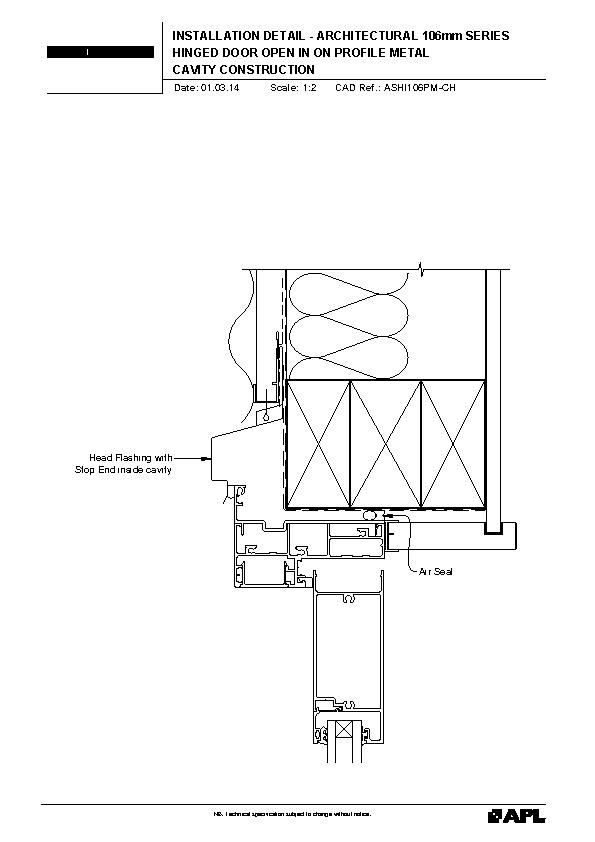

Vantage APL Architectural Series Hinged Door Open In 106mm on Profile Metal

ASHI106PM

dwg
pdf
Vantage APL Architectural Series Hinged Door Open In 106mm on Rusticated Weatherboard

ASHI106RW

dwg
pdf

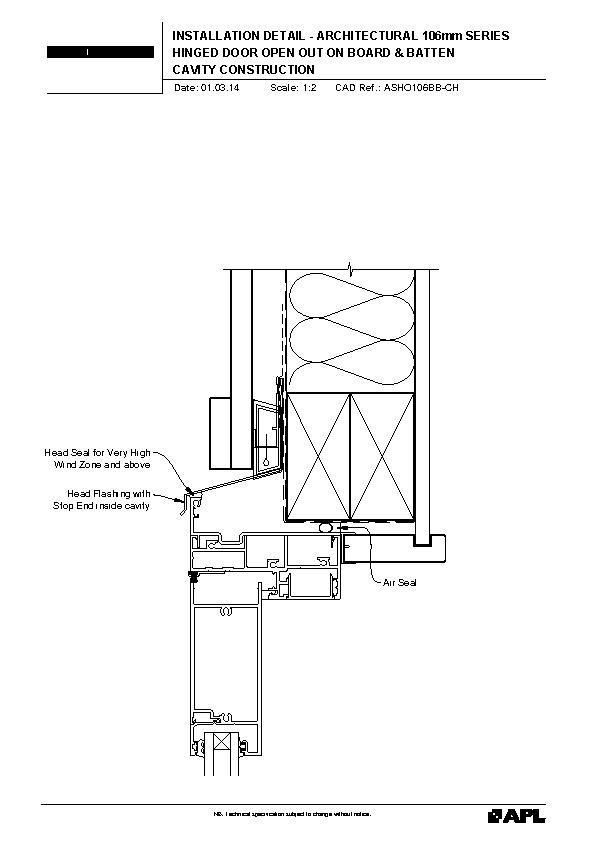

Vantage APL Architectural Series Hinged Door Open Out 106mm on Board and Batten

ASHO106BB

dwg
pdf

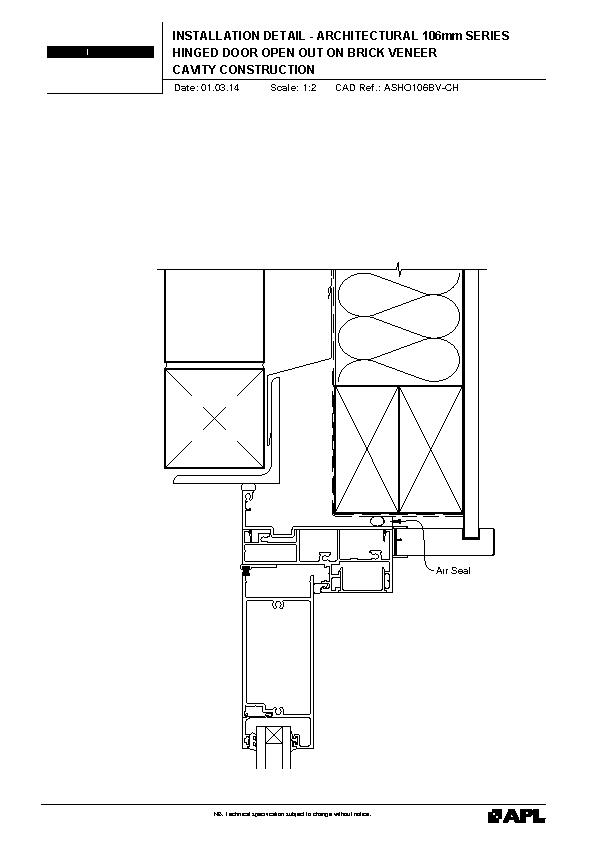

Vantage APL Architectural Series Hinged Door Open Out 106mm on Brick Veneer

ASHO106BV

dwg
pdf

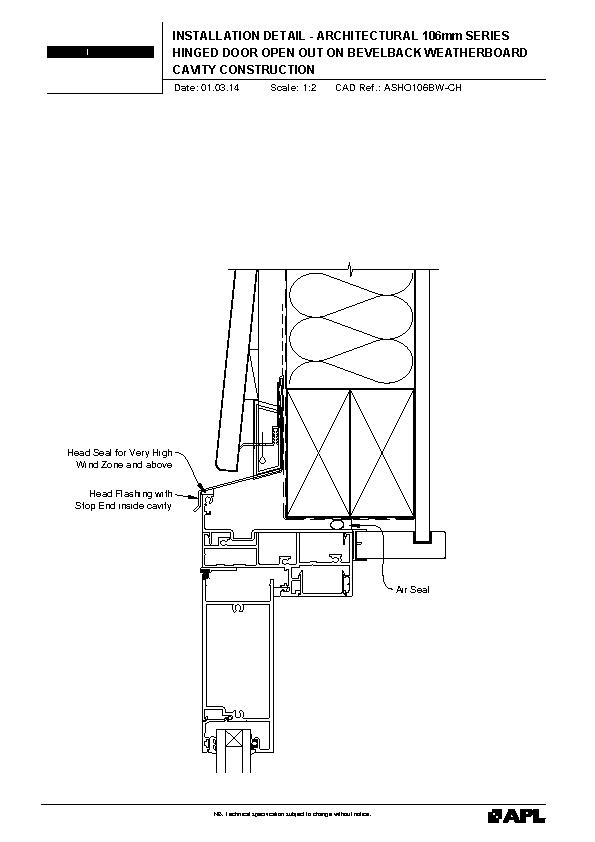

Vantage APL Architectural Series Hinged Door Open Out 106mm on Bevelback Weatherboard

ASHO106BW

dwg
pdf

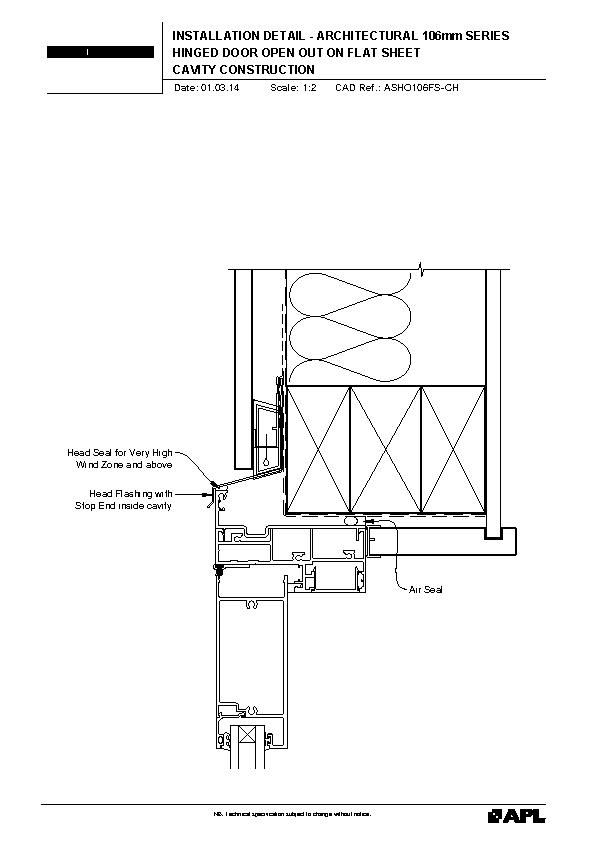

Vantage APL Architectural Series Hinged Door Open Out 106mm on Flat Sheet

ASHO106FS

dwg
pdf

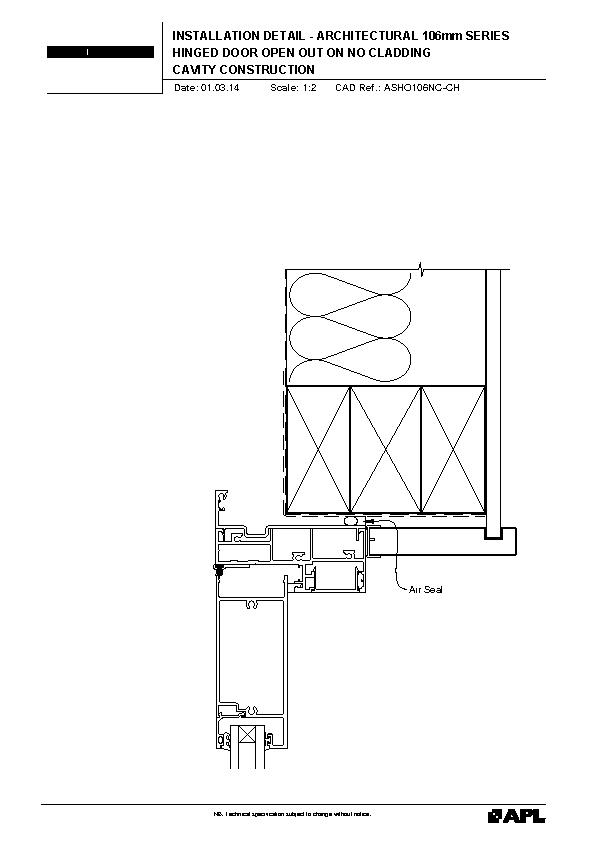

Vantage APL Architectural Series Hinged Door Open Out 106mm on No Cladding

ASHO106NC

dwg
pdf

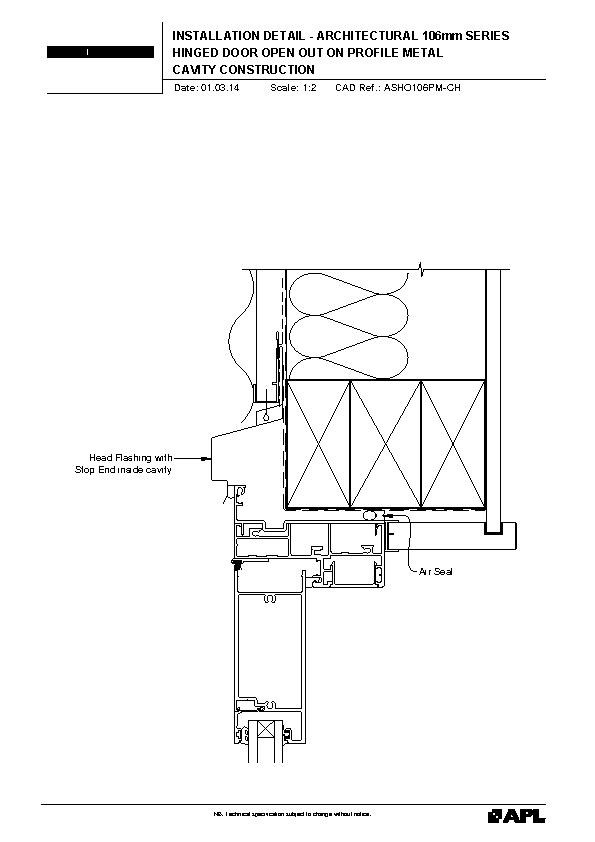

Vantage APL Architectural Series Hinged Door Open Out 106mm on Profile Metal

ASHO106PM

dwg
pdf

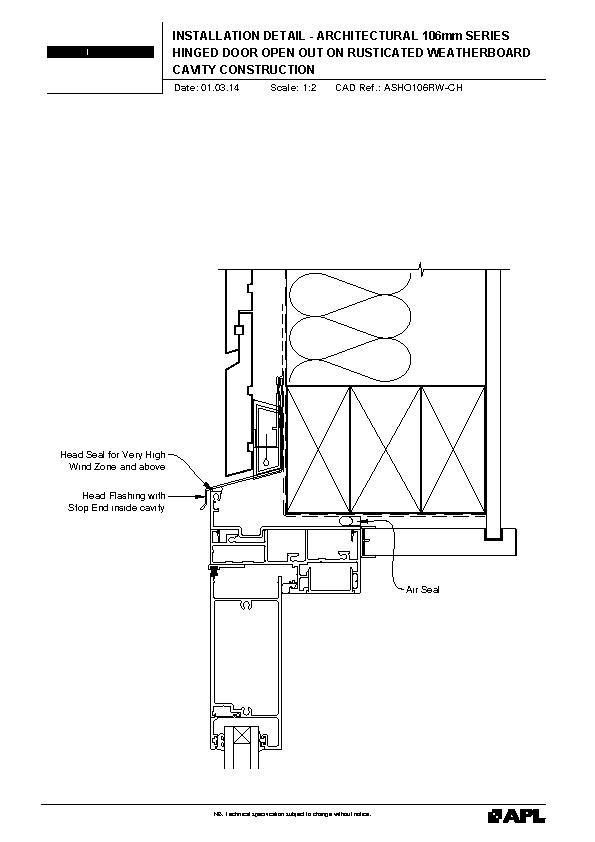

Vantage APL Architectural Series Hinged Door Open Out 106mm on Rusticated Weatherboard

ASHO106RW

dwg
pdf

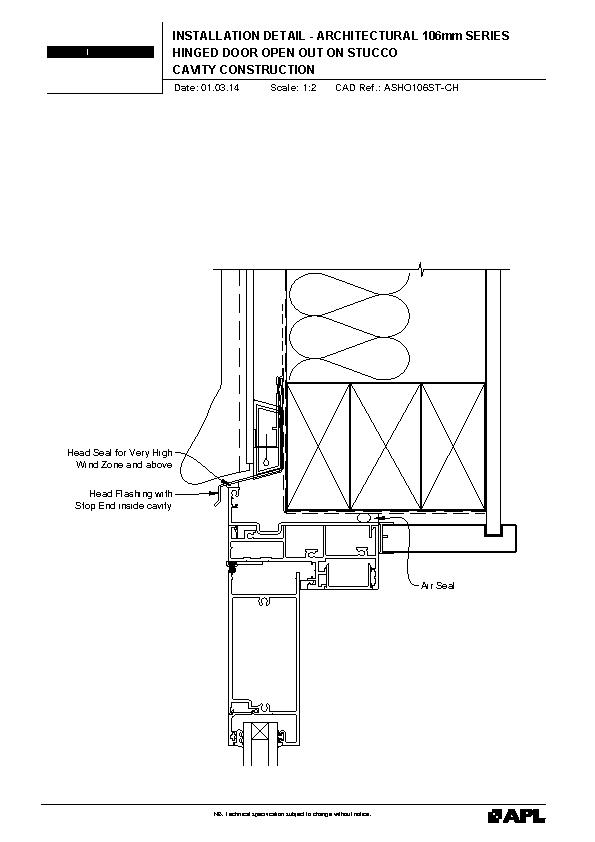

Vantage APL Architectural Series Hinged Door Open Out 106mm on Stucco

ASHO106ST

dwg
pdf

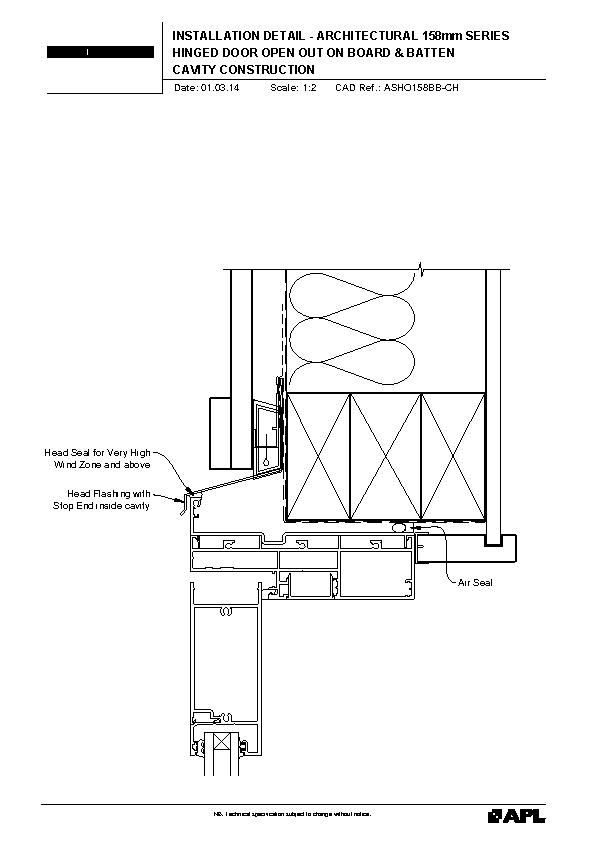

Vantage APL Architectural Series Hinged Door Open Out 158mm on Board and Batten

ASHO158BB

dwg
pdf

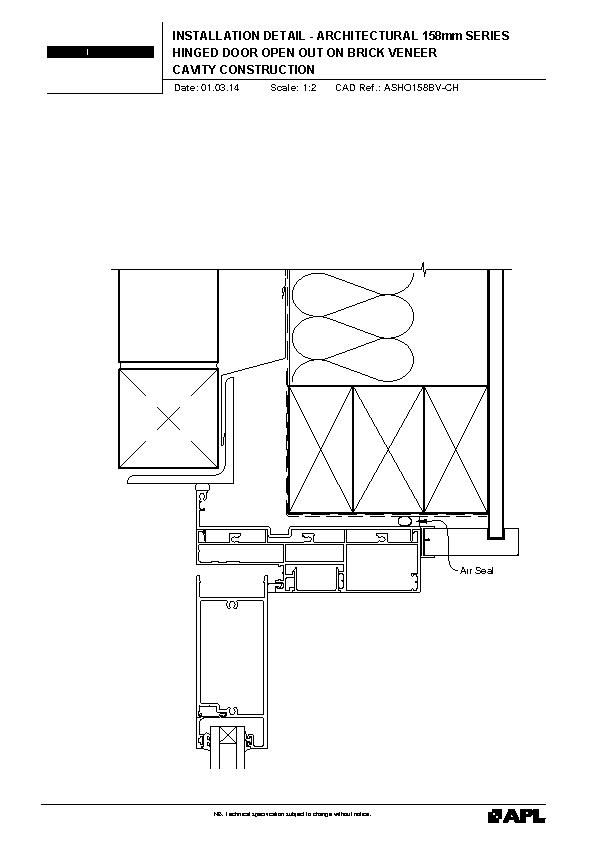

Vantage APL Architectural Series Hinged Door Open Out 158mm on Brick Veneer

ASHO158BV

dwg
pdf

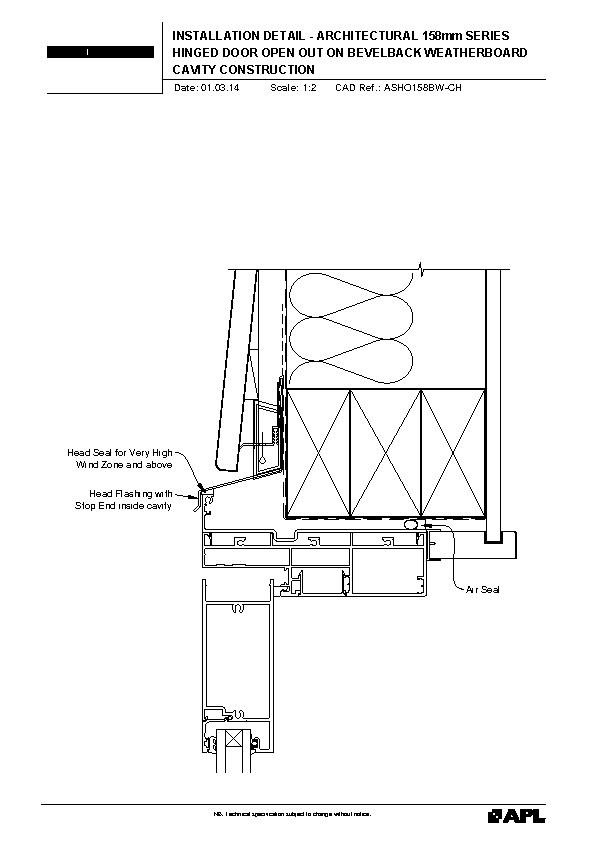

Vantage APL Architectural Series Hinged Door Open Out 158mm on Bevelback Weatherboard

ASHO158BW

dwg
pdf

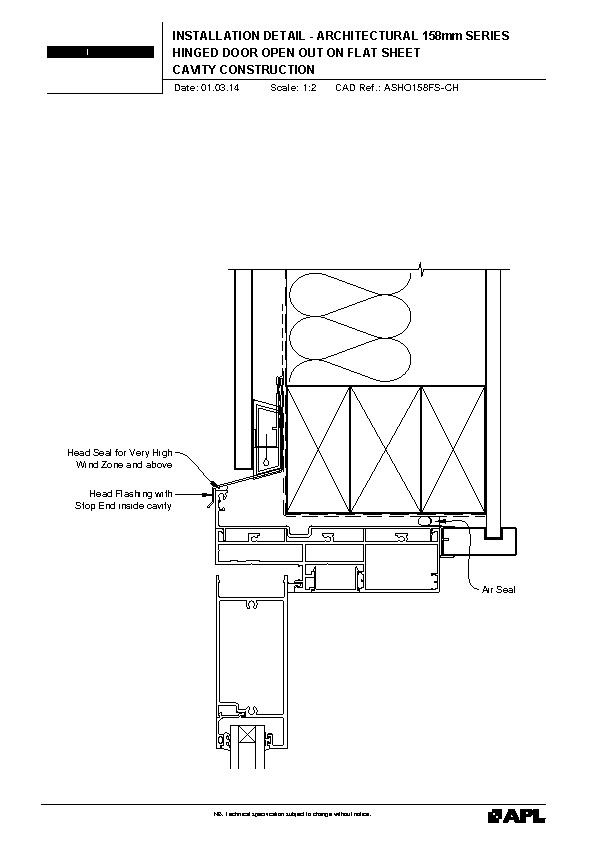

Vantage APL Architectural Series Hinged Door Open Out 158mm on Flat Sheet

ASHO158FS

dwg
pdf

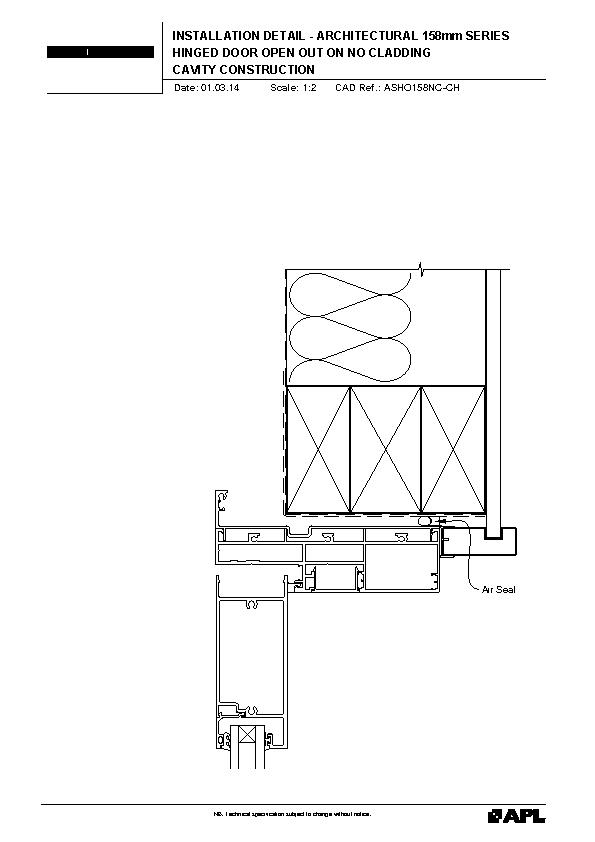

Vantage APL Architectural Series Hinged Door Open Out 158mm on No Cladding

ASHO158NC

dwg
pdf

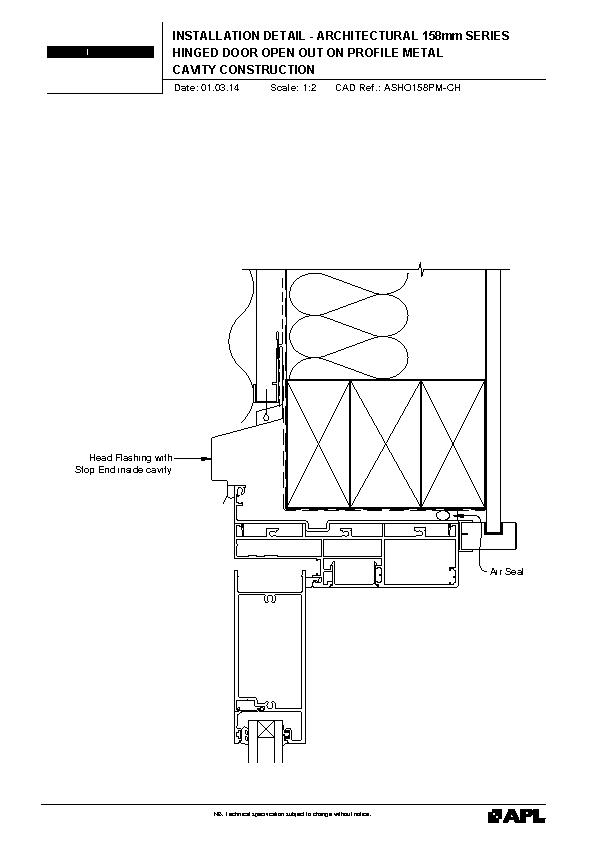

Vantage APL Architectural Series Hinged Door Open Out 158mm on Profile Metal

ASHO158PM

dwg
pdf

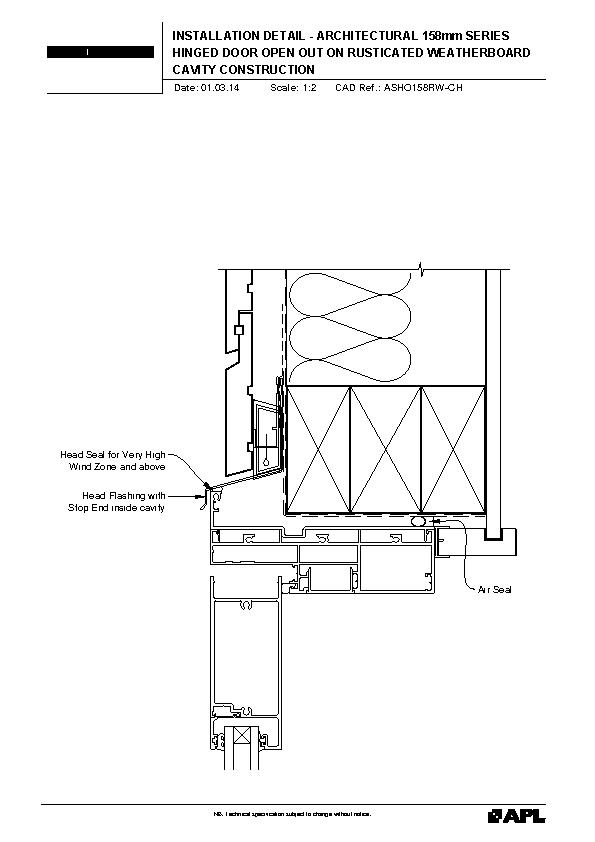

Vantage APL Architectural Series Hinged Door Open Out 158mm on Rusticated Weatherboard

ASHO158RW

dwg
pdf

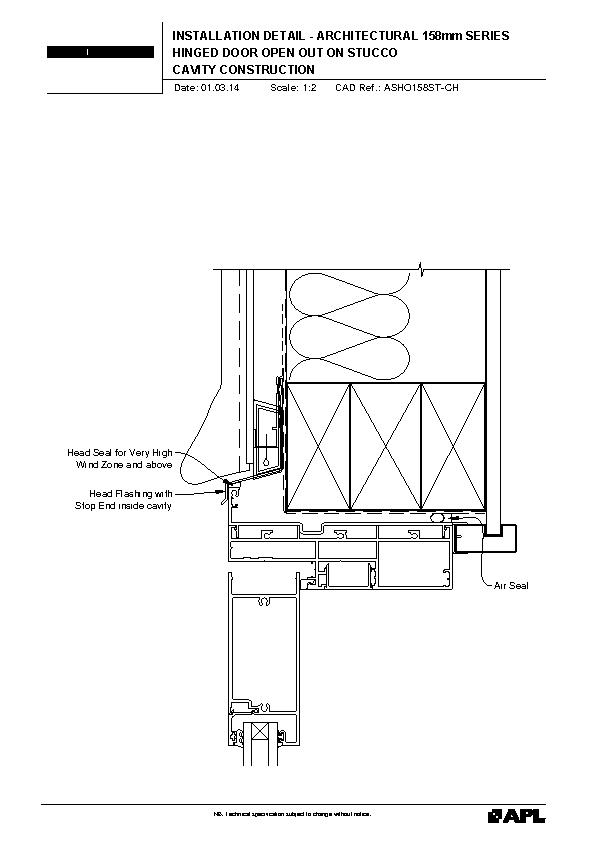

Vantage APL Architectural Series Hinged Door Open Out 158mm on Stucco

ASHO158ST

dwg
pdf
BIM
View full

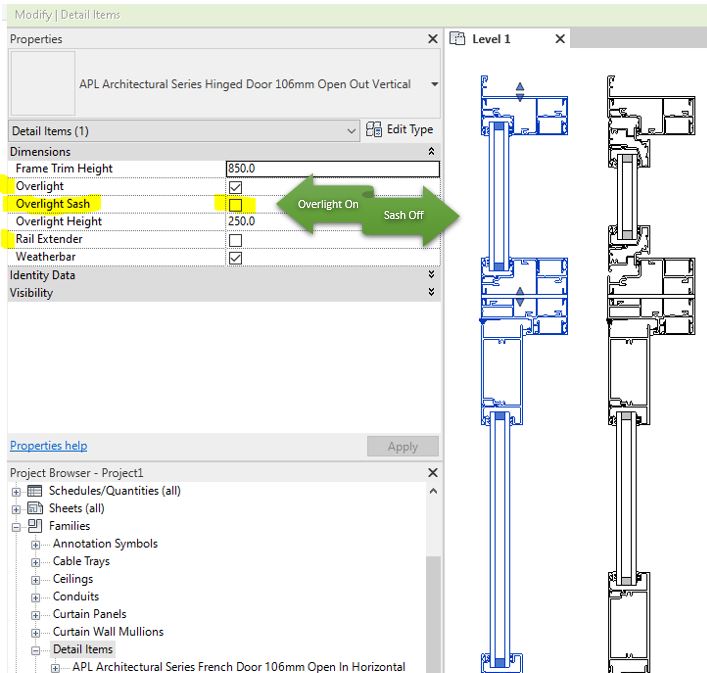

Example Hinge French Door
Architectural Series 106mm French Door Sectional Details

Revit LT 2020

zip

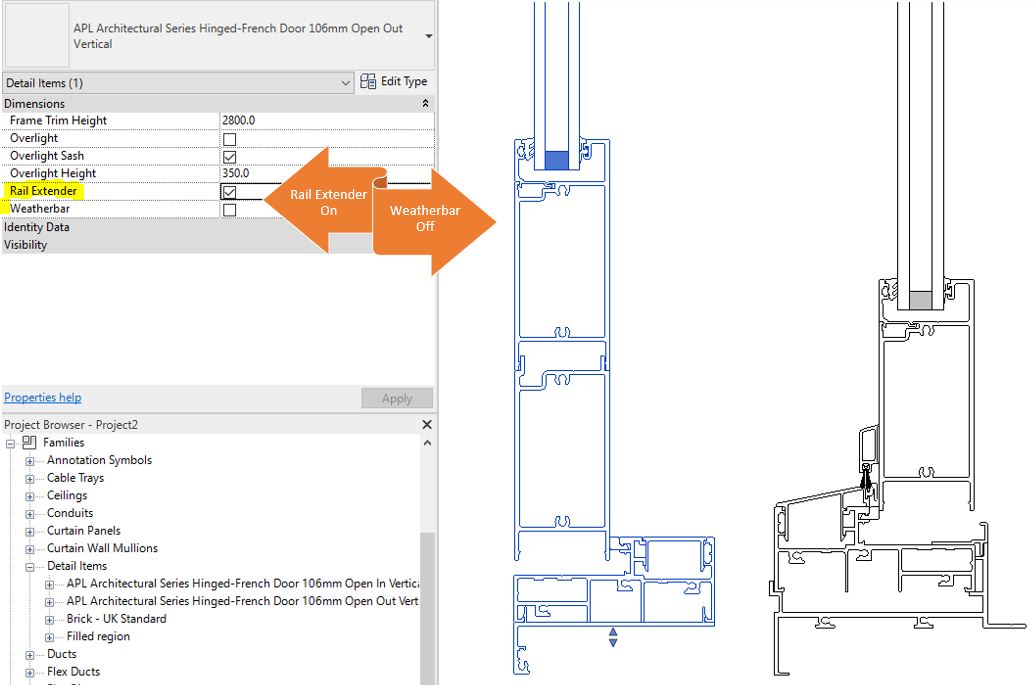

Example Hinge French Door 2
Architectural Series 106mm Hinge Door Sectional Details

Revit LT 2020

zip

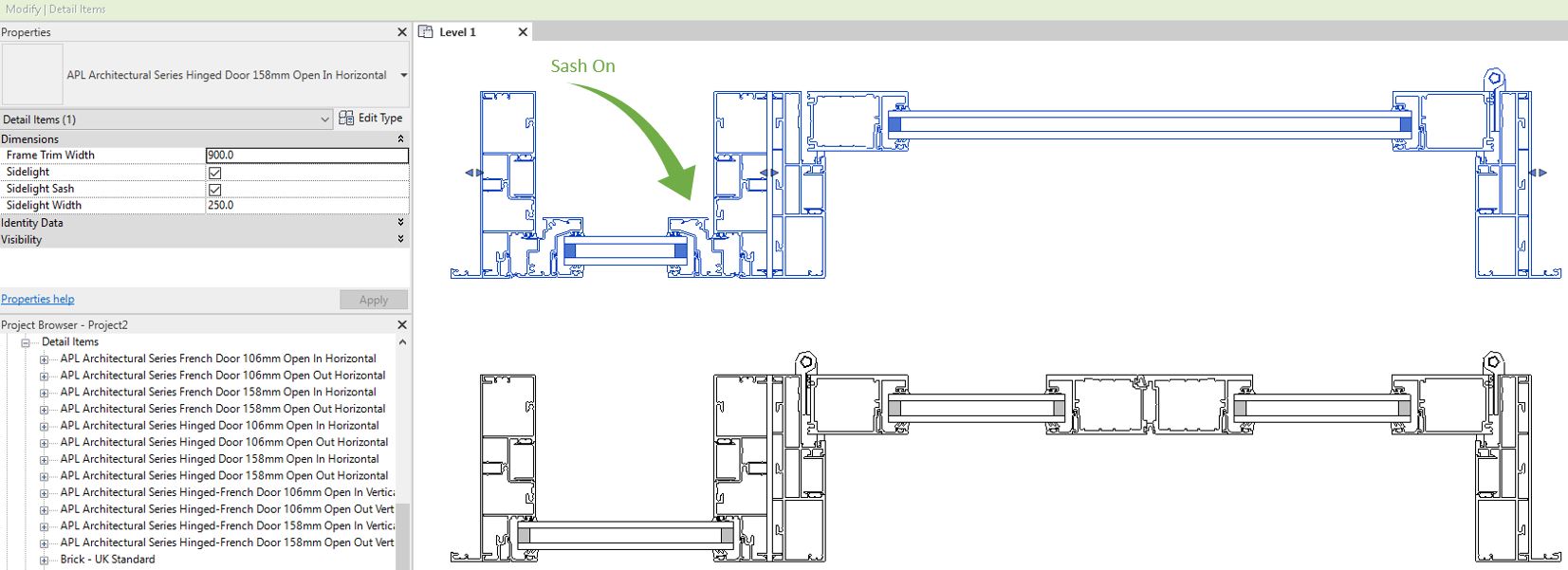

Example 158mm French
Architectural Series 158mm French Door Sectional Details

Revit LT 2020

zip

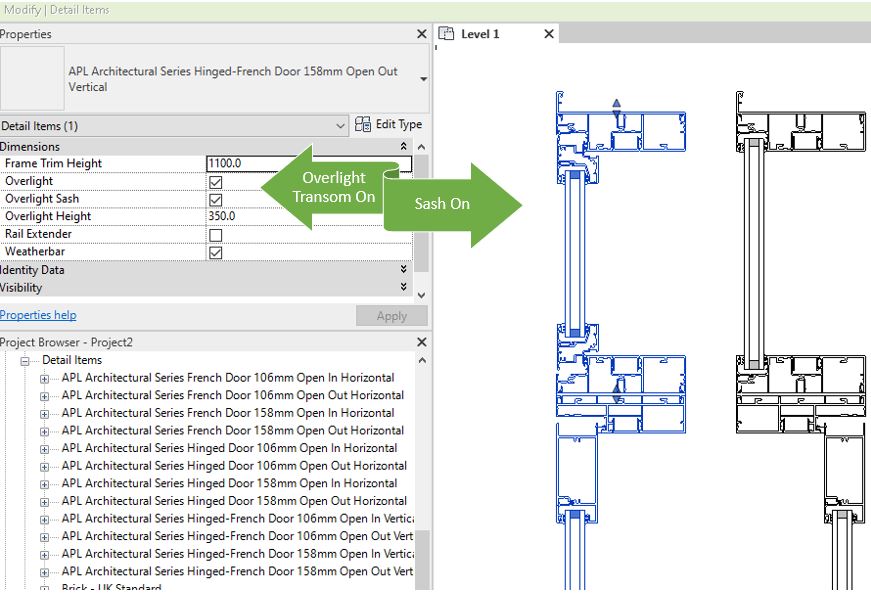

Example 158mm Hinge
Architectural Series 158mm Hinged Door Sectional Details

Revit LT 2020

zip

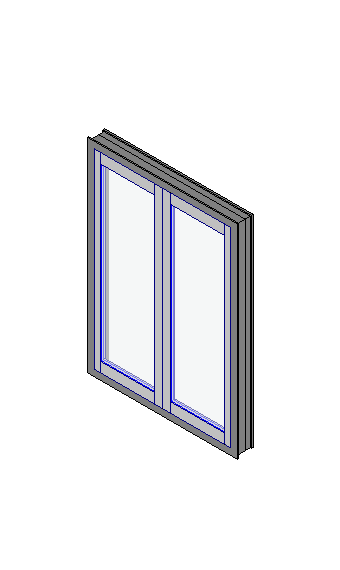

french door
Vantage APL 106mm Architectural Series French Door, Open Out
zip

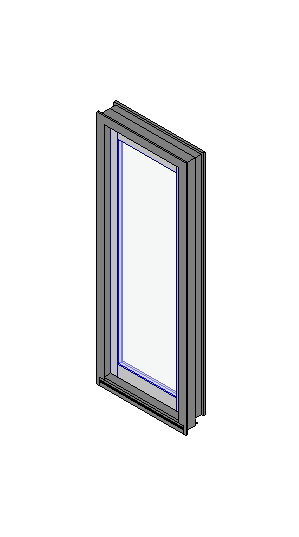

open in
Vantage APL 106mm Architectural Series Hinged Door Open In
zip

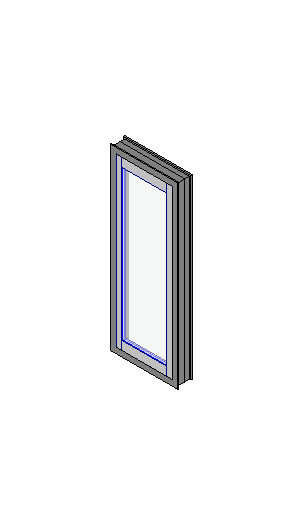

open out
Vantage APL 106mm Architectural Series Hinged Door Open Out
zip

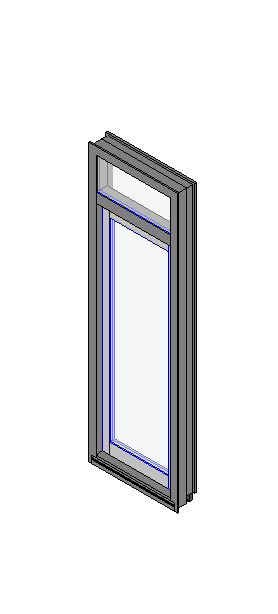

overlight open in
Vantage APL 106mm Architectural Series Hinged Door, Open In with Overlight
zip

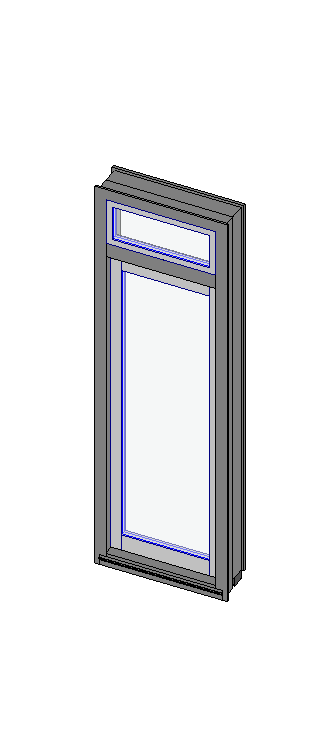

Overlight with Sash open in
Vantage APL 106mm Architectural Series Hinged Door, Open In with Overlight Sash
zip

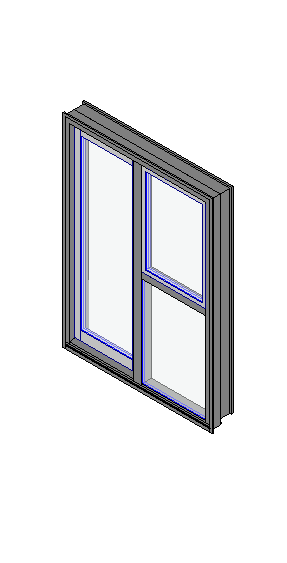

hinged door with sidelight open in
Vantage APL 106mm Architectural Series Hinged Door, Open In with Sidelight
zip
overlight open out
Vantage APL 106mm Architectural Series Hinged Door, Open Out with Overlight
zip

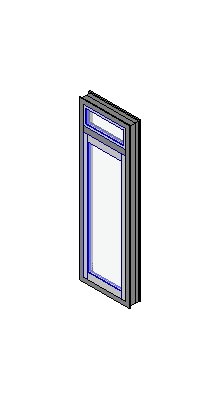

overlight sash open out
Vantage APL 106mm Architectural Series Hinged Door, Open Out with Overlight Sash
zip

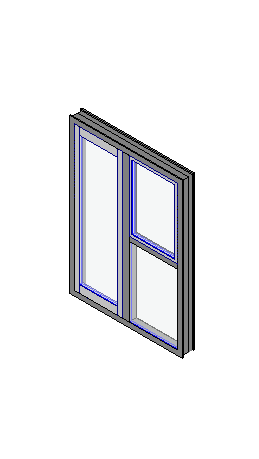

hinge door with sidelight open out
Vantage APL 106mm Architectural Series Hinged Door, Open Out with Sidelight
zip
