Phonic Direct Fix
Description

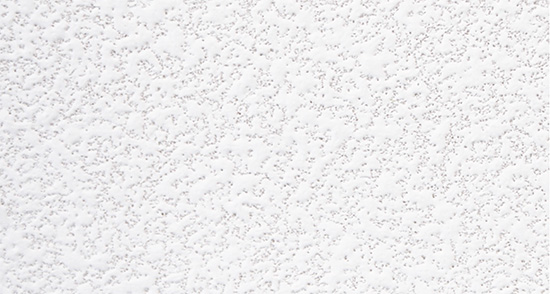

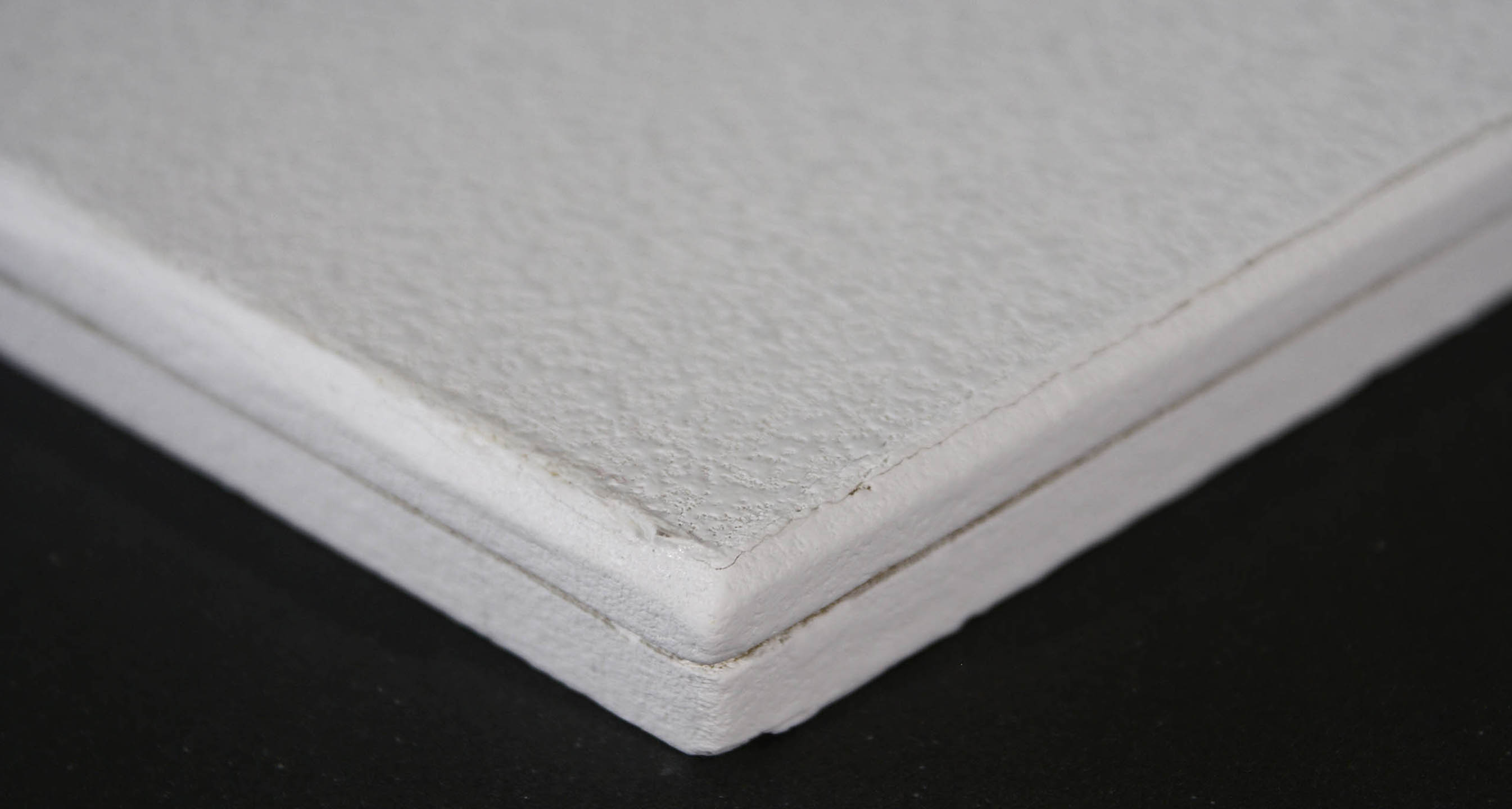

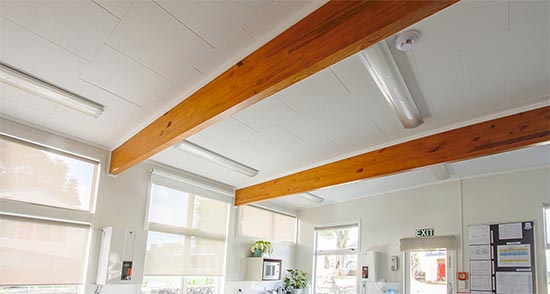

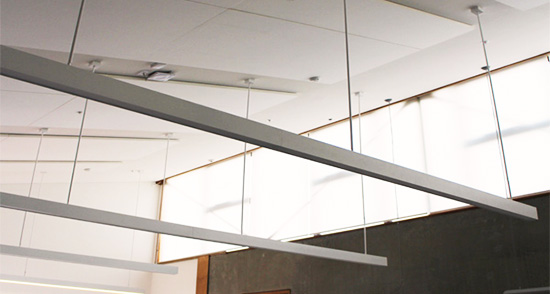

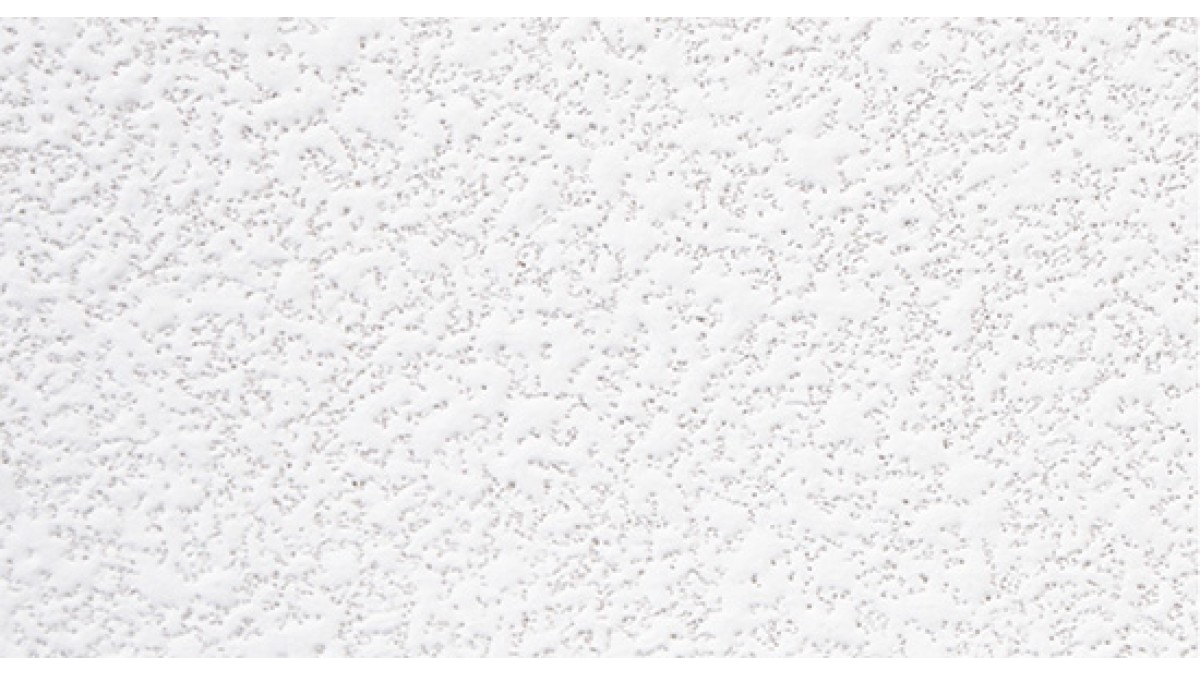

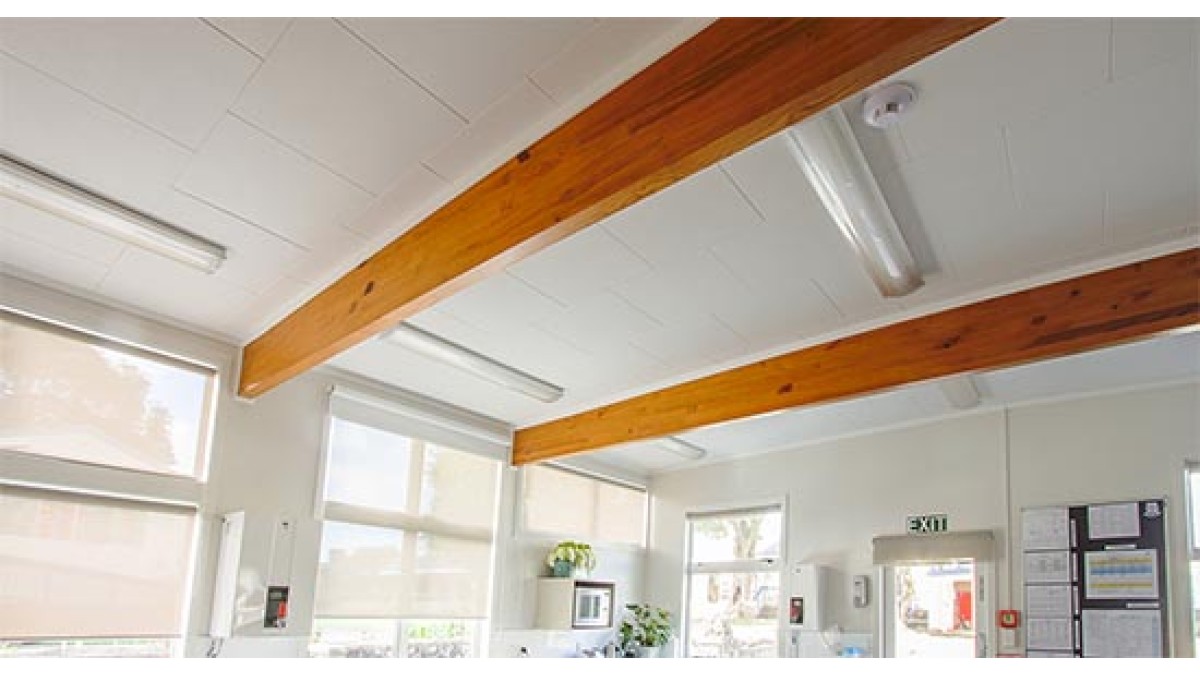

Phonic Direct Fix is a white painted, textured glasswool acoustic ceiling tile. Direct Fix eliminates the need for an exposed grid and enhances the clean smooth monolithic surface. Designed for direct fix application to new existing gypsum board or other timber/metal battens.

This is a high end tile with a high Noise Reduction Coefficient (NRC) to reduce reverberation time. The construction and design of the compounded, high density glasswool results in a light weight, high performance ceiling tile which is user friendly and ideal for use in classrooms, offices, medical centres, lobbies and other commercial interiors.

Key Features
  • High density glass wool which achieves a density of 120kg/m³
  • High noise reduction coefficient (NRC 0.75 — 1.0 depending on installation method) to reduce reverberation time
  • Designed for direct fix application to new or existing gypsum board or over timber/metal battens.
  • Exceeds Department of Education acoustic requirements when installed over gypsum board backing.

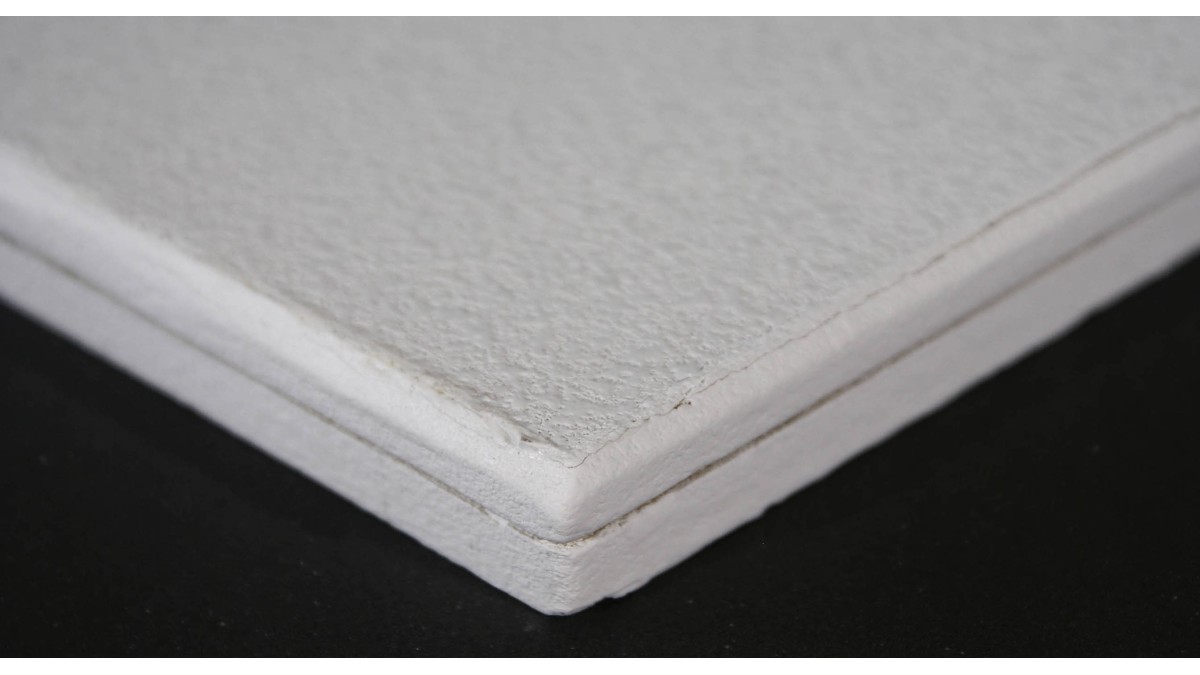

  • Constructed from 90% dry felt resin bonded glass wool, utilising longer fibres in a compact fibre arrangement. The non-absorbent, non-water soluble design gives Phonic Direct Fix improved durability when compared to mineral fibre
  • 30 year lifetime system warranty to withstand conditions up to 40°C - 95% relative humidity without visible sag
Scope of Use

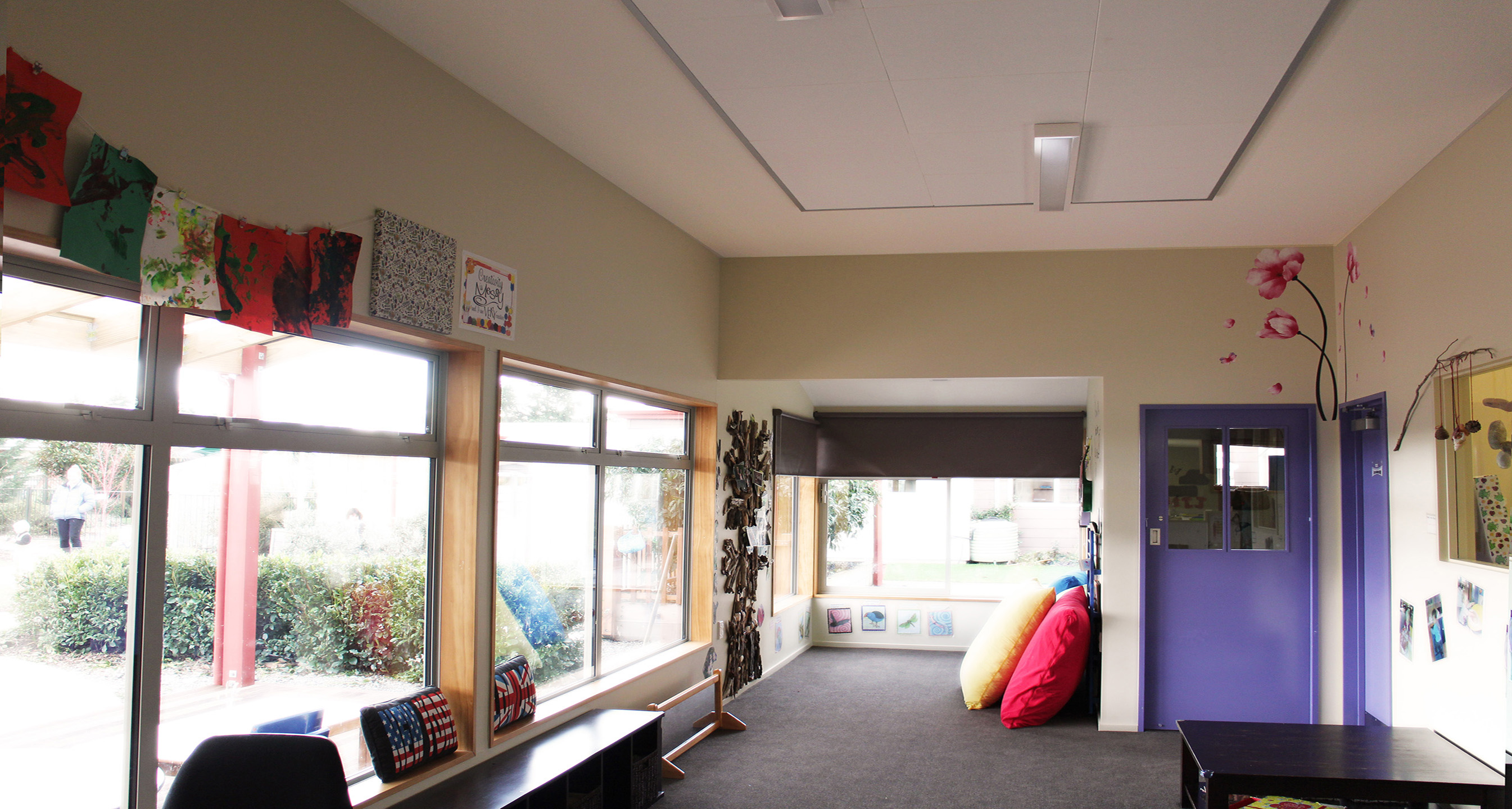

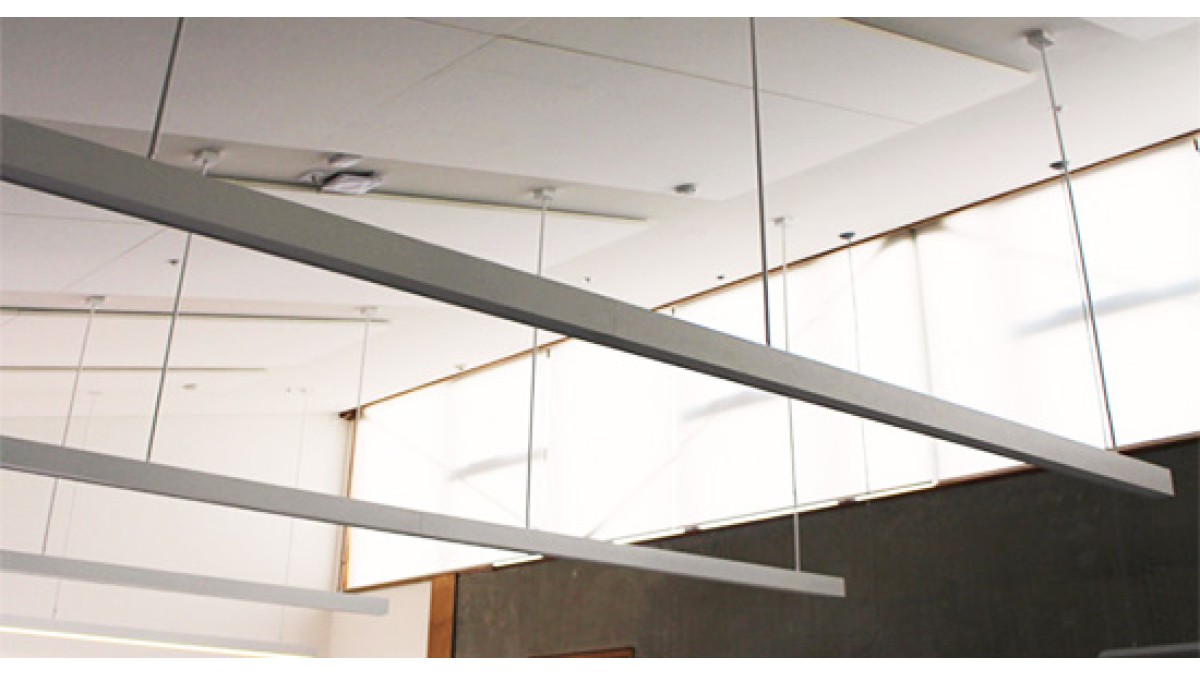

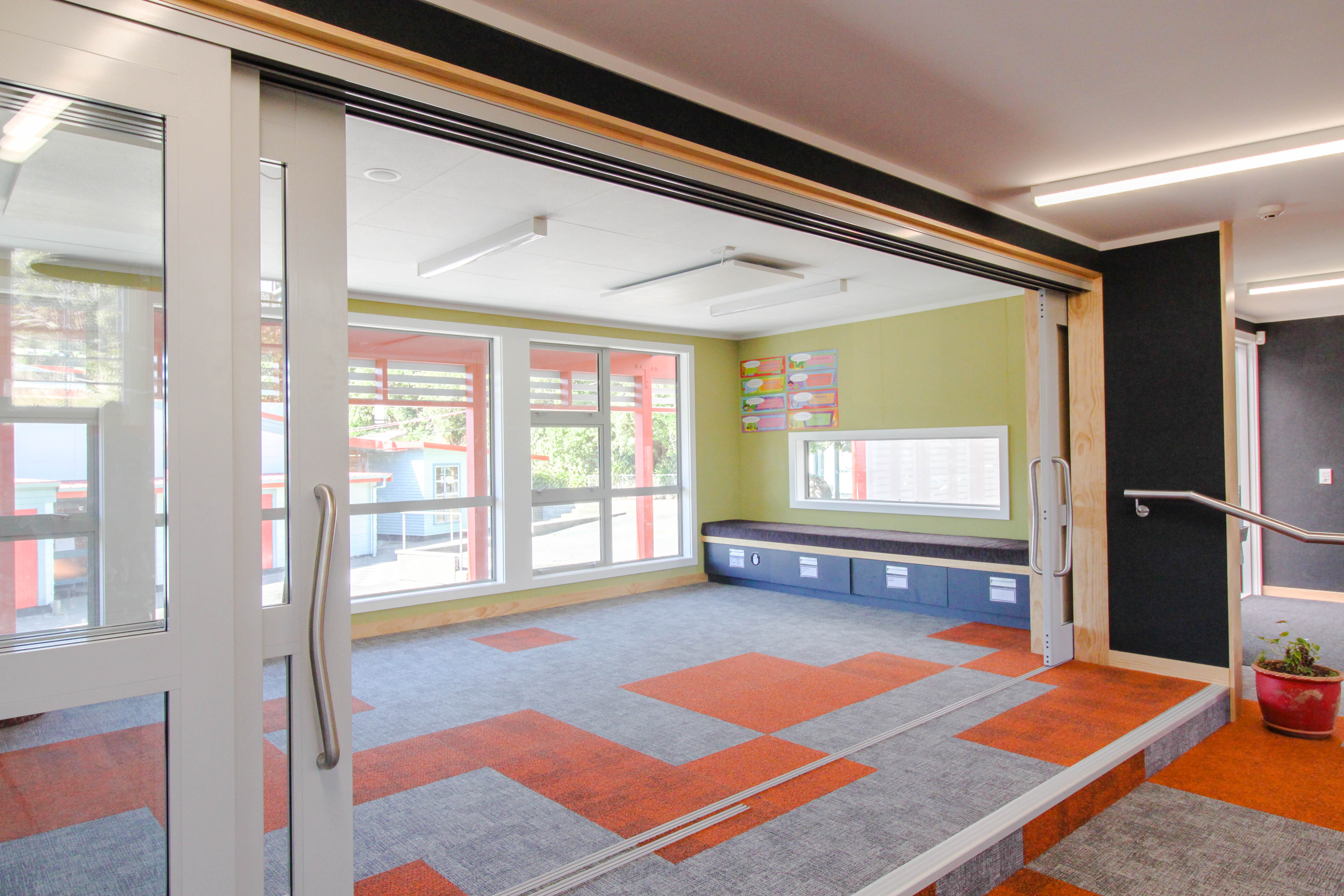

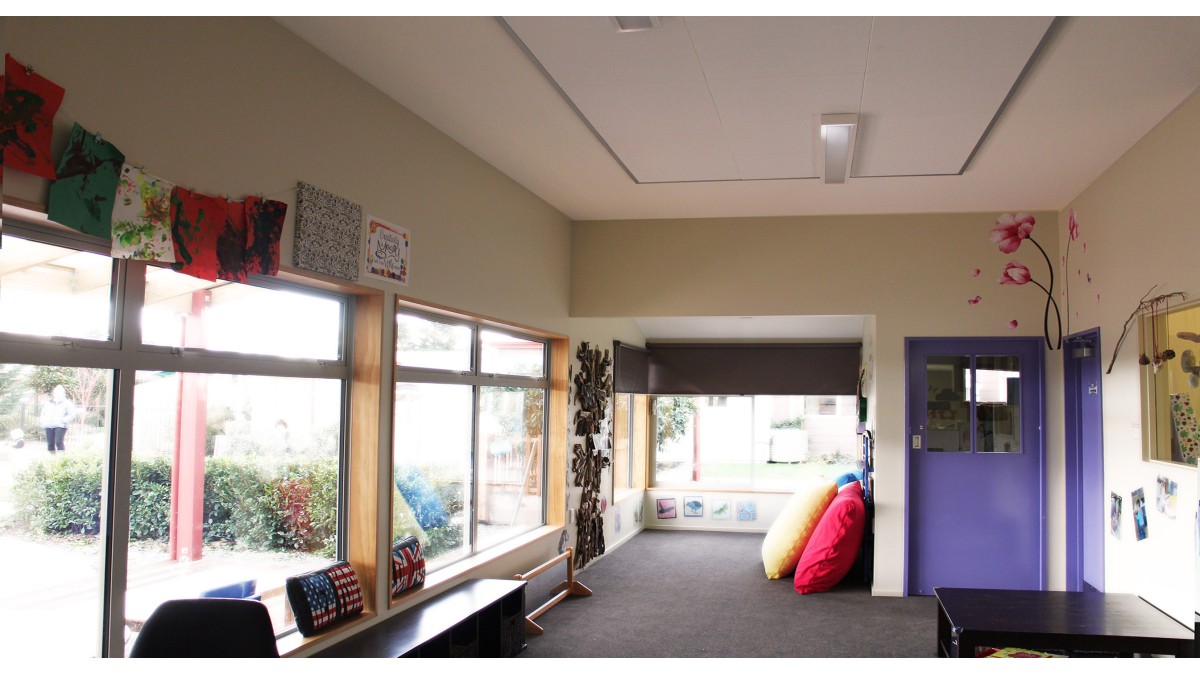

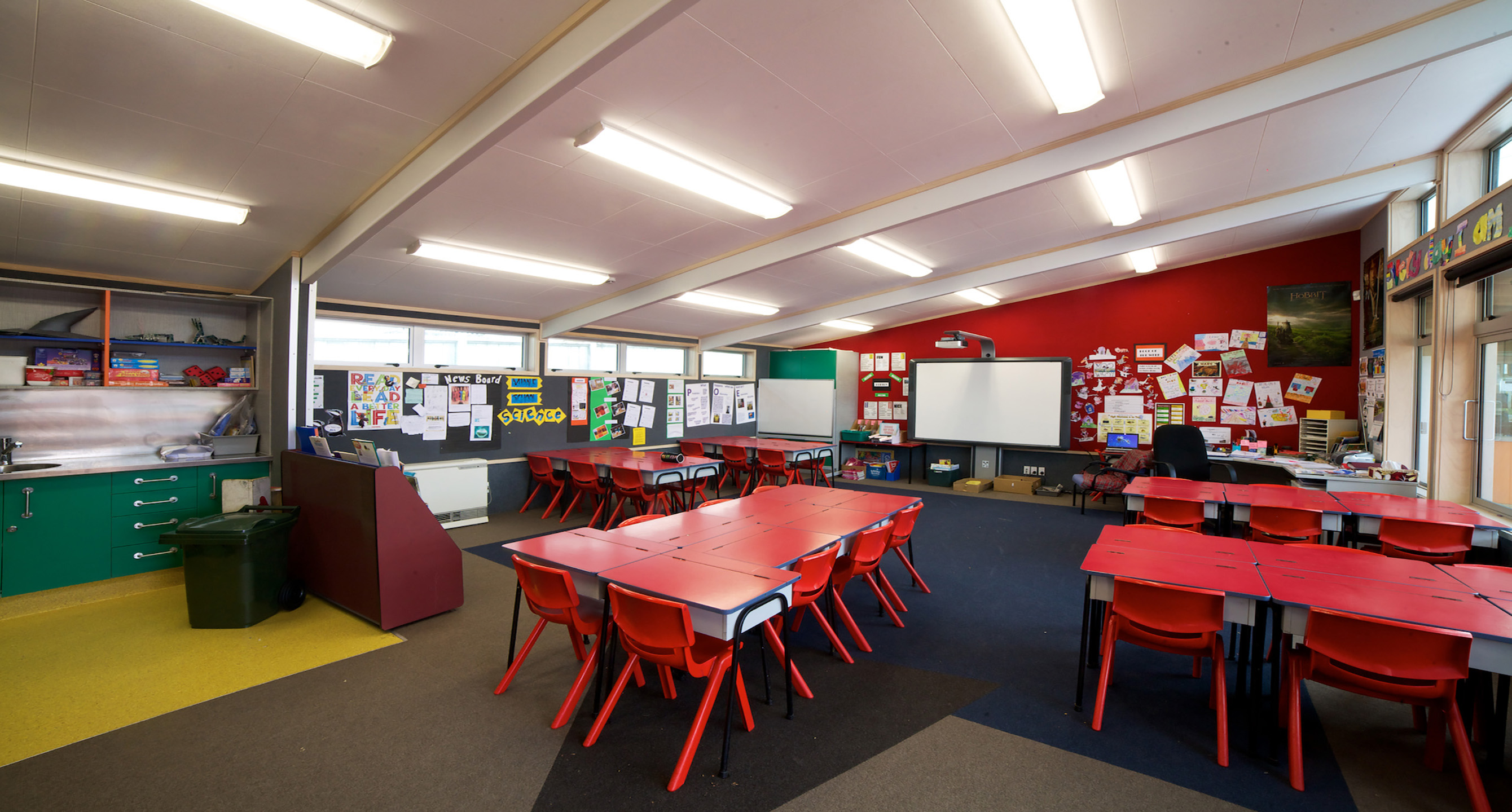

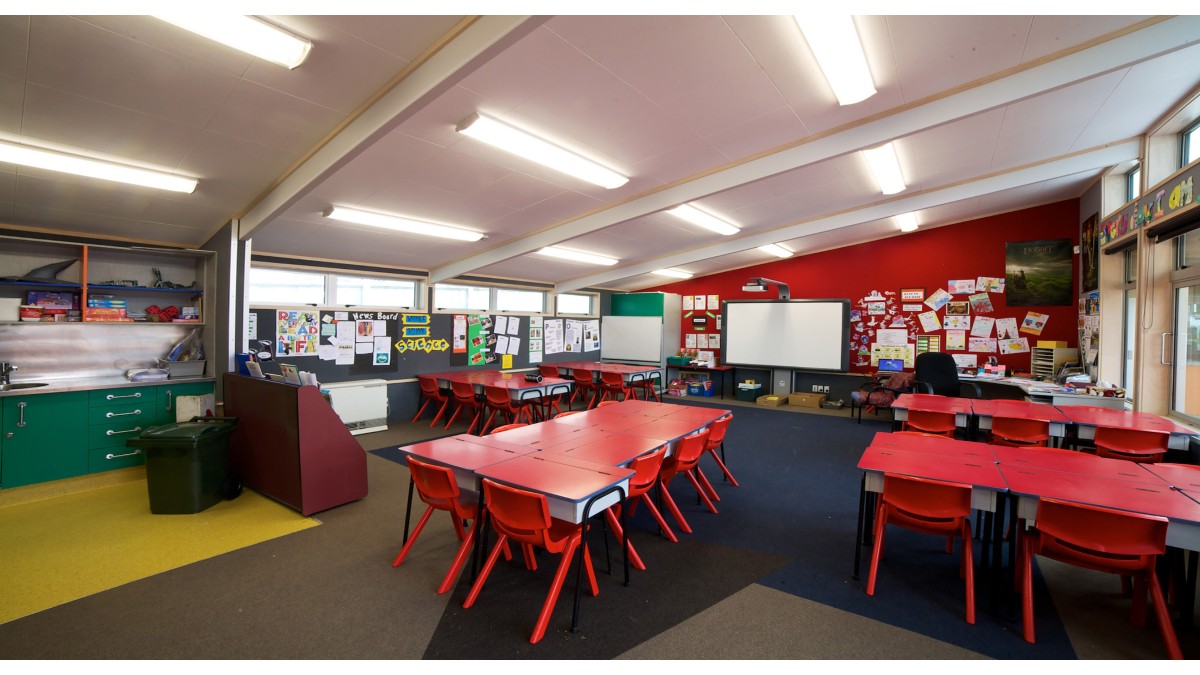

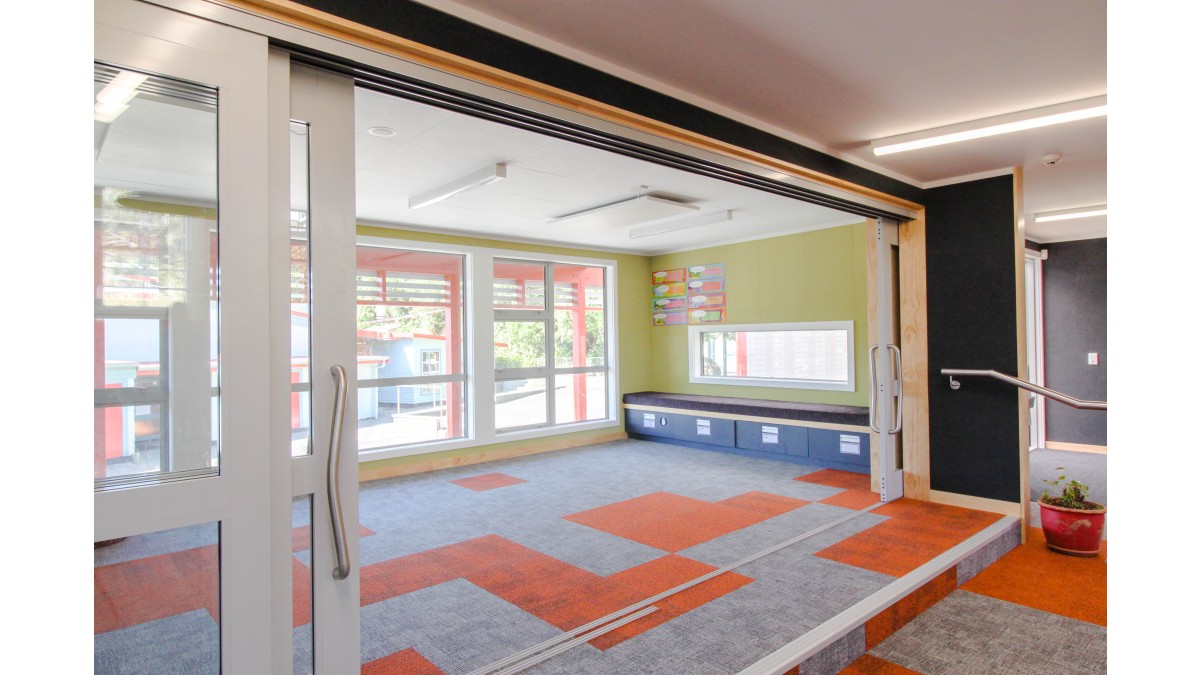

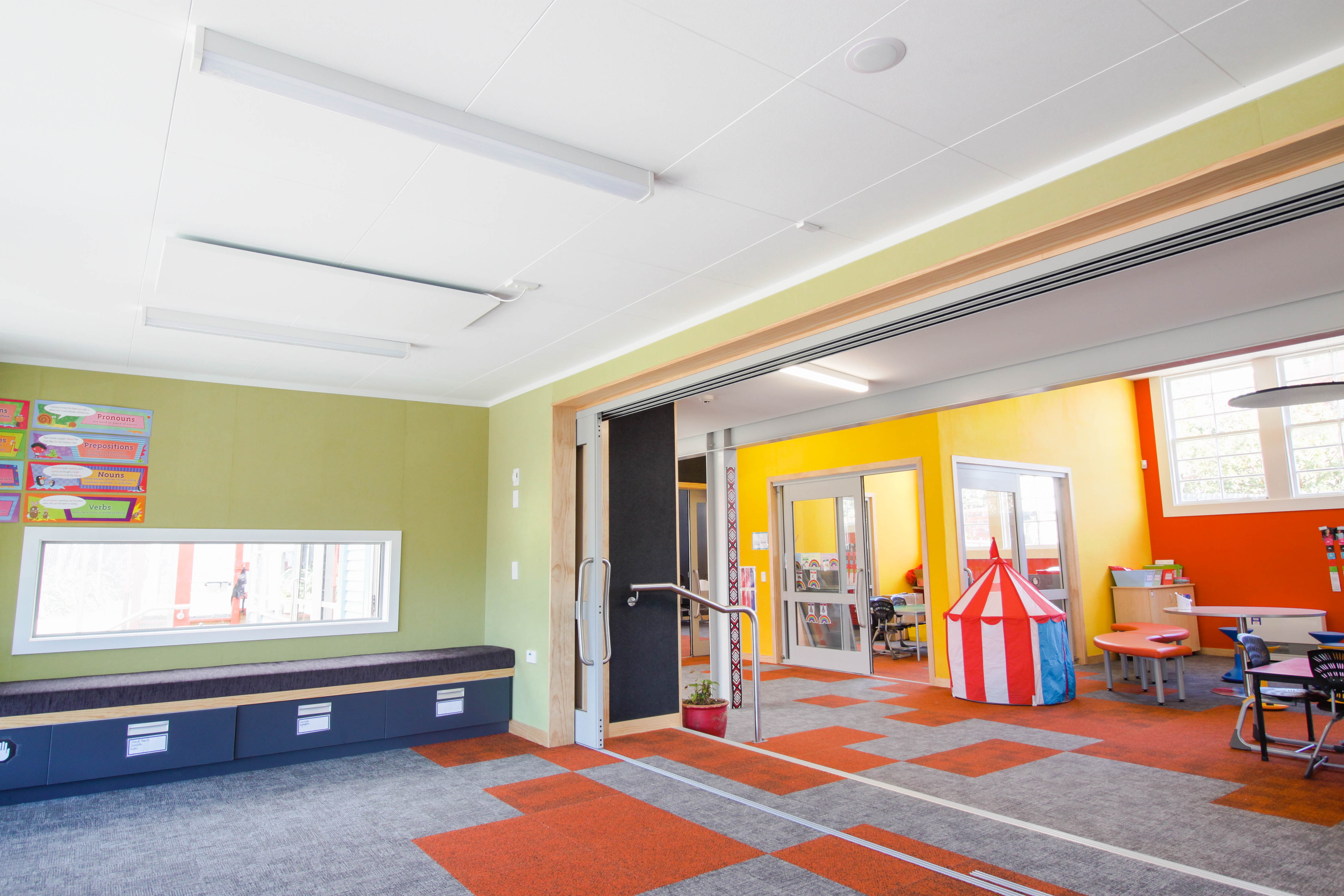

  • Ideal for use in classrooms, offices, medical centres, lobbies and receptions and other commercial interiors
  • Designed for direct fix application to new or existing gypsum board or over timber or metal battens
Statement of Building Code Compliance
  • Fire Performance: Group 1-S
In-Service History
  • Three Kings School, Auckland
  • Hockowhitu School, Palmerston North
Other Performance Attributes
  • High noise reduction coefficient (NRC 0.75 — 0.95 — depending on installation method) to reduce reverberation time.
  • Exceeds Department of Education acoustic requirements when installed over gypsum board backing.
  • 30 year lifetime system warranty to withstand conditions up to 40°C — 95% relative humidity without visible sag.
Documents
Data Sheet
BIM
