Phonic Clean
T&R Interior Systems
All products

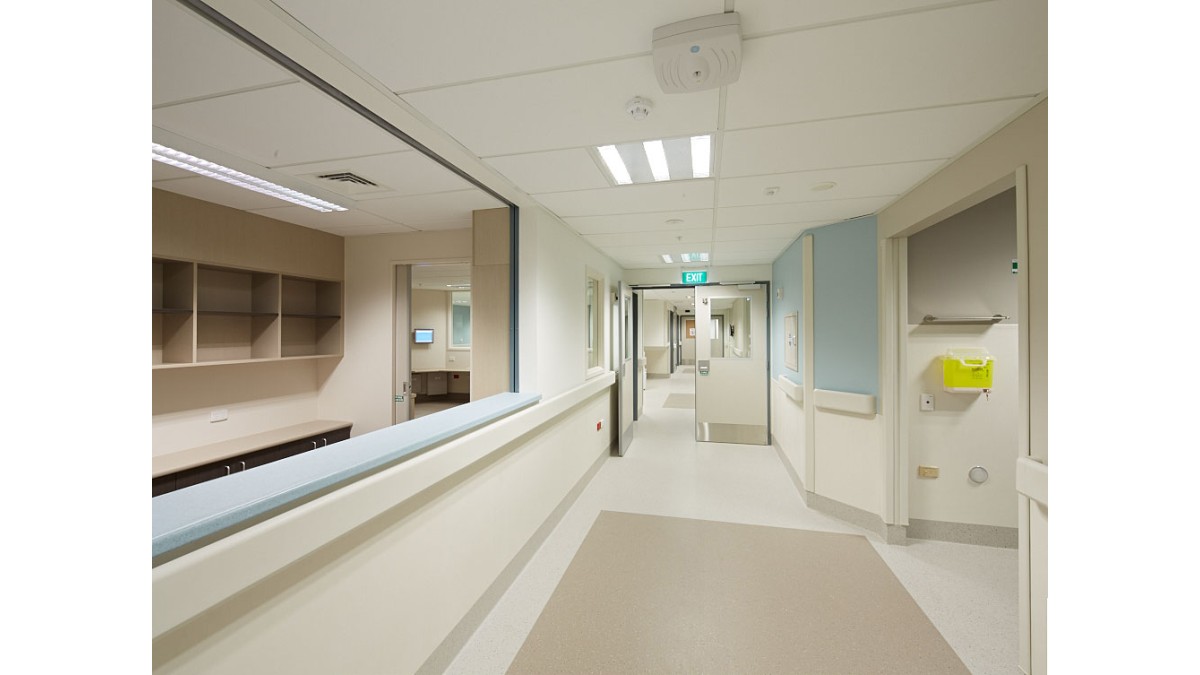

5195 ChchHospital 0201
5195 ChchHospital 0200

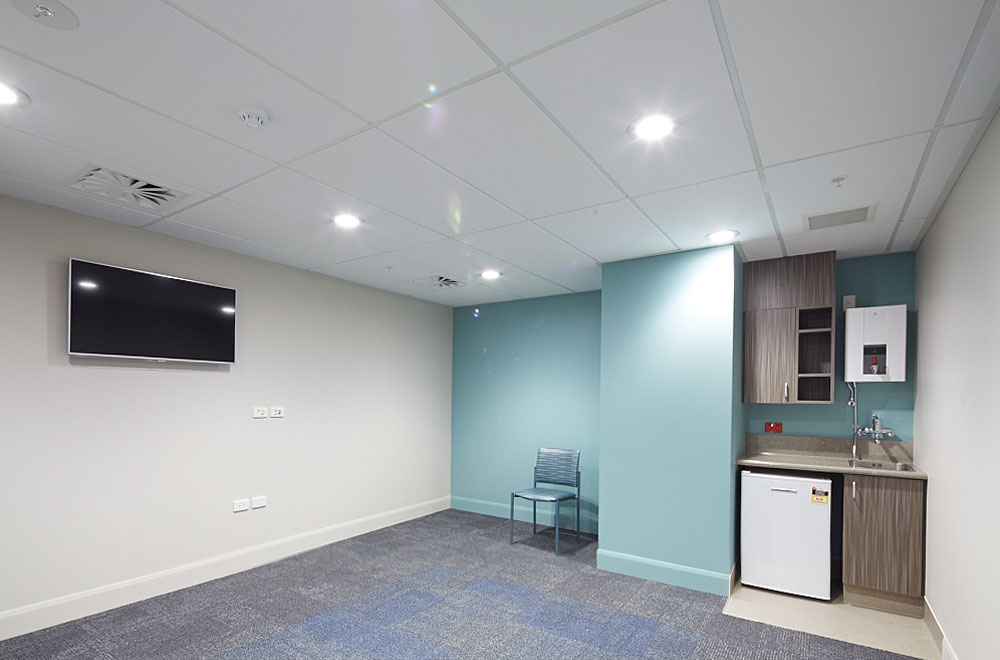

Phonic Medical4
Phonic Medical3

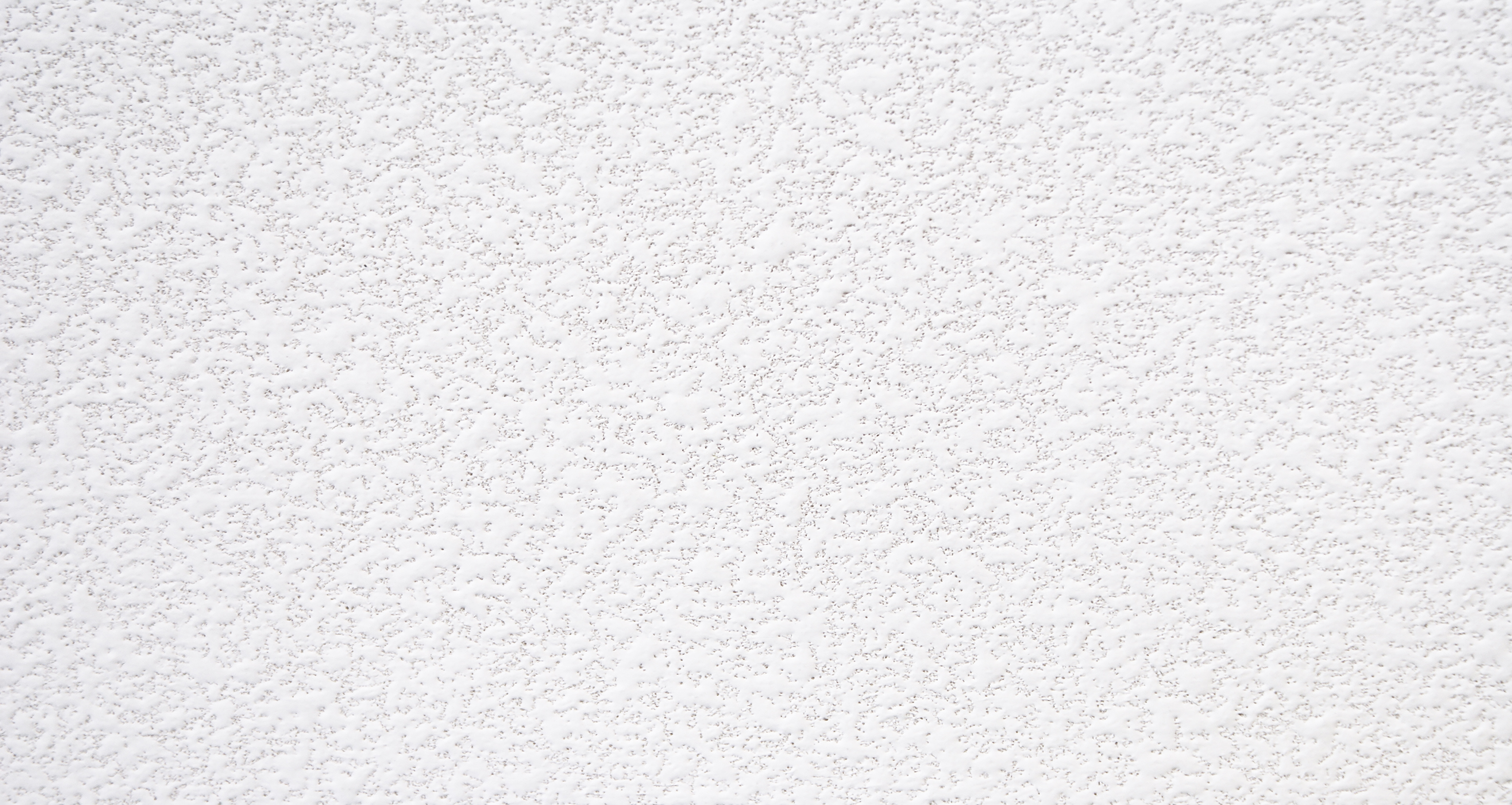

Phonic Clean for eboss

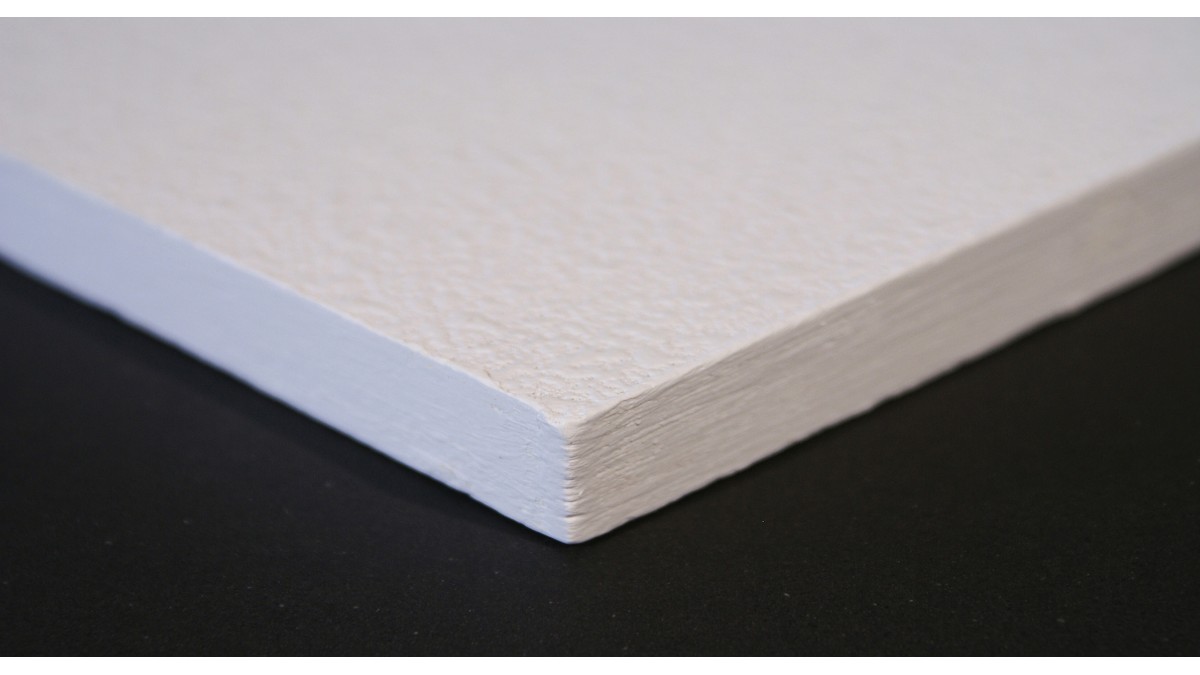

Phonic Clean edge for eboss
Description

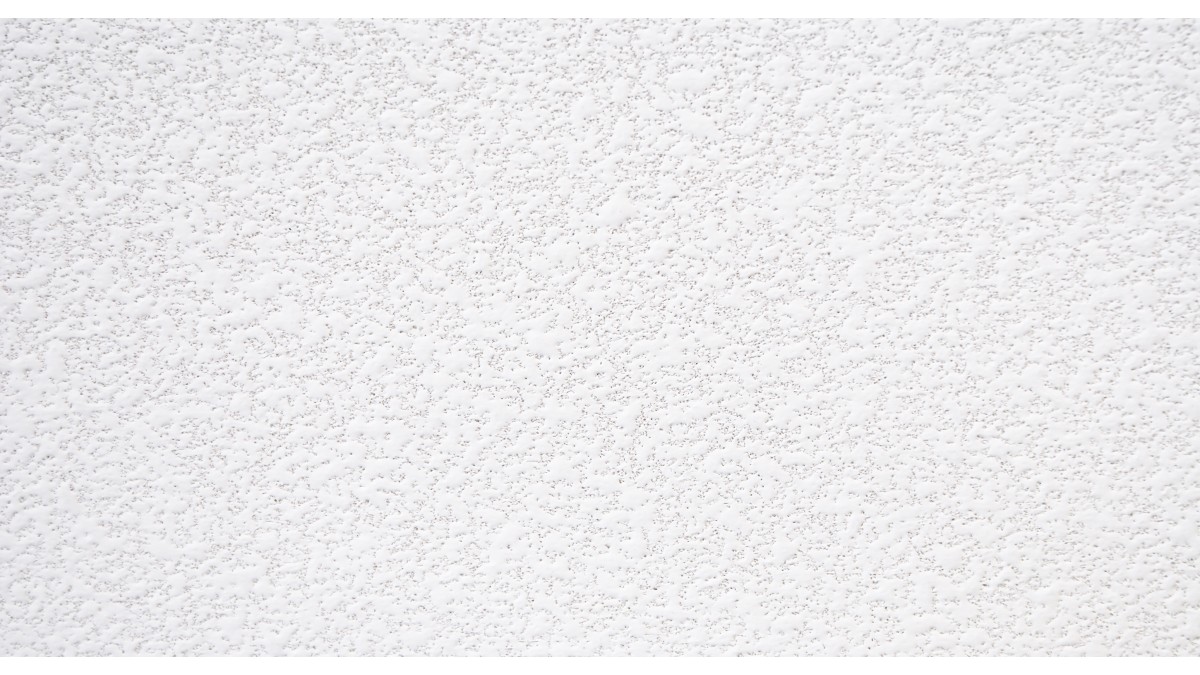

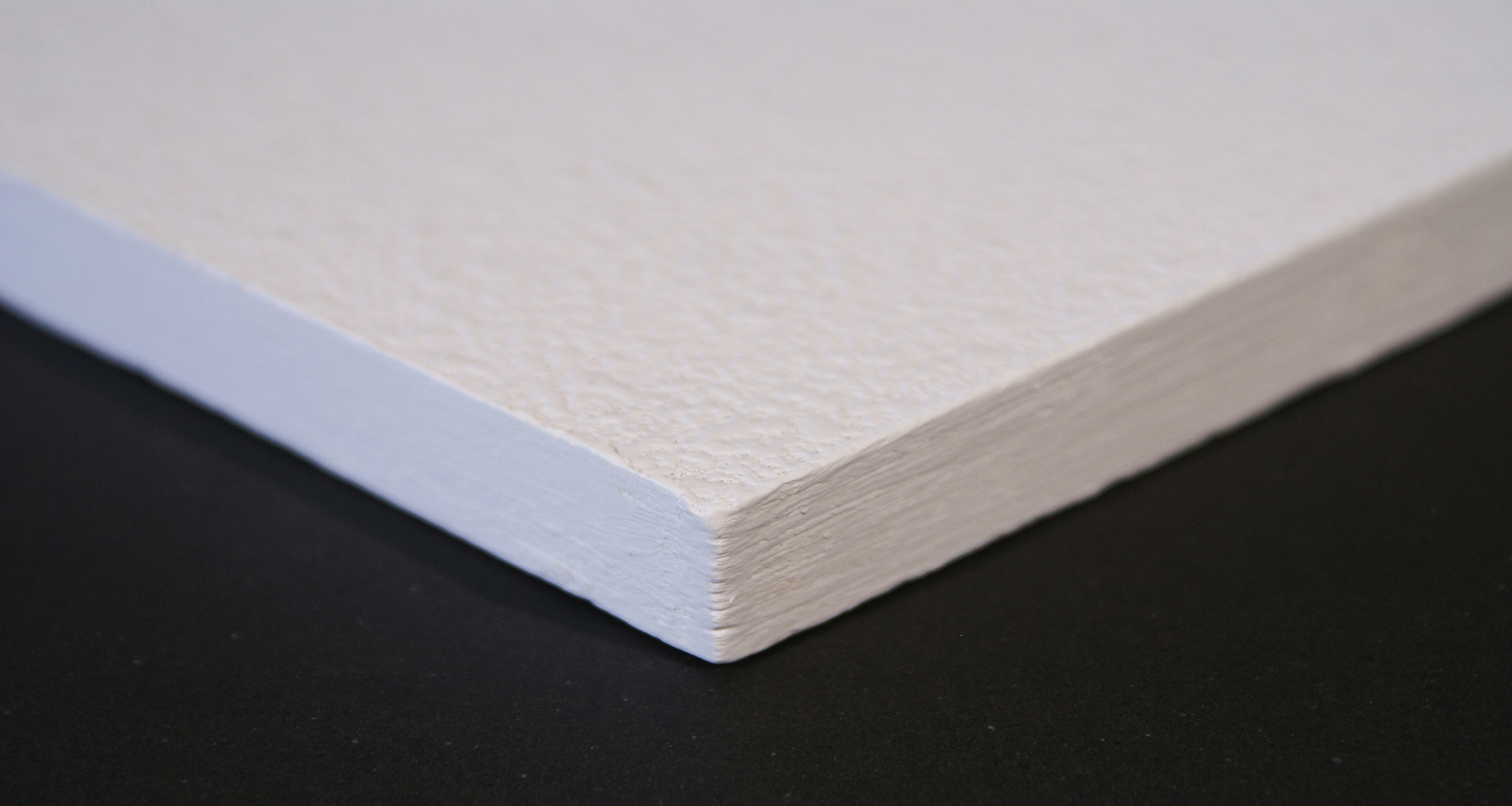

Phonic Clean is a hydrophobic treatment which can be applied to the Phonic range of ceiling tiles. It is a glasswool ceiling tile with a water-repellent, white painted, monolithic, pre-finished face.

Key Features

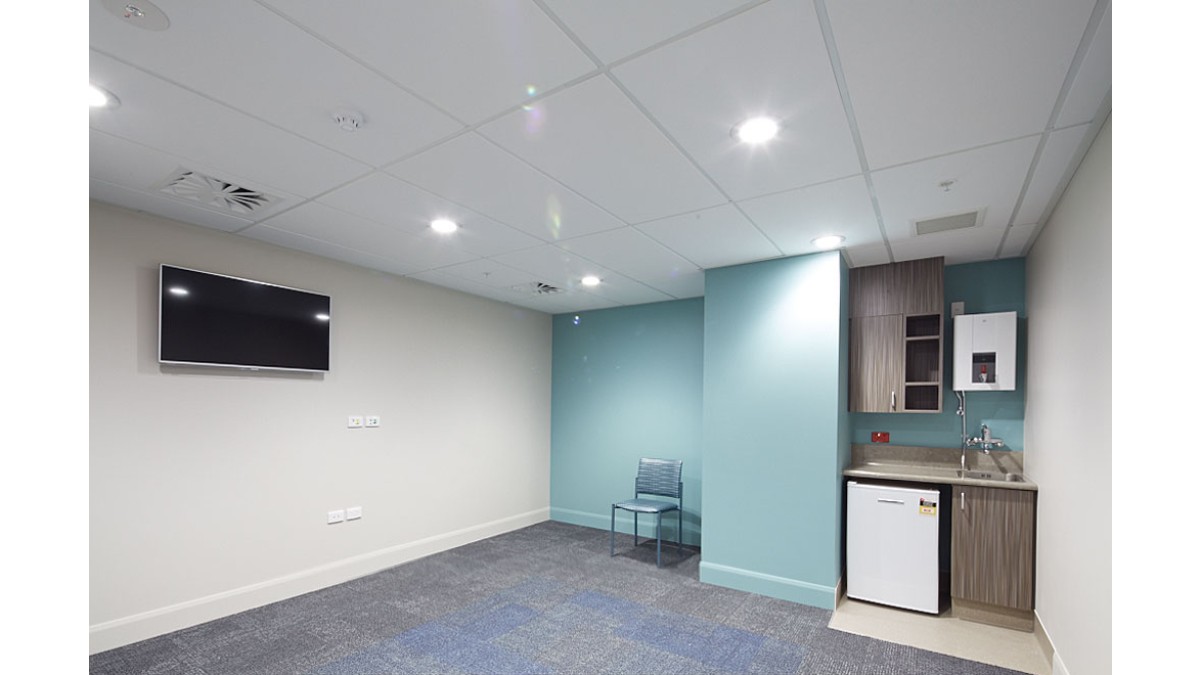

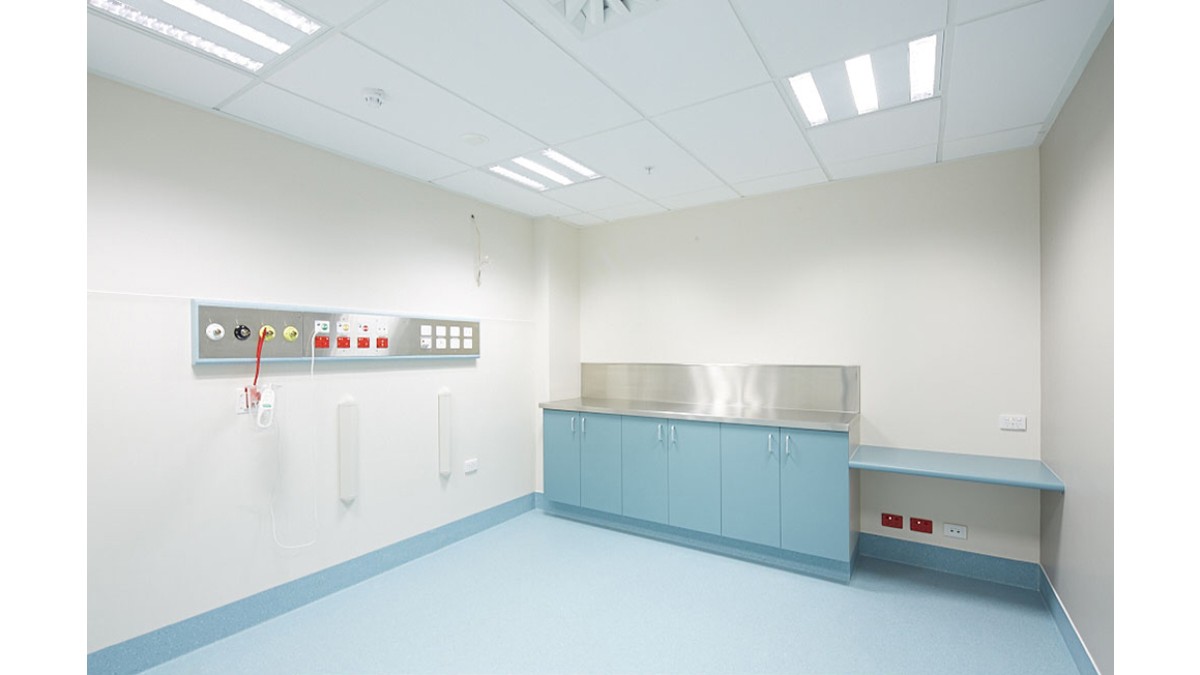

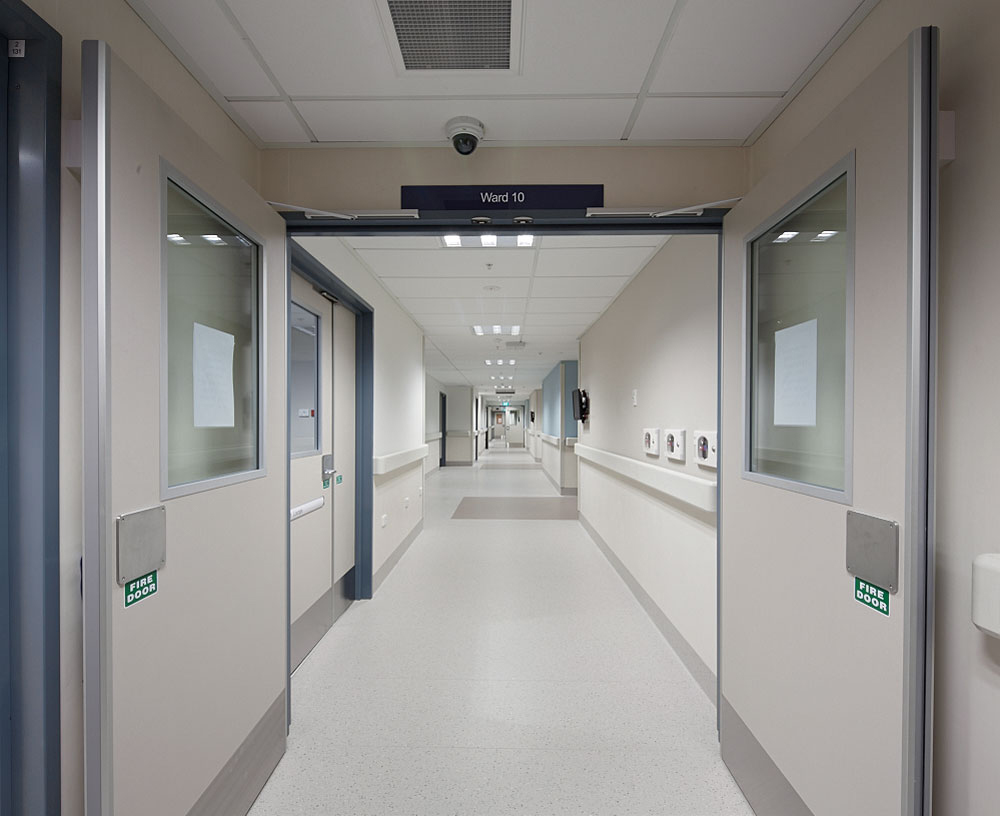

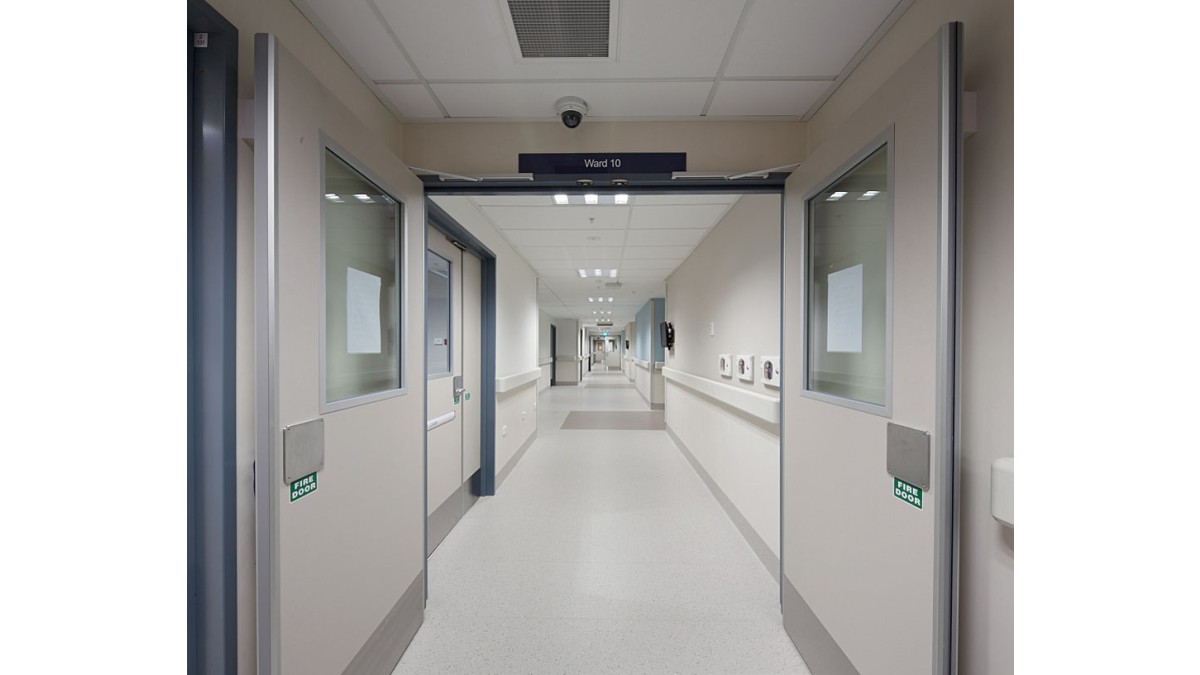

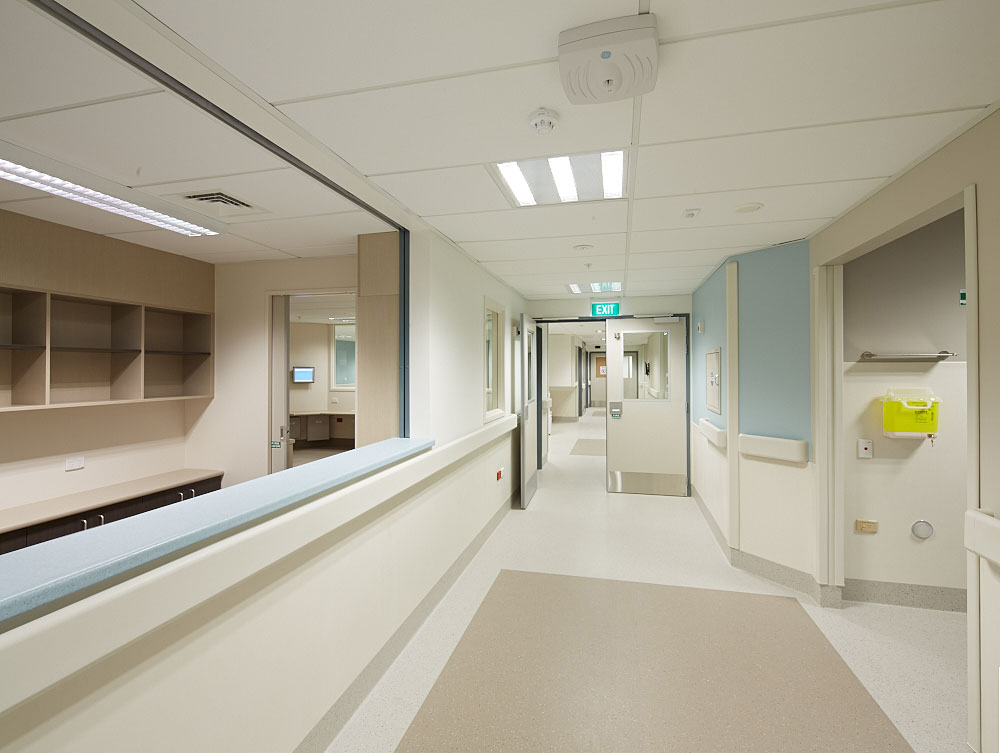

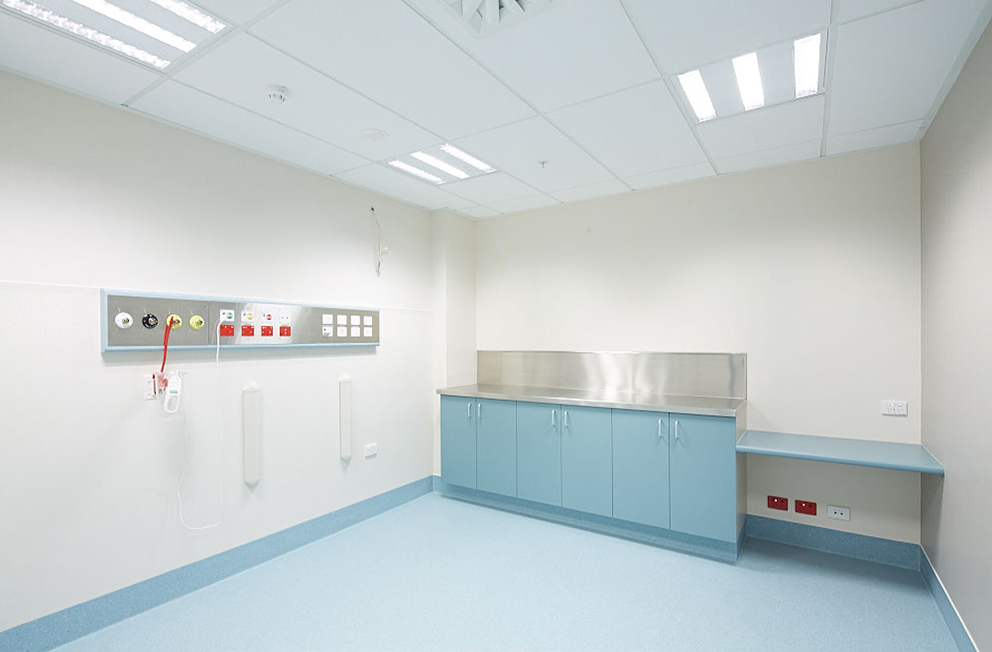

  • Suitable for use in medical centres, hospitals, laboratories and other commercial interiors
  • Tested to the principal requirements in accordance 14644.1:2015 and ISO 14644.3:2015 and the tile meets Cleanroom ISO Class 3
  • Water repellent face; can be wiped and cleaned, won’t allow moisture penetration. Wipeable and cleanable face; stains don’t stick.
  • Optional foil backing to allow positive pressure in ceiling plenum
  • High Noise Reduction Coefficient. Reduces reverberation time and improves speech intelligibility. This is very important for patient well-being. Good acoustics promote faster recovery times
  • Lightweight tile (non-Combo) is ideal for seismic design
Categories
Suspended Ceilings
Ranges
Ceiling Systems Acoustic Ceiling Tiles Hygiene Applications
Scope of Use
  • Suitable for use in medical centres, hospitals, laboratories and other commercial interiors
  • Anti-bacterial coating available
  • Lightweight tile is ideal for seismic design
  • Tile face matches those in the Phonic range
Statement of Building Code Compliance
  • Fire Performance: Group 1-S
Other Performance Attributes
  • 10 year warranty to withstand conditions up to 40°C and 99% relative humidity without visible sag. Tiles should be installed in accordance with NZS1170.5 and the grid manufacturer’s instructions
  • For Green Star rated projects, PHONIC has been verified and meets the Greenguard Emission Certificate standard
  • Tested to the principal requirements in accordance 14644.1:2015 and ISO 14644.3:2015 and the tile meets Cleanroom ISO Class 3
Documents
Data Sheet
pdf

T&R Interior Systems specialise in the supply of quality interior building and acoustic products fully backed by extensive technical support and friendly service.
