Innoscreen — Wood Composite Screening
Description

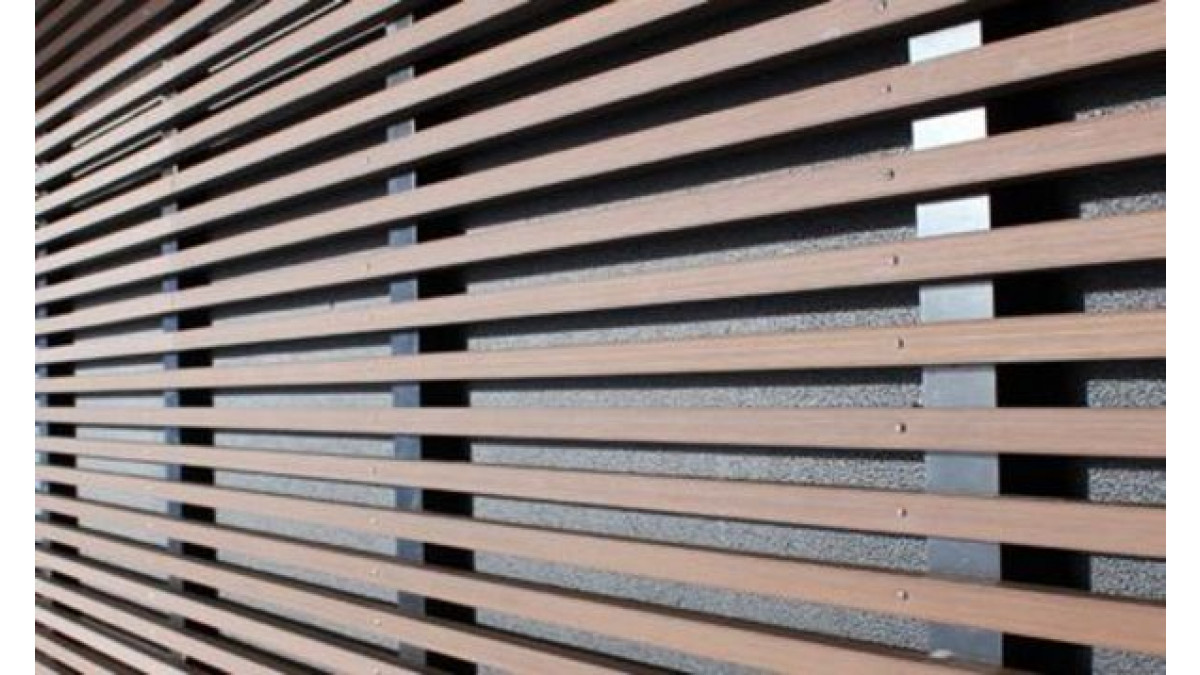

The Innoscreen system is an external decorative screen comprising of an Innowood composite timber batten profile that may be fixed through either the concealed lock-in fixing system using a two-part interlocking clip, or by fixing directly through the profile to the supporting structure.

Innowood is a wood plastic composite (WPC) consisting of predominantly natural wood waste with PVC, pigments, density modifiers and additives.

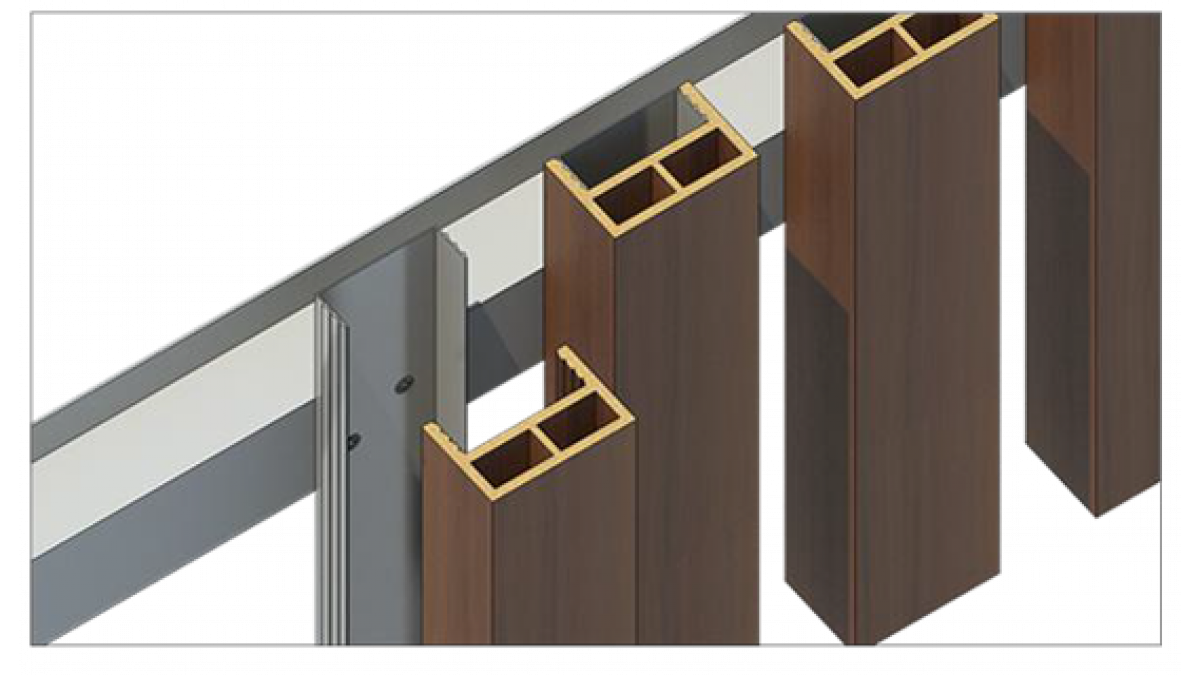

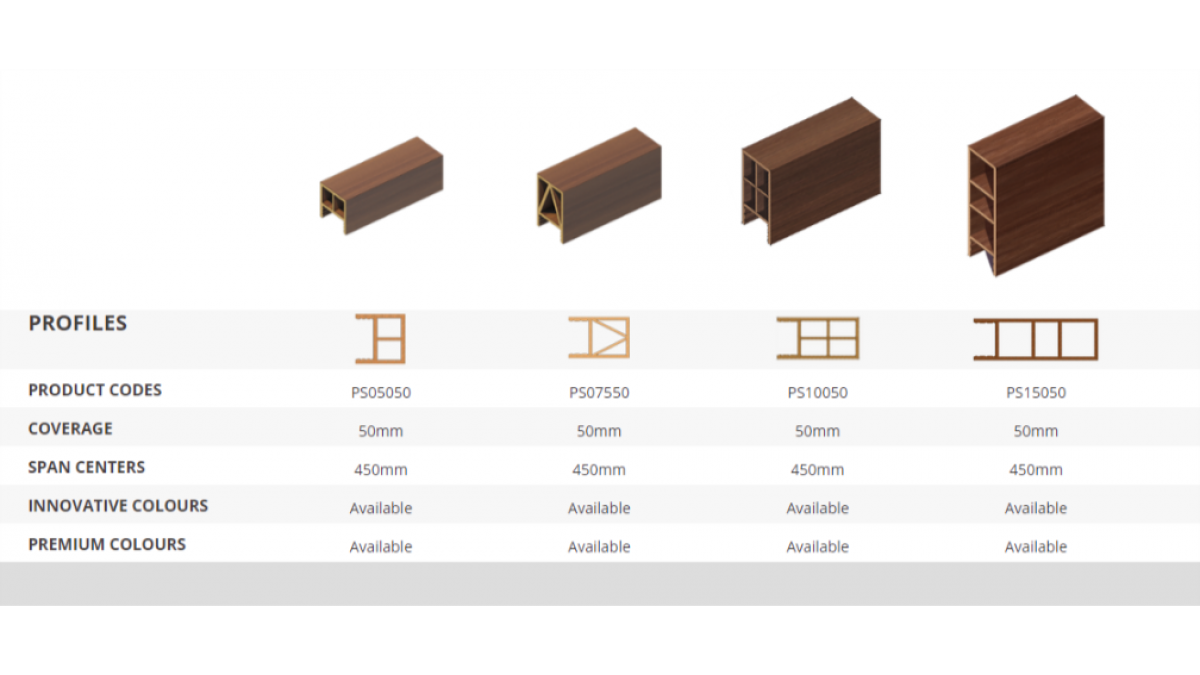

  • Concealed Fixing System:

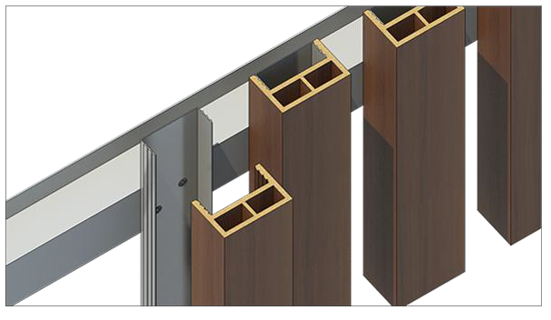

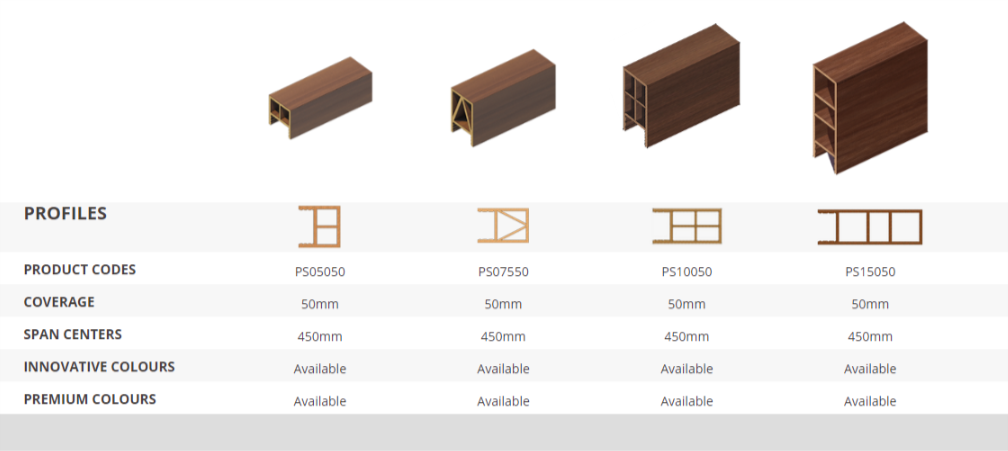

    • Innoscreen's Concealed Lock-in Fixing System creates a perfectly clean line with battens that simply lock into place, concealing the single-part rear clip that can be set out to any desired spacing
    • An excellent light-weight, cost-effective solution for internal and external applications
    • All fixings are concealed for ease of fixing, cost saving and best of all a clean finish

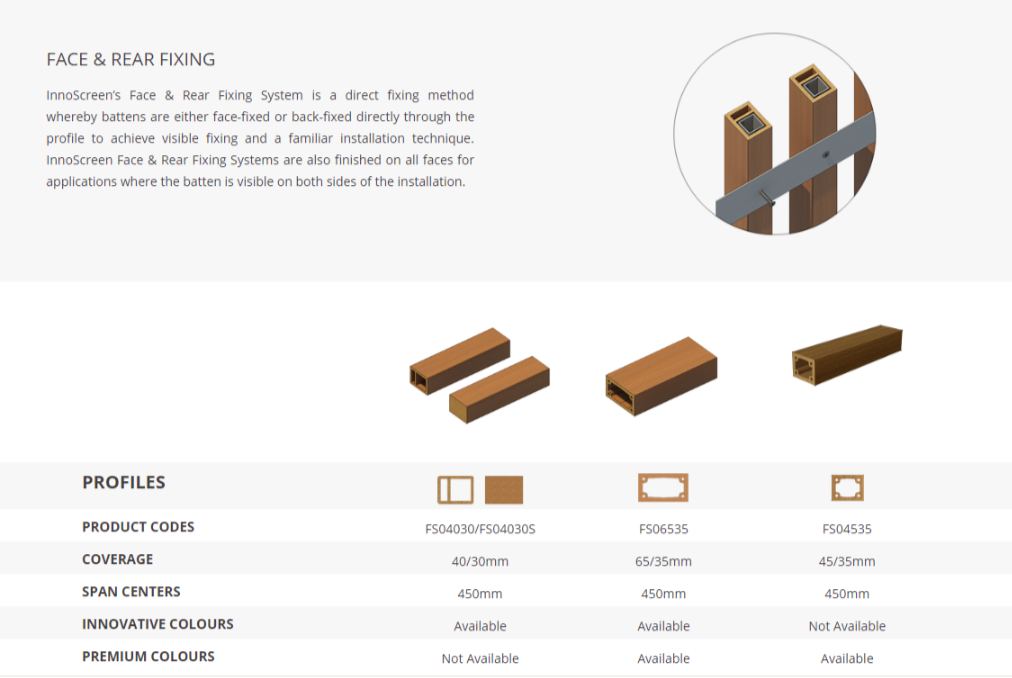

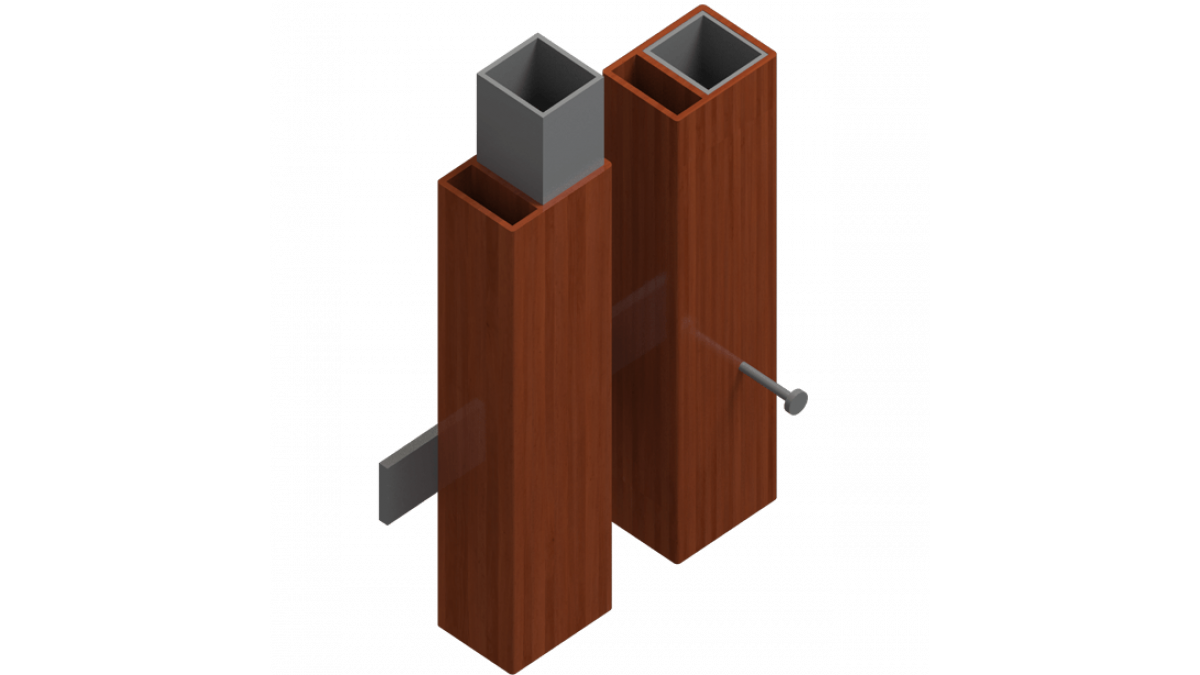

  • Face and Rear Fixing:

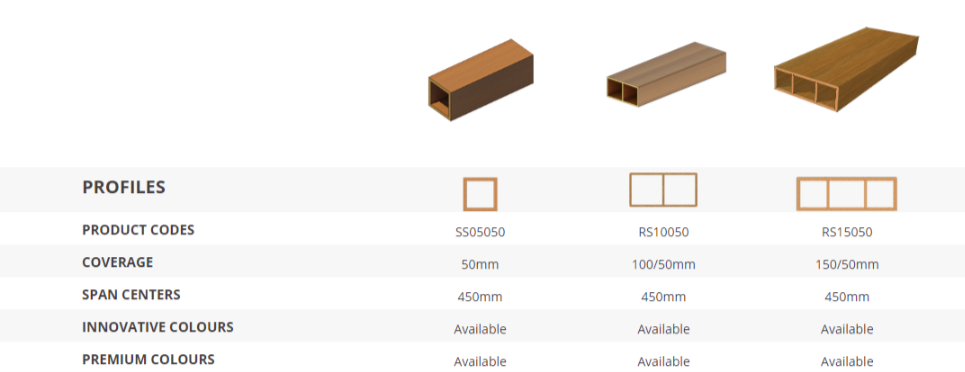

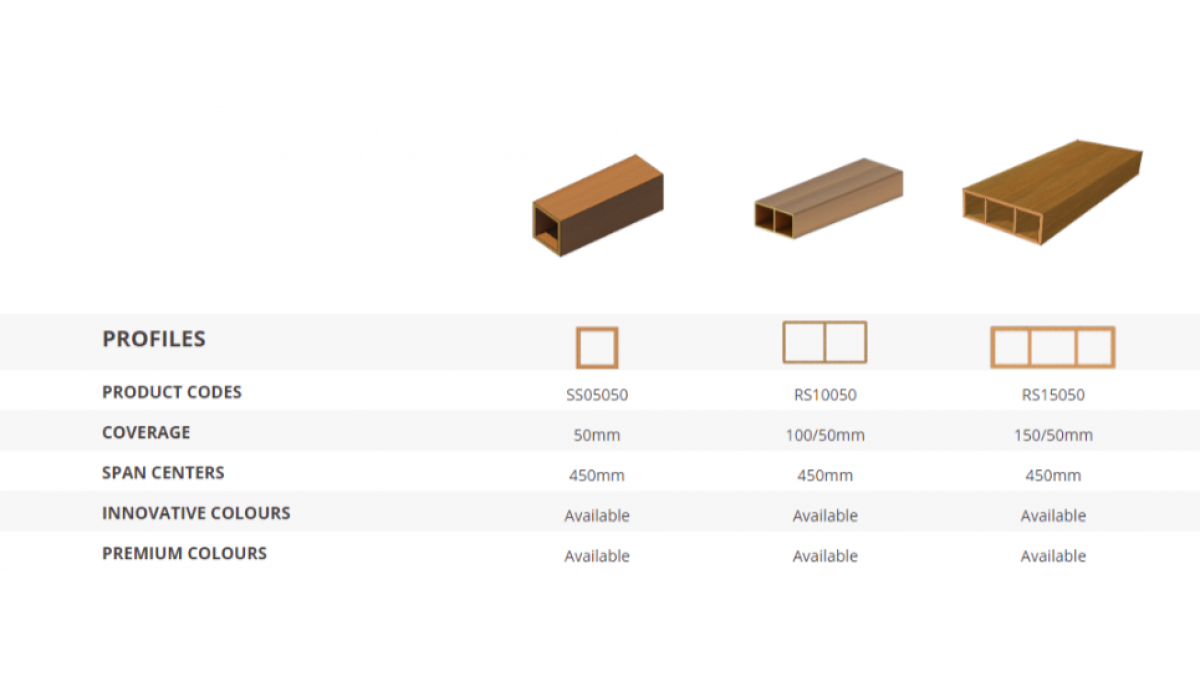

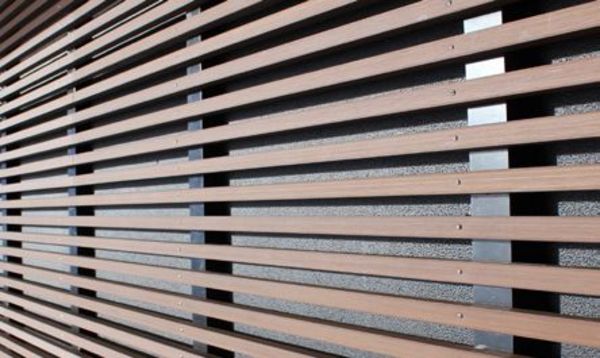

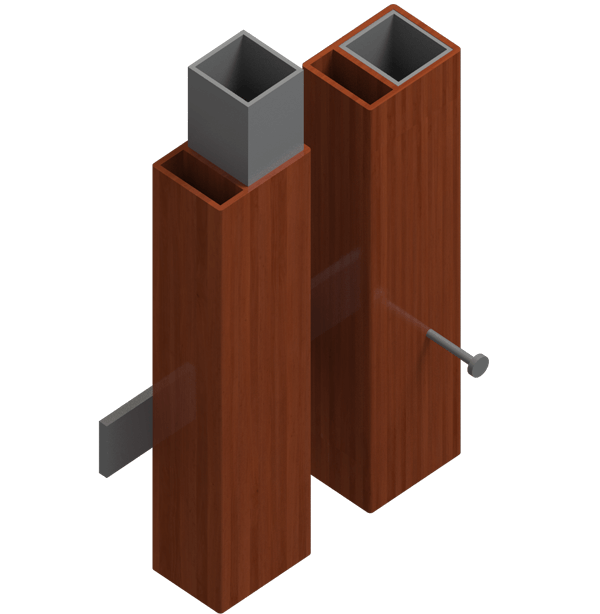

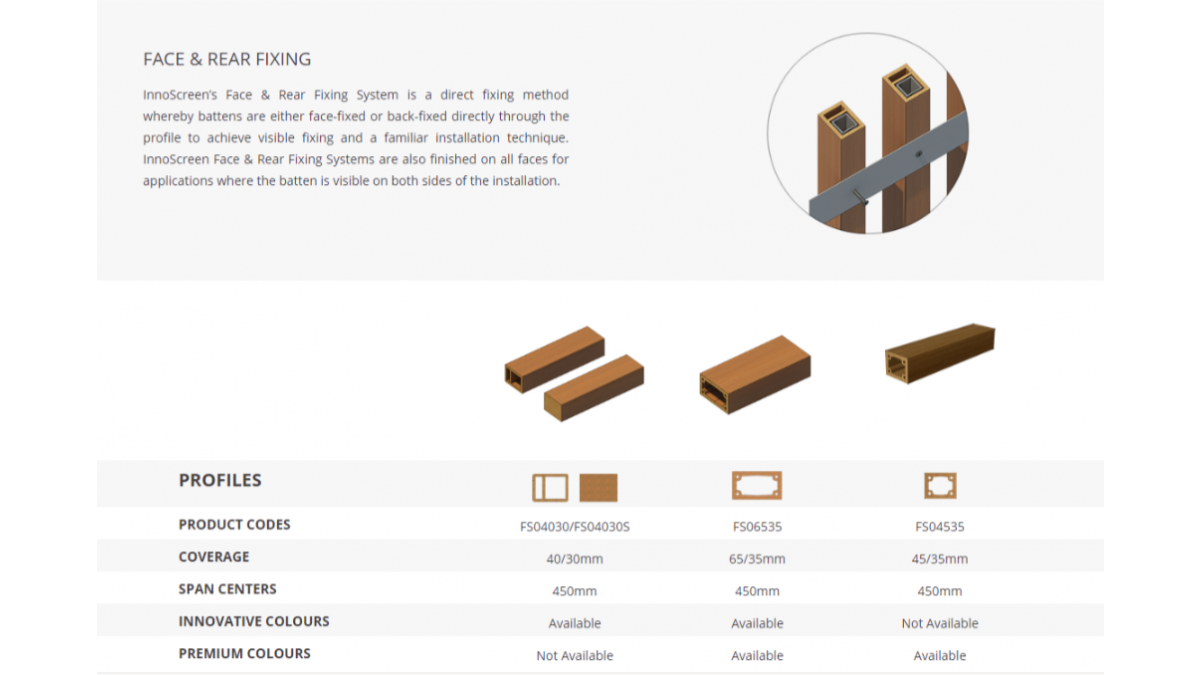

    • Innoscreen's Face and Rear Fixing System is a direct fixing method whereby battens are either face-fixed or back-fixed directly through the profile and generally use an aluminium insert the length of the profile for strengthening and increasing spans
    • Innoscreen Face and Rear Fixing Systems are also finished on all faces for applications where the batten is visible on both sides
Key Features
  • Shade and light control
  • Privacy and security
  • Energy efficiencies
  • Natural air flow and ventilation
  • Weather protection from water and debris during rain, wind and storms
  • Noise reduction
  • Vision from inside and out as required
Scope of Use
  • Location:
    • Up to extra high wind as defined in NZS 3604:2011
    • In all corrosion zones where the fixings are selected in accordance with NZS 3604:2011
    • On buildings 1m or more from the relevant boundary
  • Buildings:
    • On timber or lightweight steel framing that complies with the building code or where the designer and/or installer have established that the building is suitable for the intended building work
  • Concealed Fixing System:
    • Innoscreen's Concealed Lock-in Fixing System creates a perfectly clean line with battens that simply lock into place, concealing the single-part rear clip that can be set out to any desired spacing
  • Face and Rear Fixing:
    • Innoscreen’s Face and Rear Fixing System is a direct fixing method whereby battens are either face-fixed or back-fixed directly through the profile and generally use an aluminium insert the length of the profile for strengthening and increasing spans
Limitations on Use

Refer to CodeMark Certificate of Conformity for limitations.

Statement of Building Code Compliance

If designed, installed and maintained in accordance with the all Symonite's Building Ltd requirements, the Innoscreen system will meet the following performance claims:

  • B1 Structure:(B1.3.1, B1.3.2, B1.3.3 (a, f, h, j, q)

    Innowood tested to:

    • AS/NZS 4266:2004 Reconstituted wood-based panels - Methods of testing
      Modulus of rupture and elasticity, Bond strength and Density
    • ASTM D4495-12 Standard Test Method for Impact Resistance of Poly(Vinyl Chloride) (PVC) Rigid Profiles by Means of a Falling Weight.
    • ASTM D4060-10 Standard Test Method for Abrasion
    • Resistance of Organic Coatings by the Taber Abraser (Abrasion resistance)
  • B2 Durability:B2.3.1 (b)

    Verifcation method:

    • B2/VM1
  • C3 Fire: Fire affecting areas beyond the source (C3.5, C3.7)

    Acceptable solution:

    • C/AS2-C/AS7
    • Meets para 5.8.1 (b)
  • F2 Hazardous Building Materials:(F2.3.1)

    Alternative solution:

    • Innoscreen does not contain or emit harmful materials.

*Compliance with these clauses is established based on test results that can be identified in the PTS / PASS Certificate Document

Other Performance Attributes

Innowood Australia, manufacturer of the Innoscreen system hold the following certifications and memberships:

  • Environmental Product Declaration (EPD) Registered S-P-00853
  • Member of Australia Green Building Council
CodeMark
CodeMark
Documents
CodeMark Certificate

Symonite Panels Ltd are highly experienced specialist suppliers, fabricators, and installers of Facade Systems for the construction industry.
