Eurostyle® panelok® Cladding
Description

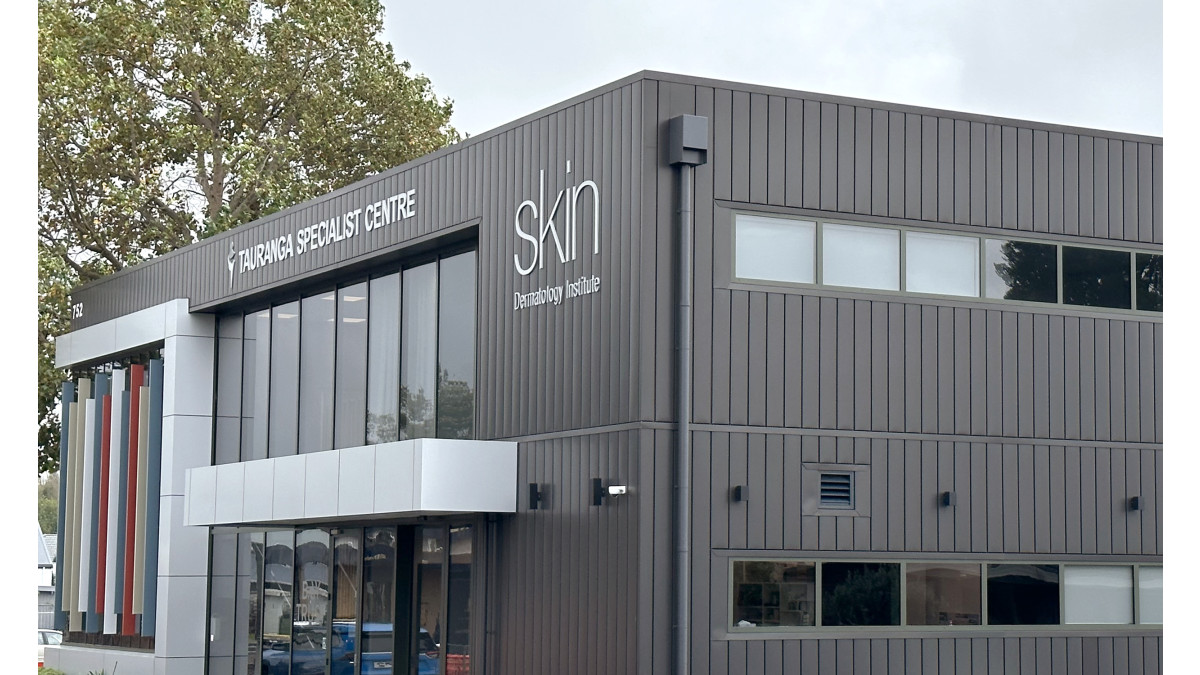

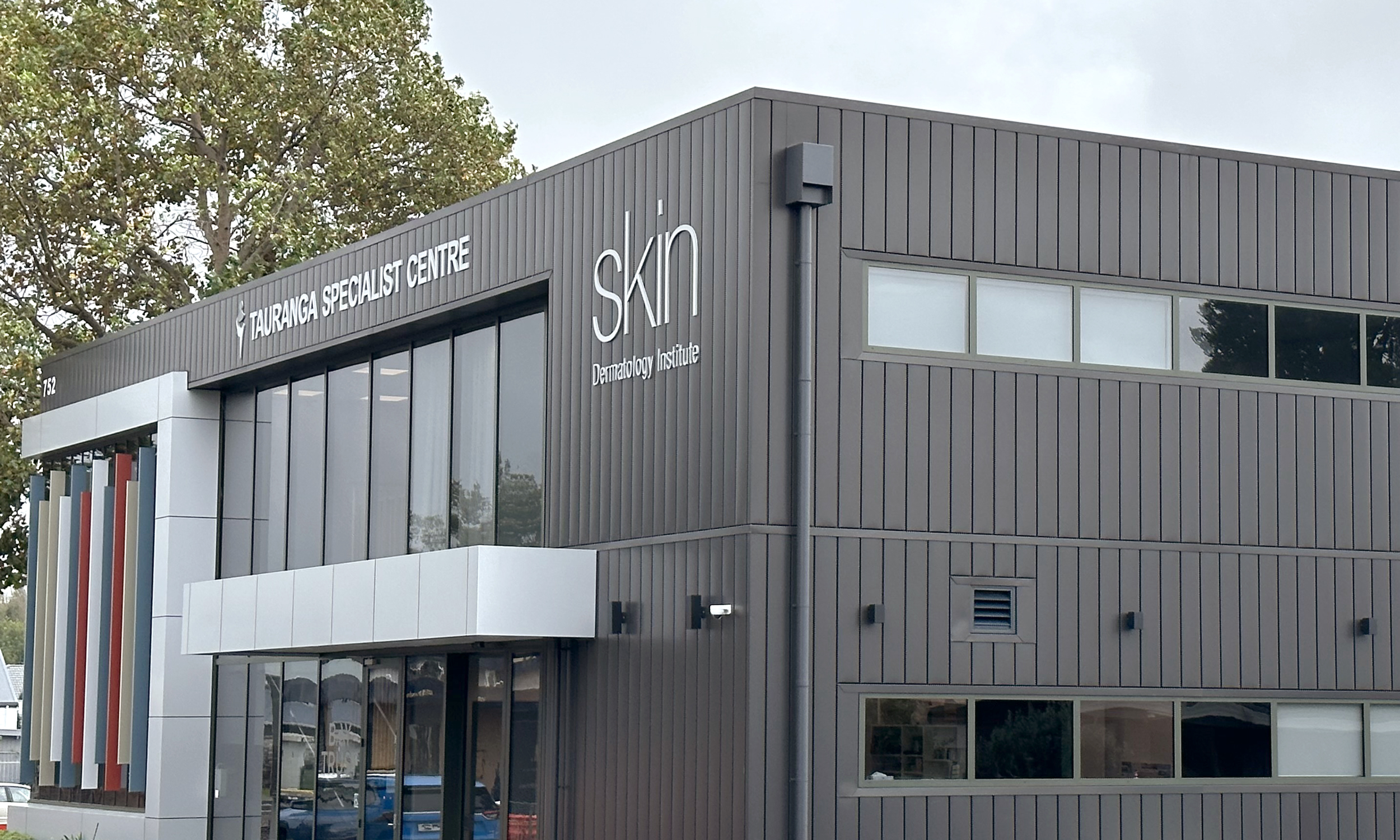

Eurostyle® panelok® is Roofing Industries latest innovation with the Eurostyle® stable of products. panelok® is an external and internal negative detail metal wall and cladding system, providing building designers with a modern and stylish cladding option. The stunning visual effects attributed to the panelok walling system ultimately complements both residential and commercial architectural appeal.

Manufactured in varying width, metal substrates and with an extensive selection of appealing surface colours and pre-paint finishes. The variable negative detail spacing options range from 0mm to 25mm, and ensures designer flexibility and simplicity around cladding penetrations.

Eurostyle panelok pan widths: 215mm, 255mm (standard), 265mm and 400mm. For other widths contact Roofing Industries.

Key Features

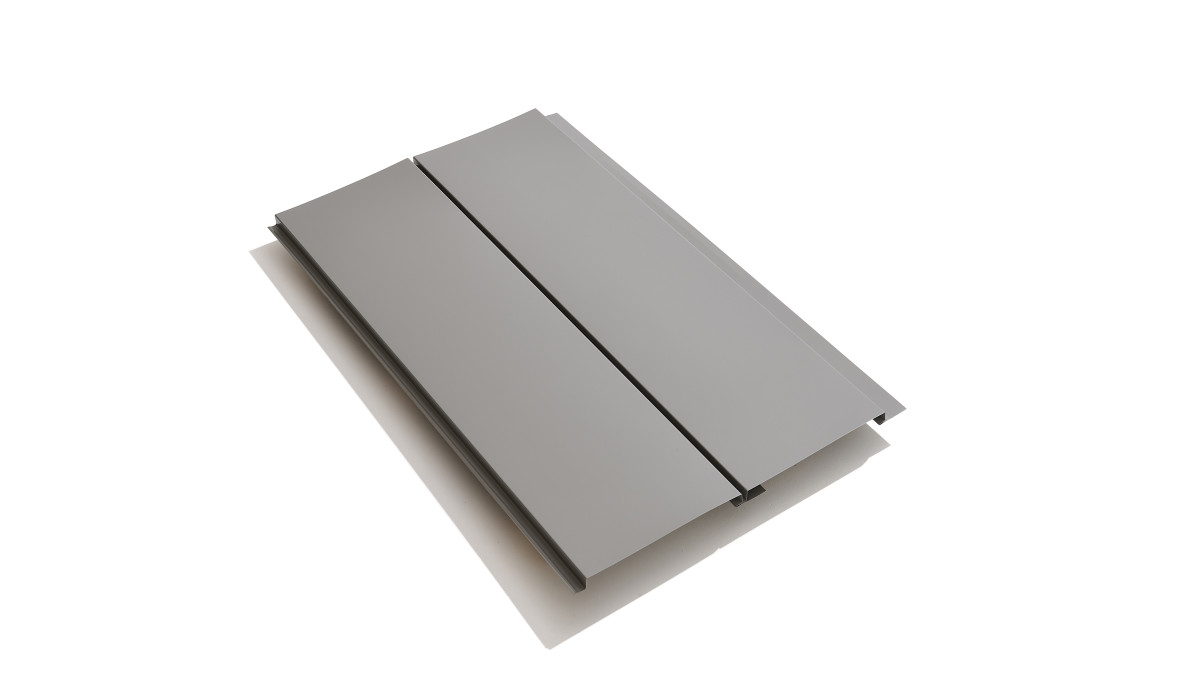

  • Metal wall interlocking panel system
  • Architecturally inspired negative detail
  • Variable negative detail spacing options range from 0mm to 25mm
  • Ensures designer flexibility and simplicity around cladding penetrations.
Categories
Metal Cladding
Ranges
Tray
Scope of Use

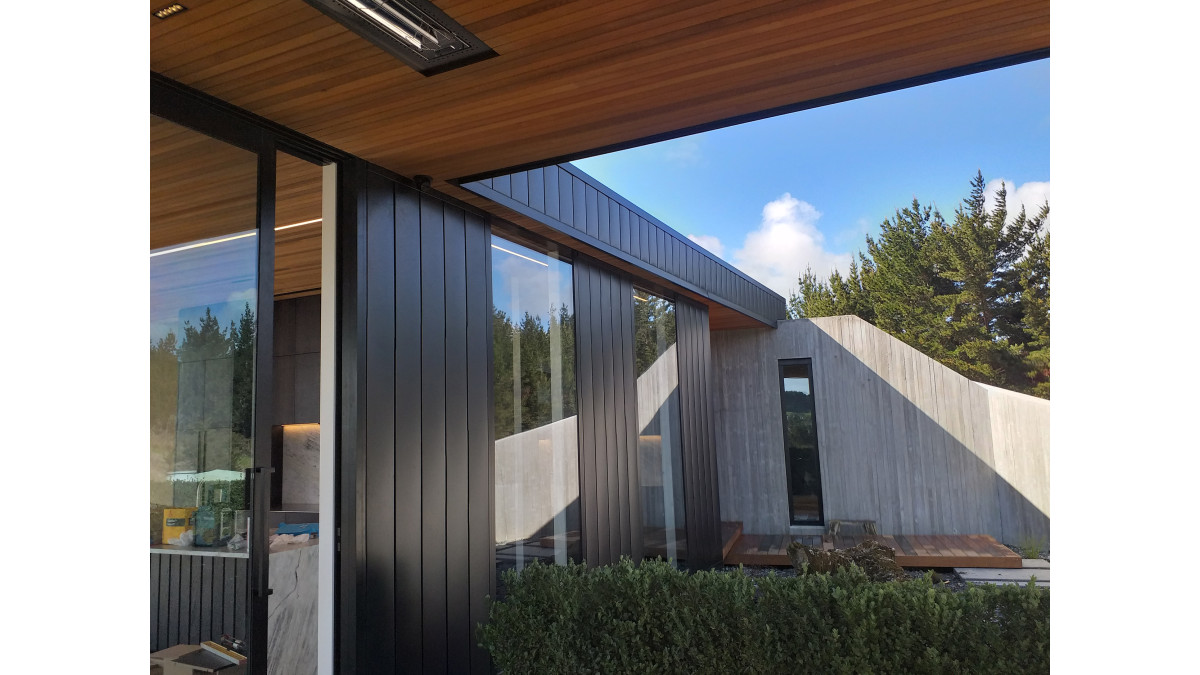

  • Residential and commercial cladding
  • Negative detail up to 15mm. Additional spacing up to 25mm is permissible using fasteners within the negative detail
Statement of Building Code Compliance

Eurostyle® will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B2 — Durability: Performance B2.3.1(b)
  • Clause E2 — External moisture: Performance E2.3.1, E2.3.2

Selection of the correct grade of material and appropriate surface coating is imperative to ensure Eurostyle performs satisfactorily in the environment it is to be installed, meeting the requirements of the NZ Building Code.

Documents
Product Technical Statement: Eurostyle panelok

2025

Product Brochure: Eurostyle

2024

Selection Guide: Eurostyle
Brochure: Roofing with Style

2024

Handling and Storage of Metal Roofing and Cladding
Installation Guide
Installation Guide: Metal Longrun Roofing & Cladding

2022

Maintenance Instructions

2017

Flyer: Eurostyle Panelok

2024

CAD/PDF Details
Filters
Project Type
Full Sets
Wall Cladding Details
Eurostyle Panelok Residential Full Set

RI-ESP-WVC

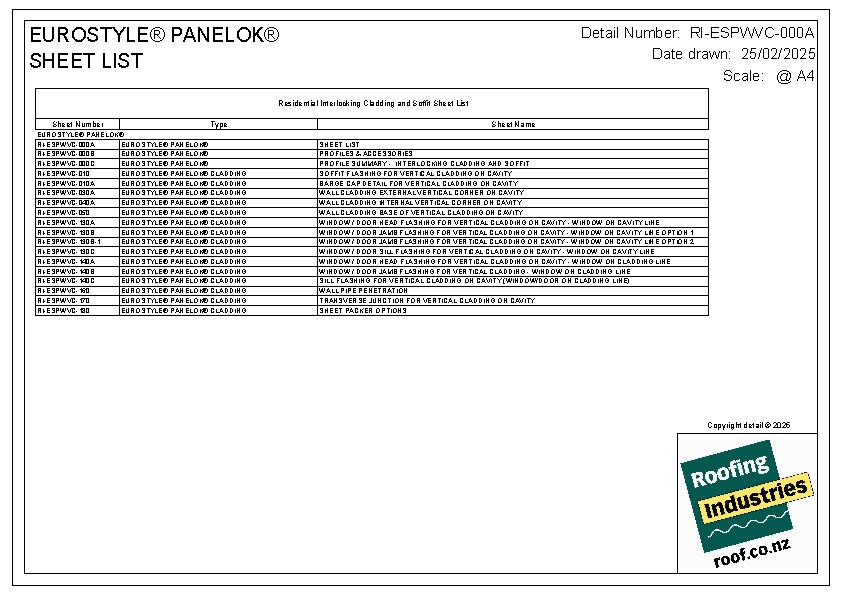

Eurostyle Panelok Residential Sheet List

RI-ESP-WVC-000A

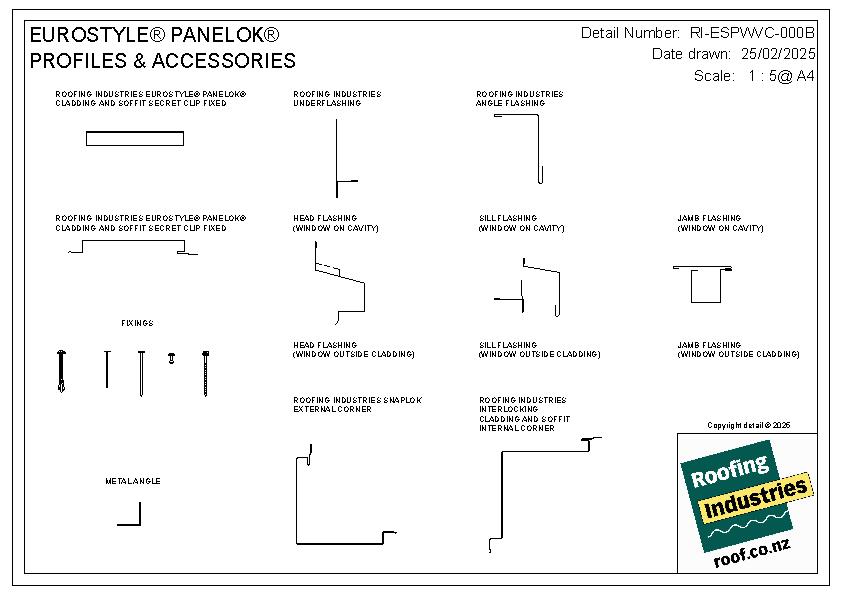

Eurostyle Panelok Residential Profiles & Accessories

RI-ESP-WVC-000B

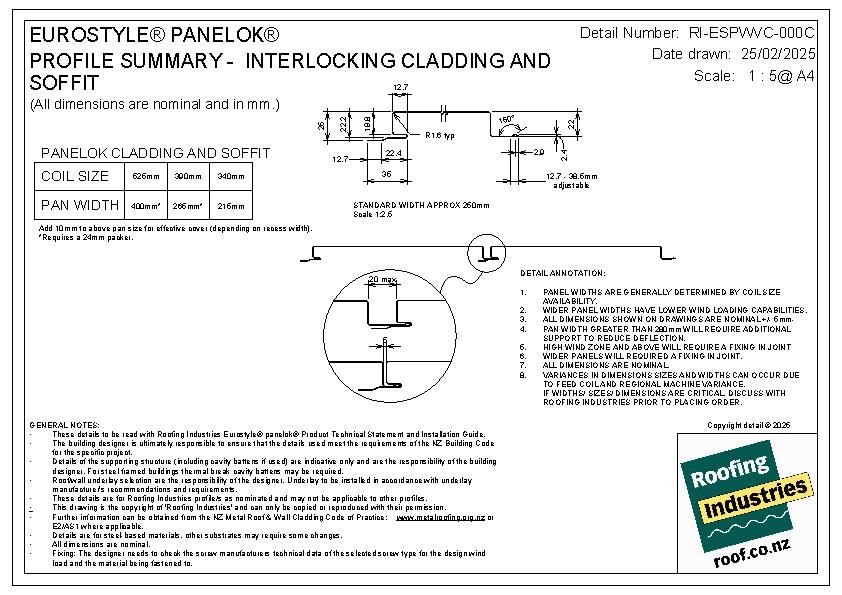

Eurostyle Panelok Residential Profile Summary — Interlocking Cladding & Soffit

RI-ESP-WVC-000C

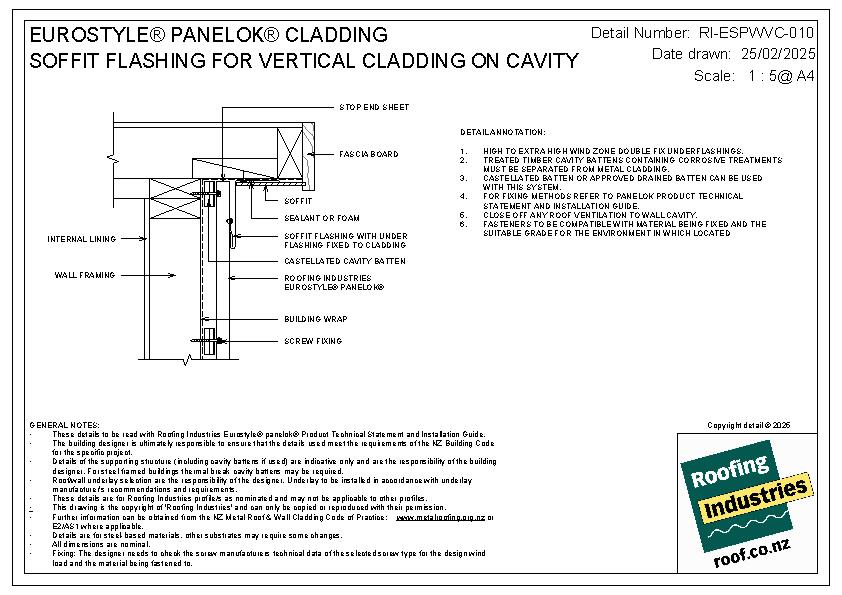

Eurostyle Panelok Residential Soffit Flashing for Vertical Cladding on Cavity

RI-ESP-WVC-010

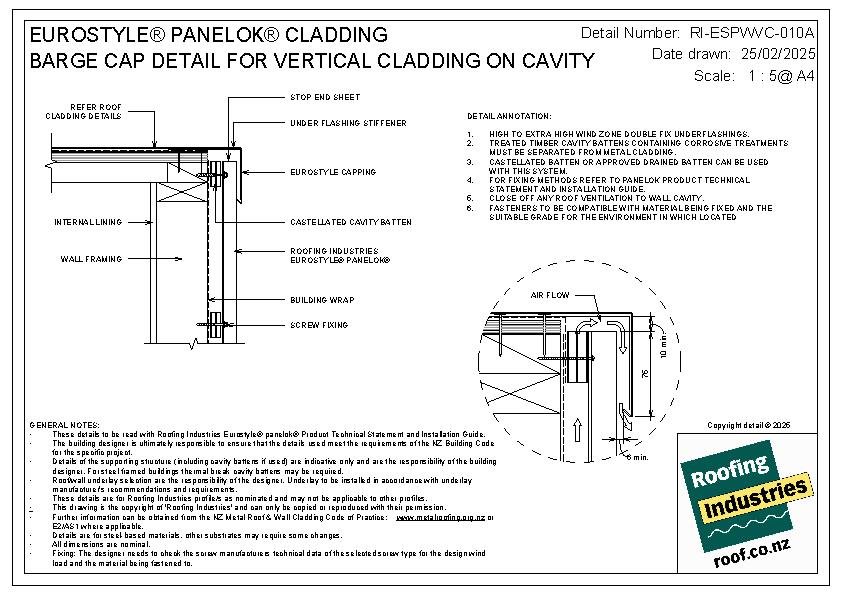

Eurostyle Panelok Residential Barge Cap Detail for Vertical Cladding on Cavity

RI-ESP-WVC-010A

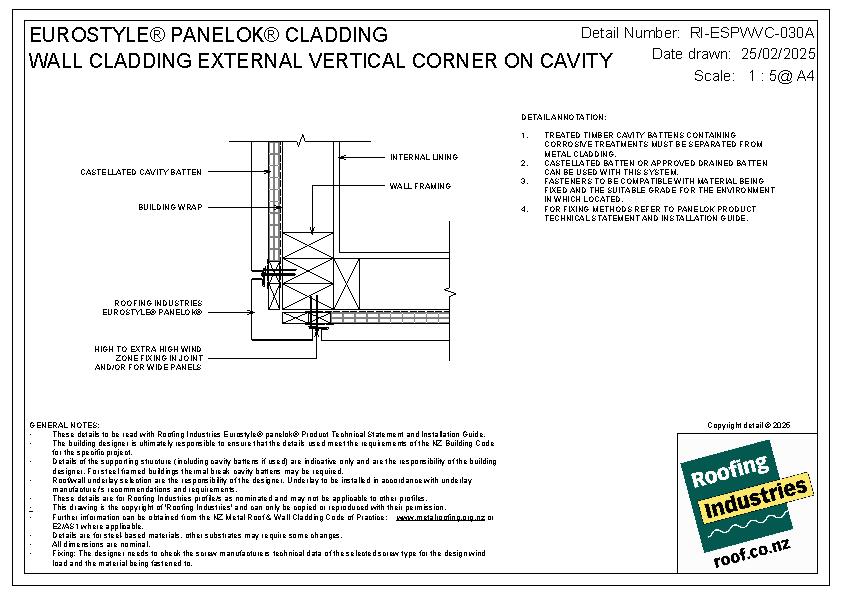

Eurostyle Panelok Residential Wall Cladding External Vertical Corner on Cavity

RI-ESPWVC-030A

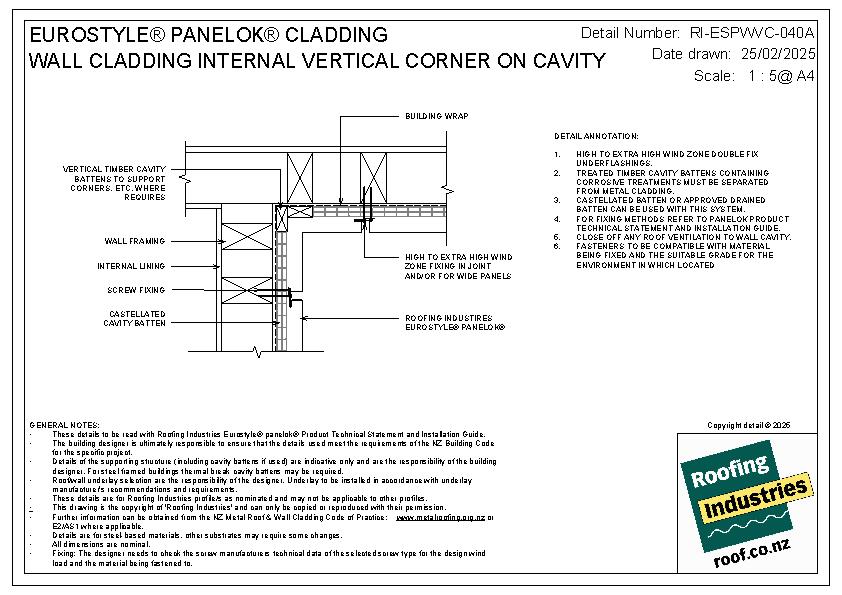

Eurostyle Panelok Residential Wall Cladding Internal Vertical Corner on Cavity

RI-ESPWVC-040A

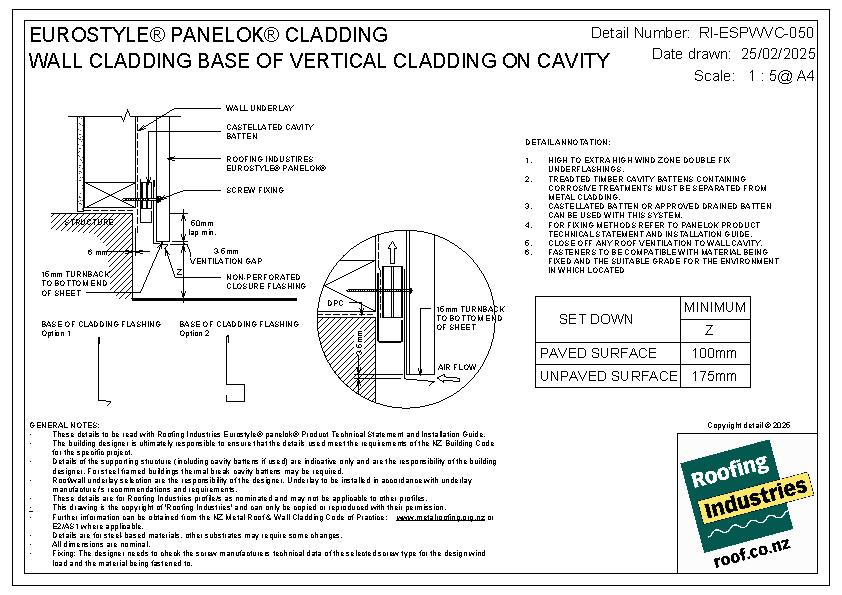

Eurostyle Panelok Residential Wall Cladding Base of Vertical Cladding on Cavity

RI-ESPWVC-050

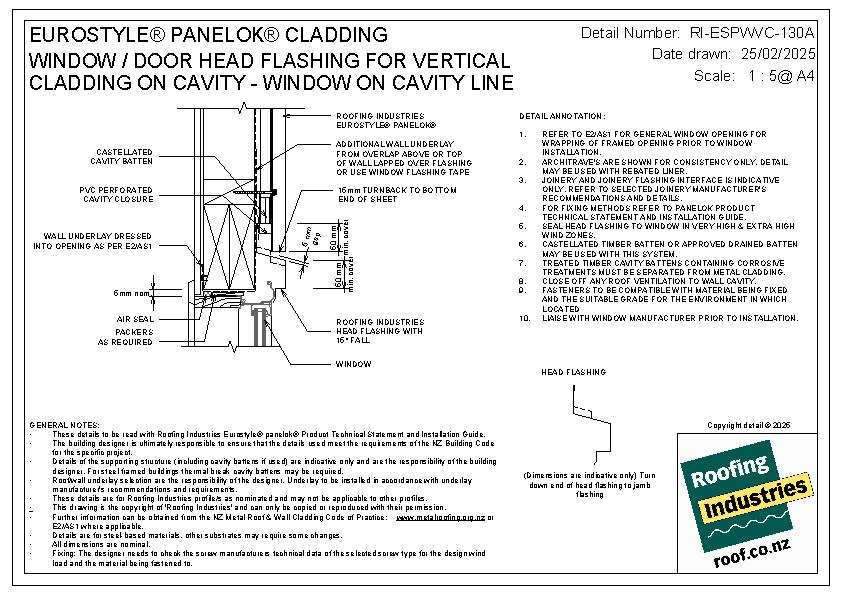

Eurostyle Panelok Residential Window / Door Head Flashing for Vertical Cladding on Cavity — Window on Cavity Line

RI-ESPWVC-130A

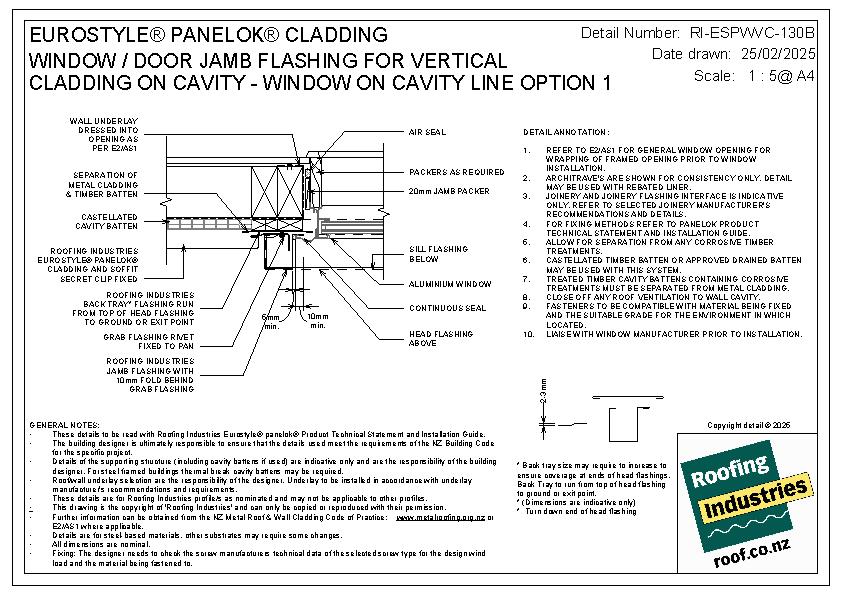

Eurostyle Panelok Residential Window / Door Jamb Flashing for Vertical Cladding on Cavity — Window on Cavity Line Option 1

RI-ESPWVC-130B

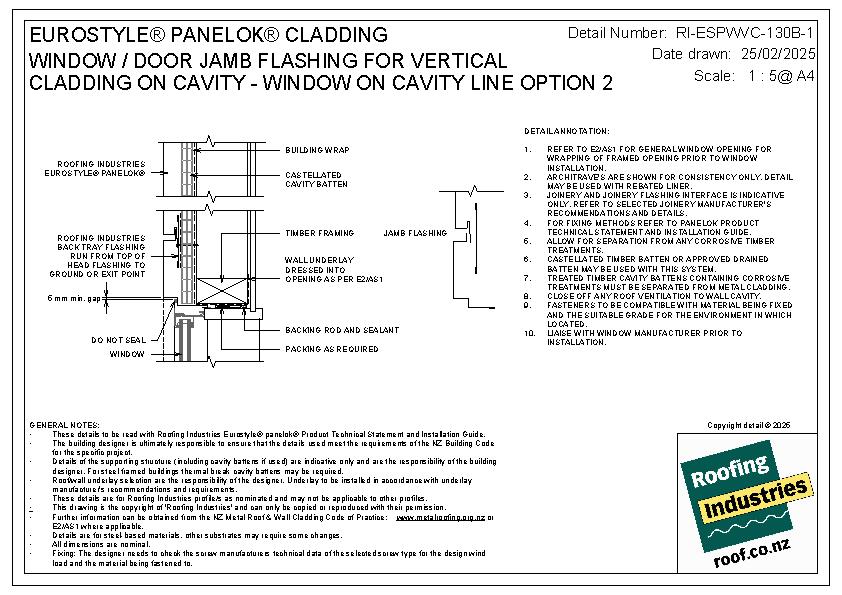

Eurostyle Panelok Residential Window / Door Jamb Flashing for Vertical Cladding on Cavity — Window on Cavity Line Option 2

RI-ESPWVC-130B-1

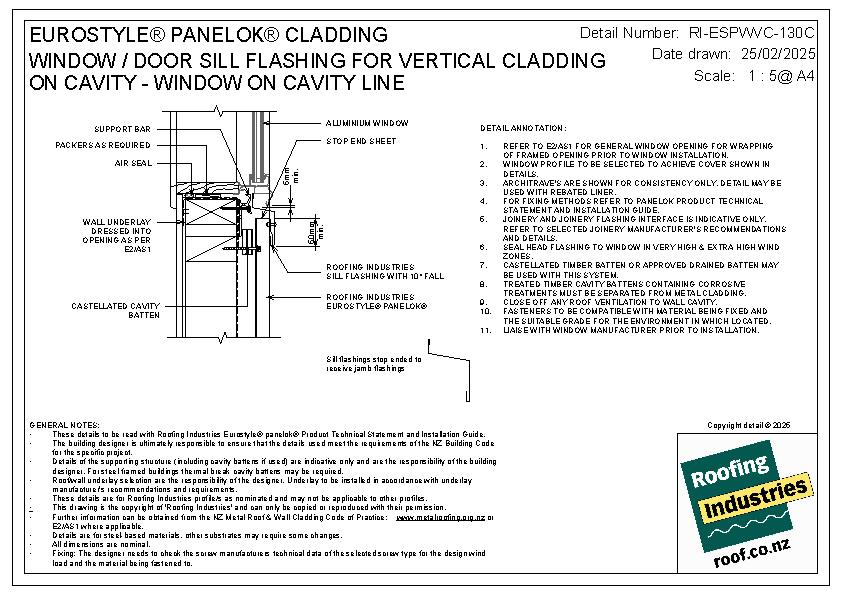

Eurostyle Panelok Residential Window / Door Sill Flashing for Vertical Cladding on Cavity — Windon on Cavity Line

RI-ESPWVC-130C

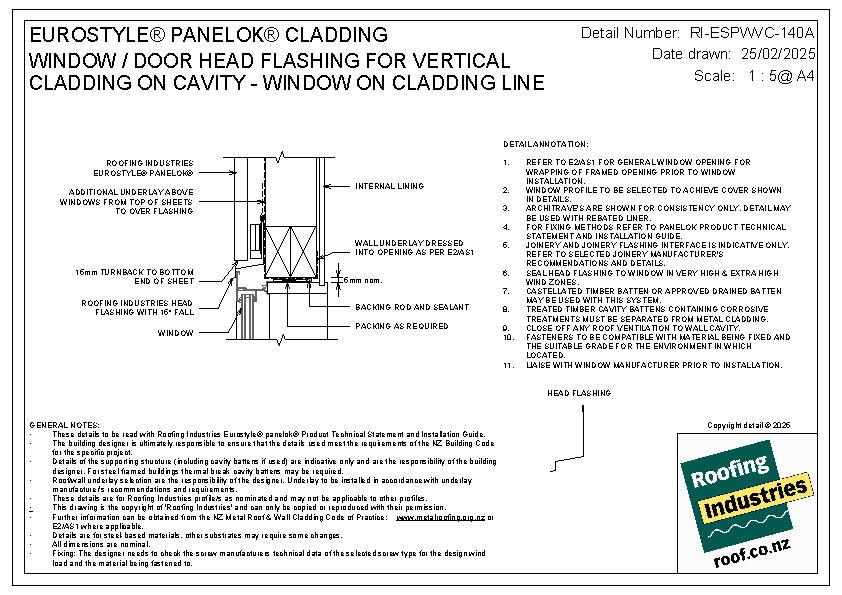

Eurostyle Panelok Residential Window / Door Head Flashing for Vertical Cladding on Cavity — Window on Cladding Line

RI-ESPWVC-140A

Eurostyle Panelok Residential Window / Door Jamb Flashing for Vertical Cladding on Cavity — Window on Cladding Line

RI-ESPWVC-140B

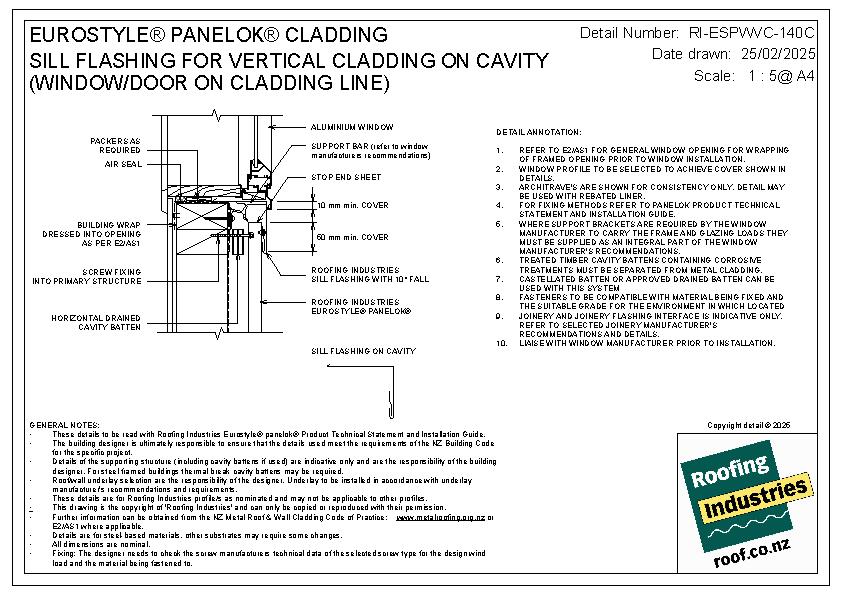

Eurostyle Panelok Residential Sill Flashing for Vertical Cladding on Cavity — Window / Door on Cladding Line

RI-ESPWVC-140C

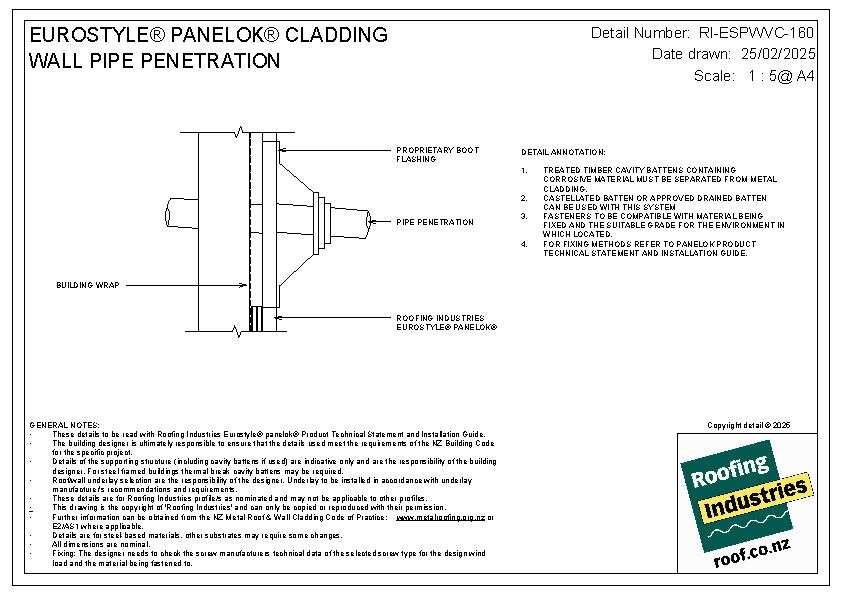

Eurostyle Panelok Residential Wall Pipe Penetration

RI-ESPWVC-160

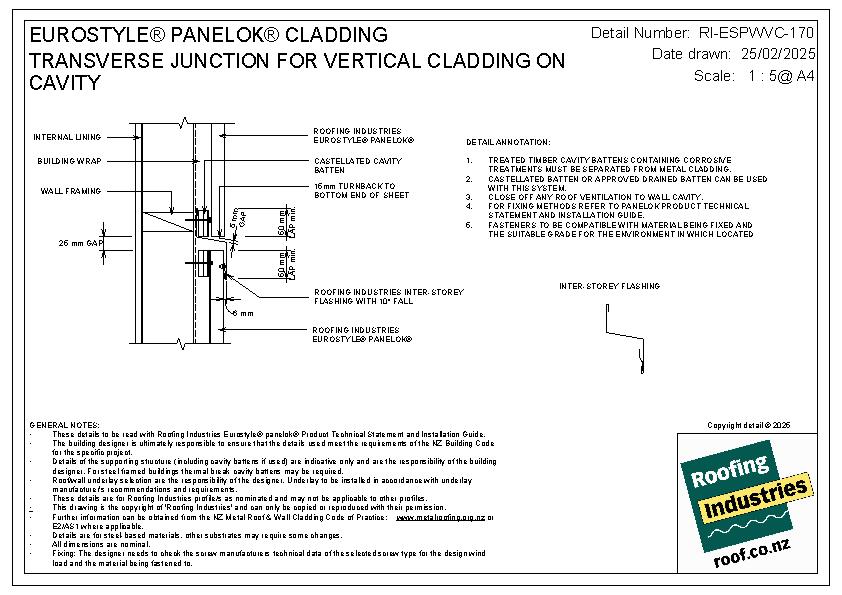

Eurostyle Panelok Residential Transverse Junction for Vertical Cladding on Cavity

RI-ESPWVC-170

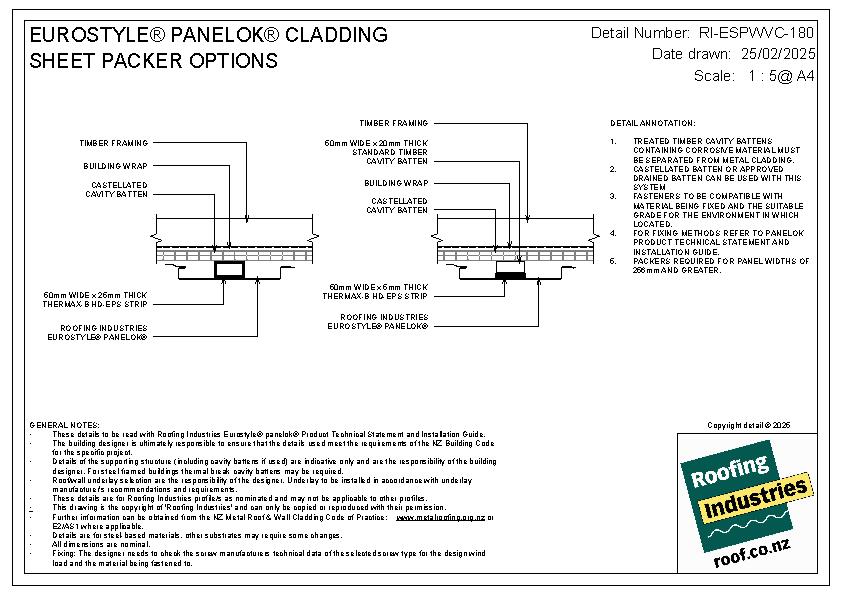

Sheet Packer Options

RI-ESPWVC-180

BIM
Residential Panelok Details Revit

RI-ESP

2025
