Rondo QUIET STUD Acoustic Wall System
Description

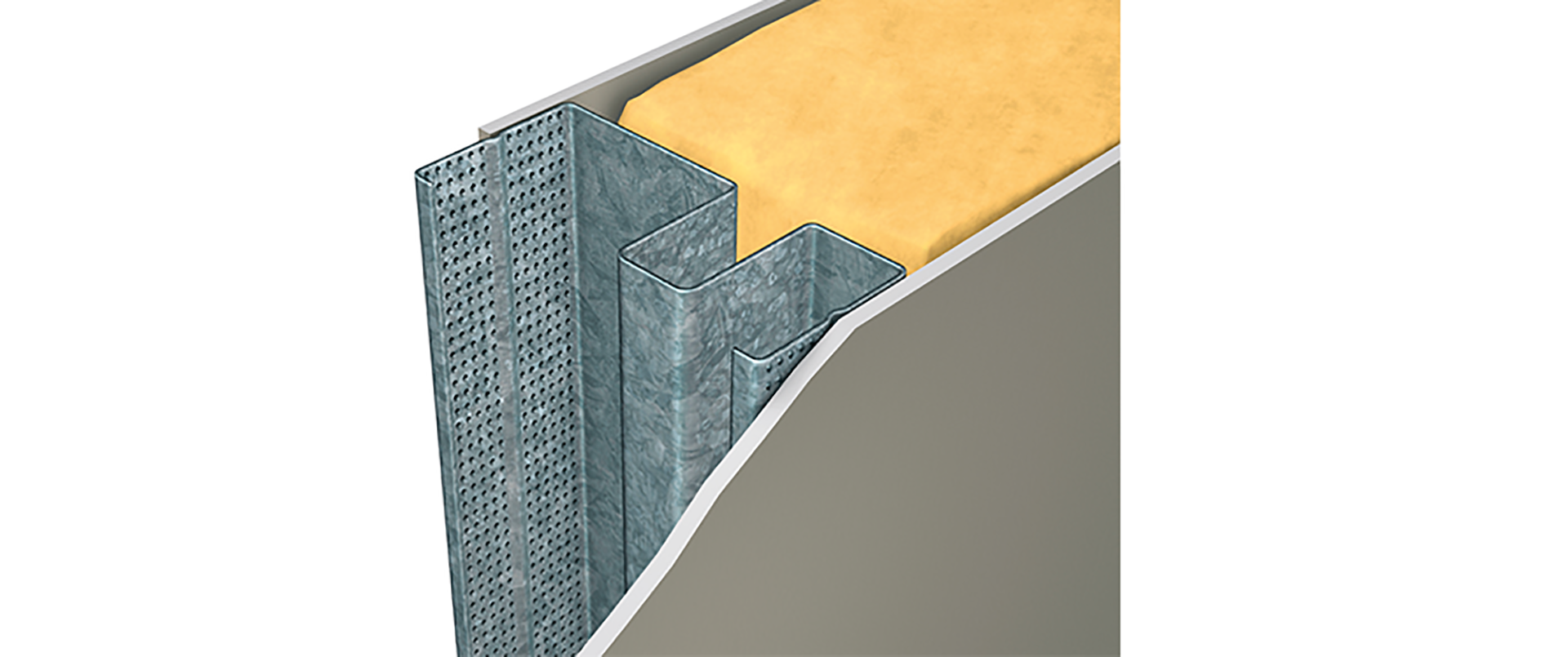

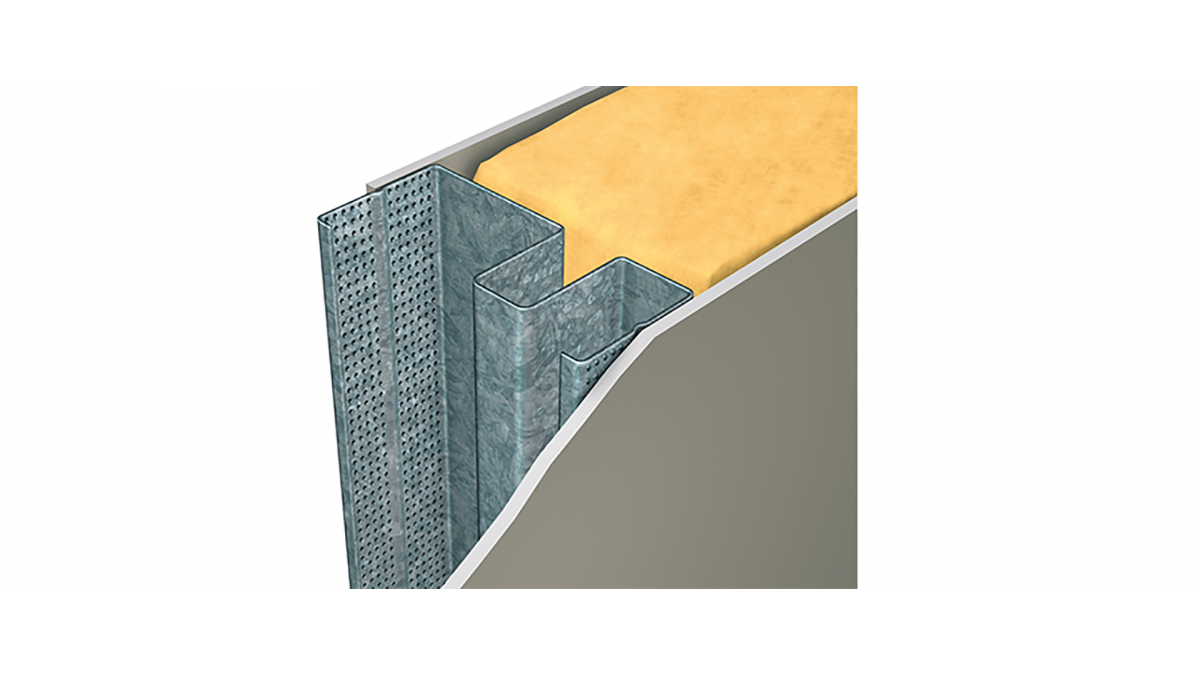

The unique design of QUIET STUD, combined with appropriate lining board systems, forms an effective buffer against unwanted noise to provide a cost-effective solution to acoustic control provisions, with more floor space and less noise. QUIET STUD's smaller footprint means more usable floor space, and, as the installation method is practically the same as standard drywall construction, it results in lower installation costs as well as a virtually fail-safe acoustic wall-system.

Noise is actually vibration. The stud conducts the vibration across its web, and therefore sound is transmitted via anything that reacts to it by vibrating. The GIB Rondo QUIET STUD is overall bigger in surface area than a standard wall stud, therefore the sound (vibration) has further to travel and therefore weakens in intensity across the wall and results in a more acoustic efficient wall system.

Key Features
  • Achieves superior performance in a smaller footprint, leaving more floor space
  • Quick installation as it is virtually the same as standard drywall construction, resulting in lower labour costs
  • Single profile; no need for staggered stud method of installation
  • Utilises standard Rondo 92mm top and bottom wall tracks
  • Bell-mouthed service holes for electrical cabling
  • Studs are designed for a friction fit into top and bottom wall track
  • Manufactured with a minimum coating of Z275
Scope of Use

Suitable for:

  • Acoustic control provisions
  • Acoustic wall system
  • Non-fire rated systems
  • Fire rated systems
  • Inter-tenancy walls
Limitations on Use
  • Rondo recommends its products and systems are installed by a qualified tradesperson and according to the relevant codes and standards
Statement of Building Code Compliance

Rondo Systems comply with all relevant Building Codes for fire-rated, acoustic, seismic and load bearing requirements.

In-Service History

The Rondo QUIET STUD system has been used in a range of projects, including apartments, hotel refurbishments, schools, universities, hospitals and offices. At the District law Court in Western Australia, Rondo QUIET STUD was used as an effective buffer against unwanted noise between court rooms and at the recent Clyde Quay Wharf Apartments in New Zealand, between the inter-tenancy walls.

Documents
Technical Manual
