Rondo MAXIframe External Wall Framing System
Description

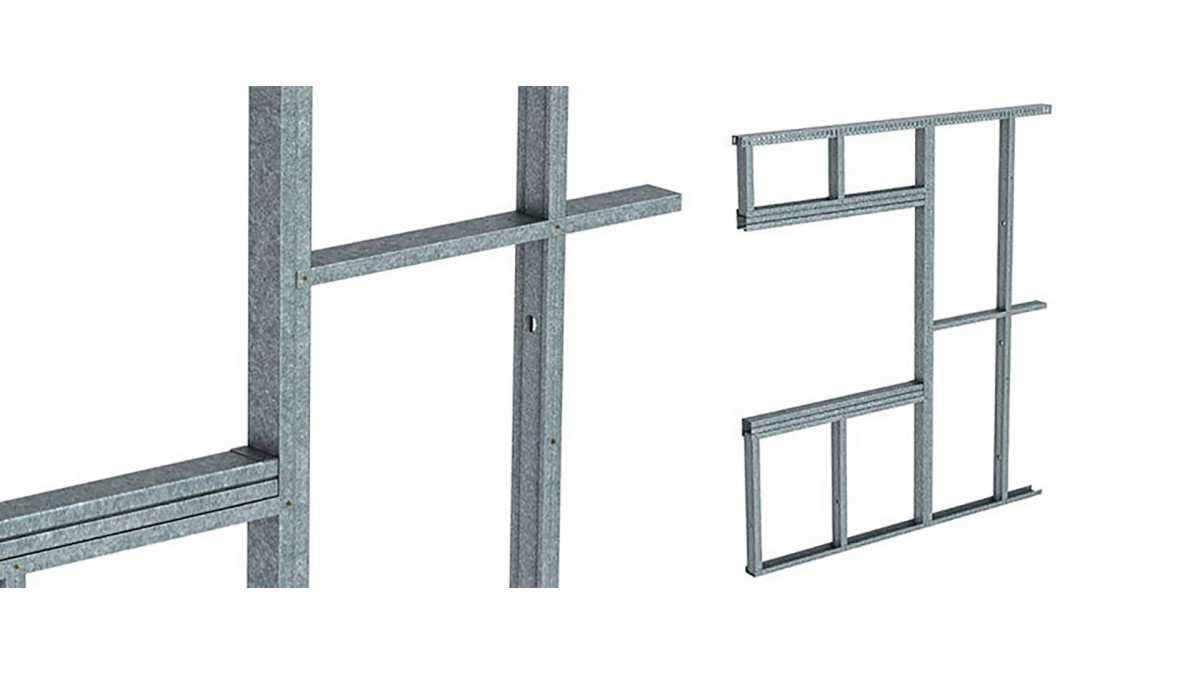

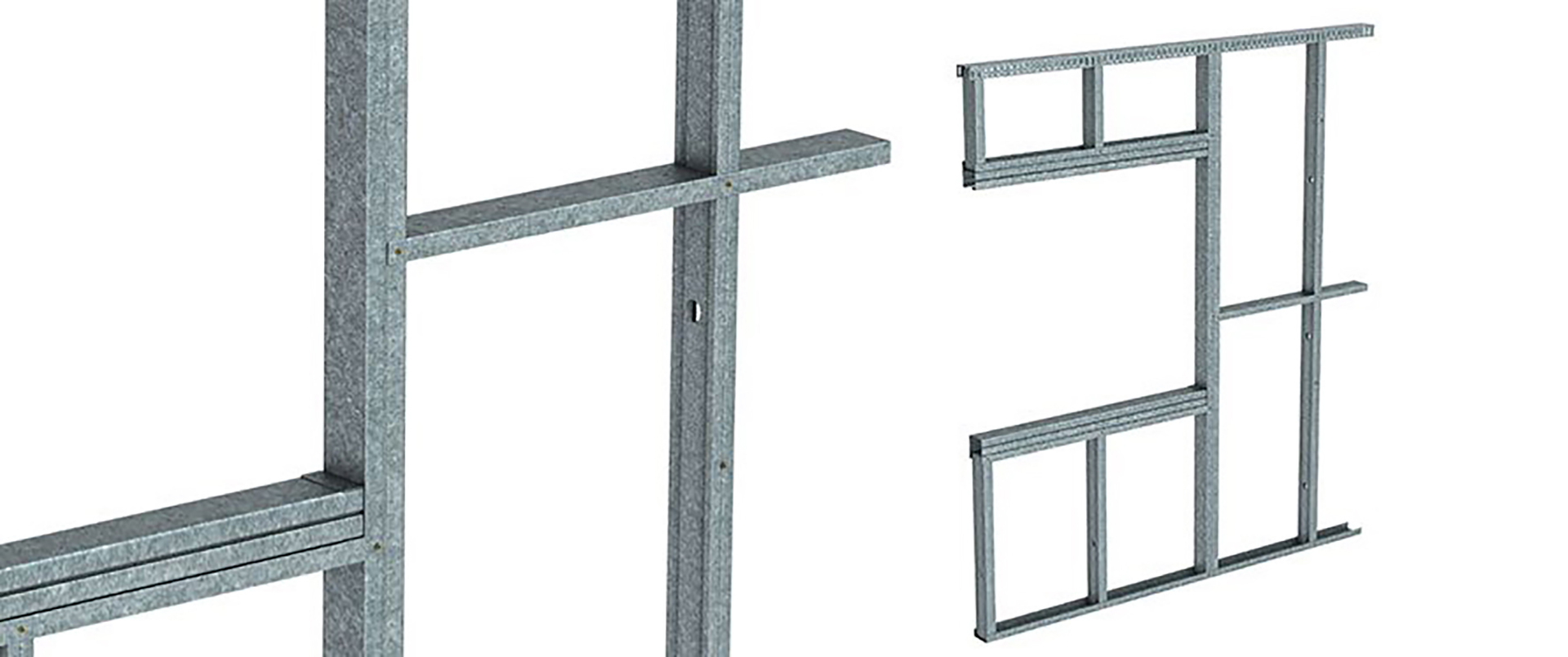

The Rondo MAXlframe External Wall Framing system has been expertly engineered to offer builders a more efficient, versatile and cost effective design option than traditional external wall framing construction methods. The system incorporates standard Rondo 92mm Studs as the main framing, with the inclusion of two new major profiles, MAXljamb and MAXltrack, and three complementary cleats to provide a simple, yet solid structure.

Key Features

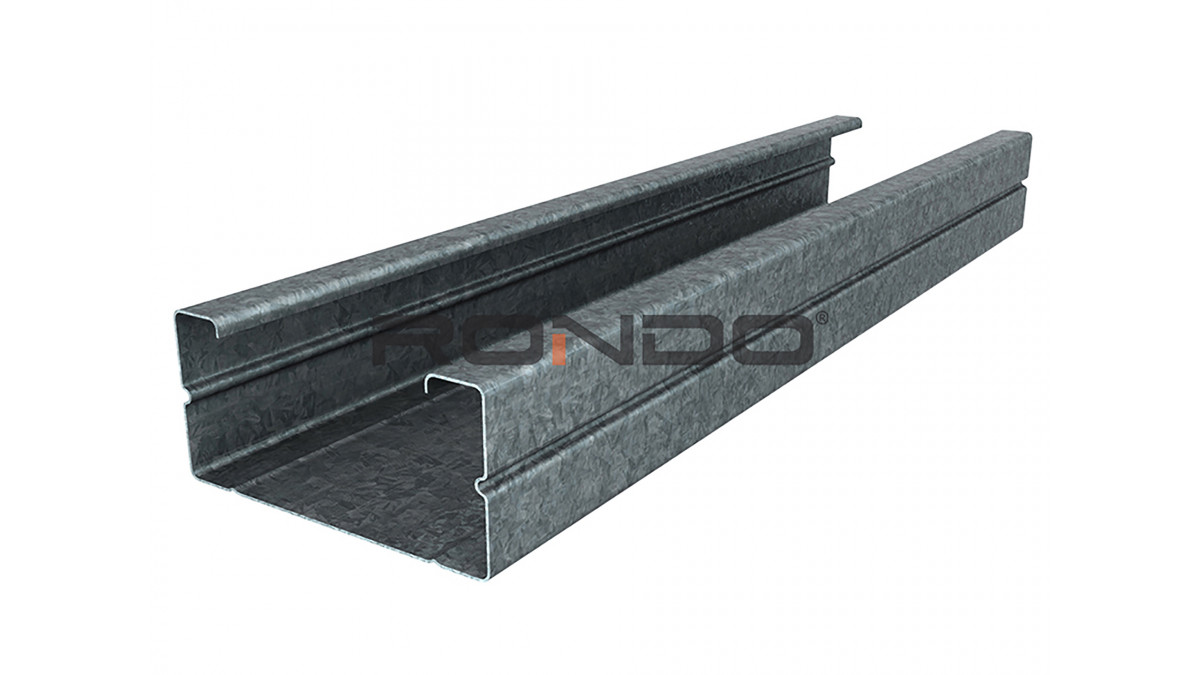

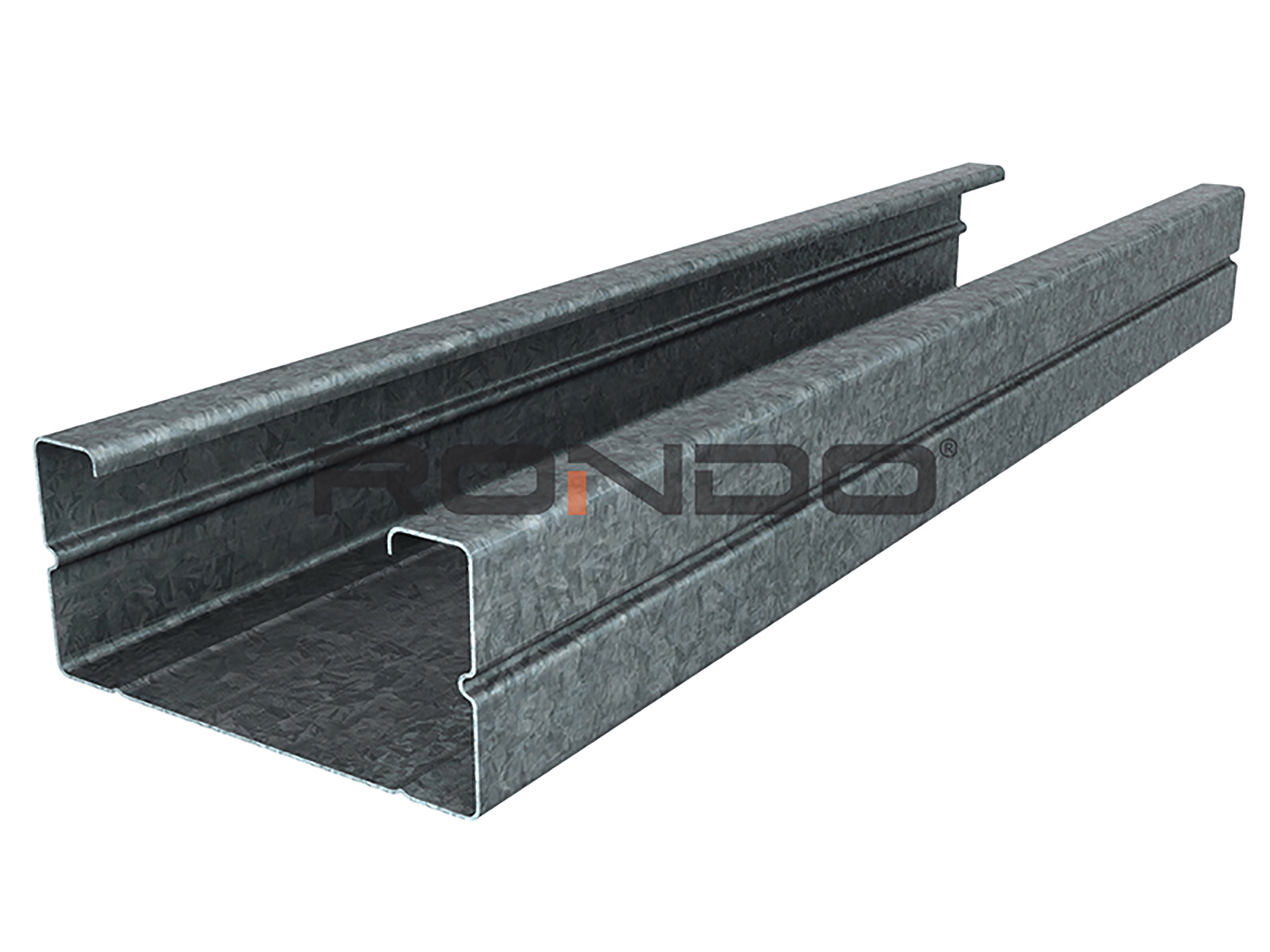

  • MAXljamb can support and carry greater load than regular wall studs, therefore removing the need for boxed or back to back stud configurations
  • Greater performance capacities than traditional external wall framing construction methods
  • Available in custom lengths
  • MAXljamb is made from hi tensile steel, 1.2BMT G500
  • MAXljamb can be used as both a vertical jamb member around openings, or horizontal head and sill member in window openings
  • Majority of Stud and Track is hemmed for safety and increased strength
  • Manufactured with a minimum coating of Z275
Scope of Use

Suitable for:

  • External wall systems
  • Vented external walls
  • Non-vented external Walls
  • Load bearing walls by design
  • Window and door jambs
  • Non-fire rated systems
  • Fire rated systems
  • Dual exterior cladding and interior linings support
  • Insulation in wall cavity
  • Access for services within outer walls
Limitations on Use
  • Rondo recommends its products and systems are installed by a qualified tradesperson and according to the relevant codes and standards
Statement of Building Code Compliance
  • AS/NZS 1170.0:2000 Structural Design Action
  • AS/NZS 1170.2:2011 Wind Action
  • NZS 1170.5:2044 Part 5 Earthquake actions in New Zealand
  • AS/NZS 4055:2012 Wind load for houses
  • AS/NZS Cold formed steel structures
  • AS3623:1993 Domestic metal framing
  • AS 2331.1.3.1:2001 Neutral salt spray test
  • AS/NZS 1397:2011 Continuous hot dip metallic coated steel sheet and strip - coatings of zinc and zinc alloyed with aluminium and magnesium
  • AS/NZS 3566.2:2002 Self drilling screws for the building and construction industries - corrosion resistance requirement
In-Service History

Since its release in 2011, Rondo's MAXlframe External Wall Framing System has already been used in significant projects across Australia and New Zealand. In the Century Apartments project in Queensland, the MAXlframe system was used to create a solid framing foundation in all 76 residential units.

Documents
Design Manual - Full Rondo
Design Manual - MAXIframe
Video Installing Maxiframe
