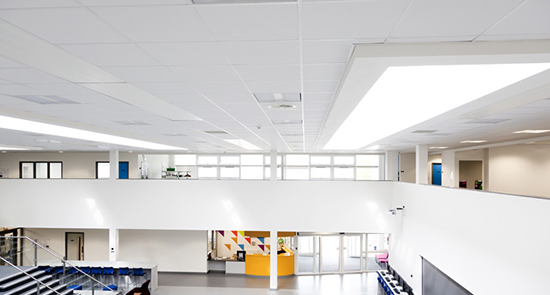

AMF Thermatex Silence — Ceiling Tile
Description

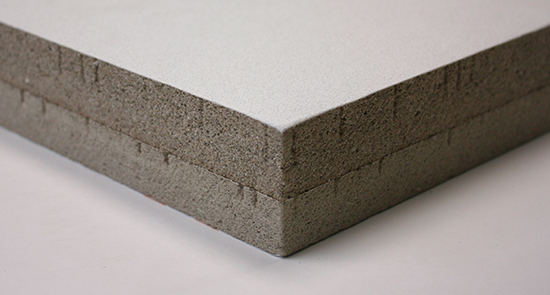

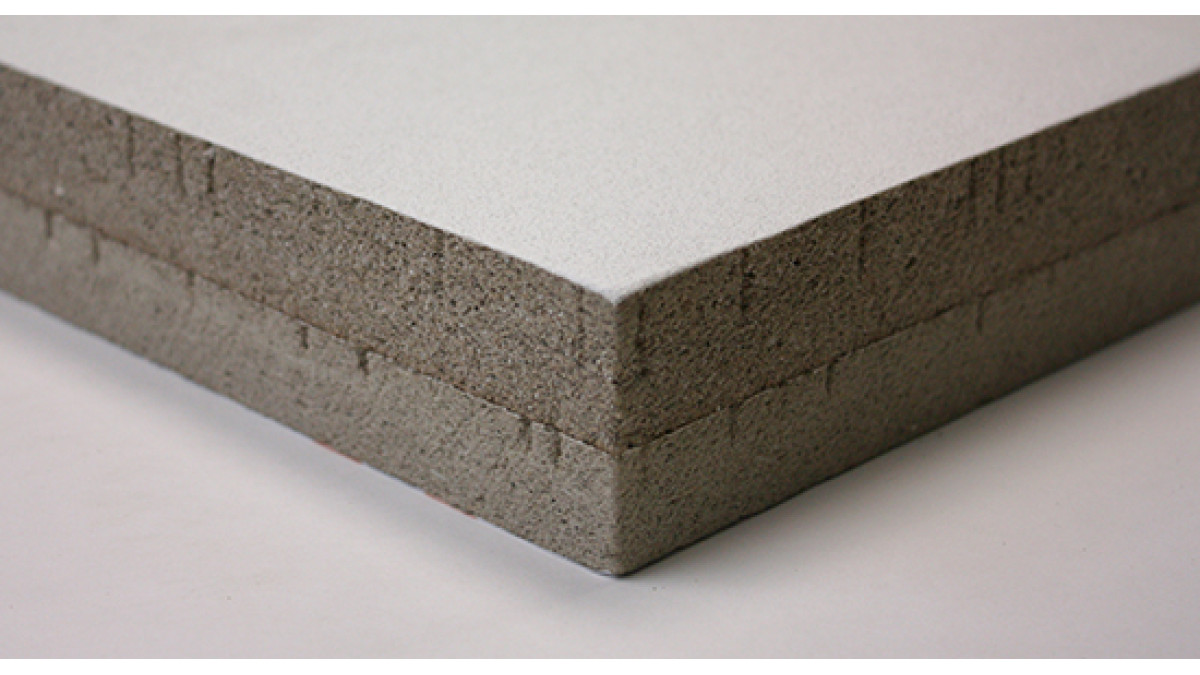

AMF Thermatex Silence is a fleece-coated ceiling made from two mineral boards bonded together. This special construction enables the highest requirements in sound absorption as well as sound attenuation to be fulfilled. At the same time it is aesthetically impressive with it simple elegance in a suspended ceiling tile.

The AMF Acoustic range carries The Delcare Label.

Key Features
  • System: Exposed Grid System, demountable ceiling
  • Dimensions: 600 x 1200 mm
  • Thickness / Weight: 43 mm (c. 10.8 kg/m²)
  • Colour: White similar to RAL 9010
  • Edge details: SK, (VT-S on request)
Declare LBC Red List Free
Declare LBC Red List Free
Scope of Use
  • System: Exposed Grid System, demountable ceiling
Other Performance Attributes
  • Building material class: A2-s1, d0 as per EN 13501-1
  • Sound absorption:
    • EN ISO 354  αw = 0.85 (H) as per EN ISO 11654
    • NRC = 0.90 as per ASTM C 423
  • Sound attenuation: Dn,f,w = 44 dB as per EN 10848 (43 mm thickness, according to test certificate)
  • Light reflectance: up to 88%
  • Thermal conductivity: λ = 0.052 - 0.057 W/mK as per DIN 52612
  • Humidity: up to 95% RH
Documents
Data Sheet
Specification Clause (Masterspec)
CAD/PDF Details

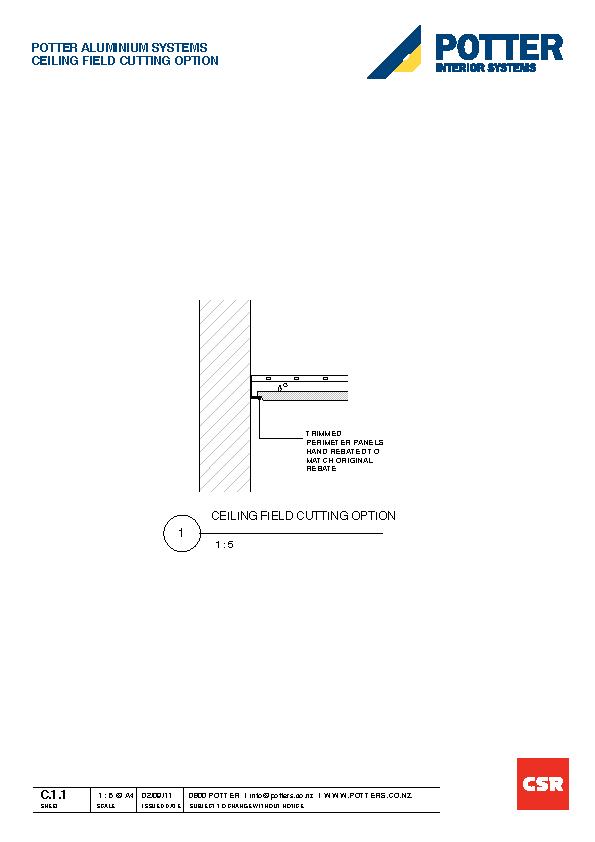

C.1.1 Ceiling Field Cutting Option

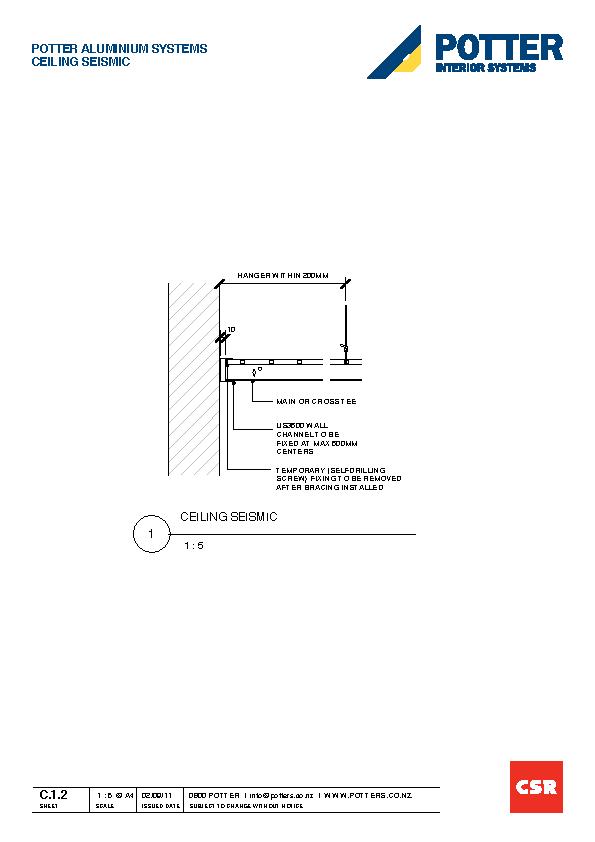

C.1.2 Ceiling Seismic

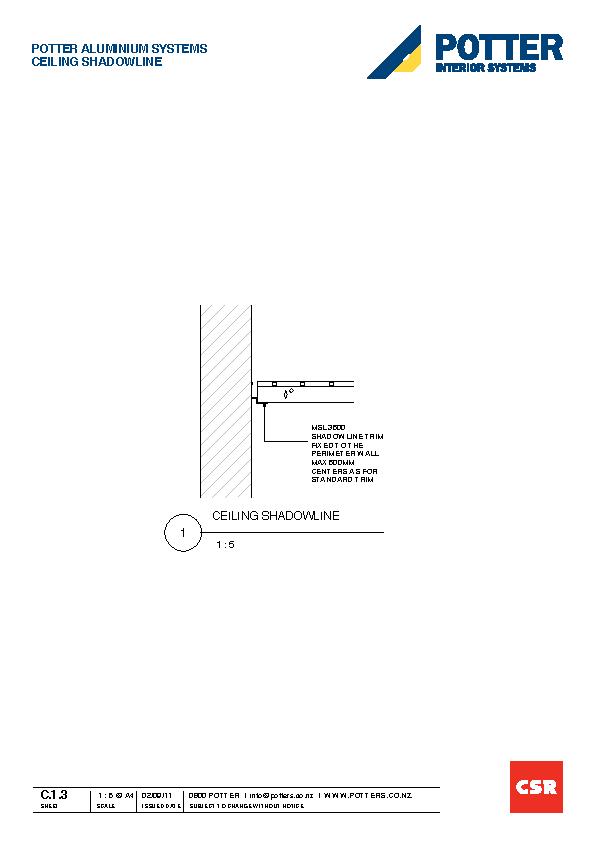

C.1.3 Ceiling Shadowline

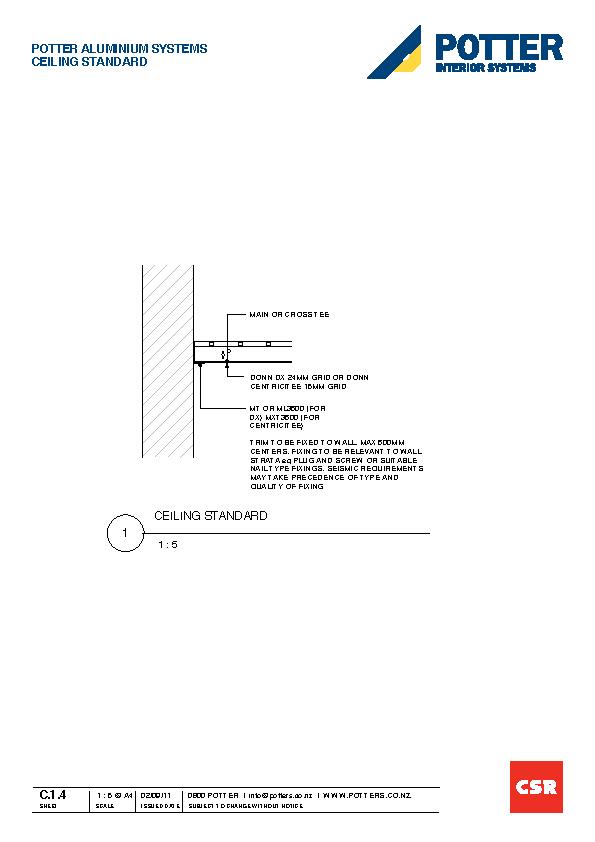

C.1.4 Ceiling Standard

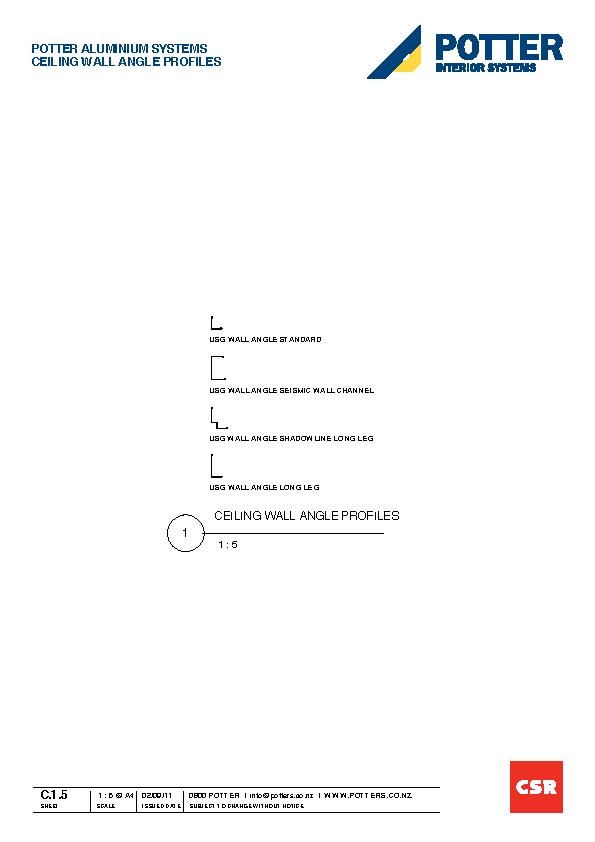

C.1.5 Ceiling Wall Angle Profiles
