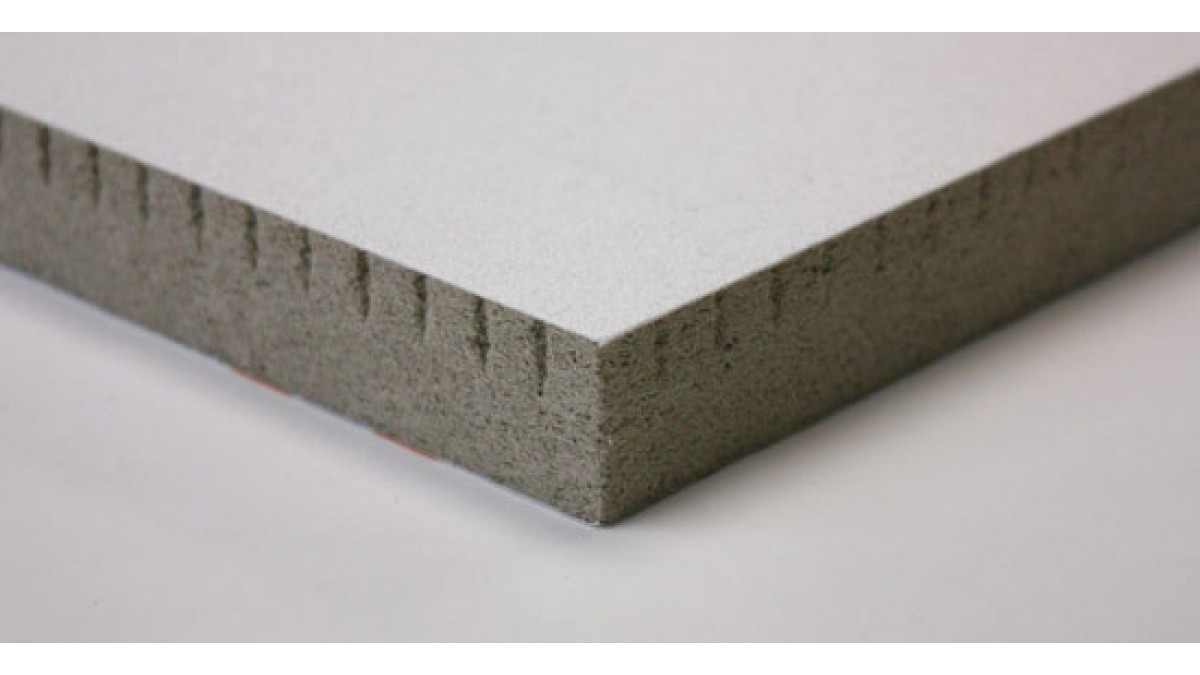

AMF Thermatex dB Acoustic — Ceiling Tile
Description

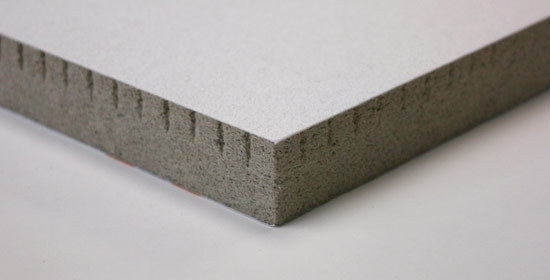

AMF Thermatex dB Acoustic is the ideal solution for high sound attenuation requirements. Additionally, good levels of sound absorption are achieved and the white smooth surface creates an excellent appearance. The combination of high density, bio-soluble mineral wool with clay and starch provides excellent physical characteristics, particularly for acoustic performance.

The AMF Acoustic Range carries the Declare label.

Key Features
  • System: Exposed grid system, demountable ceiling
  • Dimensions: 600 x 600mm, 1200 x 600mm
  • Thickness/weight: 24mm (c. 8.6kg/m2)
  • Colour: White similar to RAL 9010
  • Edge details: SK, VT24
Declare LBC Red List Free
Declare LBC Red List Free
Scope of Use
  • Ideal solution for high sound attenuation requirements
Other Performance Attributes
  • Building material class: A2-s1, d0 as per EN 13501-1
  • Sound absorption: αw = 0.65 as per EN ISO 11654  NRC = 0.70 as per ASTM C 423-01
  • Sound attenuation: Dn,c,w = 41 dB as per EN 20140-9 (24mm thickness)
  • Light reflectance: Up to 88%
  • Thermal conductivity: λ = 0.052 – 0.057 W/mK as per DIN 52612
  • Humidity: Up to 95% RH
  • Sound attenuation CAC = 41 dB as per ASTM E413-10
  • Sound insulation Rw = 24 dB as per EN ISO 10848
  • Fire resistance Group 1-S (as per ISO 5660 Parts 1 and 2)
Documents
Data Sheet
Specification Clause (Masterspec)
CAD/PDF Details

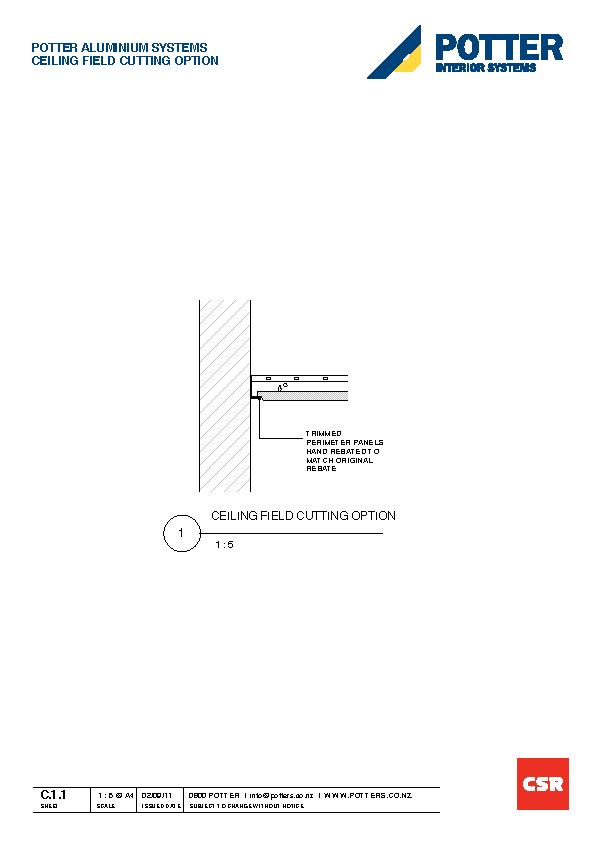

C.1.1 Ceiling Field Cutting Option

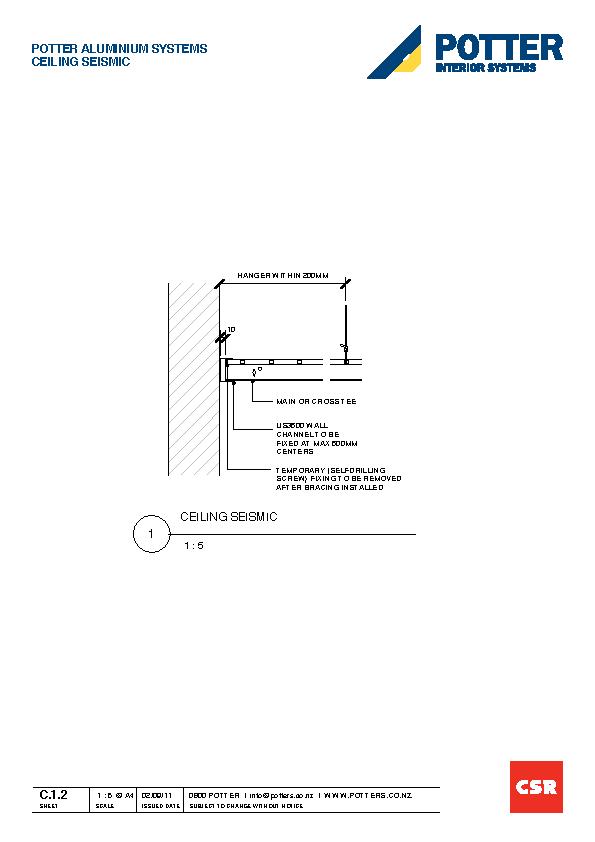

C.1.2 Ceiling Seismic

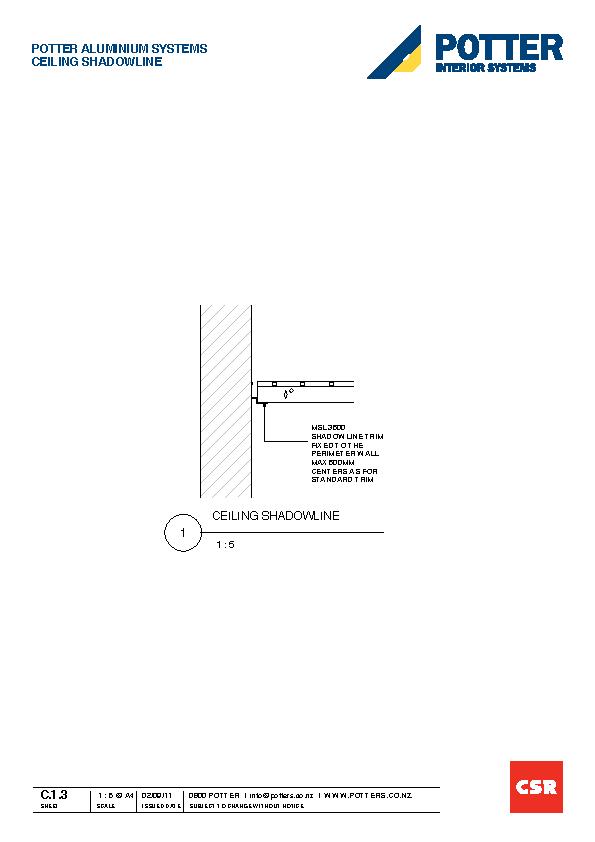

C.1.3 Ceiling Shadowline

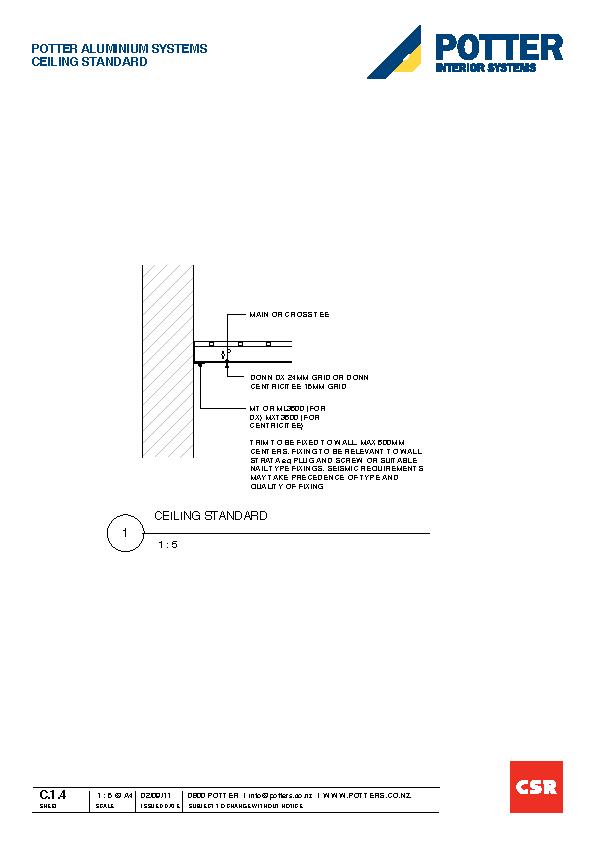

C.1.4 Ceiling Standard

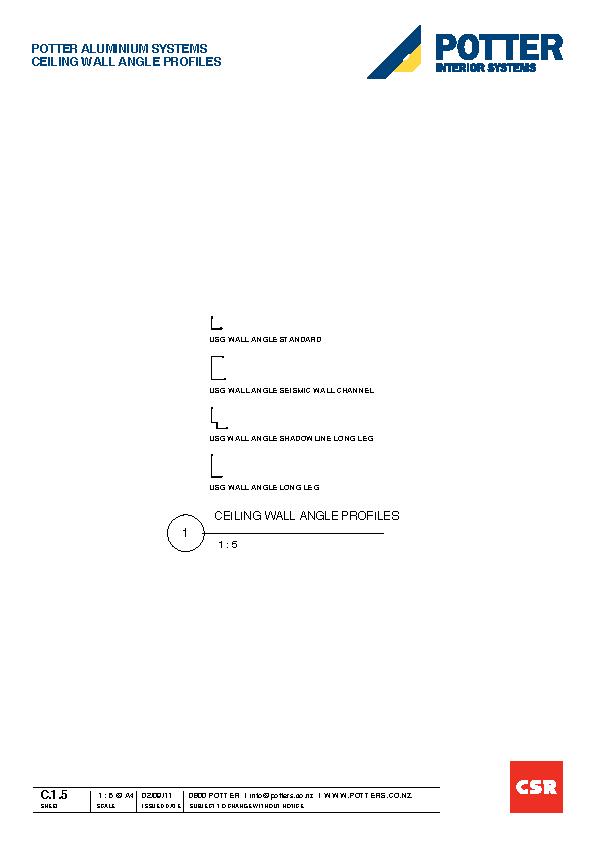

C.1.5 Ceiling Wall Angle Profiles
BIM
AMF Thermatex dB Acoustic Revit
