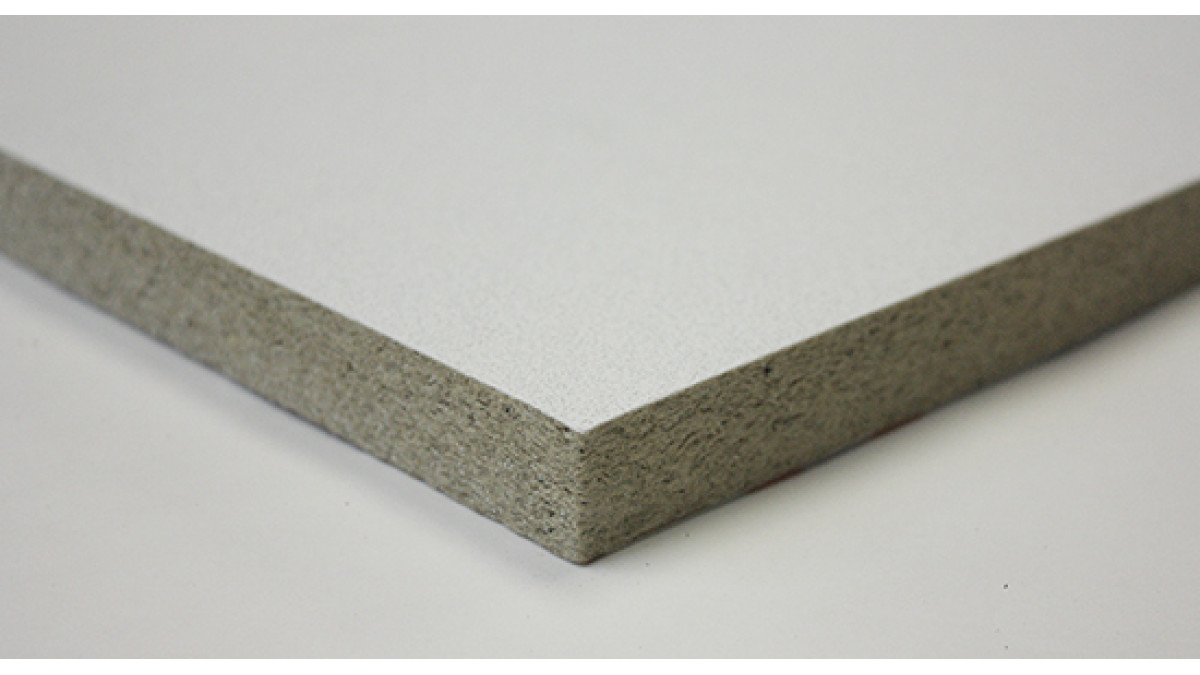

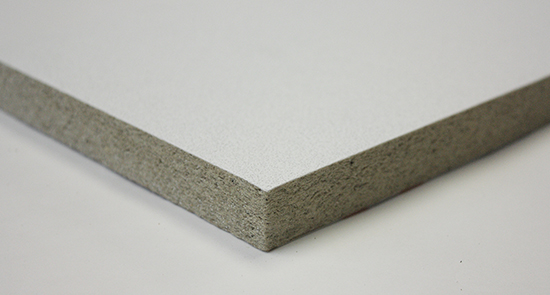

AMF Thermatex Aquatec - Ceiling Tile
Description

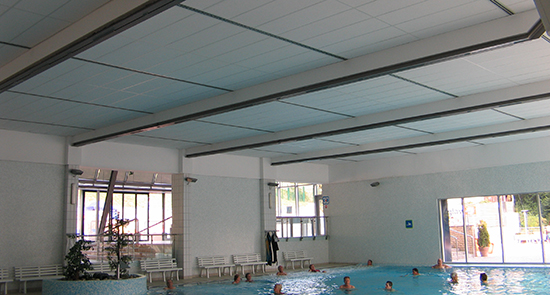

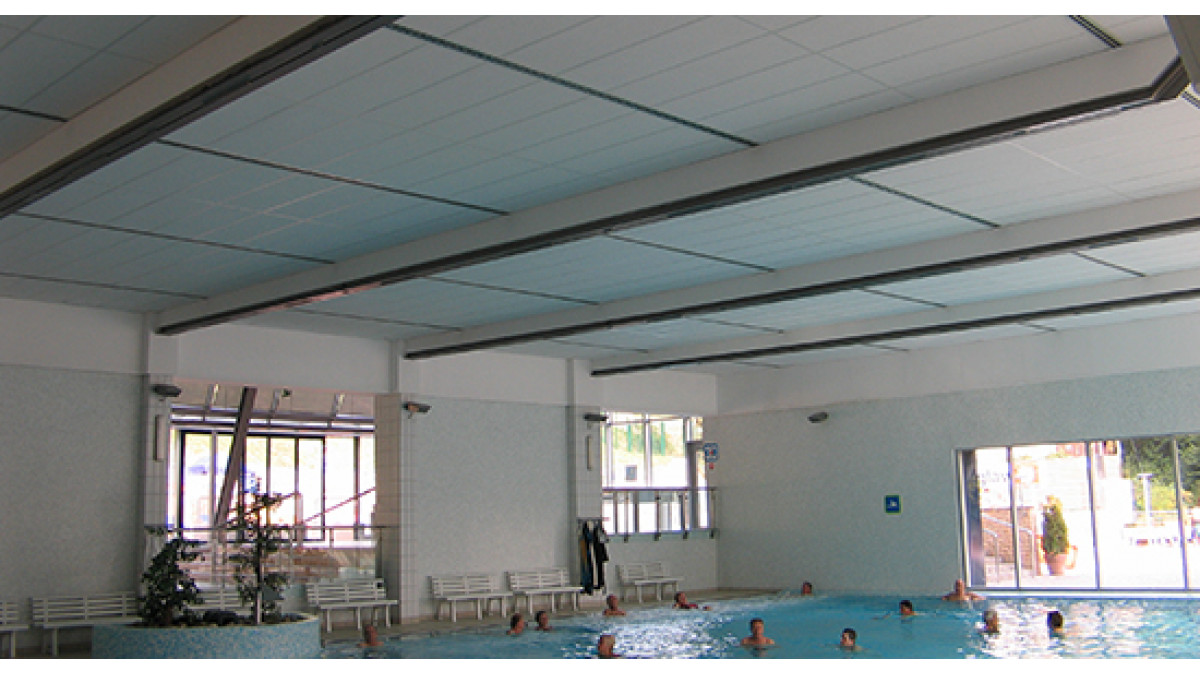

AMF Thermatex Aquatec is the optimum solution for rooms with high humidity.

Thanks to its special composition, AMF Thermatex Aquatec shows moisture resistance of up to 100% RH. This means that even with a permanently high humidity and temperatures between 0°C and 40°C, the panel is inherently stable at all times.

If necessary, AMF Thermatex Aquatec can be cleaned using water. Additionally, thanks to good sound absorption, the ceiling panel shows excellent acoustic features, which makes it a perfect solution for areas with strict hygiene requirements.

Our AMF Acoustic Range carries the Declare label.

Key Features
  • System: Exposed Grid System, demountable ceiling
  • Dimensions: 1200 x 600mm (further sizes available on request)
  • Thickness / Weight: 19 mm (c. 5.2 kg/m²)
  • Colour: White similar to RAL 9010
  • Edge details: SK (other profiles available on request)
Other Performance Attributes
  • Building material class: A2-s1, d0 as per EN 13501-1
  • Sound absorption: EN ISO 354  αw = 0.90 as per EN ISO 11654
  • NRC = 0.90 as per ASTM C 423
  • Sound attenuation: CAC = 29 dB as per ASTM E413-10)
  • Light reflectance: Up to 88%
  • Thermal conductivity: λ = 0.040 W/mK as per EN 12667
  • Humidity: Up to 100% RH
  • Clean room Class 3 as per ISO 14644-1
Documents
Data Sheet

05.02.2021

Specification Clause (Masterspec)
CAD/PDF Details

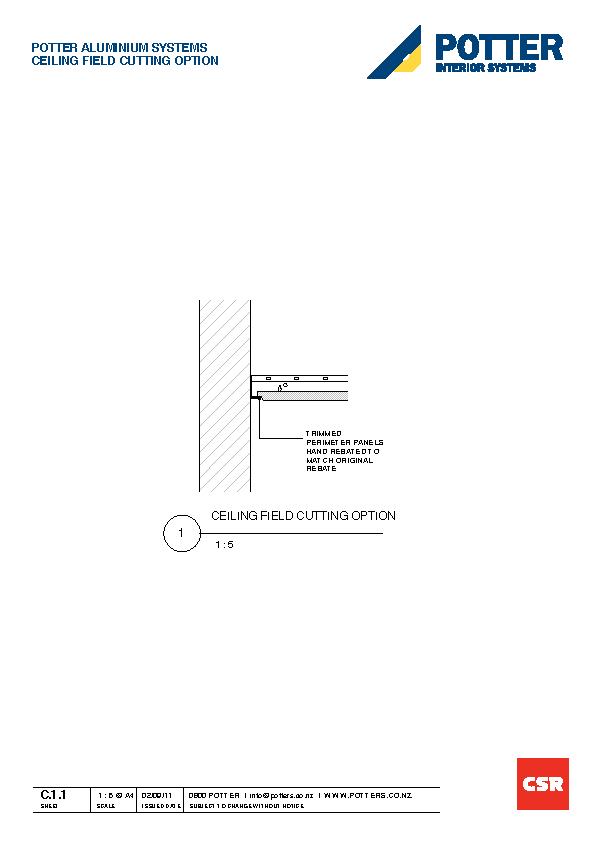

C.1.1 Ceiling Field Cutting Option

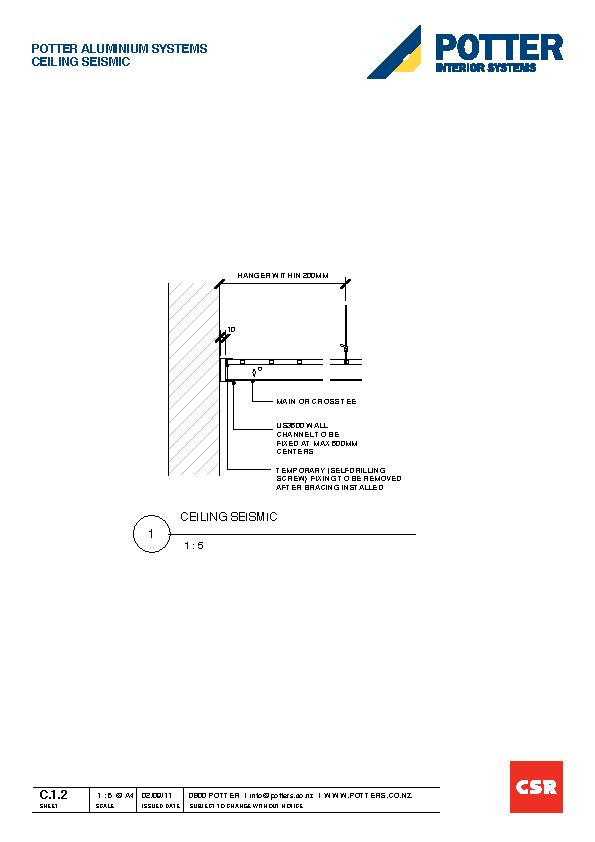

C.1.2 Ceiling Seismic

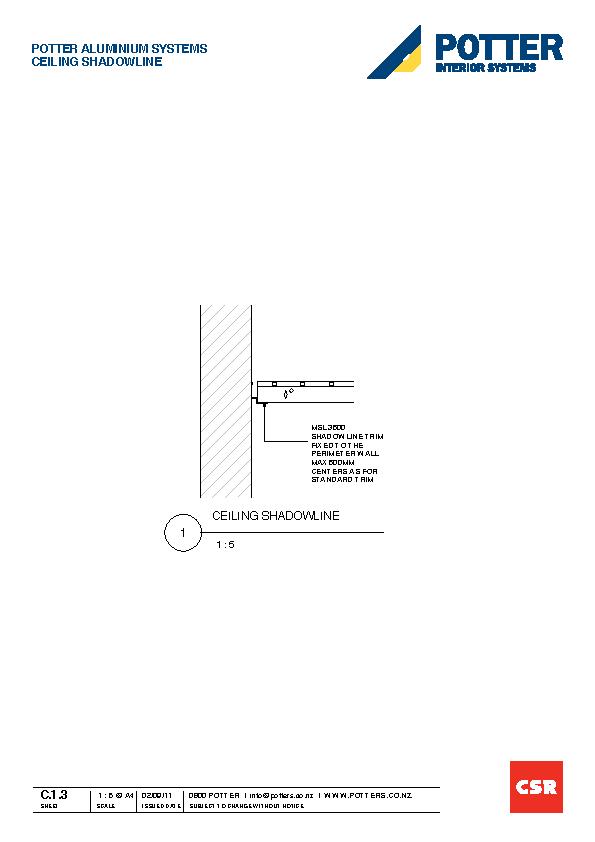

C.1.3 Ceiling Shadowline

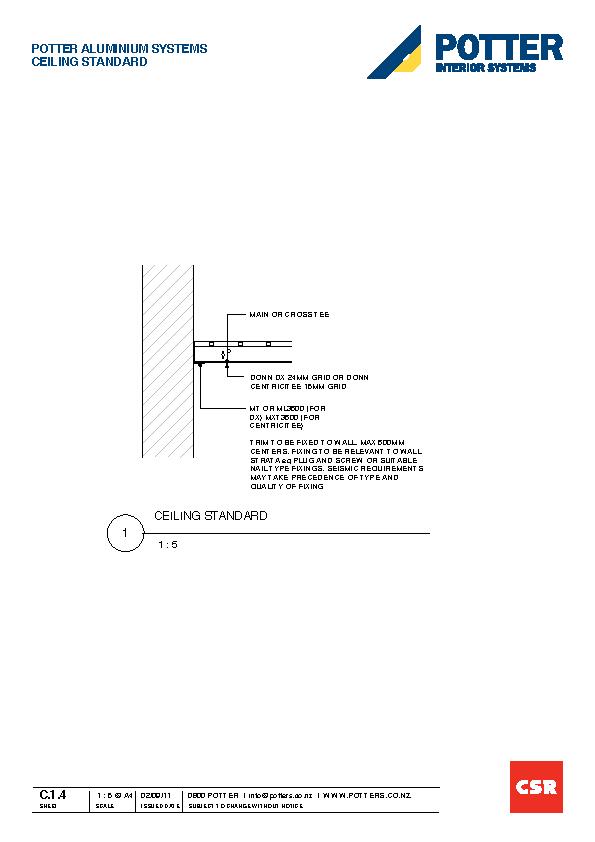

C.1.4 Ceiling Standard

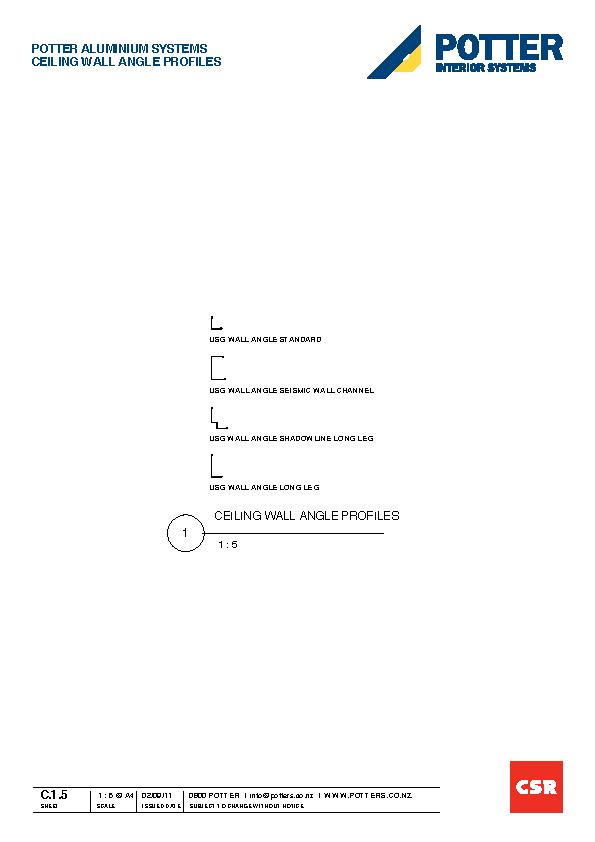

C.1.5 Ceiling Wall Angle Profiles
