Key Deck FSC Quartersawn Pine Decking
Description

Key Deck is a solid, natural timber decking product produced from sustainable pine, enhanced with the triple technologies of quartersawing for stability and superior performance, new generation wood protection with guaranteed product durability, and a patented oil and colour impregnation process.

  • Sustainable New Zealand pine — FSC Certified

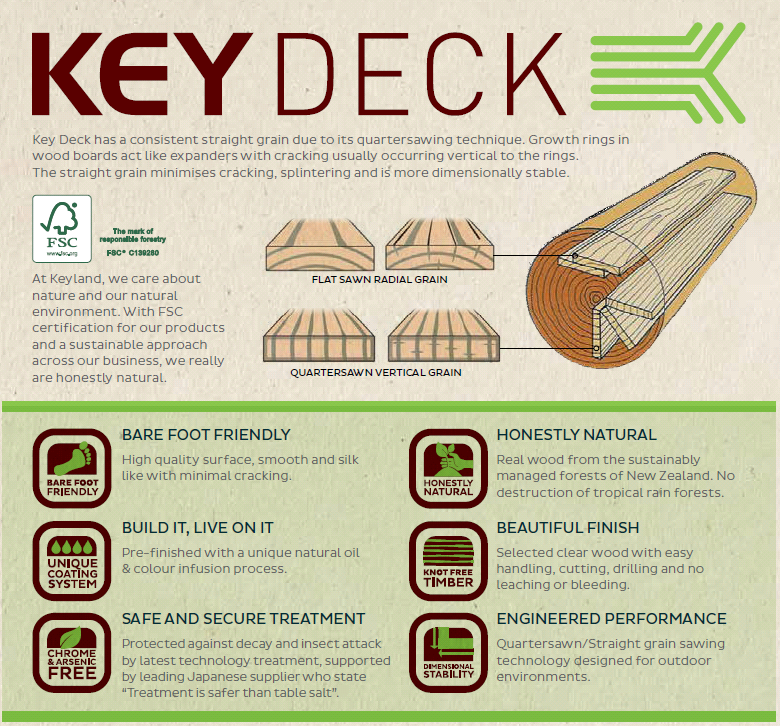

  • Quartersawn ensuring stability and long-term performance
  • Profiles:
    • Available in selected lengths minimising waste
    • 90x21mm and 110x21mm profiles
  • Treated to MCAH3.2 whic is free of arsenic or chromium
  • Prefinished with natural oils in a variety of colours.
Key Features

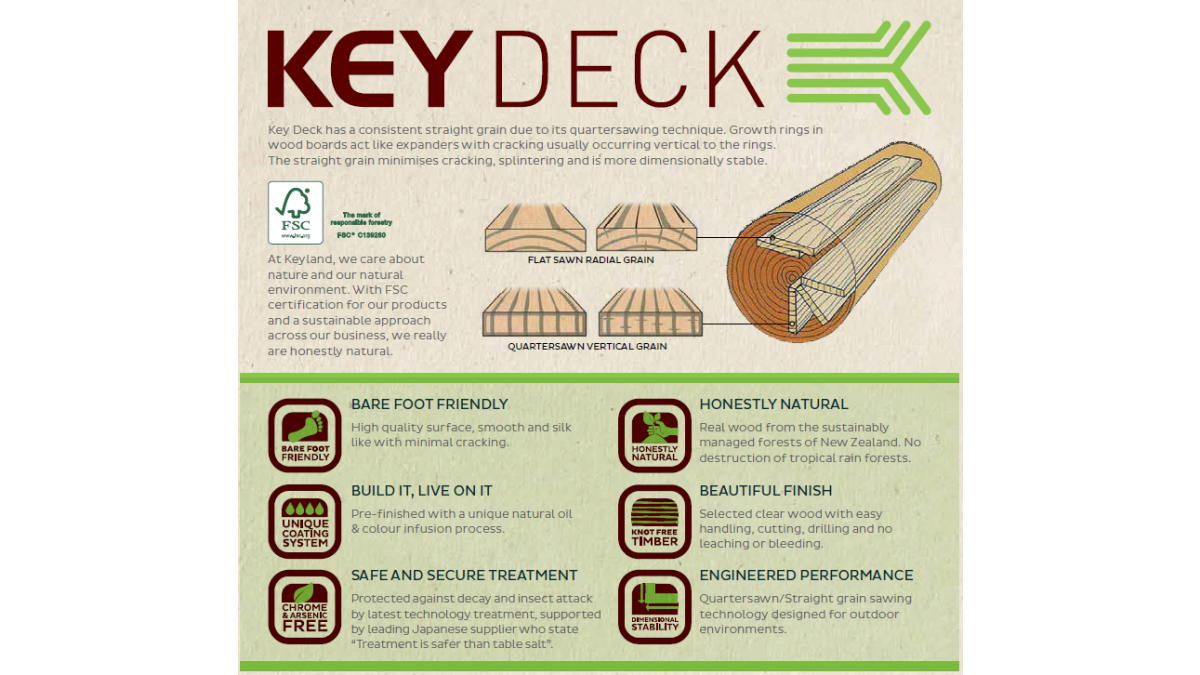

  • Engineered performance: Quartersawn / straight grain sawing technology designed for outdoor environments
  • True, Straight decking — Stability and long term performance due to straight grain technology
  • Prefinished with a unique natural oil and colour infusion process

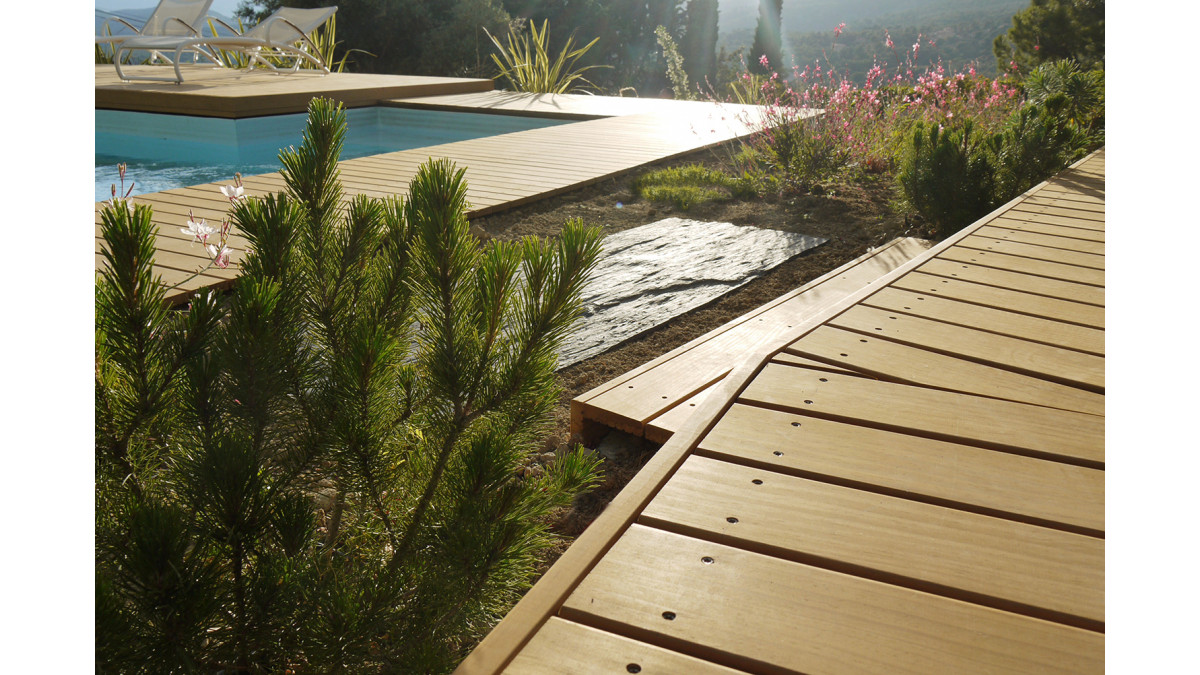

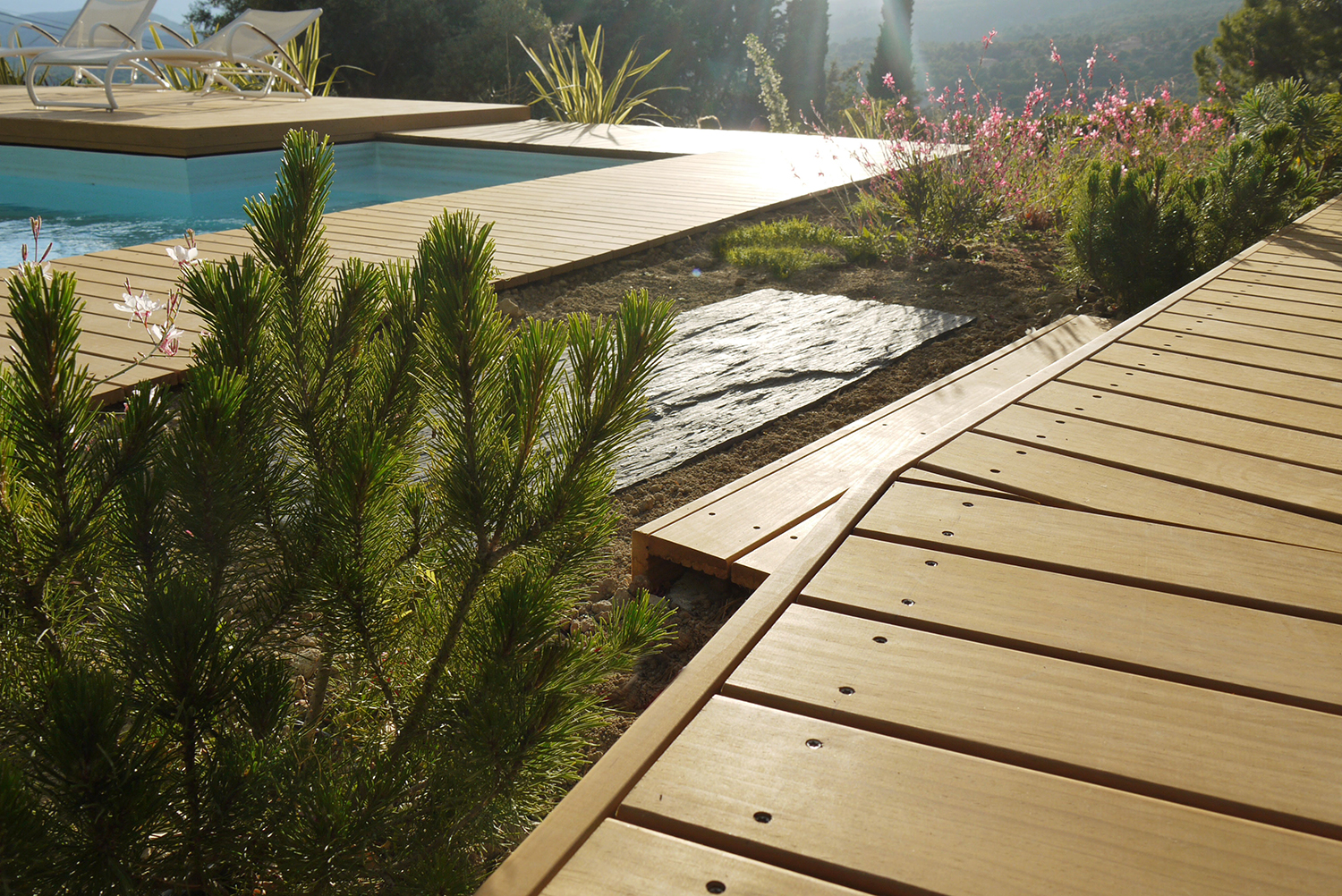

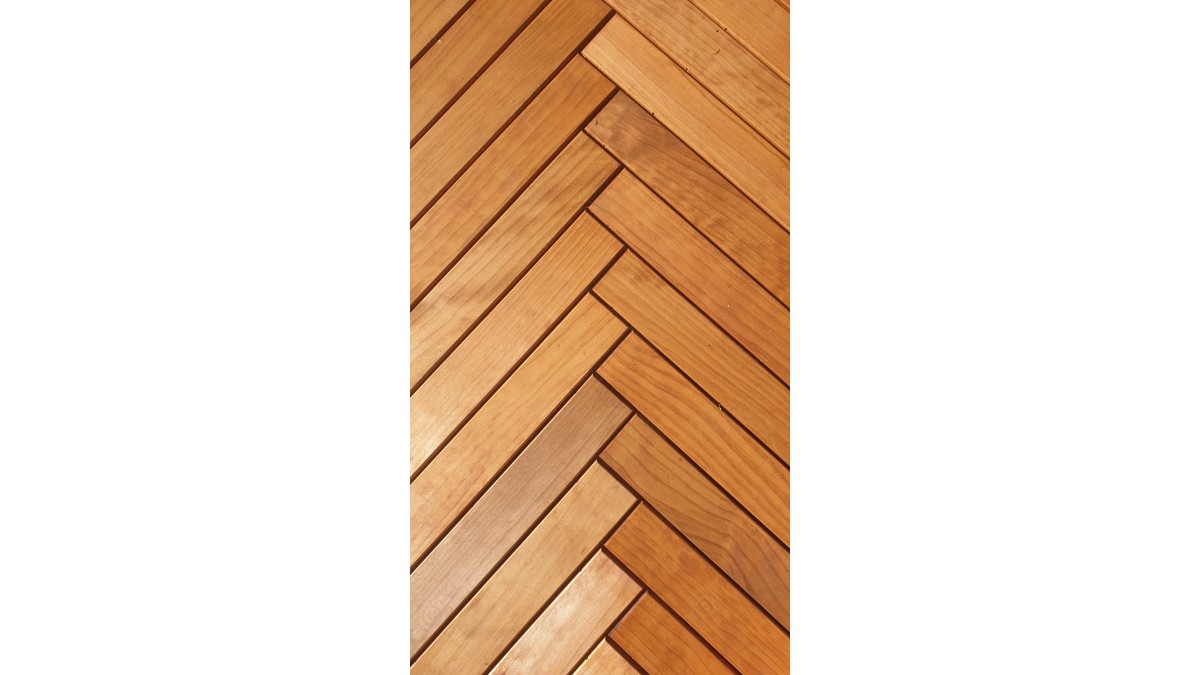

  • Available in 2 colours, Natural Amber (oiled) or Antique Grey (stained)
  • Barefoot friendly: High quality surface, smooth and silk-like with minimal surface cracking
  • Safe and secure treatment: Protected against decay with new generation treatment technology, free of chromium and arsenic
  • Real wood — Pine from sustainably managed forests of New Zealand, FSC Certified
  • Selected clear wood with easy handling, cutting and drilling with no leaching or bleeding
  • Standard 400mm joists
Categories
Decking
FSC Certified
FSC Certified
Scope of Use
  • Designed to be used on residential, commercial, and educational applications
  • Suitable for above ground exterior use as decking, walkways, fencing or screening



Limitations on Use
  • For use on access routes — Key Deck meets slip resistance requirements when laid grip side up and perpendicular to the direction of the traffic
  • Must be designed and installed in conjunction with Keyland technical literature
Statement of Building Code Compliance

Key Deck, if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4. Key Deck meets the requirements of loads arising from self-weight, imposed loads, and impact [i.e. B1 3.3 (a), (b), (j)]
  • Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years. Key Deck meets this requirement
  • Clause D1 ACCESS ROUTES: Performance D1.3.1 (a), (b). Key Deck profile meets slip resistance requirements when laid grip side up and perpendicular to the direction of the traffic
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Key Deck meets this requirement and will not present a health hazard to people

B2 — Durability:

  • NZS 3602: 2003 — Timber and wood based products for use in buildings
  • Radiata Pine when used in not in-ground contact to be treated to Hazard Class H3.2
  • Key Deck is treated using MicroPro MCA (micronised copper azole) to a Hazard class of H3.2

D1 — Access Routes:

  • NZS 3604:2011. D1/AS1 — Slip Resistance
  • Key Deck profile meets slip resistance requirements when laid grip side up and perpendicular to the direction of the traffic
In-Service History

Key Deck has proven performance in New Zealand and various offshore markets since 2007.

Notable projects include:

  • Mangatawa Offices (Form Construction) — Papamoa
  • Ronald McDonald House outdoor area — Wellington
  • Louis Vuitton VIP Lounge, Louis Vuitton Series — Auckland

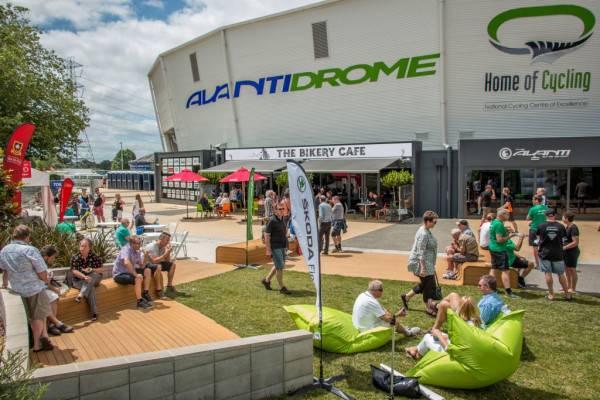

  • Avantidrome outdoor area — Cambridge (NZ)

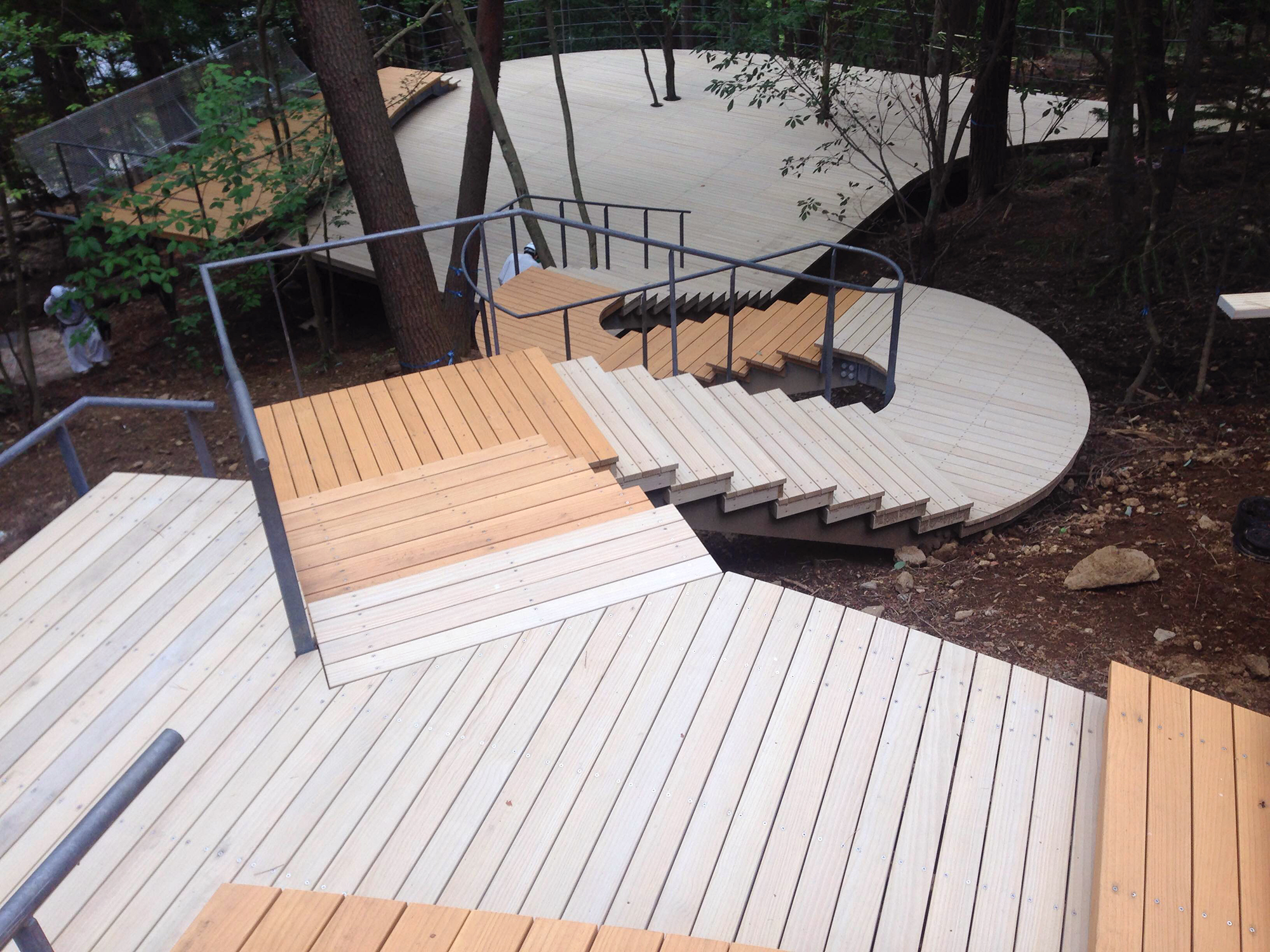

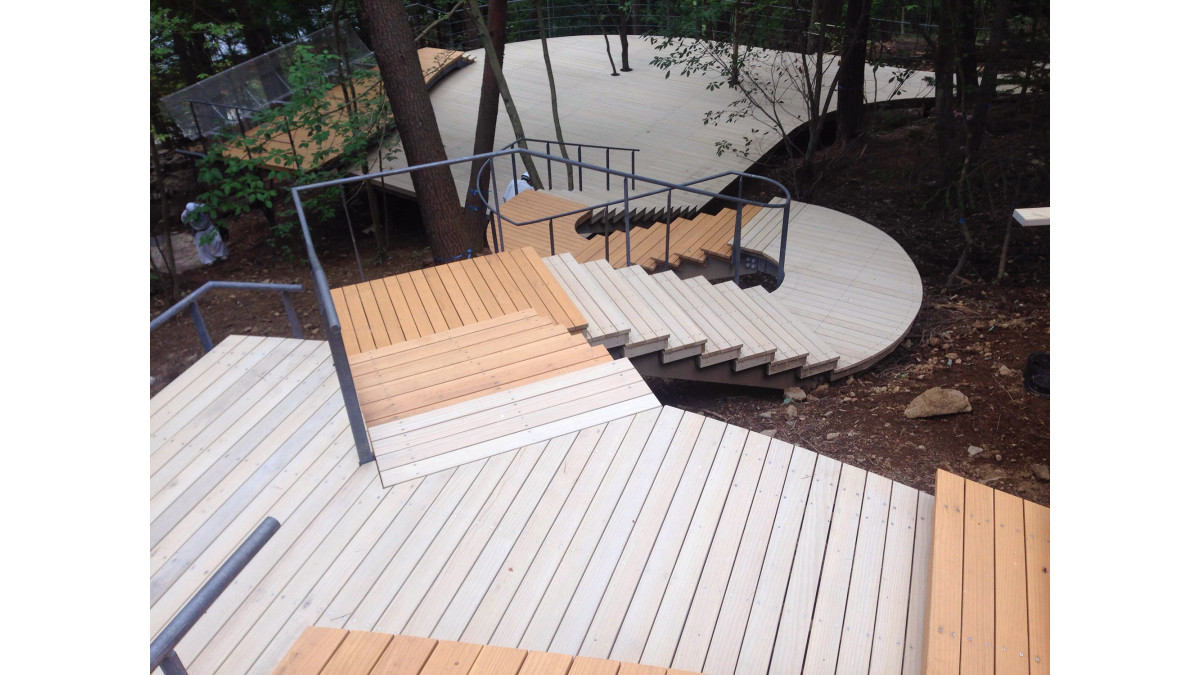

  • Hakoneyama Terrace — Rikuzen Takata, Japan
  • Hoshino Resort — Fujikawaguchiko, Japan
Other Performance Attributes
  • Long term performance through Quartersawn manufacture to provide true, straight decking
  • High quality surface, with minimal surface cracking
  • Protected against decay with new generation treatment technology, free of chromium and arsenic
  • Pine from sustainably managed forests of New Zealand, FSC Certified
  • For slip resistance

Warranty

  • 50 year limited warranty against insect activity and fungal decay provided by Koppers Performance Chemical NZ
  • Decking must be installed as per manufacturers installation recommendations and suggested maintenance regime
  • Product colour/appearance will weather/fade over time
Documents
Test Results: Slip Resistance
Maintenance Instructions
Brochure
CAD/PDF Details
Key Deck 90mm

090

Key Deck 110mm

110

Keyland are a specialist provider of high quality decking, outdoor timbers, fasteners and plywood.
