KeyDeck Quartersawn Decking Complements Community Environmental Project

The Fairfield Project is an ecological and environmental education programme on 12 hectares owned by Fairfield College. Located in the heart of Hamilton city, and bordering the biodiverse Kukutāruhe Gully, the project includes clearing non-native species, planting native trees, running scientific and educational projects, and cultivating a community garden.

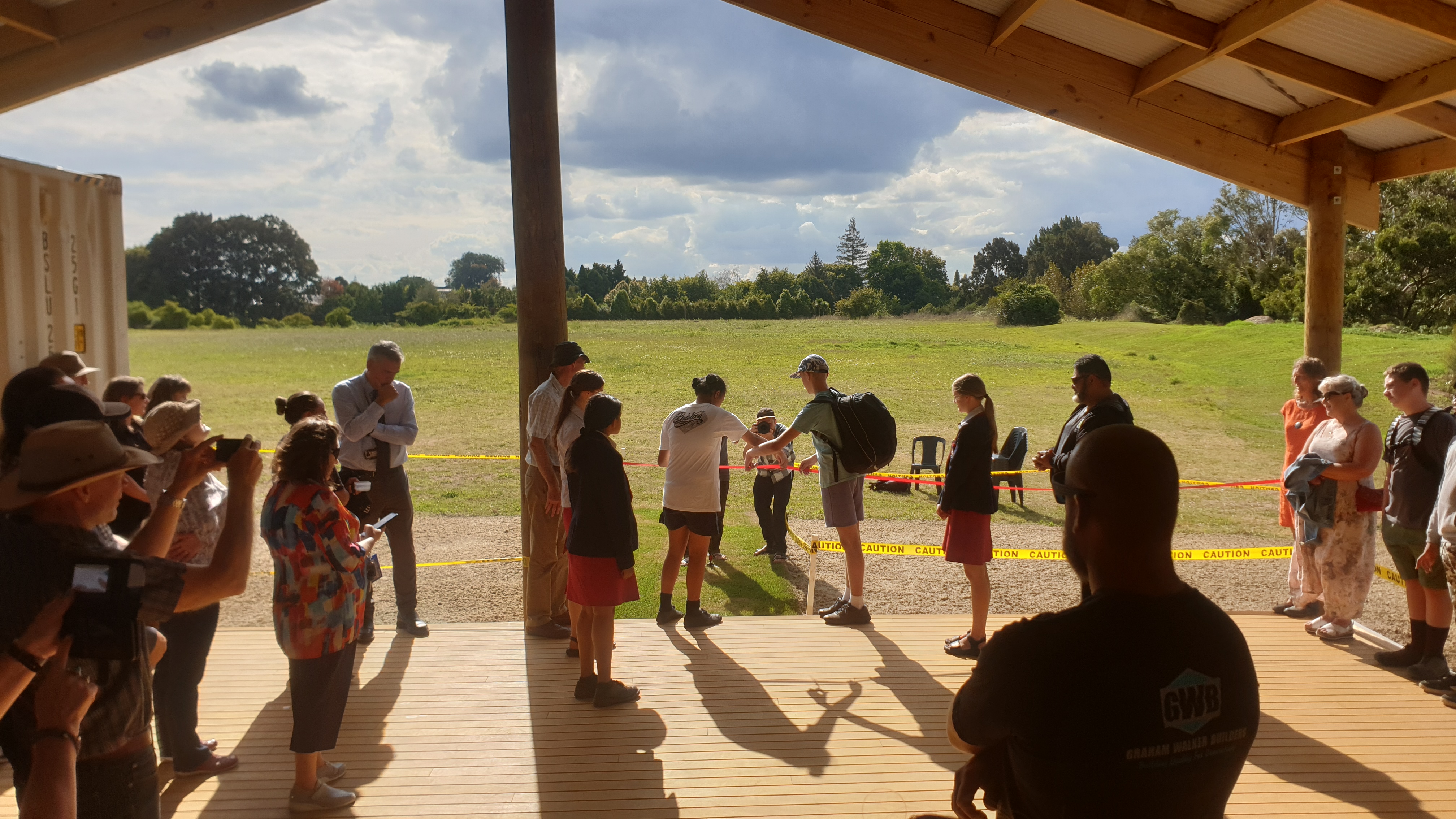

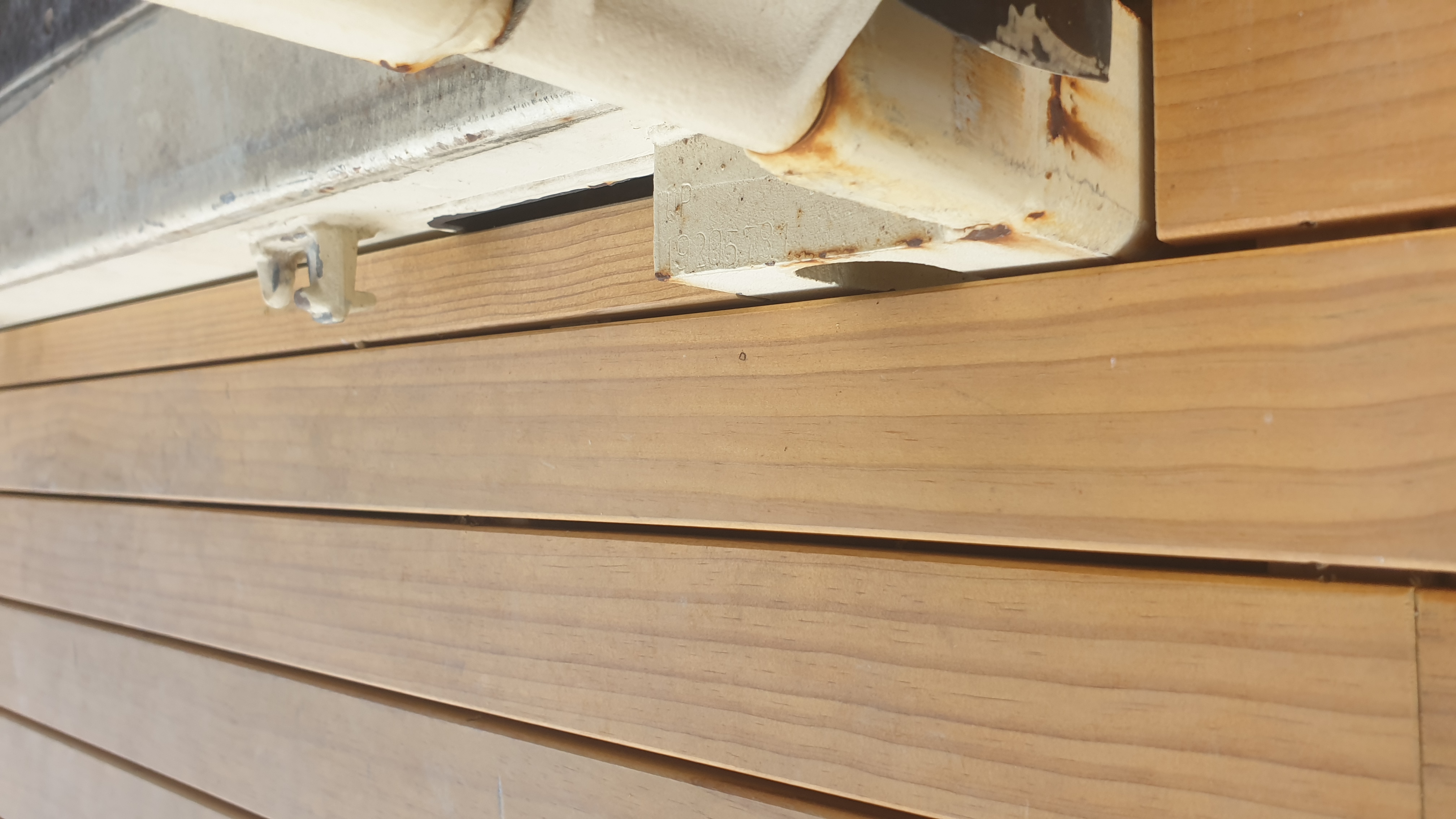

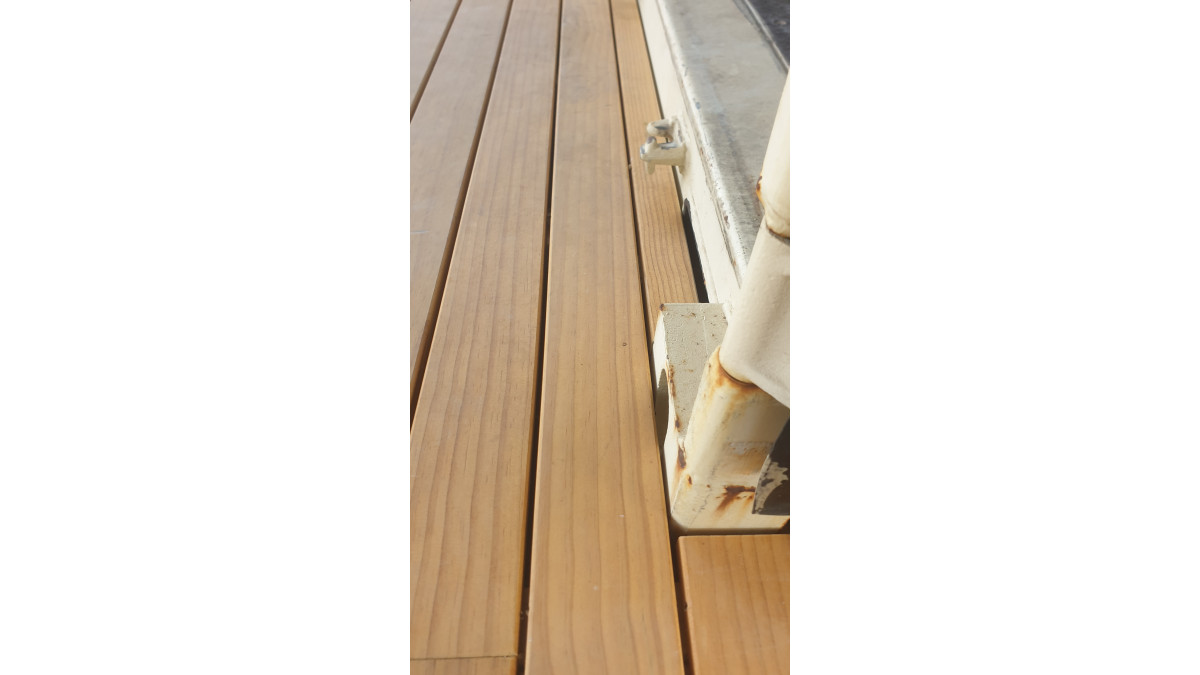

A significant milestone for the project is the recent opening of the WaterShed. Designed by the students of Fairfield College, with guidance from PAUA Architects, the pavilion is made from two shipping containers set in an L-shape, with a covered roof and a large deck constructed using KeyDeck from Keyland.

"The building has three key functions," says architect Antanas Procuta. "One container is used to store tools for the gulley restoration work and the other is for storing learning resources. The large roof serves to catch water to irrigate the gardens and protect the containers from water ingress and heat gain."

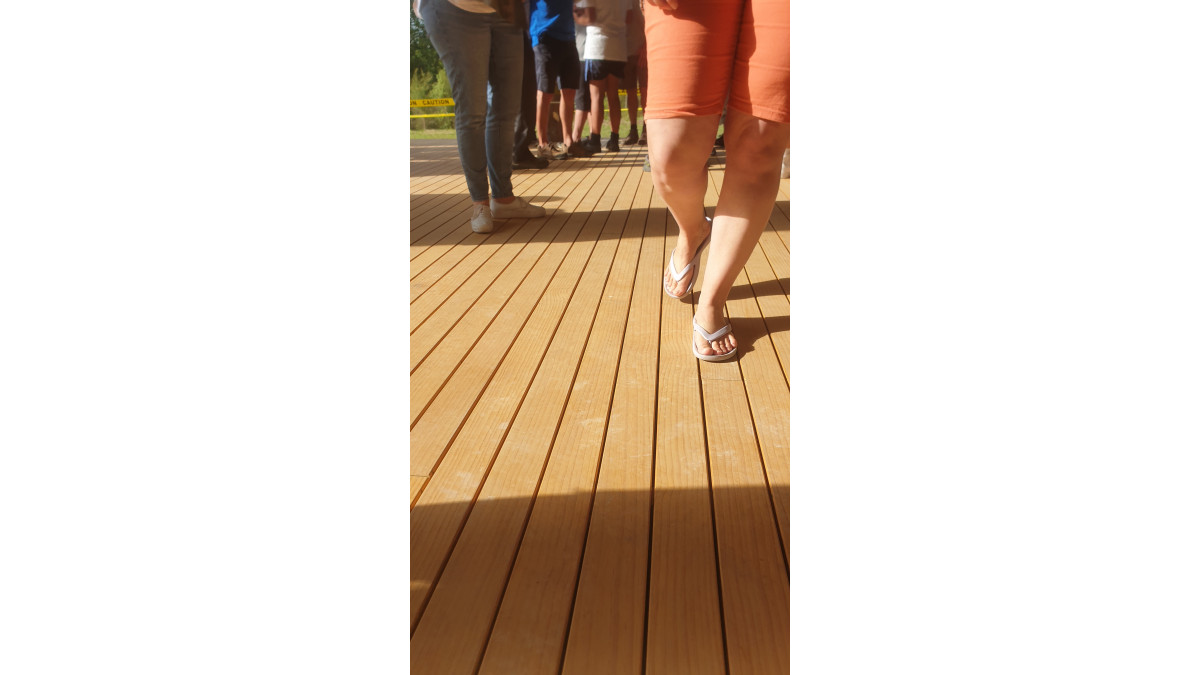

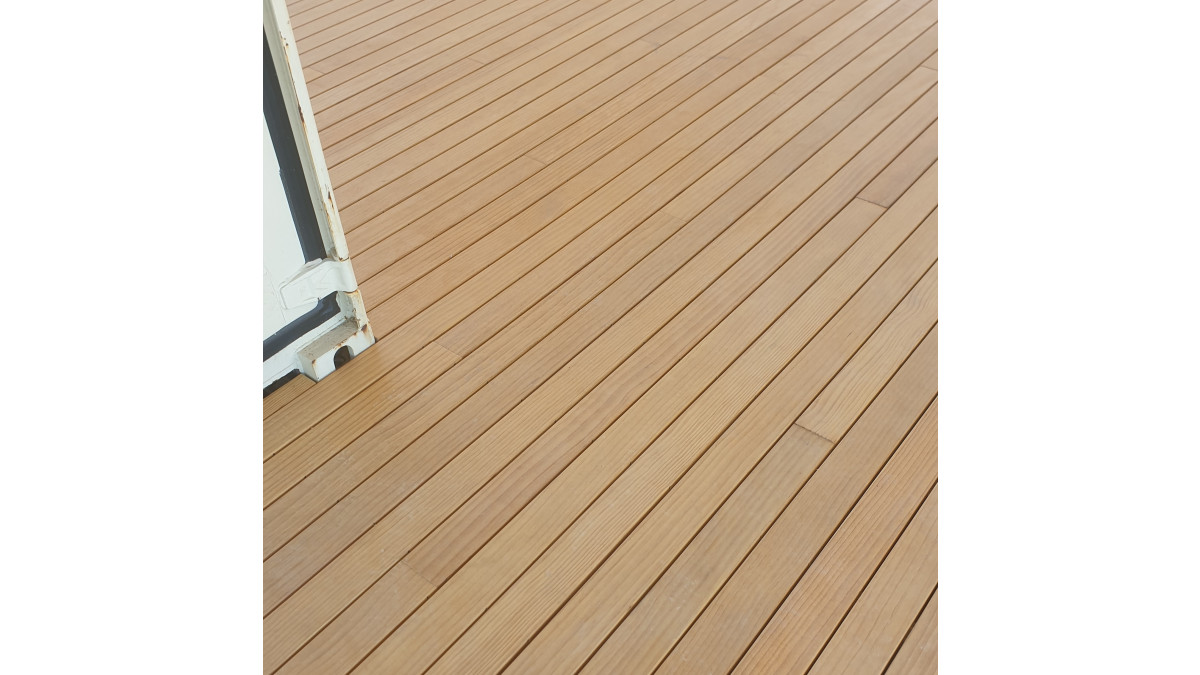

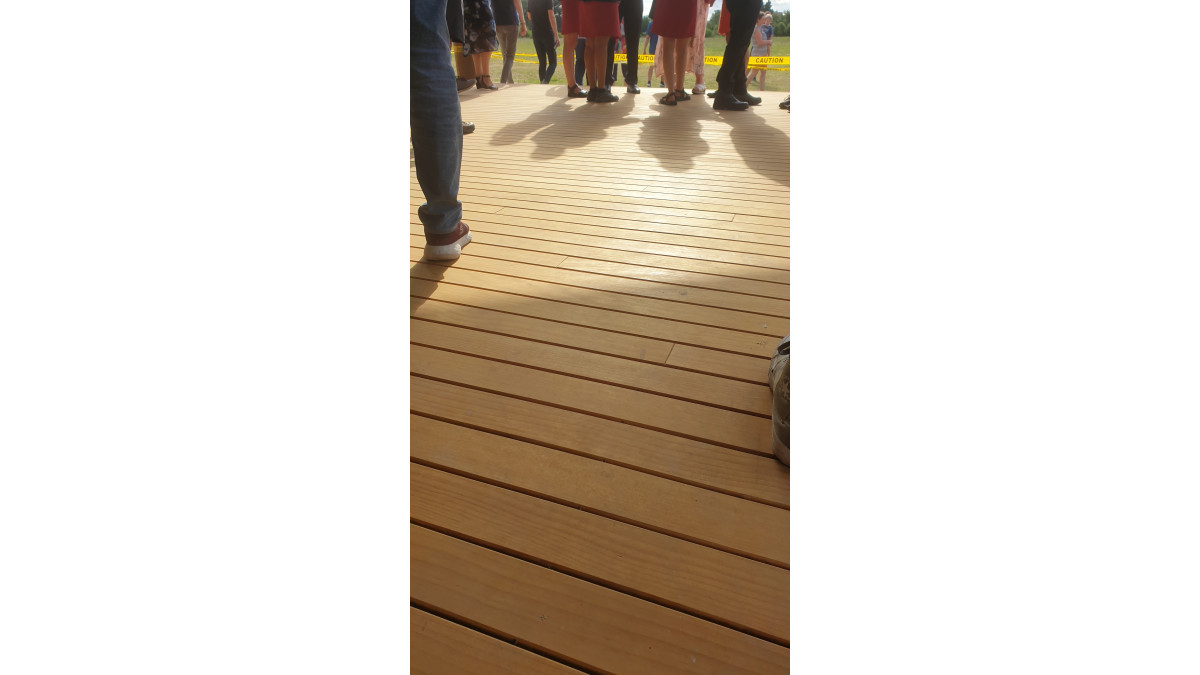

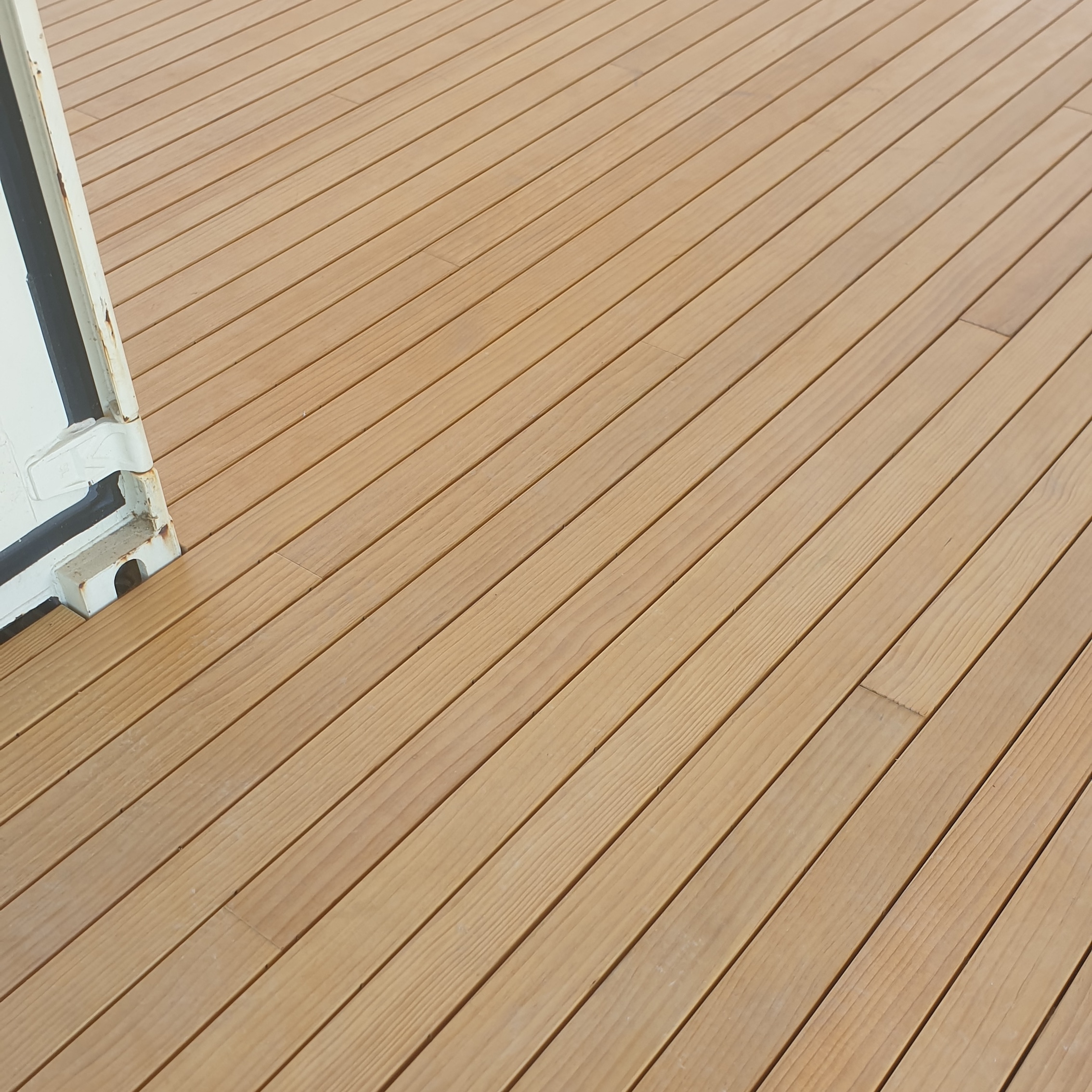

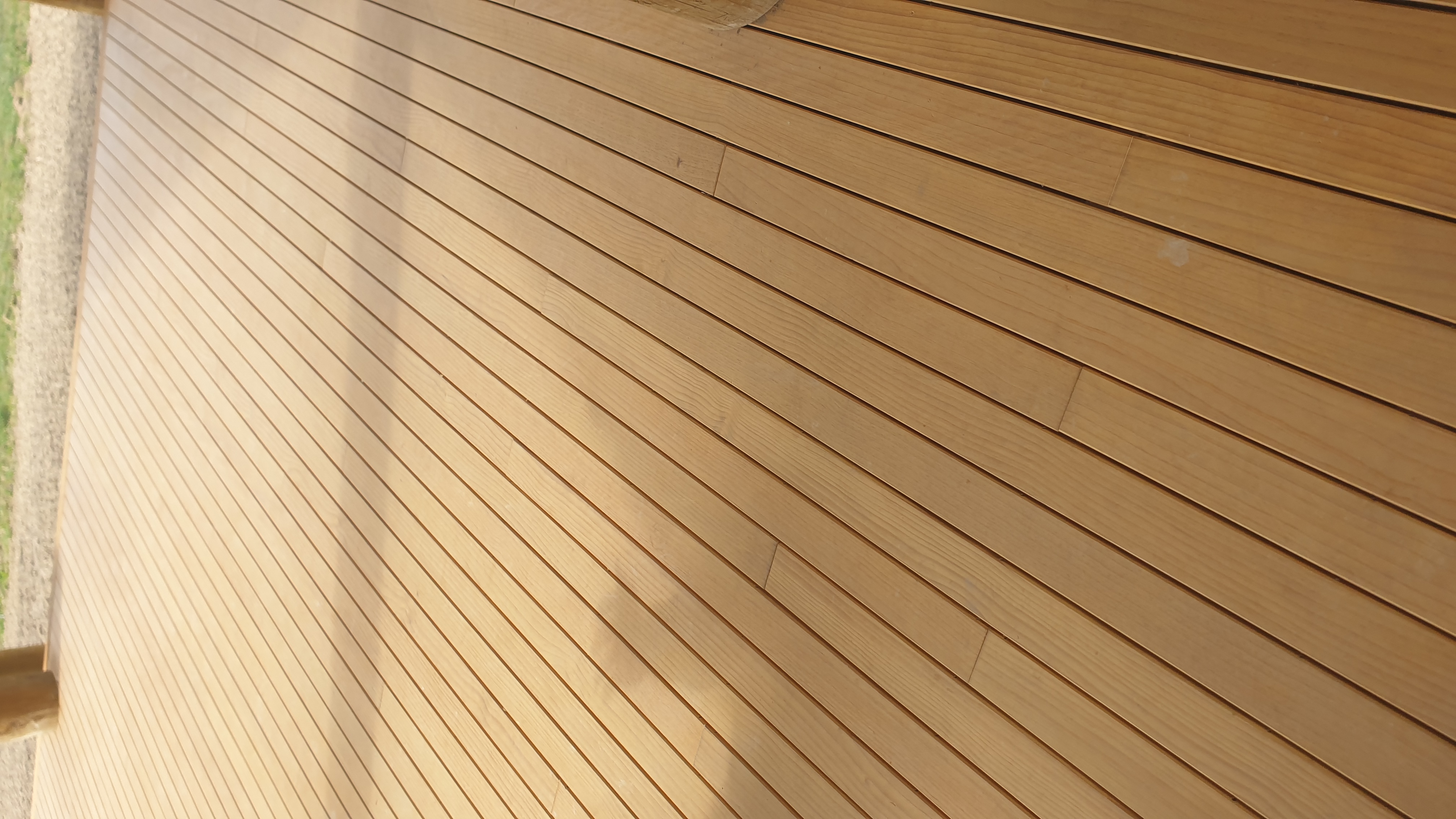

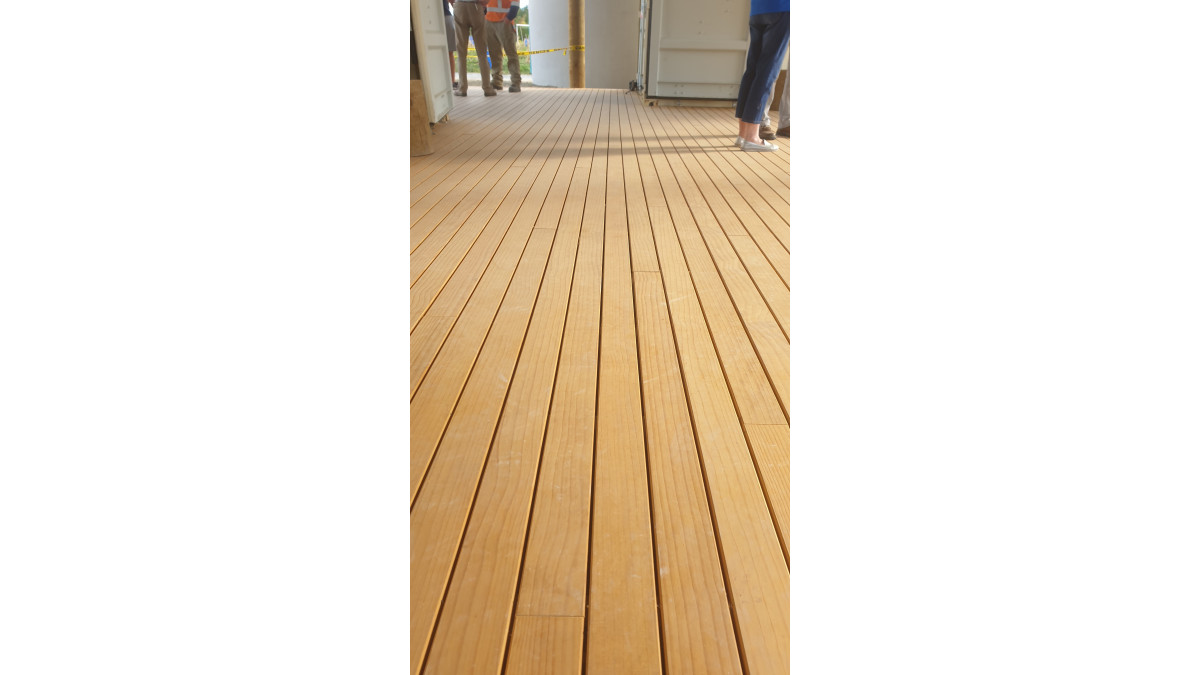

The covered deck creates a generous space for classroom sessions, somewhere to get briefed before and after going into the bush, and a place to relax and have lunch in the shade. The architects chose KeyDeck in Natural Amber for the flooring, fixed by invisible Camo Edge Deck Fasteners.

"This project is about sustainability," says Procuta. "We ruled out imported hardwoods, but knew pine decking options were limited — many are quite knotty, and they can move and twist. So, when we heard about the stable, quartersawn boards from Keyland, we had a look."

KeyDeck is made from boards of New Zealand pine from FSC-certified forests. Being quartersawn, they have a straight grain with no knots and excellent stability. Treatment is chrome- and arsenic-free, and the factory-applied oil and colour goes deep into the grain to protect the wood from warping during the critical first year of weathering.

"This Keyland material seems incredibly good," notes Procuta. "Being quartersawn means it won’t move like standard pine decking, and having no face knots gives it a finer appearance. It is now the standard decking product we specify in our practice."

The appearance is enhanced by the Camo hidden fixing system, in which screws go through the edges of the boards at 45°, making them invisible and preventing the possibility of raised nails or screws which occurs in face-fastening.

The decking is a sustainable, practical, cost effective and aesthetic solution for the community pavilion. With every log sourced from managed forests in Aotearoa New Zealand, its selection supports local industry.

For more information about the products used on this project, contact the Keyland team on 0800 113 171.

CREDITS:
Designer: Fairfield College, with guidance from PAUA Architects
Product: 90 x 21mm KeyDeck Natural Amber, Camo Edge Deck Fasteners
Writer: Folio

KeyDeck Quartersawn Decking Timber with Camo Edge Deck Fasteners

Keyland

View Product

Key Deck is a solid, natural timber decking product produced from sustainable pine, enhanced with the triple technologies of quartersawing for stability and superior performance, new generation wood protection with guaranteed product durability, and a patented oil and colour impregnation process.

Designed to be used on residential, commercial, and educational applications
Suitable for above ground exterior use as decking and walkways
CAMO Edge Deck uses 316 stainless steel screws — suitable for use in high wind, and high corrosion environments

The Key Deck Quartersawn Decking Concealed Fix system, if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4. Key Deck meets the requirements of loads arising from self-weight, imposed loads, and impact [i.e. B1 3.3 (a), (b), (j)]
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years. Key Deck meets this requirement
Clause D1 ACCESS ROUTES: Performance D1.3.1 (a), (b). Key Deck profile meets slip resistance requirements when laid grip side up and perpendicular to the direction of the traffic
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Key Deck meets this requirement and will not present a health hazard to people

B2 — Durability:

NZS 3602: 2003 — Timber and wood based products for use in buildings
Radiata Pine when used in not in-ground contact to be treated to Hazard Class H3.2
Key Deck is treated using MicroPro MCA (micronised copper azole) to a Hazard class of H3.2

D1 — Access Routes:

NZS 3604:2011. D1/AS1 — Slip Resistance
Key Deck profile meets slip resistance requirements when laid grip side up and perpendicular to the direction of the traffic

CAMO Screws are type 316 stainless steel screws and meet the requirements given in NZS 3604:2011 Tables 4.1 and 4.3:

Steel fixings used in timber treated with copper-based preservative (copper quaternary and copper azole) to be a minimum of type 304 stainless steel

Key Deck FSC Quartersawn Pine Decking

Keyland

View Product

FSC Certified

Designed to be used on residential, commercial, and educational applications
Suitable for above ground exterior use as decking, walkways, fencing or screening

Key Deck, if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4. Key Deck meets the requirements of loads arising from self-weight, imposed loads, and impact [i.e. B1 3.3 (a), (b), (j)]
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years. Key Deck meets this requirement
Clause D1 ACCESS ROUTES: Performance D1.3.1 (a), (b). Key Deck profile meets slip resistance requirements when laid grip side up and perpendicular to the direction of the traffic
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Key Deck meets this requirement and will not present a health hazard to people

B2 — Durability:

NZS 3602: 2003 — Timber and wood based products for use in buildings
Radiata Pine when used in not in-ground contact to be treated to Hazard Class H3.2
Key Deck is treated using MicroPro MCA (micronised copper azole) to a Hazard class of H3.2

D1 — Access Routes:

NZS 3604:2011. D1/AS1 — Slip Resistance
Key Deck profile meets slip resistance requirements when laid grip side up and perpendicular to the direction of the traffic

CAMO Edge Deck Fasteners — Concealed Fix Decking Screw

Keyland

View Product

The first hidden deck screw fastening system designed to easily and affordably attach pine, hardwood and composite deck boards directly to the substructure resulting in a fastener-free deck surface.

CAMO Edge Deck fasteners are suitable for hardwood and composite decking products
Can be used on decking, fencing and screening
316 stainless steel screws are suitable for use in high wind, and high corrosion environments
CAMO Marksman Pro tool adjusts to suit boards 129 – 148mm wide and the CAMO Marksman Pro (NB: tool adjusts to suit boards 81 – 123mm wide)

CAMO Screws are type 316 stainless steel screws and meet the following requirements given in NZS 3604:2011 Tables 4.1 and 4.3

NZS 3604:2011 Figure 4.3(b). The durability requirements for metal fixings and fastenings are given in NZS 3604:2011 Tables 4.1 and 4.3, which include some specific requirements:

Table 4.1 Note (3) — steel fixings used in timber treated with copper-based preservative (copper quaternary and copper azole) to be a minimum of type 304 stainless steel
Table 4.3 Note (2) — stainless steel nails must be annular grooved so that they have similar withdrawal resistance to galvanised nails
Table 4.3 Note (5) — nails and screws may be hot-dip galvanised except when the timber has been treated with copper quaternary and copper azole. Then type 304 stainless steel minimum must be used
