Metro Series Double Hung Windows
ALTHERM Window Systems
All products
For high-performance double-glazing, explore AGP’s product range available now Explore

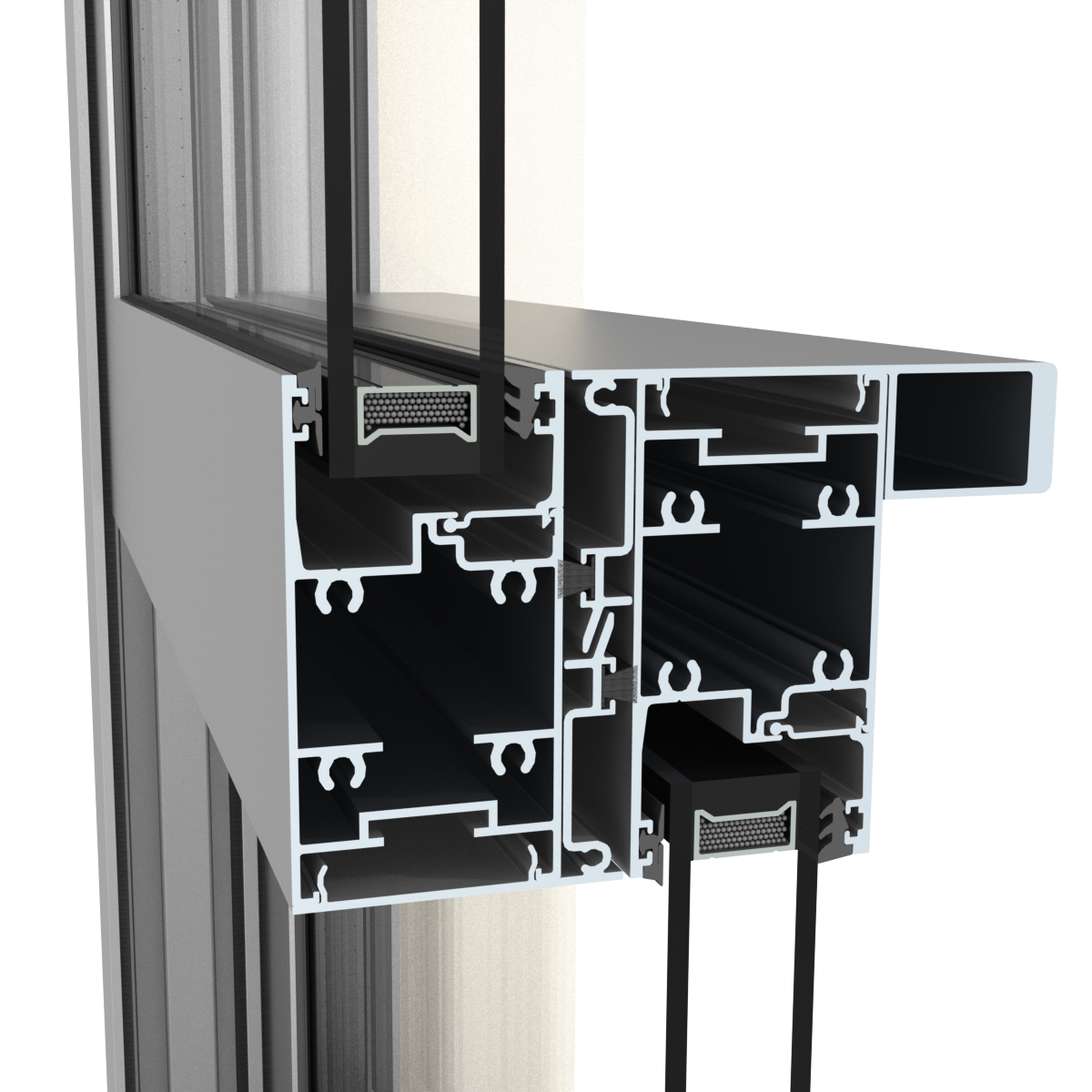

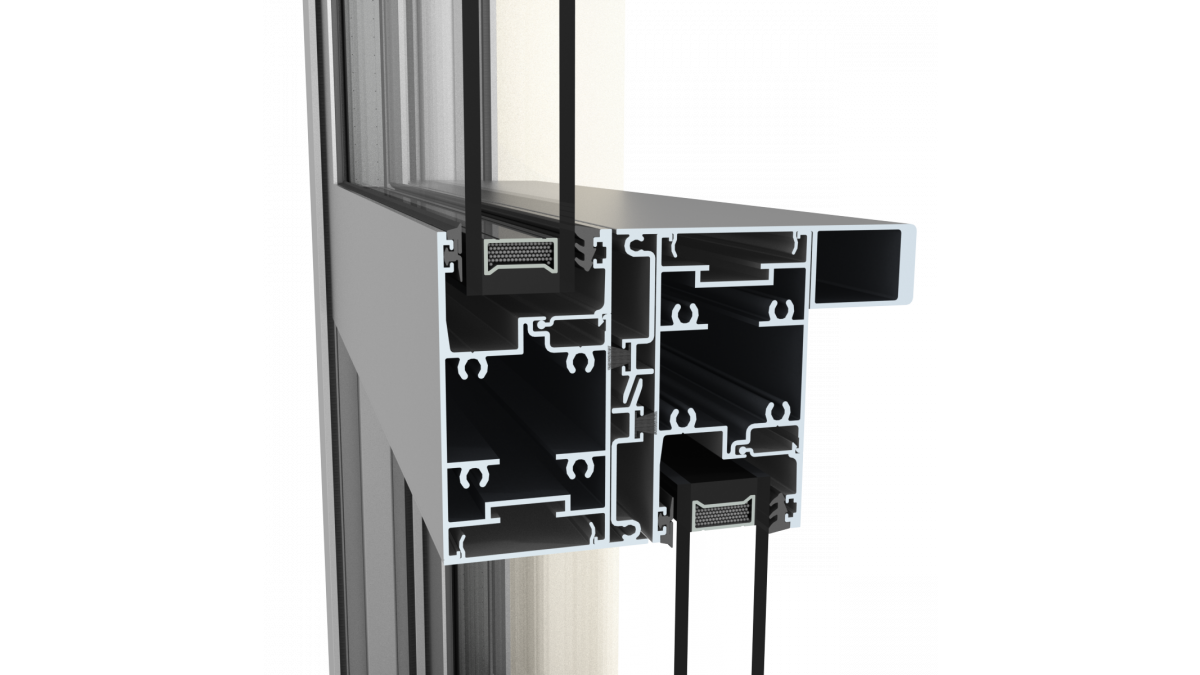

11a New Double Hung Window Interlocker

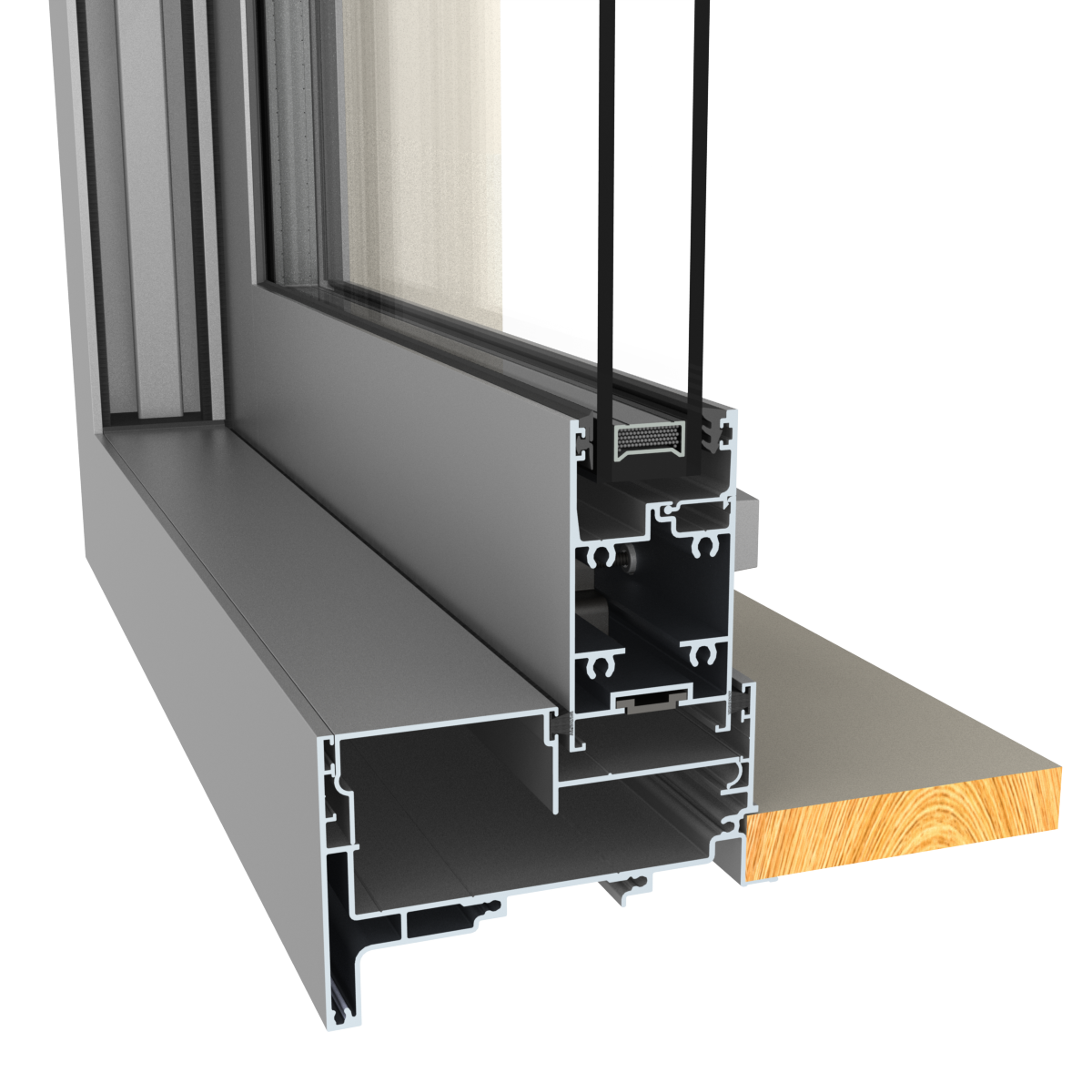

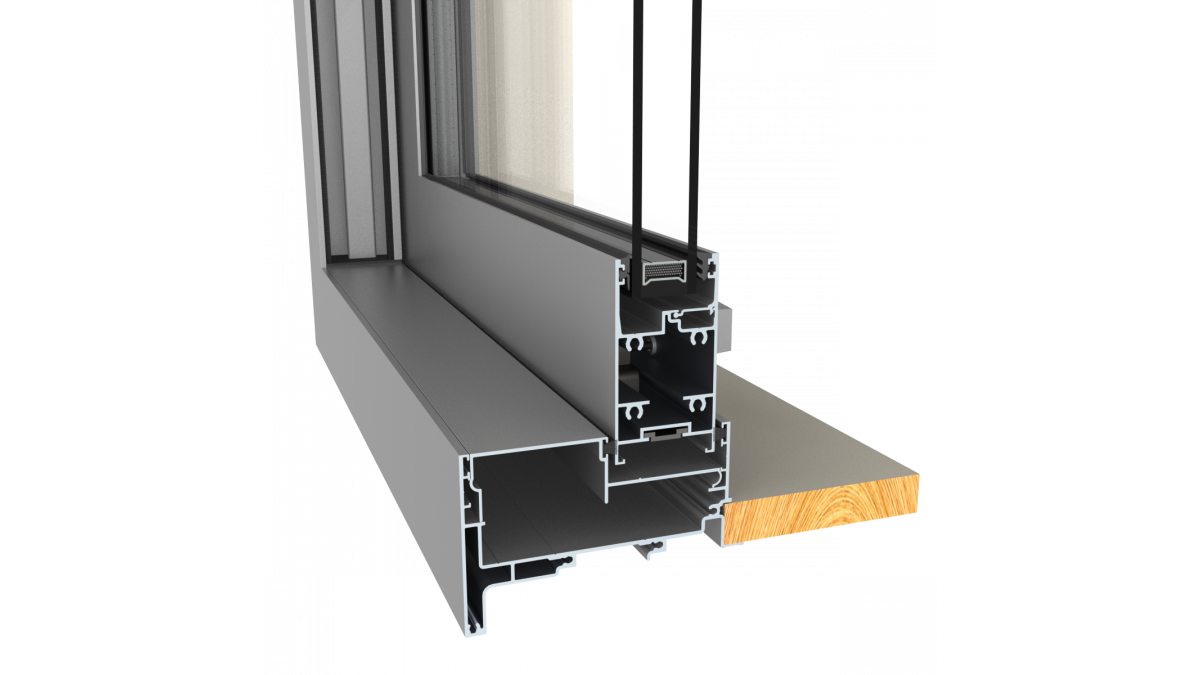

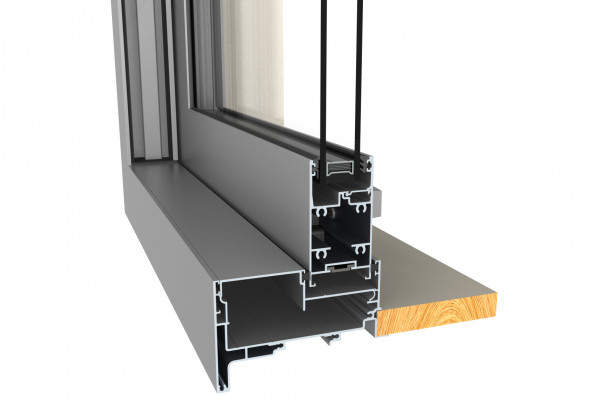

11b

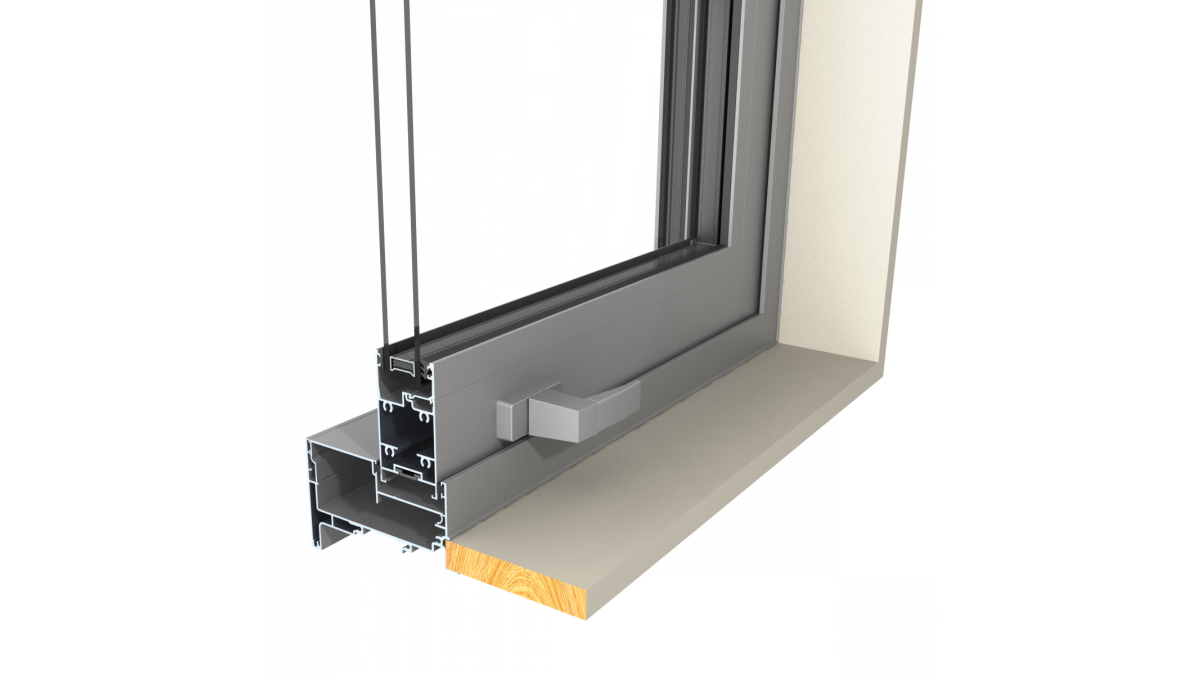

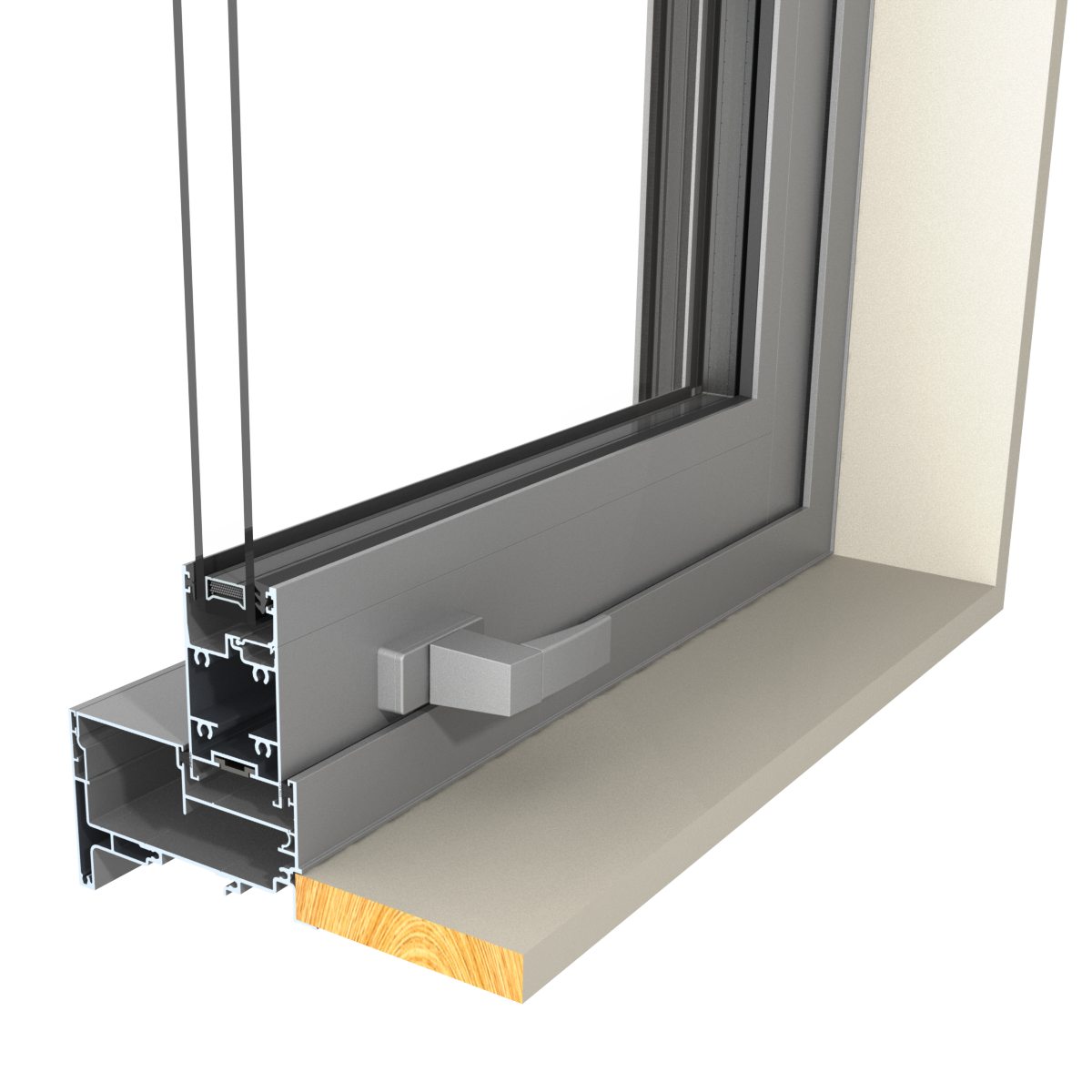

11c New Double Hung Window Lock

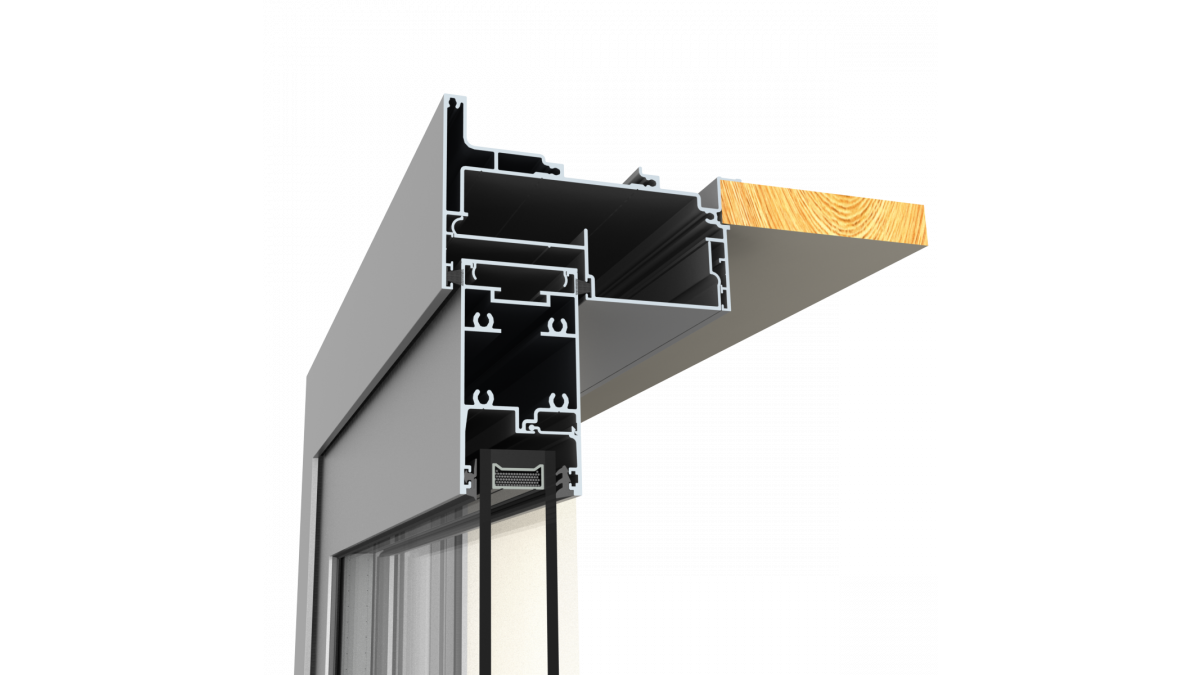

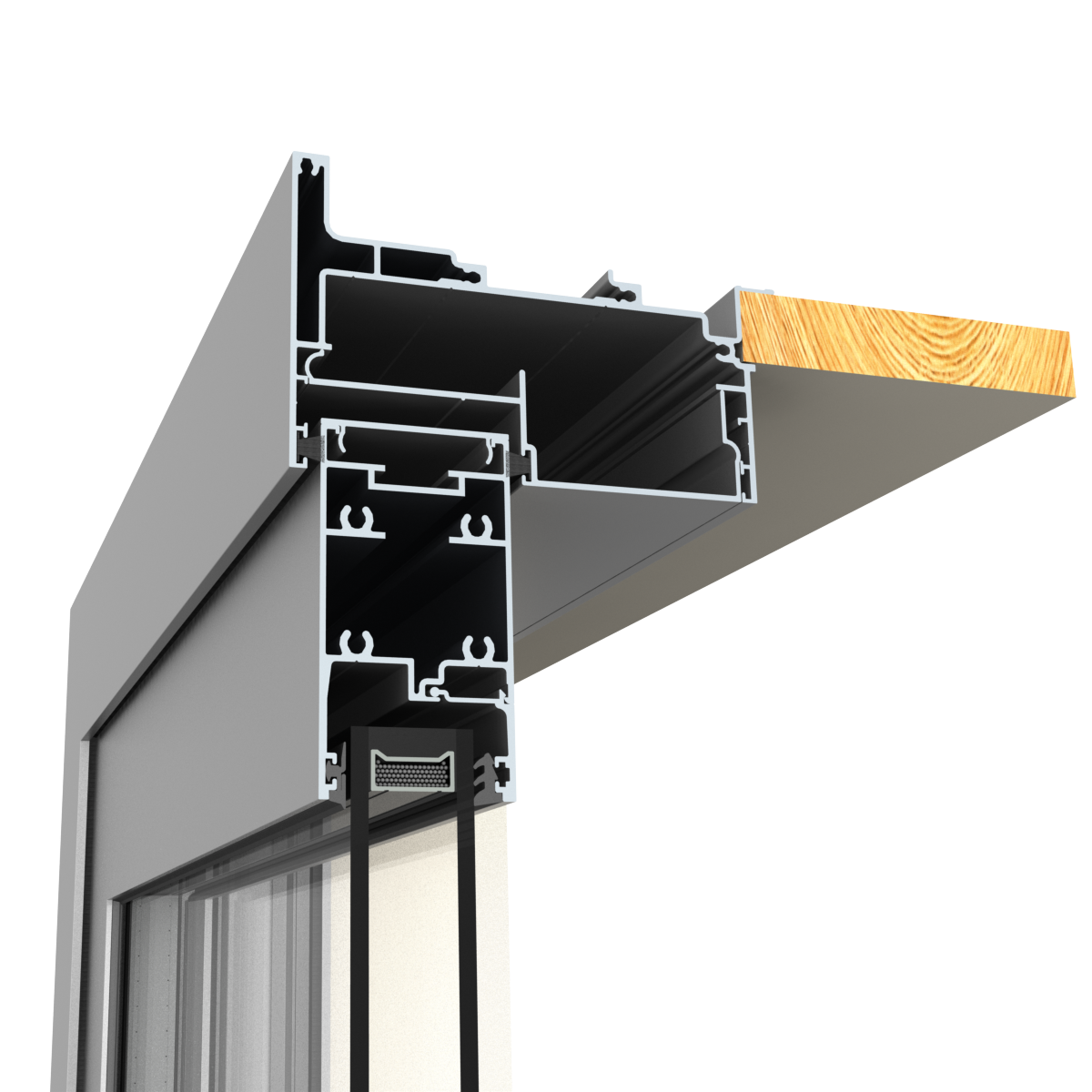

11d New Double Hung Window Head
Description

Double hung windows are a counter-balanced vertical sliding window system where both panels move together. They are a good option for non-projecting ventilation.

Key Features
  • Suitable for residential, commercial and institutional use
  • In the fully open position with both sashes adjoining each other half the window area is open
  • Recommended aspect ratio is 2:1 with a weight restriction of 100kg per panel
  • Tested to Extra High wind zone
  • Generally appropriate in single banks because of the large width of coupling bars
  • Work well with insect screens
  • Opening handle in bottom rail of lower sash has two locking at the sill
Categories
Sliding Windows
Ranges
Metro Series
Scope of Use
  • Suitable for residential, commercial and institutional use
  • Suitable for wind zones up to Extra High
  • Work well with insect screens
Limitations on Use
  • Opening gap at sill may need to be restricted in high window situations
  • Double hung windows will generally be appropriate in single banks because of the large width of coupling bars
  • Recommended aspect ratio is 2:1 with a weight restriction of 100kg per panel
  • Consider the ease of reaching to the window handle if the sliding panel is placed beyond a bench
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2019
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • News
Documents
Data Sheet

2020

pdf
Span Tables
pdf
Declare Label

2022

pdf
Specification Clause/Guide

2019

pdf
Altherm on Masterspec
URL
Specifier Guide

2019

pdf
WGANZ Guide to E2/AS1
pdf
Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

URL
Altherm Design Brochure

2020

URL
AGP Cleaning & Maintenance
pdf
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
APL and Sustainability

2019

URL
Manufacturer Contact List
URL
CAD/PDF Details
View full

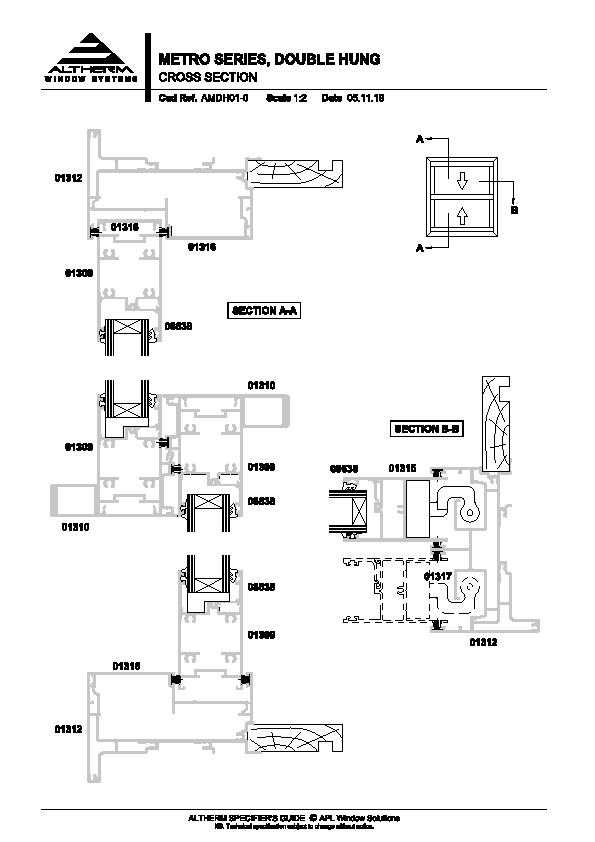

Altherm Metro Series Double Hung Window
dwf
dwg
dxf
pdf

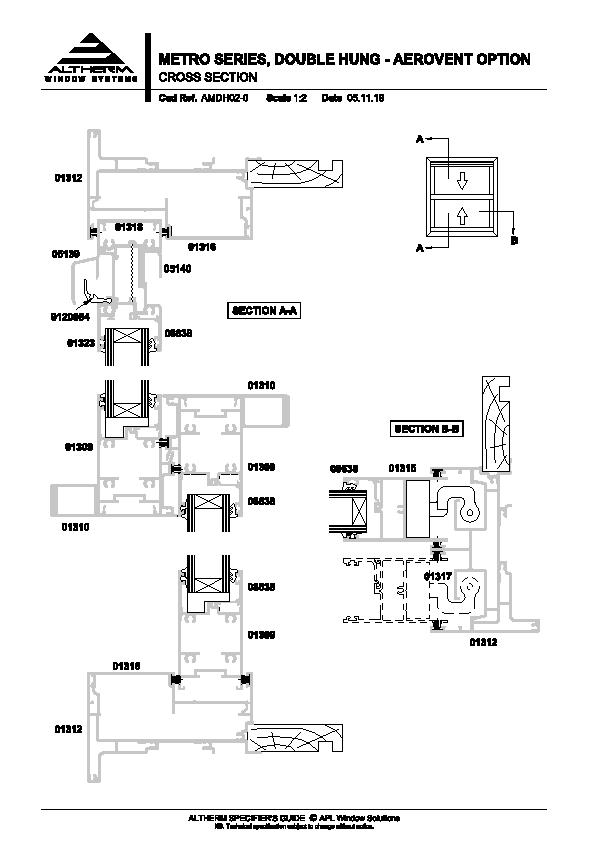

Altherm Metro Series Double Hung Window - Aerovent Option
dwf
dwg
dxf
pdf
BIM
View full
Capture
Metro Series Double Hung Window

Revit LT 2020

rfa
rfa
rfa
