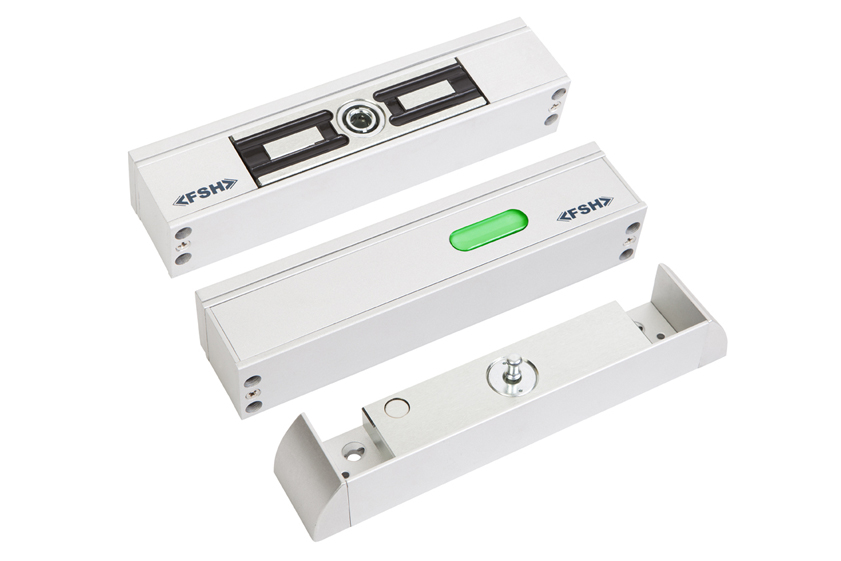

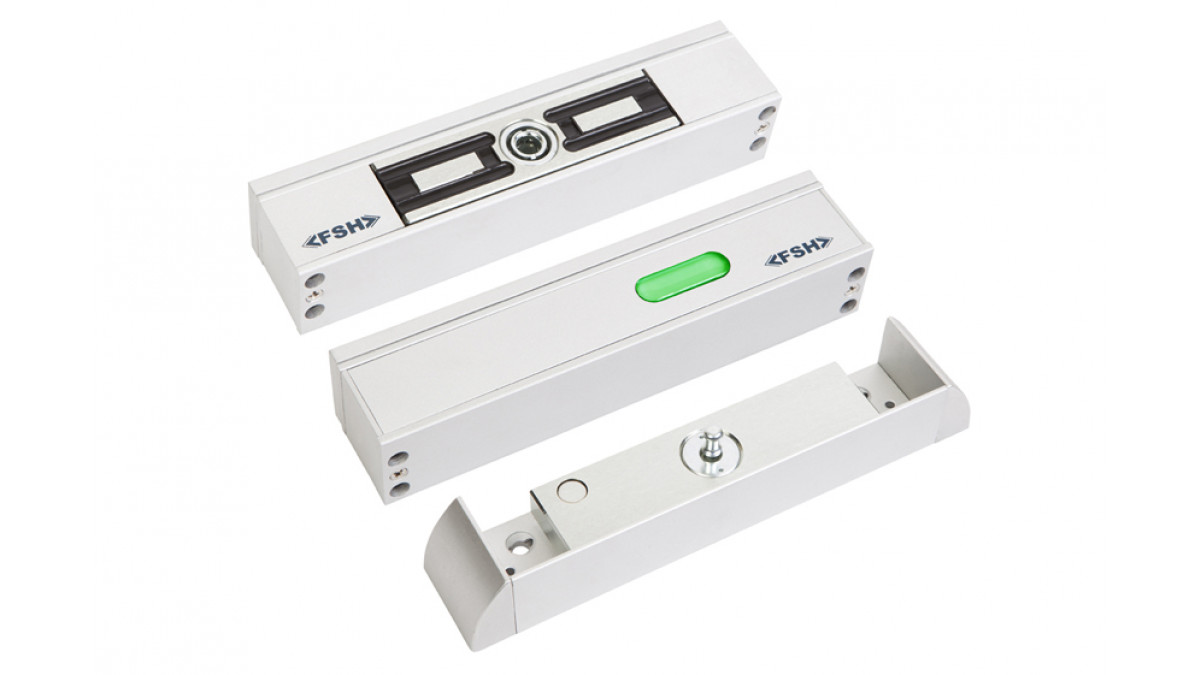

FSH MEM2400LP
Description

The innovative slimline MEM2400LP Mechanical Electro Magnetic Lock has been designed as an alternative to standard magnetic locks especially suited for situations where door height or narrow profile door frames create installation restrictions and appearance is of paramount importance.

The patented MEM incorporates both magnetic and mechanical design principles to achieve a superior holding force of up to 1000kg, whilst being 75% smaller than a standard 600kg Electro Magnet.

The MEM2400 is capable of opening with up to 70kg side pressure on the door and has the added security function of 'Early Warning' alarm condition. The device comes with the FSH patented 'Anti-Tamper-Bracket' as standard.

Key Features
  • Slimline design 75% smaller than a standard 600kg magnet
  • High holding force up to 1000kg and releases under side load of up to 70kg
  • Low power consumption 24 VDC/120mA
  • Dual-voltage 12V/24V DC selectable
  • Full monitoring lock status sensor (LSS)
  • Door status sensor (DSS)
  • Early warning alarm (EW)
  • Anti-tamper bracket to protect the armature plates fixing bolt
  • Light Feature: Light panel (LP)
  • Function: Surface mount, outward opening doors
  • Holding Strength: Up to 1000kg
  • Voltage / Current: Dual voltage 12/24 VDC 12 VDC/240mA 24 VDC/12mA
  • Monitoring: EW / LSS / DSS
  • Dimensions: MEM = 158mm (W) X 35mm (H) x 30mm (D), Armature plate = 120mm (W) x 30.6mm (H) x 12.5mm (D), Anti-tamper bracket = 194mm (W) x 38mm (H) x 30mm (D)
Categories
Locks
Scope of Use

Designed as an alternative to standard magnetic locks especially suited for situations where door height or narrow profile door frames create installation restrictions and appearance is of paramount importance.

  • Slimline design 75% smaller than a standard 600kg magnet
  • High holding force up to 1000kg and releases under side load of up to 70kg
  • Dimensions: MEM = 158mm (W) X 35mm (H) x 30mm (D), Armature plate = 120mm (W) x 30.6mm (H) x 12.5mm (D), Anti-tamper bracket = 194mm (W) x 38mm (H) x 30mm (D)
Documents
Data Sheet
Installation and Operation
