Legge Privacy Plus Lock System
Description

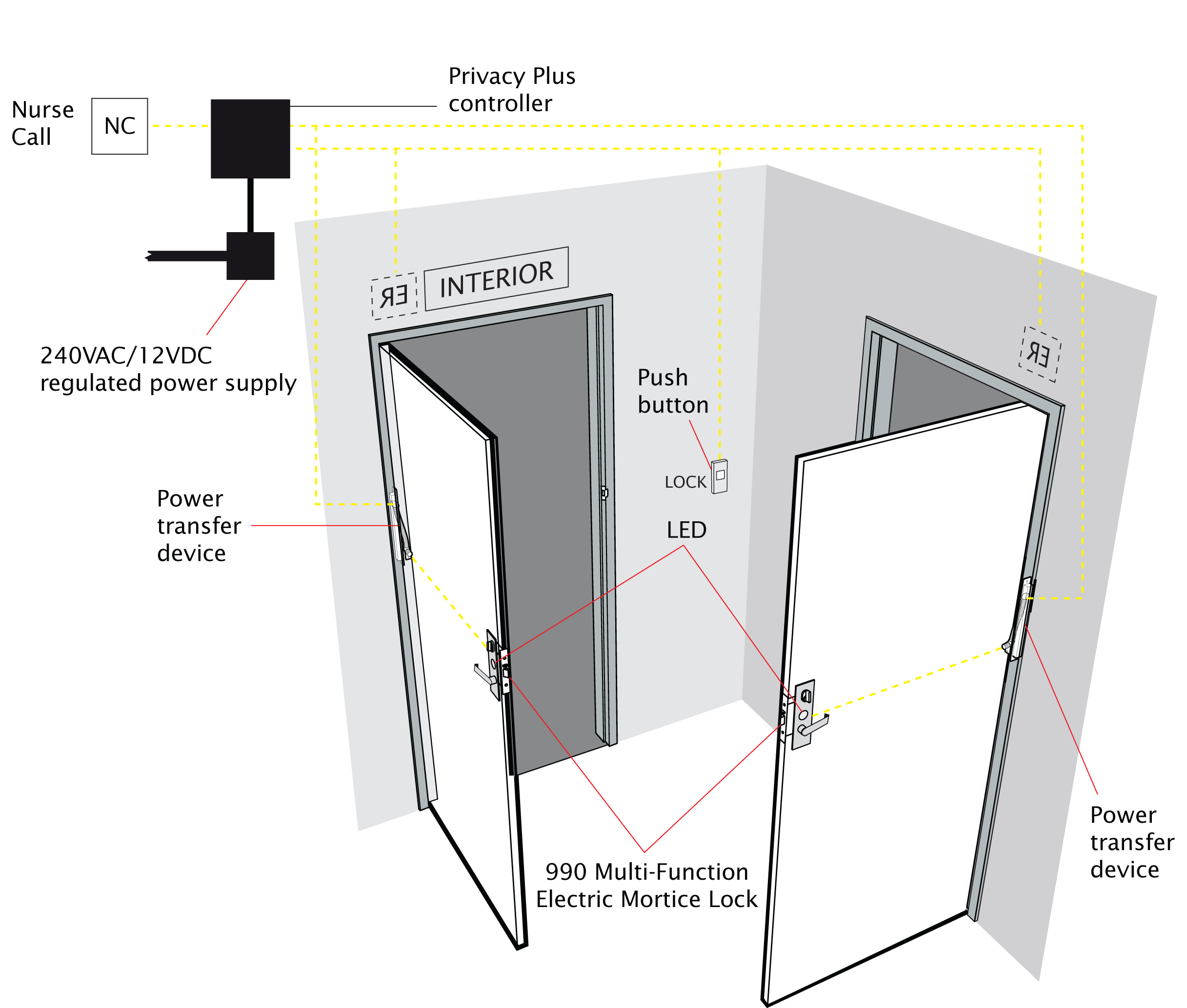

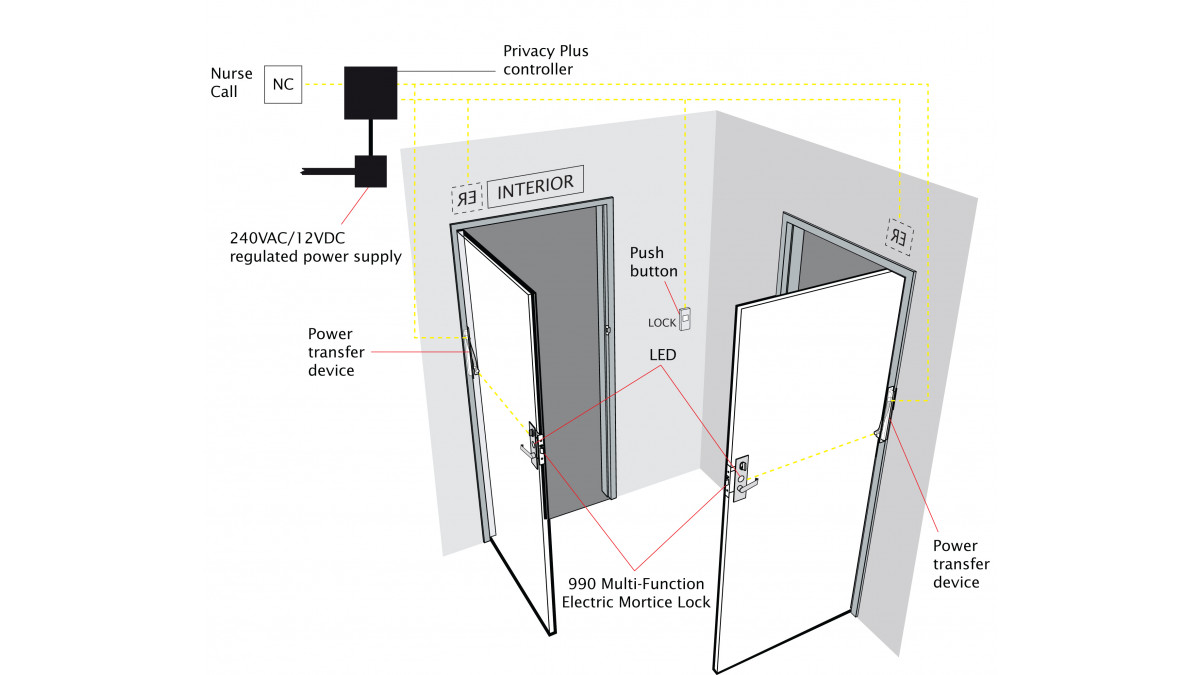

Great design should simplify the complex. Legge Privacy Plus offers a simple solution for the often complicated task of managing access to one room via multiple doorways. This electronic locking system is capable of enabling four different levels of privacy and security from one controller.

Whether the system is configured to Standard Privacy, Secure Privacy, Air Lock or Man Trap, will be dependent on the desired degree of privacy, security and the needs of varying facilities.

Combined with renowned Legge electric mortice locks and door furniture, the Legge Privacy Plus Electronic Locking System presents a high-performing, aesthetically pleasing option for any commercial environment with multiple access challenges.

  • IRT881 Power Transfer — This kit provides a means of transferring electrical power from a door frame to the edge of a swinging door. Finishes: Satin Stainless Steel
  • Privacy Plus Controller — The Privacy Plus Controller enables the wiring and programming of all of the components in the system.
  • FEL990 Electric Mortice Lock — The FEL990 is easy to configure and provides comprehensive programming and monitoring options.  Finishes: Satin Chrome Plate (standard) or special finishes available (optional)
Key Features
  • If a door is left open the LED will start to flash to notify occupants
  • Power supply (12 volt 1 amp) is supplied with the controller
  • Controller is Australian made
  • Controller Pack includes 2 x 7.5m cables to connect locks to controller
  • All switches, locks, power transfer and cabling are supplied for easier purchasing and project management
Categories
Locks
Scope of Use

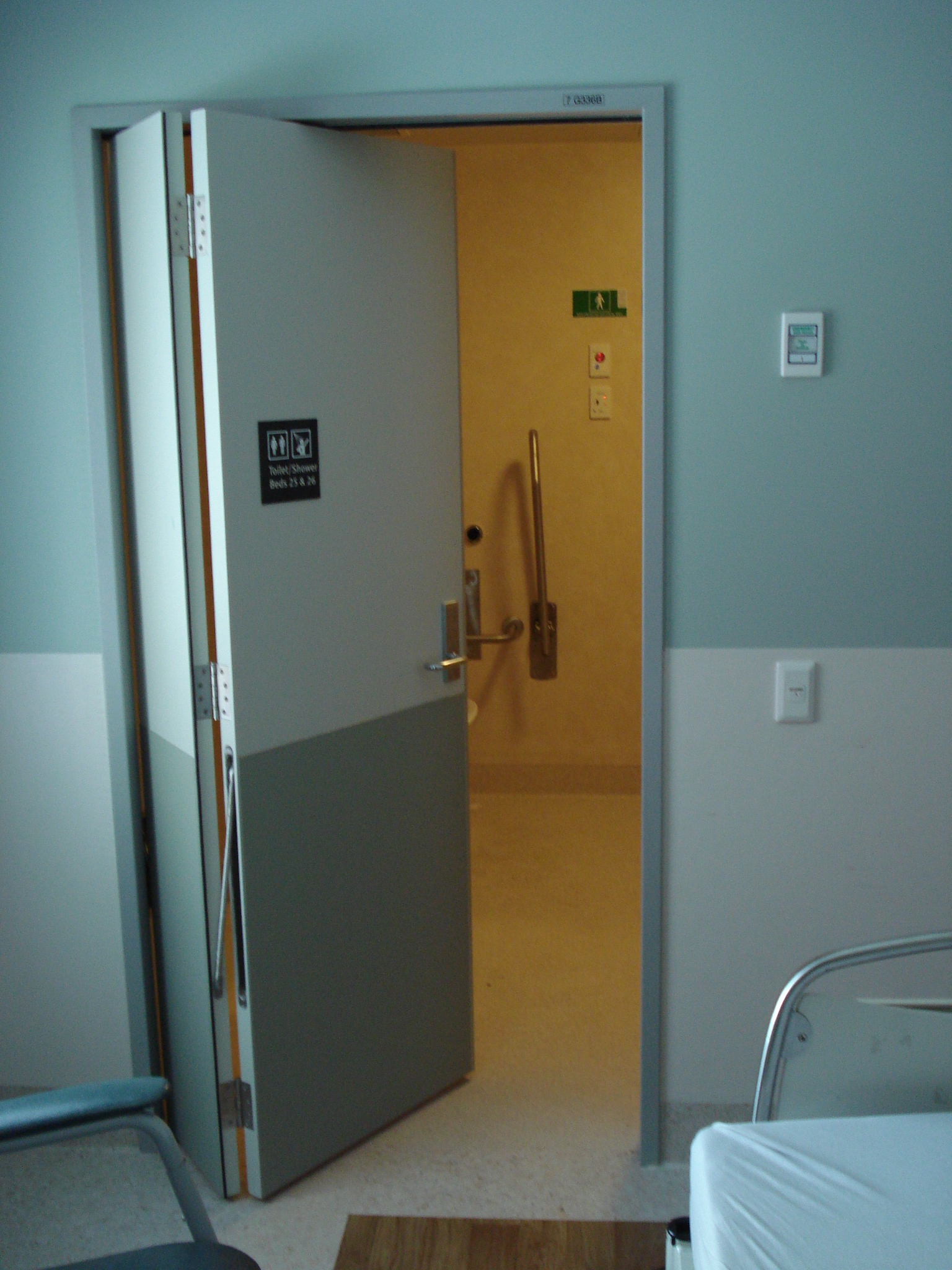

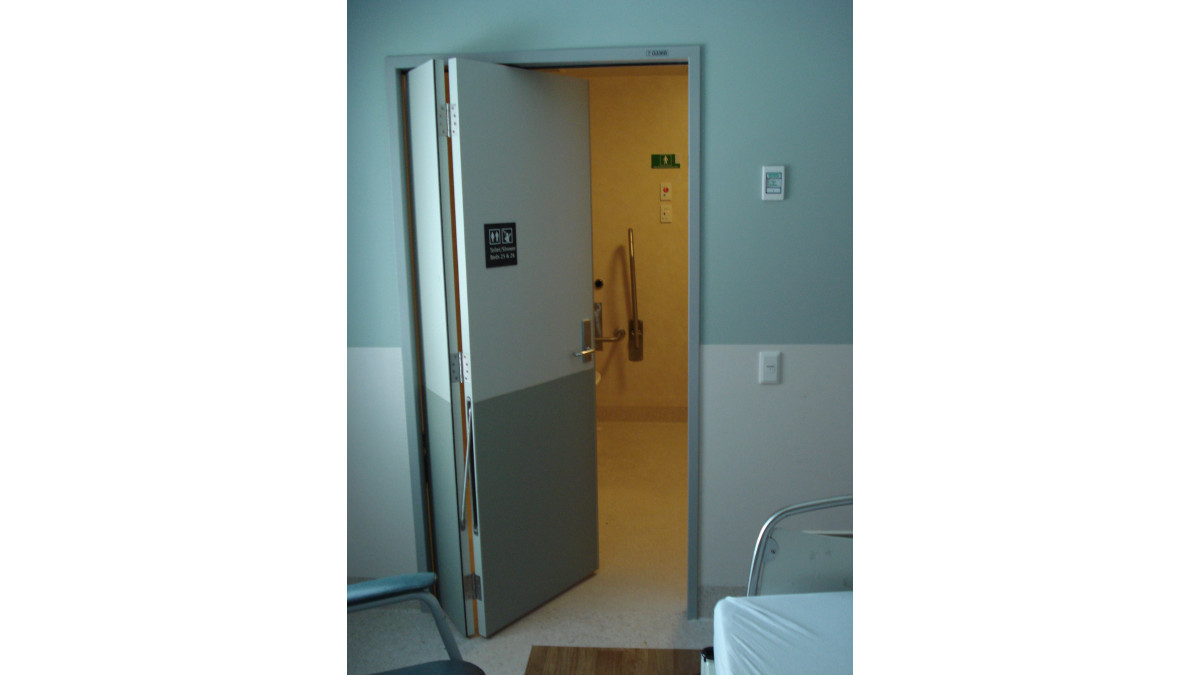

Privacy Plus Lock System is ideal for shared en-suites in healthcare, aged care facilities, laboratories, sound studios, darkrooms, and other shared facilities.

Documents
Data Sheet
Commercial Warranty 2023
Brochure
Caring for Door Hardware
