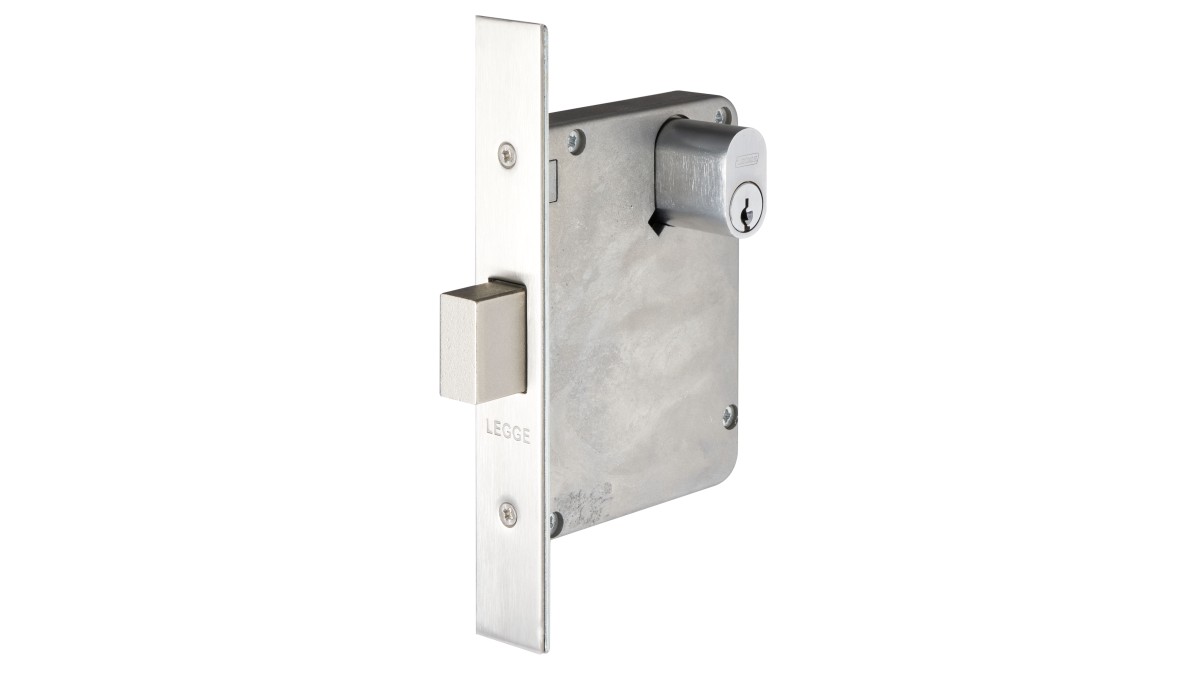

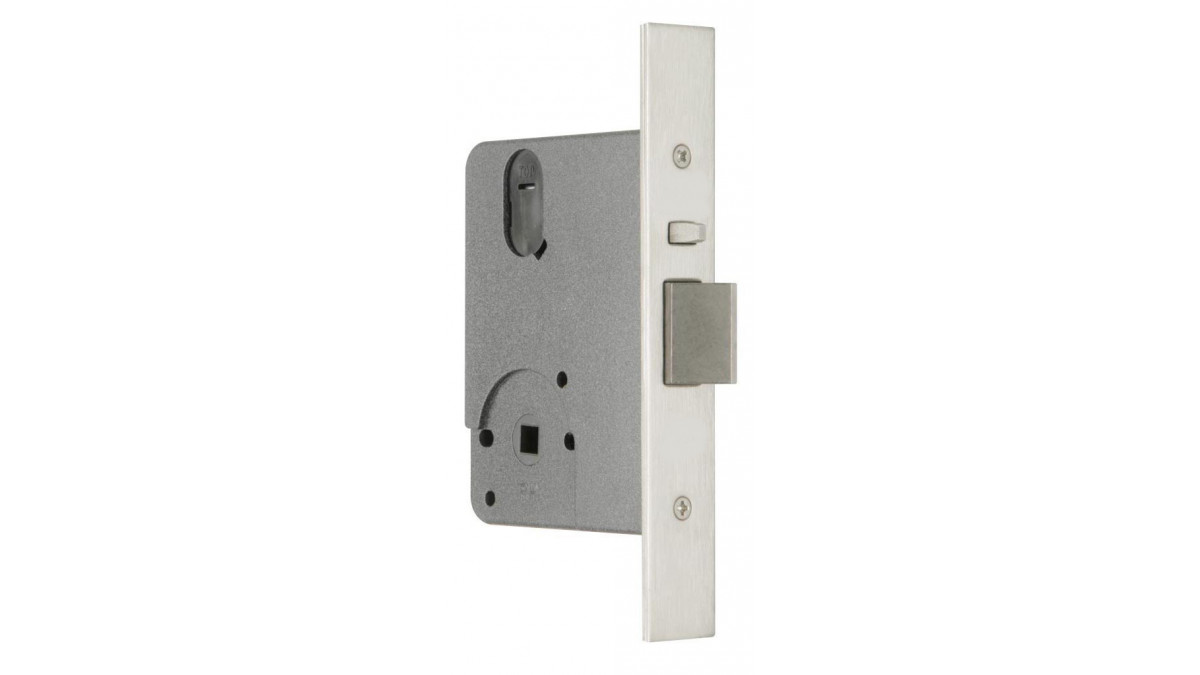

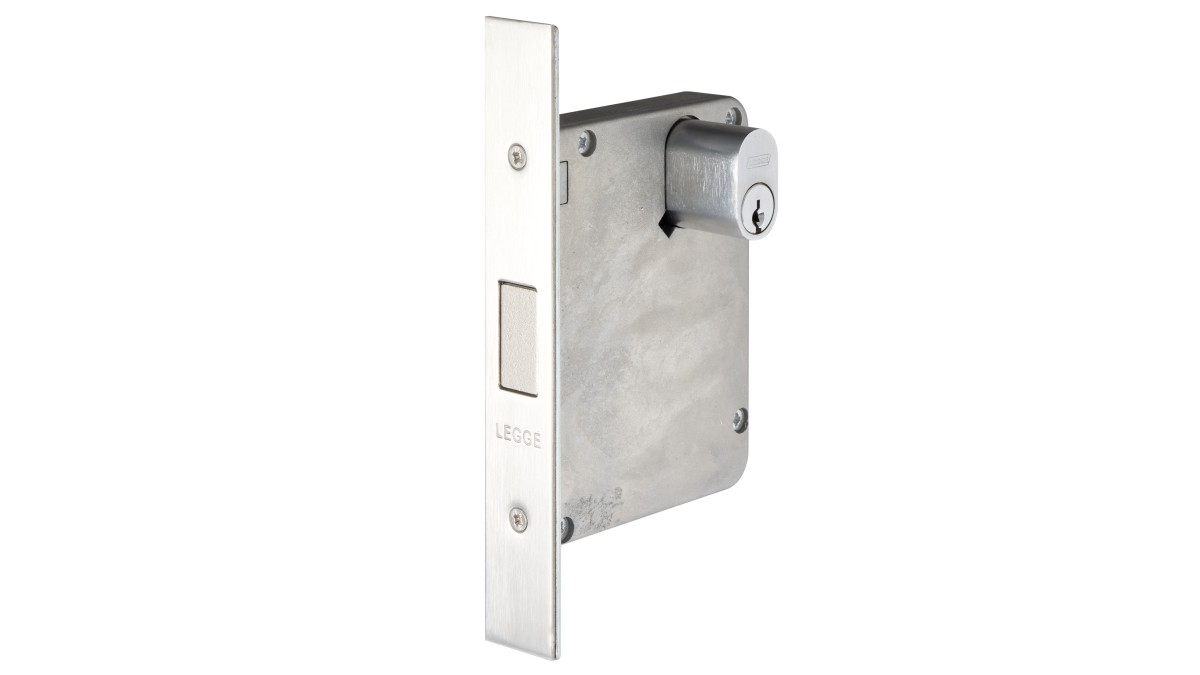

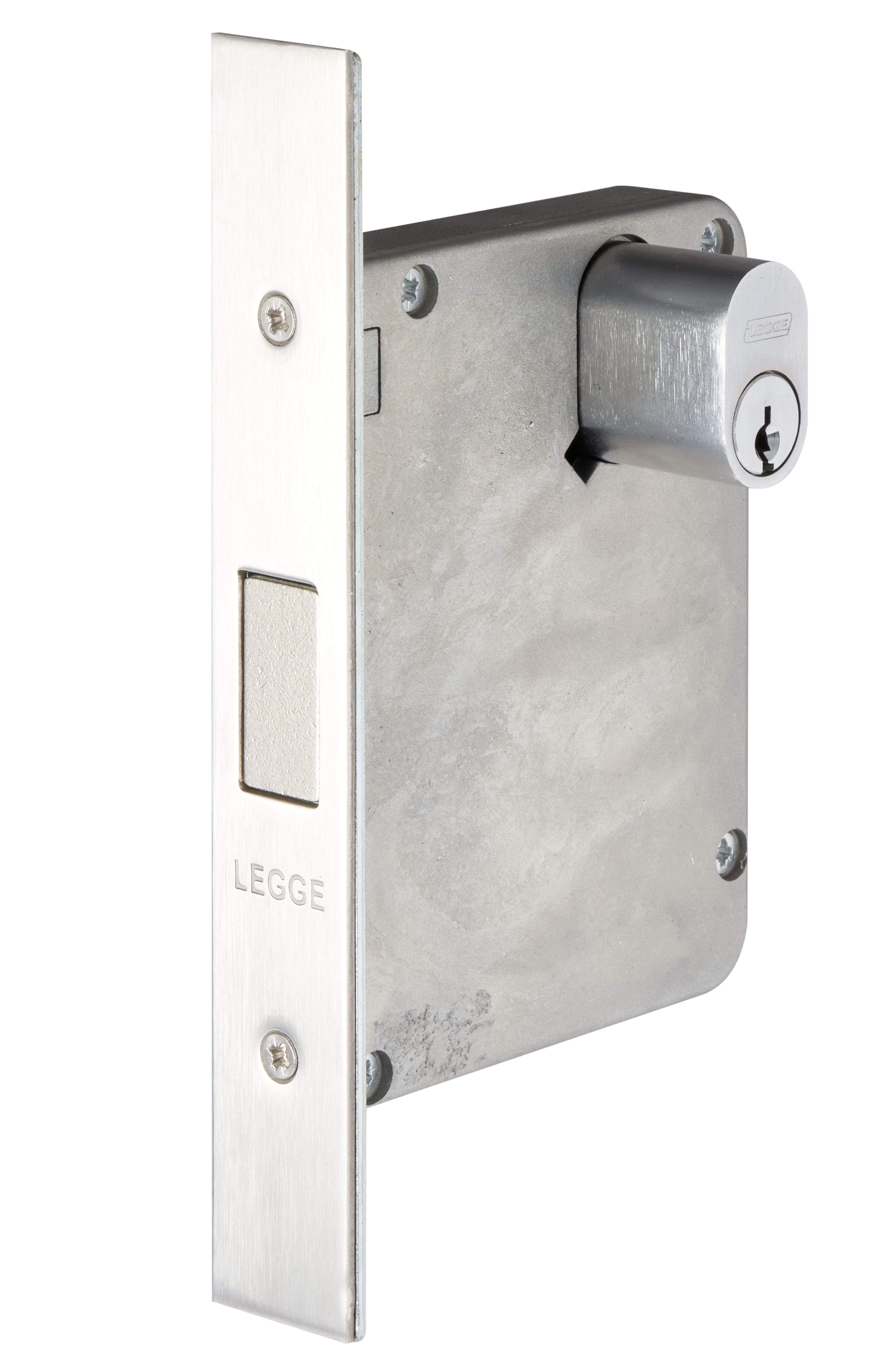

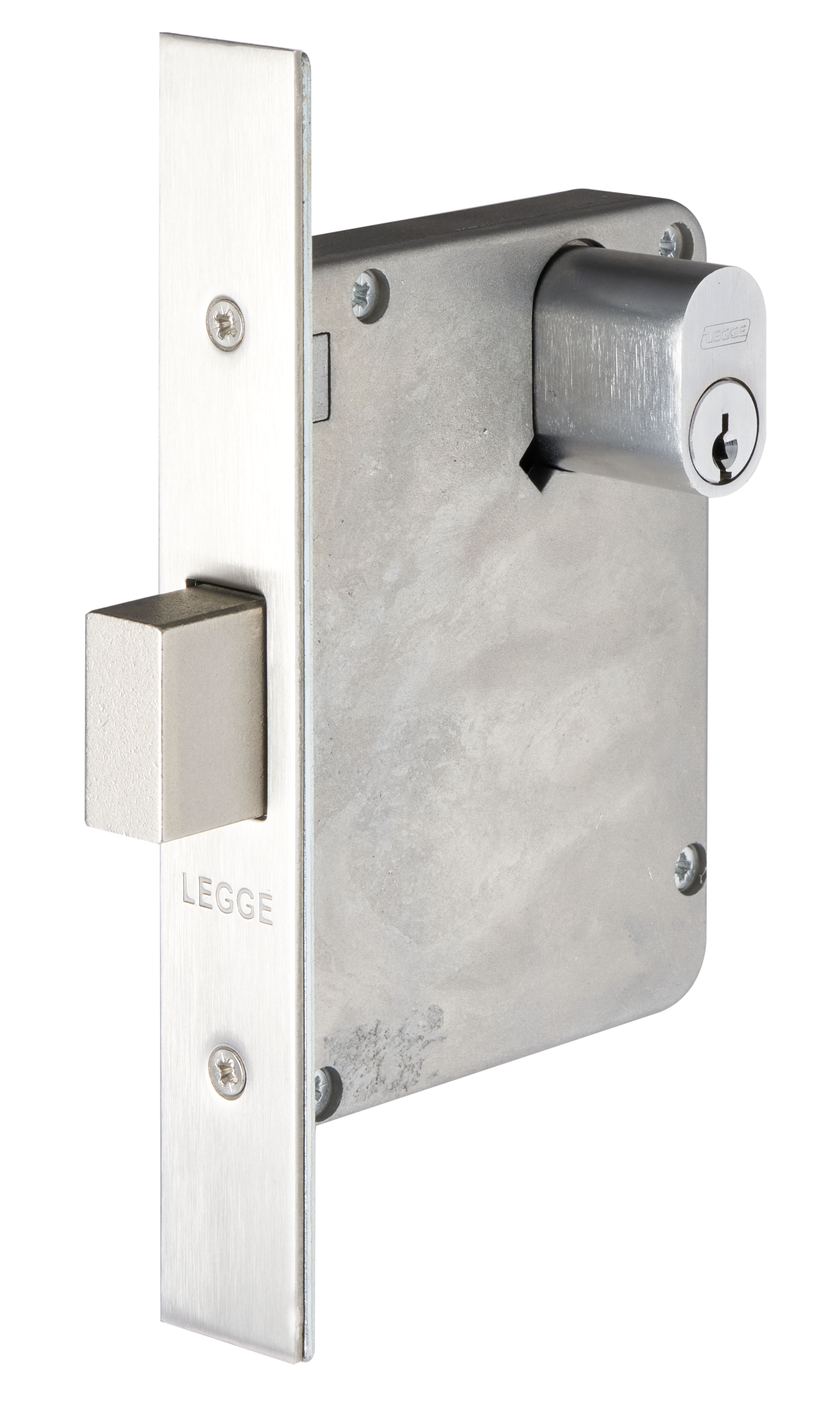

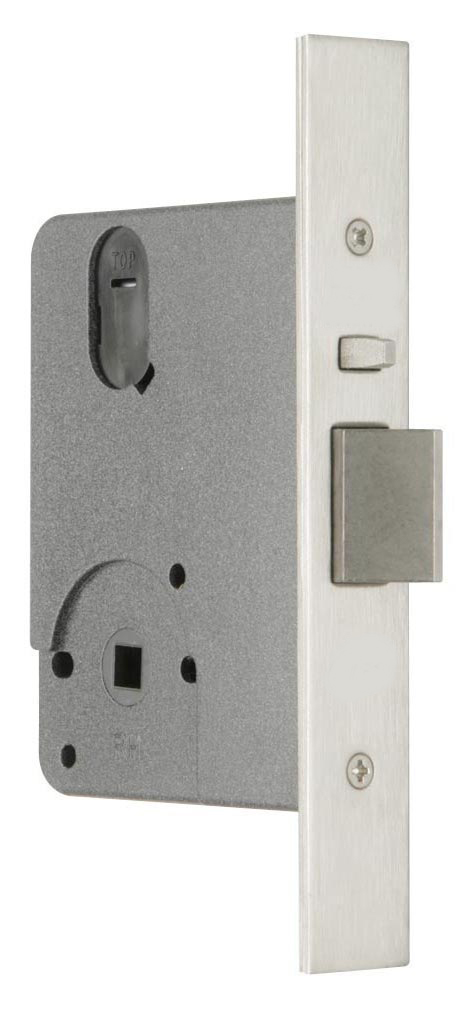

Legge 990 Mortice Lock
Description

The Legge 990MF Series of mortice locks and latches have been designed specifically to meet the requirements of the Australasian market. With an extensive range of lock functions, the 990MF Series has the right function to meet specific needs.

Finishes available:

  • Antique Bronze
  • Chrome Plate
  • Oil Rubbed Bronze
  • Polished Brass
  • Satin Black Chrome
  • Satin Brass

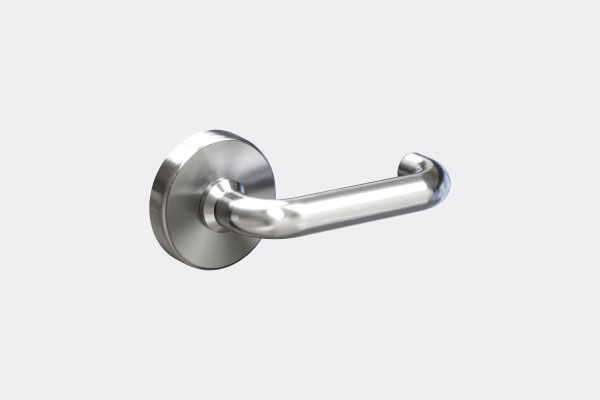

  • Satin Chrome Plate
Key Features
  • Multi-function case allows easy conversion of a vestibule lock function (inside handle free) to a combination lock function (both handles locked) by a simple external operation

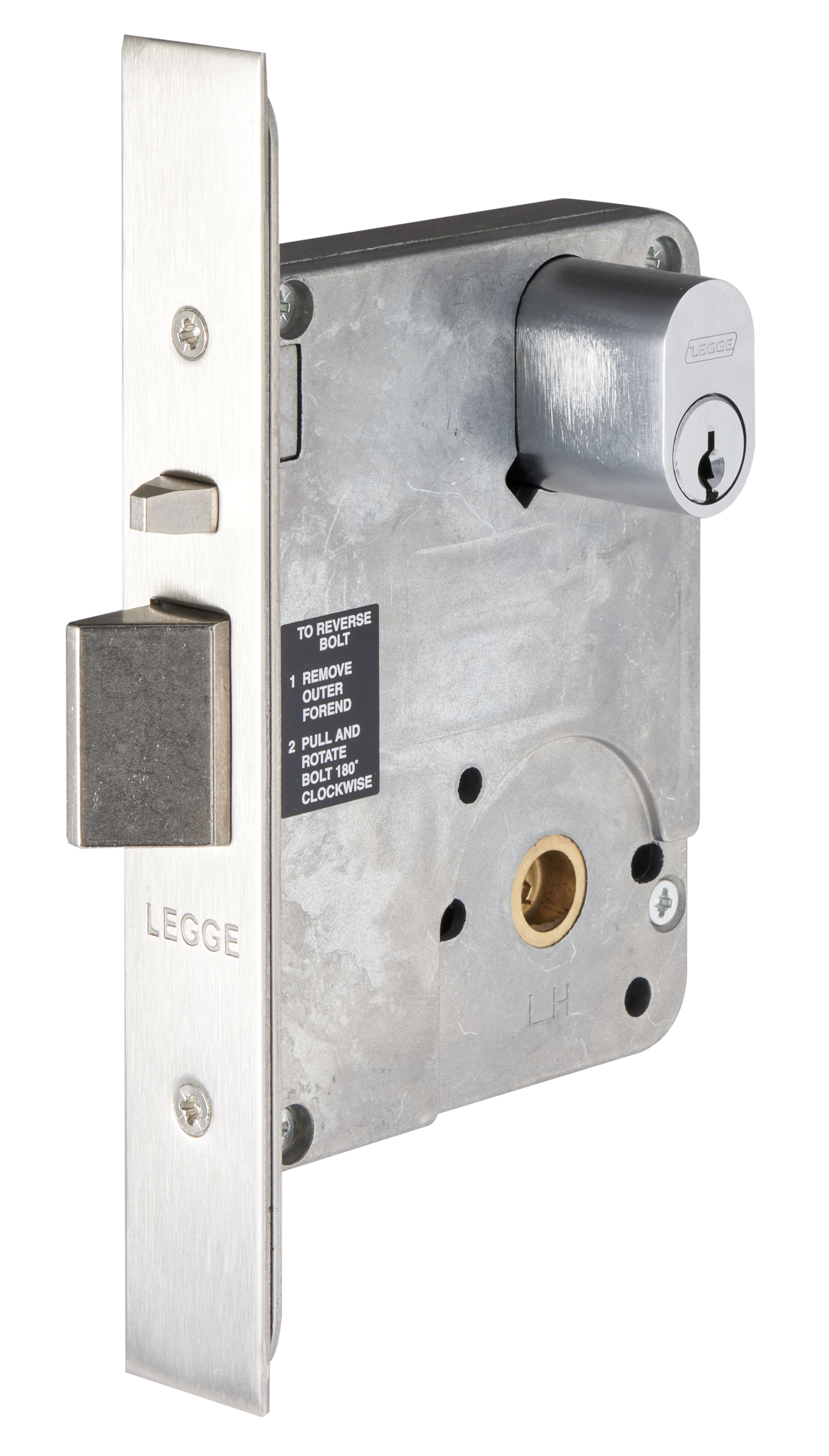

  • Reversible stainless steel latch adjusts for inwards/ outwards opening and left/right hand without case disassembly
  • Standard lock suitable for doors 32mm to 50mm thick. Extended cylinders, spindles and strike plates available to accommodate thicker doors and wider jambs
  • 990MF case will accept bolt-through fixing for 50.8mm diagonal and 38mm-41mm horizontal fixing door furniture
  • Follower will accept 7.6mm-8mm furniture spindles, with no adjustment necessary
  • A threaded pin is used for secure cylinder retention
  • Designed to be compatible with most electric strikes
  • The 10 year warranty provides specifiers and users with assured quality and performance
Categories
Locks
Scope of Use

With a range of lock functions, the 990MF Series is ideally suited for commercial, industrial, institutional and government buildings, where durability and security are of major importance.

  • Reversible stainless steel latch adjusts for inwards/ outwards opening and left/right hand without case disassembly
  • Standard lock suitable for doors 32mm to 50mm thick. Extended cylinders, spindles and strike plates available to accommodate thicker doors and wider jambs
  • 990MF case will accept bolt-through fixing for 50.8mm diagonal and 38mm-41mm horizontal fixing door furniture
  • Follower will accept 7.6mm-8mm furniture spindles, with no adjustment necessary
  • Designed to be compatible with most electric strikes
Other Performance Attributes
  • 10 year warranty
Documents
990C
990D

990D

990N
990S
990V
Installation and Operation
Commercial Warranty 2023
Bochure: 991, 990, 995 Series
Brochure: 990MF & 995MF Series
Caring for Door Hardware
