Briton 2400 Series Concealed Cam Action Closer
Allegion
All products

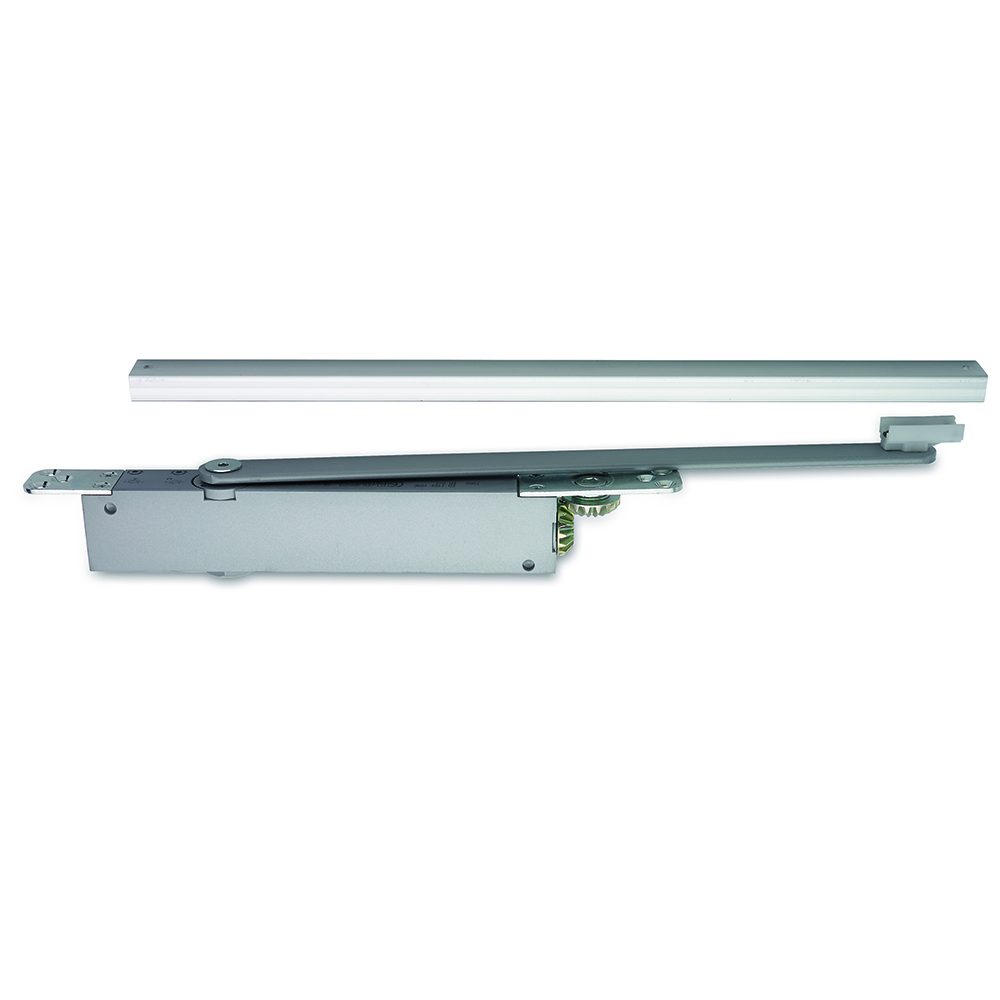

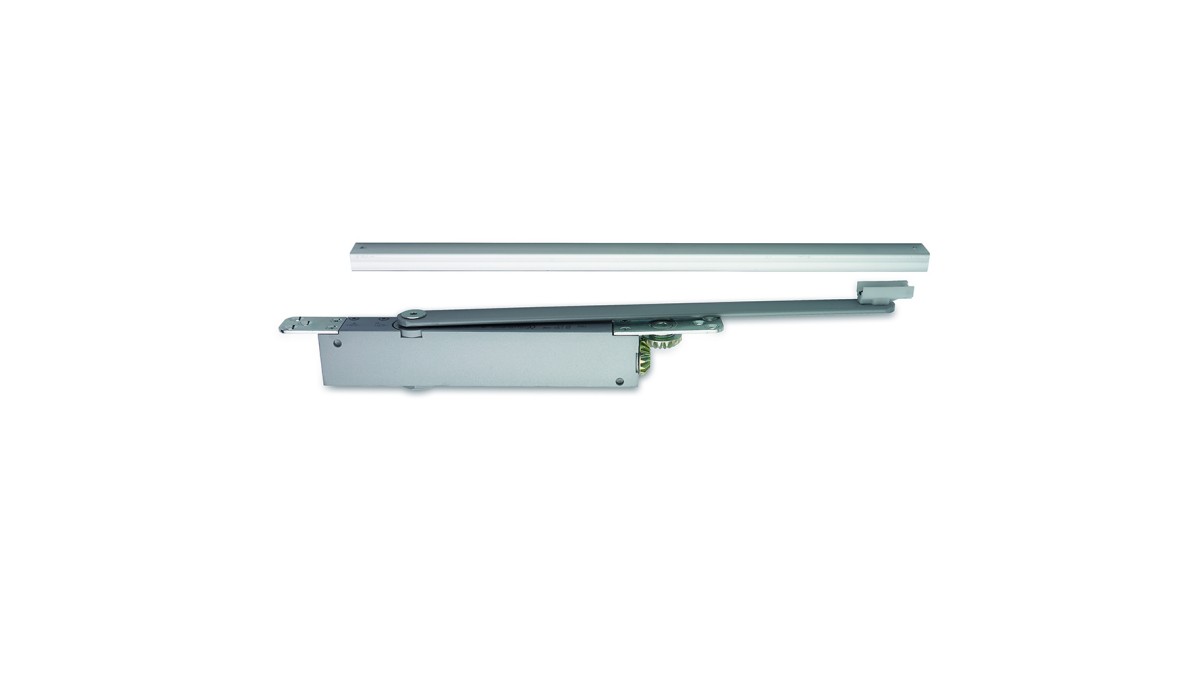

2420B.T.SE

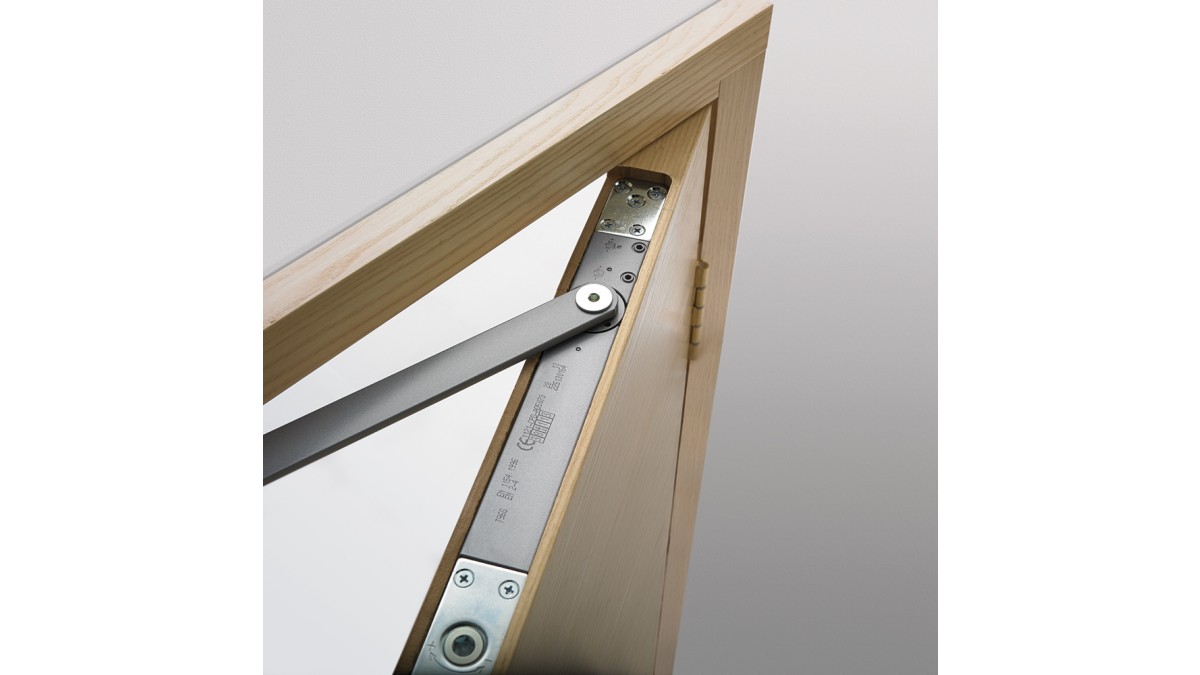

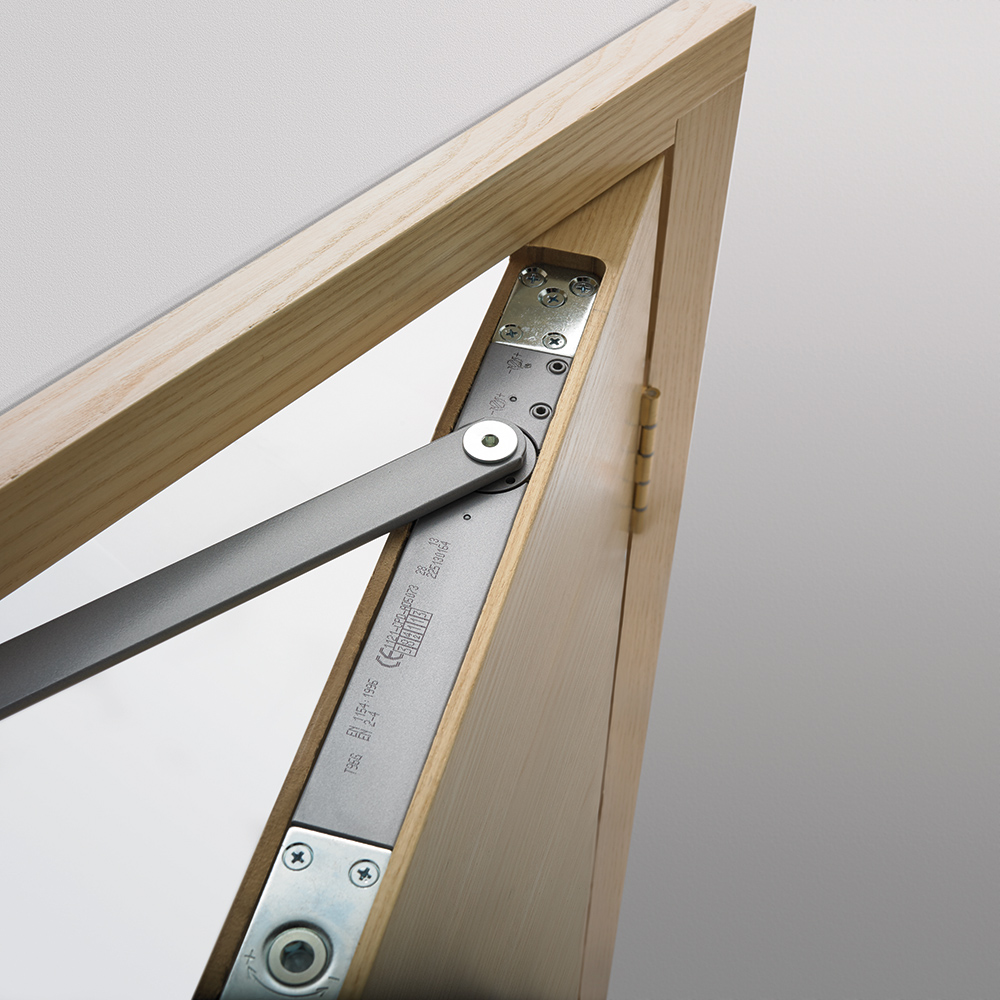

2400 concealed

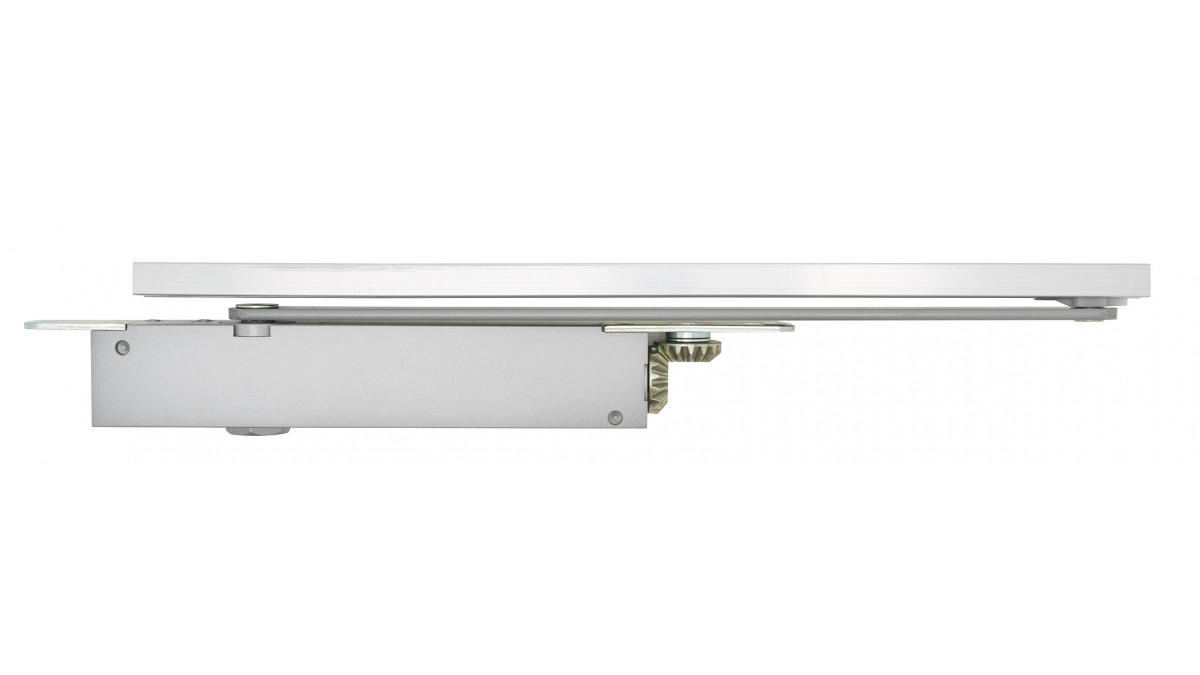

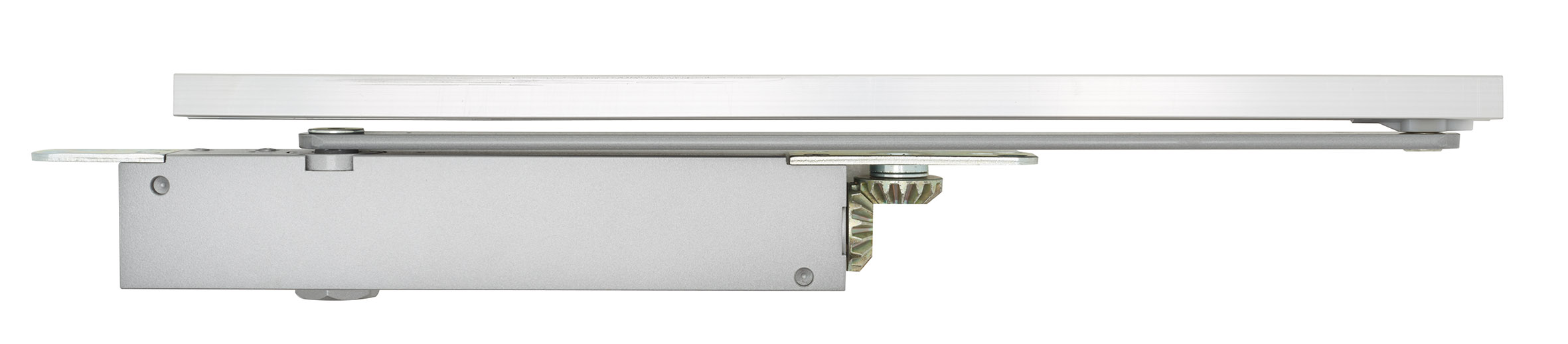

2400 Series
Description

The Briton 2400 Series is a precision-manufactured cam action, slide channel door closer in a compact concealed unit.

With the closer body mounted within the top of the door, and the slide track within the head frame (or vice versa), the Briton 2400 Series offers high resistance to abuse and offers a highly aesthetic solution, as it is fully concealed when the door is closed.

Providing exceptional ease of use by reducing the resistance encountered when opening the door, the Briton 2400 Series bridges the gap between the requirements for smoke control and ease of operation required for accessibility.

Key Features
  • Compact extruded aluminium body with cam action technology
  • High-quality hydraulic fluid with built-in temperature compensation
  • Needle roller bearings provide increased bearing load for efficient operation and reliability
  • Aluminium slide track 23mm wide
  • Powder-coated steel track arm with a nylon runner
  • Intumescent gasket available for fire door applications
  • Adjustable closer strength 2 - 4
  • Optional mechanical hold-open available: 80° - 120°angle
  • Separate closing speed and latch action adjustment
  • 10 year warranty
Categories
Door Closers
Ranges
Briton Door Control
Scope of Use

Suitable for commercial applications

  • Handing: Non-handed
  • Mounting Strength: Adjustable strength 2 to 4
  • Arm type: Track
  • Max open angel: 120° (pull side)
  • Max door weight: 80kg
  • Max door width: 850mm - 1100mm
  • Dimension: 242mm x 42mm x 33mm
  • Adjustments: Backcheck. Closing and latching speed
  • Options: 80-120° hold open & cushion stop
Statement of Building Code Compliance
  • UKCA Marked to EN 1154 (1121-CPR-AD7604)
  • CE Marked to EN 1154 (2812-CPR-AD5114)
  • Certifire Approved (CF5292)
  • Fire tested to EN1634 on timber doors to achieve up to 90 minute fire rating when used in conjunction with the intumescent pack 2420.IP
    • FD30: Min. door thickness 44mm
    • FD60: Min. door thickness 54mm
    • FD90: Min. door thickness 58mm
  • Environmental Product Declaration in accordance with ISO 14025 and EN 15804
Other Performance Attributes
  • The Briton 2400 Series is CE marked to EN1154 and fire tested to EN1634-1 on timber doors to achieve a 1 hour fire rating when installed with the approved intumescent gasket set (Briton 2420.IP)
  • The Briton 2400 Series is tested to meet local accessibility, durability and fire standards, refer to fire door manufacturer for approval
  • 10 year warranty
