ACMF Operable Louvres
ACMF
All products

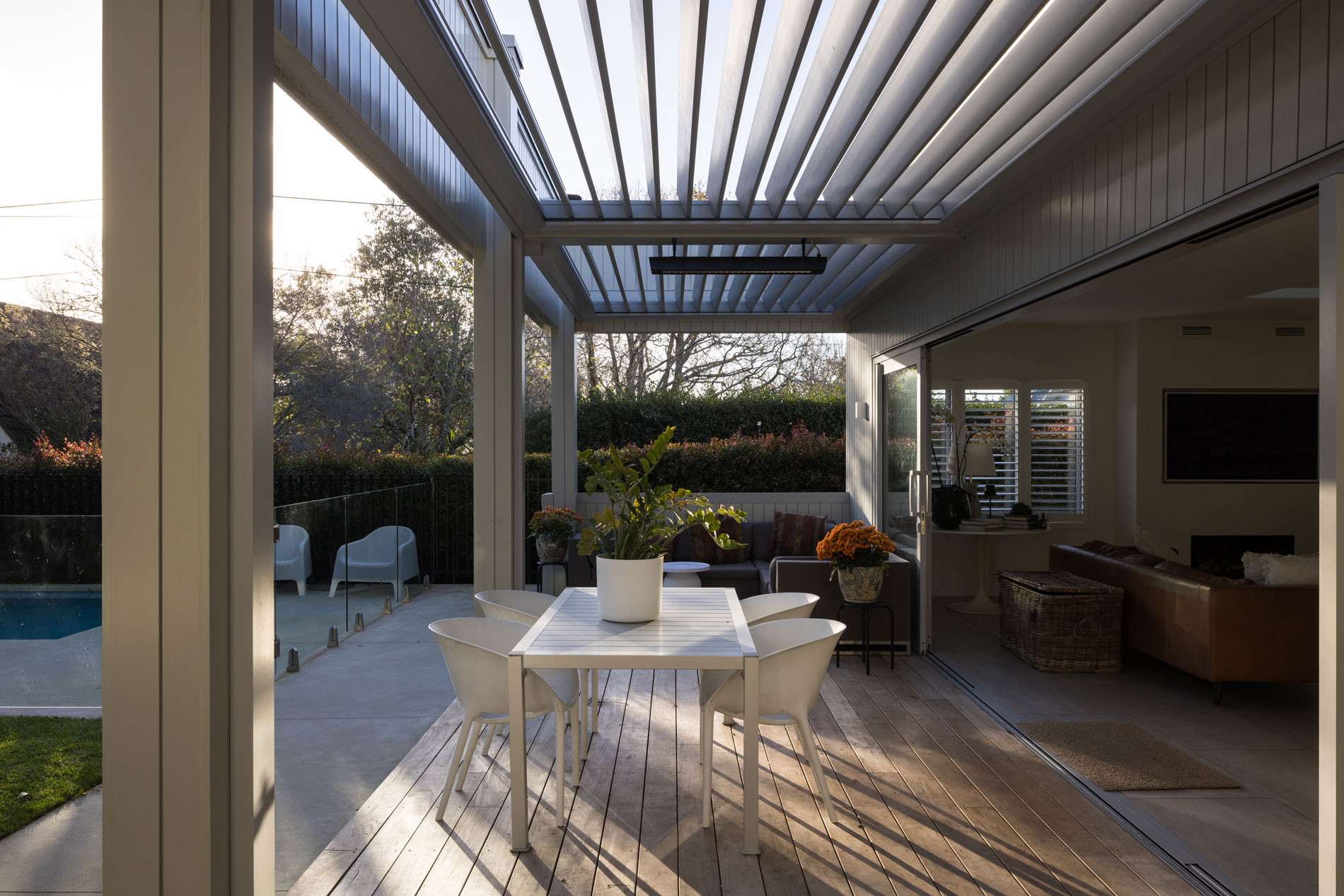

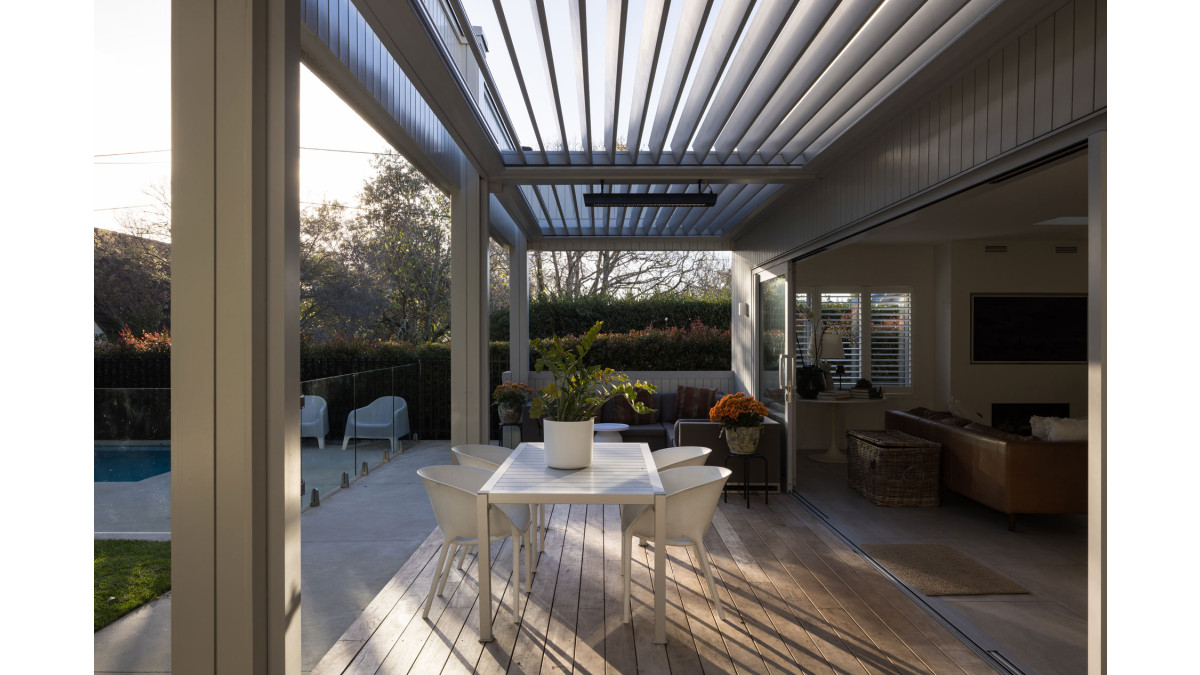

058A9536 6 resized

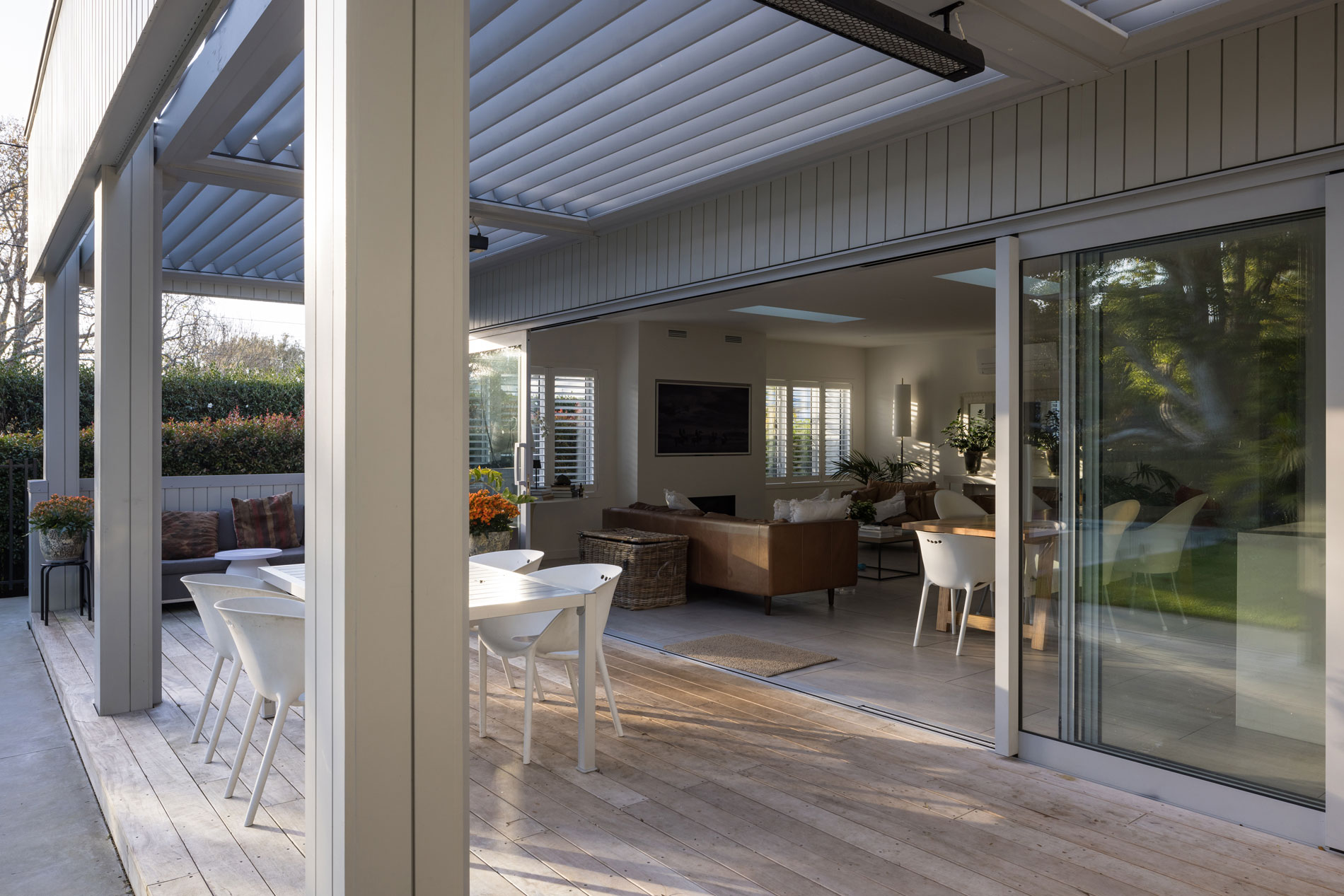

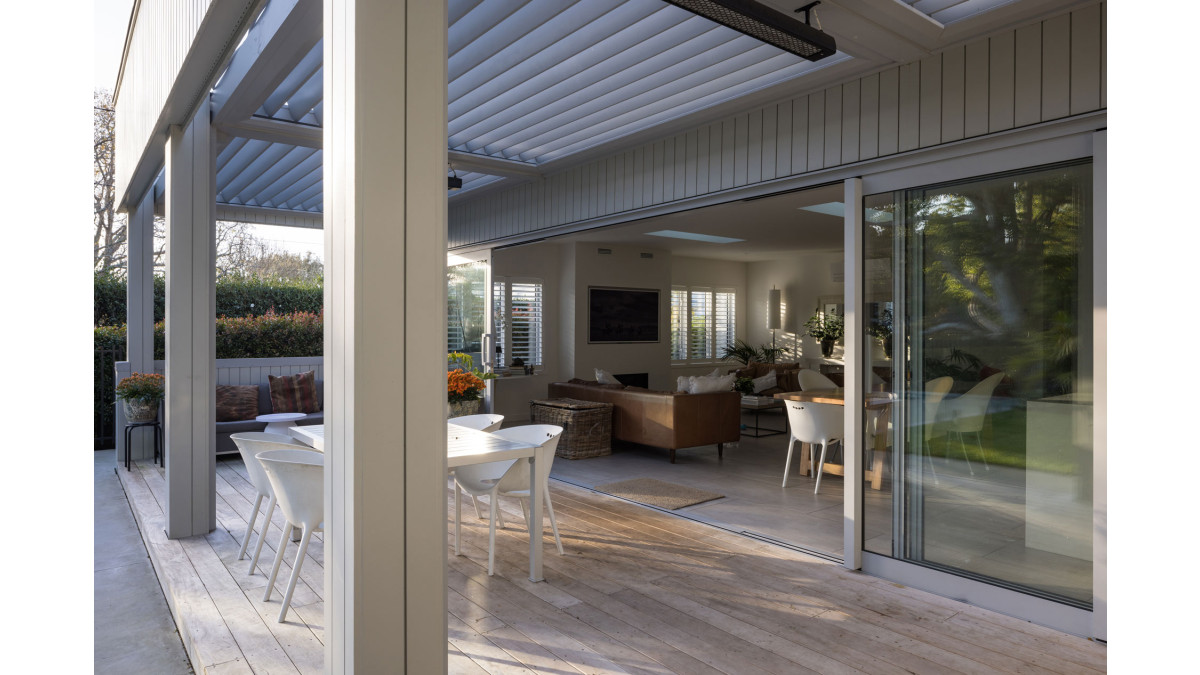

058A9539 5 resized

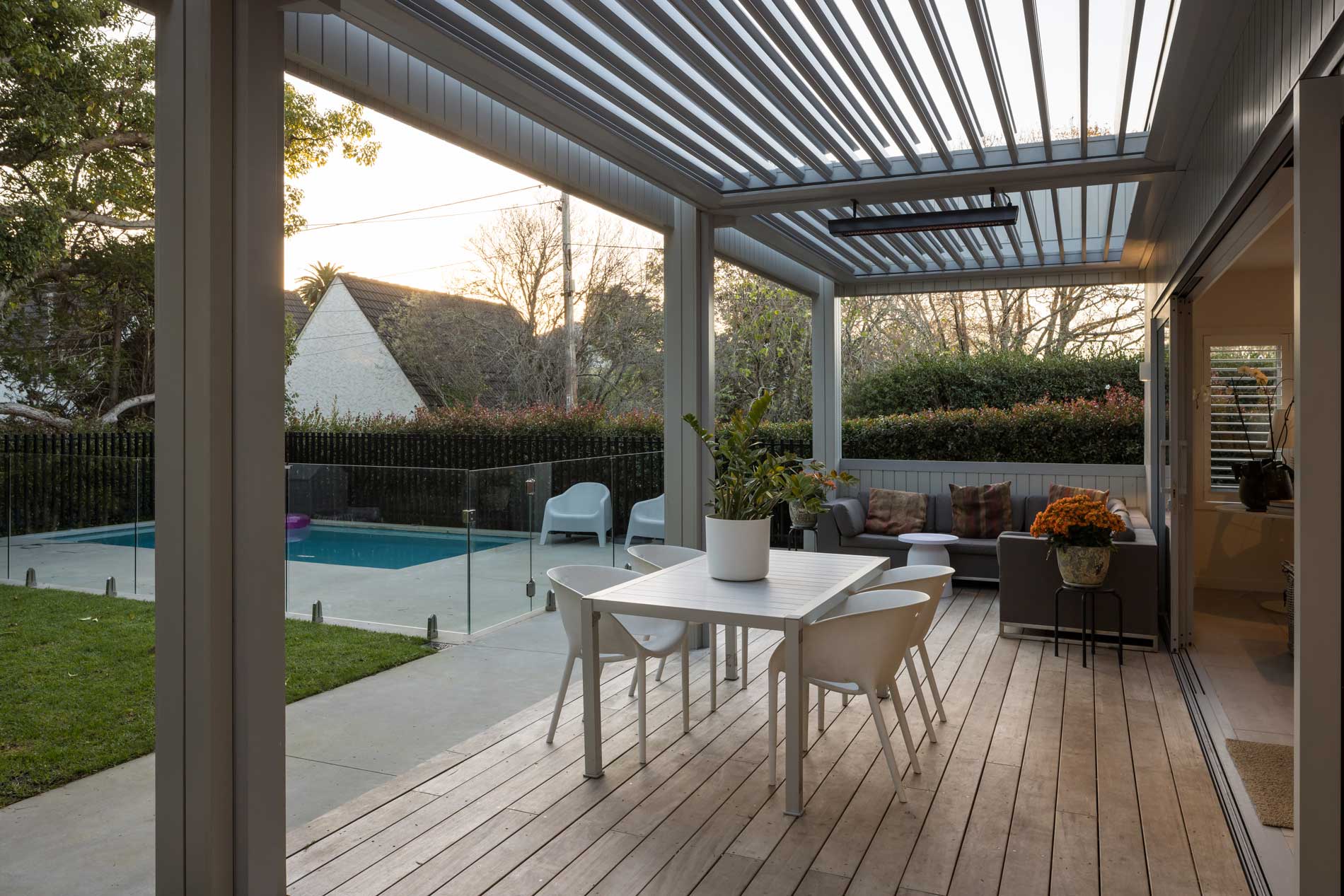

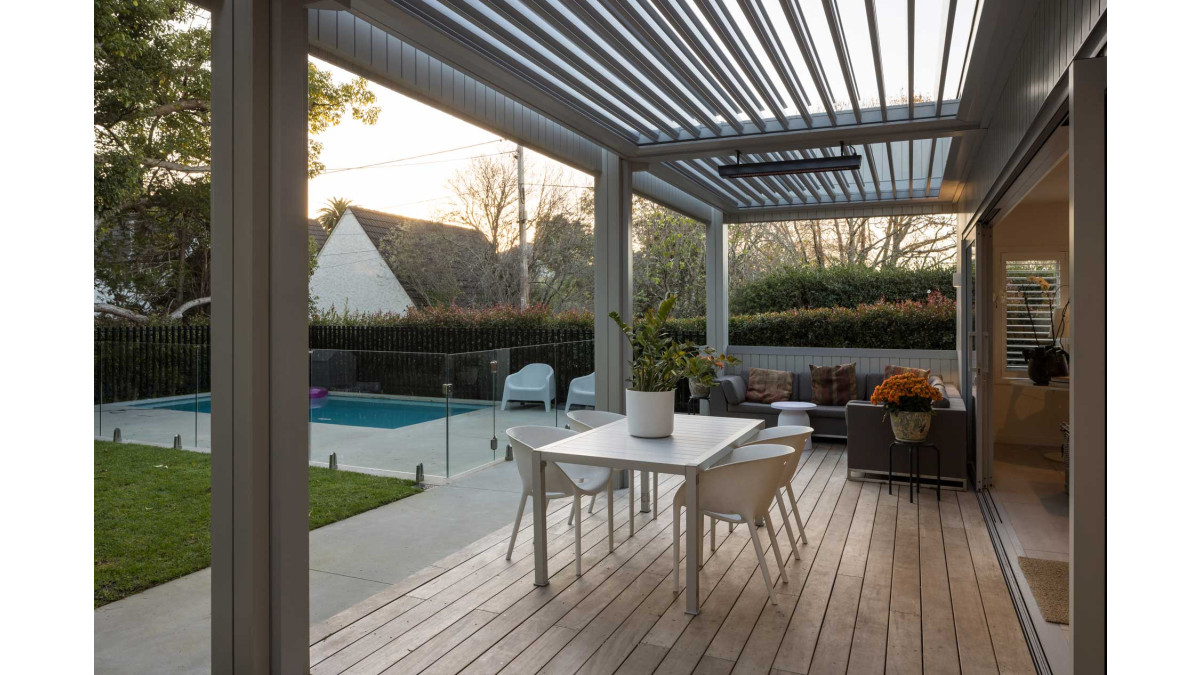

058A9546 10 resized

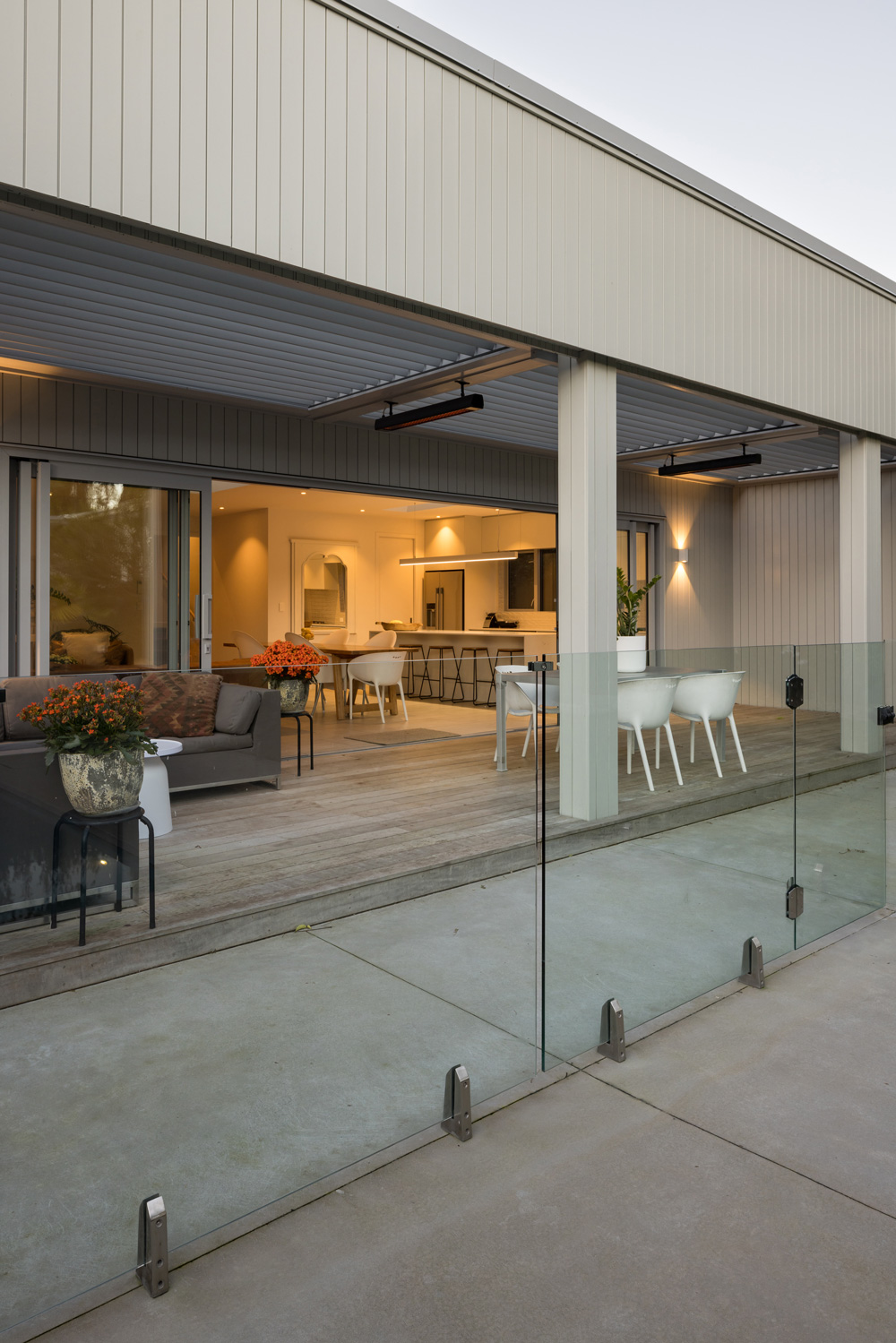

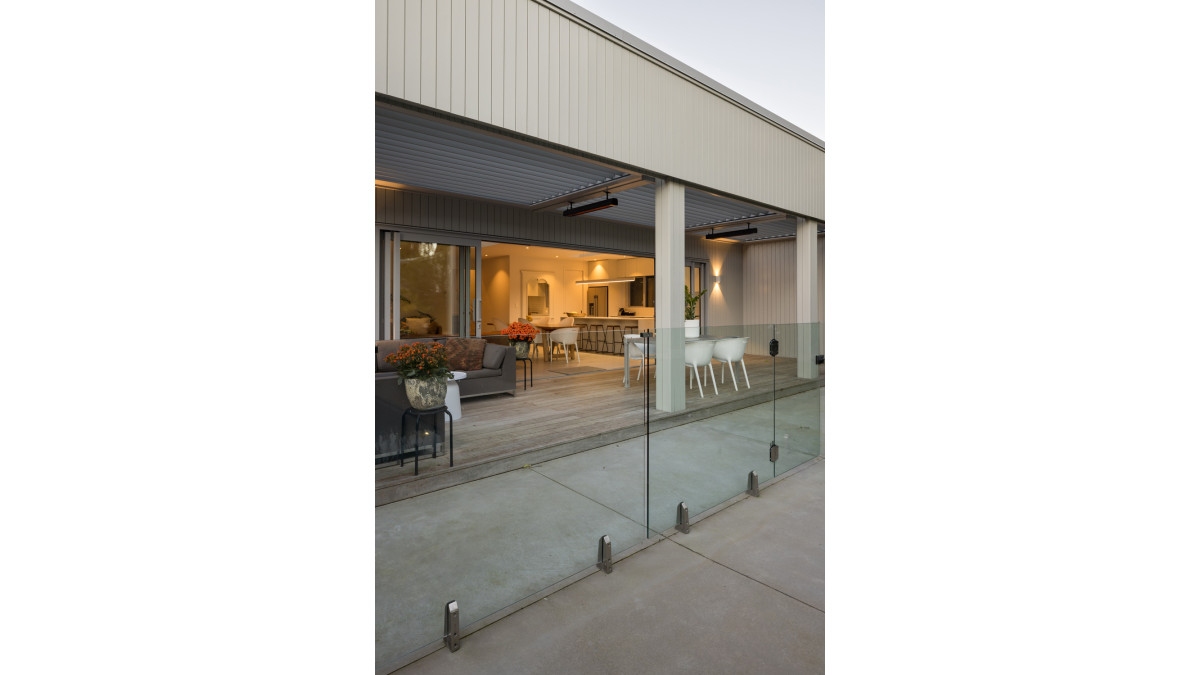

058A9574 21 resized

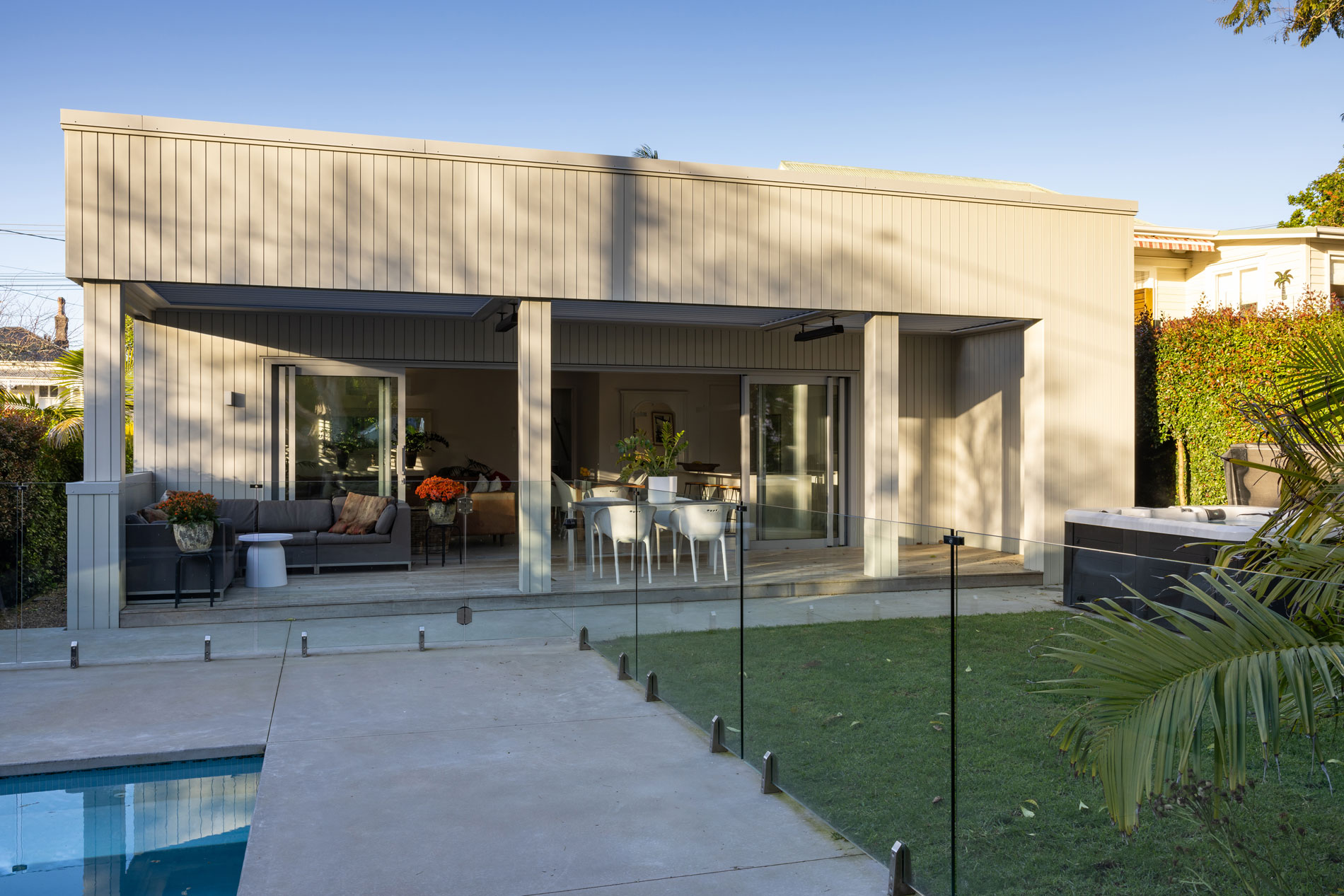

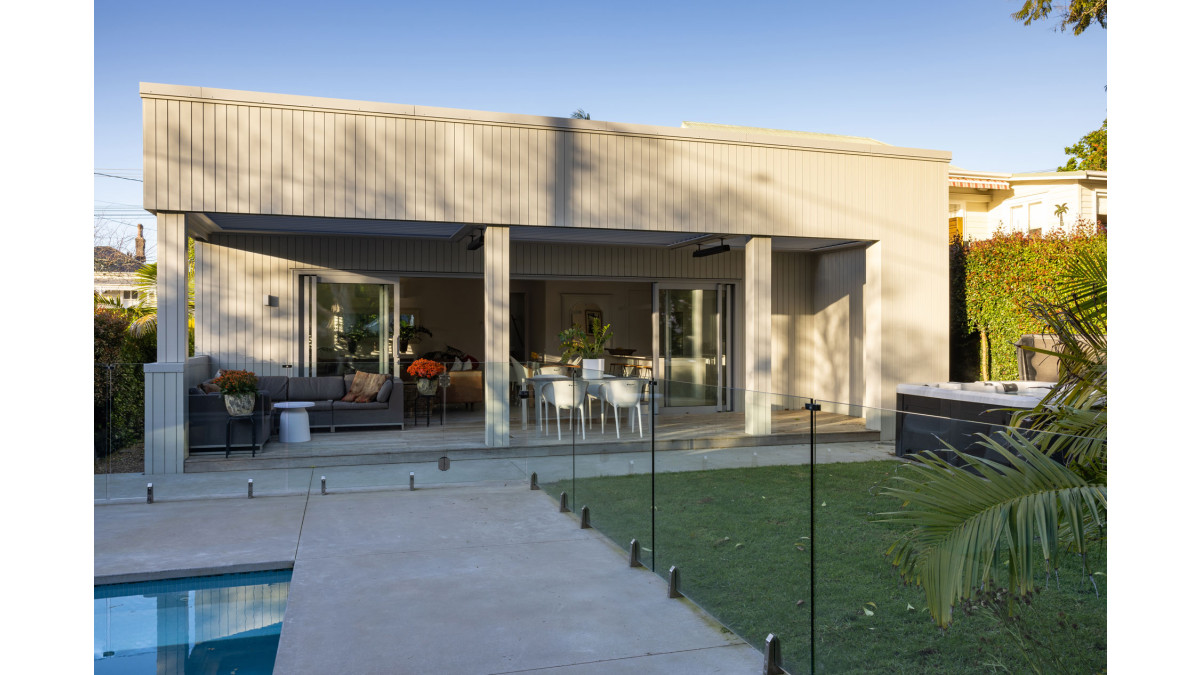

0C6A9535 27 resized
Description

ACMF OPERABLE pergolas and louvres provide environments with controlled ventilation as well as providing protection against rain when closed in both residential and commercial projects. They are operated both with a remote as well as manually.

Key Features
  • All components are of aluminium material.
  • Finish can be powder coat or anodised.
  • Single span to multi-span frame layout.
  • Main frame may vary to engineer's specification.
  • Frame can be supported by columns or side fixed to structure.
  • Maximum frame span across louvre is 6.5m.
  • Louvre profile is set to 170mm ctrs from pivot point.
  • Proprietary gutter system is fixed around frame
  • Motor system kit is provided by LINAK or equivalent, may vary to engineer's specification.
Categories
Louvred and Pneumatic Roofing
Scope of Use
  • For use inside or outdoor.
  • Nominated louvre spans range from 3700 inside to 2650 in super high wind zones (wind speed 55m/s).
Limitations on Use
  • Any use outside ACMF's nominated louvre spans, high windspeeds over 55m/s.
In-Service History

Successfully used in both residential and commercial use.

Other Performance Attributes
  • All louvres systems can be powdercoated to any colour.
  • News
Documents
Data Sheet
pdf

ACMF are exterior experts, looking after the whole building envelope — cladding, flashings, louvres and screens, balustrades, roofing and fire-rated aluminium joinery.

Product Enquiries

News from ACMF

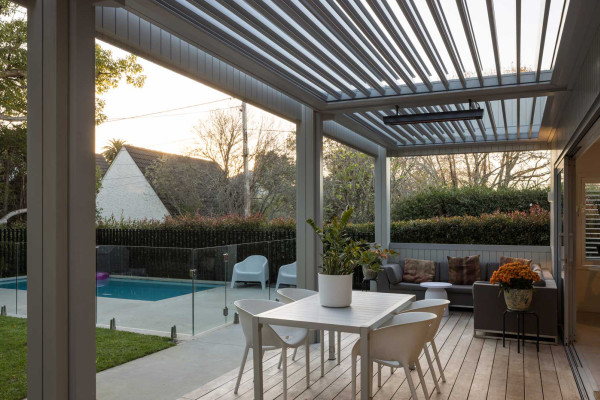

Flexible Outdoor Living in Devonport with Bespoke Louvres NEW
