ACMF Quadro Louvres
ACMF
All products

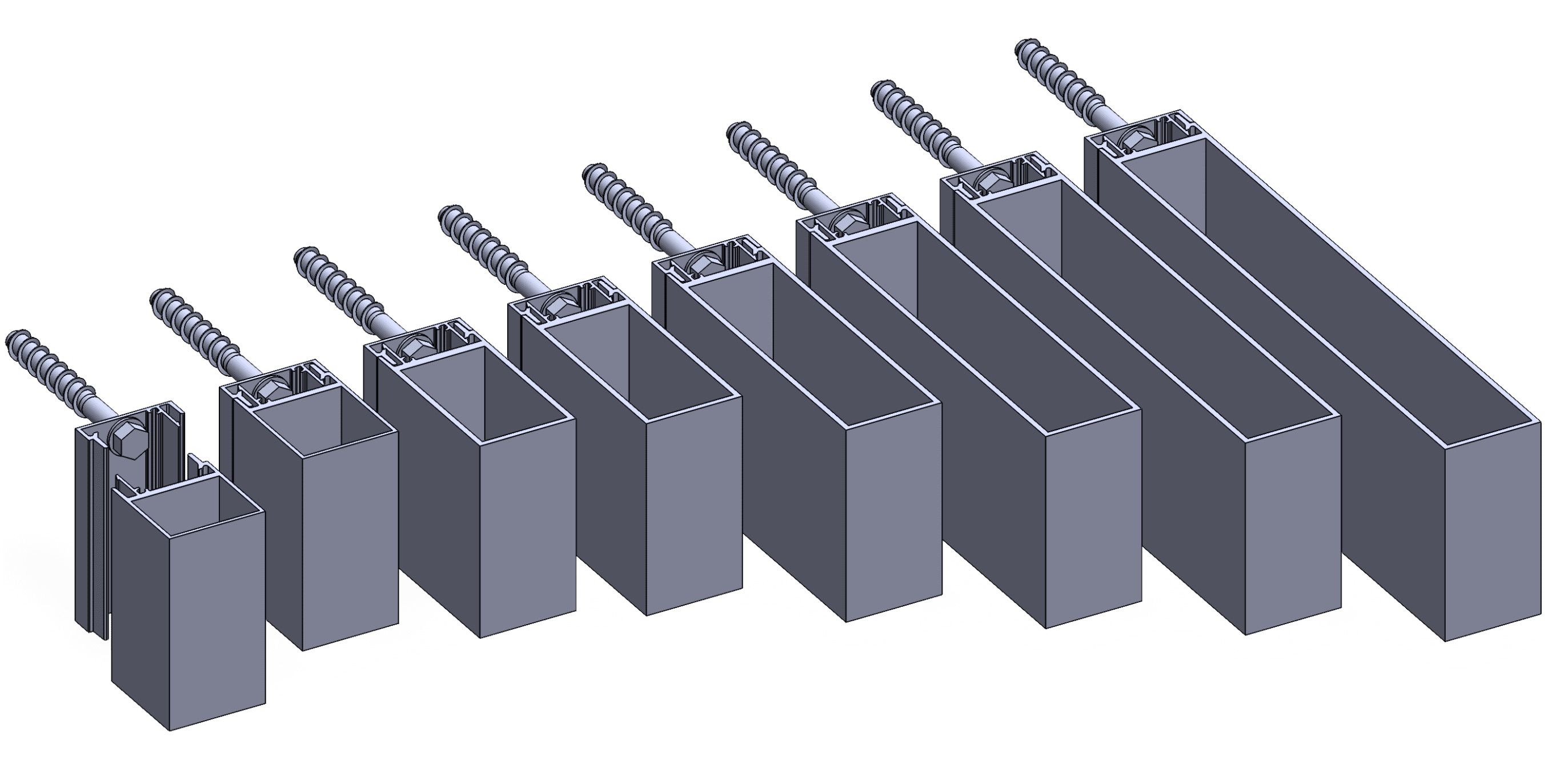

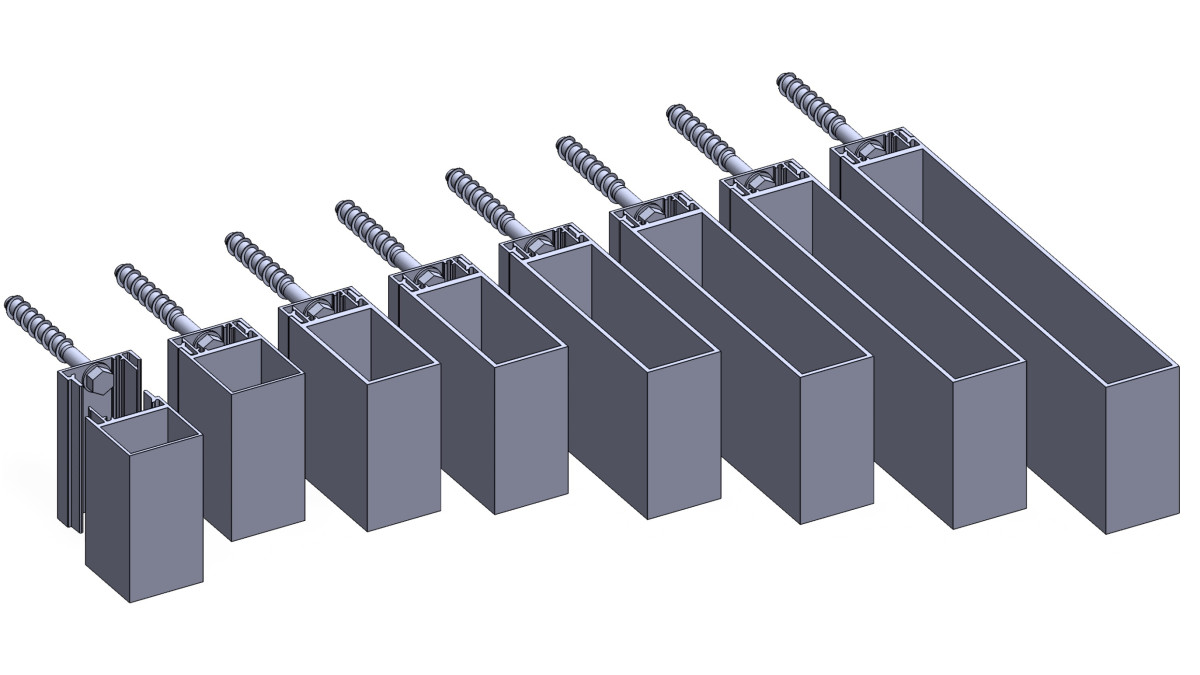

Louvre fins quadro and box concealed fixing box range v2 2

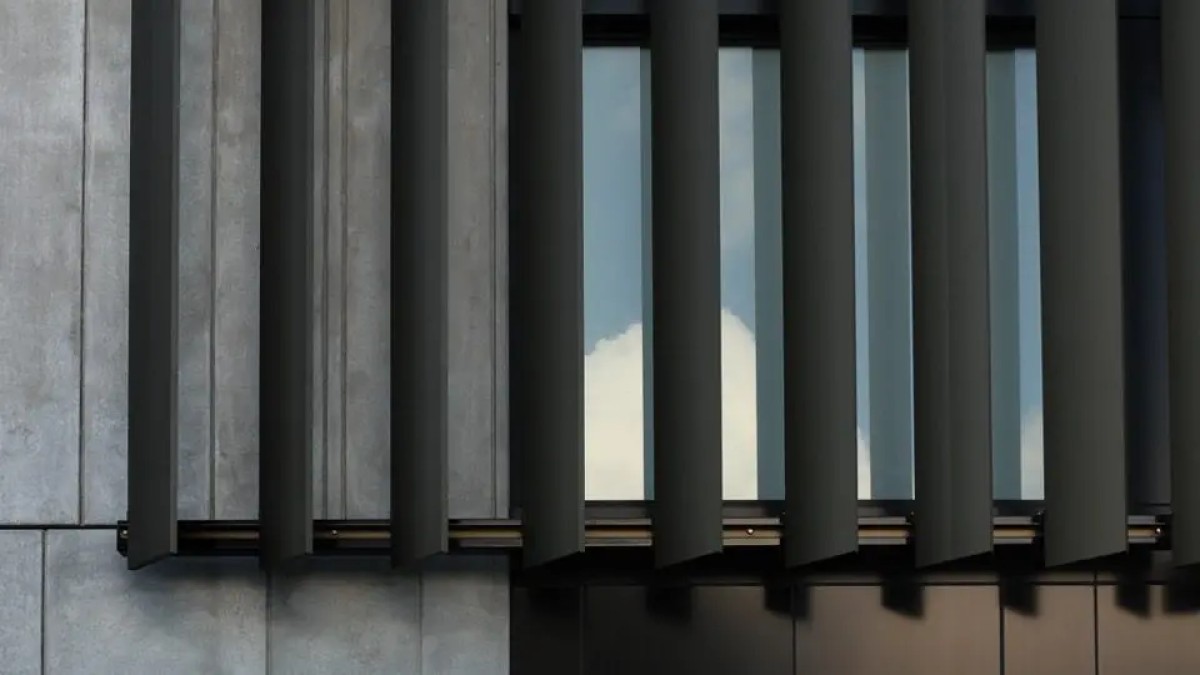

Louvre fins quadro and box v2
Description

The ACMF Quadro louvre system is a range of chamfered and square box louvre blades that offers excellent span capabilities due to its unique geometry. This option is popular on modern homes and commercial projects providing rain, privacy and weather control.

Compatible with a range of louvre systems including motorised panels, end fixed, rear fixed, or bracket fixed. Available in a range of widths starting from 40mm battens right through to 800 blades.

Key Features
  • Compatible with a range of louvre systems including motorised panels, end fixed, rear fixed, or bracket fixed
  • Available in a range of widths starting from 40mm battens right through to 800mm blades
Categories
Louvres, Shutters, Screens, and Grilles
Scope of Use

This option is popular on modern homes and commercial projects providing rain, privacy & weather control.

Refer to ACMF website for updated documentation.

Limitations on Use

Compatible with a range of louvre systems including motorised panels, end fixed, rear fixed, or bracket fixed. Available in a range of widths starting from 40mm battens right through to 800mm blades.

Statement of Building Code Compliance

ACMF Aero Louvres comply with the following performance clauses of the NZ Building Code:

  • B1: Structure
  • B2: Durability
In-Service History
  • Since 2018
Other Performance Attributes
  • ACMF product guarantee: 15 Years on material and finish and 5 years on Workmanship
  • Case Studies
Documents
Quadro Louvres Span Data
pdf
Span Tables: All Louvres
pdf
ACMF Brochure
URL
Website: ACMF Quadro Louvre
URL

ACMF are exterior experts, looking after the whole building envelope — cladding, flashings, louvres and screens, balustrades, roofing and fire-rated aluminium joinery.
