CS77-FP Aluminium Fire Rated Joinery
ACMF
All products

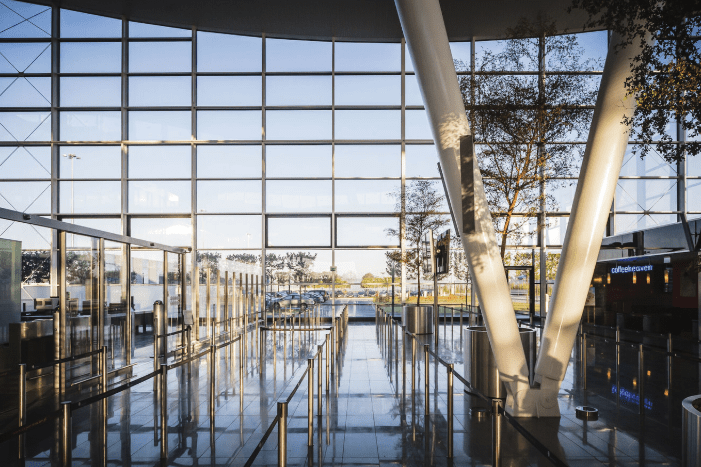

FR Joinery 3
FR Joinery 1

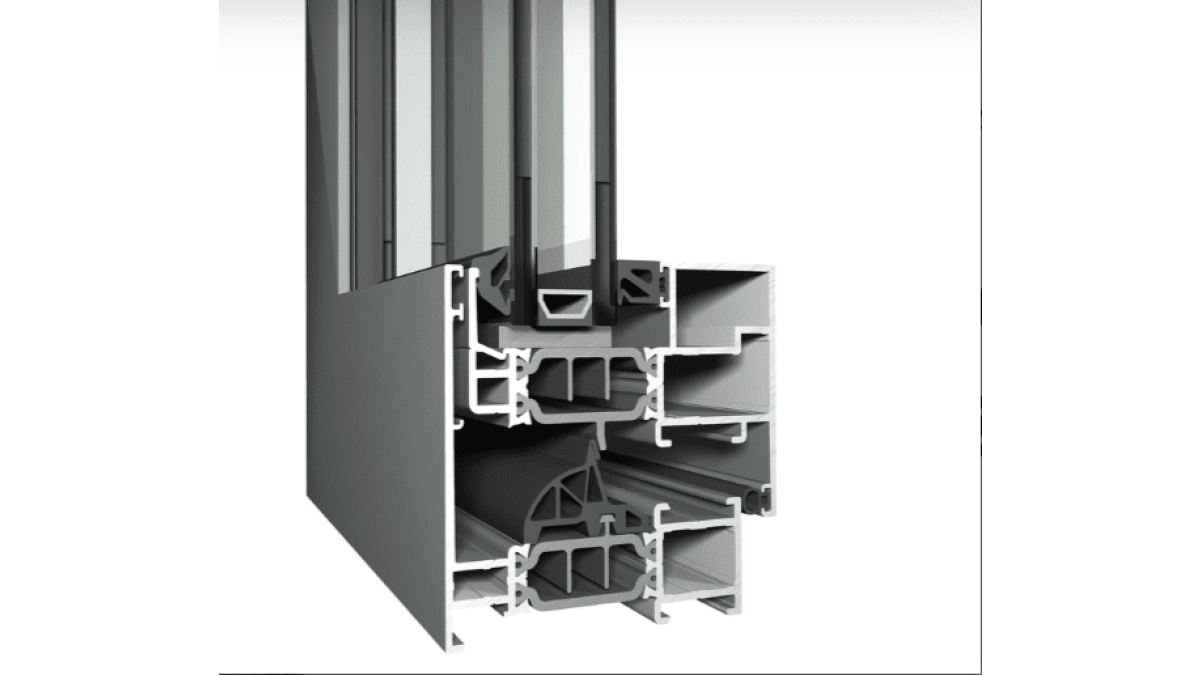

FR Joinery 9

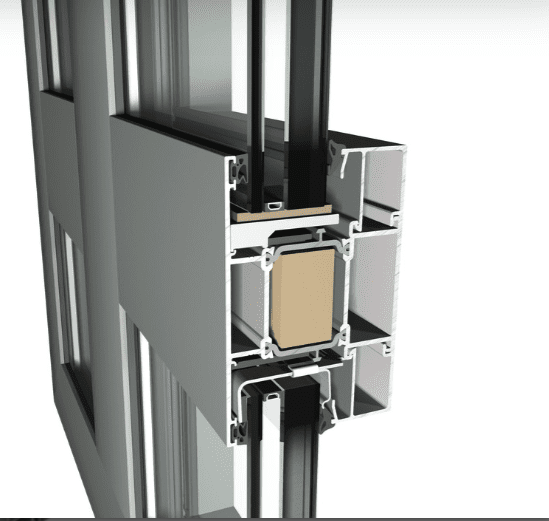

FR Joinery 2

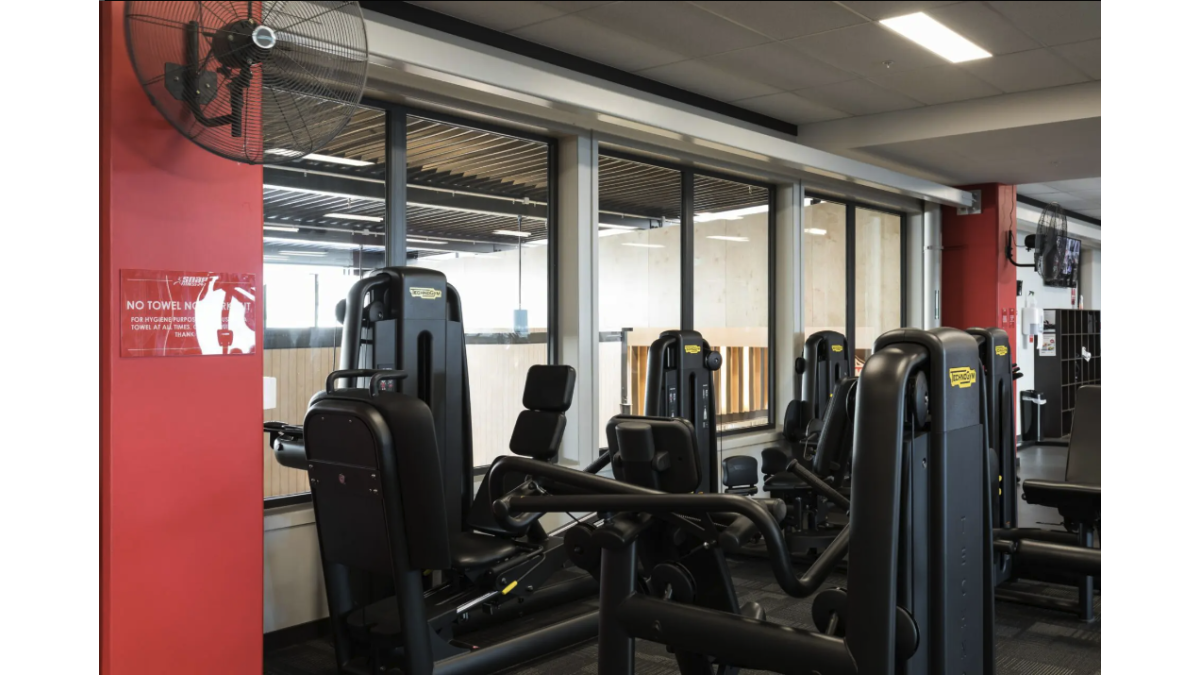

FR Joinery 5

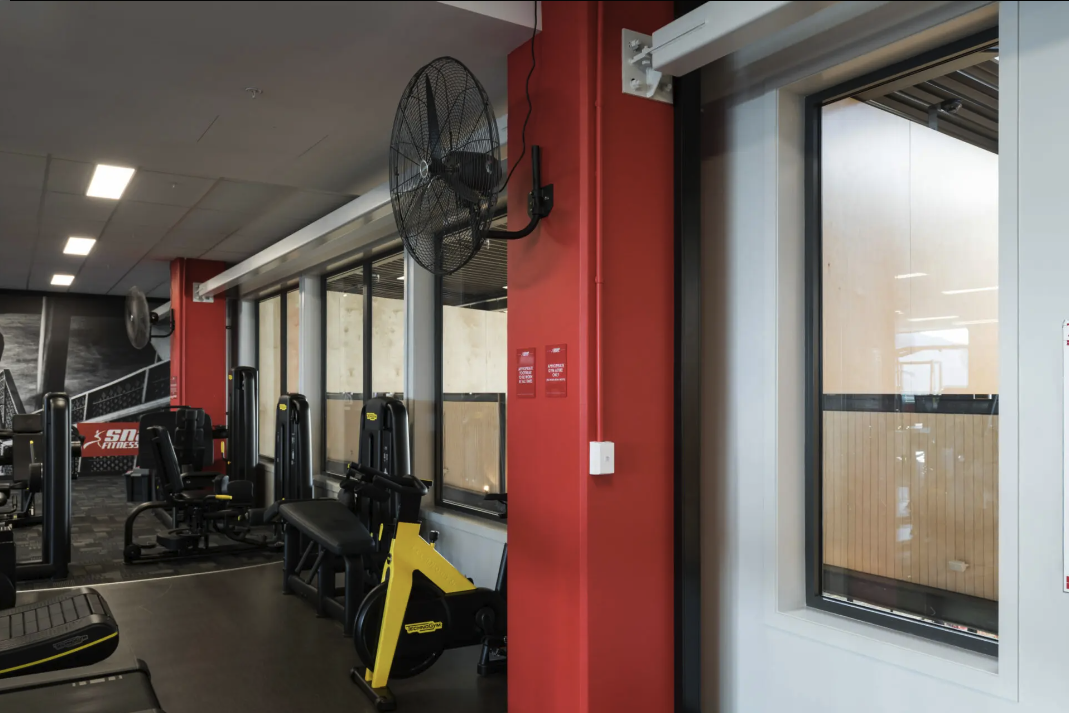

FR Joinery 4

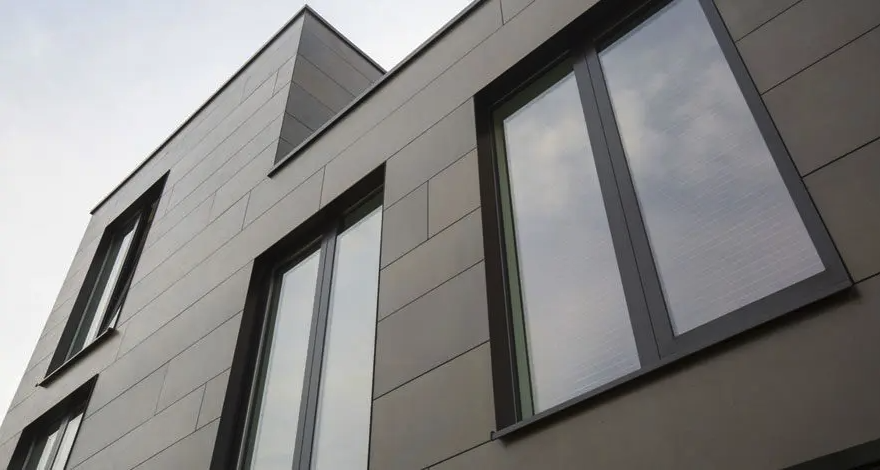

FR Joinery 6

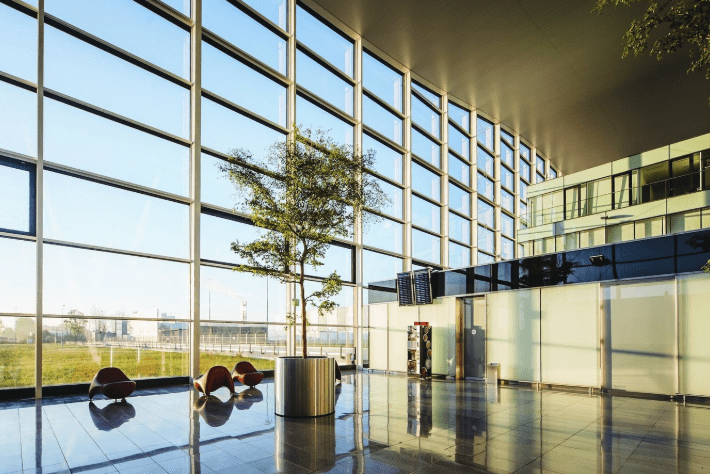

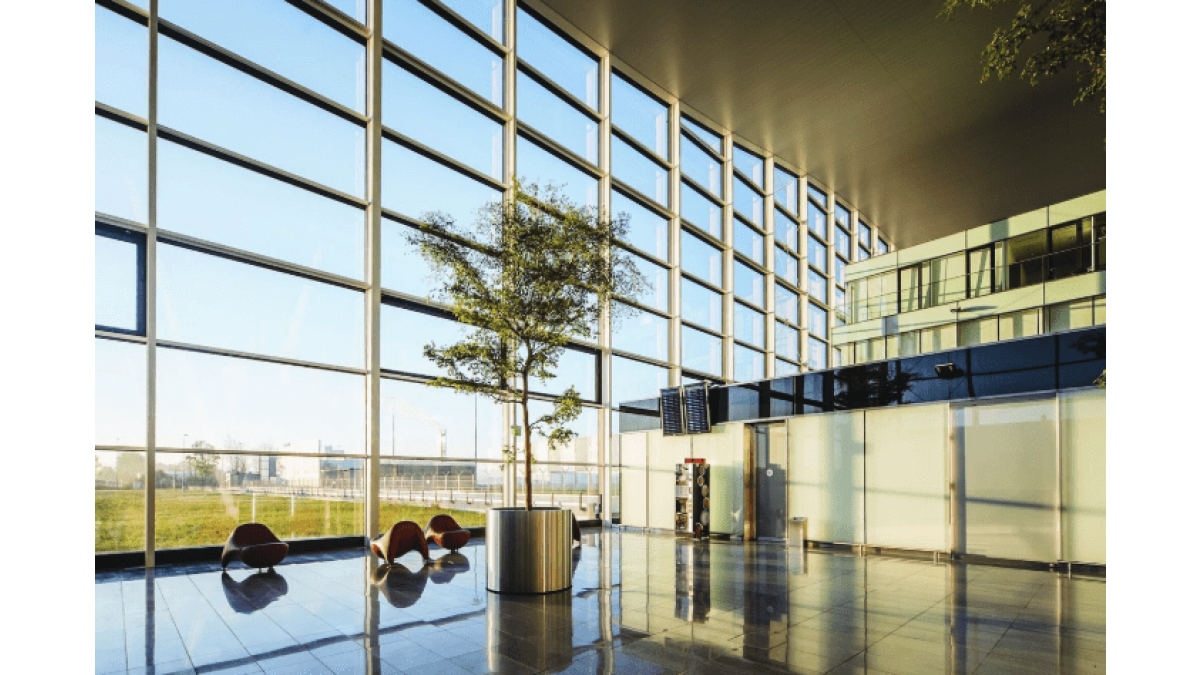

FR Joinery 7
FR Joinery 8

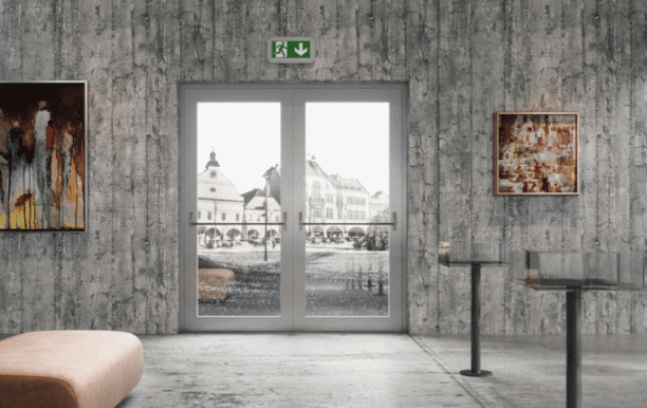

FR Joinery 10

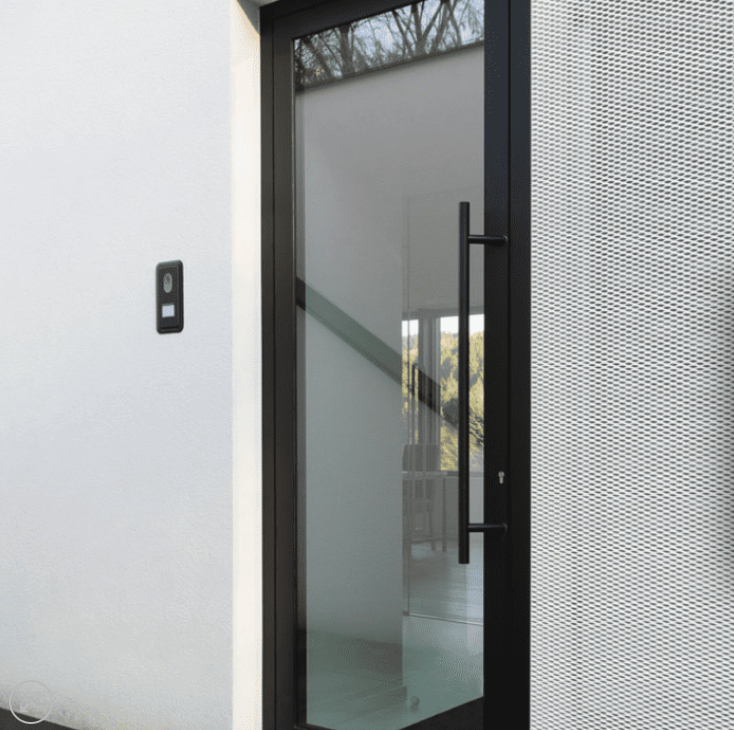

FR Joinery 11

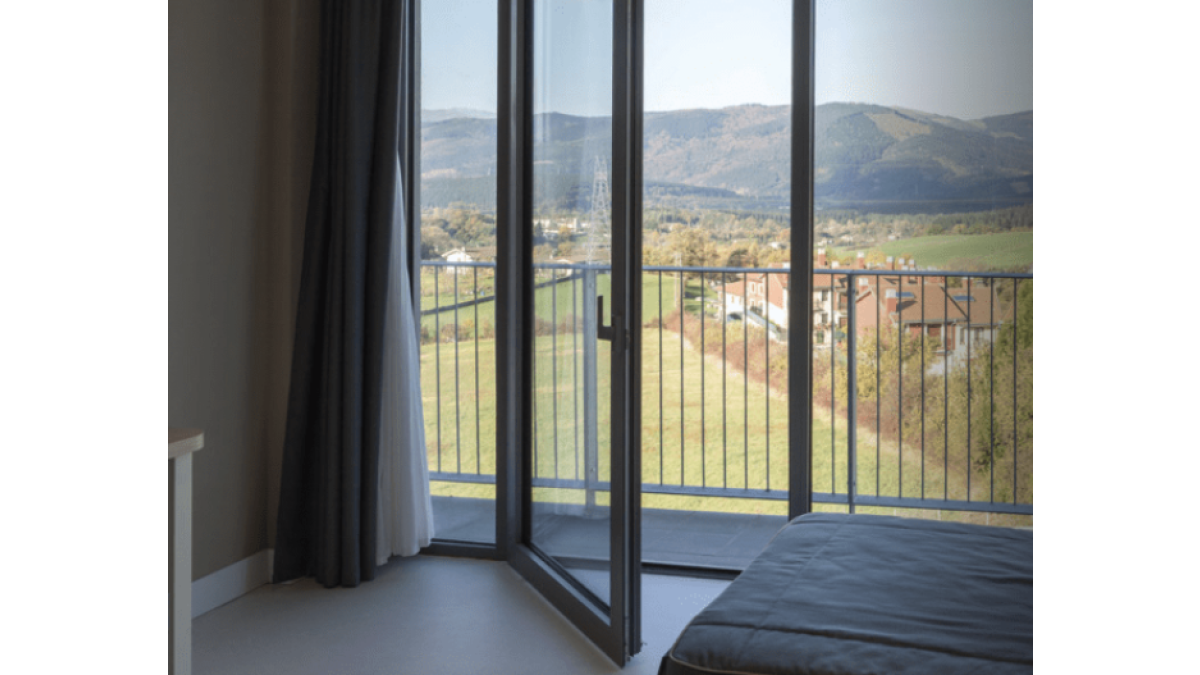

FR Joinery 12

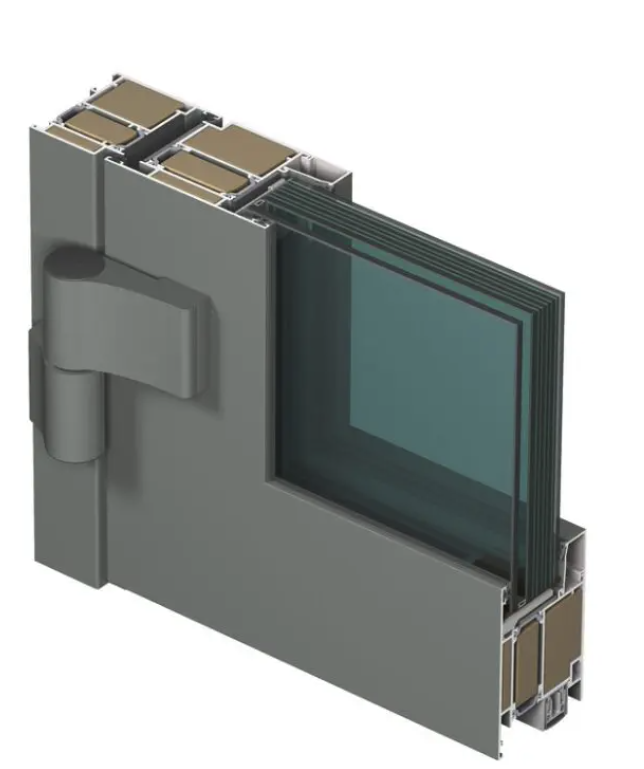

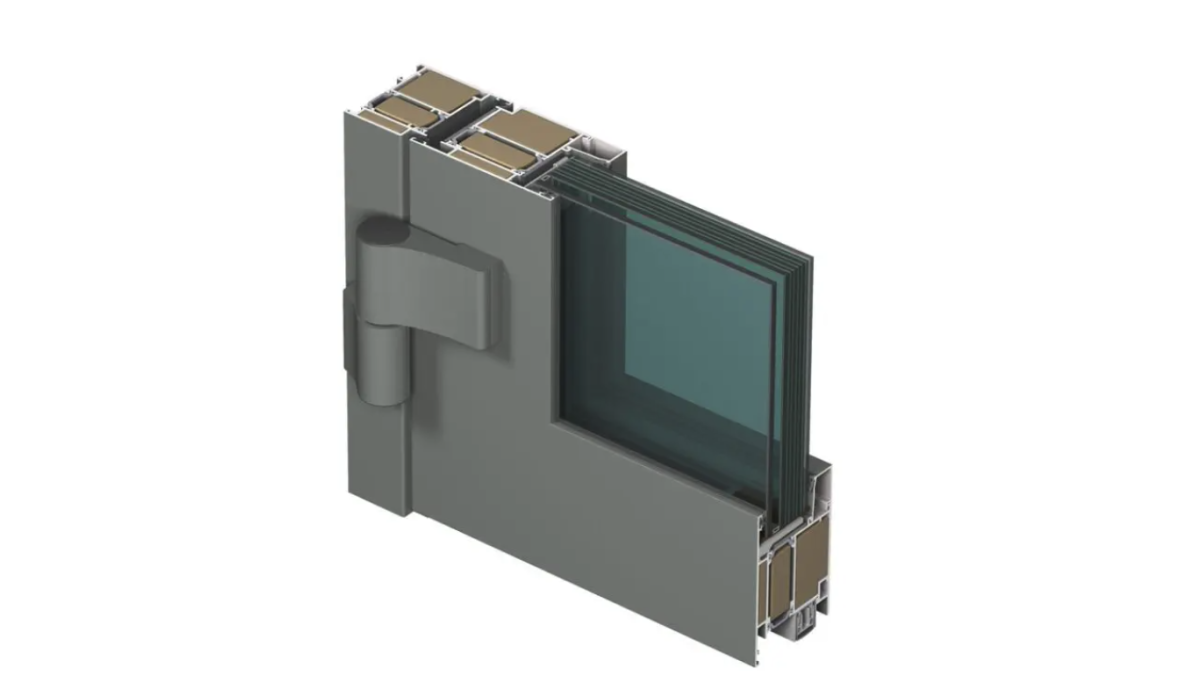

FR Joinery 13
FR Joinery 14
Description

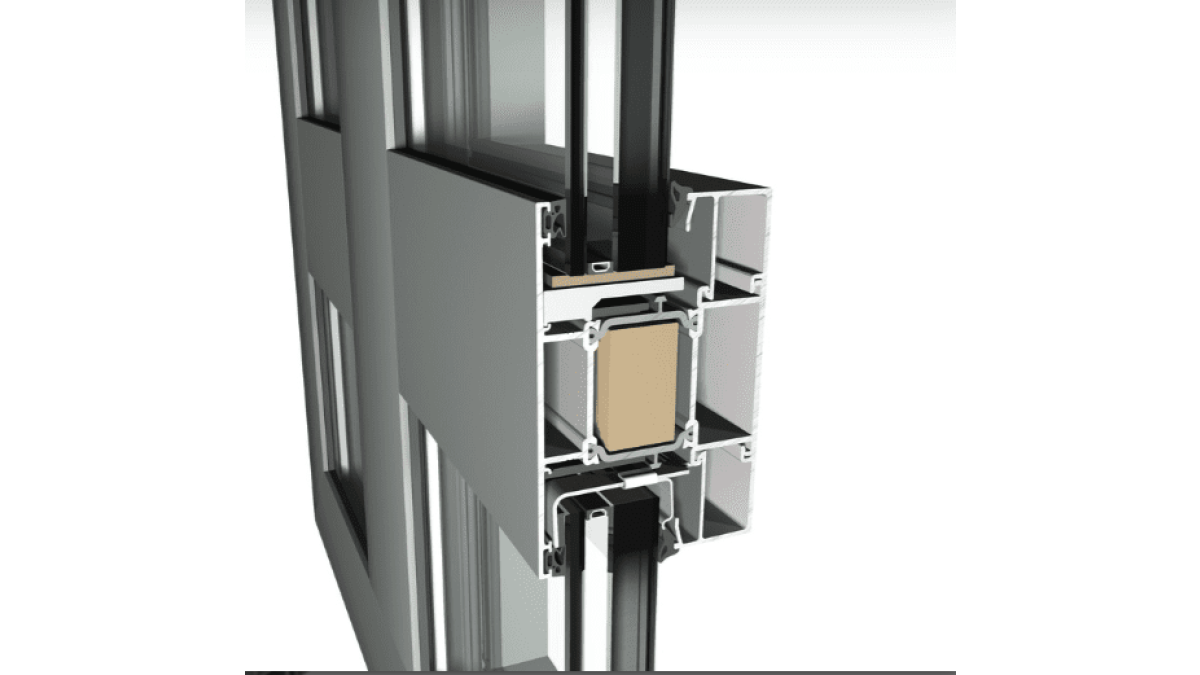

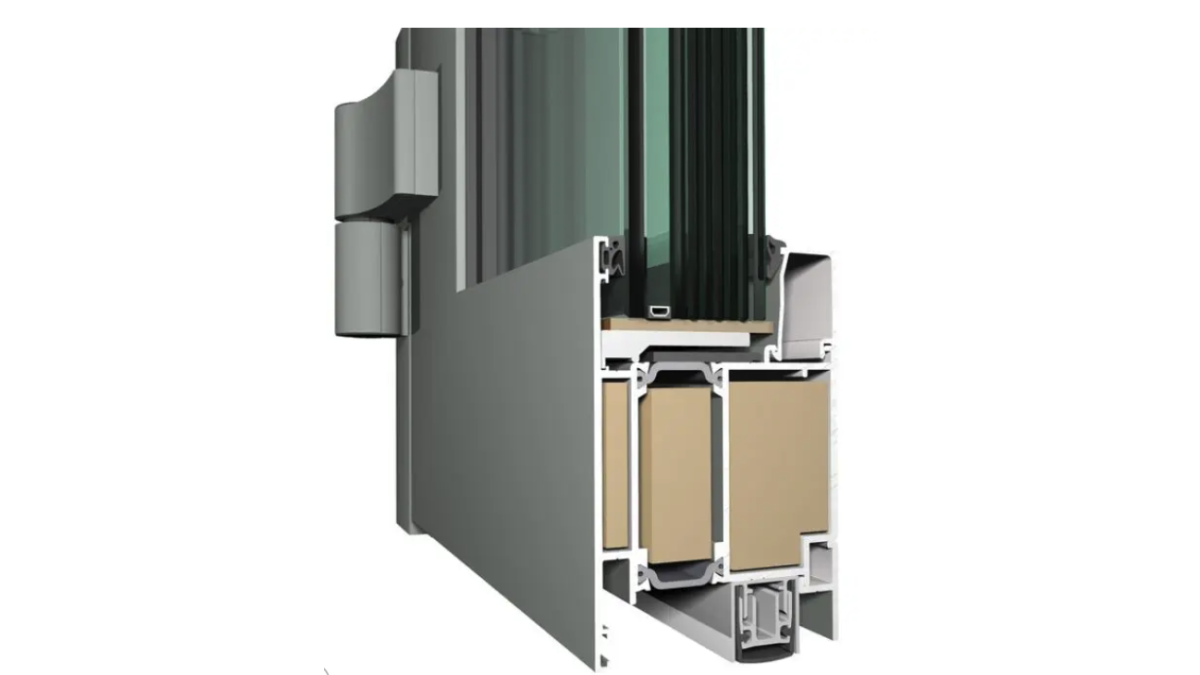

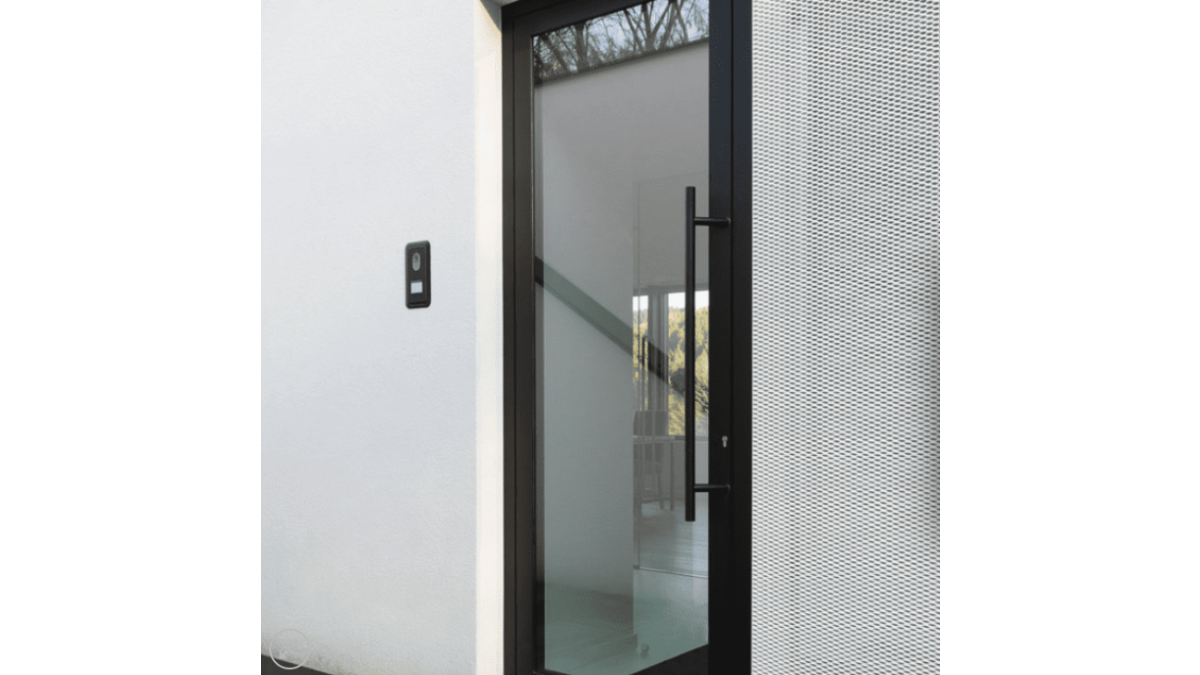

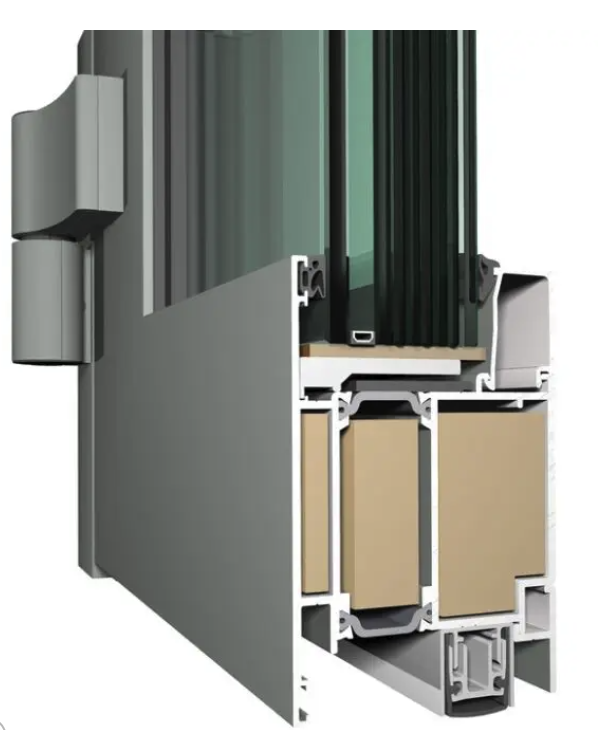

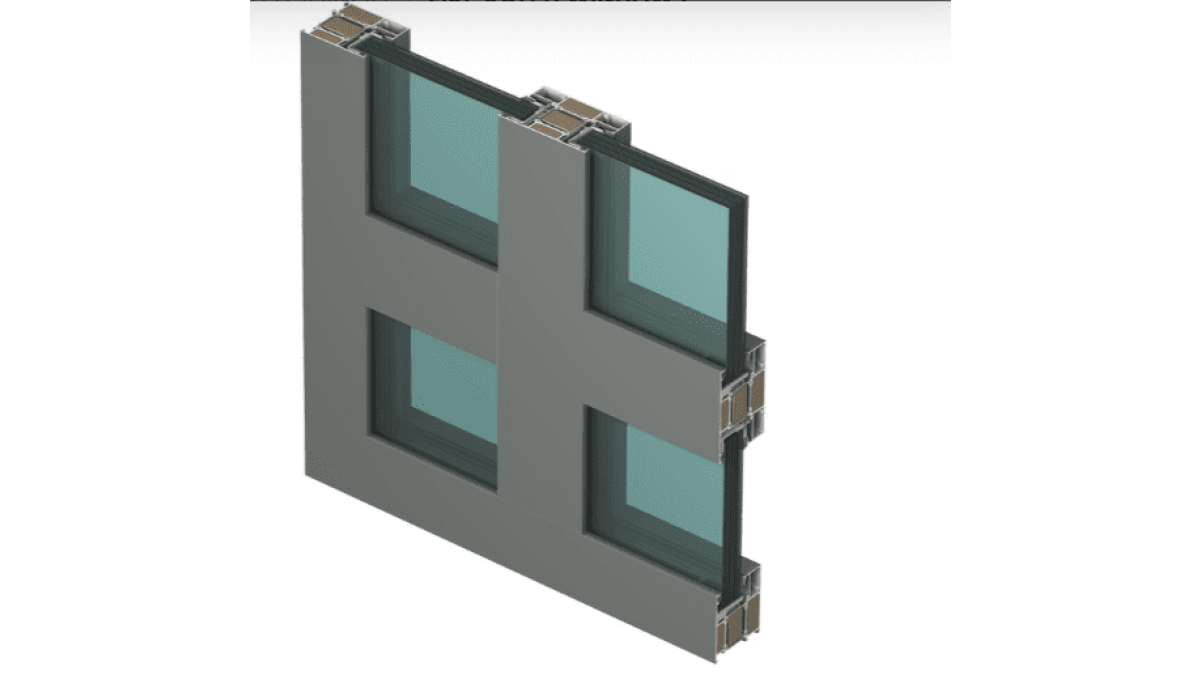

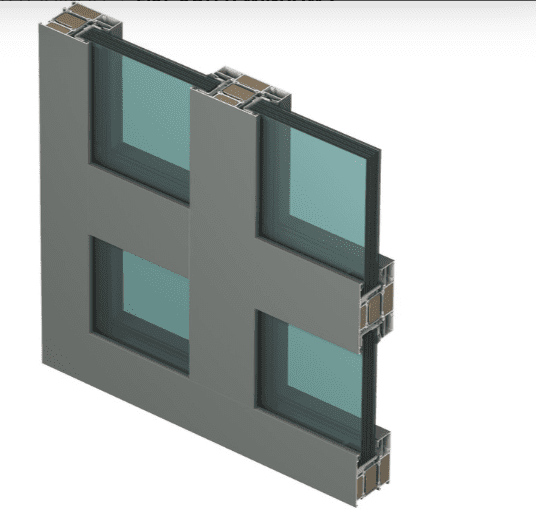

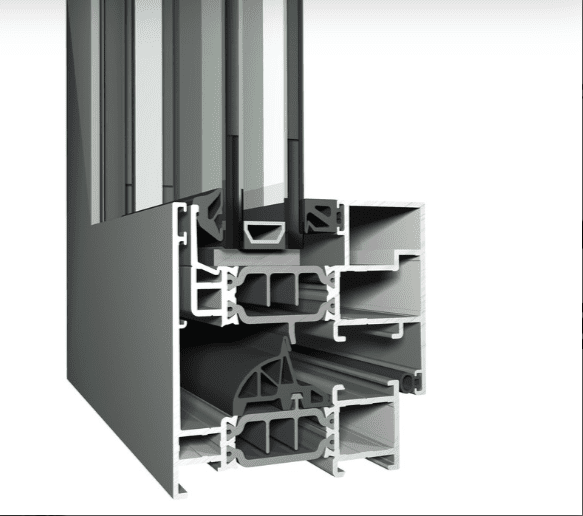

ConceptSystem® 77-Fire Proof (77-FP) is a high-quality window, flush door and partitioning system that combines elevated requirements regarding thermal insulation, stability, safety and fire resistance. This fireproof variant is developed as an extension to the standard ConceptSystem 77, providing an extensive range of solutions and performances. This includes the availability of burglar resistance, access control, panic and emergency exit functionalities and smoke tightness.

The Reynaers Concept System® 77-FP EI30 and EI60 were both developed based on the existing CS 77 profiles and accessories for windows and doors and was tested in an optimised European test and approval program.

Key Features
  • The CS-77 FP is one of the highest performing window joinery systems available
  • SLS wind load resistance of up to 1600Pa
  • Water tightness of 600Pa
  • Acoustic performance of 34 to 51dB(A) depending on the glass
  • Class 4 in air permeability (highest class)
  • Optional bulletproof or burglar/security features
Categories
Window & Door Ancillaries Fire-Rated Interior Doors, Windows and Partitions
Scope of Use
  • -/30/30 and -/60/60 fire rating
  • Optional bulletproof or burglar/security features
Limitations on Use
  • CS77-FP can only be installed by Reynaers approved fabricators (ACMF is approved) that are specifically certified under the FIRAS accreditation scheme for this product
  • Fixed window partitions
  • SLS wind load resistance of up to 1800Pa
  • Water tightness of 600Pa
Statement of Building Code Compliance
  • BRANZ technical opinion: FC10138-01-C1 Issue 2
  • H1 Energy Efficiency Acceptable Solutions H1/AS1
  • NZS 4232:-Part 2
  • NZS 4520:2010

See acmf.co.nz website for Letter of Compliance.

In-Service History
  • Since 2018
Other Performance Attributes
  • Smoke control to EN 13501-2:2016
  • EN 1364-1:1999
  • AS 2047:1999
  • Acoustic performance of 34 to 51dB(A) depending on the glass
  • Class 4 in air permeability (highest class)
  • SLS wind load resistance of up to 1600Pa
  • Water tightness of 600Pa
Documents
acmf.co.nz: Fire Rated Windows
URL
Reynaers Fire Rated Joinery
URL
