Thermakraft Ausmesh Safety Netting
Kingspan Thermakraft
All products
Ausmesh Safety Mesh

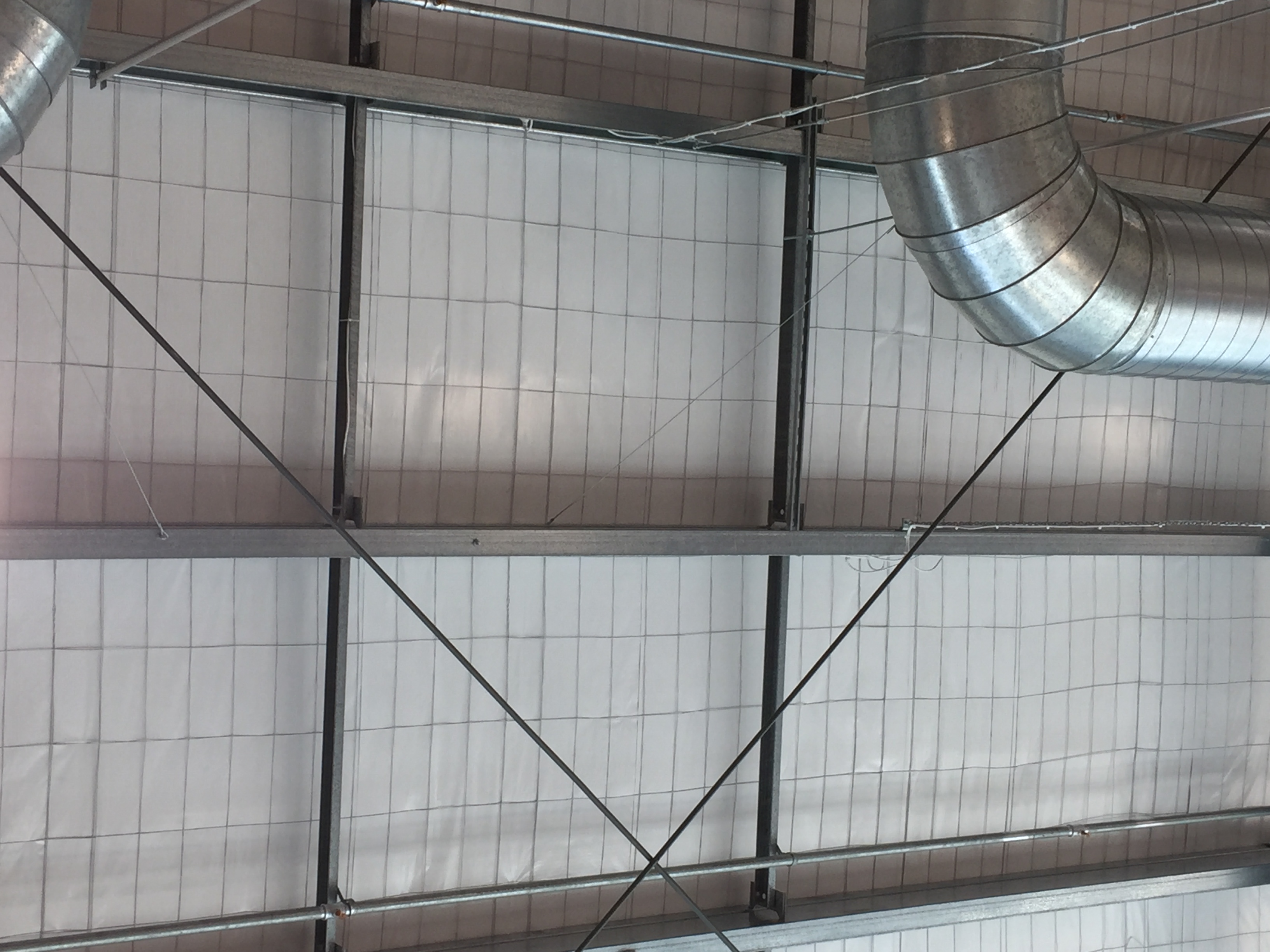

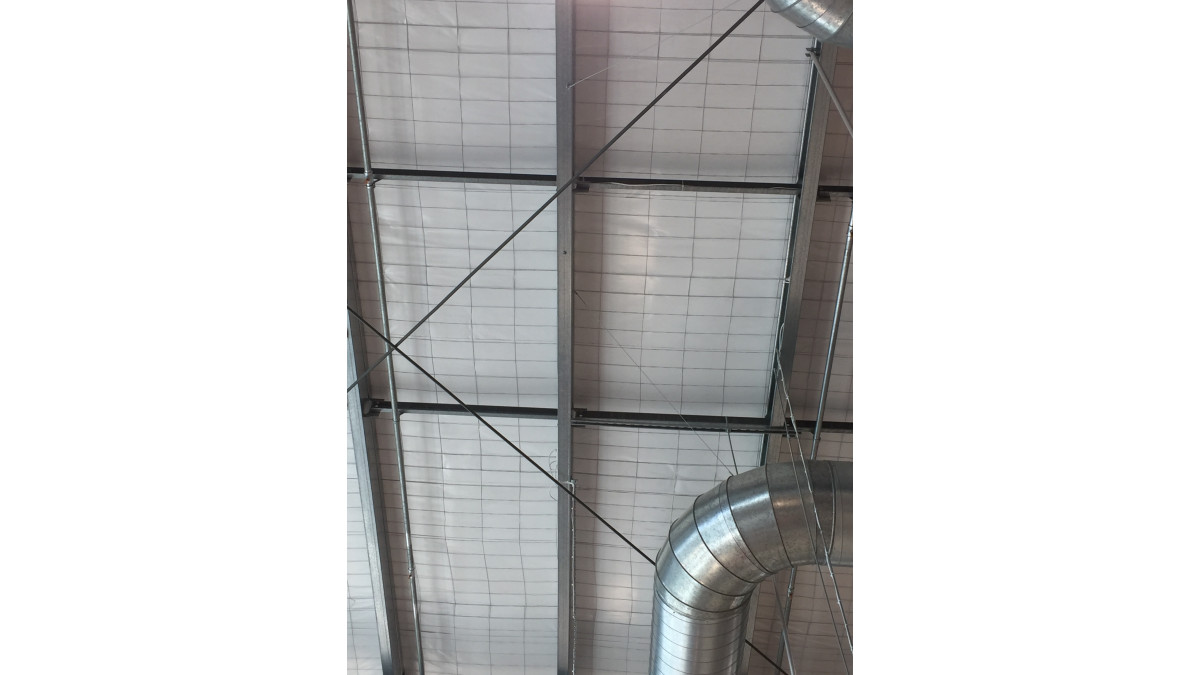

Ausmesh2

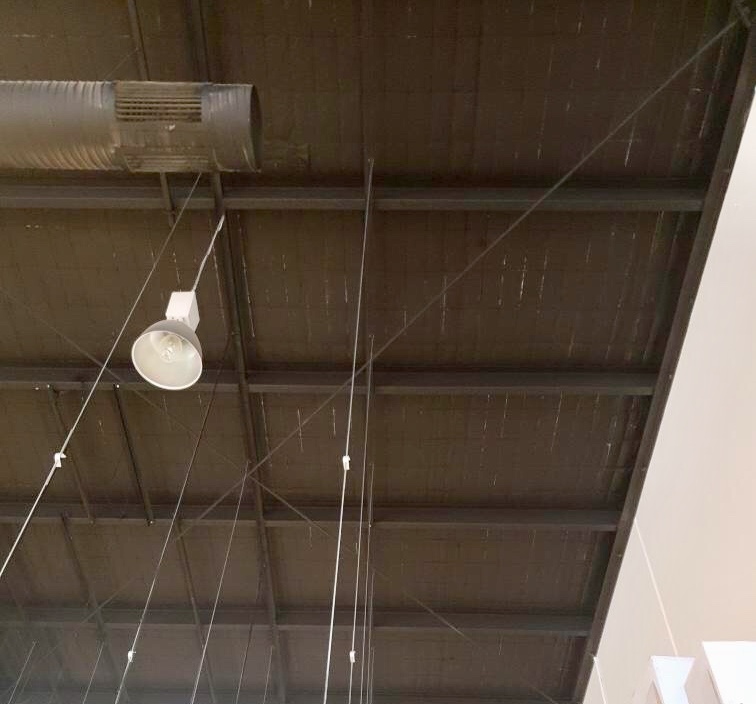

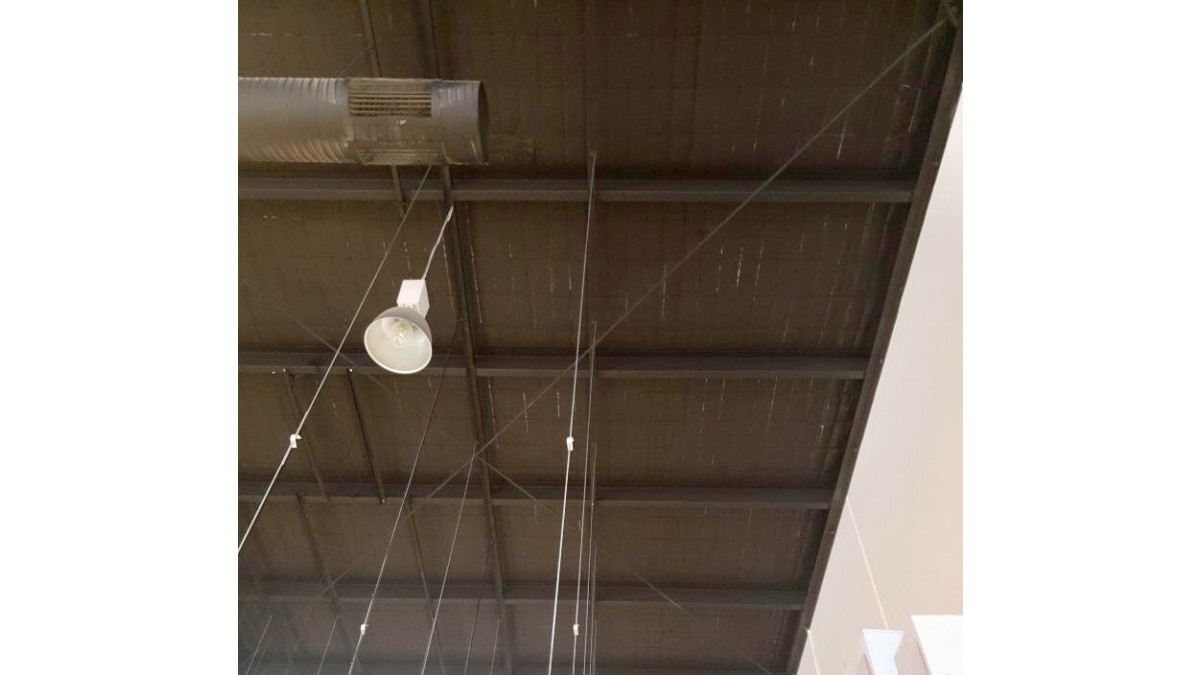

PVC Black

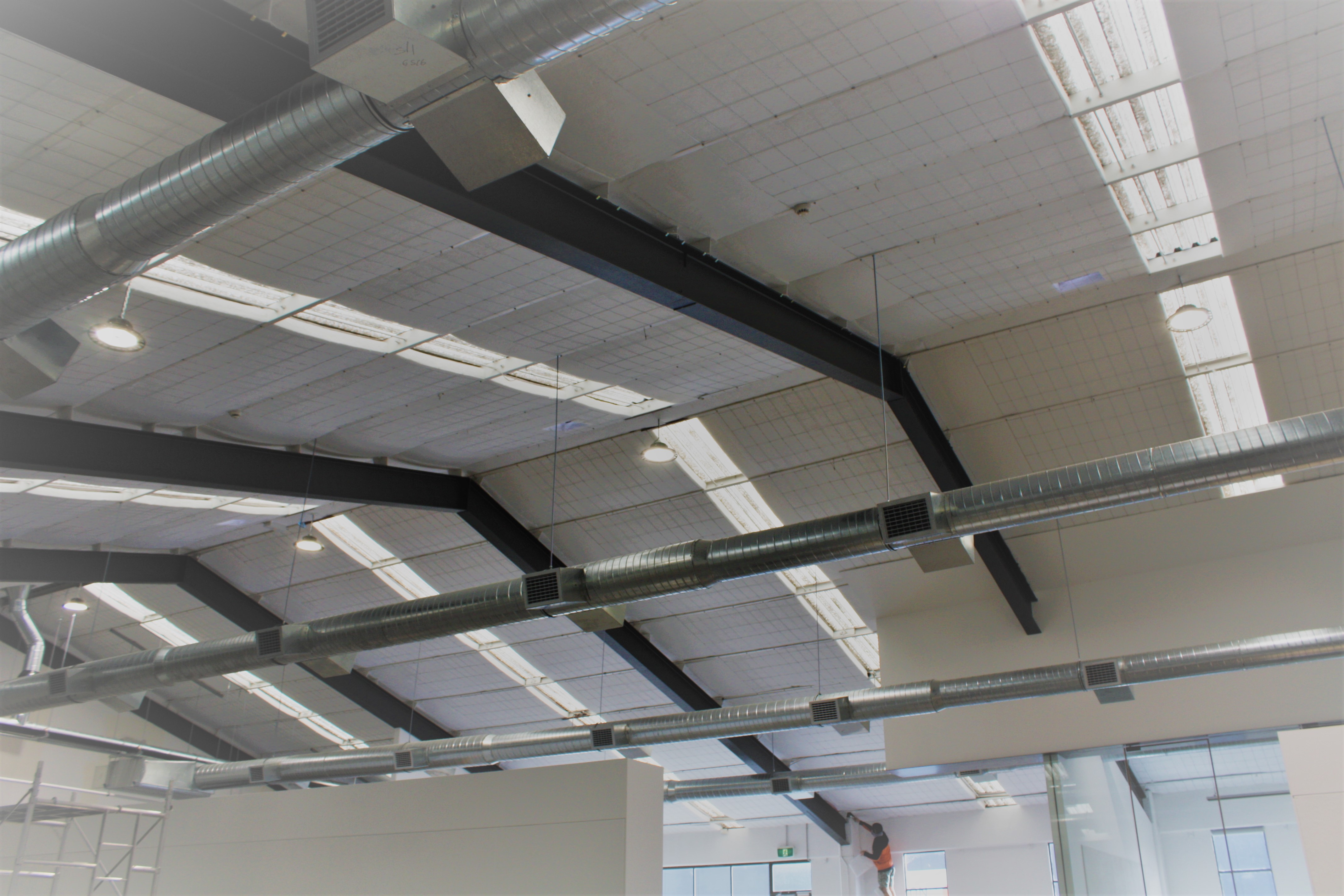

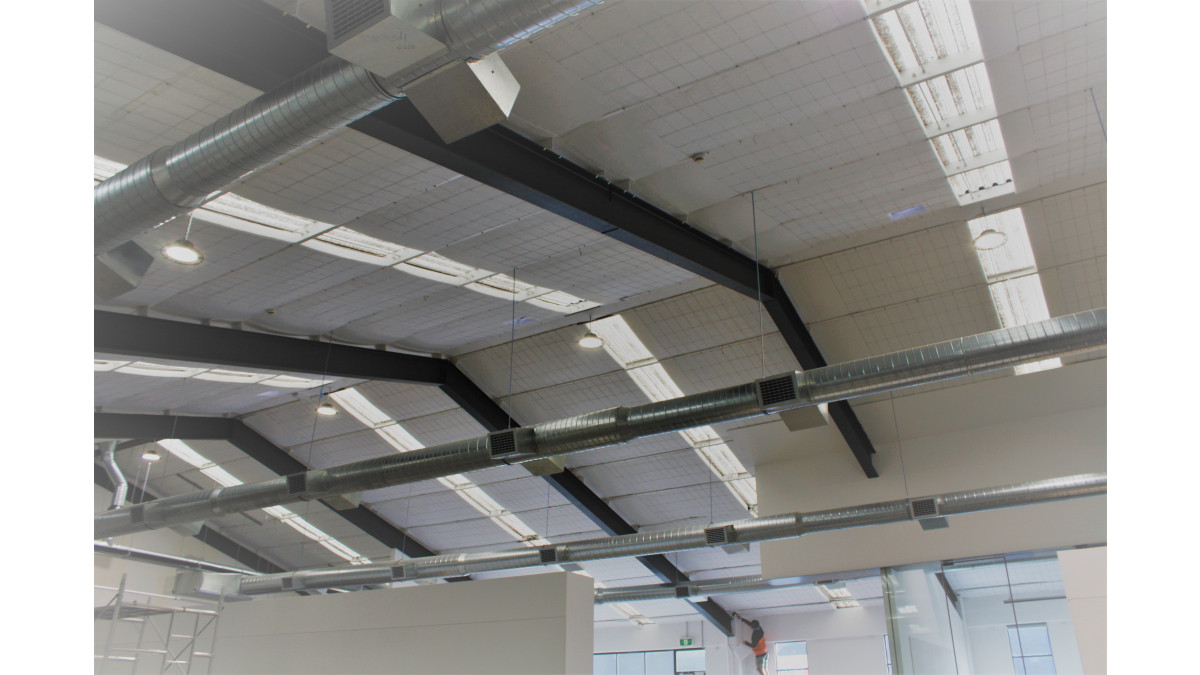

Friction fit Insulation supported with galv ausmesh

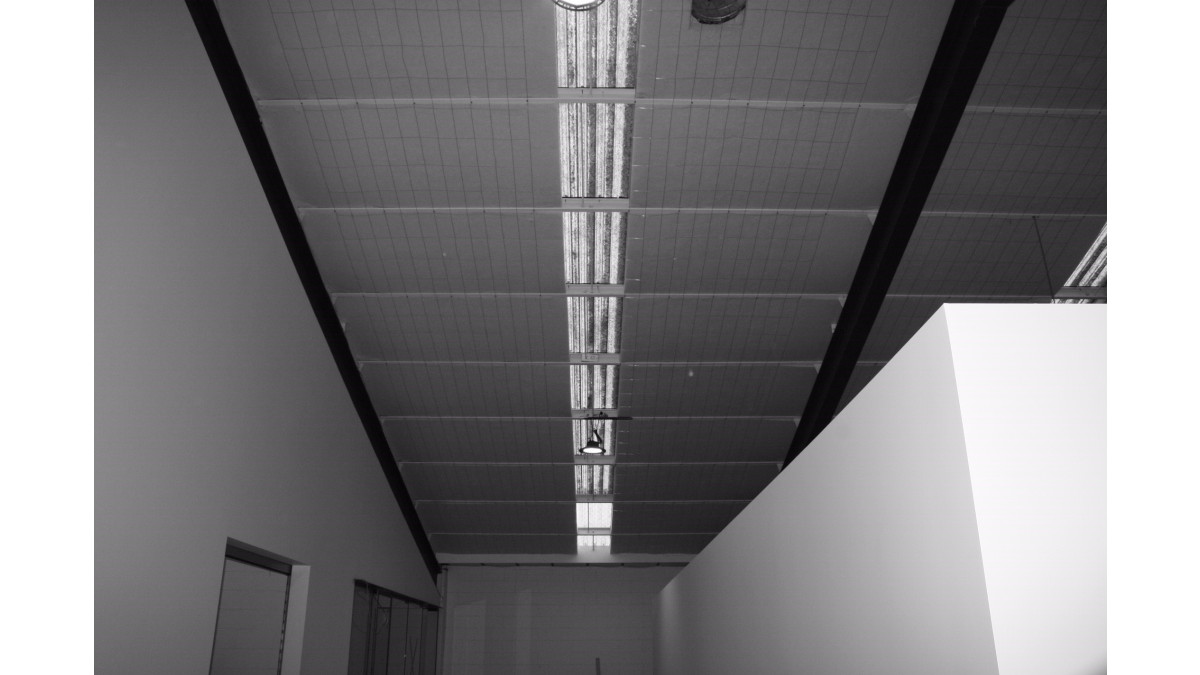

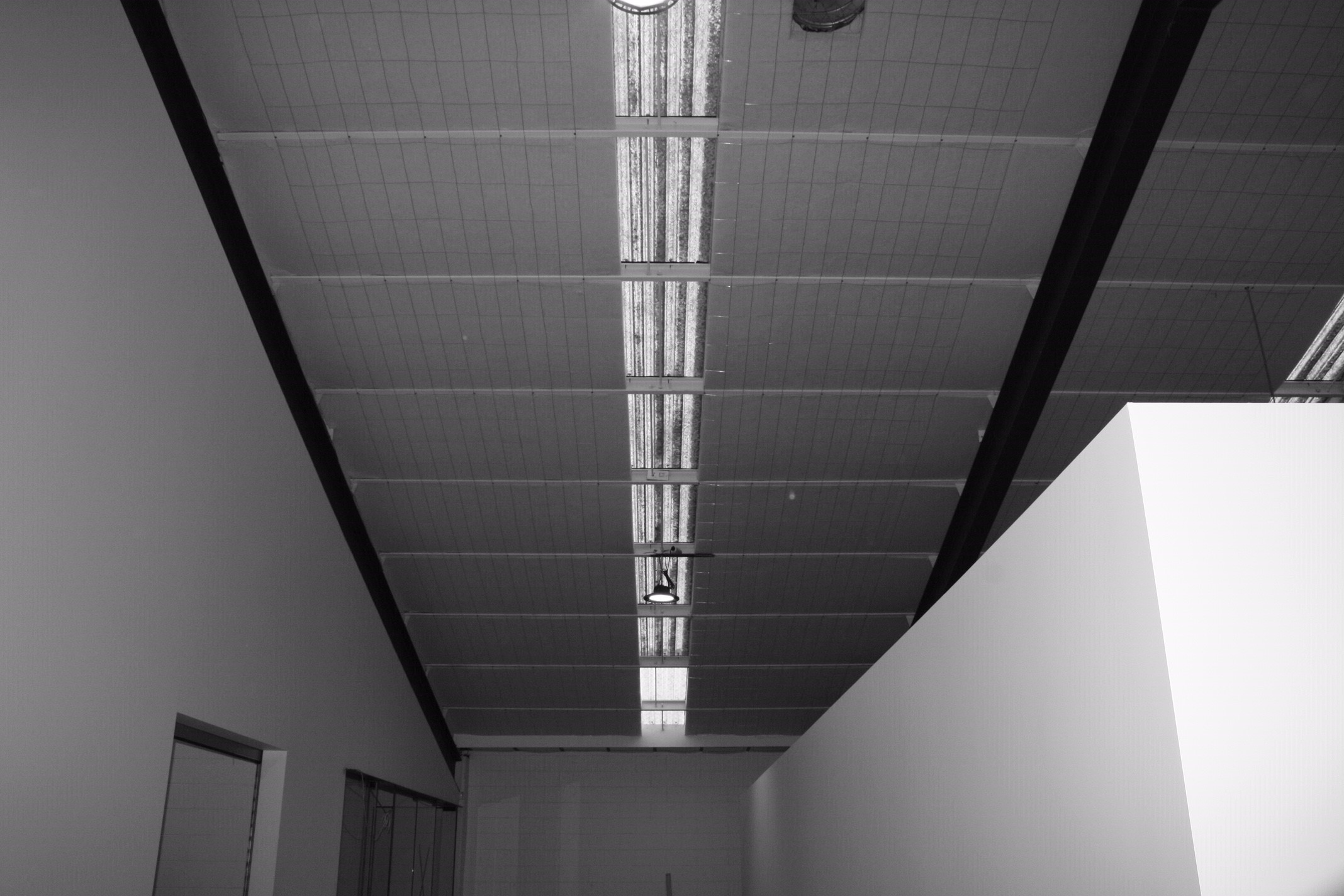

Ausmesh safety mesh Galv
Description

Ausmesh safety netting is a roof underlay support and fall arrest. Complies with AS/NZ 4389:2015 for use in commercial roof applications where falling from high hazards exists.  Also used to support underlays where the spans fall outside recommended distances.

The longitudinal wires are spaces at 150mm centres with crosswires spaced at 300mm centres.

Key Features
  • AS/NZ 4389:2015
  • Becomes a permanent fixture for the life of the building and provides safe working environment throughout initial roof installation and for any further maintenance in the future
  • Suitable for supporting roof underlays as part of the safety requirements
  • suitable for support of insulation and foil underlays (Thermabar 344, Thermabar 346 and Thermabar 397) in exposed roof spaces
  • Adds level of protection for roofing contractors when laying
  • Rolls sizes 1800mm and 2400mm wide
  • Available in Galvanised, PVC coated in White or Black
Categories
Roofing and Decking Ancillaries
Ranges
Thermakraft Roof
Scope of Use
  • Suitable for the support of insulation and foil underlays (Thermabar 344, Thermabar 346 and Thermabar 397) in exposed roof spaces
  • Ideal for supporting roof underlays as part of the safety requirements
Limitations on Use
  • To be used in enclosed buildings
  • Exposed structures such as canopies/awnings will compromise Ausmesh's durability
Statement of Building Code Compliance
  • Complies with AS/NZ 4389:2015
  • Case Studies
Documents
Data Sheet

Issue 4.0, August 2024

URL
Quick Reference Guide

KINZ-QRGPR-WEBv1.0 May 23

URL
Thermakraft on Masterspec
URL
Installation and Operation

Issue 3.0, August 2024

URL
Kingspan Thermakraft Troldtekt Product Warranty Statement

Issue 4.0, Jun 2024

pdf
