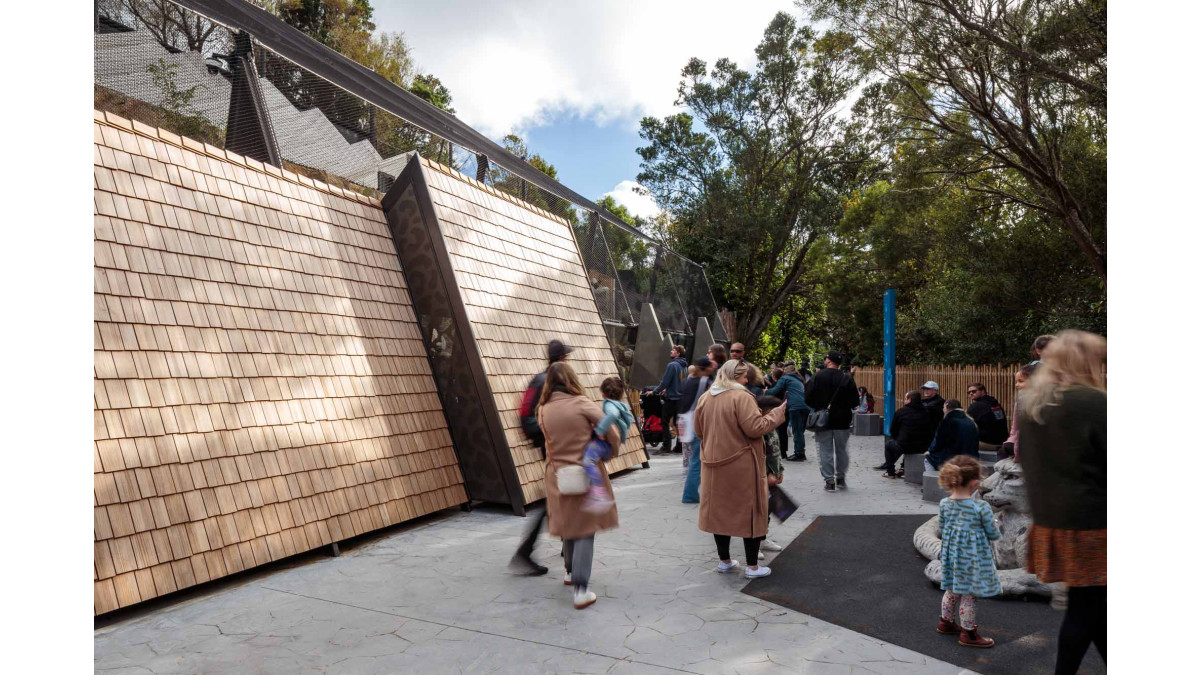

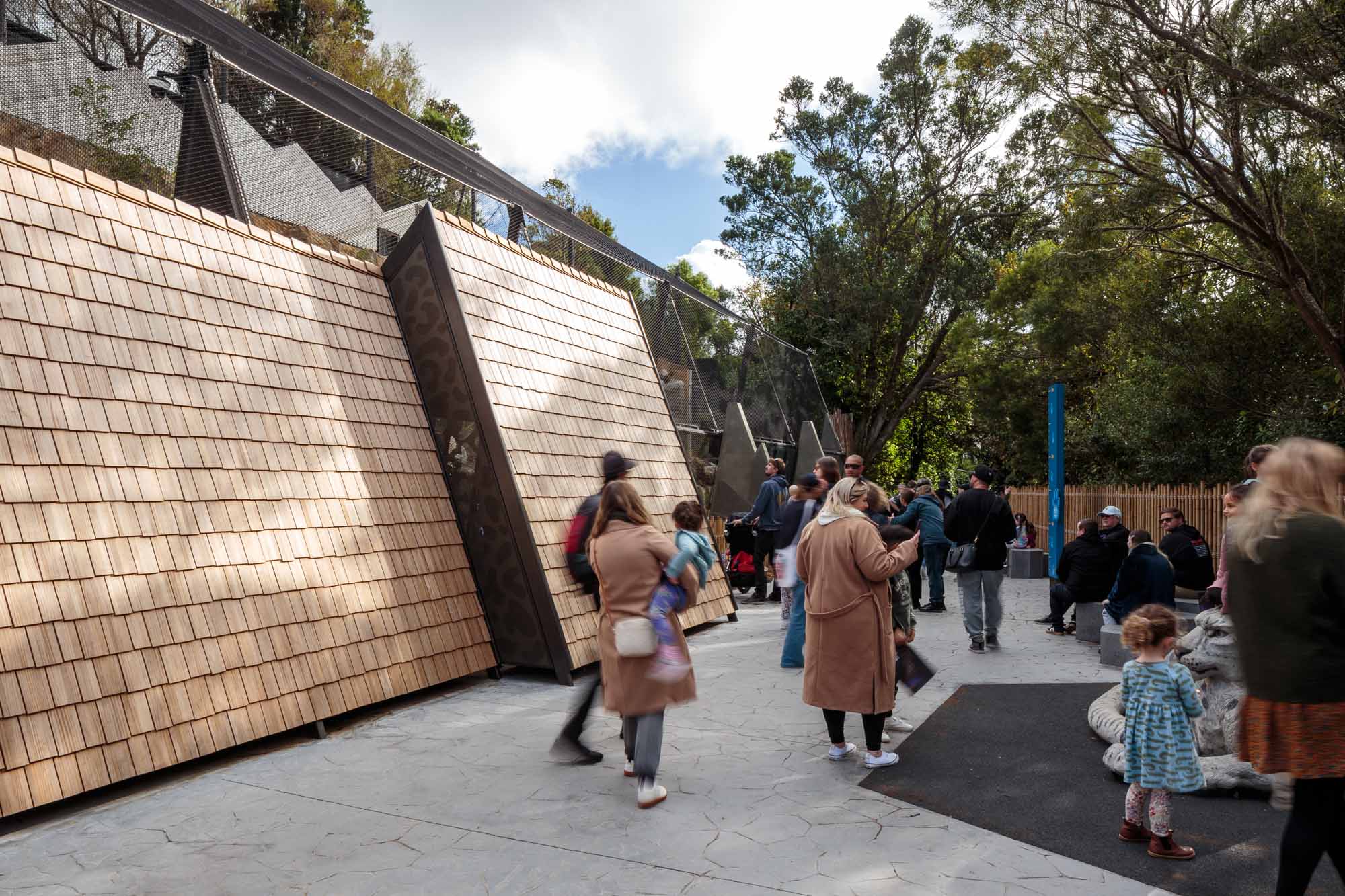

Wellington Zoo Snow Leopard Enclosure Vulcan Shingles Abodo Wood 04

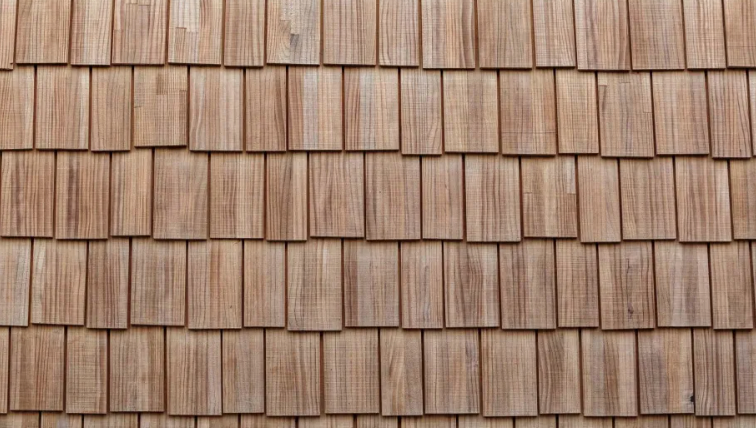

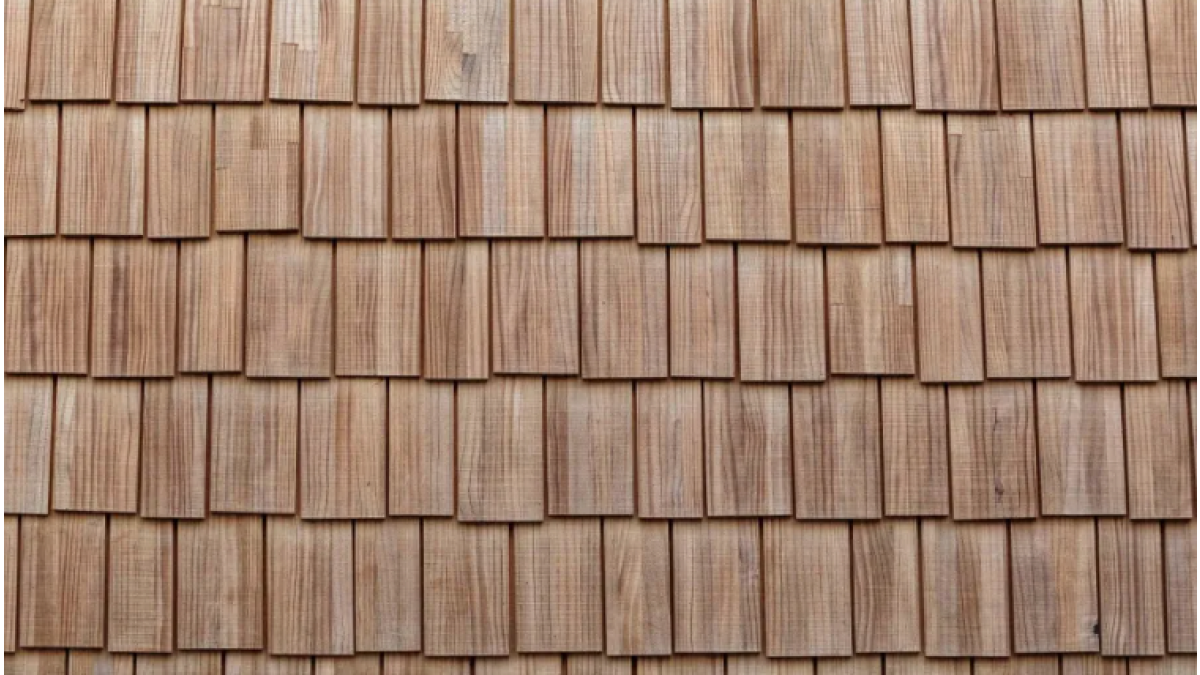

Vulcan Shingles | Uncoated | At Installation

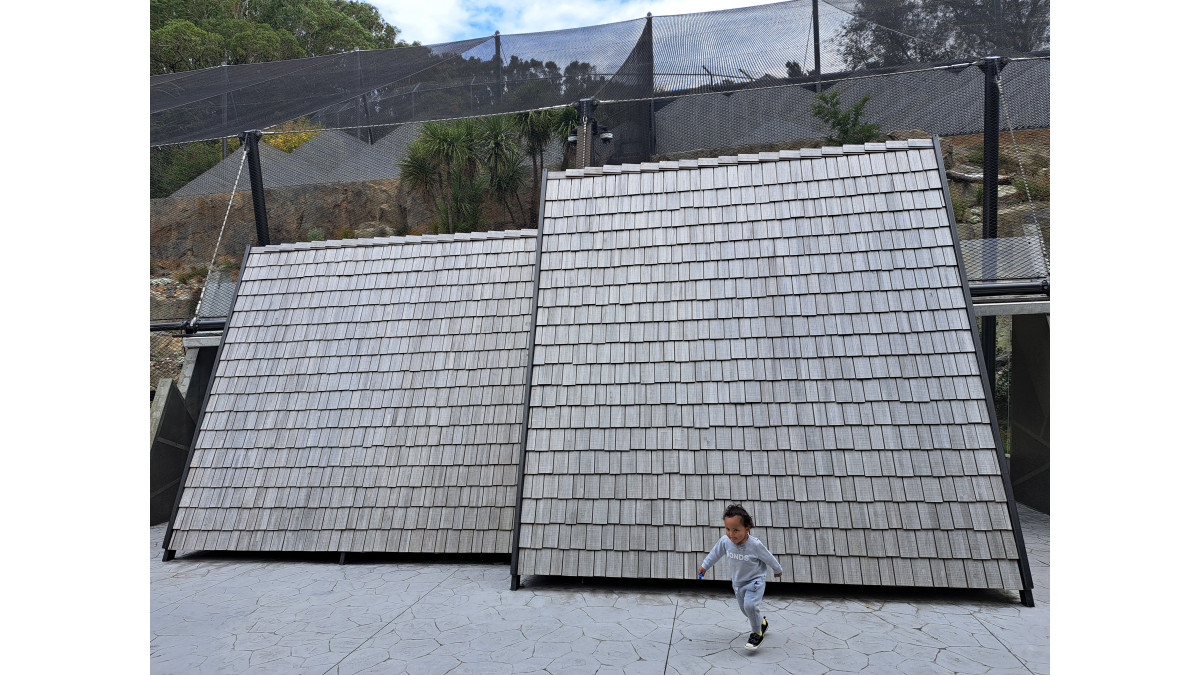

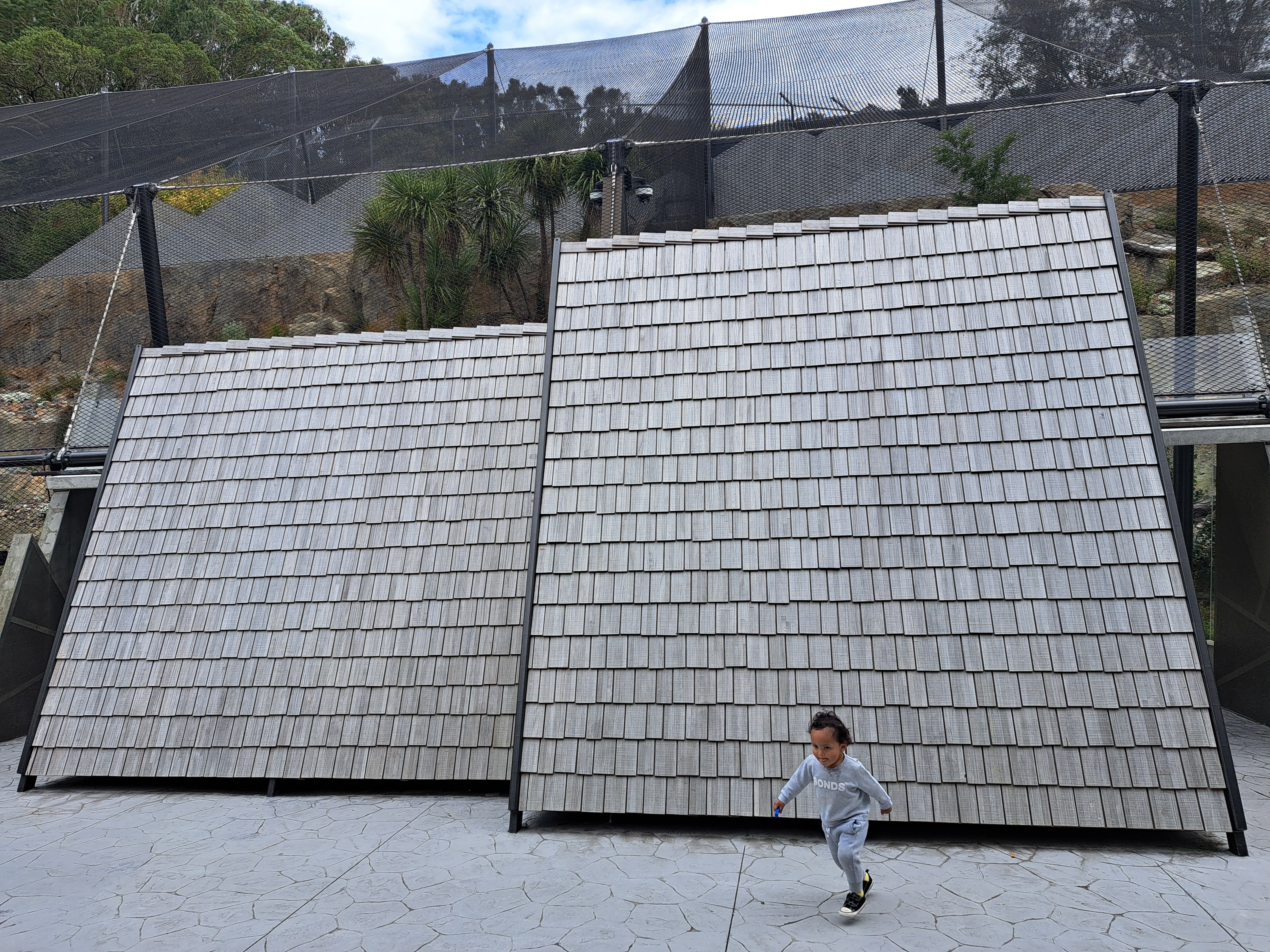

Vulcan Shingles | Uncoated | Weathered - 6 Months After Installation

Product Enquiries

Description

Delivering all the charm of yesteryear, yet now updated for ease of use in modern applications, Abodo Vulcan Shingles are a durable, high-end architectural finish for roofs, walls and gable ends.

Vulcan Shingles are created using thermally modified eco-timber, resulting in a product combining beauty, durability and stability. The durability of the product is furthered by a low-VOC, water-based OPX preservative treatment that guards against mould and insects.

Vulcan Shingles are detailed with a ventilation cavity system for wall and roof applications to extend the durability of the timber by enabling air flow beneath the shingles to reduce moisture build up. This sets them apart from most standard pine and cedar shingles.

Key Features

Lightweight — easy to install and maintain
Left uncoated the beautiful homogenous brown colour will silver off with exposure to weather
Patented vertical grain construction and a fine bandsawn face, enhanced stability and reduced cupping, even when exposed to harsh weather
Verified carbon storage status of Vulcan timber, which is created from FSC® certified New Zealand Radiata Pine
Ventilation cavity system for wall and roof applications — enabling air flow beneath the shingles to reduce moisture build up

Ranges

Vulcan Cladding Vulcan Roofing

Declare LBC Red List Free

FSC Certified

NZ Made

Scope of Use

Intended for above ground use in residential and light commercial buildings for wall cladding, gable ends and roofs
Detailed with a ventilation cavity system for wall and roof applications
Suitable up to and including Extra High wind zones (up to 1.82kps UL)
Buildings within scope of NZS3604
Suitable for buildings <10m height or >1m to boundary (Designs outside this the system are subject to specific fire engineering design.

Limitations on Use

Must be designed and installed in accordance with the Abodo technical literature
Required roof pitch of greater than 18˚

Statement of Building Code Compliance

This product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

B1 Structure
B2 Durability
E2 External moisture
F2 Hazardous building materials

Other Performance Attributes

Carbon Storage — Each square metre of Abodo's Vulcan solid timber is proven to store 7.56kg+ of carbon, more than twice the carbon emitted during the manufacturing process. This means carbon is essentially locked in the wood during its useful life.
Forest Stewardship Council® (FSC®) Certified — A guarantee that forest products come from responsibly managed sources, including forest management and chain of custody.
Declare Certified — Declare certified Red List Free by the Living Futures Institute, the leading label in transparency for building products.
Built to Last Warranty — Vulcan Shingles are covered by a 15 year Built to Last Warranty.

Documents

Compliance Evaluation: Vulcan Shingles
