Vulcan Cladding — Vertical Grain, Standard Series

Abodo

All products

Vulcan Cladding - Vertical Grain, Standard Series

Product Enquiries

Description

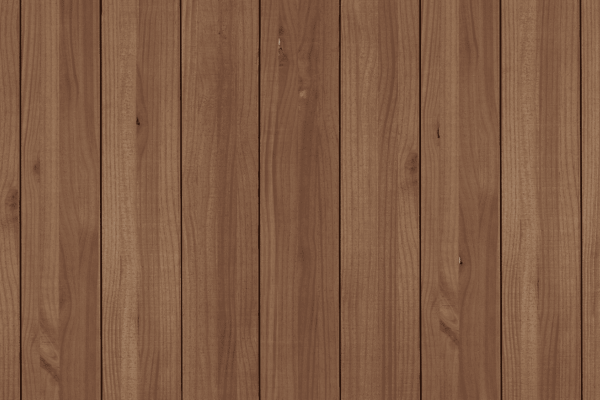

Vulcan Cladding - Vertical is created from thermally modified New Zealand plantation timber and engineered with a patented vertical grain construction for superior weathering characteristics. A fine sawn face allows a depth of grain, and optimal coating performance. Vulcan Cladding - Vertical Grain is available in Architectural and Standard Series.

Vulcan Cladding is CodeMark Certified for guaranteed acceptance with New Zealand Building Authorities and conformance with the New Zealand Building Code, and is covered by a 15 year Built to Last Warranty.

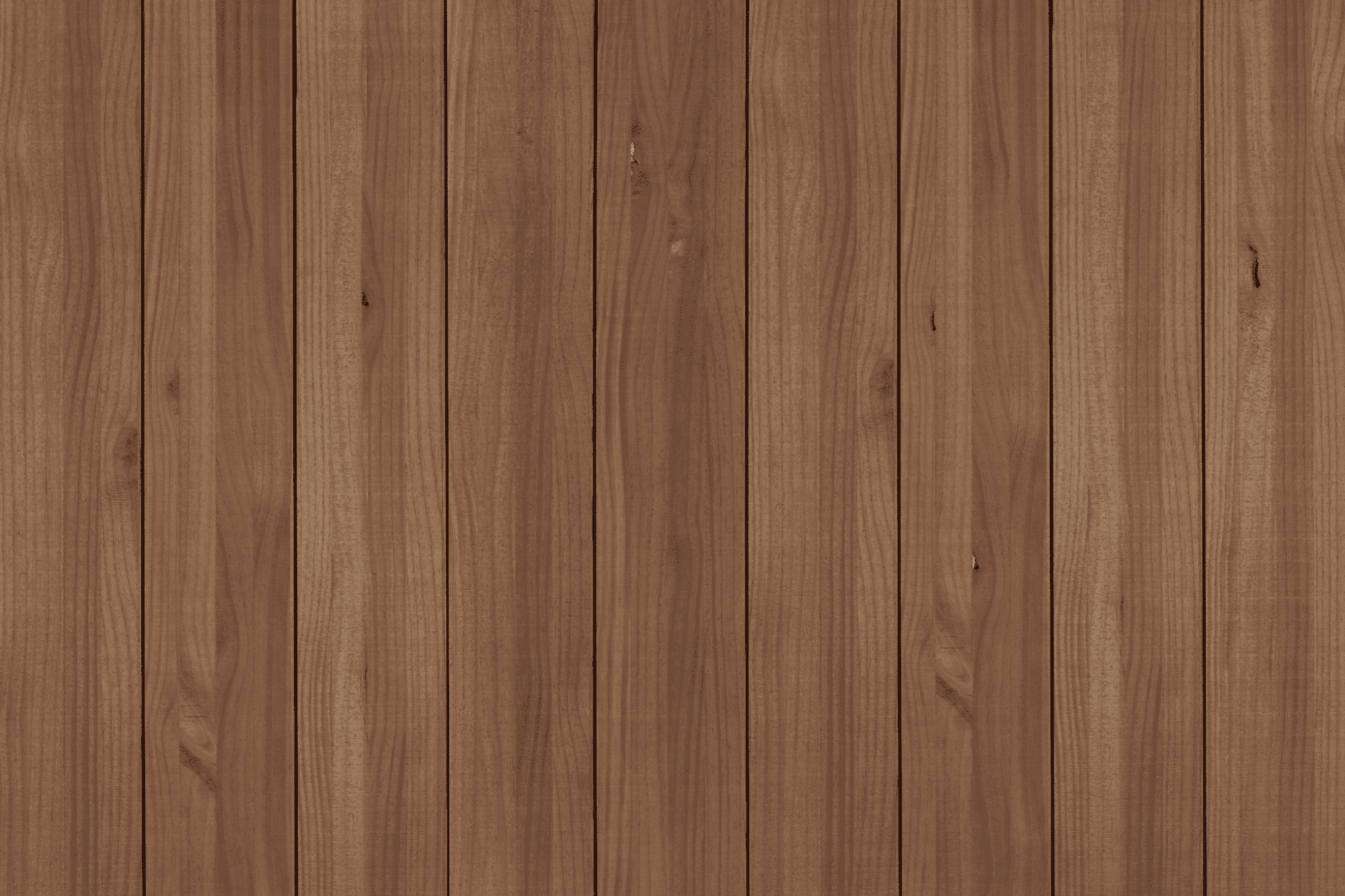

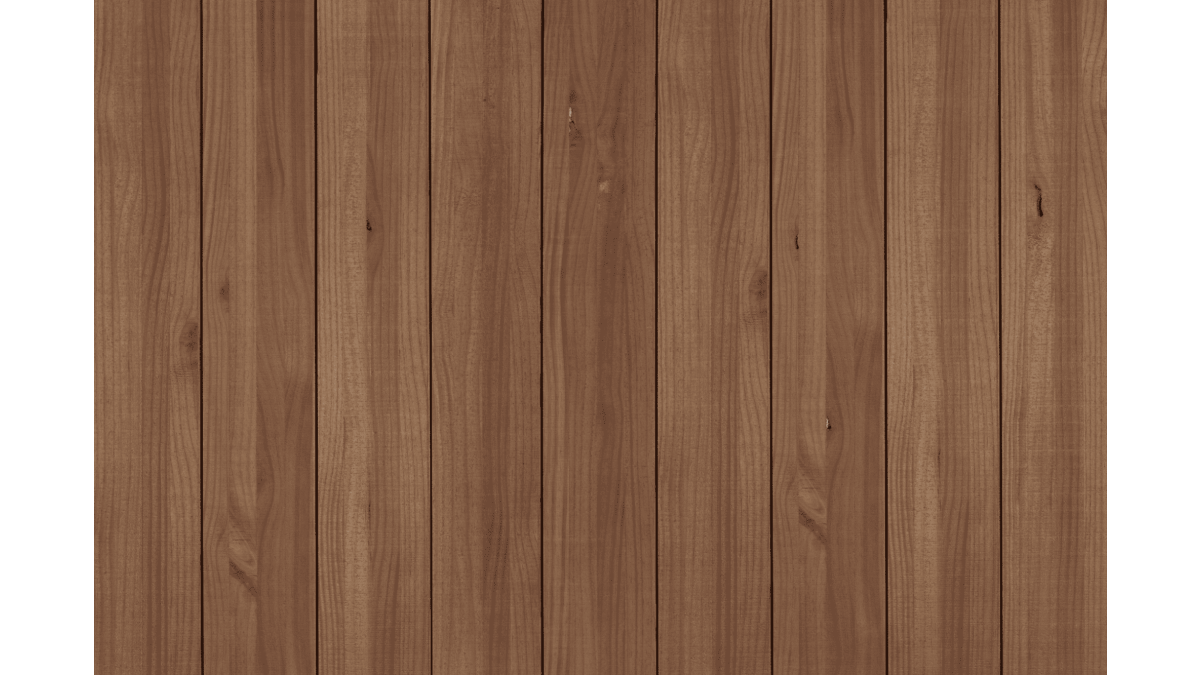

Standard Series

The Standard Series includes some knots and natural features, and is available in a select range of colours and profiles.

Available in a limited range of architectural profiles and can be supplied factory coated in Abodo Protector – Abodo’s high performance penetrating exterior oil. The Standard Series is designed to be an affordable cladding material with visual features and defects present as part of the timber grade. For a higher aesthetic appearance with less visual features the Architectural Series is recommended.

Colour Range: Abodo’s Protector coating colours x 9
Finish: Bandsawn
Profile: WB18 (135x18) — Vertical & Horizontal

Key Features

A renewable alternative to Western Red Cedar, Abodo's Vulcan timber is verified to store more carbon than is used in its production. 
The thermal modification process used in its production results in a stable timber with low moisture content — meaning it won’t warp, cup or bleed.
Suitable for coating in dark colours, even in warm climates.
Create clean lines using various profiles, including vertical shiplap and bevel back. With a variety of coatings and finishes, Vulcan is perfect for bespoke architectural aesthetics and applications.
As the thermal modification process is preservative and chemical free, Vulcan timber is ideal interior applications and joinery.
Manufactured with a patented process resulting in an engineered vertical grain orientation that reduces cracking and enables stable weathering long term.
Environmental Product Declaration and Declare Red List Free certified, each square metre of Vulcan Cladding stores 7.56kg+ of carbon.

Ranges

Vulcan Cladding

Declare LBC Red List Free

FSC Certified

NZ Made

Scope of Use

Vulcan Cladding can be used in vertical or horizontal applications. WB10 profile is a secret fix profile that can be used to create a vertical shiplap look.

Abodo Weatherboard Cladding Systems are exterior wall claddings on a drained cavity suitable for buildings:

timber framed to NZS3604:2011 Timber framed buildings or steel framed to NASH Standard Part 2: May 2019 Light Steel Framed Buildings
located in a wind zone up to and including Extra High wind zone (as specified in NZS3604)
within the scope of Acceptable Solution E2/AS1 para 1.1, and with risk score not greater than 20
located no closer than 1m from a relevant boundary
in any exposure zone (excluding microclimates) (as specified in NZS3604)

See CodeMark CMNZ70046

Limitations on Use

Must be designed and installed in accordance with the Abodo technical literature

Statement of Building Code Compliance

B1 Structure: B1.3.1; B1.3.2; B1.3.3(a, f, h, j); B1.3.4
B2 Durability: B2.3.1(b)
E2 External moisture: E2.3.2; E2.3.5 (contributes to); E2.3.7 (contributes to)
F2 Hazardous building materials: F2.3.1

Other Performance Attributes

Carbon Storage — Each square metre of Abodo's Vulcan solid timber is proven to store 7.56kg+ of carbon, more than twice the carbon emitted during the manufacturing process. This means carbon is essentially locked in the wood during its useful life.
Forest Stewardship Council® (FSC®) Certified — A guarantee that forest products come from responsibly managed sources, including forest management and chain of custody.
Declare Certified — Declare certified Red List Free by the Living Futures Institute, the leading label in transparency for building products.
Built to Last Warranty — Vulcan Cladding is covered by a 15 year Built to Last Warranty.

CodeMark

Documents

Abodo CodeMark Weatherboard Cladding System Manual

2020
