Dual Viking Systems Help Bring Samoan Community Together

In 1990, the Prime Minister of Samoa noted that the meeting places available for Auckland's growing Samoan community weren't adequate. Meanwhile, the majority of Auckland's Samoan population had been shifting away from central Auckland to the southern suburbs, while the consulate remained in the city centre; making it difficult for people to access their services. In 2008, the Government of Samoa decided to move the consulate closer to its people. A site was procured at the Mangere Town Centre and a design was finalised which included a 5,345m² complex that would feature an office and retail space, the consulate itself and a traditional Samoan fale (meeting house). It was important to all stakeholders that the fale was not only a true representation of the traditional style, but just as importantly, was built to last using the best construction materials.

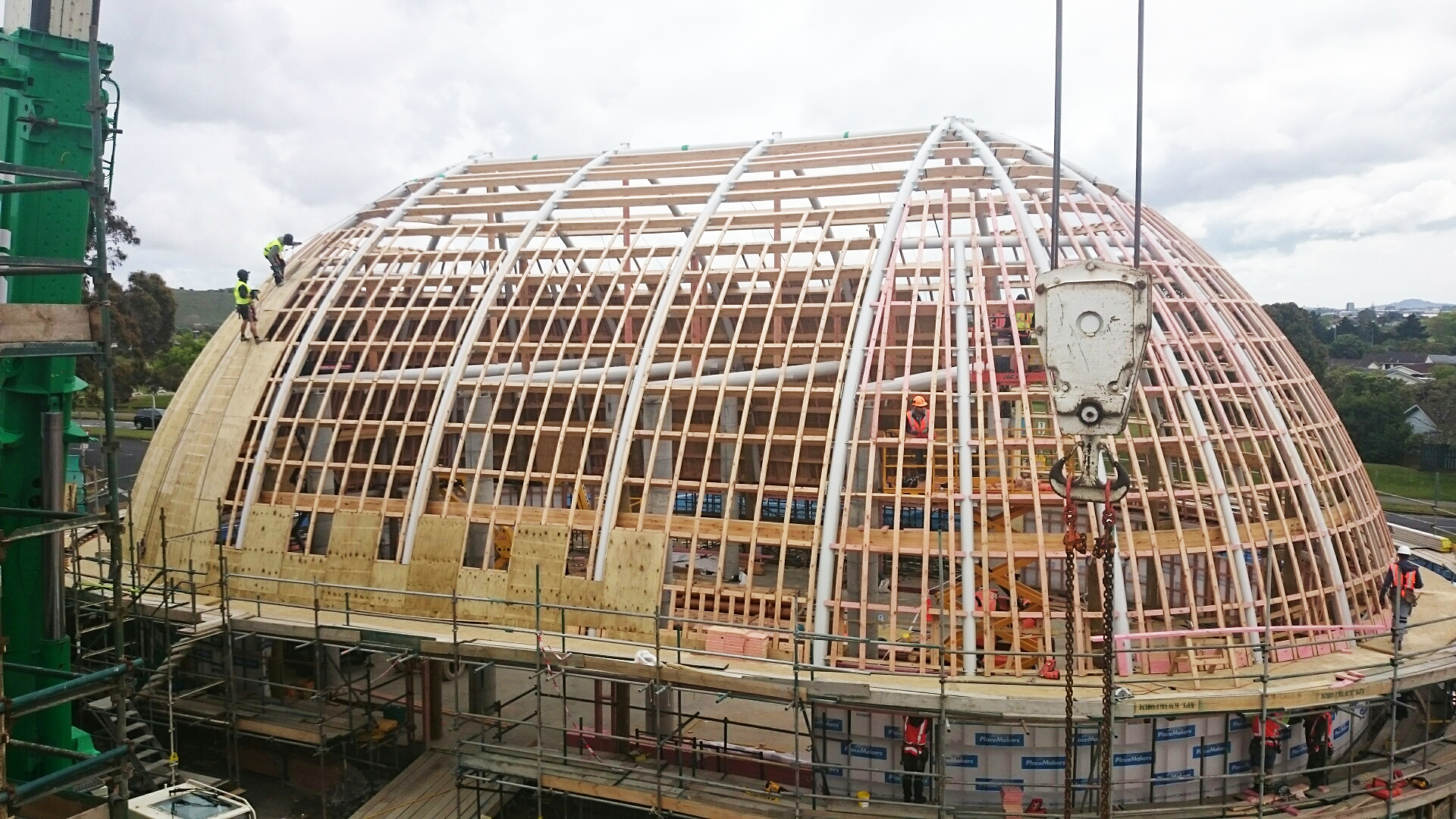

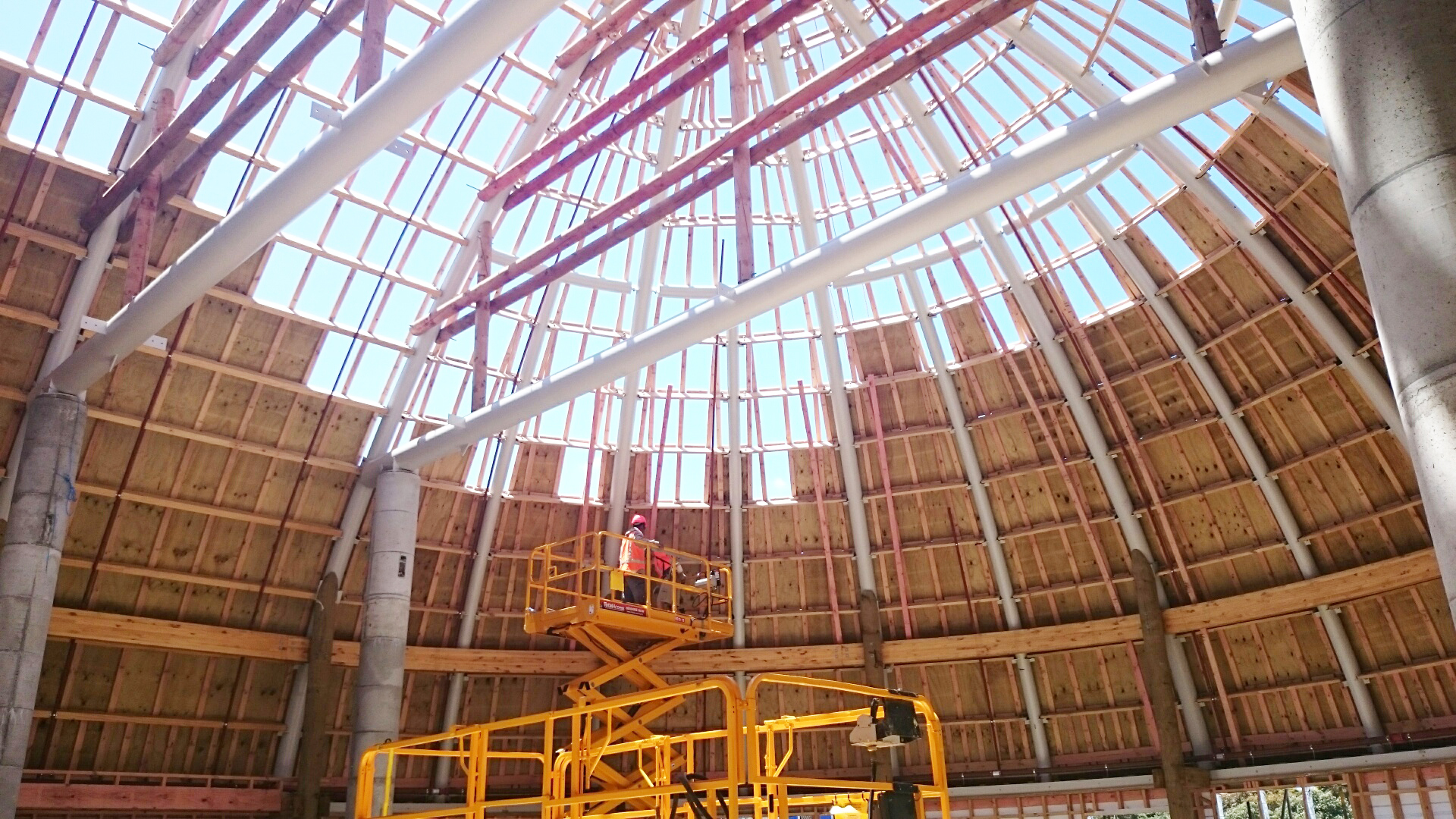

The architect's (Walker Co.) research of the traditional fale style buildings included travel to Samoa to study typical construction and design. The architect specified two Viking Roofspec roofing and waterproofing systems to protect the exterior of the buildings whilst providing the appropriate aesthetics.

CertainTeed Asphalt Shingles

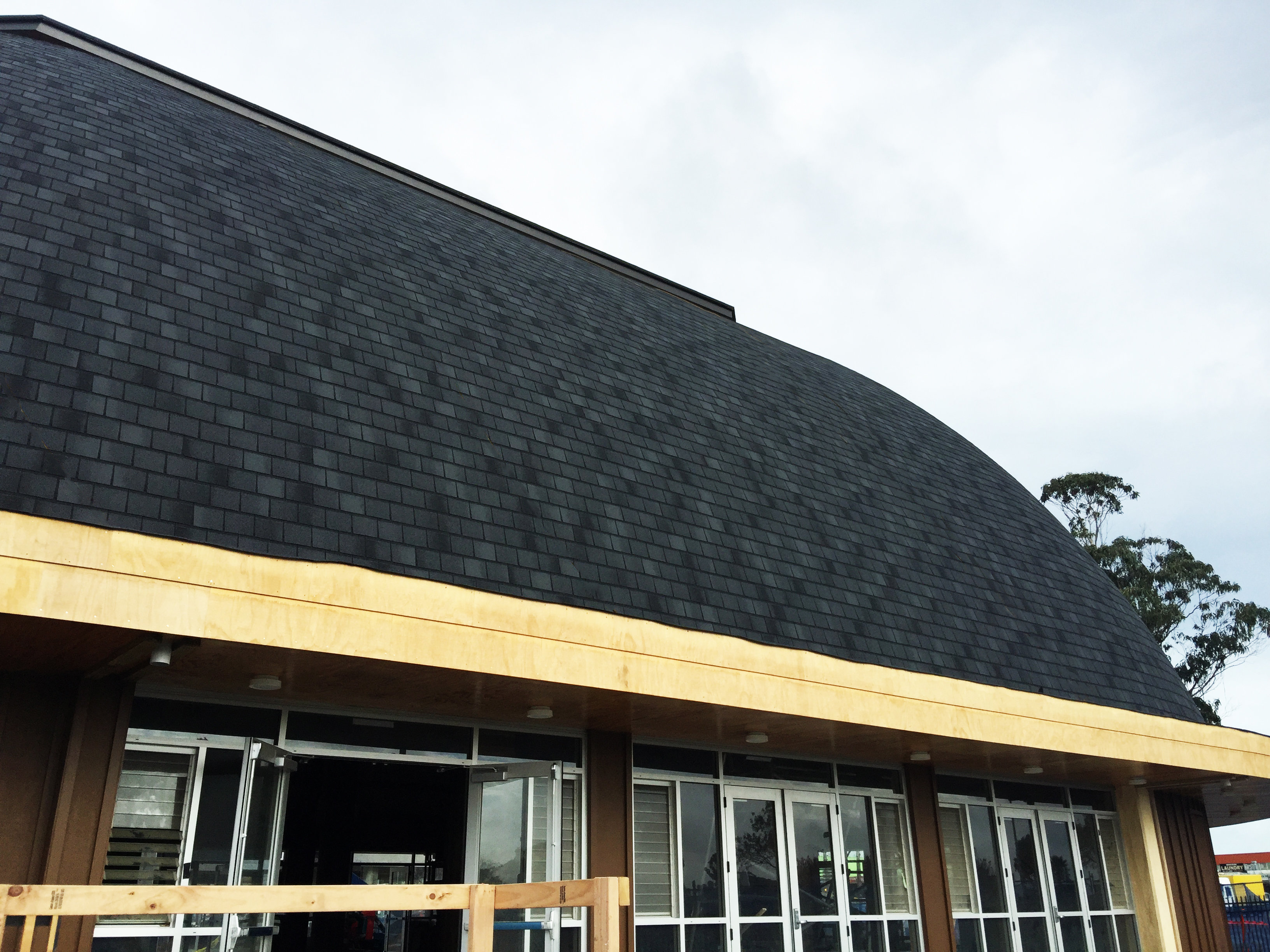

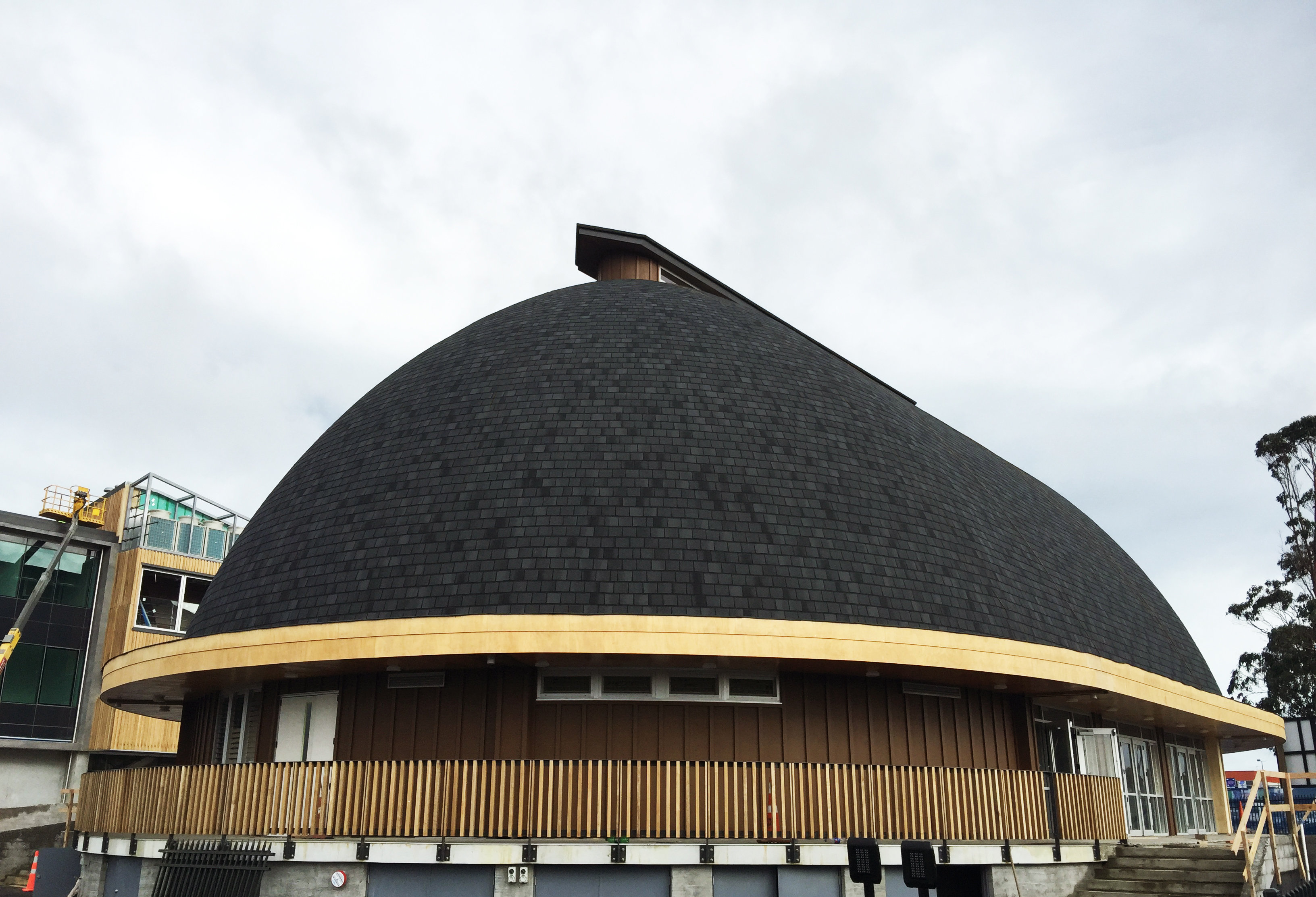

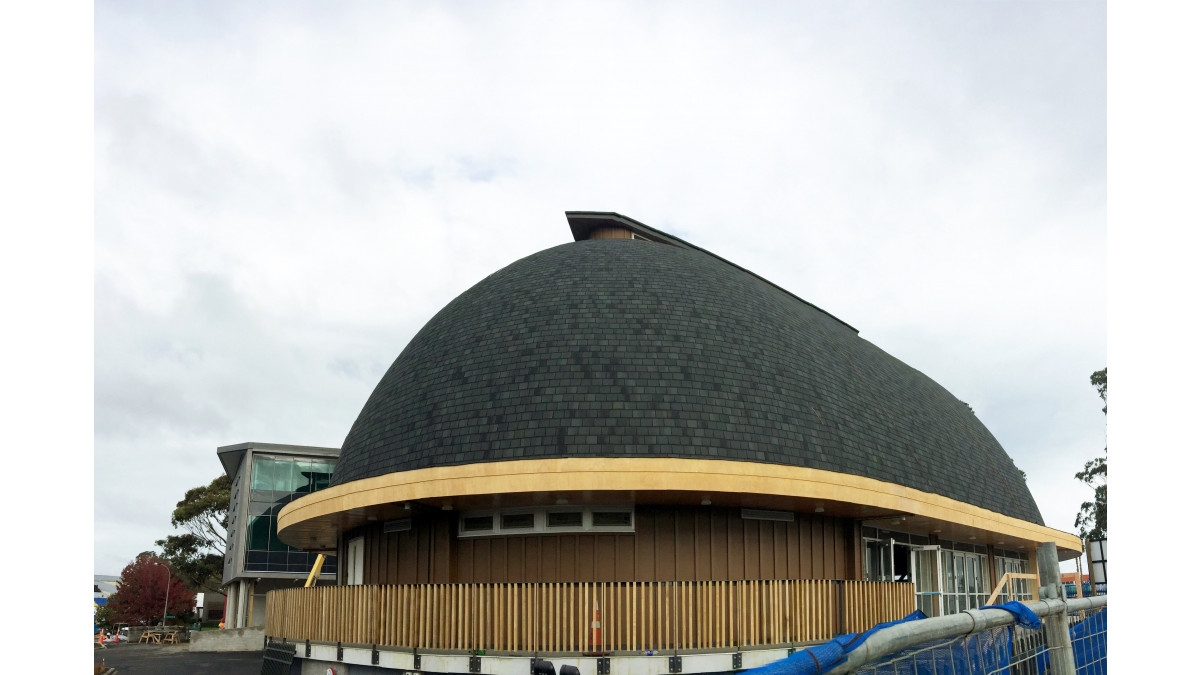

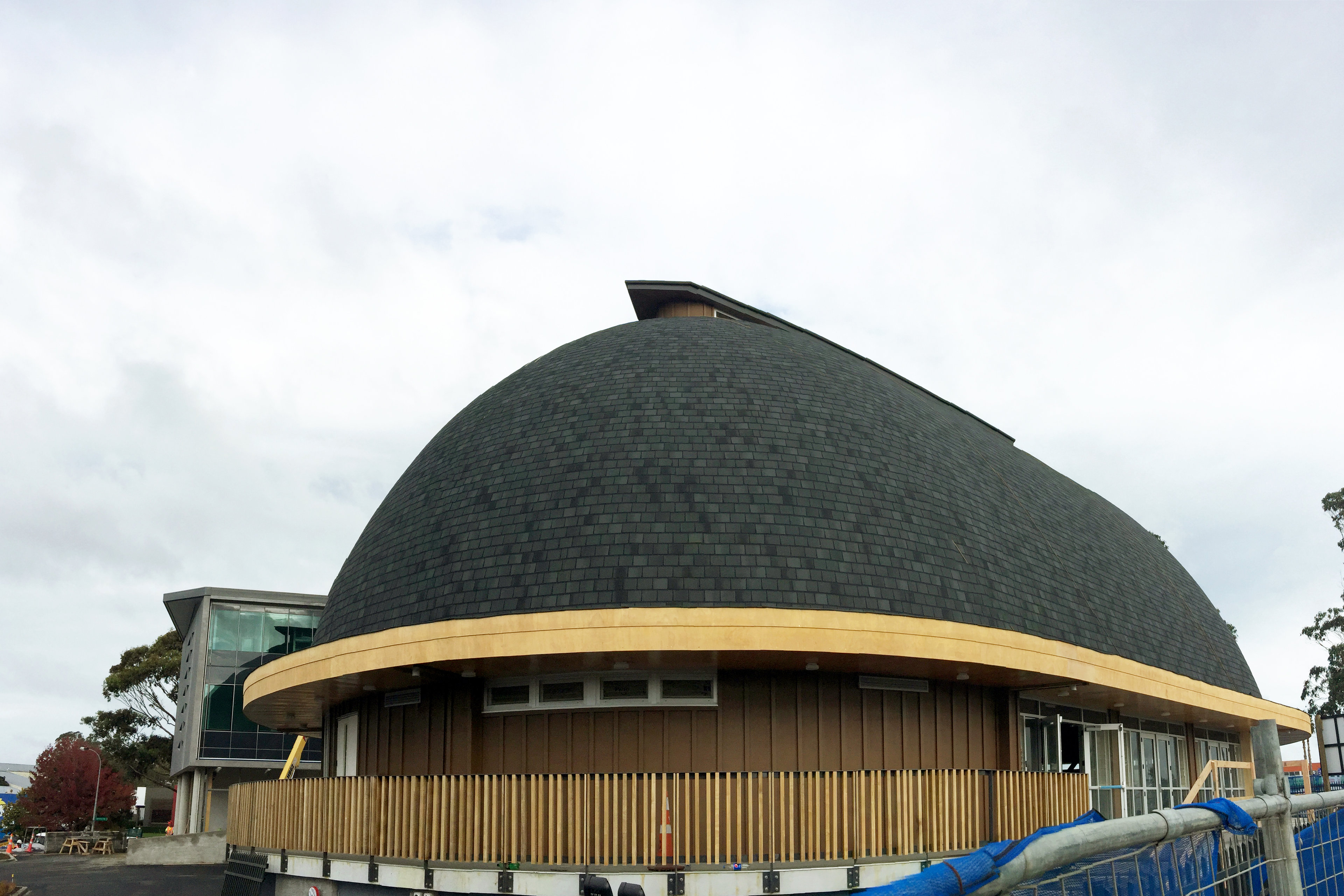

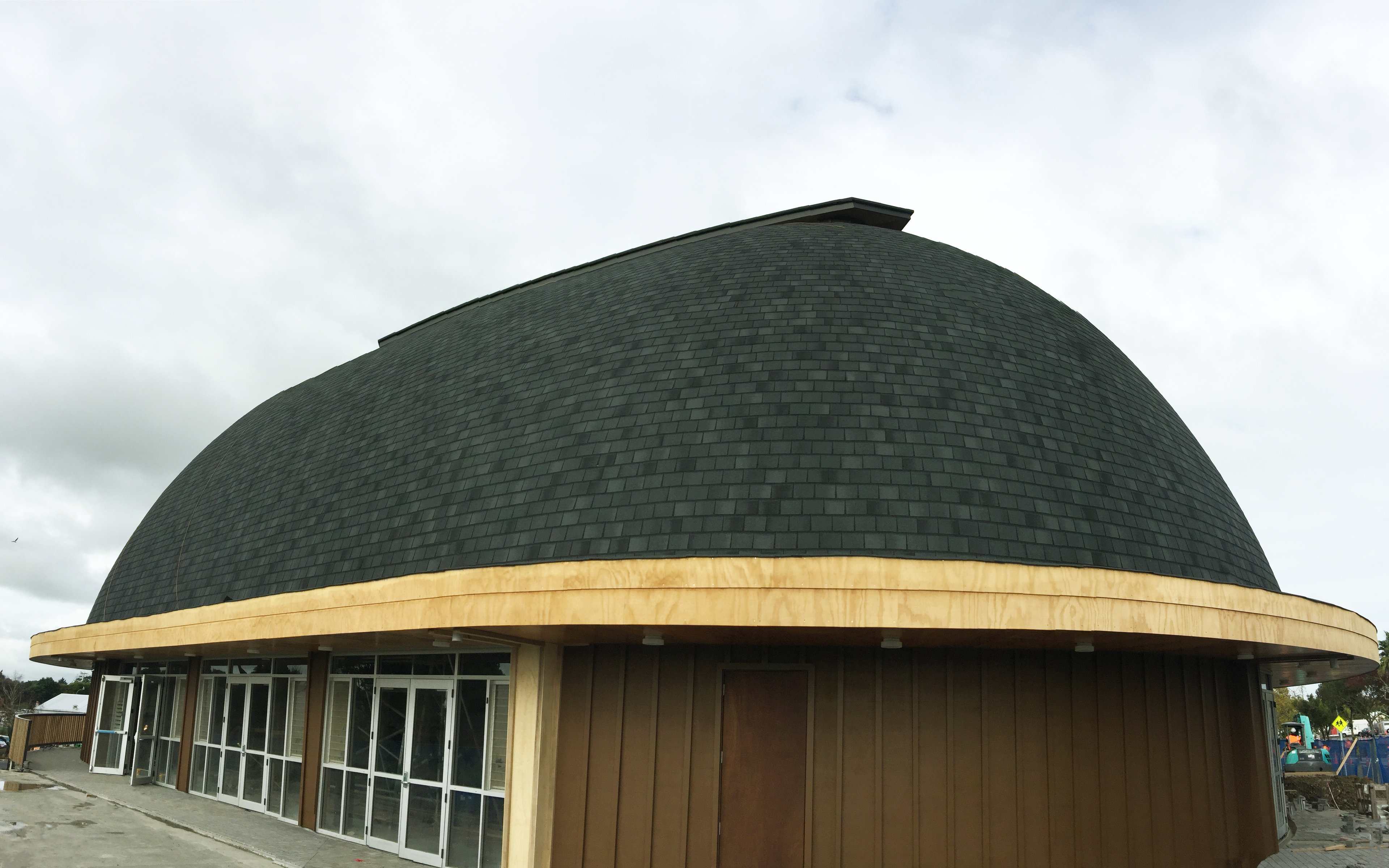

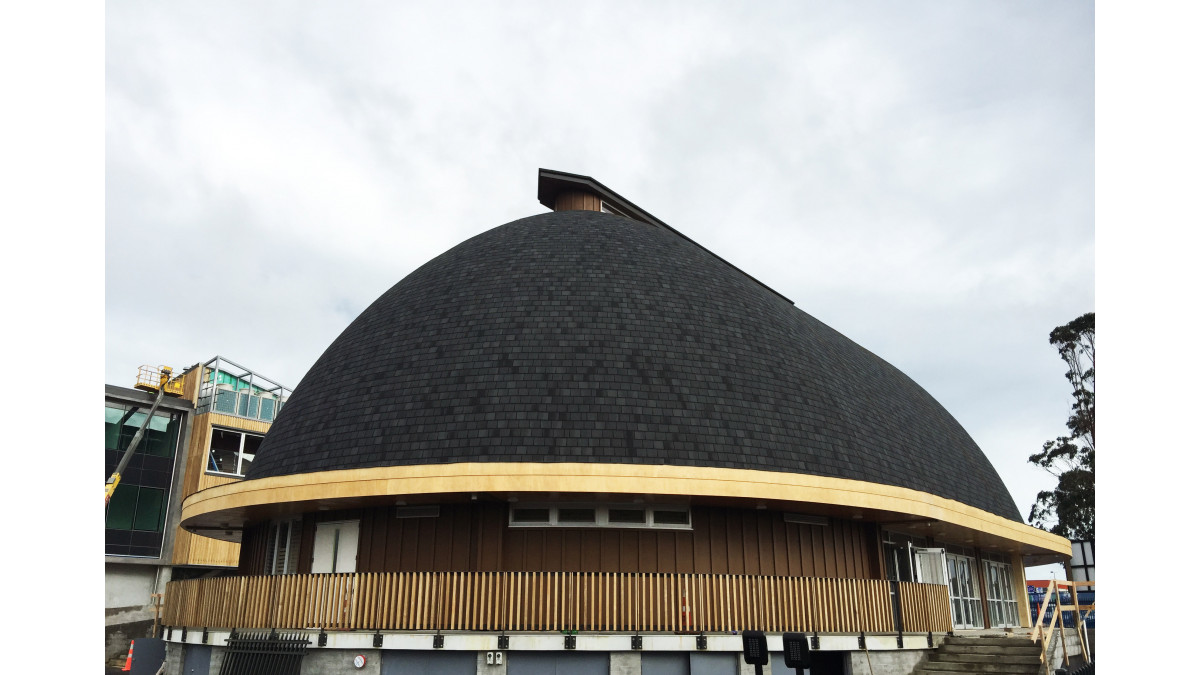

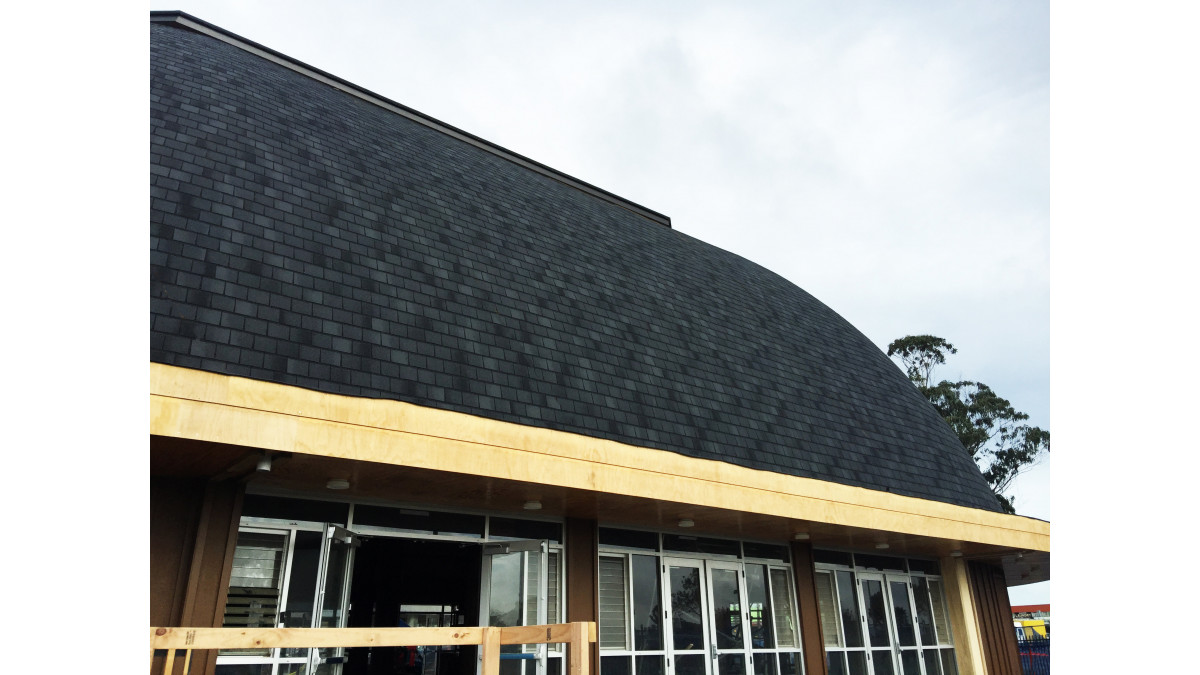

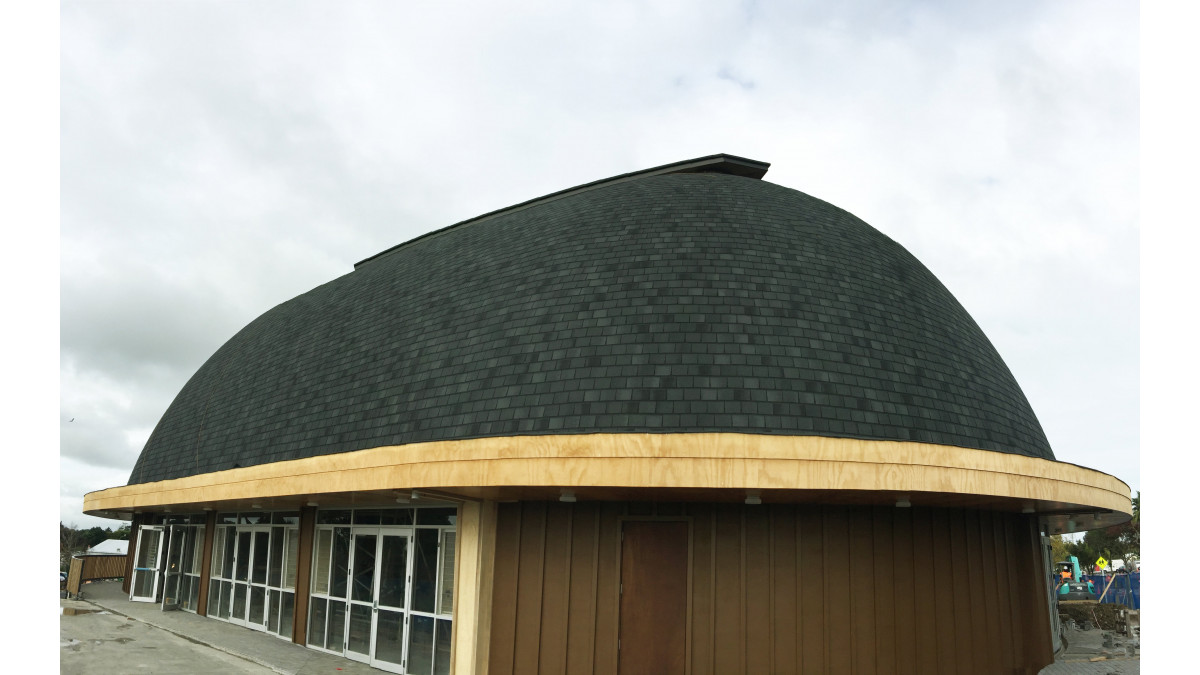

Viking's CertainTeed 'Hatteras' profile was chosen to protect the roof; a perfect solution for this unique building. CertainTeed has been installed on various traditional (some high profile) fales in NZ and Samoa. This proven performance record reassured all project stakeholders that it would stand the test of time. Hatteras is a very durable profile, which comes with a 40-year warranty. Its flatter profile allowed it to be installed successfully (both functionally and visually) on this typical fale roof which curves in all directions. Longevity and aesthetics were very important to this proud community, as the fale would serve as a cultural hub for the 130,000 Samoans in Auckland for present and future generations.

Viking GM Gemini Torch-on Membrane

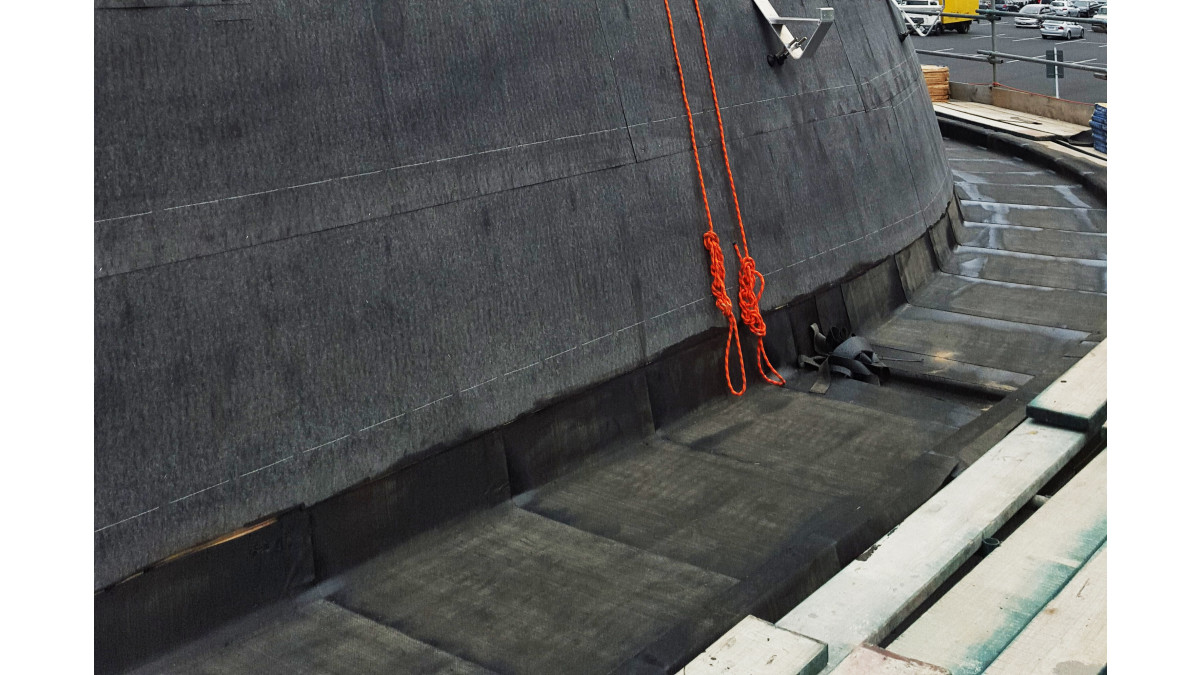

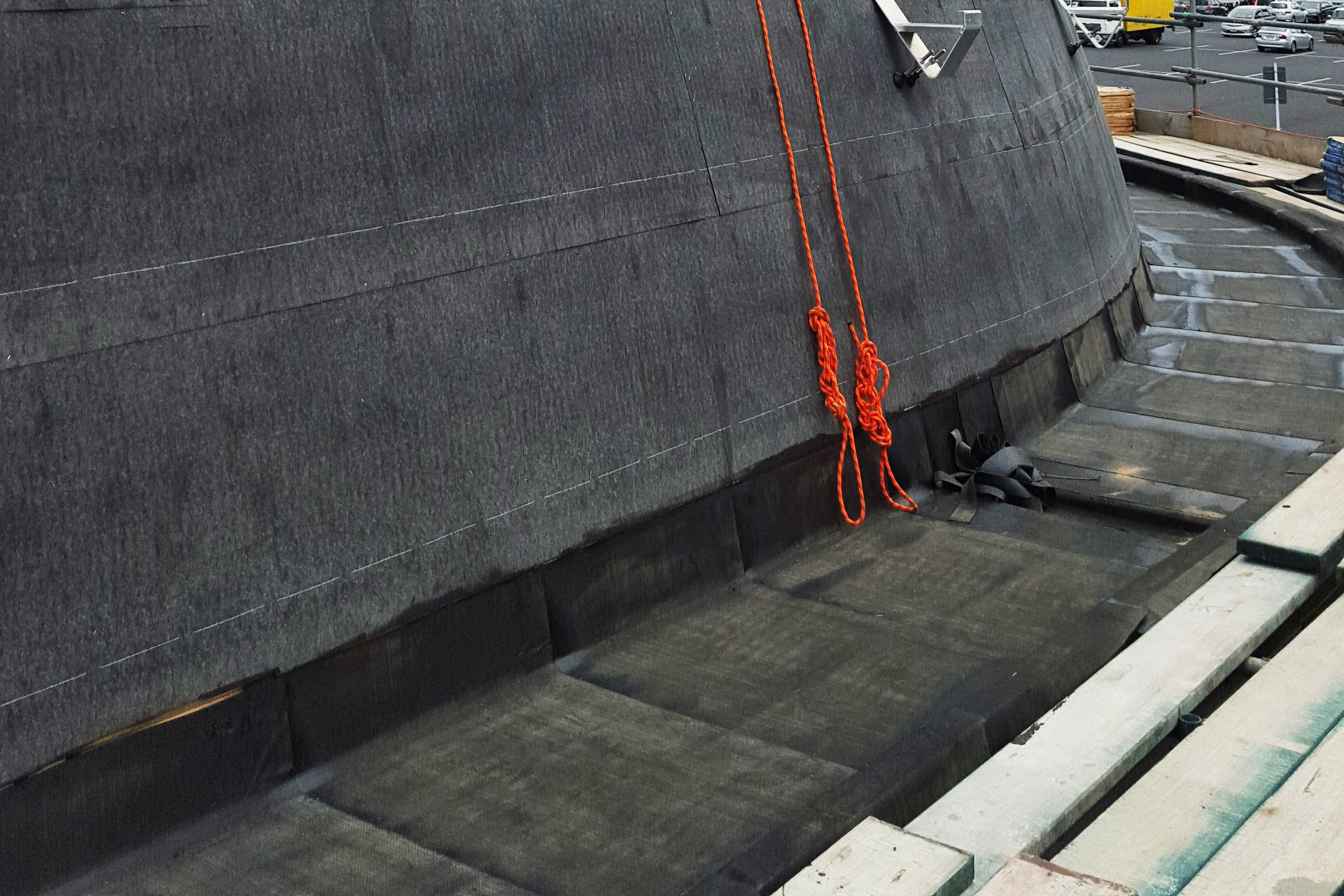

Viking's GM Gemini A.P.P. two-layer torch-on membrane system was chosen to waterproof the gutters and parapets at the base of the shingled roof. This was an ideal solution as its long performance record in NZ and the Pacific Islands, CodeMark certification, BRANZ appraisal and robust 20-year warranty gave the architect confidence in its durability. Being torch-applied also assisted with detailing, with the membrane's plasticised bitumen able to be bled into the challenging areas for waterproofing.

Licensed Applicator

The roofing and waterproofing was not only carried out by an approved applicator with installation experience for fales in NZ and Samoa, but they had the expertise to carry out both the shingle and membrane work. This versatility streamlined the process for all stakeholders including Auckland Council who only required the one compliance folder with producer statements and warranties from one application company; with materials supplied by one supplier.

A Cultural Haven

The finished fale was opened to the public at the beginning of August 2016. It will host community events and official meetings, will be available to the community for hire — and most importantly — it will facilitate the preservation and fostering of Samoan custom for generations to come.

CertainTeed Asphalt Shingles

Viking Roofspec

View Product

Asphalt shingles are individual bituminous sheets (usually 915mm long), nailed on top of a timber-sarked roof substrate with either a layer of bitumen felt or self-adhering membrane in-between.

NZ-Owned Business

Suitable for residential and commercial pitched roofs and can be used as a re-roofing solution.

Viking CertainTeed Asphalt Roofing Shingles have been appraised as a roof cladding for buildings within the following scope:

The scope limitations of NZBC Acceptable Solution E2/AS1, paragraph 1.1, with regard to floor plan area and building height; and,
Constructed with timber roof framing and sheathing complying with the NZBC; and,
Where the roof slope is 9 degrees or greater for plywood and 10 degrees or greater for Strandsarking; and,
Situated in NZS 3604 Wind Zones up to and including High, or Extra High for the Landmark Series, Hatteras and Independence shingles only.

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, B1.3.3 and B1.3.4. Viking CertainTeed Asphalt Roofing Shingles meet the requirements for loads arising from self-weight, gravity loads, temperature, snow, wind, impact and creep [i.e. B1.3.3 (a), (b), (c), (g), (h), (j) and (q)]. See paragraphs 8.1 - 8.9 of the Viking CertainTeed BRANZ Appraisal.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking CertainTeed Asphalt Roofing Shingles meet this requirement. See paragraphs 9.1 and 9.2 of the Viking CertainTeed BRANZ Appraisal.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.6. Viking CertainTeed Asphalt Roofing Shingles meet these requirements. See paragraphs 13.1 and 13.2 of the Viking CertainTeed BRANZ Appraisal.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking CertainTeed Asphalt Roofing Shingles meet this requirement and will not present a health hazard to people.

BRANZ Appraised

Gemini APP TorchOn Membrane

Viking Roofspec

View Product

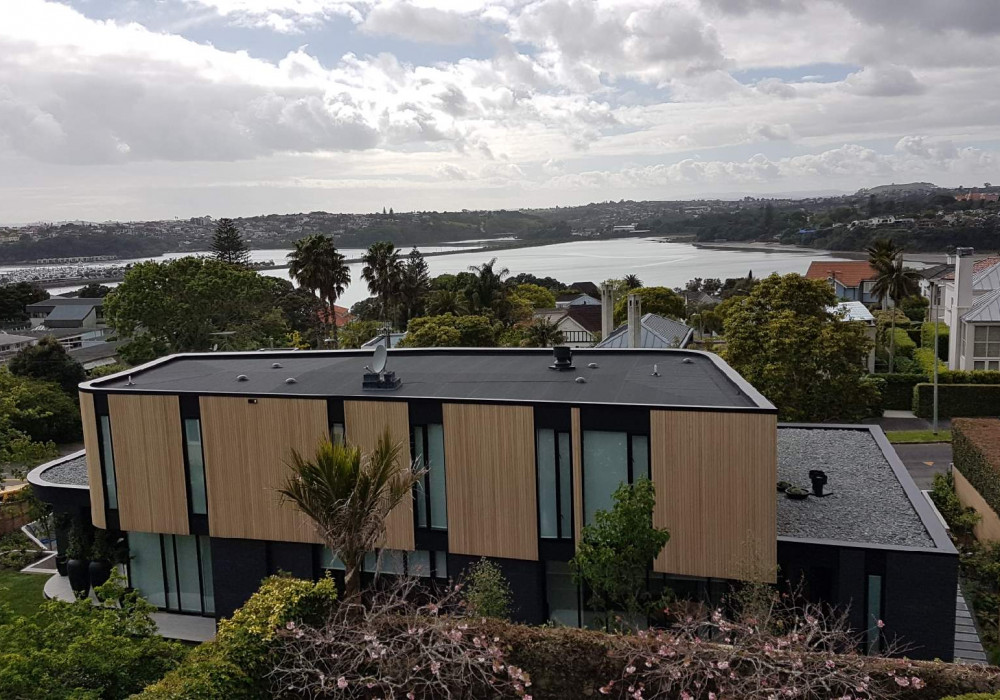

Viking Gemini APP is a robust and versatile membrane system ideally suited to New Zealand's North Island (except the Central Volcanic Plateau) and the Pacific Islands.

NZ-Owned Business

Viking Gemini APP is suited to tricky / confined roofs where it can be 'bled' in to vulnerable areas such as tight corners and awkward areas susceptible to leaks such as roof penetrations, internal corners and gutter junctions.

It is suitable for low-slope roofs (flat or curved), gutters and parapets, waterproofing beneath a floating deck, inland and coastal conditions, commercial and residential buildings.

Viking Gemini APP Waterproofing Membrane has been assessed as a roof waterproofing membrane on buildings within the following scope:

The scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
Situated in NZS 3604:2011 Wind Zones, up to and including Extra High; and,
With substrates of plywood or suspended concrete slab; and,
With a minimum fall for roofs of 1:30 (2 degrees)

Viking Gemini APP Waterproofing Membrane has also been assessed for use as a roof waterproofing membrane on buildings within the following scope:

Subject to specific structural and weathertightness design situated in wind pressures up to a maximum design differential ultimate limit state (ULS) of 6 kPa: and,
With substrates of plywood or suspended concrete slab

Clause B1 STRUCTURE: Performance B1.3.1 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (p). Viking GM Gemini A.P.P Waterproofing Membranes meet this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking GM Gemini A.P.P Waterproofing Membrane meet this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c). Viking GM Gemini A.P.P Waterproofing Membrane meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking GM Gemini A.P.P Waterproofing Membrane meets this requirement and will not present a health hazard to people.

BRANZ Appraised

CodeMark
