Save Time with VENT’s BRANZ Appraised Wall Cavity

The VENT VB20 has been used as a vented roof batten on hundreds of residential and commercial projects across New Zealand. Following growing demand from architects and installers to use the batten in wall applications, VENT has now had the VB20 BRANZ appraised for use as a wall cavity batten.

“As specifiers and installers became aware of the significant advantages of using VENT's VB20, we saw an increase in requests of whether it can be used as wall cavity batten,” explains James Johnston, VENT. “With the BRANZ appraisal, we’re now giving specifiers a new choice of cavity batten for walls.”

Providing a new option for ventilating wall cavities, the VENT VB20 offers numerous advantages:

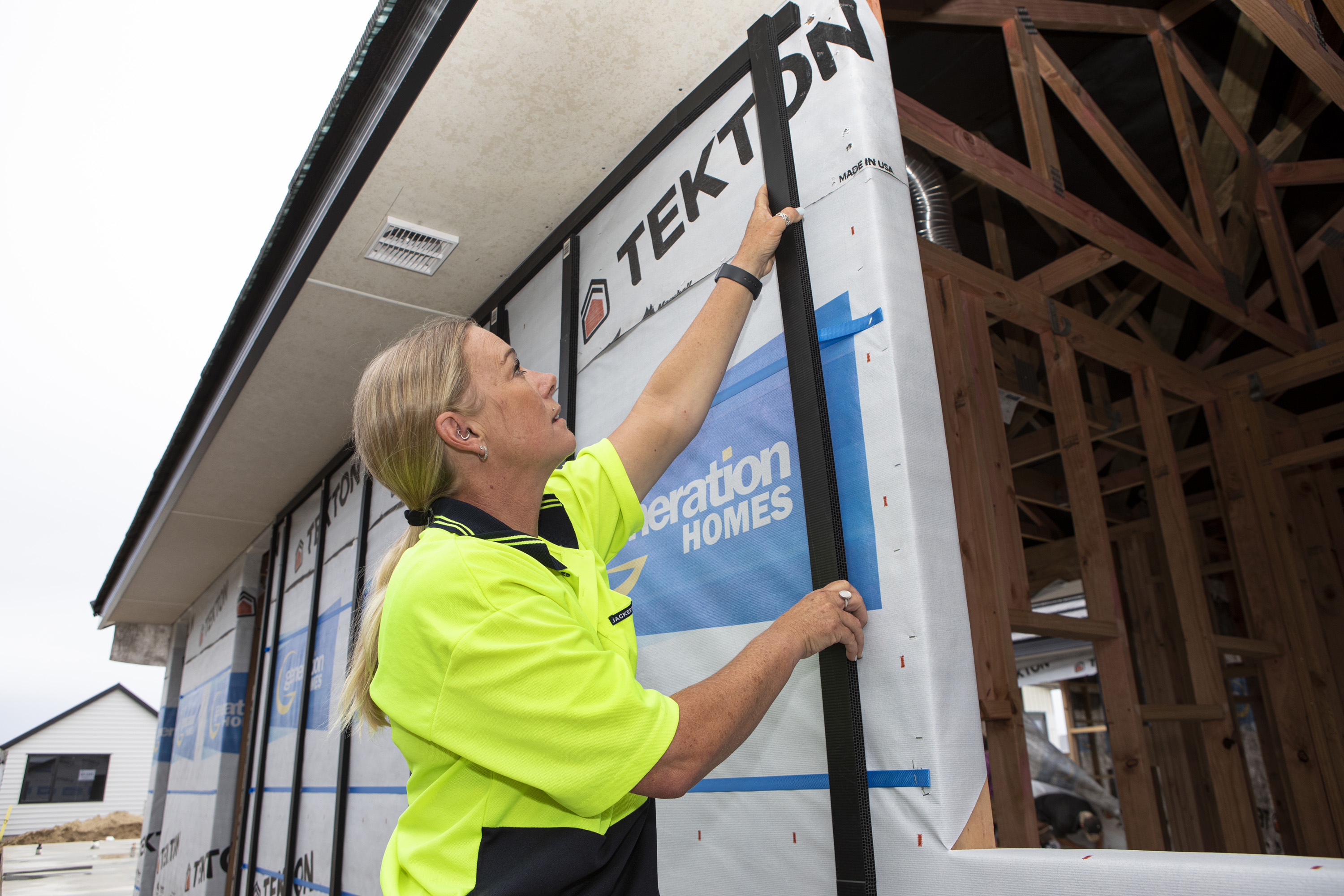

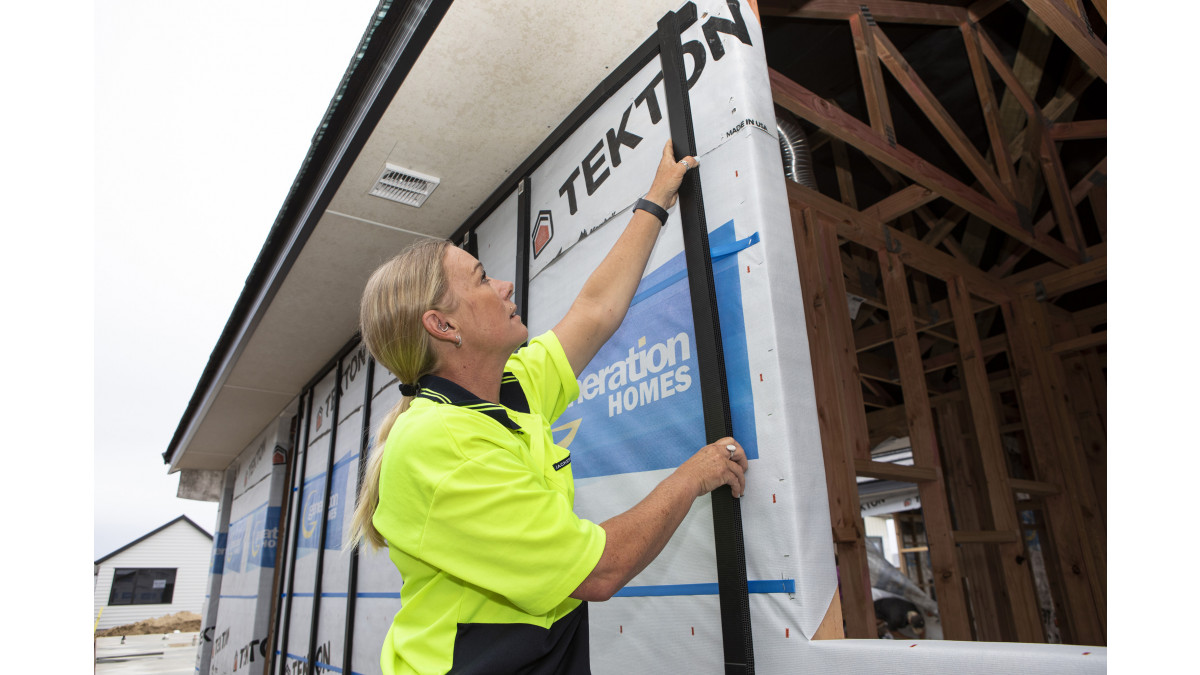

Time-saving peel-and-apply installation

The VENT VB20 Wall Cavity Batten comes with an adhesive strip, allowing for fast and easy fixing to timber, building wraps and steel framing. This eliminates the need for glues and nails and means temporary fixing is not required.

Durability

Designed with 4mm spacings, the VB20 Wall Cavity Batten is suitable for use as a cavity closer on projects that need to meet NZBC durability requirements of up to 15 years, meeting NZBC durability requirements.

Adaptable to meet project requirements

The unique design and make-up of the VB20 means it can easily be split on site to create 15mm or 10mm cavities where needed.

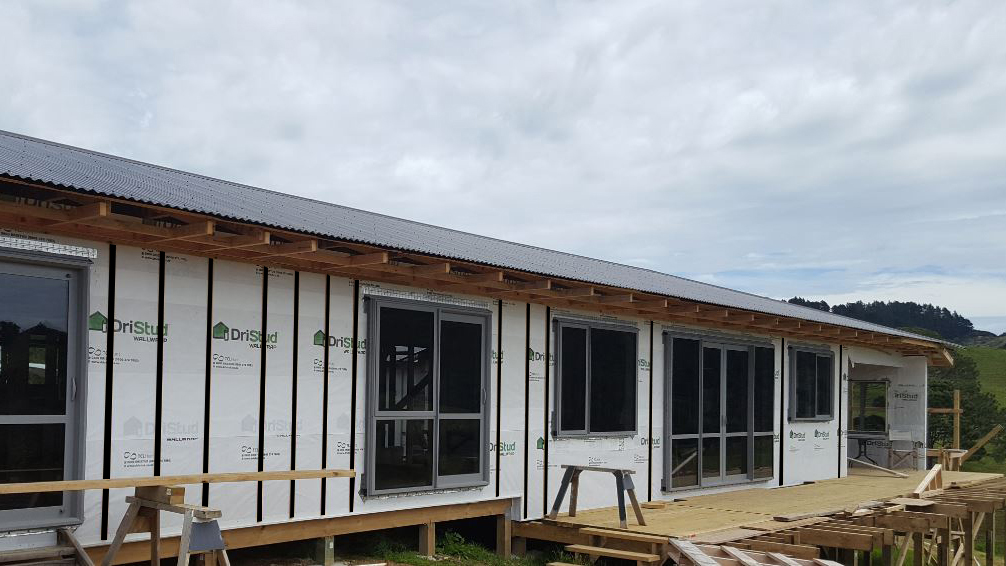

The VB20 Wall Cavity Batten has already been specified on several projects nationwide. The performance and installation advantages of the VB20 were recognised by the Ministry of Education who have specified the wall cavity batten for their portable classrooms. With VENT already supplying roof ventilation systems for the classrooms, this means the Ministry can rely on a single supplier for both roof and wall battens. “We’ve created a one-stop-shop with the wall cavity batten and roof ventilation batten supplied as the one system,” says James.

VENT’s BRANZ appraised solutions and expertise in roof and wall ventilation make them the perfect partner for designing healthy buildings.

VENT products are now distributed in New Zealand by DriStud, a division of TCL Hunt.

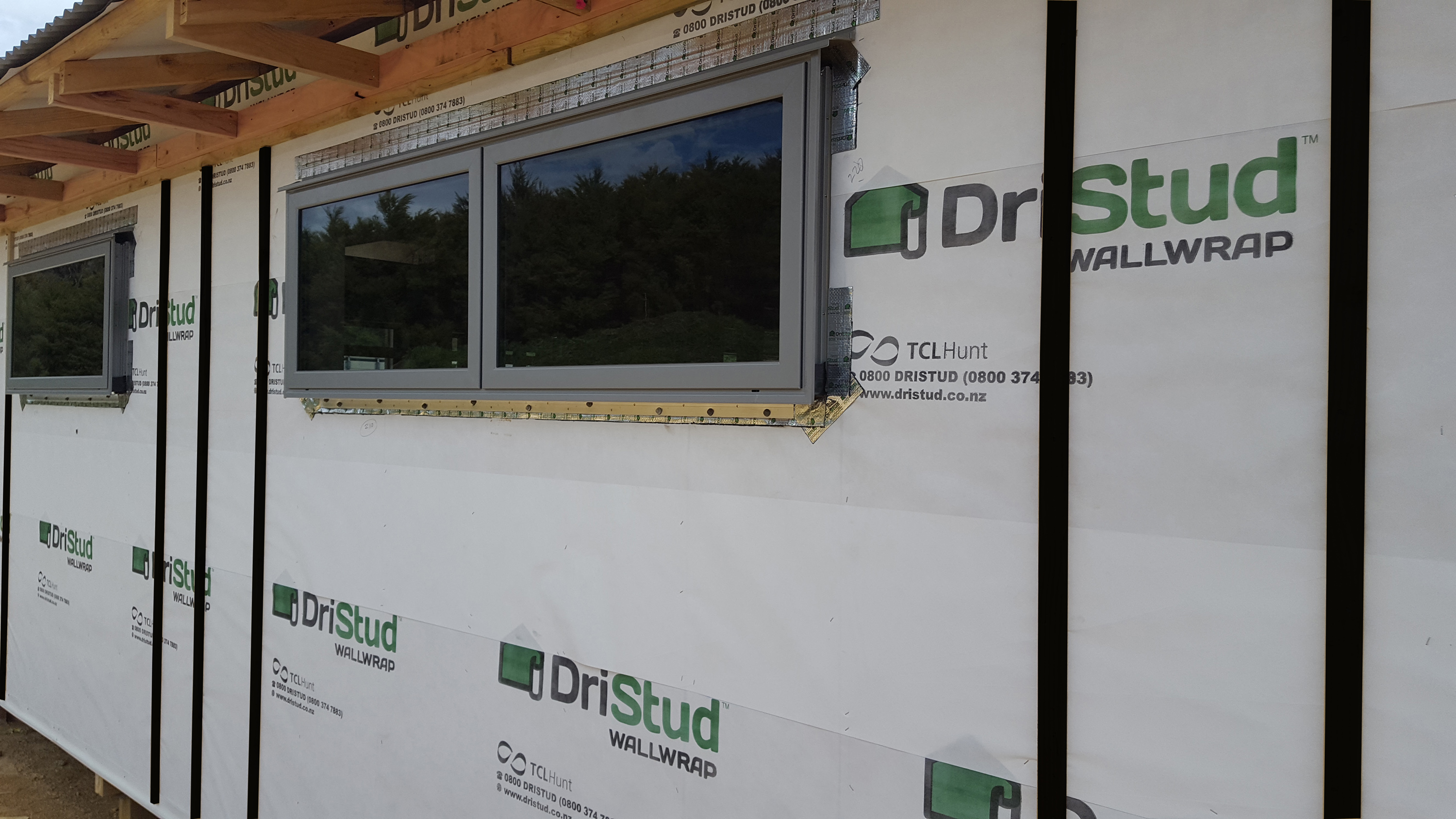

VB20 Wall Cavity Batten

VENT

View Product

The VENT Wall Cavity Batten consists of extruded fluted battens designed use as non-structural cavity battens in cavity-based wall cladding systems. The VENT Wall Cavity Batten is designed for use with timber framed buildings.

Pre-Consumer Recycled Content

The VENT Wall Cavity Batten has been appraised for use as a non-structural cavity batten for use with non-structural wall cladding systems on timber framed buildings with the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and
with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and
with cavity-based wall cladding systems complying with NZBC Acceptable Solutions E2/AS1 or a valid BRANZ Appraisal that specifies a nominal 20mm (minimum 18mm) drained and vented cavity; and
situated in NZS 3604 Wind Zones up to and including Extra High

Note: The VENT Wall Cavity Batten can also be used on buildings subject to specific weathertightness design. Weathertightness design and detailing of these installations is the responsibility of the designer and is outside the scope of the BRANZ Appraisal.

Also suitable for use in the roof cavity

The VENT Wall Cavity Batten if designed, used and installed and maintained in accordance with the statements and conditions specified in the VENT technical documentation and BRANZ Appraisal 1099, will meet or contribute to meeting the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4 VENT Wall Cavity Batten meets the requirements for loads arising from wind and impact (i.e. B1.3.3 (h) and (j)). See Paragraphs 8.1 - 8.3 of BRANZ Appraisal 1099
Clause B2 DURABILITY: Performance B2.3.1(b), 15 years and B2.3.2 VENT Wall Cavity Batten meet these requirements. See Paragraph 9.1 to 9.3 of BRANZ Appraisal 1099
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 VENT Wall Cavity Batten when used to form a drainage cavity behind a cladding system will contribute to meeting this requirement. See Paragraphs 12.1 - 12.5 of BRANZ Appraisal 1099
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1 VENT Wall Cavity Batten meets this requirement and will not present a health hazard to people.

BRANZ Appraised
