EziSpec: The Smart Way to Get Specifications and Producer Statements Online

What is a PS1 and why is it important?

In New Zealand, a Producer Statement Design (PS1) is a crucial document that certifies a building project's compliance with the New Zealand Building Code. It's an assurance that the design meets the required safety standards and regulations, offering peace of mind for specifiers, councils, and building owners alike.

The role of PS1 in balustrade projects

For projects involving glass and aluminium balustrades, obtaining a PS1 is essential for verifying the safety and compliance of the design. This document helps ensure the safety of occupants and expedites the council’s approval process by showing that your building work meets the necessary standards.

How UNEX simplifies the process

UNEX makes it easy to obtain PS1s for their balustrade systems. With many years of research and engineering behind each of their pre-designed configurations, their systems are rigorously tested to comply with New Zealand standards. They provide readily available PS1s for all their balustrades, making the council sign-off process quicker and more cost-effective.

Introducing EziSpec — a smarter way to get your PS1s

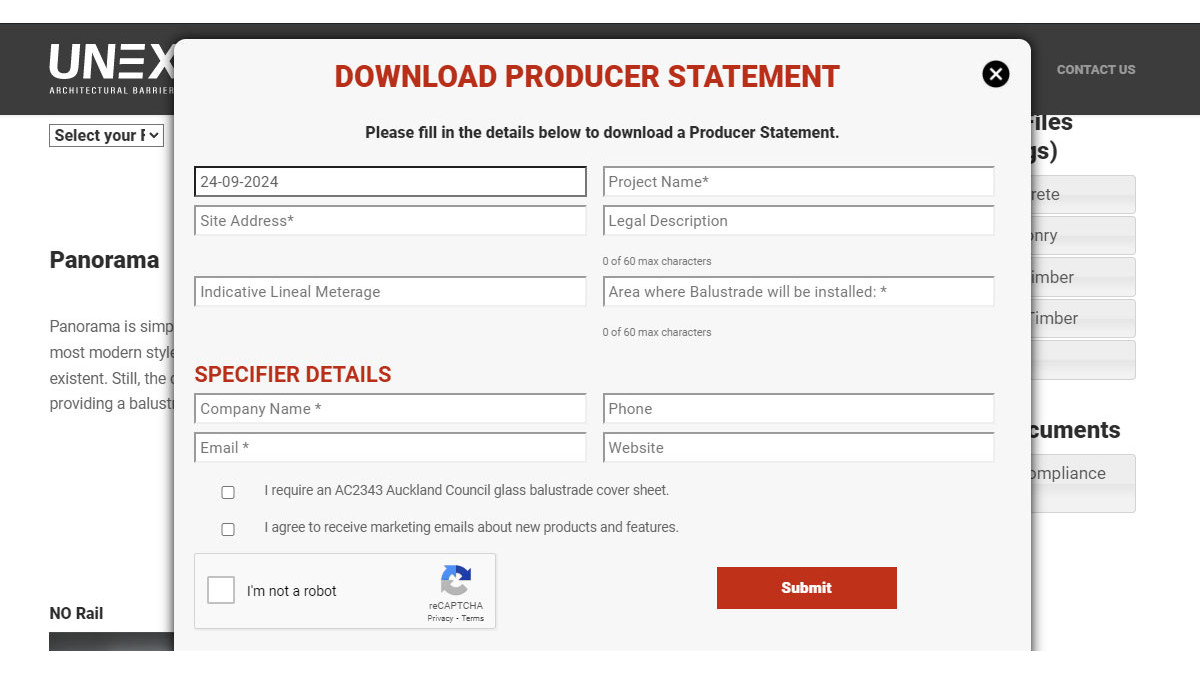

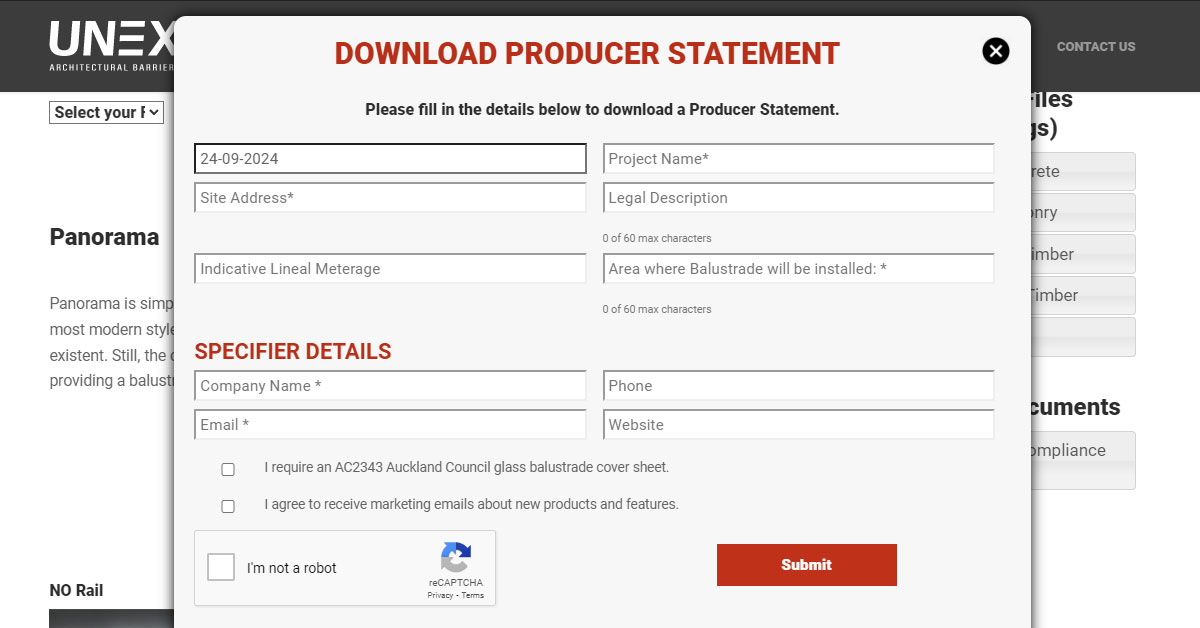

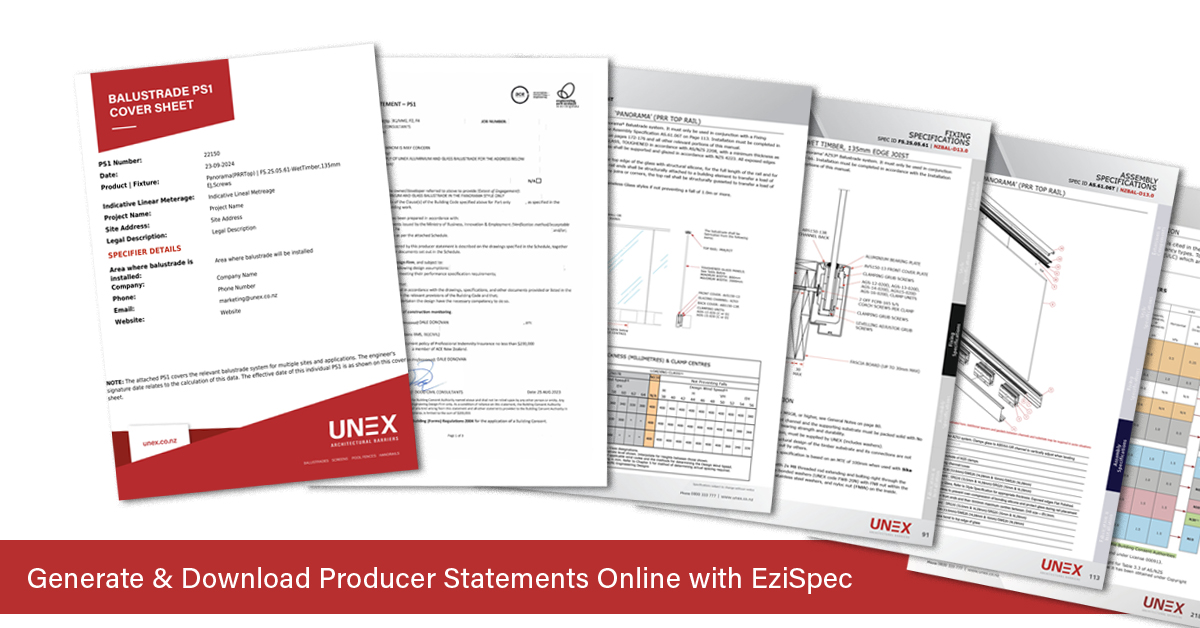

What if you’re looking for an even easier and faster way to generate a UNEX Systems PS1 and specifications? That’s where UNEX's innovative online tool, EziSpec, comes into play. Available through UNEX's technical portal, EziSpec allows you to select your desired style, top rail, and fixing type using a series of drop-down menus.

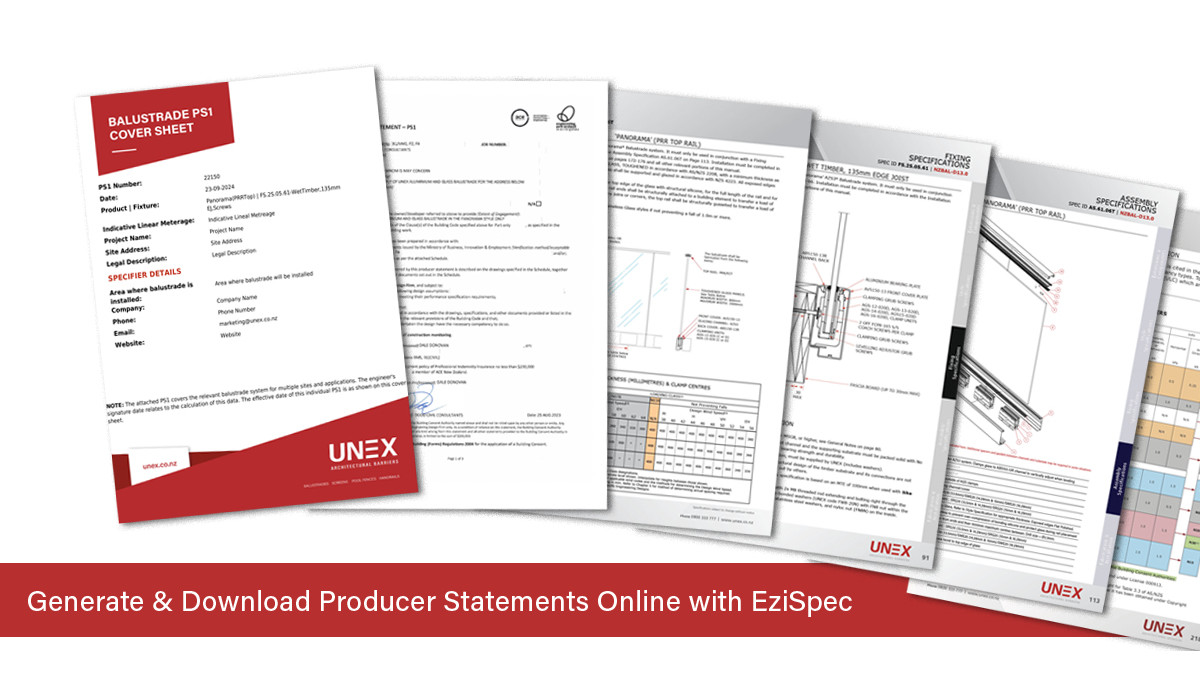

From there, you can enter key details such as client names and site addresses, and with the click of a button, EziSpec automatically compiles a single PDF containing all the necessary specifications and the Producer Statement for your project.

Download a PS1 here

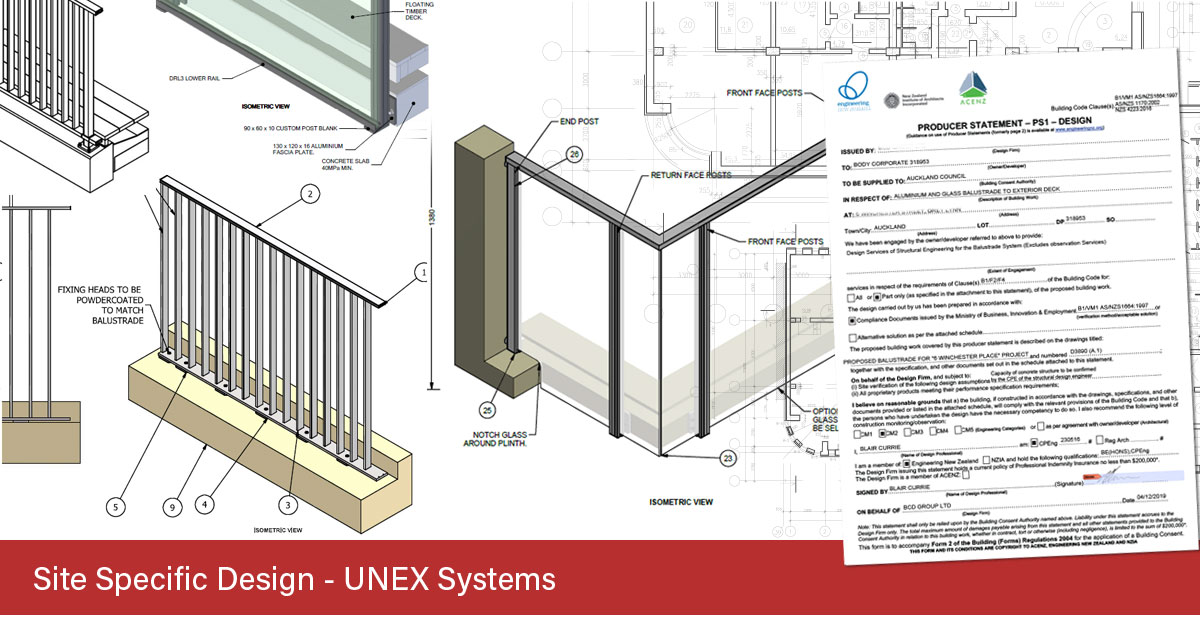

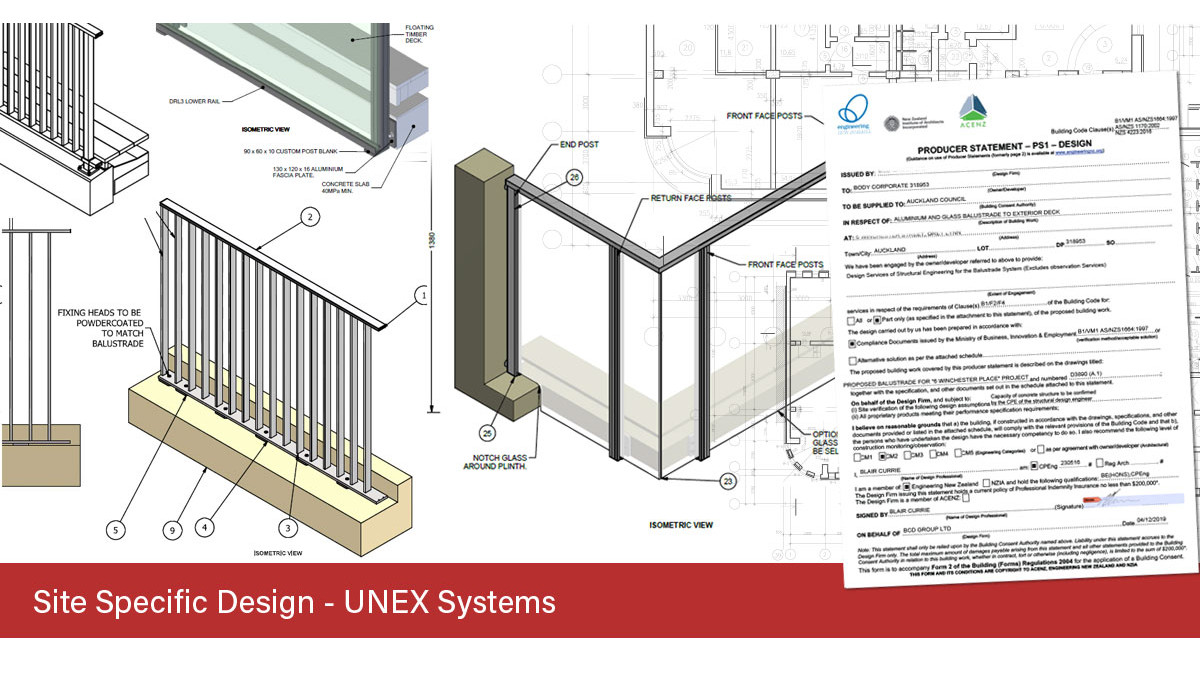

Site-specific PS1s for complex projects

For more complex builds requiring site-specific PS1s, UNEX's engineers are ready to conduct a detailed evaluation of your handrail and balustrade design. UNEX ensures compliance with the New Zealand Building Code, so you can rest easy knowing your project is in safe hands. While generic PS1s are often sufficient, UNEX also provides bespoke, site-specific solutions tailored to your project’s unique needs (additional fees apply).

Request a Site-Specific Design

Guidance on the use of producer statements

There’s often confusion about when and where Producer Statements are required. Here's a quick overview of the types of Producer Statements and how to obtain them through UNEX:

PS1 Design Producer Statement: Available via the EziSpec tool on UNEX's Technical Portal
PS2 Design Review Producer Statement: A review of UNEX's PS1 by an independent CPENG engineer, available upon request (rarely needed).
PS3 Installation Producer Statement: Supplied by the fabricator, verifying installation according to the PS1.
PS4 Installation Review Producer Statement: A review of the PS3 and the physical installation, usually by an independent third party (rarely needed).

Need help? Contact the UNEX team
UNEX's technical experts are always available to provide support and consultation for your unique project needs. Contact UNEX at [email protected] or call the UNEX team on 0800 333 777 for prompt and personalised assistance.

Finline Balustrade

Unex Systems

View Product

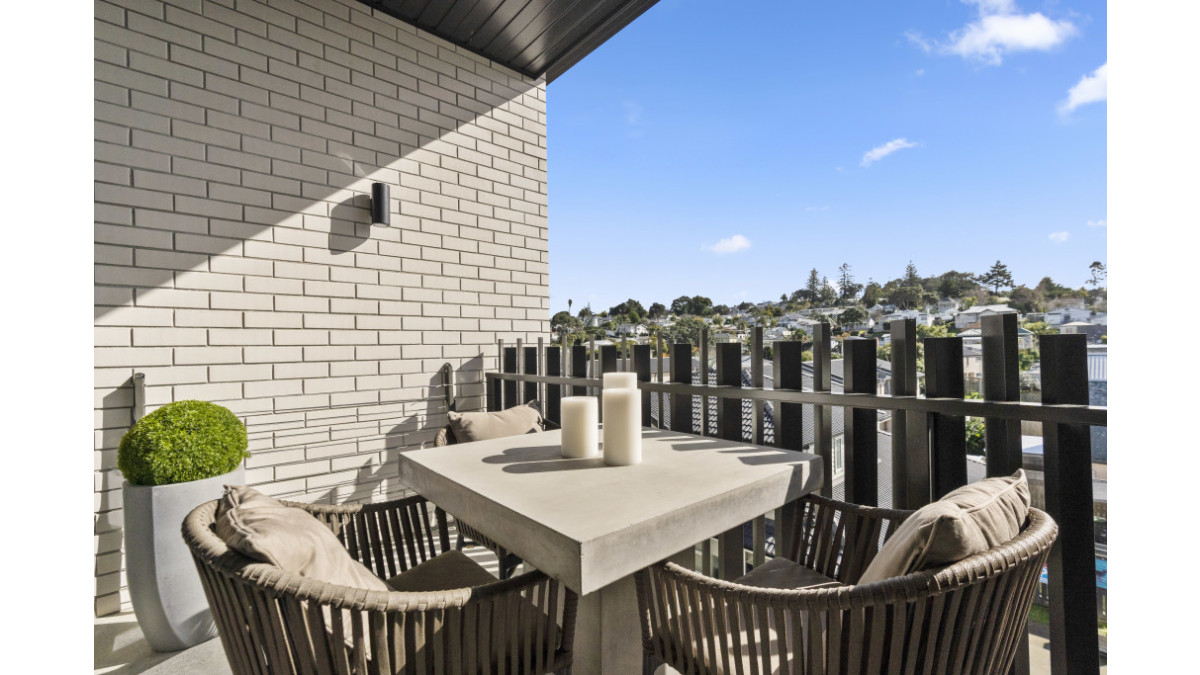

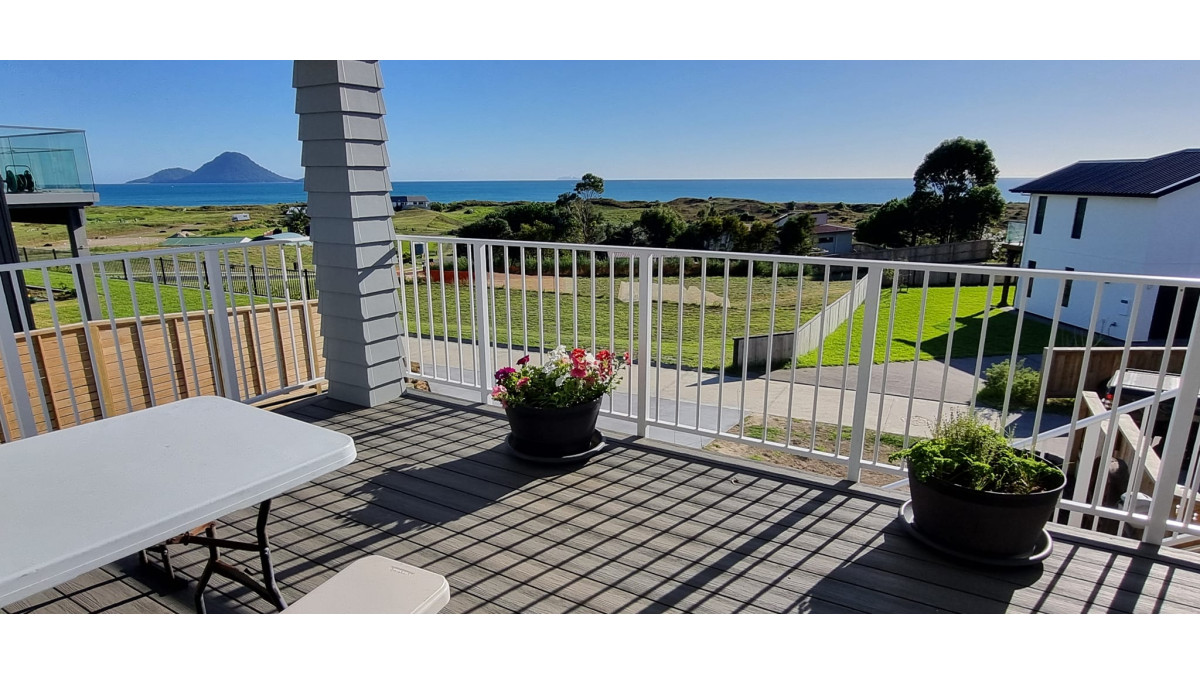

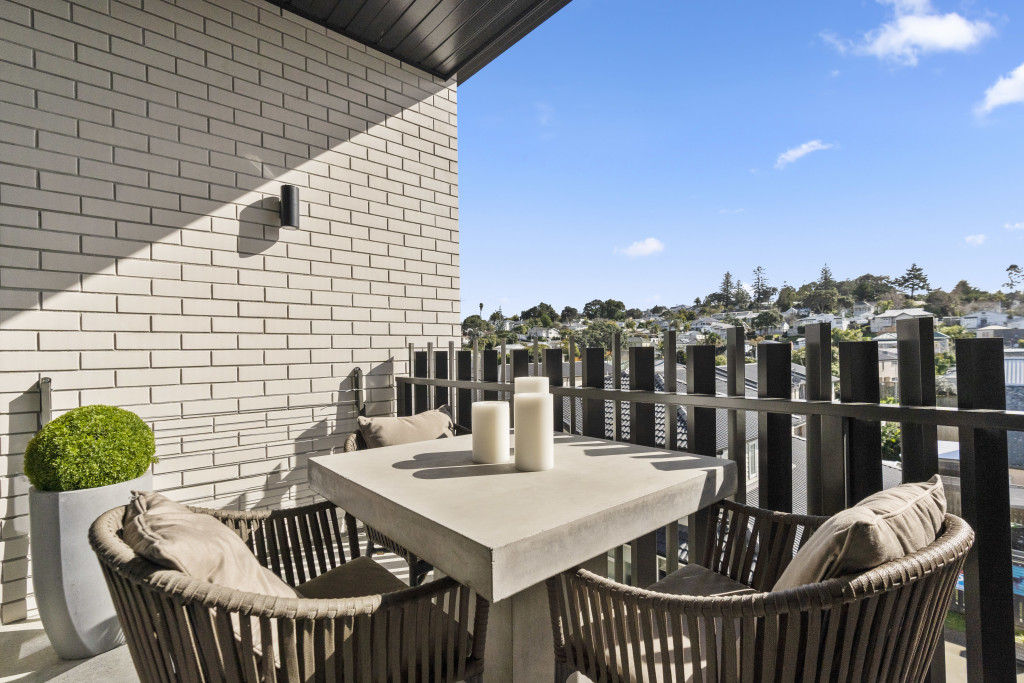

The newest addition to the UNEX product portfolio, the Finline’s modern, vertical style is both visually striking and extremely versatile.

Suitable for both interior and exterior applications including pool fencing, balconies, breezeways and stairwells.

Unex has created pre-engineered balustrade solutions which take the guesswork out of the compliance process for projects at every scale. Our engineering team regularly provides unique, one-off solutions for any architect or specifier, who is looking to push the boundaries of 'normal' design.

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.4(a)
Clause B2 Durability: Performance B2.3.1(a)
Clause F2 Hazardous building materials: Performance F2.3.3(a), F2.3.3(b)
Clause F4 Safety from falling: Performance F4.3.1, F4.3.2, F4.3.3, F4.3.4(a), F4.3.4 (b), F4.3.4(c), F4.3.4(d), F4.3.4(e), F4.3.4(f), F4.3.4(g), F4.3.4(h), F4.3.5(a), F4.3.5(b)

Complies with AS/NZS 1170, NZS3603, AS/NZS1664, AS/NZS 2208 and NZS 4223.3 2016

Extreme Balustrade — Framed Glass

Unex Systems

View Product

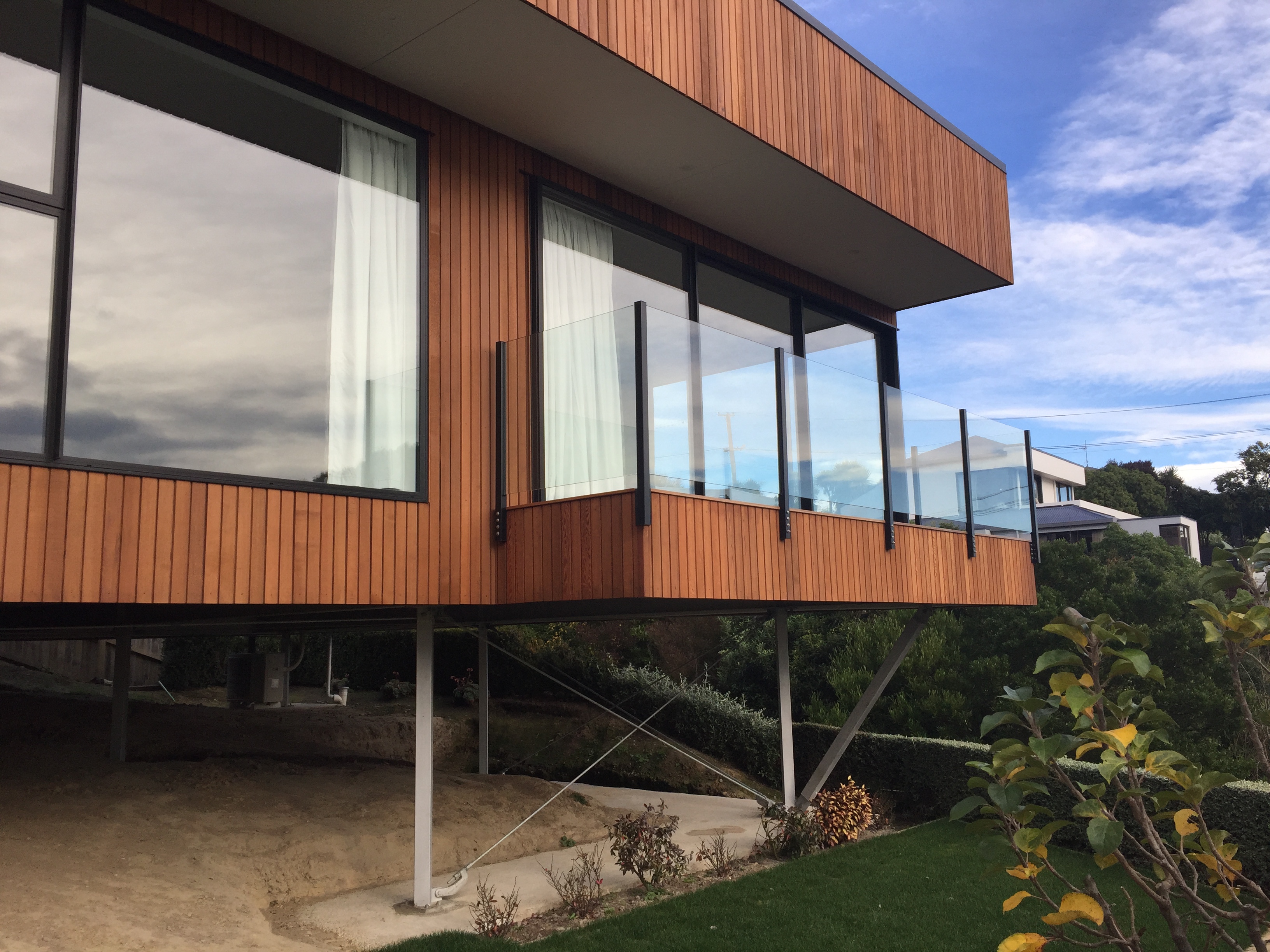

UNEX Extreme Barriers are specifically engineered to comply with the extremely heavy liveload classes 'C1/C2', 'D' or 'C5' of the New Zealand Building Code legally required for public and crowded areas.

NZ-Owned Business

UNEX's Extreme Barriers Style has two ranges — X1500 Series and X3000 Series

The X1500 Series is designed to meet classifications C1/C2 and D of AS/NZS 1170.1, which stipulates a 1.5kN/m load on the top edge — twice the load required on a typical residential application
The X3000 Series is designed to meet classifications C5 of AS/NZS 1170.1 which stipulates a 3.0kN/m load on the top edge — four times the load required on a typical residential application.

The Extreme Framed Glass Styles are typically used for, but not limited to:

Grandstands
Gymnasiums
Sports and surf clubs
Shopping centres and retail areas
Restaurants, cafes, and bars
School halls, and public pavilions

Extreme Barriers are also suited to other situations where large post spacings, a bulkier look or additional height is required.

There is a wide range of fixing options available for both suits to fix to steel, timber and concrete applications. Site-specific specifications may also be provided upon request for those non-standard situations.

UNEX has designed its Extreme Barriers range to comply with the B1, B2, F2 and F4 requirements of the NZ Building Code and are suitable for occupancy types 'C1/C2', 'C5' and 'D' in accordance with AS/NZS 1170.1: 2002.

For more information, please refer to Unex's NZ Building Code Compliance document (right).

Producer Statements for all standard specifications can be created online in the registered area of the UNEX website.

For non-standard situations not covered by their specifications, a site-specific PS1 and specification may be prepared by Unex upon request.

Panorama Frameless Glass Balustrade

Unex Systems

View Product

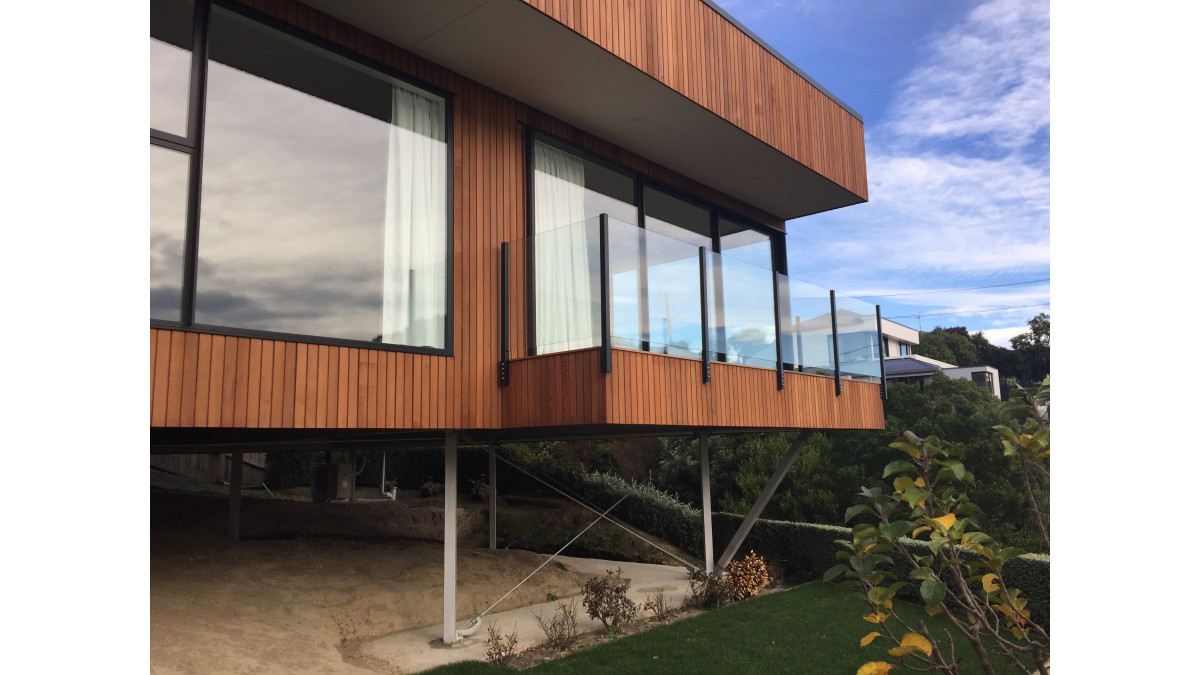

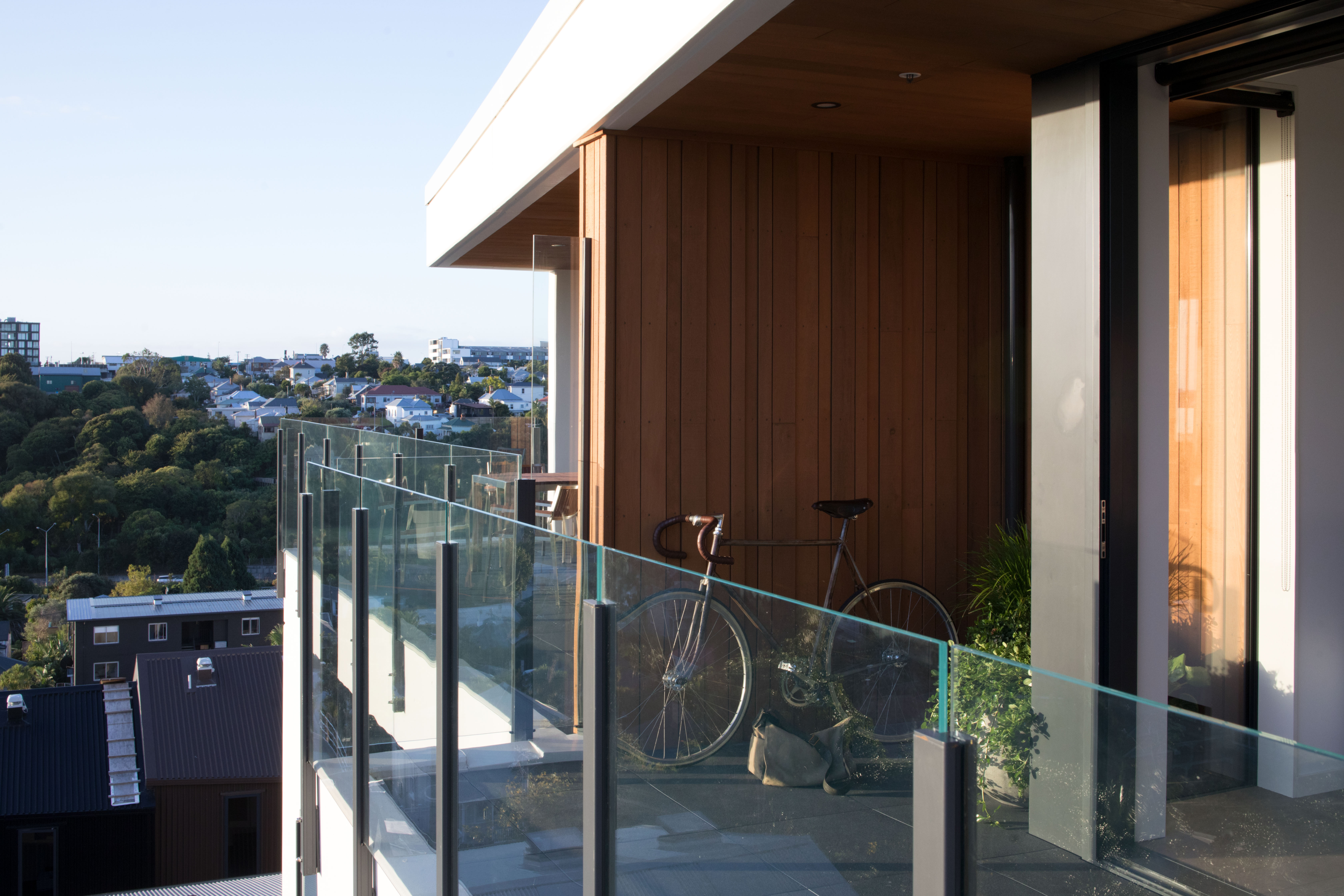

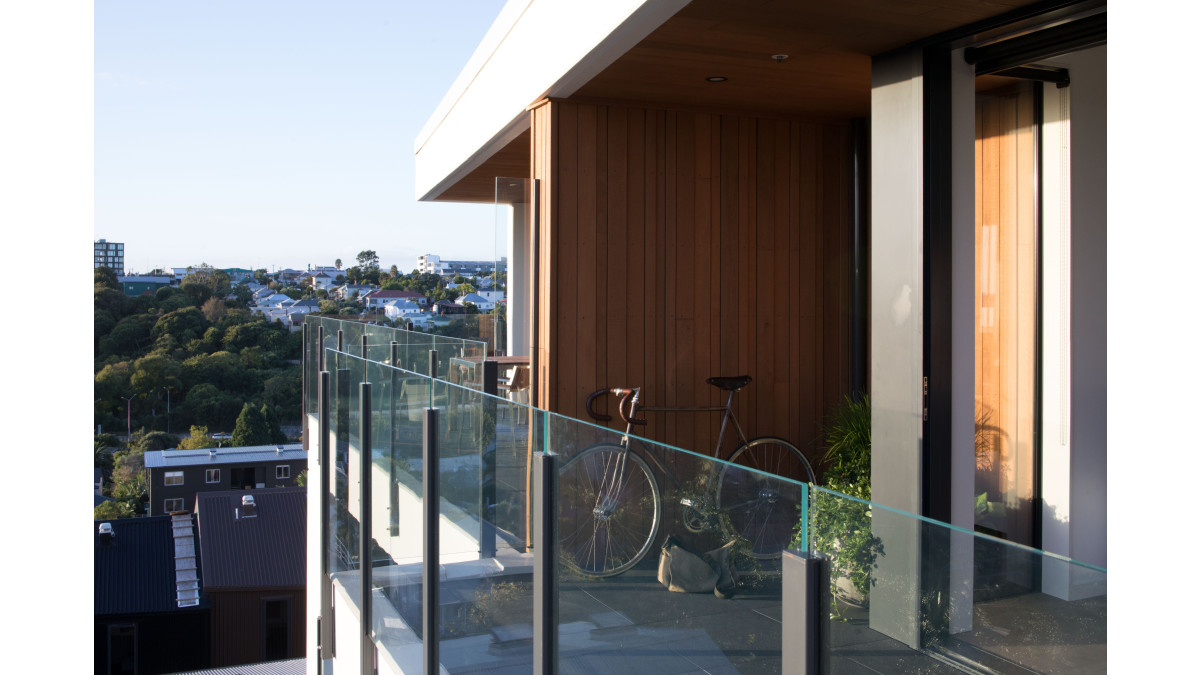

True to its name, the Panorama is simply superb for taking in those 360-degree views.

The AZS Side-Mount Channel by Unex Systems can be used for both external and internal applications, including decks, balconies, stairways and landings and pool fences, etc. Unex Systems’ Arena brand is designed to and complies with 'A', 'B', 'E' and 'C3' loadings of AS/NZS 1170.1:2002 for residential applications, office and work areas, as well as areas for moving people without obstacles.

There is a number of standard fixing options available to fix to the side of dry timber (with water-proofing considerations), wet/open timber, steel PFC and concrete substrates. Site-specific specifications may also be provided upon request for those non-standard situations.

Unex Systems has designed its Arena range to comply with the B1, B2, F2 and F4 requirements of the NZ Building Code and are suitable for occupancy types 'A', 'B', 'E' and 'C3' in accordance with AS/NZS 1170.

Producer Statements for all standard specifications can be created online in the registered area of the Unex Systems website.

For non-standard situations not covered by our specifications, a site-specific PS1 and specification may be prepared by Unex Systems upon request.
