Finline Balustrade
Description

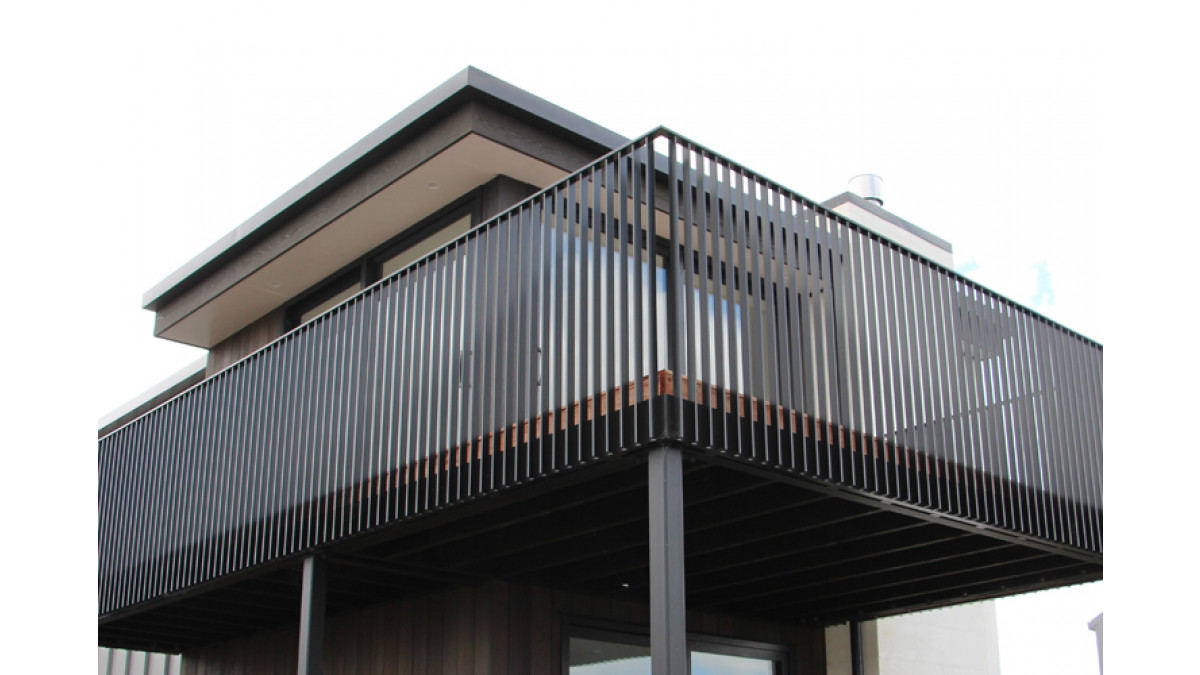

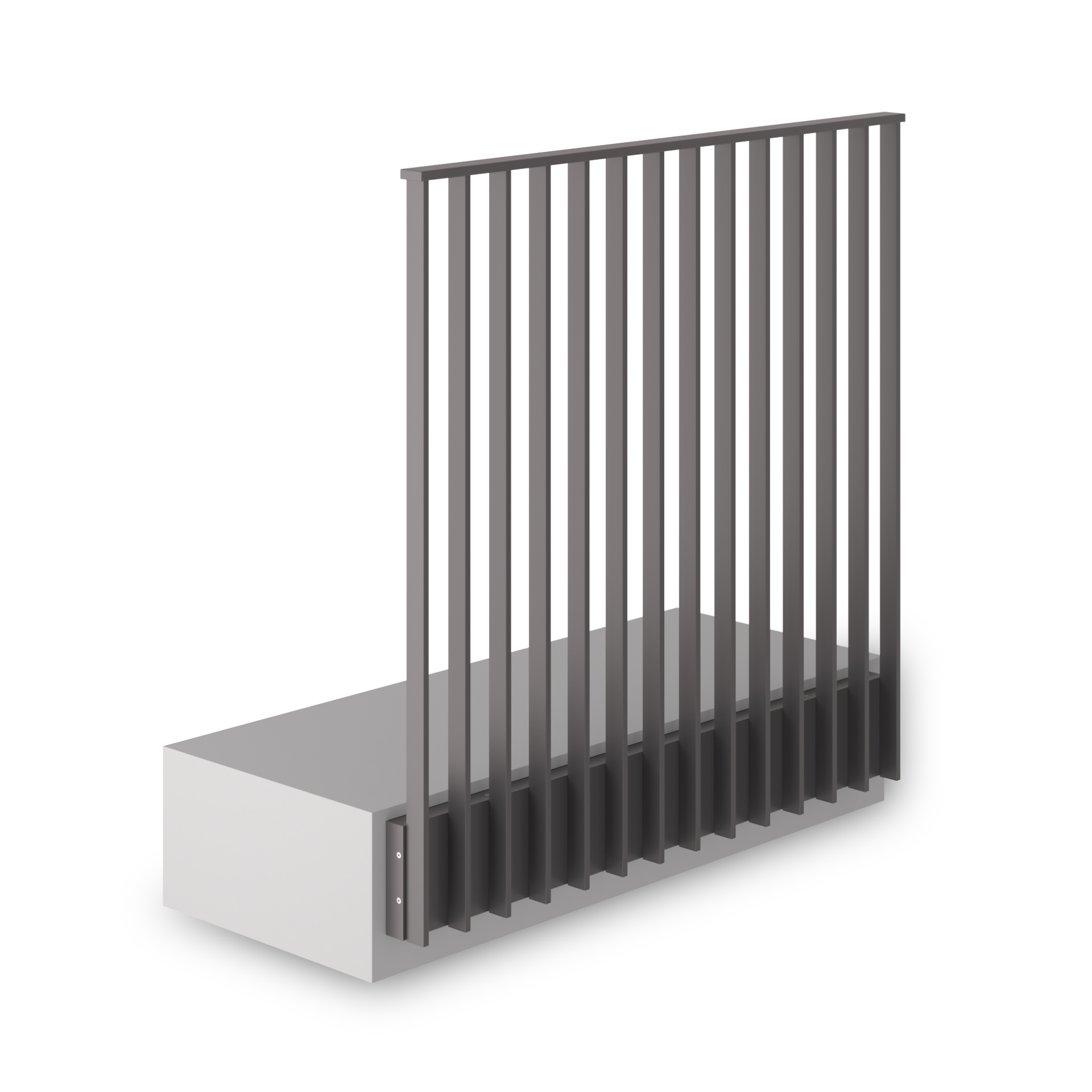

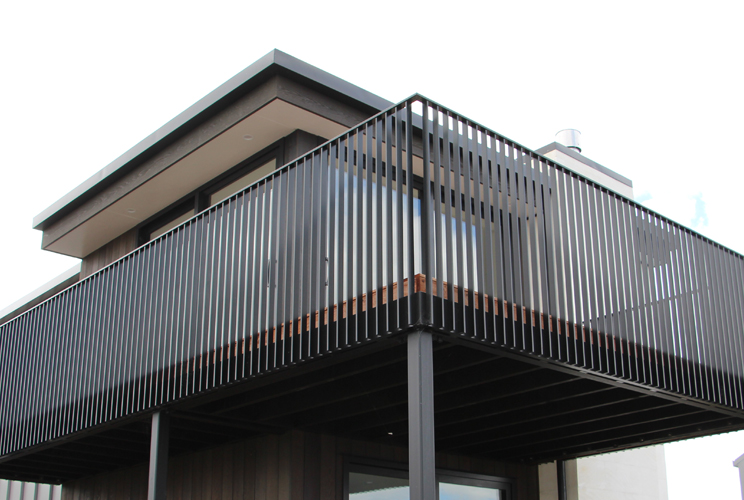

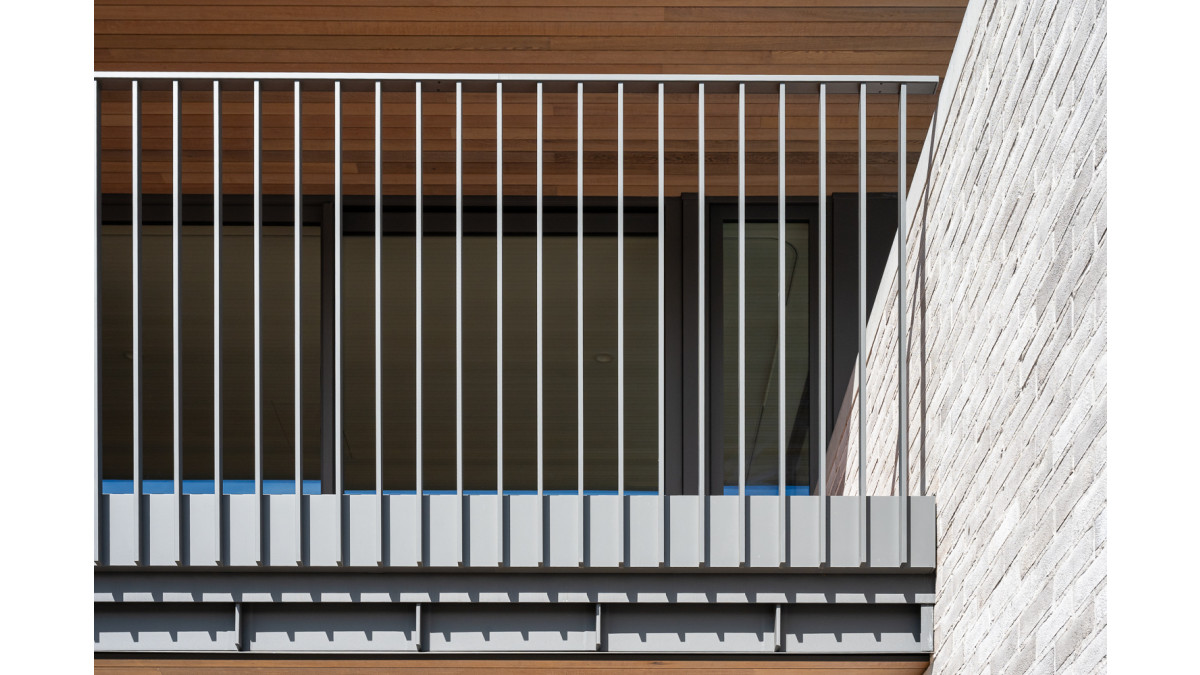

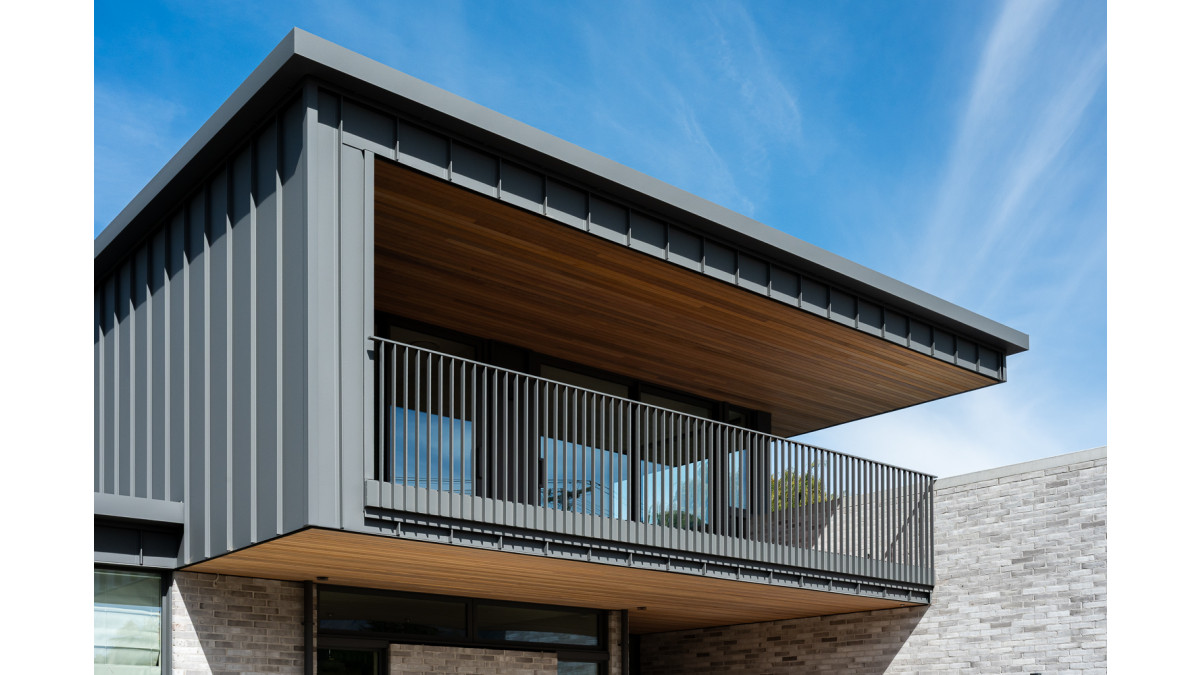

The newest addition to the UNEX product portfolio, the Finline’s modern, vertical style is both visually striking and extremely versatile.  Its narrower spacing can be side-mounted to the outside face of a balcony or terrace for a complete edge solution.  More than a just a balustrade, the Finline acts as a screen to obscure unsightly features or create a statement in an otherwise flat façade.

Key Features
  • Pre-engineered solutions
  • Designed for standard heights up to 1200mm from finished deck level
  • Wide range of finish options — can be powdercoated or anodised in all standard Dulux colours
  • Standard specifications available for timber, steel or concrete
  • Specifications for non-standard situations may be provided by Unex Systems, upon request
  • Screws together with minimal, if any, welds required
  • Made from 6000 series extruded aluminium alloys
  • Installed only by Authorised Fabricators, available nationwide
  • Continuous rows of thin fins gives this balustrade system a very slim profile
  • These fins replace the need for solid posts
  • Concealed assembly fasteners, simple clean lines, tidy joints with no welds
Scope of Use

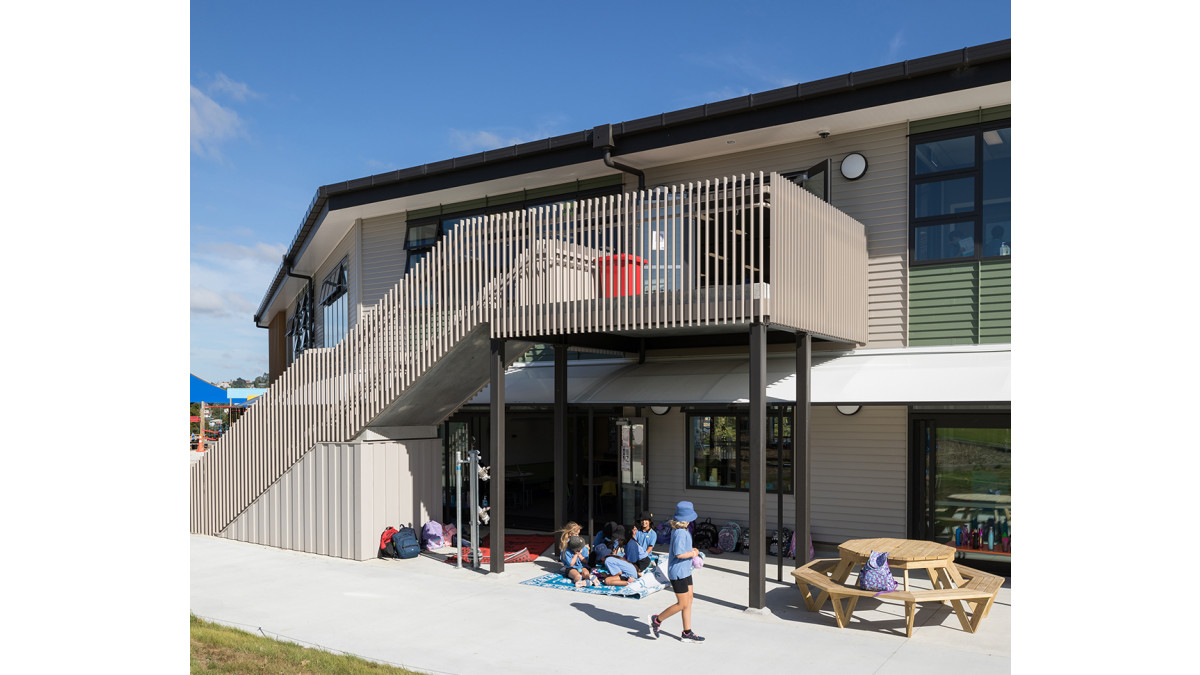

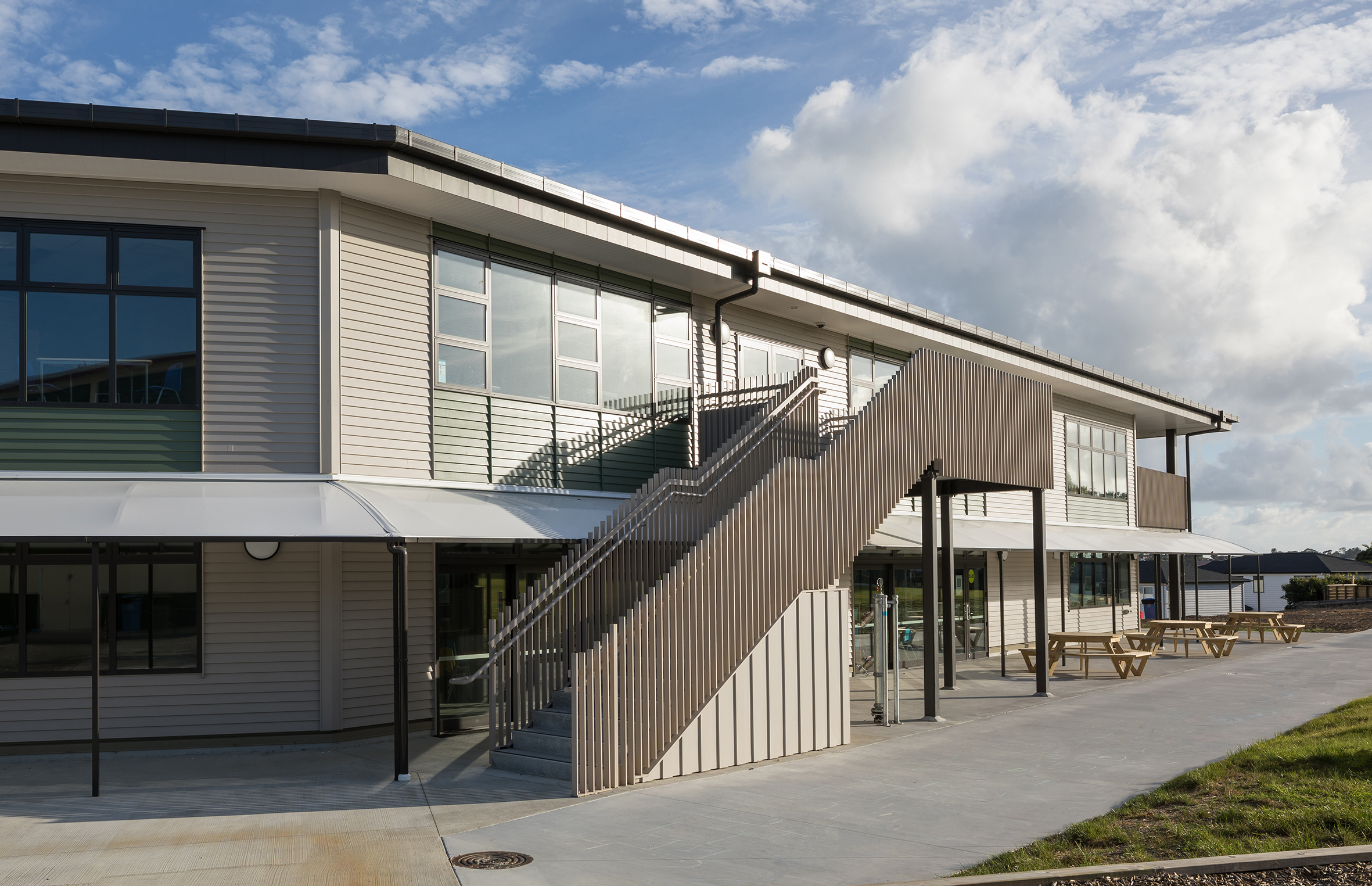

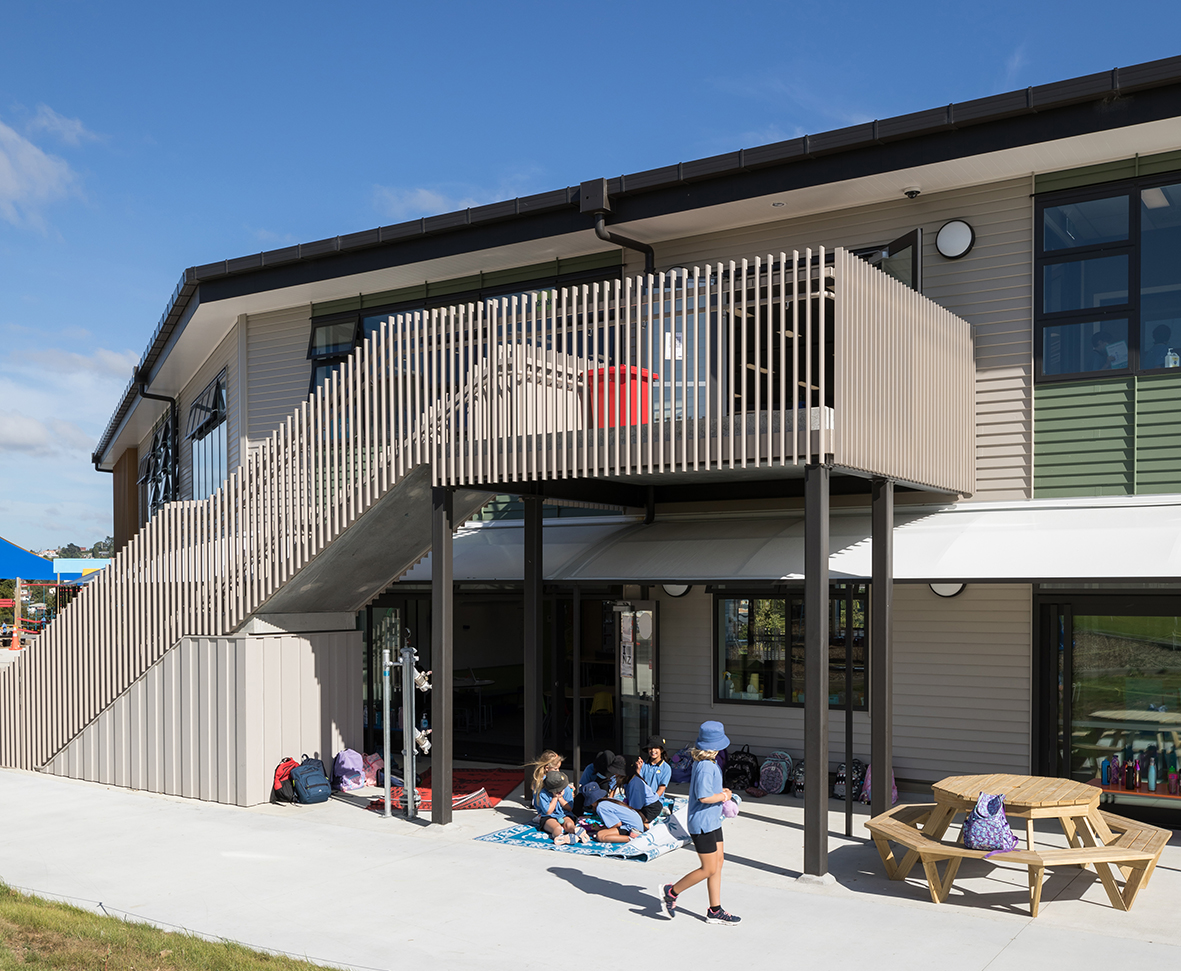

Suitable for both interior and exterior applications including pool fencing, balconies, breezeways and stairwells.

Unex has created pre-engineered balustrade solutions which take the guesswork out of the compliance process for projects at every scale. Our engineering team regularly provides unique, one-off solutions for any architect or specifier, who is looking to push the boundaries of 'normal' design.

Statement of Building Code Compliance

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B1 Structure: Performance B1.3.4(a)
  • Clause B2 Durability: Performance B2.3.1(a)
  • Clause F2 Hazardous building materials: Performance F2.3.3(a), F2.3.3(b)
  • Clause F4 Safety from falling: Performance F4.3.1, F4.3.2, F4.3.3, F4.3.4(a), F4.3.4 (b), F4.3.4(c), F4.3.4(d), F4.3.4(e), F4.3.4(f), F4.3.4(g), F4.3.4(h), F4.3.5(a), F4.3.5(b)

Complies with AS/NZS 1170, NZS3603, AS/NZS1664, AS/NZS 2208 and NZS 4223.3 2016

Other Performance Attributes

Powder coated in NZ with Dulux Duralloy finish or Duratec where AAMA 2604 performance is required.

Documents
NZ Building Code of Compliance
Producer Statement
Product Overview
UNEX Loading Classification
CAD/PDF Details
FS.1S.05.75 Finline Dry Timber 90mm Joist
FS.2S.05.75 Finline Wet Timber 135mm Joist
FS.2S.06.75 Finline Wet Timber Bolts
FS.3S.19.75 Finline Concrete
FS.5S.17.75 Finline Steel
BIM

UNEX is a trusted partner in creating beautiful, secure outdoor living spaces, offering high-performing balustrades and more, including privacy screens, deck sub-frames, and outdoor amenity covers.
