Trespa Meteon Cladding Specified for NZGBC 5 Star

Trespa’s sustainability policy is the creation of high-quality and durable products; if a product is durable, it lasts longer and the environmental impact of its production is spread over a longer time.

Trespa is proud that the reference service life for Trespa Meteon panels is set at 50 years and a rating system for buildings.

Containing up to 70% natural fibres, the sustainable character of Trespa is expressed through its long-lasting performance.

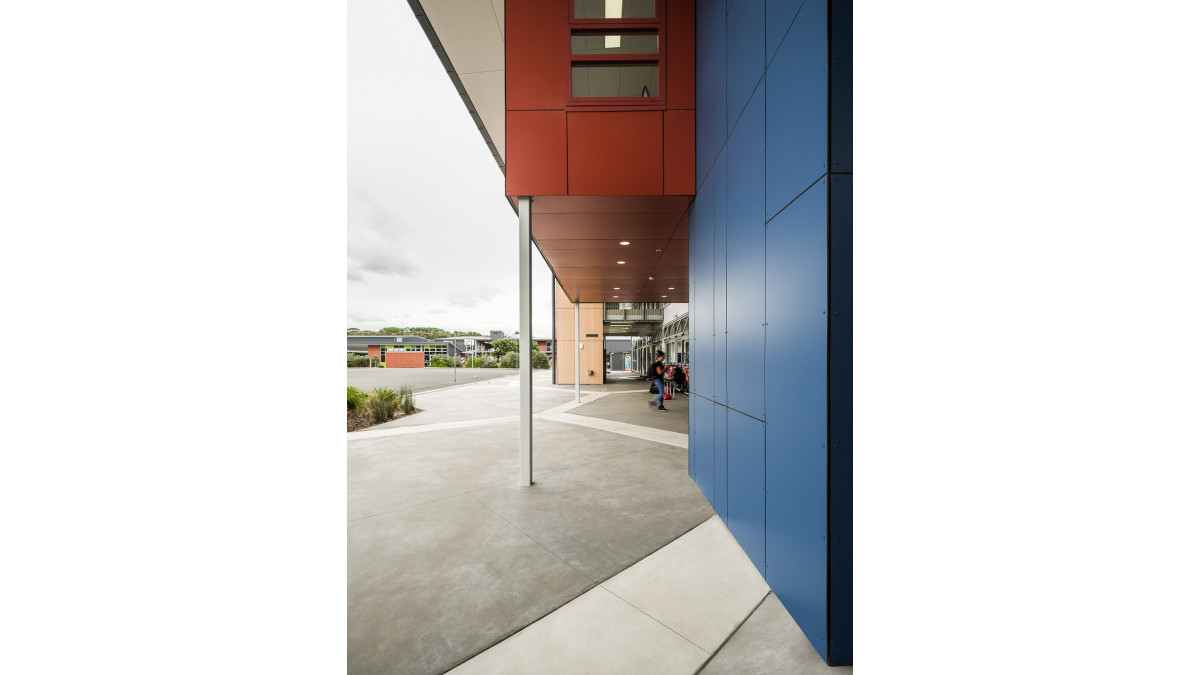

Trespa Meteon is a versatile, robust and UV stable cladding for innovative and functional ventilated facade systems.

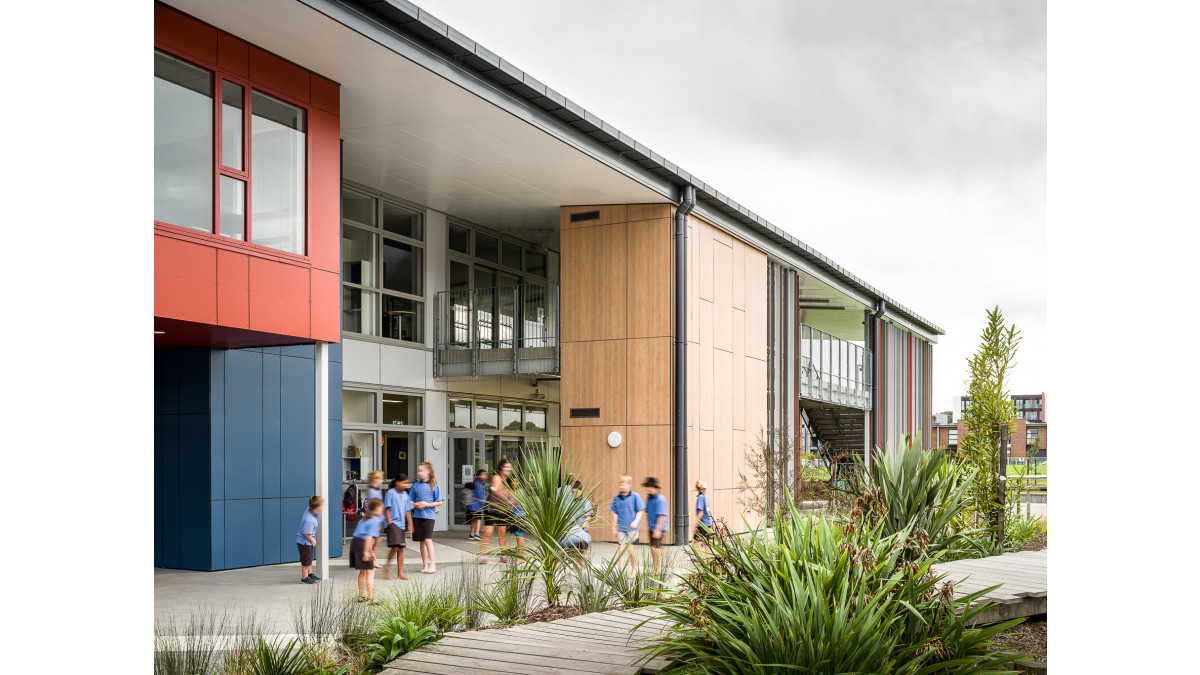

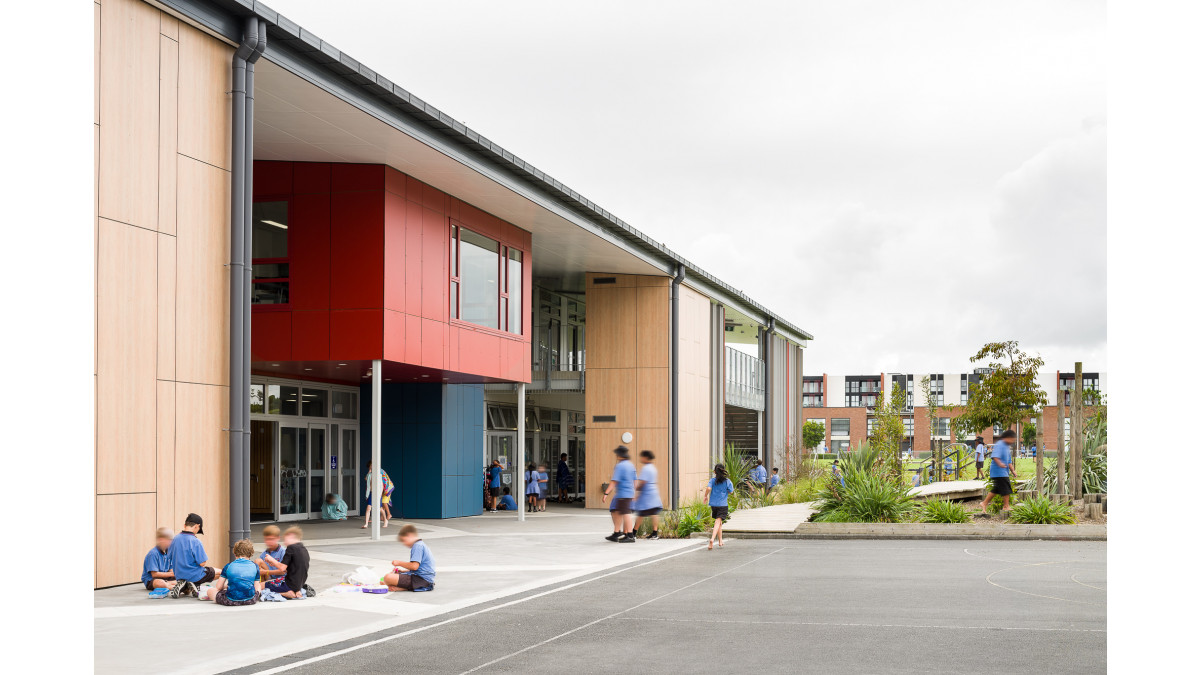

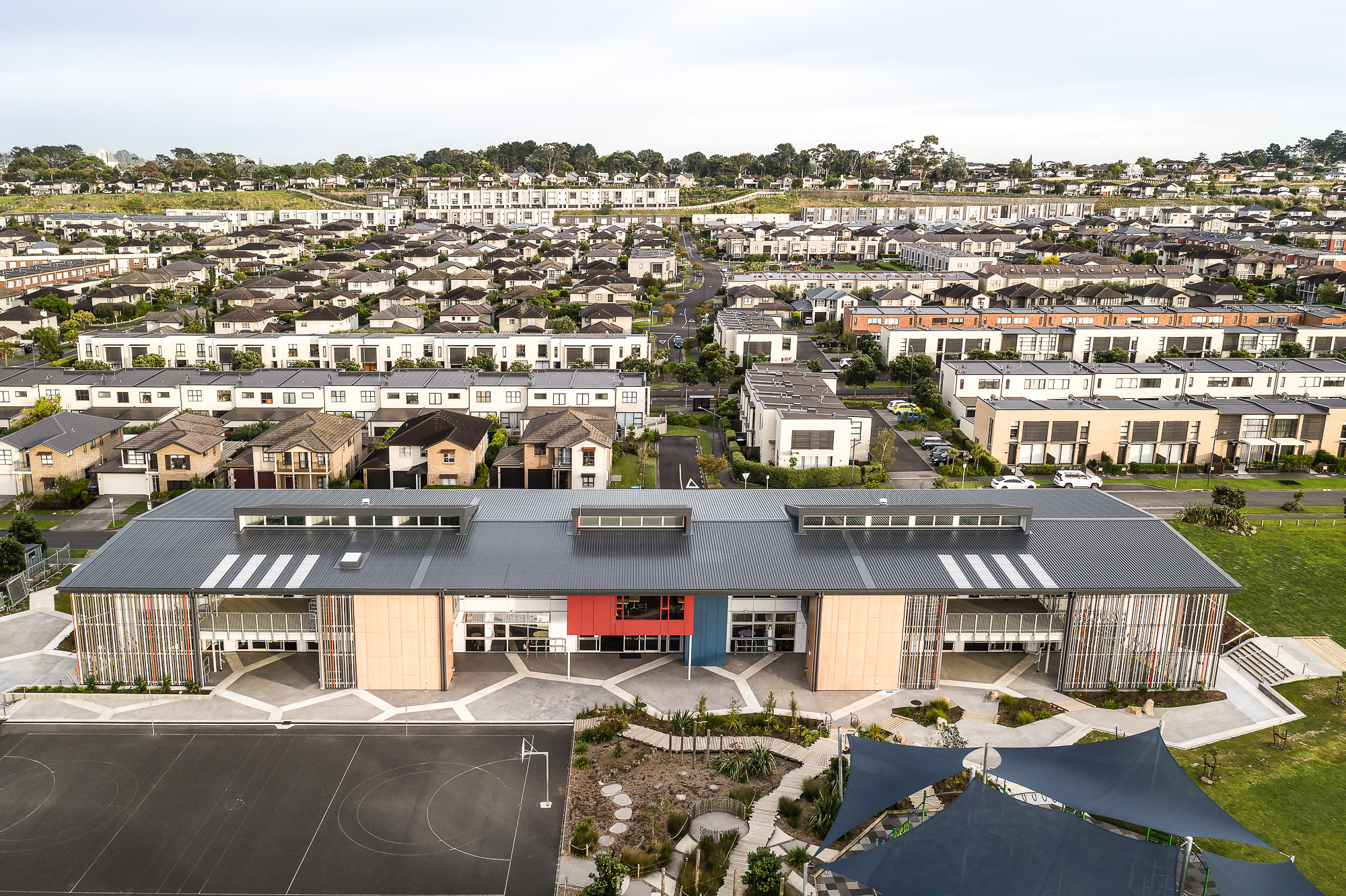

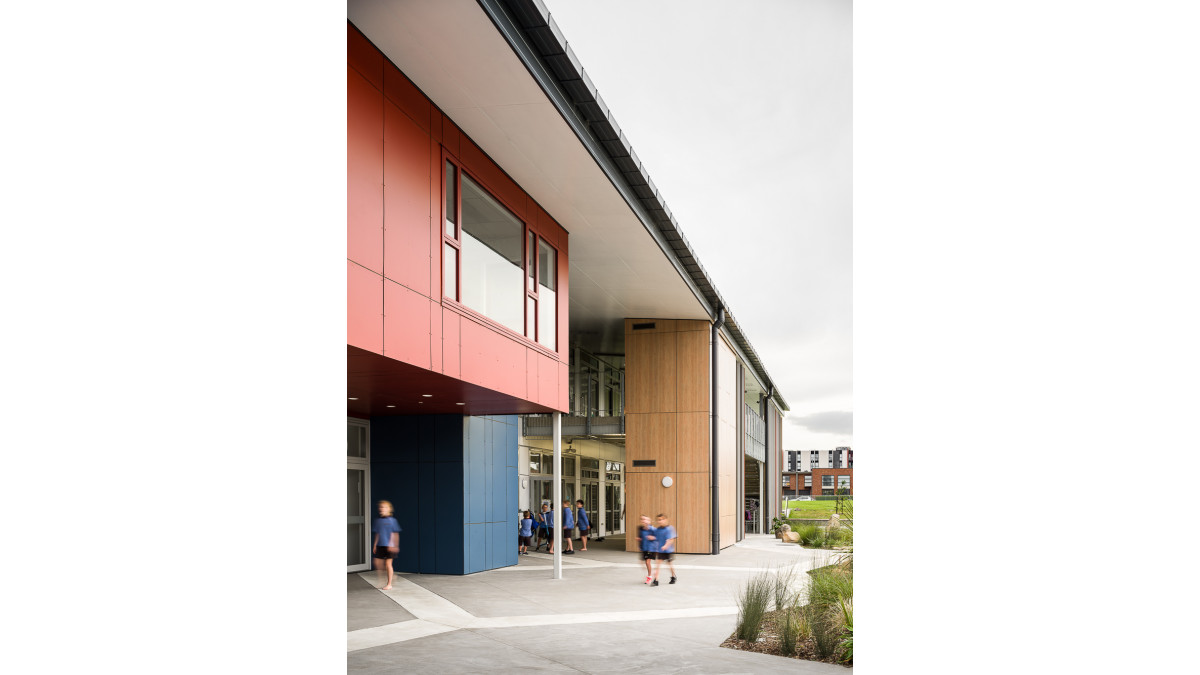

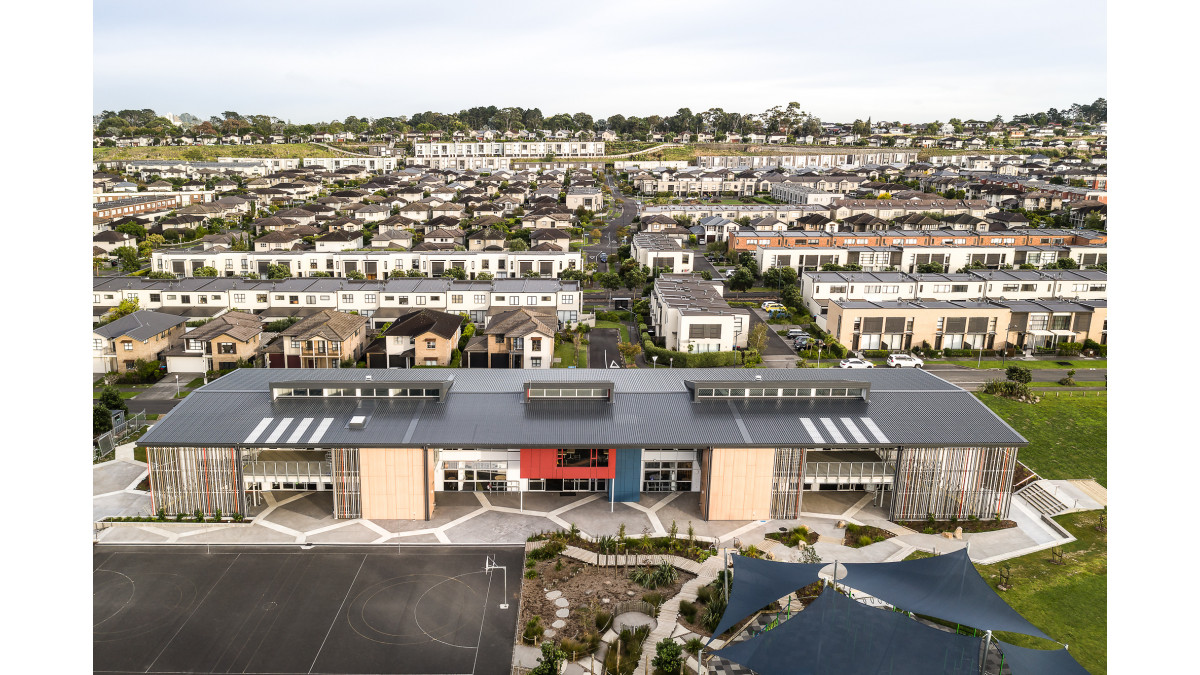

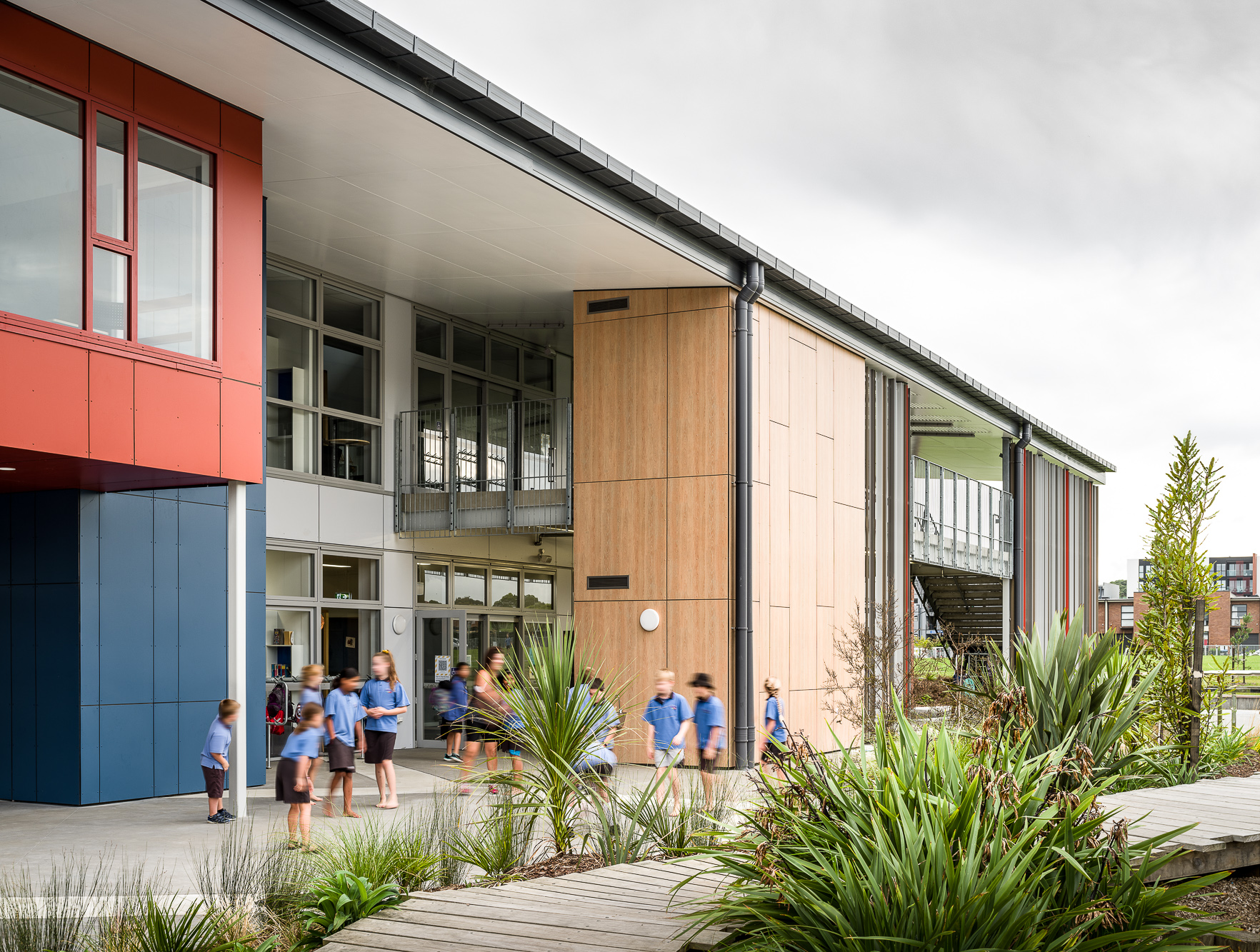

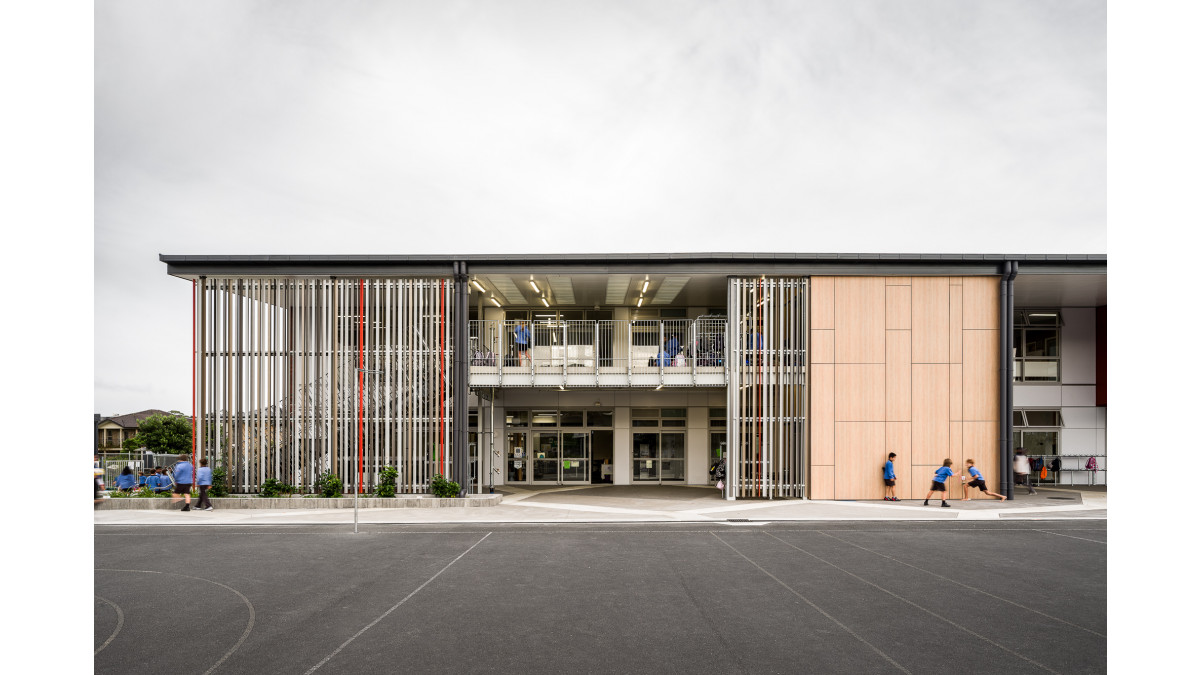

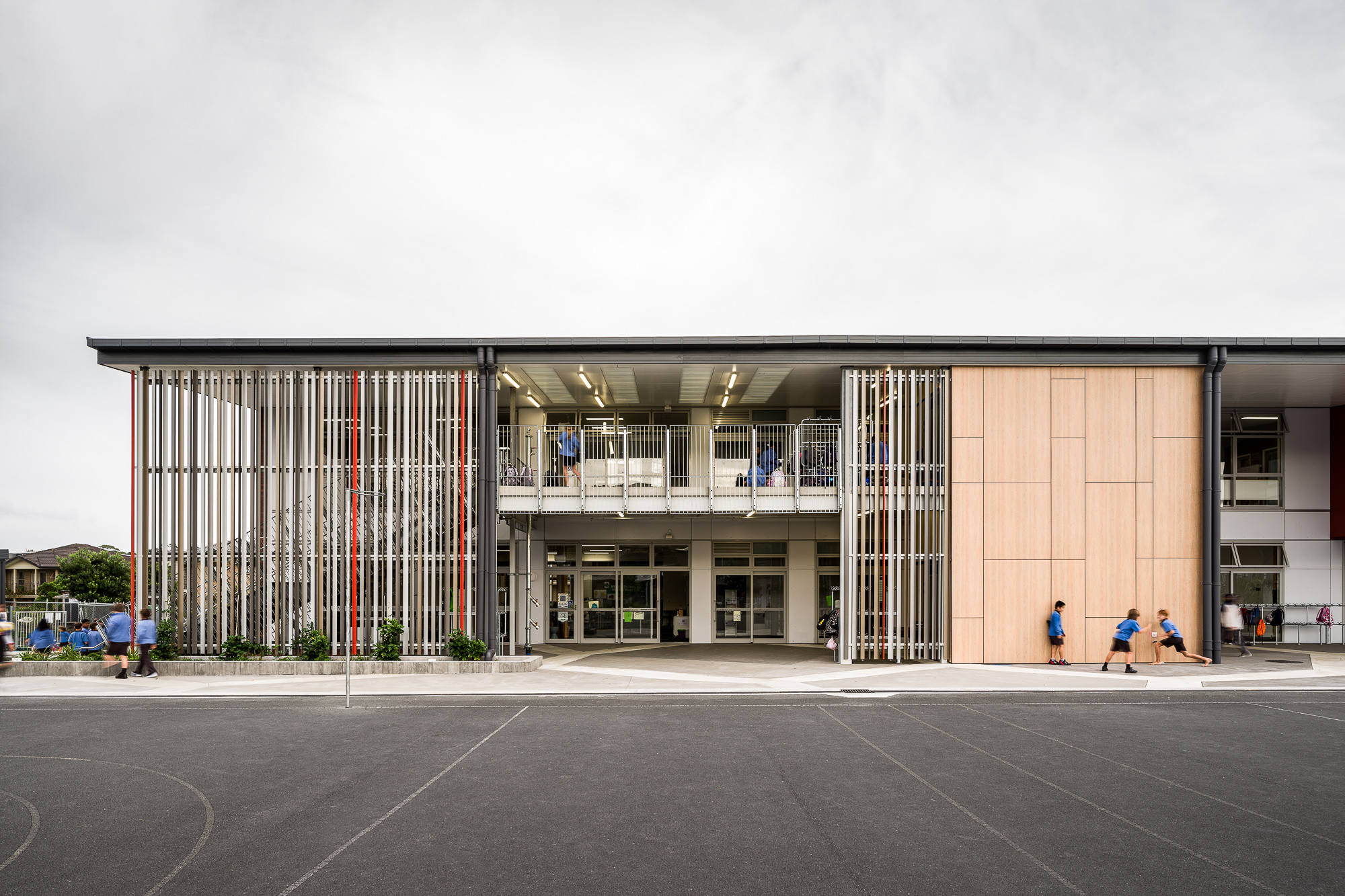

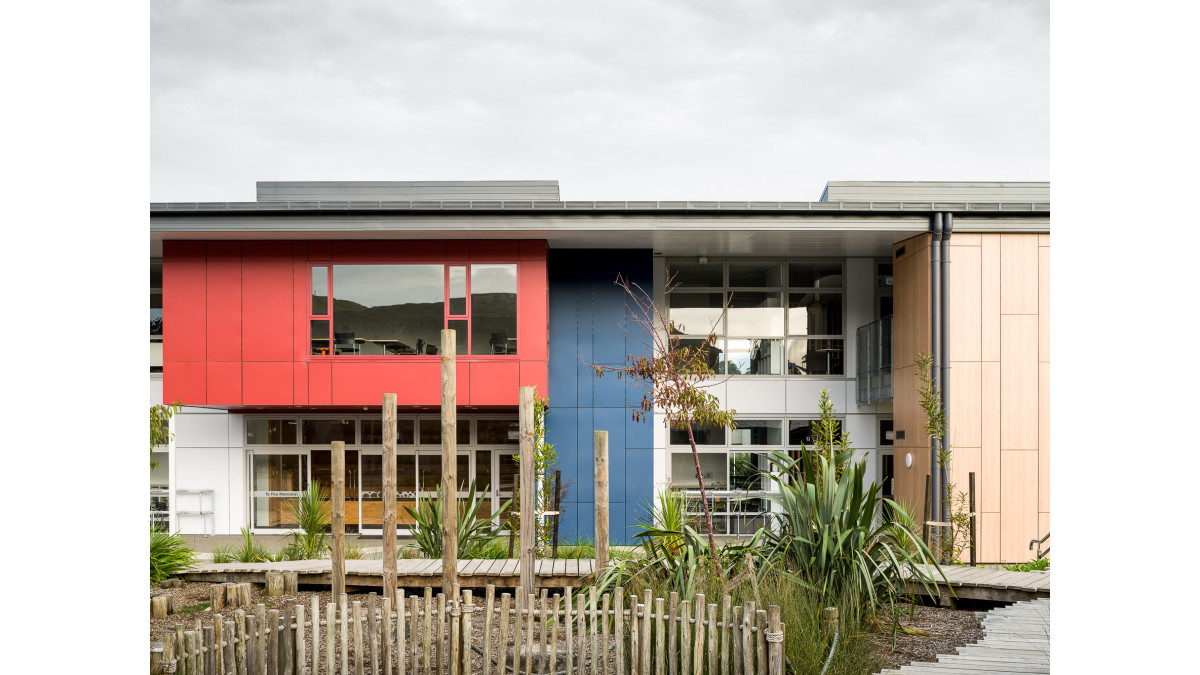

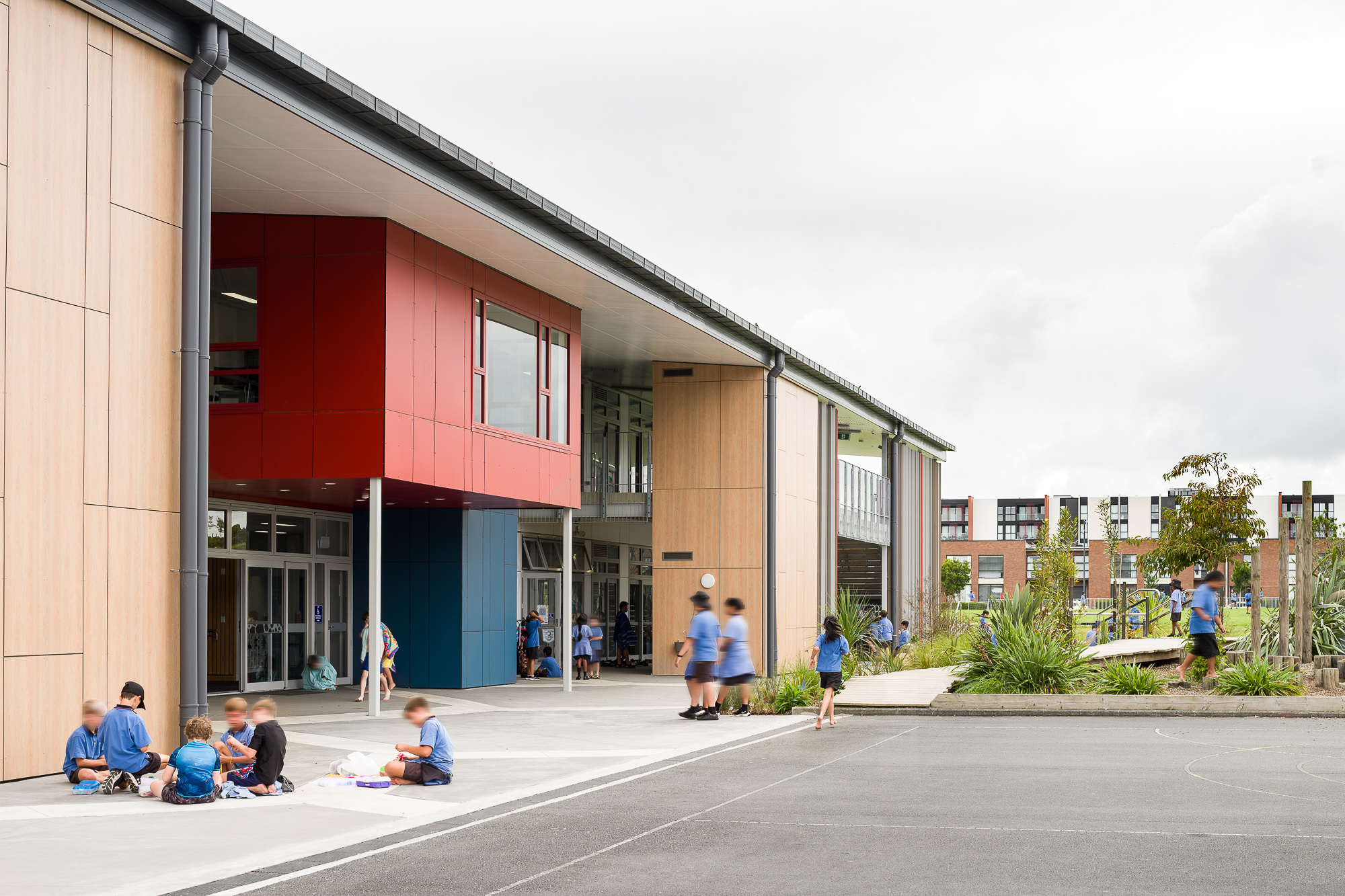

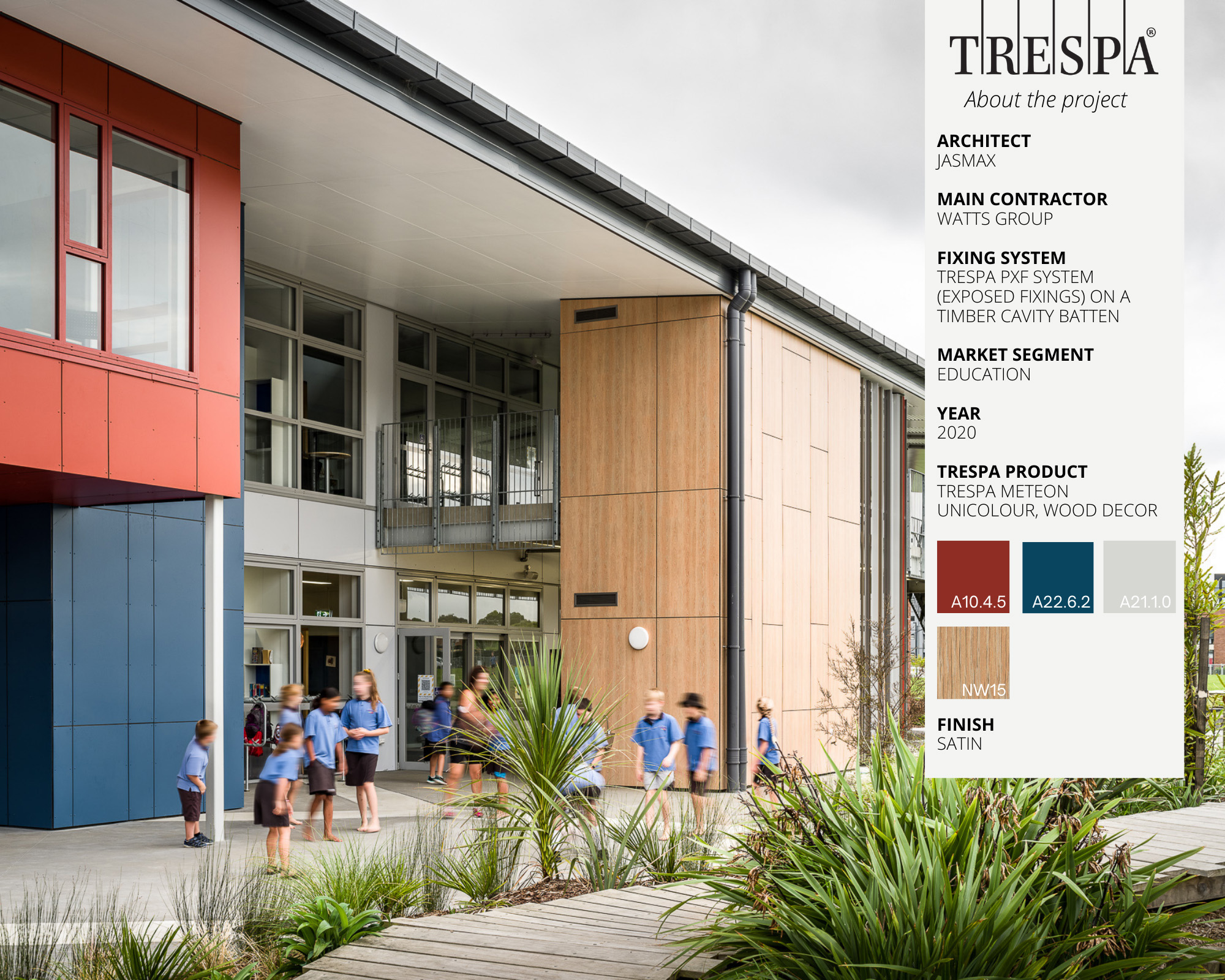

“I guess the main reason we have specified Trespa at Stonefields School has been its durability and low maintenance, in a busy primary school environment,” says Callum Dowie, Senior Associate, Jasmax.

Available in a broad range of colours, finishes, sizes and thicknesses, Trespa Meteon brings compelling aesthetics and nearly limitless design possibilities to next-generation architectural claddings.

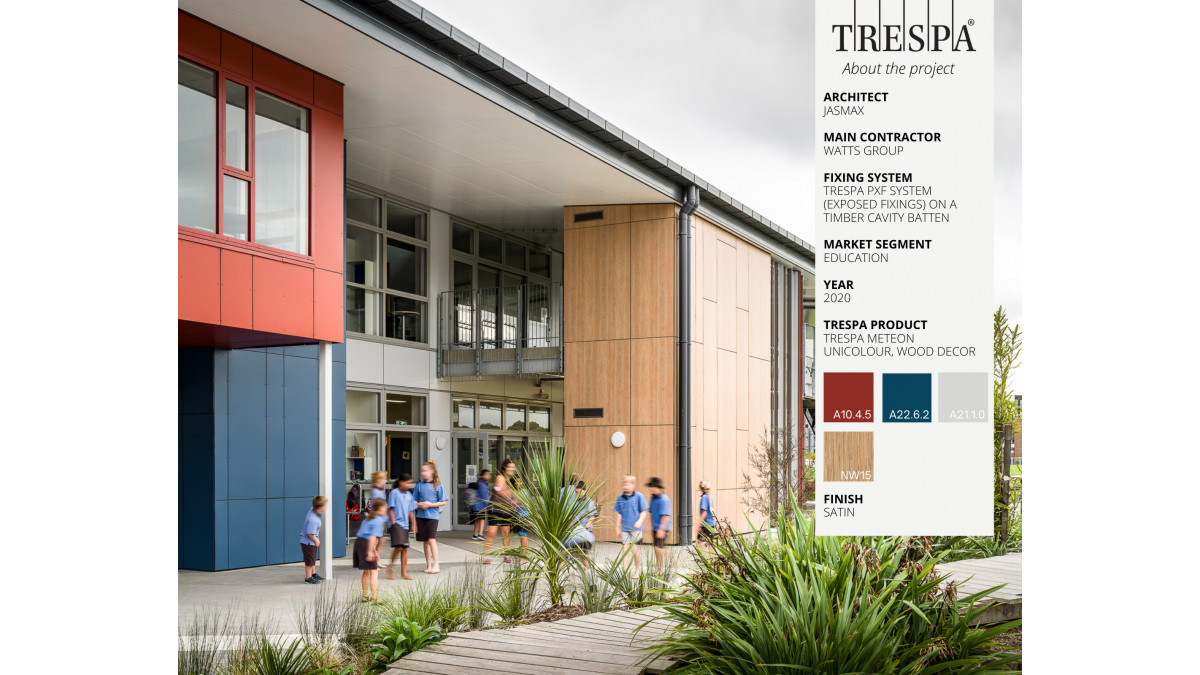

Architect: Jasmax
Main Contractor: Watts Group
Trespa product used: Trespa Meteon

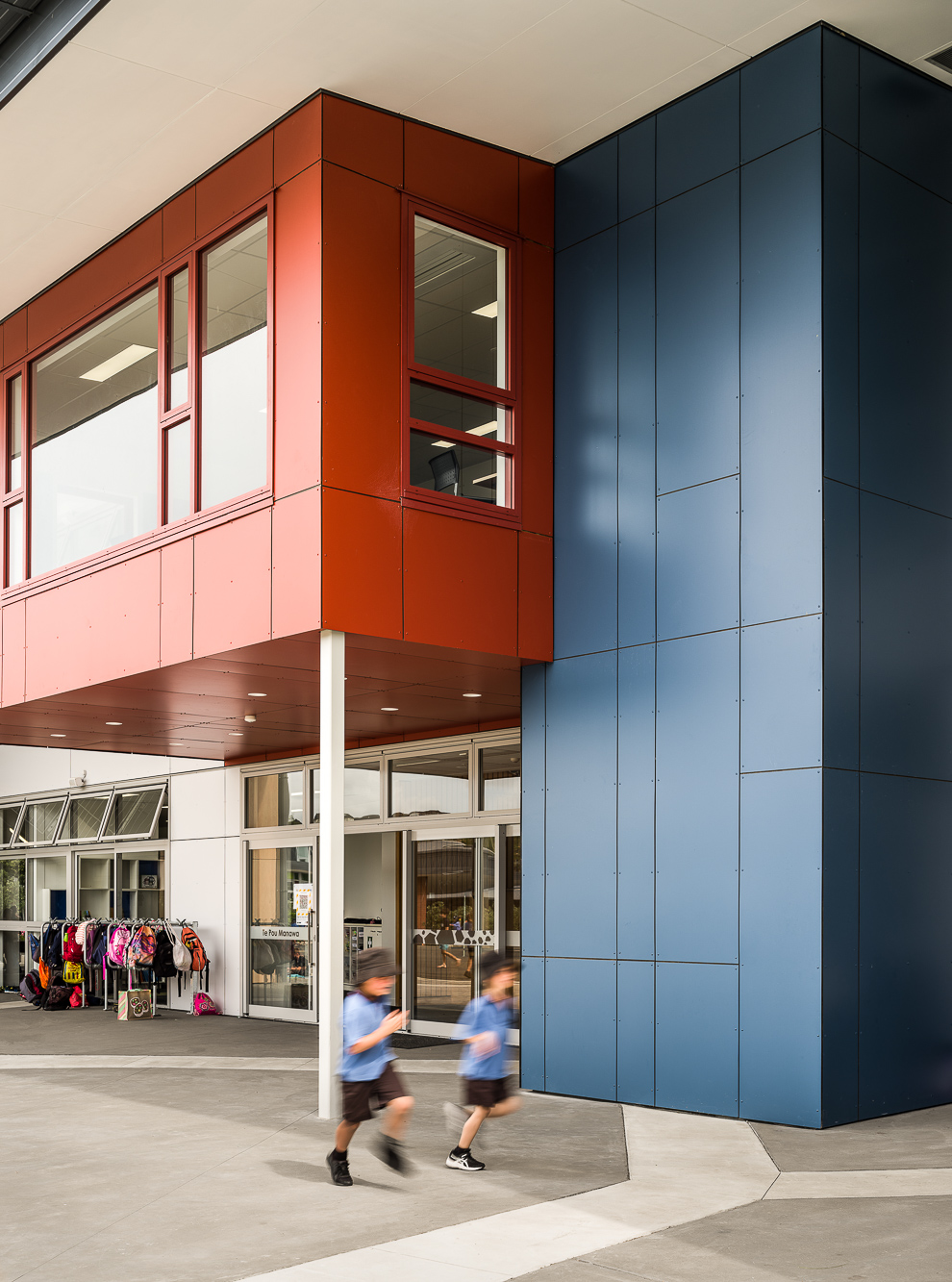

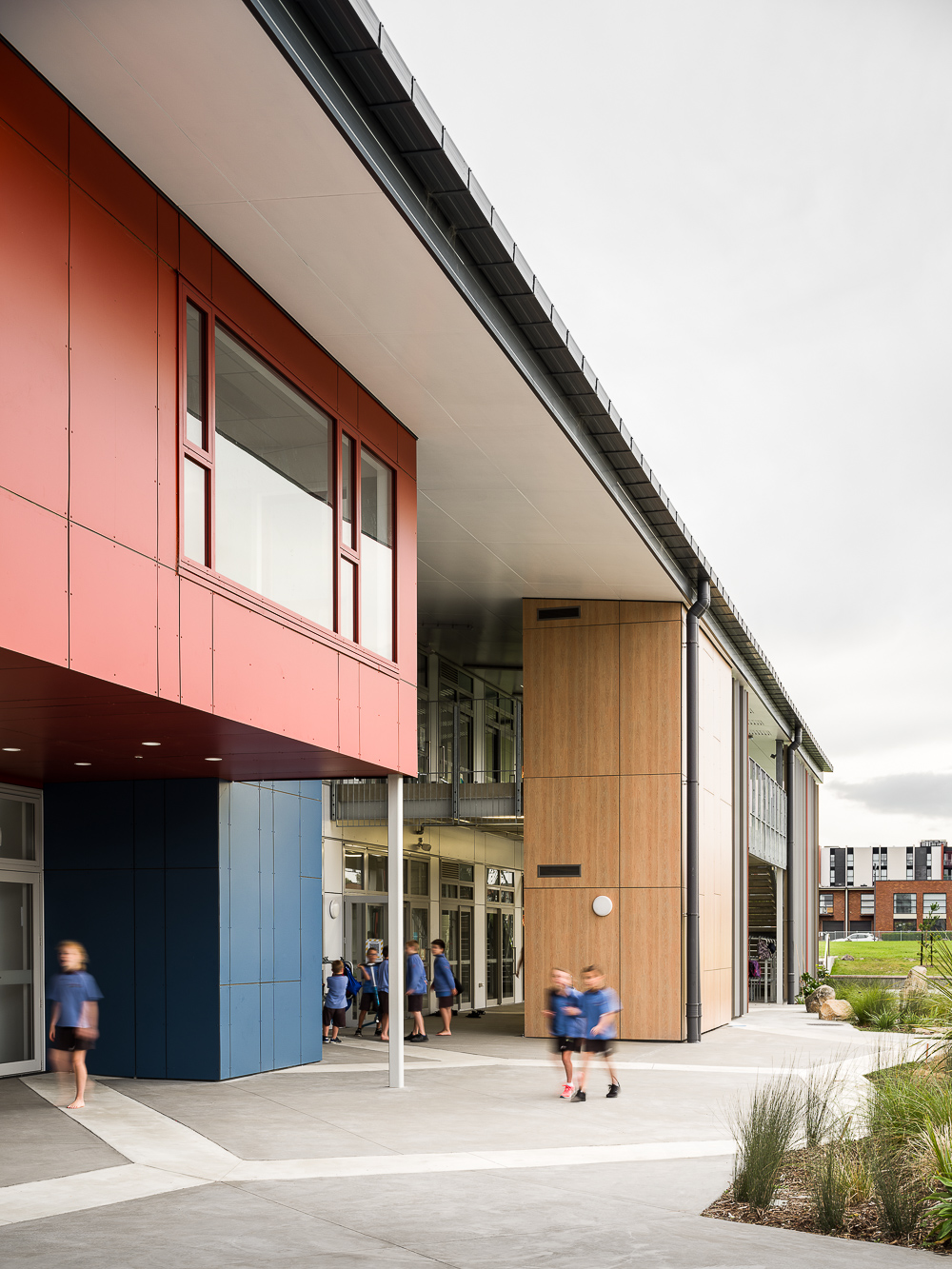

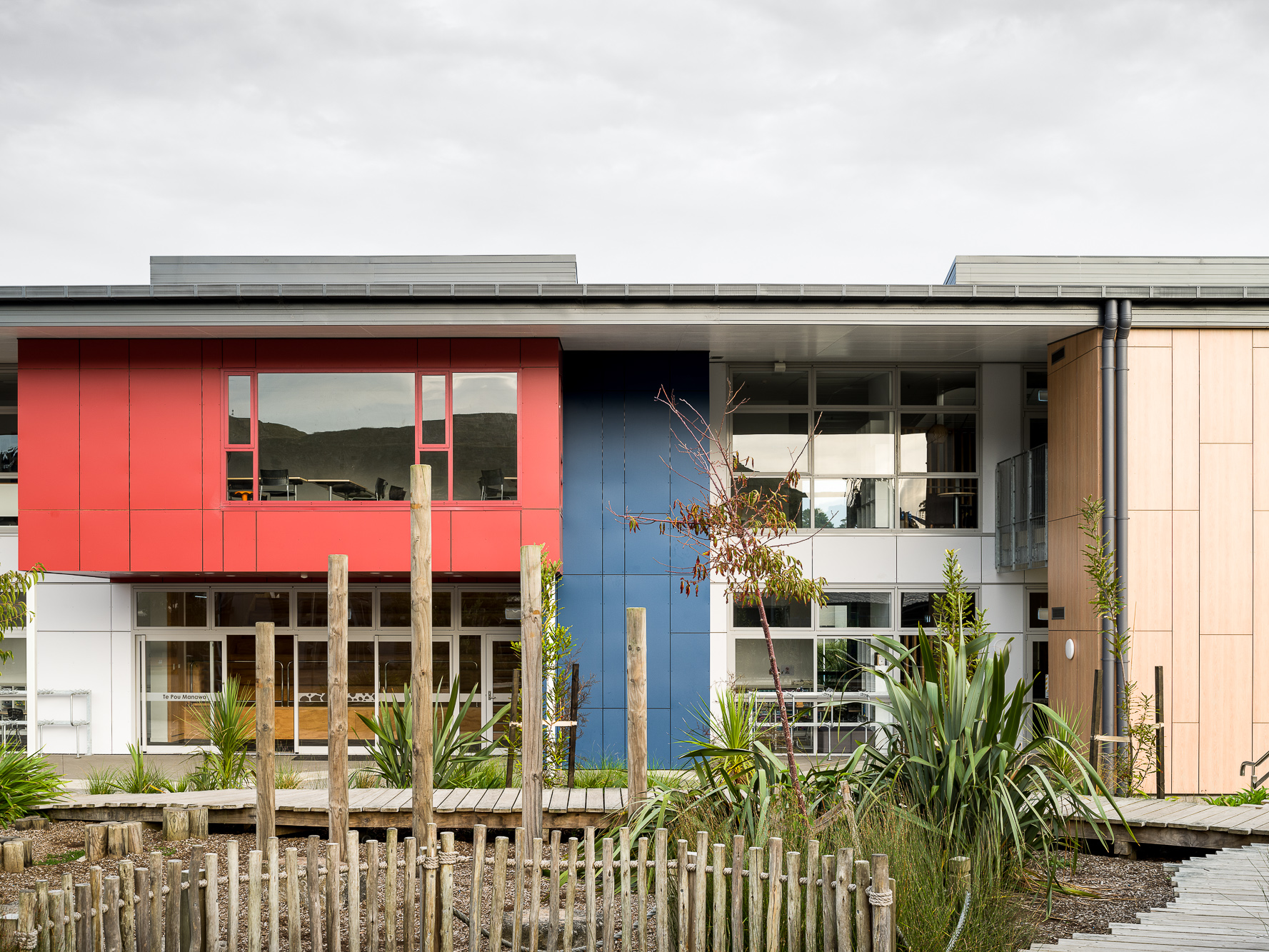

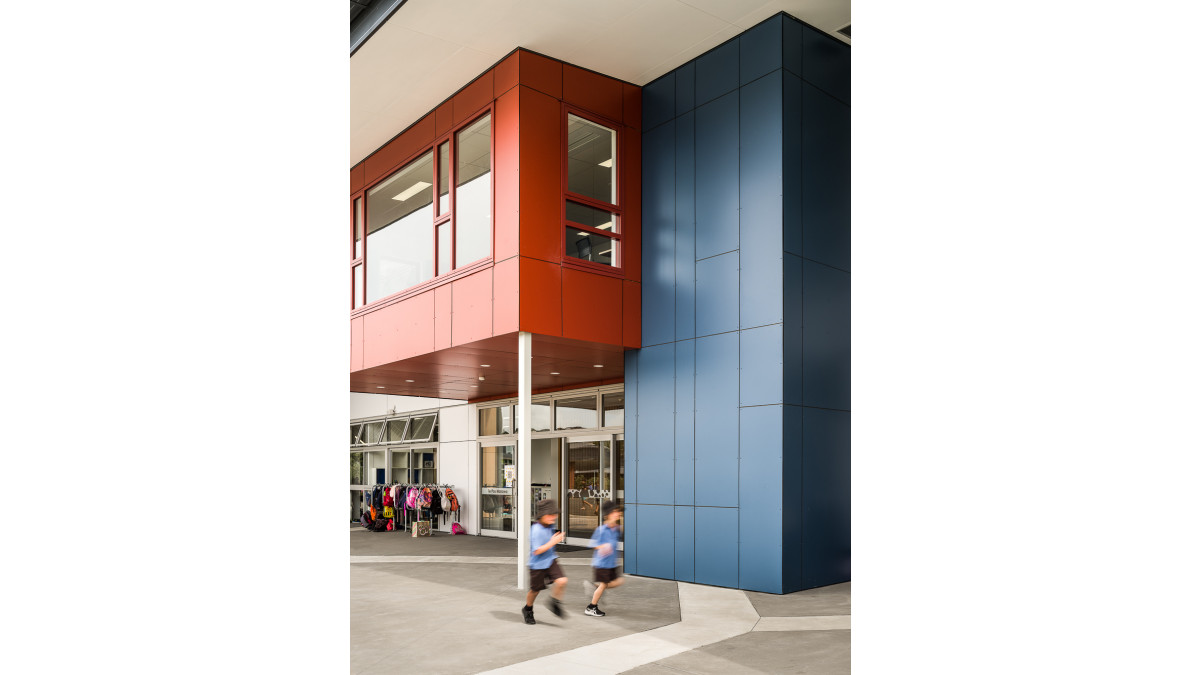

Unicolour: A10.4.5 Sienna Brown, A21.1.0 Winter Grey, A22.6.2 Dark Denim
Wood Décor: NW15 Milano Sabbia
Finish: Satin

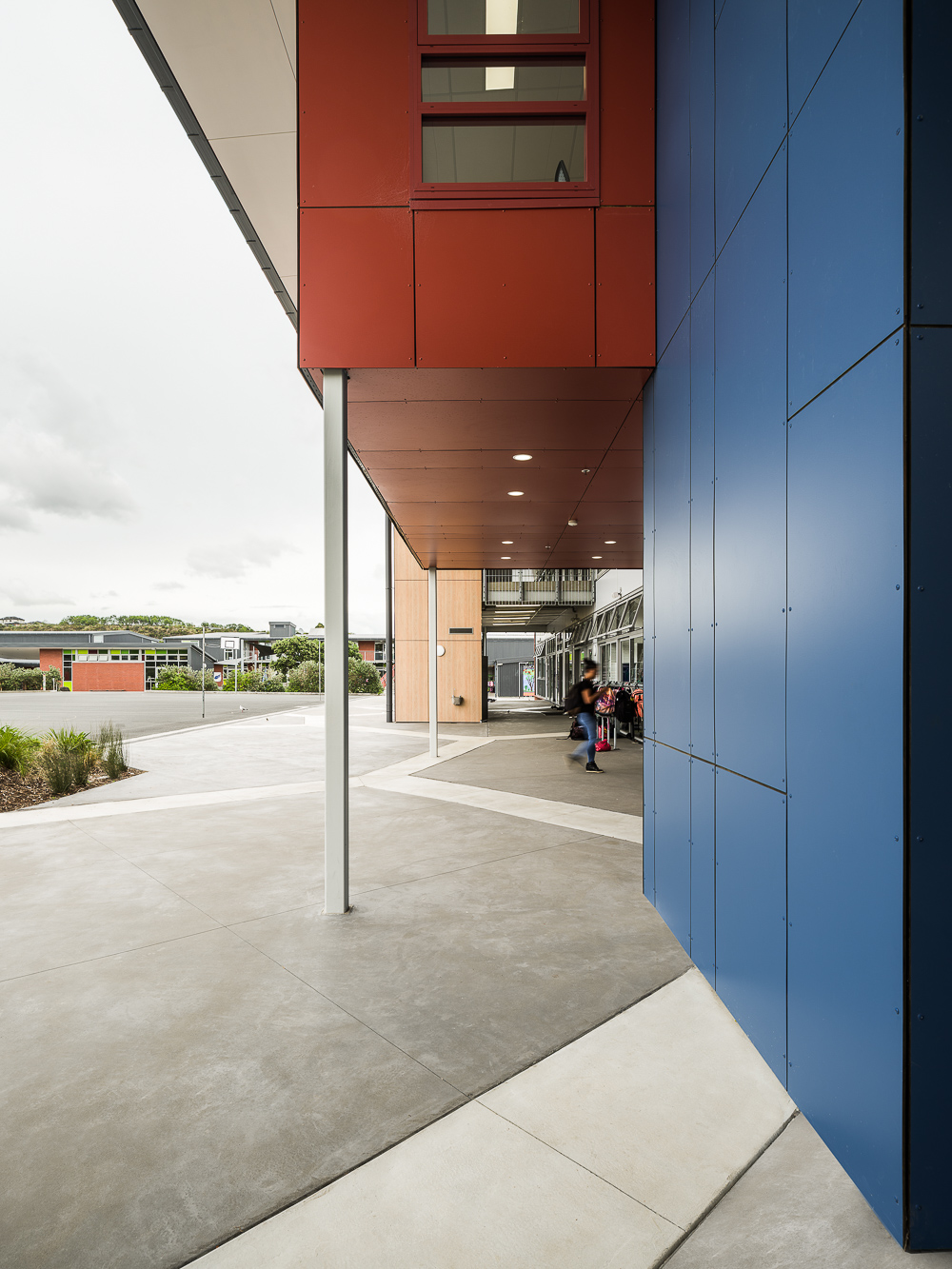

Fixing system used: Trespa PXF system (exposed fixings) on a timber cavity batten

Wood Decor

Big River Panels — Exteriors

View Product

Trespa Meteon is a rigorously engineered High Pressure Laminate that turns wood based fibres and resins into a high impact resistant, dimensionally stable building material with an exceptionally high delamination strength.

Trespa Meteon Panels can be combined with any Profix systems to meet the requirements of the NZBC.

When used in conjunction with any of Decortech's tested, compliant Profix systems, Trespa Meteon Focus panels meets the requirements of NZBC sections:

B1 Structure
B2 Durability
E2 External Moisture

Profix PXF

Big River Panels — Exteriors

View Product

Profix PXF screw fixed flat panel facade system is a 35mm timber cavity batten system specifically designed for use with Trespa Meteon panels.

Suitable for use as a residential or commercial cladding facade up to 3 levels of 10m or less and within the scope of NZBC E2/AS1: 2011 and NZS 3604: 2011 or later current versions
Fixed over a Rigid Air Barrier compliant with E2/AS1: 1 August 2011
Approved for use in wind zones up to 2.5kPa ULS wind pressure or 64.5 m/s with reference to AS/NZS 4284
For wind zones exceeding 2.5kPa wind pressure the system fixings must be specified as site specific by the system suppliers
Suitable for use in all environments including sea spray and geothermal zones
Suitable for use as a single level cavity system up to a maximum of 4.6m high with a horizontal cavity break at each mid floor level
Suitable for use with 8.0mm or 10mm Trespa Meteon panels screw fixed vertically with maximum panel sizes of 3.0m x 1.5m or 2.5m x 1.8m
The use of 0.6mm Trespa and or panel sizes exceeding those above must be specified as site specific and approved by the system suppliers

Trespa Meteon panels in conjunction with Profix PXF Cladding system meet the requirements of NZBC sections B1 Structure, B2 Durability and E2 External Moisture.
