SRP Steel Wall Strapping Solutions

In construction one of the most inconspicuous interior systems, are the Wall Strapping Systems — which are specifically designed for strapping and lining of concrete/pre-cast, masonry, block, or brick — often the internal side of building external walls, or alternatively exposed concrete internal walls/pillars.

Unfortunately, due to the many building-site challenges, conditions, and construction/build tolerances, these types of substrates are usually not flat/true or as accurate as required to achieve a reasonable or level 5 surface finish. Also, often there are other building products/components which need to be included within the wall thickness, such as insulation and electrical or plumbing cables, conduits, and service pipelines of varying dimensions — all of which need to be allowed for.

The following is the range of SRP Wall Strapping System Options (Construction methods):

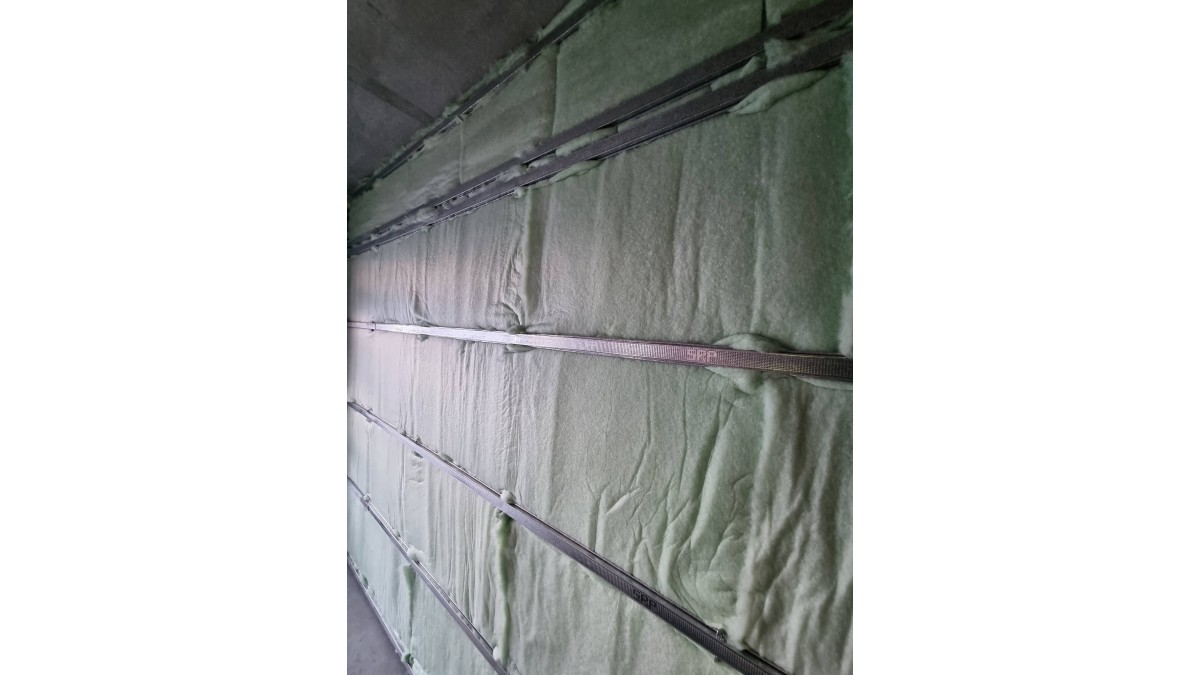

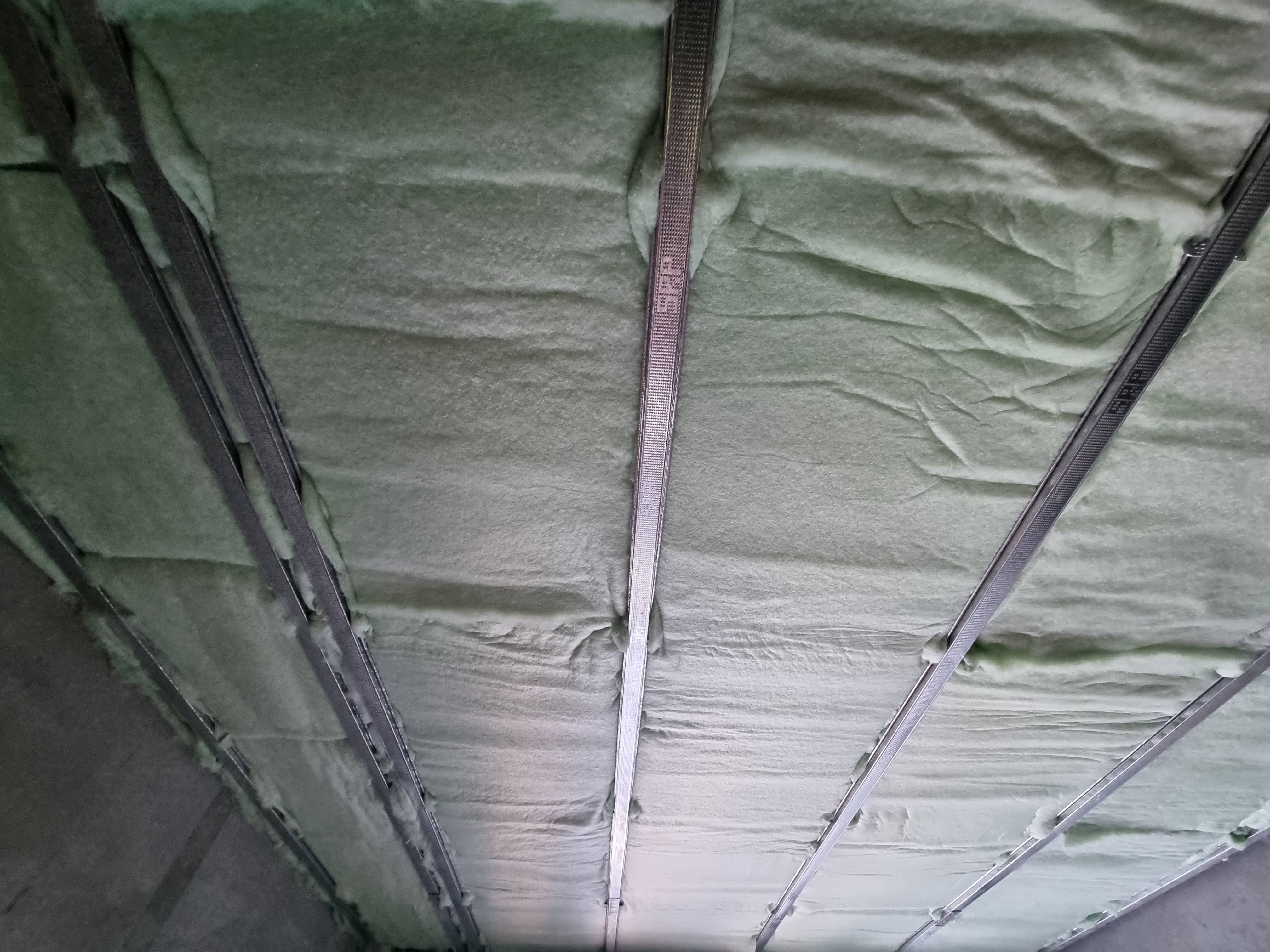

SRP Batten & Adjustable Clip System
Suitability: Electrical conduits, SML diameter Service pipelines, insulation
Cavity Range= 22mm > 67mm (Batten Options: 16, 22, 28, 35mm + 4-Stage Adj. Clips)

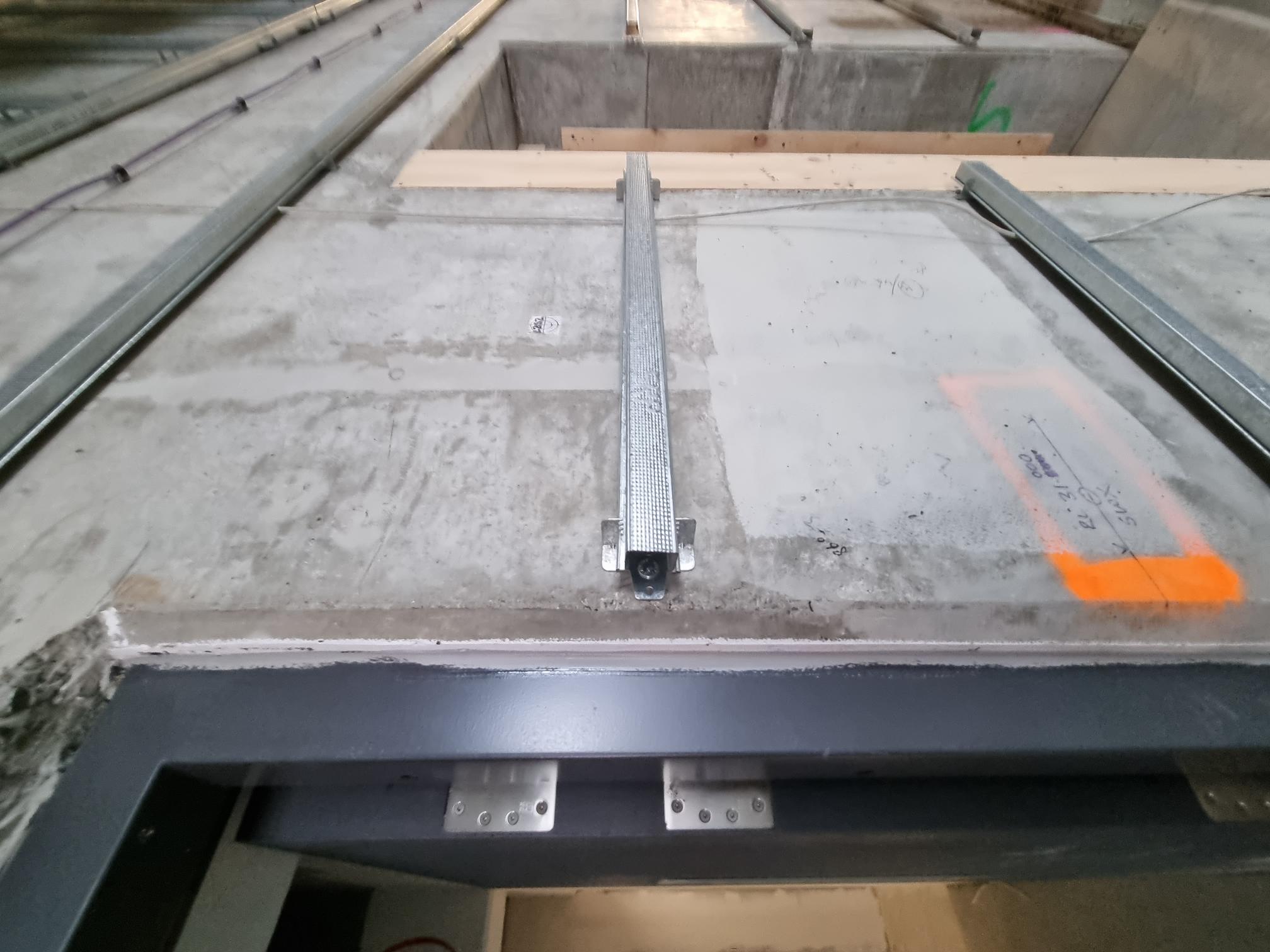

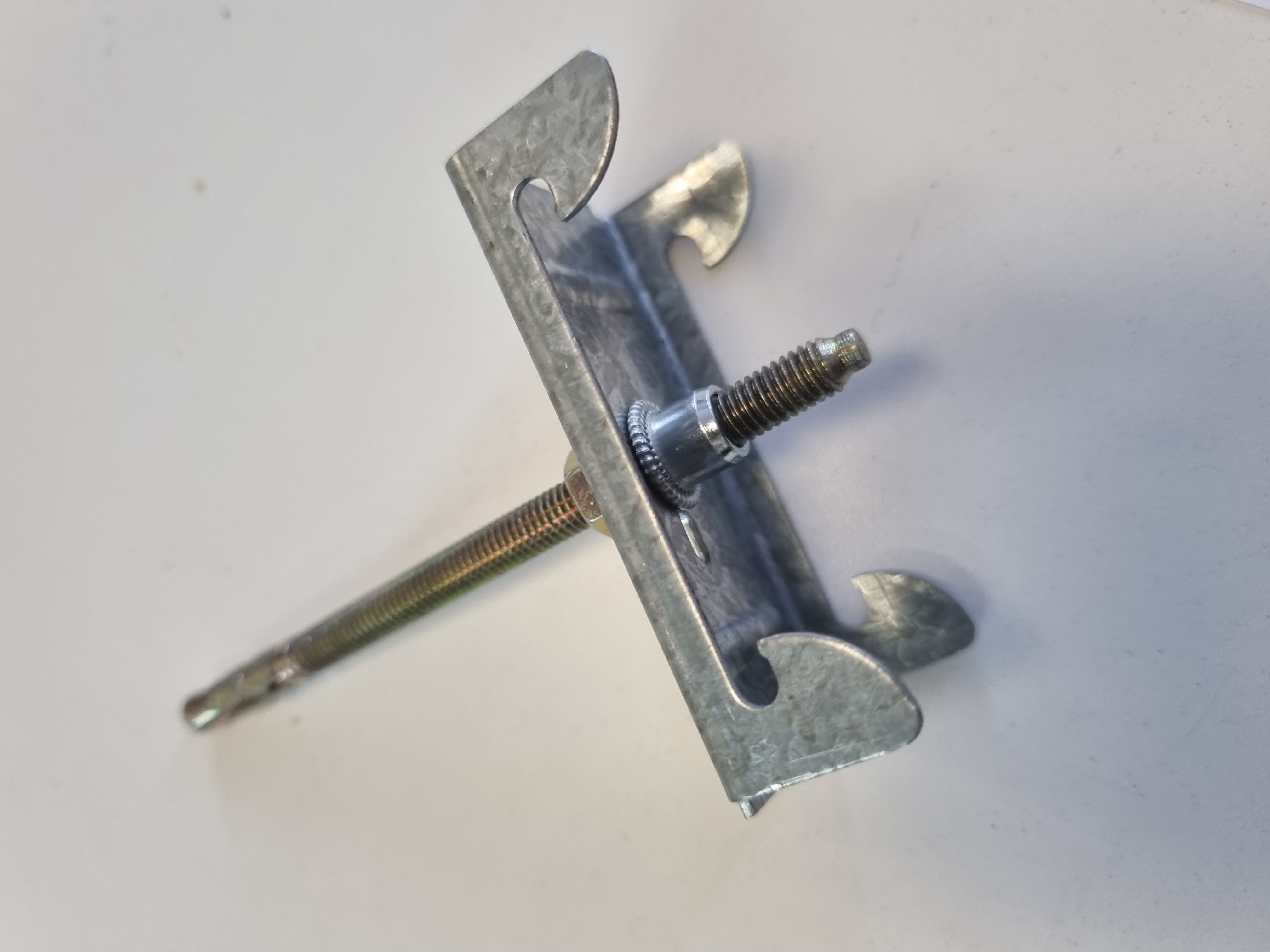

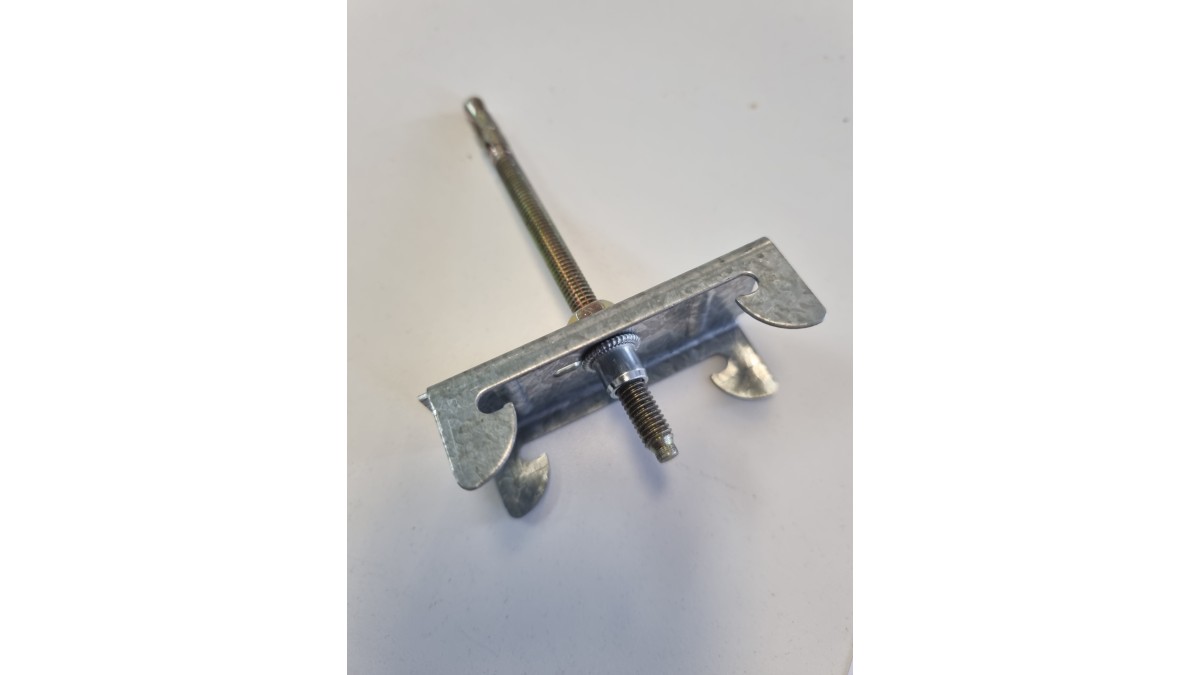

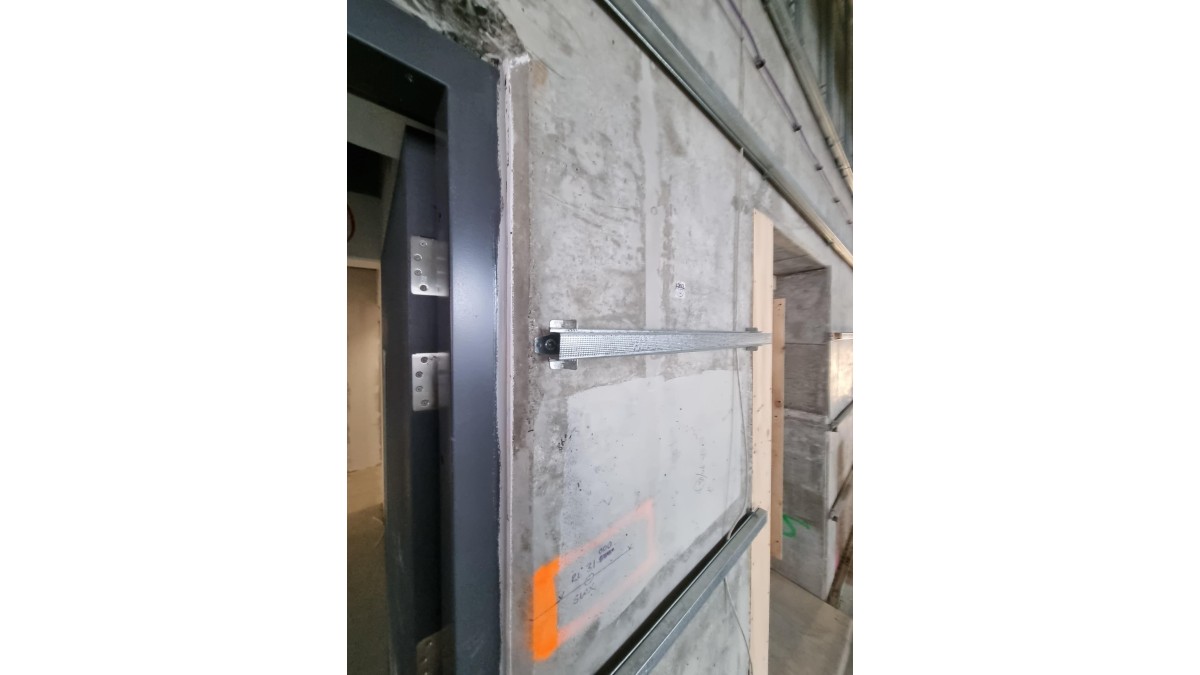

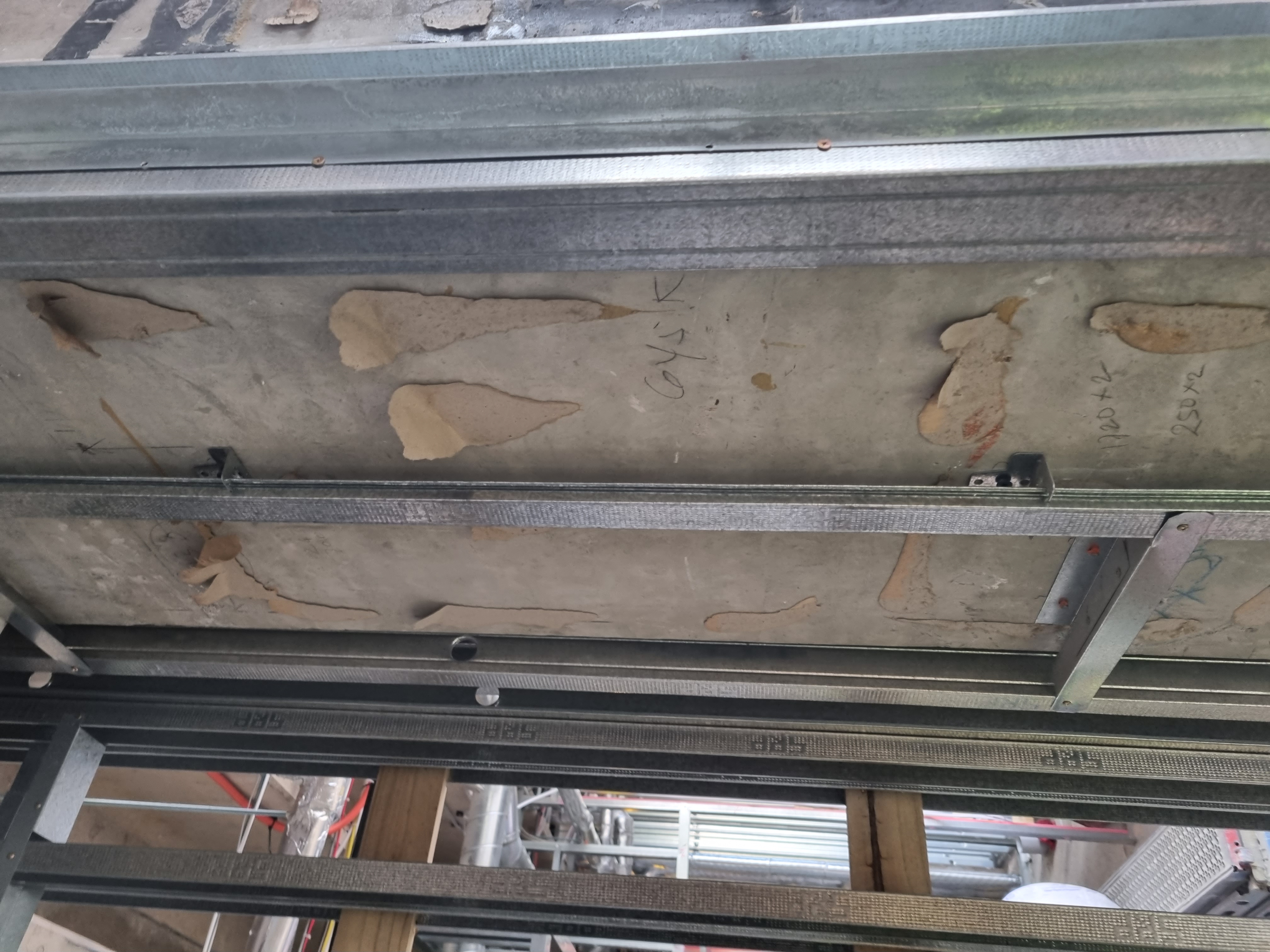

SRP BATTEN & Zero Bracket w/ RivNut + Threaded Rod System
Suitability: Insulated Panel Systems/ External Concrete (fine thread adjustment)
Cavity Range= 20mm > 141mm (w/ 32mm Wedge Anchor embedment 65 – 150mm bolts)

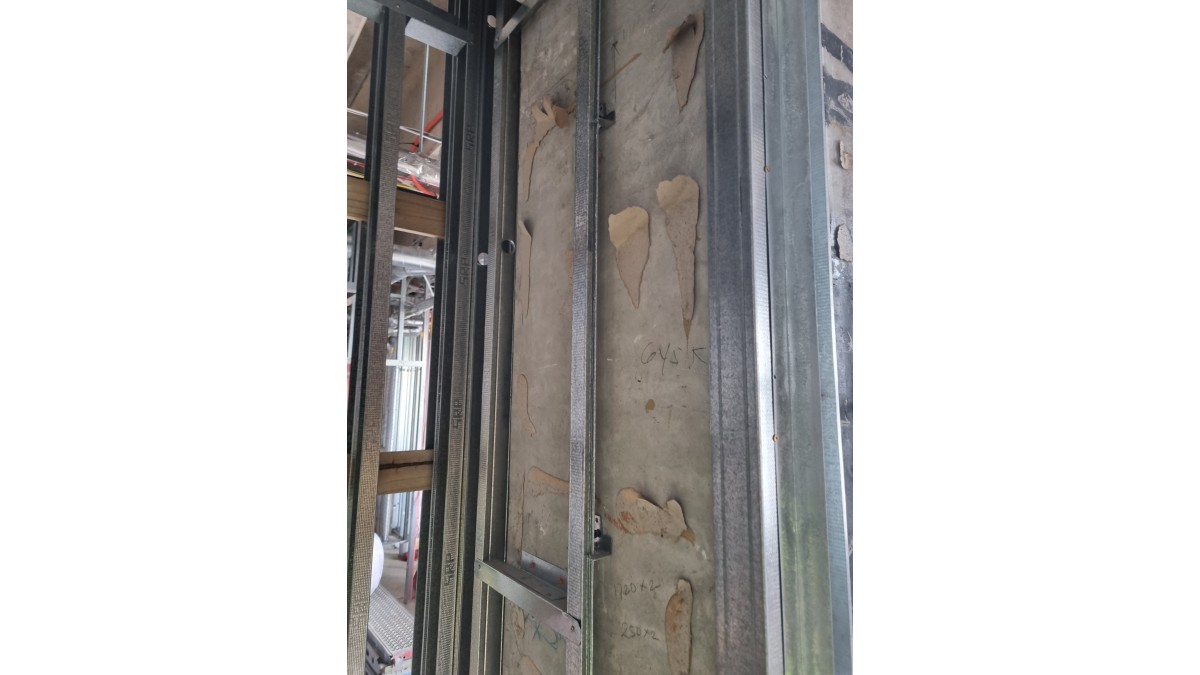

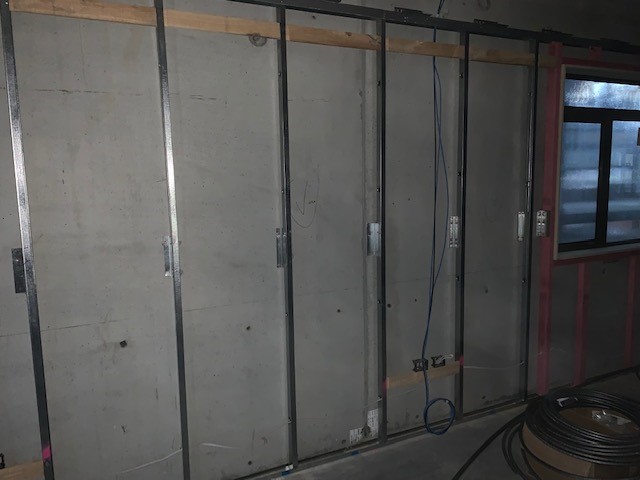

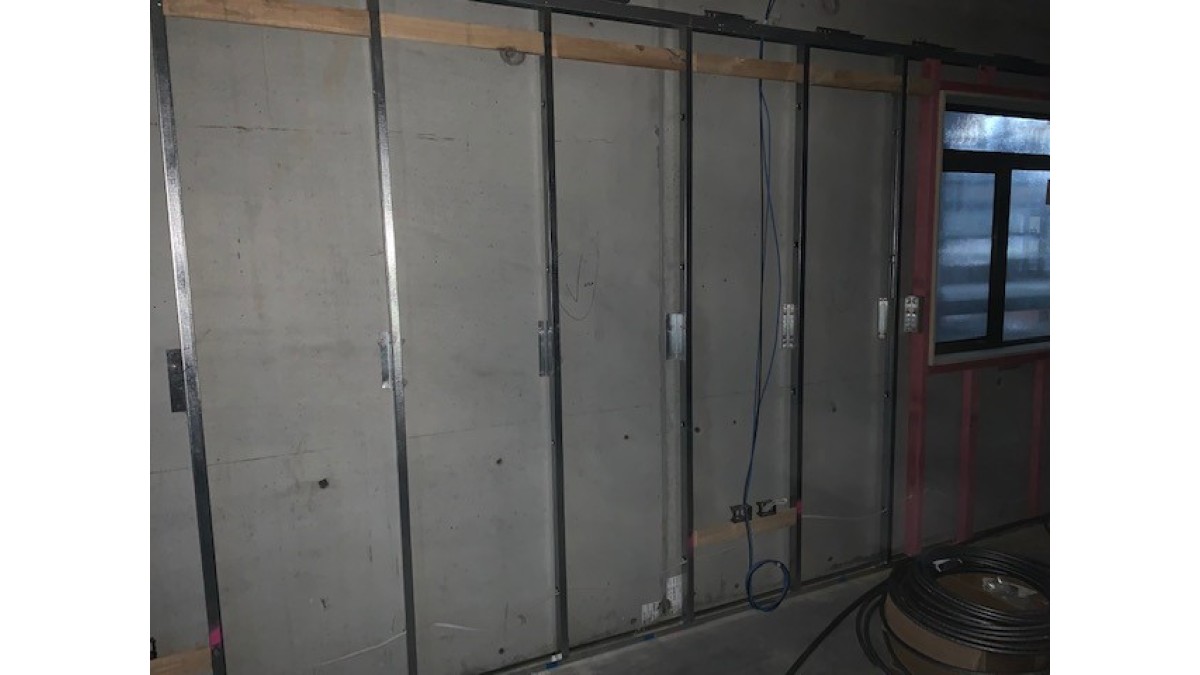

SRP Steel Stud & Track Wall Strapping System
Suitability: LGE diameter Service pipelines: Plumbing/ Electrical Ducting

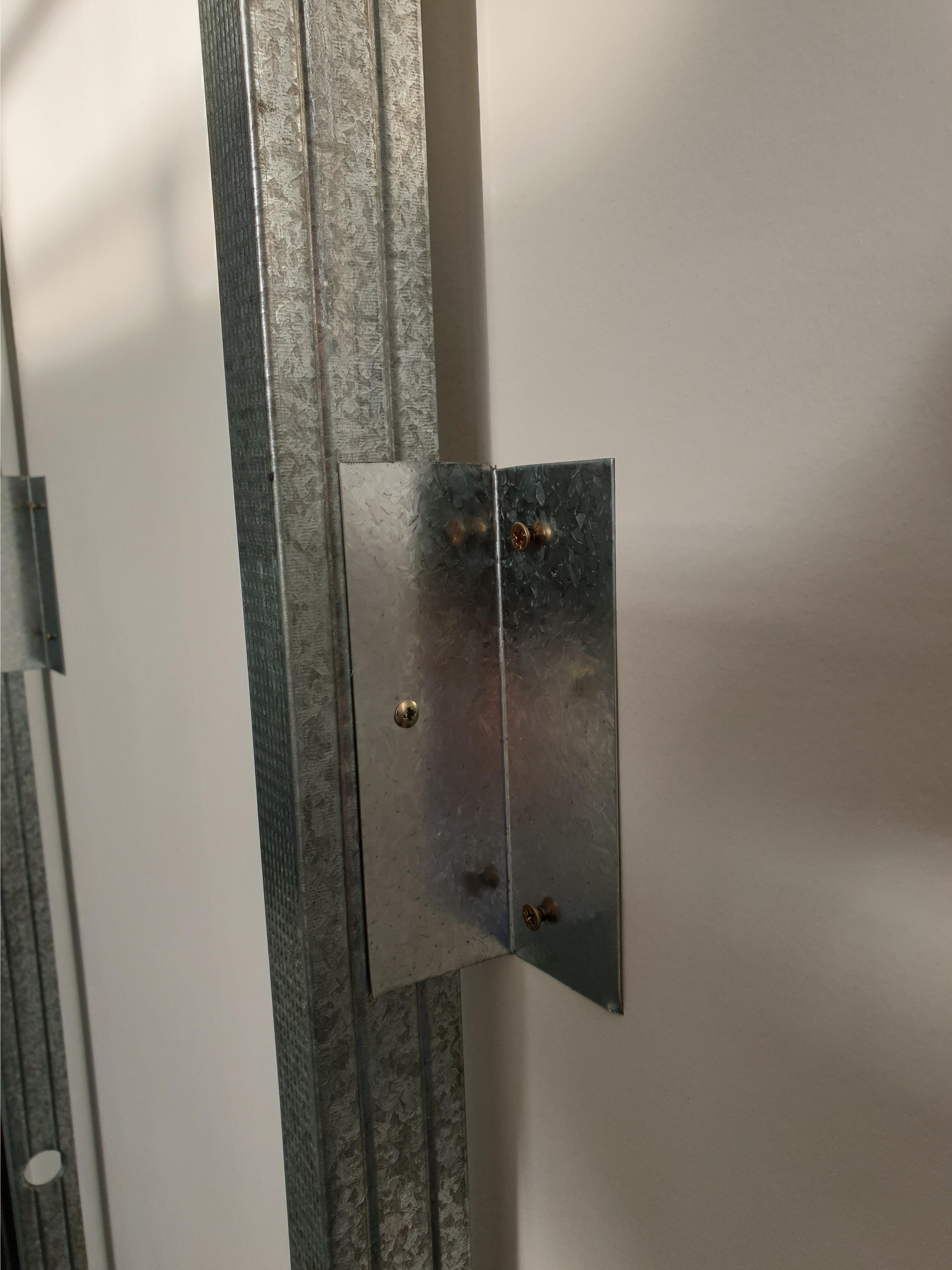

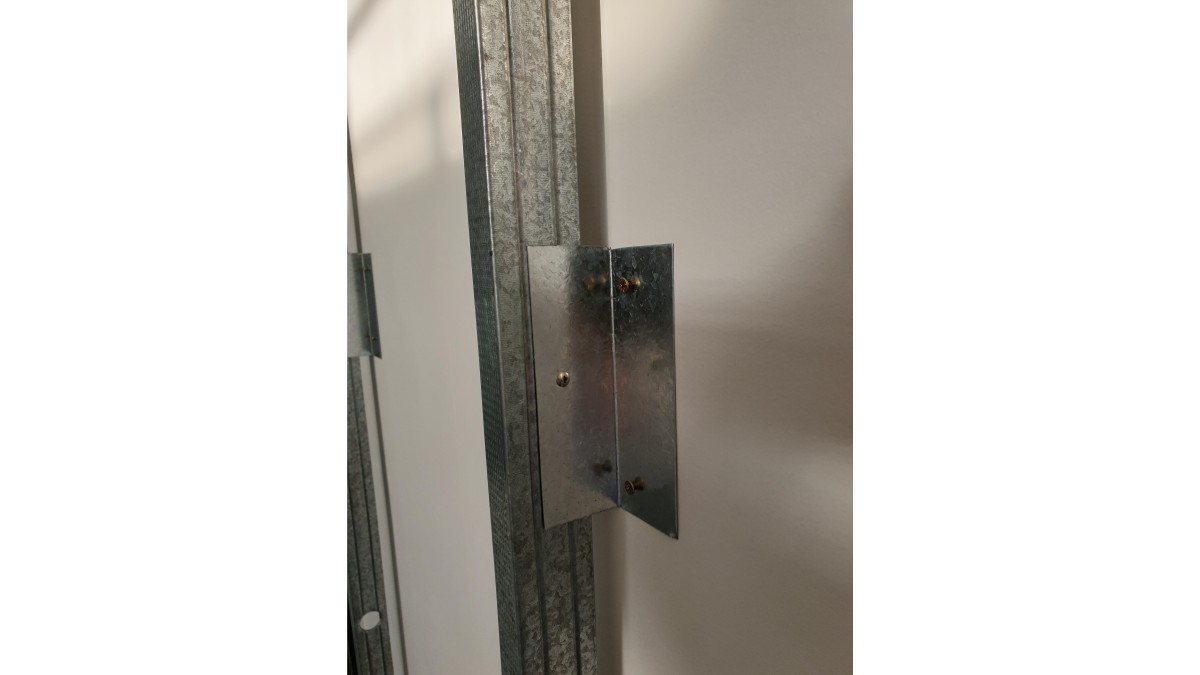

Cavity Range= 51mm > 150mm (steel studs to braced back to wall @ mid height)

Architectural reference information includes Wall Strapping Clip & Batten Charts (PDF) with specific dimensions, for the various systems as mentioned above — which provide quick-reference, CAD details (downloadable via website), and project example images.
Also, we have profile samples + sample packs available — useful for on-site mock-ups, and assemblies.

If you have any queries, please e-mail [email protected] or visit www.srpltd.co.nz for further information.
