Wood Composite Offers Sustainable Timber Alternative

Innowood products represent an ideal sustainable alternative to natural timber. Being 100% recyclable, Innowood offers one of the most sustainable and durable timber alternatives on the market. This non-toxic, energy-efficient innovation can be designed and extruded into different profiles, providing flexibility in design. Innowood's material characteristics offer a wide range of product options and possibilities to suit any project. SPS Building offers a range of Innowood products including external cladding, internal linings and screens.

Innowood products look and feel just like real timber only without the limitations such as cracking, splitting, warping and rotting which often occur overtime with timber. Not only does Innowood have outstanding timber-like aesthetic properties, but it is also low maintenance, resistant to water and has fire-resistant properties if subjected to fire. Manufactured predominantly from a natural wood bi-product, Innowood helps to prevent forest depletion through the sustainable use of recycled material and energy management. All cutting waste is 100% recyclable and all products produce low VOC emissions.

Being at the forefront of global composite timber technology, SPS Building is proud to be the chosen composite timber supplier of leading national and international architects, designers and builders. SPS Building's versatility and product performance are instrumental to the continued success of various projects completed within New Zealand and Australia.

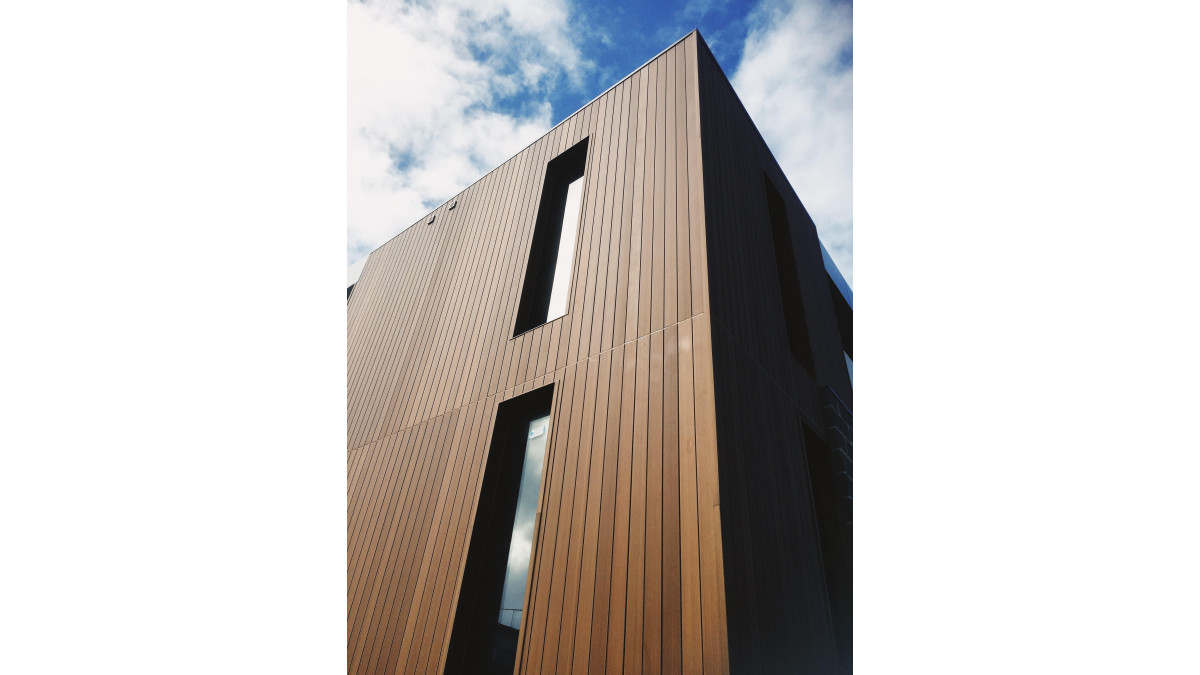

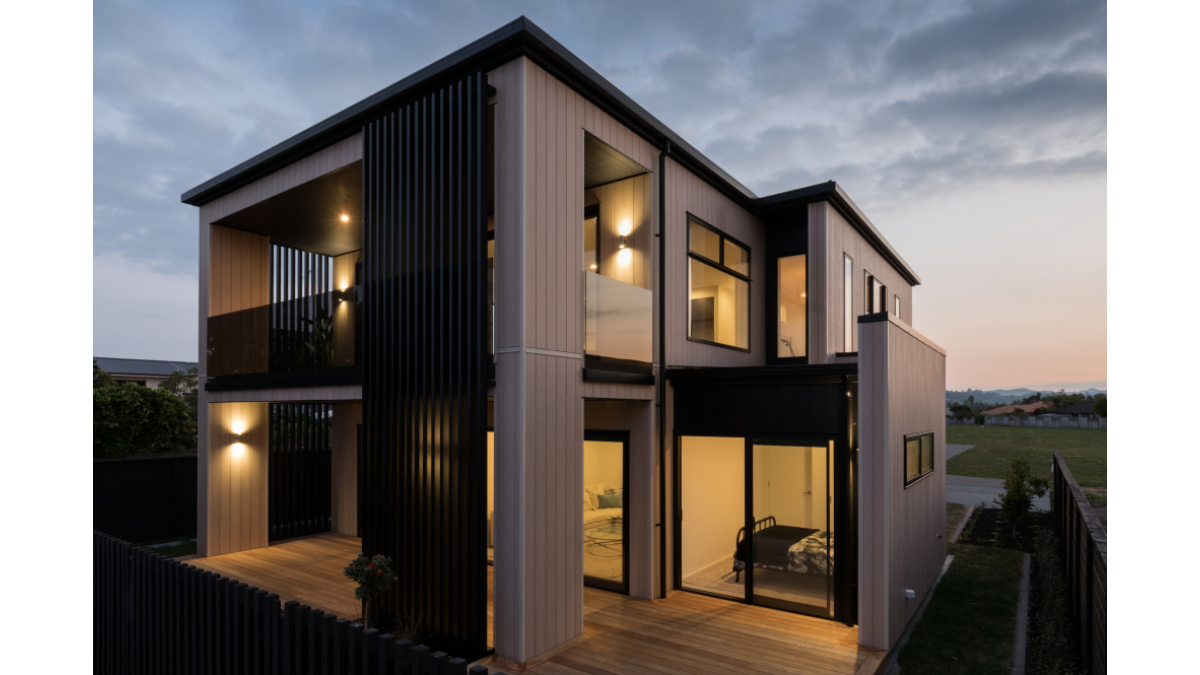

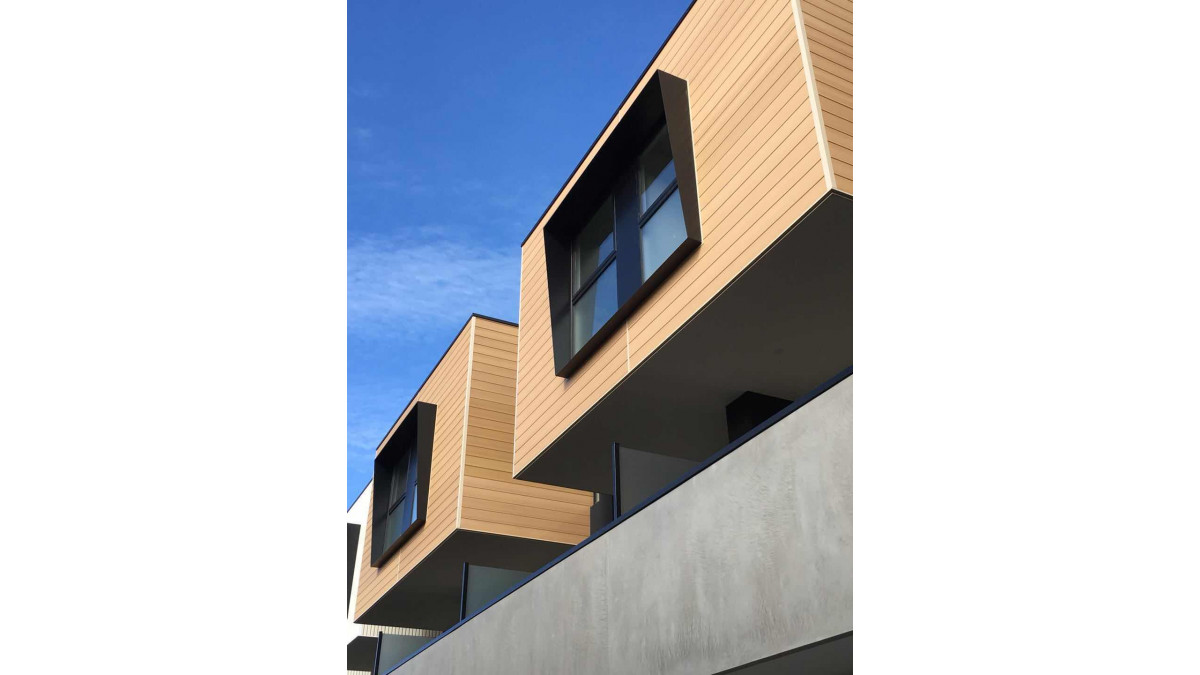

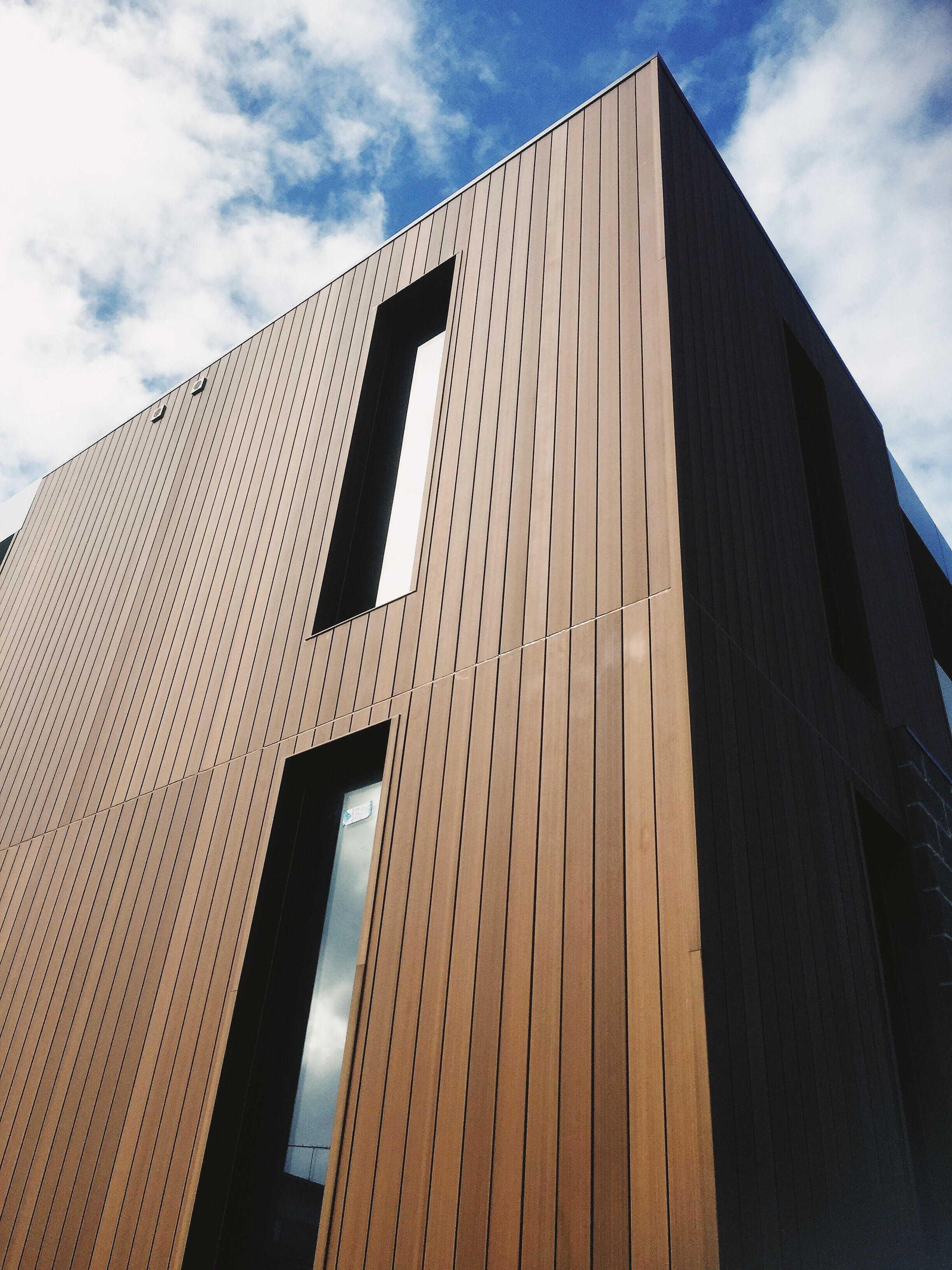

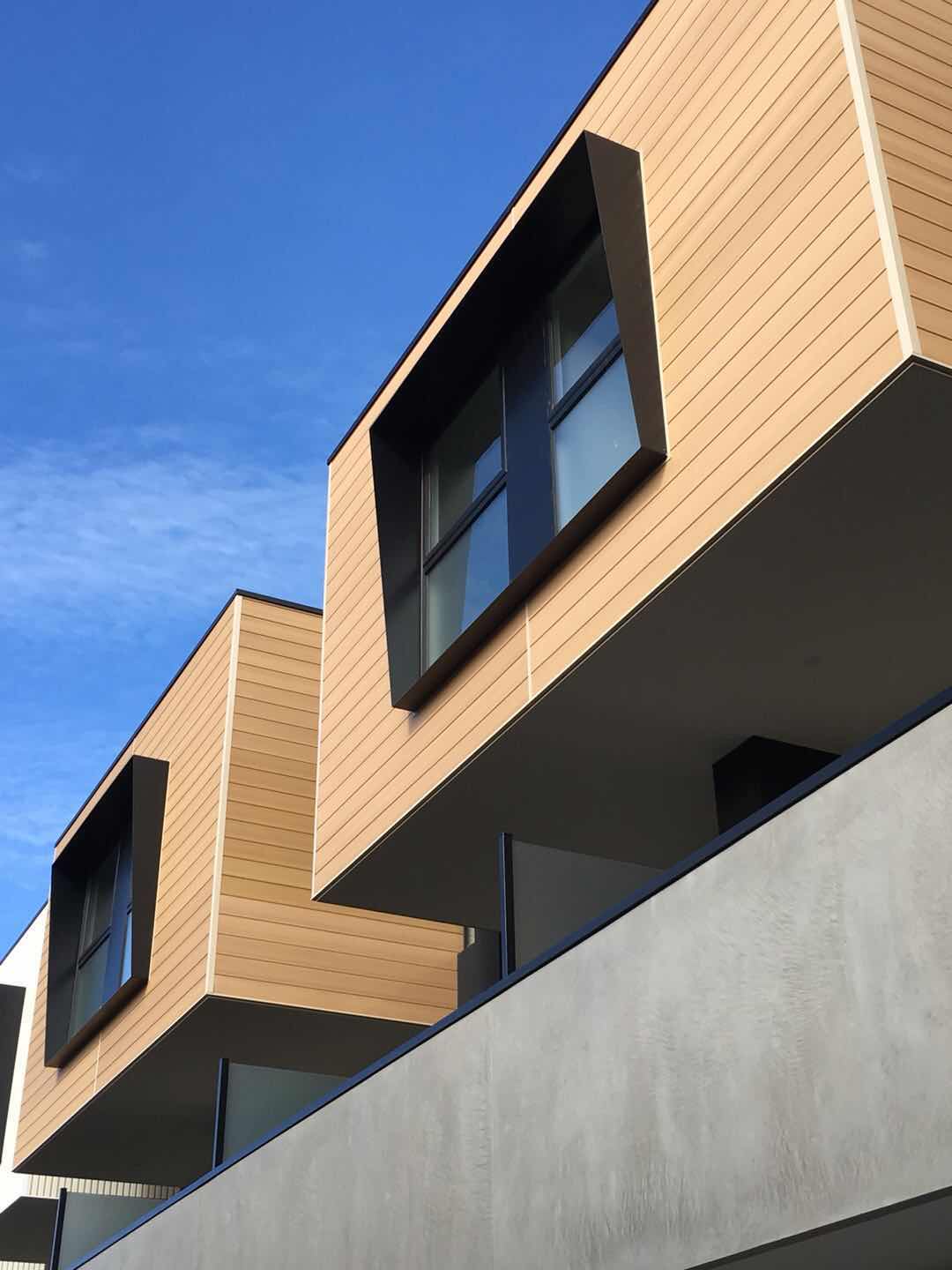

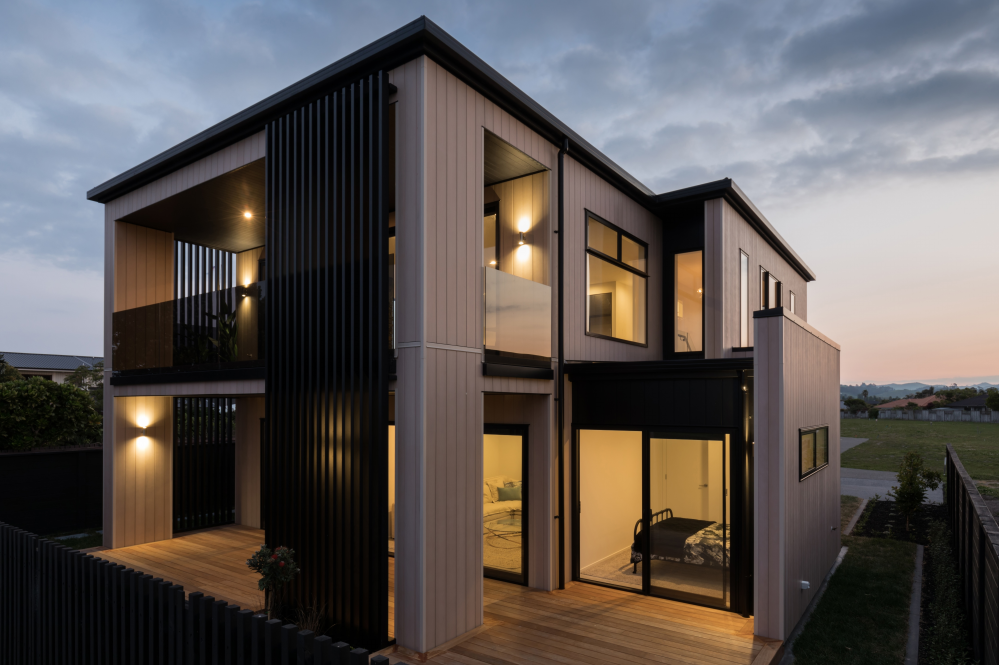

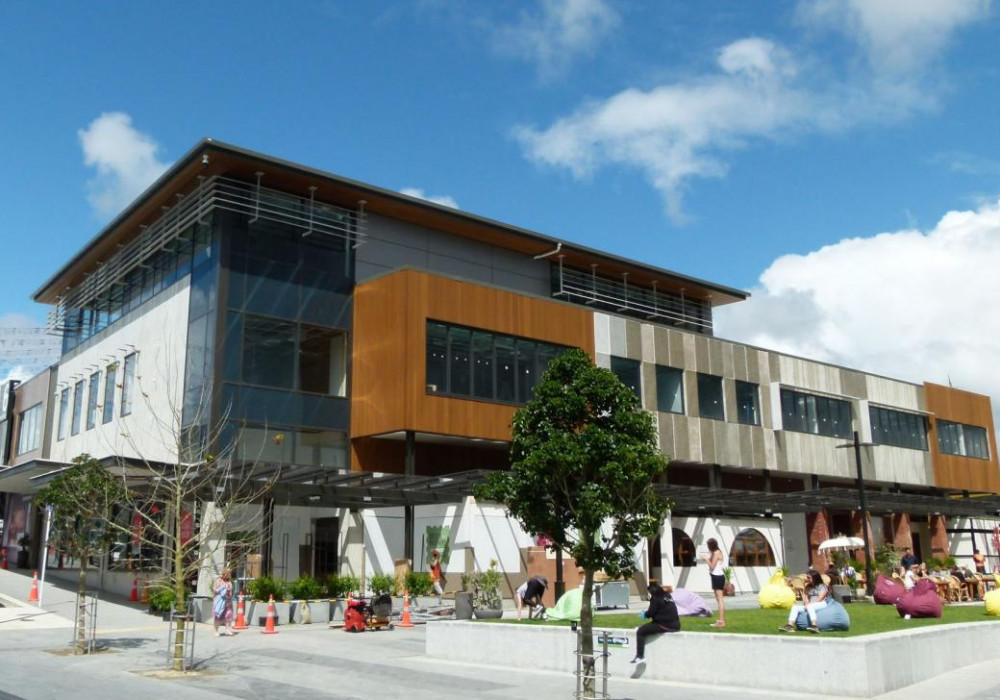

Innowood: Innoclad — Timber Composite Cladding

The Building Agency

View Product

Innowood represents the ideal alternative to natural timber.

Post-Consumer Recyclable Content

Residential and commercial applications
Health / aged care facilities
Educational institutions
Hospitality sector
Fit outs
Retail and shopping centres

If designed, installed and maintained in accordance with all current literature, the Innoclad system will meet the following performance claims as stated in CodeMark CM70078 Rev2:

B1 Structure: B1.3.1, B1.3.2, B1.3.3(a, f, h, j), B1.3.4
B2 Durability: B2.3.1(b)
E2 External Moisture: E2.3.2, E2.3.5, E2.3.7 (Note: Not applicable to InnoScreen)
F2 Hazardous Building Materials: F2.3.1

CodeMark

PASS

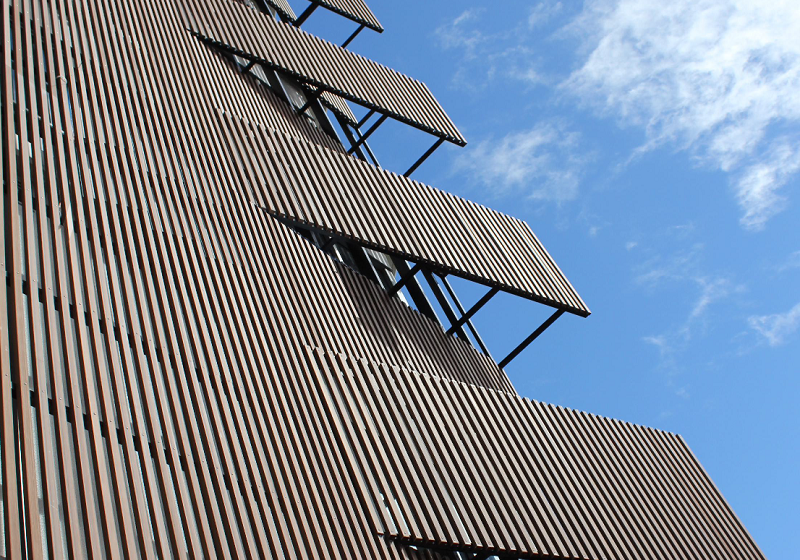

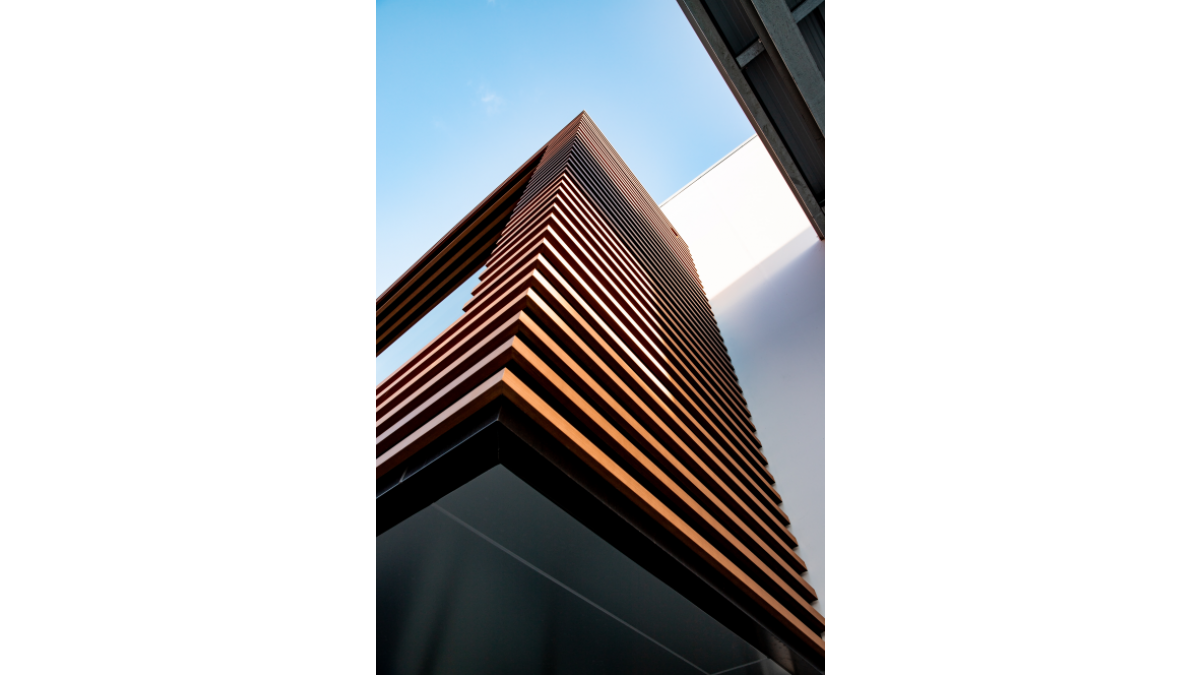

Innowood: InnoScreen — Timber Composite Screening

The Building Agency

View Product

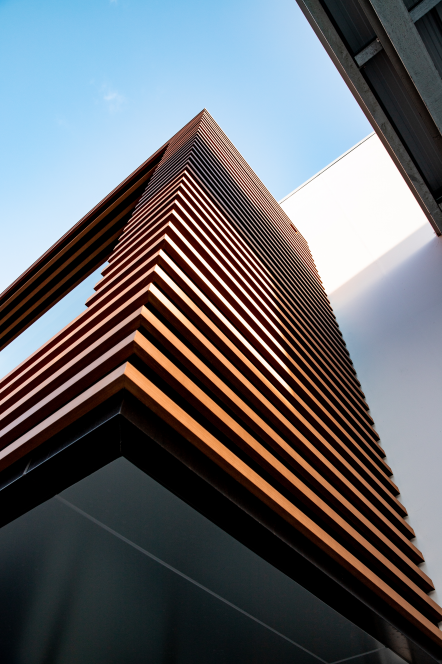

The Innoscreen system is an external decorative screen comprising of an Innowood composite timber batten profile that may be fixed through either the concealed lock-in fixing system using a two-part interlocking clip, or by fixing directly through the profile to the supporting structure.

Location:
- Up to extra high wind as defined in NZS 3604:2011
- In all corrosion zones where the fixings are selected in accordance with NZS 3604:2011
- On buildings 1m or more from the relevant boundary
Buildings:
- On timber or lightweight steel framing that complies with the building code or where the designer and/or installer have established that the building is suitable for the intended building work

Up to extra high wind as defined in NZS 3604:2011
In all corrosion zones where the fixings are selected in accordance with NZS 3604:2011
On buildings 1m or more from the relevant boundary

On timber or lightweight steel framing that complies with the building code or where the designer and/or installer have established that the building is suitable for the intended building work

Concealed Fixing System:
- Innoscreen's Concealed Lock-in Fixing System creates a perfectly clean line with battens that simply lock into place, concealing the single-part rear clip that can be set out to any desired spacing
Face and Rear Fixing:
- Innoscreen’s Face and Rear Fixing System is a direct fixing method whereby battens are either face-fixed or back-fixed directly through the profile and generally use an aluminium insert the length of the profile for strengthening and increasing spans

Innoscreen's Concealed Lock-in Fixing System creates a perfectly clean line with battens that simply lock into place, concealing the single-part rear clip that can be set out to any desired spacing

Innoscreen’s Face and Rear Fixing System is a direct fixing method whereby battens are either face-fixed or back-fixed directly through the profile and generally use an aluminium insert the length of the profile for strengthening and increasing spans

If designed, installed and maintained in accordance with The Building Agency requirements, the Innoscreen system will meet the following performance claims:

B1 Structure: B1.3.1, B1.3.2, B1.3.3(a, f, h, j), B1.3.4
B2 Durability: B2.3.1(b)
F2 Hazardous Building Materials: F2.3.1

CodeMark

Independent Assessment

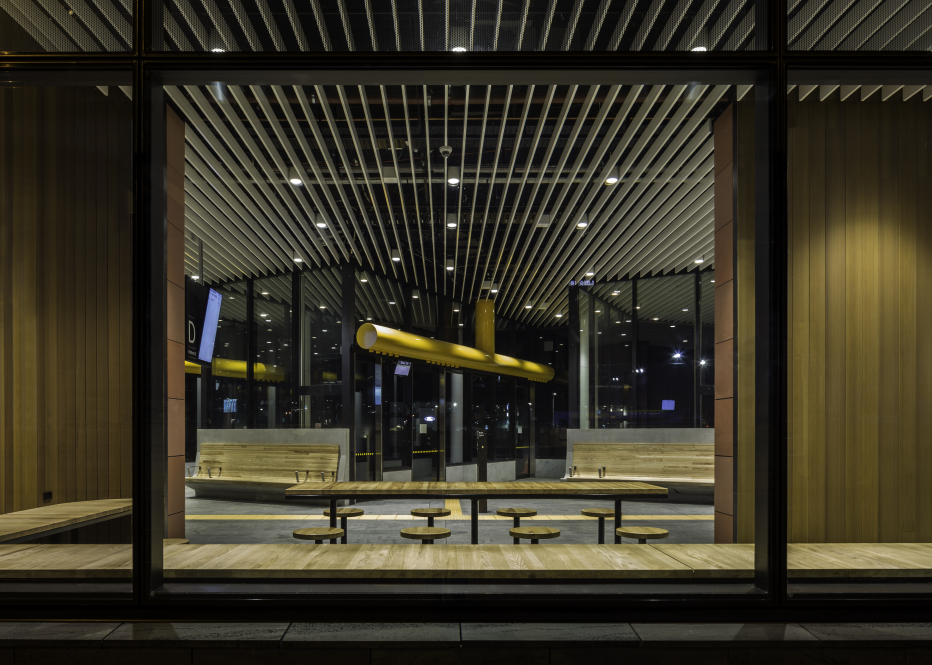

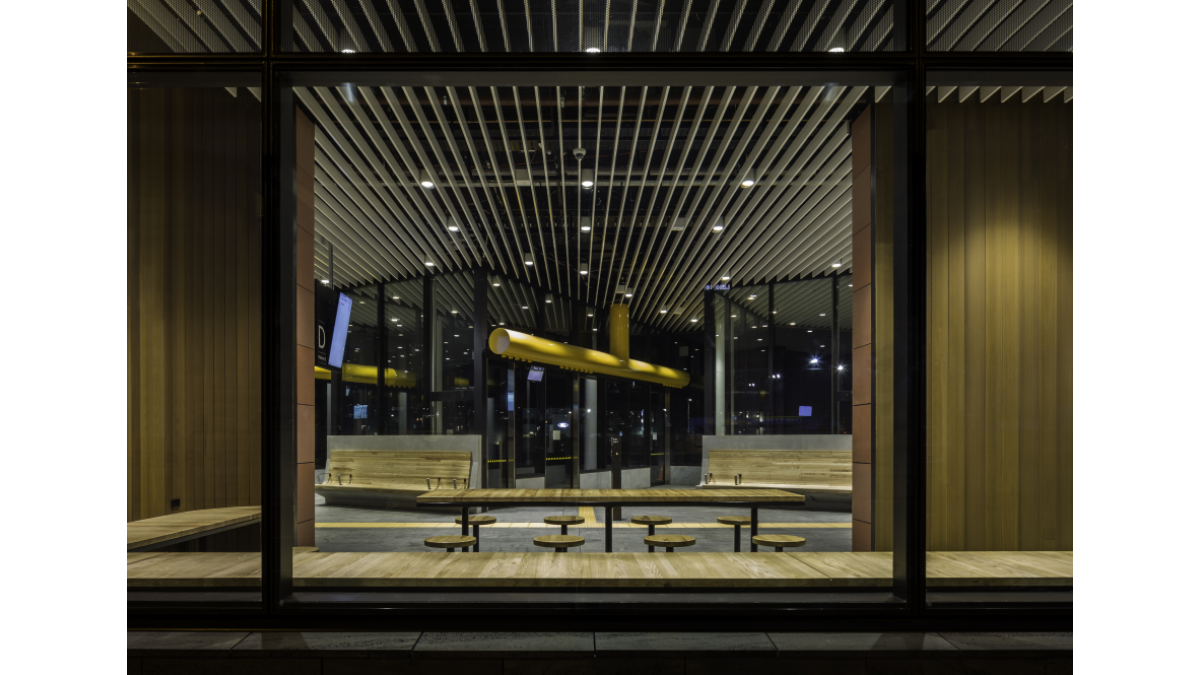

Innowood: Innoceil — Wood Composite Ceilings

The Building Agency

View Product

Innowood ceiling systems offer the ideal ceiling solution for any commercial or residential application.

Post-Consumer Recyclable Content

Slatted Ceiling System
Suspended Grid
Indoor
Outdoor

Fixing options

InnoCeil Concealed Clip Fixing:

Ceiling System utilises a stainless-steel clip attached to each profile and screws into the ceiling substrate without exposed fixings. The system is easy to install and delivers consistent shadow lines between the boards for a smart uniform look.

Secret Fixed Shiplap:

Innowood shiplap ceiling system is based on a traditional tongue and groove design, the Shiplap Ceiling System creates a clean finish with uniform joints but without any visible fixings.

Suspended Click-On System

Ceiling System works on the principle of clipping the InnoCeil profile onto its suspended carrier to secure it in the desired position. This system is available in different sizes and span centres to suit most design requirements. The Aluminium Carrier is available in 60 and 130mm centres. The lightweight suspended Click-On system is perfect for areas where structural loads are critical. The Click-On system makes it easy to install and replace battens.

Refer to CodeMark Certificate no CM70078 or contact The Building Agency phone 09 4152669
