Next Level 'Outsulation' from Resene Construction Systems

Thermal insulation is one of the most important decisions made in achieving an energy-efficient and sustainable project.

Proven Technology, The XTHERM GOLD insulated plaster facade systems incorporate Resene Construction Systems' exclusive 50mm thick XTHERM GOLD ultra high density, fire-retardant PIR (Polyisocyanurate) panels, providing far greater thermal insulation and hardness than traditional standard grade EPS (expanded polystyrene).

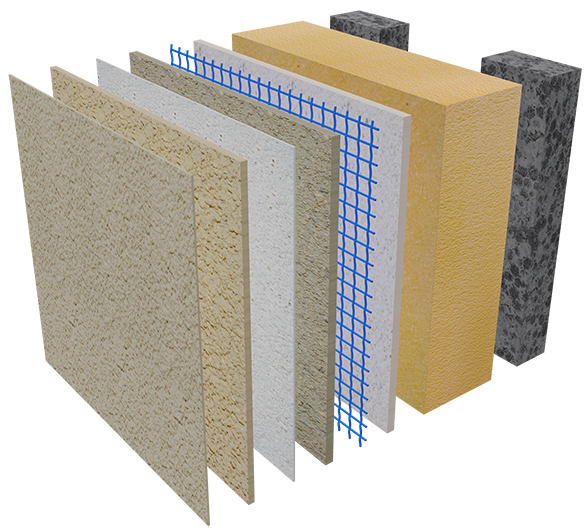

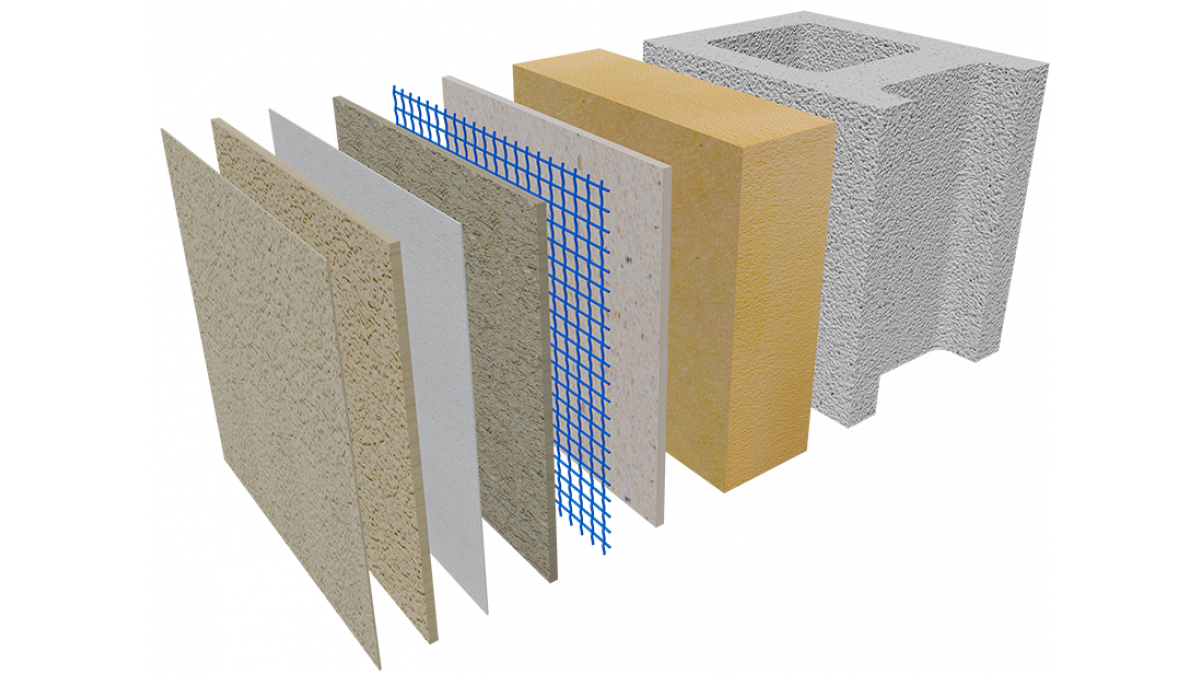

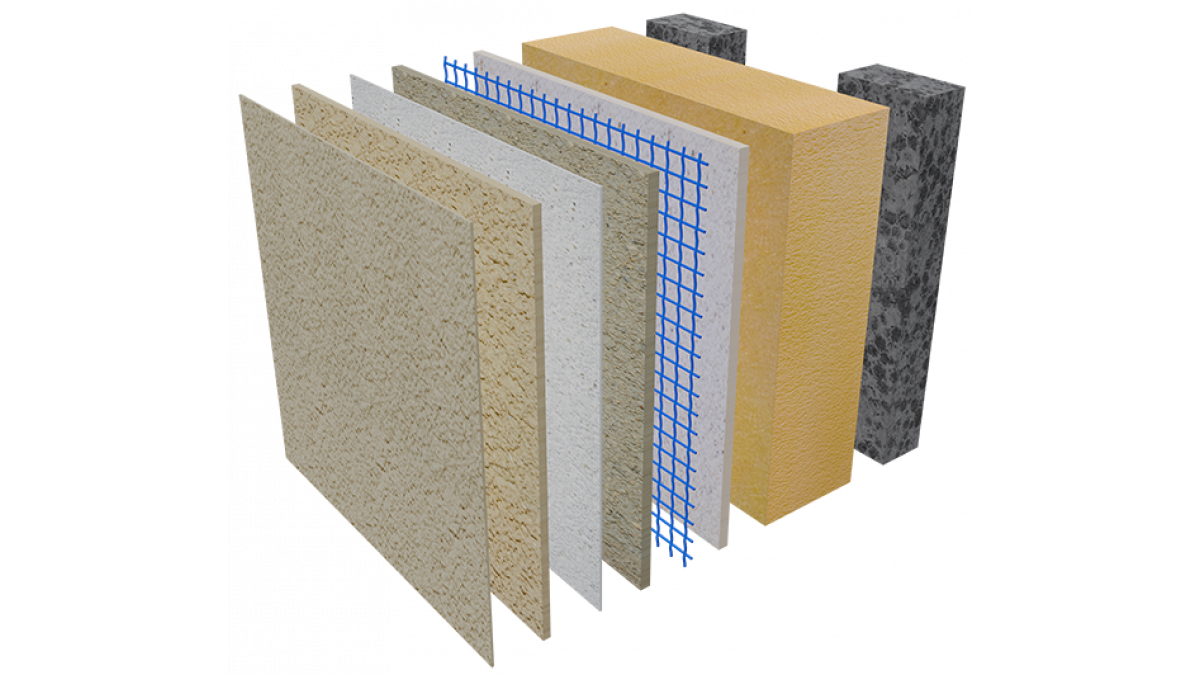

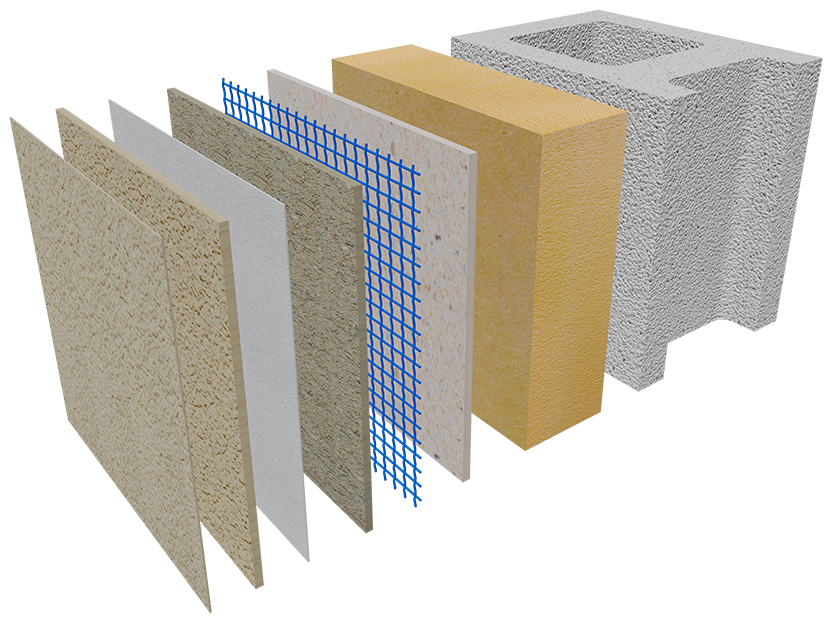

Two systems are available — one as a direct fix masonry overlay, and a cavity based system for install over timber or steel framing. Both systems create an unbroken layer of ‘out’sulation, a highly efficient method to keep the warmth in and the cold out.

XTHERM GOLD is a complete system incorporating our full flashing suite, lamina of hand-applied modified plaster coatings, full surface fibreglass reinforcement, styled with your choice of textures from ROCKCOTE or Plaster Systems all finished with Resene protective coatings in your favourite Resene colours.

Best of all it is all made right here in New Zealand.

XTHERM GOLD Insulated Facade System

Resene Construction Systems

View Product

XTHERM GOLD insulated plaster facade system incorporates our exclusive 50mm, 75mm or 100mm thick XTHERM™ GOLD ultra-high density, fire retardant PIR panels, providing far greater thermal insulation and hardness than traditional standard grade EPS (expanded polystyrene).

NZ Made

NZ-Owned Business

Residential, Medium density, and light commercial situations
All Wind zones up to and including Very High
All Seismic and Corrosion zones

BRANZ Appraisal No 633 [2018]

XTHERM GOLD has been appraised as an external wall cladding system for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
situated in NZS 3604 Wind Zones up to, and including Extra High.

XTHERM GOLD has also been appraised for weathertightness and structural wind loading when used as an external wall cladding system for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
constructed with timber and steel framing subject to specific engineering design; and,
situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa.

In the opinion of BRANZ, Insulated Façade System if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal No. 633 [2018], will meet or contribute to meeting the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. Insulated Facade System meets the requirements for loads arising from self-weight, wind, impact and creep [i.e. B1.3.3 (a), (h), (j) and (q)]. See Paragraphs 10.1 - 10.4
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years, B2.3.1 (c), 5 years and B2.3.2. Insulated Façade System meets these requirements. See Paragraphs 11.1 and 11.3
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. Insulated Façade System meets this requirement. See Paragraphs 16.1 - 16.5
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Insulated Façade System meets this requirement and will not present a health hazard to people

BRANZ Appraised
