Lightweight Concrete Facade System Brings Smooth Finish to Stunning Home

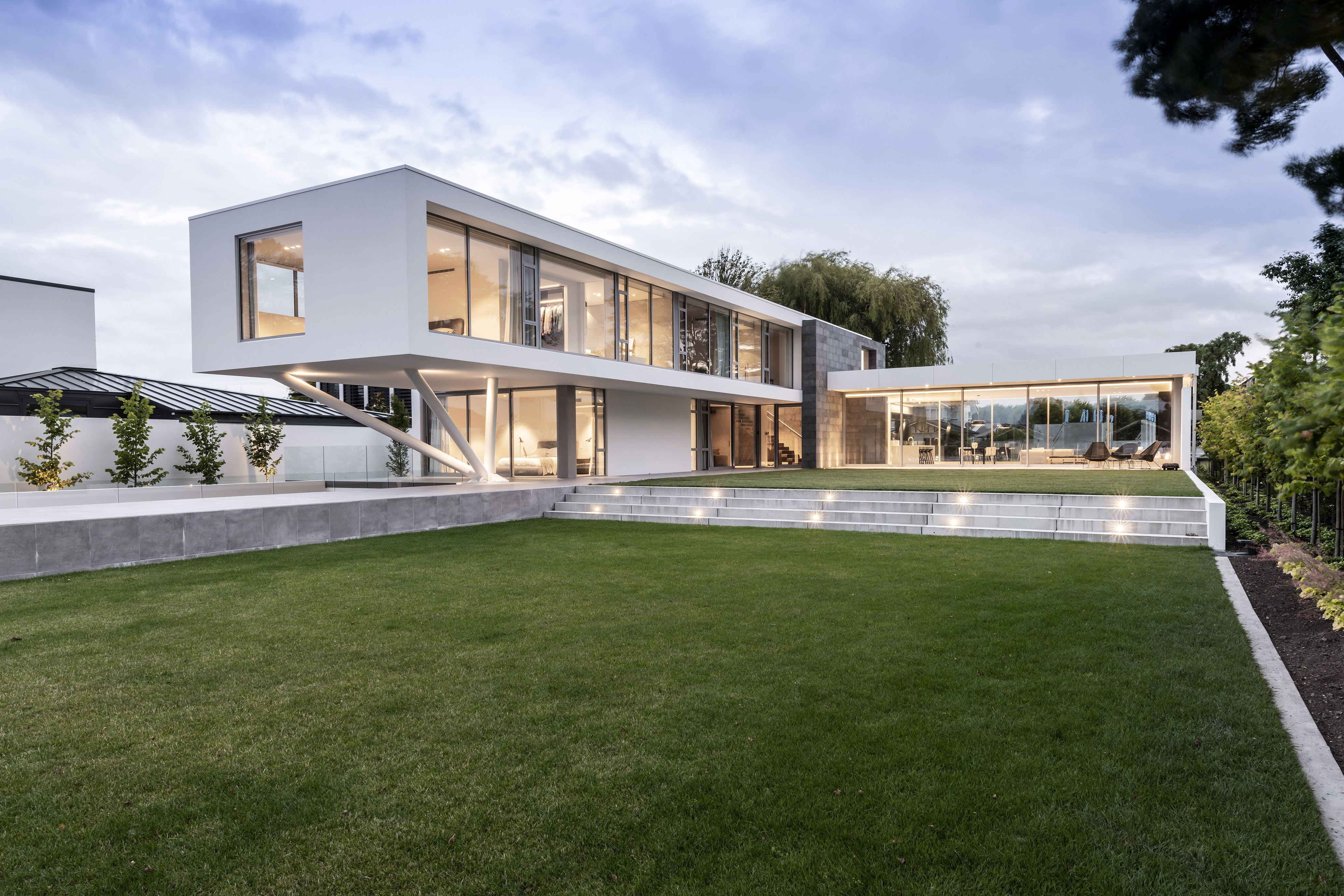

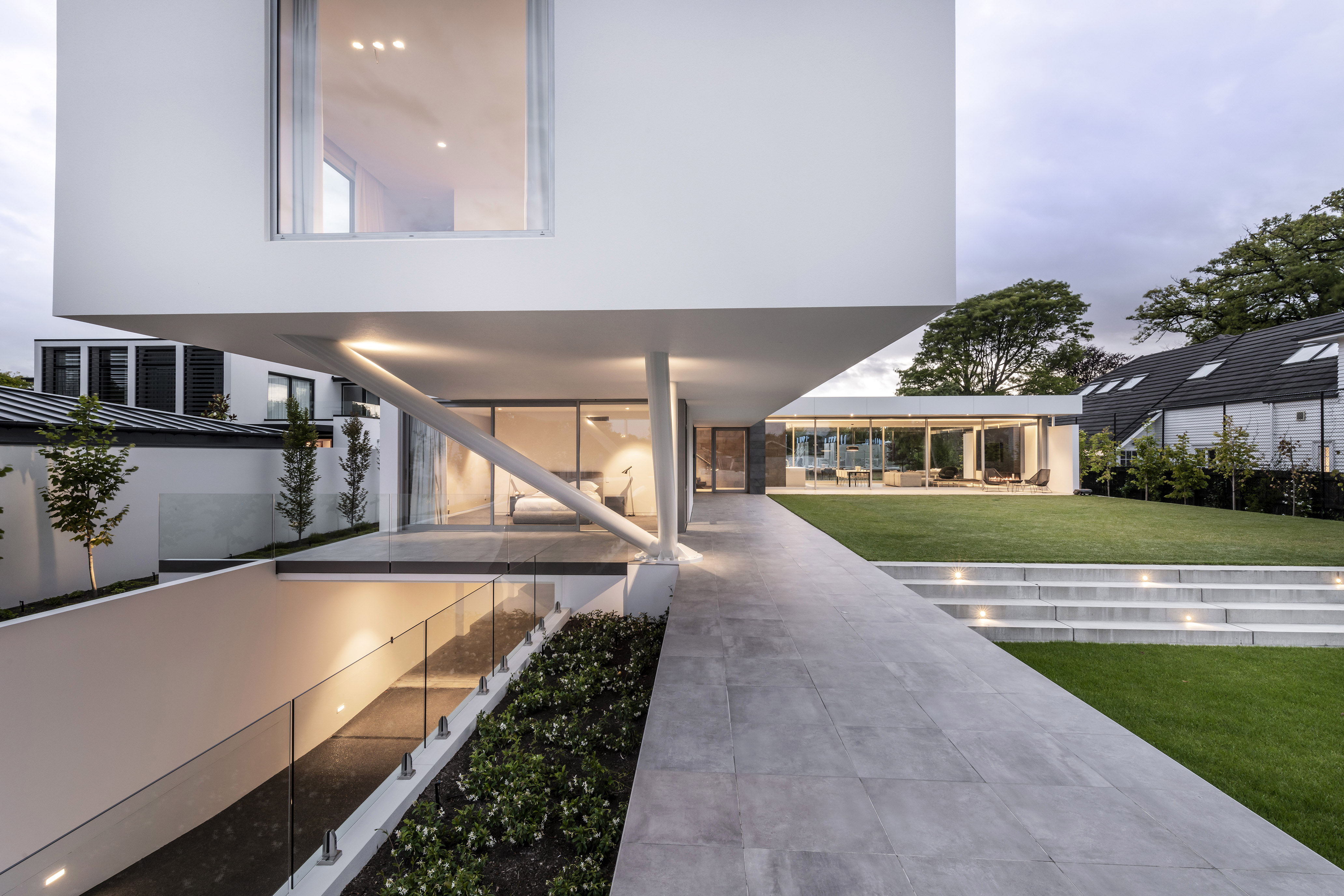

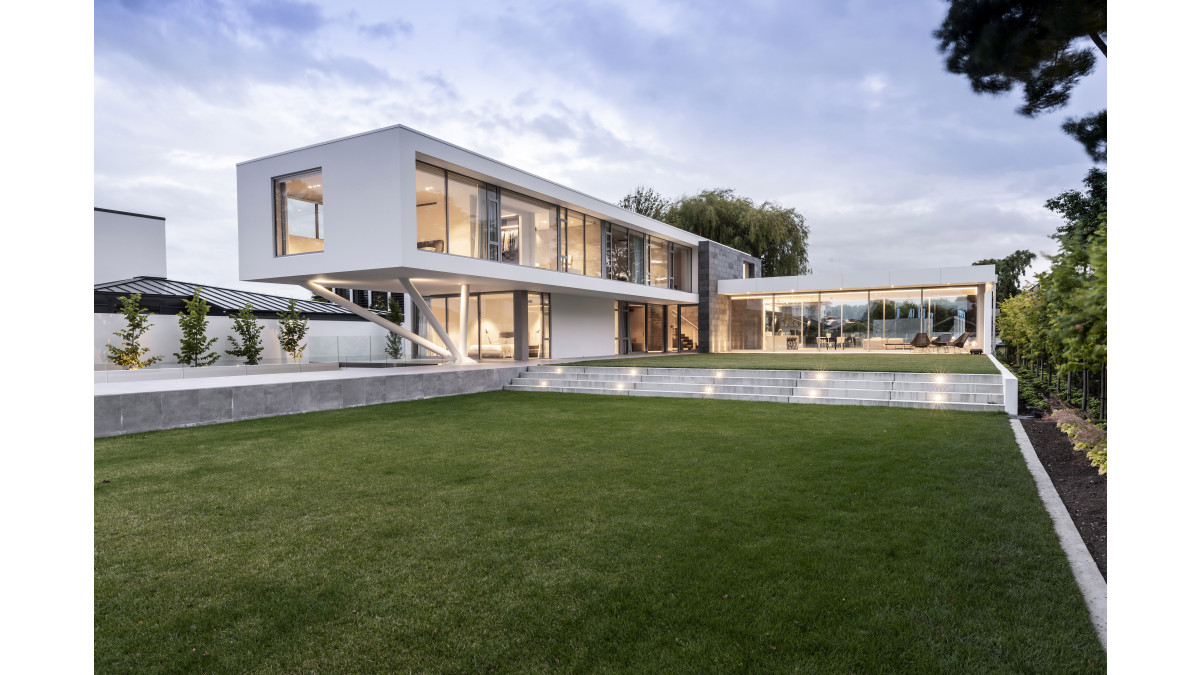

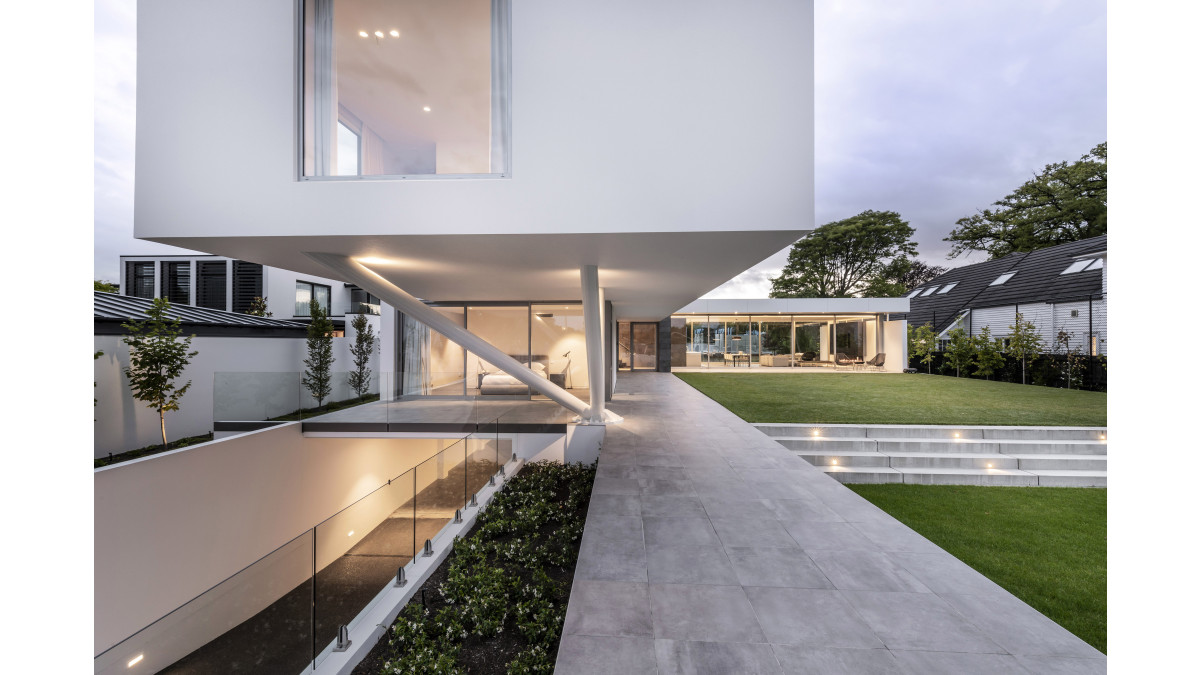

Renowned for their high calibre designs, O'Neil Architecture, Christchurch has created this stunning and bespoke residence in Fendalton, Christchurch. The home takes advantage of the engineered strength of tubular steel to support living spaces as they float effortlessly in defiance of Canterbury’s recent shaky history.

The home features solid and defined proportions made from plaster and basalt, and complemented by abundant glazing through which visitors get a feel of the open and warm living environment.

For the facade, Resene Construction Systems' Integra Lightweight Concrete Facade System was chosen finished with Rockcote Classico acrylic texture coloured Resene Half Black White. The BRANZ-appraised Integra exterior plaster facade system comprises a mechanically fixed INTEGRA lightweight concrete panel, modified flexible acrylic renders and a weather-protected base, and is finished with versatile and low maintenance Rockcote plaster topped with a tintable protective finishing coat.

The Integra Lightweight Concrete Facade system meets NZBC requirements for B1 Structure, B2 Durability and E2 External Moisture and is backed by a 15-year system guarantee for assured performance. It is an ideal option for any project where a beautiful plastered aesthetic is wanted with no compromise to the durability and structural integrity of the building.

This beautiful home was constructed and finished with professional craft and skill by all trades involved; the Rockcote Plastered INTEGRA Facade was supplied, installed and finished by Glen and the Team at Properly Plastered, Christchurch.

INTEGRA Lightweight Concrete Facade System

Resene Construction Systems

View Product

INTEGRA from Resene Construction Systems is a high performance, lightweight AAC concrete panel and external façade system.

NZ Made

NZ-Owned Business

Pre-Consumer Recycled Content

The Integra Lightweight Concrete Façade System is a pressure moderated, cavity-based external wall cladding system for residential and light commercial type buildings where domestic construction techniques are used.

See BRANZ Appraisal No 681 [2018]

The Integra Lightweight Concrete Façade System has been appraised by BRANZ (Appraisal no. 681 [2018]) as an external wall cladding system for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
situated in NZS 3604 Wind Zones up to, and including Extra High

The Integra Lightweight Concrete Façade System has also been appraised for weathertightness and structural wind loading when used as an external wall cladding system for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
constructed with timber or steel framing subject to specific engineering design; and,
situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa

In the opinion of BRANZ (Appraisal no. 681 [2018]), the Integra Lightweight Concrete Façade System if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. The Integra Light Weight Concrete Façade System meets the requirements for loads arising from self-weight, earthquake, wind, impact and creep [i.e. B1.3.3 (a), (f), (h), (j) and (q)]. See Paragraphs 10.1 - 10.4
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years, B2.3.1 (c), 5 years, and B2.3.2. The Integra Light Weight Concrete Façade System meets these requirements. See Paragraphs 11.1 and 11.3
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. The Integra Light Weight Concrete Façade System meets this requirement. See Paragraphs 15.1 - 15.5
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Integra Light Weight Concrete Façade System meets this requirement and will not present a health hazard to people
