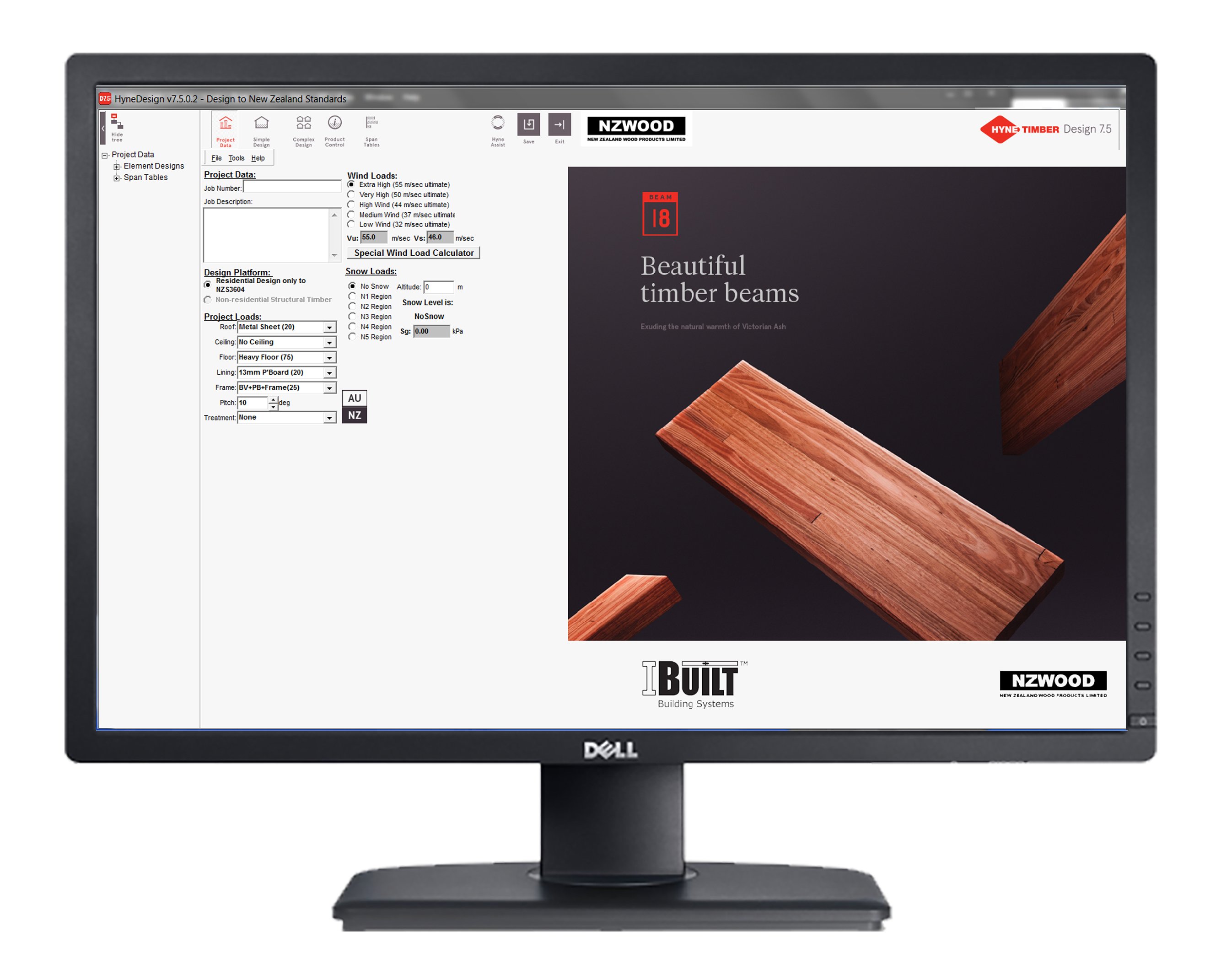

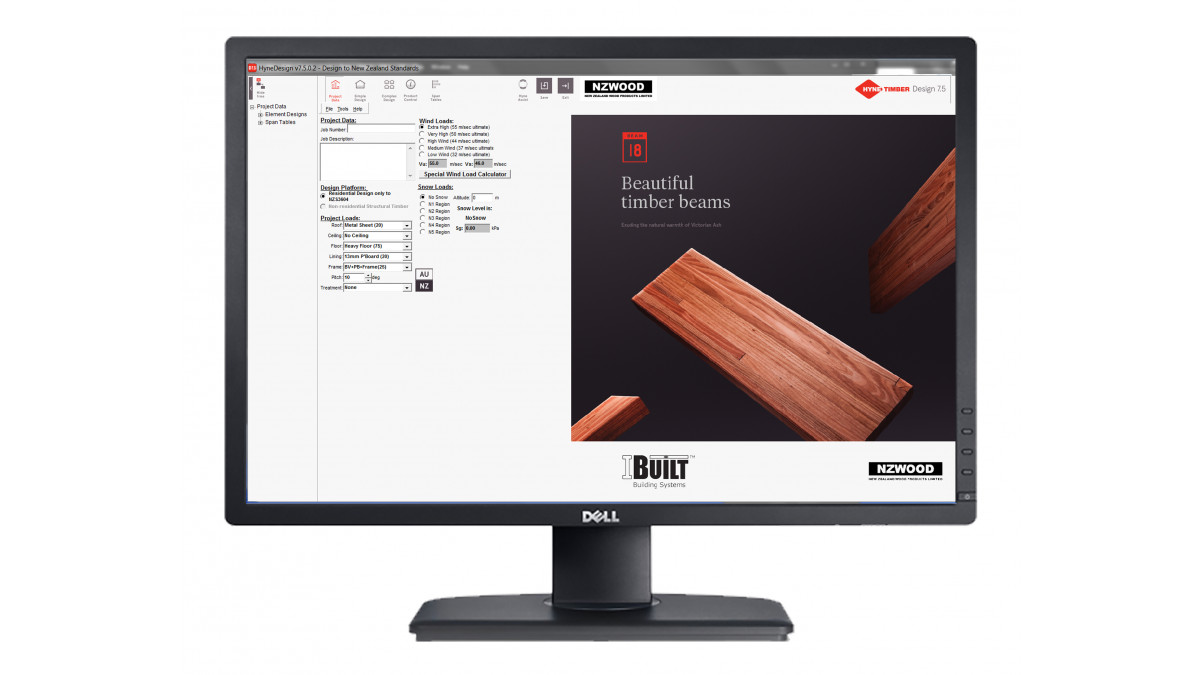

IBuilt’s Powerful HD7 Software

IBuilt’s powerful HD7 software, developed by Hyne Timber, enables users to design structural members such as joists, rafters, lintels and beams. The software delivers innovative design procedures and a user friendly intuitive interface. It also allows the ability to design complex loaded members such as point loaded beams.

Users have the option to design members using the most popular New Zealand timber products including SG8 timber, Nelson Pine LVL and high strength Hyne 15C Glulam. Certification and reporting functionality allows users to easily find member performance data such as deflection and support reaction values.

HD7 is an intuitive and powerful design tool that is available free to all designers via the IBuilt website. If required, IBuilt can provide training sessions and support either online or in office.

Hyne Design Software

New Zealand Wood Products Ltd

View Product

IBuilt's Hyne Design (HD) is an industry standard for alternative structural timber design.

Enhanced functionality: HD now incorporates the latest changes from the relevant structural standards — Improved design procedures and updated product properties.

Multi-platform compatible: Now available to all platforms including PC, Mac, desktop, and tablet.

Online availability: Hyne Design is now online, so there is no need to install updates. Cloud-based storage is also offered, users can access their designs, reporting, and certifications online.

Improved support portal: The support portal has been updated to include more How-To and guides than ever before.

Compliance reporting: Generates custom reports covering design loads, deflection, and engineering calculations for uplift connection selection and building consent.

Product range: Compare product performance from major manufacturers effortlessly. HD covers all of the products available in the IBuilt engineered timber range including:

NZ made structural LVL 11 & 13
Hyne Beam15
Stress graded (SG8) framing
and IBuilt's JJ-IJoist
