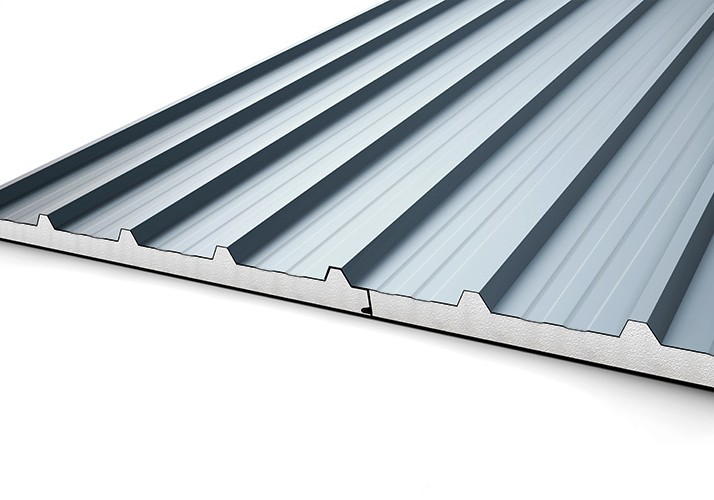

• Roof and Wall cladding
• Minimum roof pitch 3°
• Lengths from 2m-24m

Show more

• Compliance with H1 — Aspirespan with 150mm thick PIR insulation core can achieve a thermal resistance rating of R7.5 (Thermal Resistance R-value (m2K/W) @15°C)
• See PASS Statement for full performance

Show more

• For use as insulated, fire-resistant, fully finished wall and roof panel
• Colorsteel® finish will depend on the specific exposure zone and use
• Fire rated option -/30/30 can be achieved with the 200mm thick suPIR panel and specialised installation — Please consult Metalcraft Insulated Panels
• 1000m in width, custom lengths and in the following thicknesses: 50, 75, 100, 125, 150, 200, 250, 300mm

Show more

• See PASS statement for full performance information

Show more

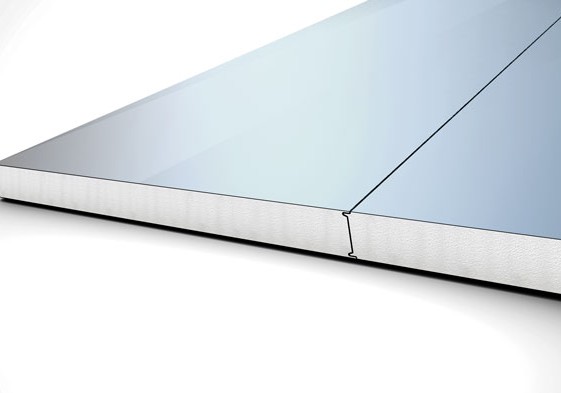

They are fully finished internal/external panels manufactured from a core of expanded polystyrene (EPS) sandwiched between 0.59mm layers of Colorsteel®.  Panels are available in a variety of colours and in the following thicknesses (mm): 50, 75, 100,150, 200, 250, 300.

Application include Wall cladding, Roofing depending on application. Contact Metalcraft Insulated Panels for more information.

Metalcraft Insulated Panel Systems supplies Thermopanel and Thermospan Insulated Panels for use as load bearing and non-load bearing wall and roofing panels.

Show more

Corrosion Exposure Zone D

Extra High Wind Zone

Specific Design Wind Zone

B1 Structure: B1.3.1, B1.3.2, B1.3.3 (a), (b), (c), (f), (e), (g), (i), (j), (I), (m) & (q), B1.3.4 (a), (b), (c), (d) & (e)

PRODUCT CERTIFICATION CodeMark Certificate GM-CM30078-RevC 05/02/2020 GM-CM30078-RevC › CodeMark certificate issued by Global-Mark › Globa-Mark is an accredited product certification body under section 263 of the Building Act 2004 B2

Durability: B2.3.1 (a) C3 Fire affecting areas beyond the fire source: C3.4 (a)

E2 External Moisture: E2.3.1, E2.3.2, E2.3.3, E2.3.4, E2.3.7 (b) & (c)

E3 Internal Moisture: E3.3.1, E3.3.4, E3.3.5, E3.3.6

F2 Hazardous building material: F2.3.1 G3 Food Preparation & Prevention of Contamination: G3.3.2 (a) & (b) H1 Thermal Efficiency: H1.3.1 (a), (b), H1.3.2E, H1.3.3 (c) & (e)

Show more

Structure

Durability

External Moisture

CodeMark

Applications include wall cladding, roofing depending on application. Contact Metalcraft Insulated Panels for more information.

Metalcraft Insulated Panel Systems supplies Thermopanel and Thermospan Insulated Panels for use as load bearing and non-load bearing wall and roofing panels.

Location:

• In all wind zones up to and included extra high as defined in NZS3604:2011 or up to a specifically designed maximum wind pressure (ULS) of 2.5kPa.
• All corrosion zones as defined in NZS3604:2011

Building:

• In new buildings where the relevant part of the building complies with the NZ Building Code or in existing buildings where the designer and installer have assured themselves that the relevant part of the building is adequate for the intended building work.
• In conjunction with a concrete, steel or timber sub-floor and flooring structure (where panels are to be load bearing)
• In conjunction with steel or timber structural framing and concrete, steel or timber sub-floor and flooring structure (non-load bearing). Joinery that complies with NZS4211:2008
• All building uses, where material group 2 or more is required

Show more

Corrosion Exposure Zone D

Extra High Wind Zone

Specific Design Wind Zone

Where the Metalcraft Insulated Panel System is designed, installed and maintained in accordance with the scope and conditions of CodeMark Certificate CMNZ 30078 Rev E, the Metalcraft Insulated Panel System, will comply or contribute to compliance with following provisions of the NZ Building Code:

• Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, B1.3.4 for the relevant physical conditions of B1.3.3 (a),(b),(e),(f),(h) and (j)
• Clause B2 DURABILITY: Performance B2.3.1(a)
• Clause C3 FIRE AFFECTING AREAS BEYOND THE FIRE SOURCE: C3.4(a) where a material group number 1 is required.
• Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2, E2.3.3, E2.3.7
• Clause E3 INTERNAL MOISTURE: Performance E3.3.1, E3.3.4, E3.3.5 and E3.3.6
• Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.
• Clause G3 FOOD PREPARATION & PREVENTION OF CONTAMINATION: Performance G3.3.2 (a) and (b)
• Clause H1 THERMAL EFFICIENCY: Performance H1.3.1 (a) and (b), H1.3.2E for the relevant physical conditions of H1.3.3 (c) and (e)

Show more
