MetecnoPanel (PIR)
Description

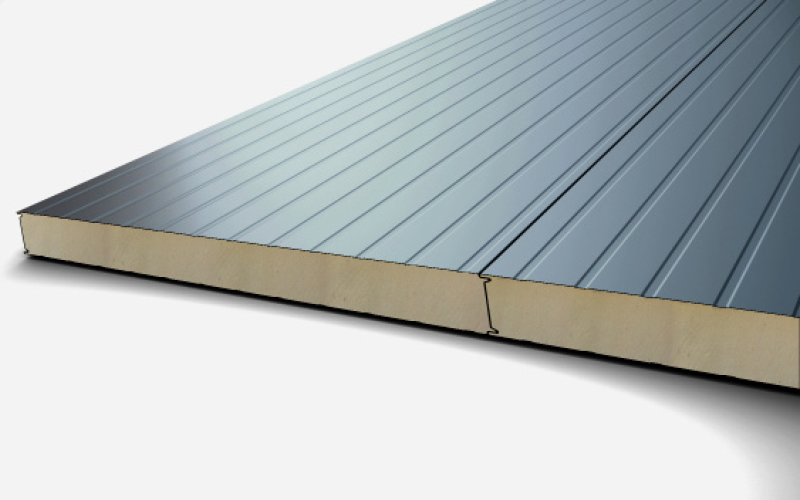

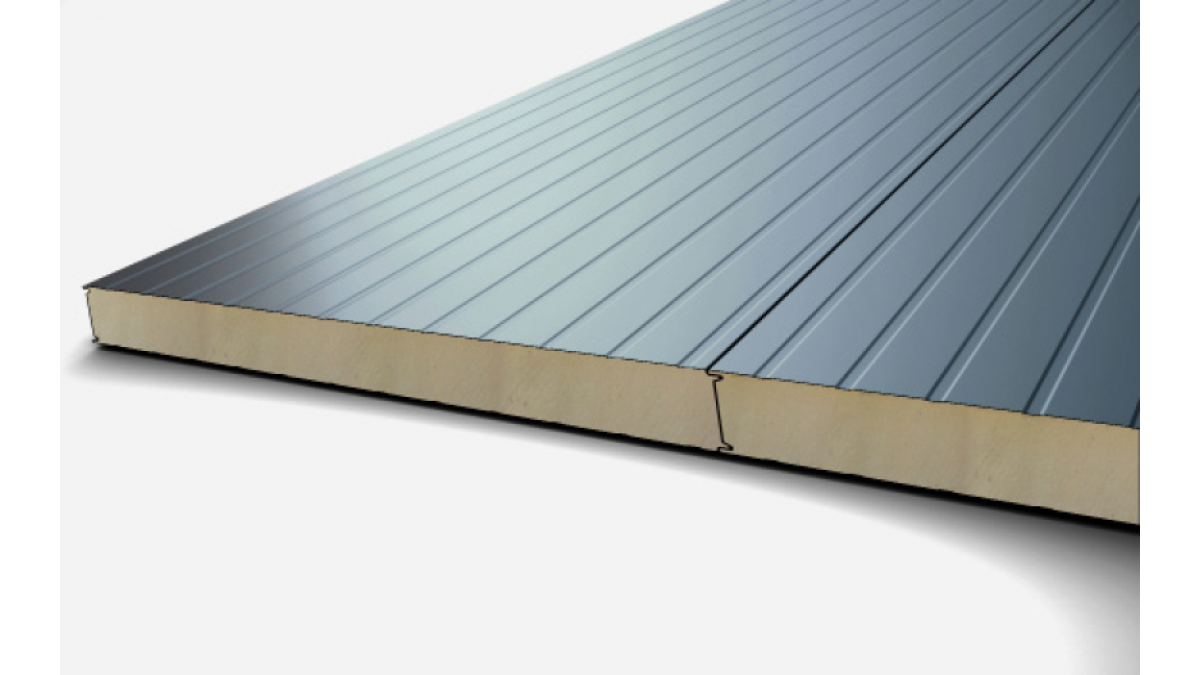

MetecnoPanel is a lightweight sandwich panel with a built in PIR fire resistant core. MetecnoPanel employs a specifically designed labyrinth joint to ensure excellent insulation to insulation contact. The MetecnoPanel metal to metal joint on each side has been engineered to ensure positive sealing in cold storage applications.

MetecnoPanel is available in a variety of thicknesses and three different finishes. Durable and aesthetically attractive, MetecnoPanel wall and ceiling panels provide high thermal resistance, mechanical resistance and dimensional stability.

Key Features
  • Metal to metal joint on each side has been engineered to ensure positive sealing in cold storage applications
  • Aesthetically pleasing panel
  • Durable
  • High thermal resistance
  • FM 4880 Approved Class 1 — Unlimited Height
  • FM 4881 Approved Class 1 — Unlimited Height
Scope of Use

The Metecno Panel system can be used as a fully finished internal/external wall system within the following scope:

Location:

  • Wind zones up to extra high as defined in NZS3604:2011
  • Where specifically designed, up to a maximum design differential ultimate limit state (ULS) of 2.5kPa
  • All corrosion zones as defined in NZS3604:2011

Building:

  • Roof pitch a minimum of 3 degrees
  • Sub-floor and flooring structure (concrete, steel or timber) that complies with the NZ Building Code (NZBC)
  • In new buildings and the Metecno System is to be used as non-load bearing
  • A timber or steel framed structure that complies with the NZBC
  • Sub-floor and flooring structure (concrete, steel or timber) that complies with the NZBC
  • Existing buildings where the designer and installer are satisfied that the existing building is adequate for the intended building work
  • Joinery that complies with NZS4211:2008
Limitations on Use

The Metecno Panel System must be specified and designed in accordance with Metalcraft Insulated Panel technical documentation: www.metalcraftgroup.co.nz.

Location:

  • Where the Metecno Panel System is to be used in a micro-climate (as defined in clause 4.2.2, NZS3604:2011, Metalcraft Insulated Panels is to be consulted for technical advice
  • Where the building is located within 1m of the relevant boundary, The Metecno Panel System, may only be used as a non-load bearing external wall cladding system, forming part of the fire rated wall system

Building:

  • Where compliance with G3.3.2(a, b) is required, Colorbond Permaguard must be specified as the internal lining to the panel
NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
Other Performance Attributes
  • FM 4880 Approved Class 1 — Unlimited Height
  • FM 4881 Approved Class 1 — Unlimited Height
B1 Structure compliant
Structure
E2 External Moisture compliant
External Moisture
Independent Assessment
Independent Assessment
Documents
CAD/PDF Link
Loadspan Graph and Fixing Table
Product Technical Statement
Specification Clause/Guide
CAD/PDF Details

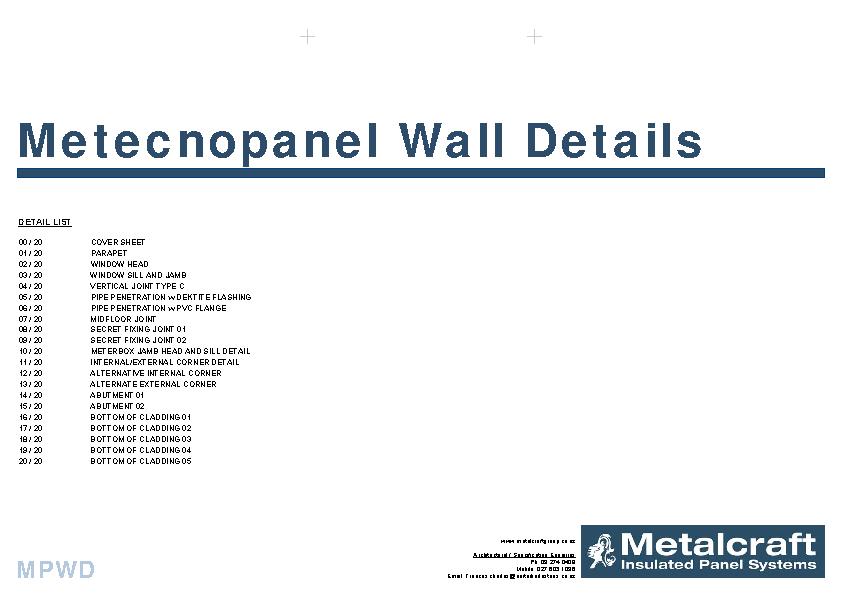

Commercial Wall Cladding Details

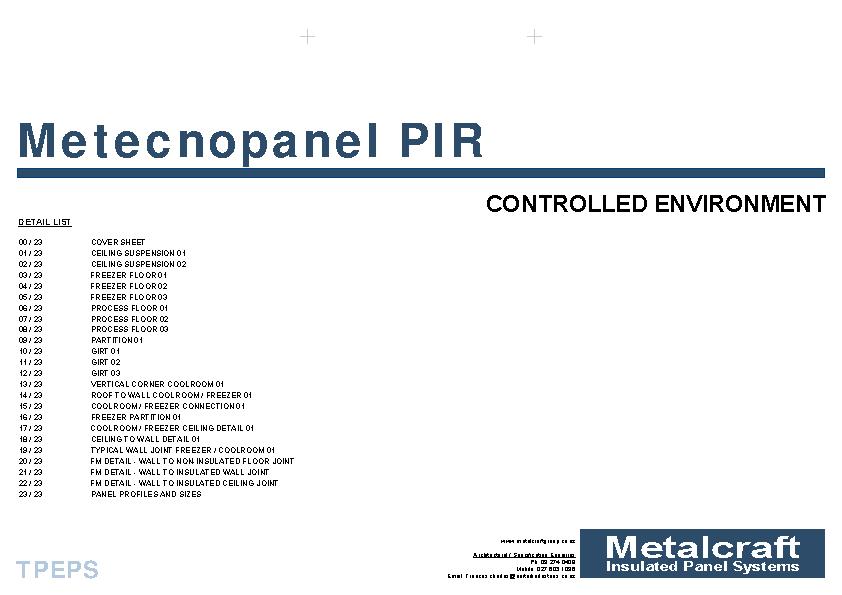

Controlled Environment Details

Metalcraft Insulated Panel manufacture a full range of panel solutions using various core technologies that meet the performance requirements of the external environment.
