ThermoPanel EPS
Description

The Metalcraft Insulated ThermoPanel EPS is a stressed skin sandwich panel, comprised of pre-painted steel skins continuously laminated over a fire retardant Polystyrene (EPS) core. The EPS core is not fire rated.

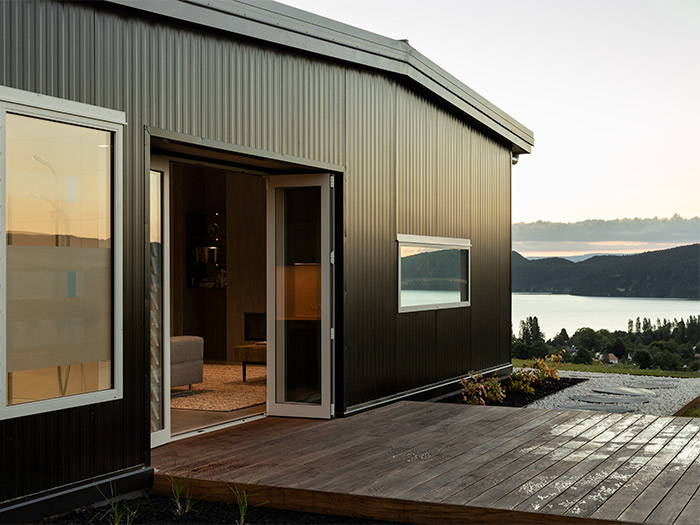

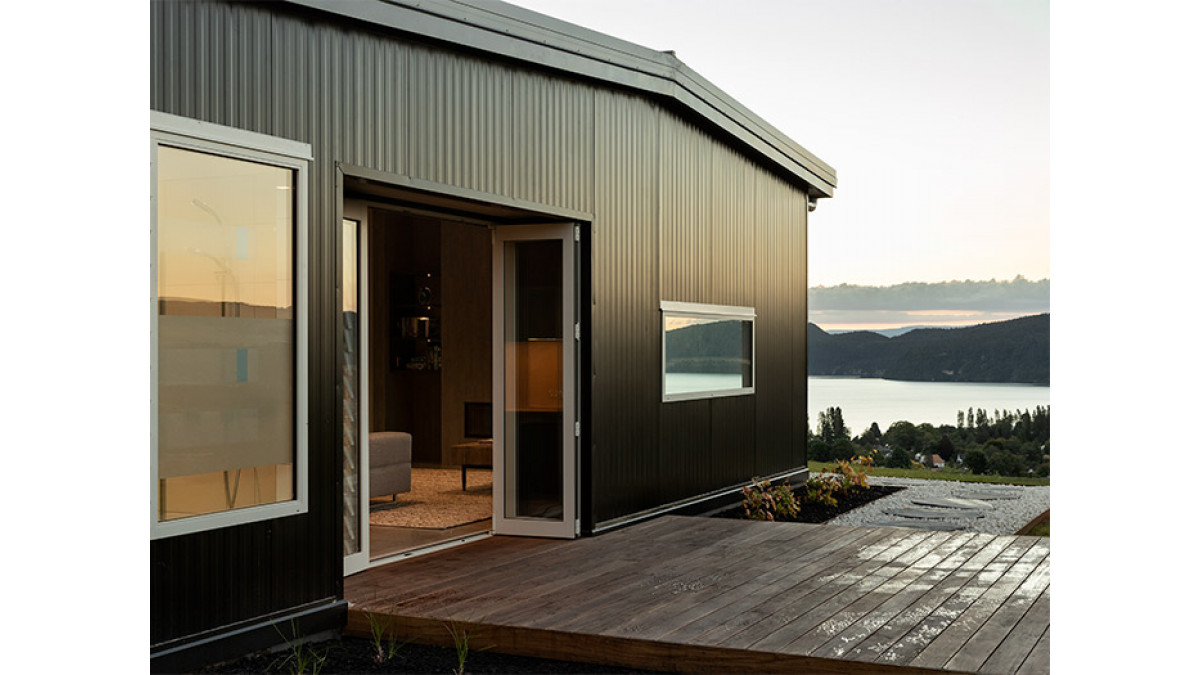

ThermoPanel EPS can be used in horizontal or vertical applications and with a range of colour, joint and profile options, it can meet the functional and aesthetic requirements demanded by a variety of facilities such as sports centres, commercial premises, offices, warehouse and factories.

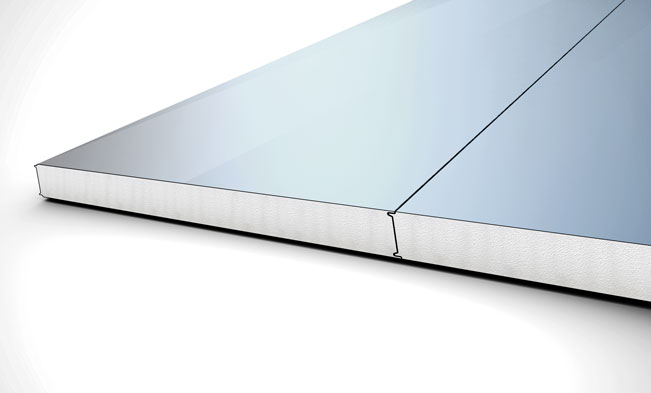

ThermoPanel EPS's range of colours, joints and profiles deliver a first class finish inside and out. The panels can be joined with a standard slip joint or a tongue and groove type joint. It allows for easy and rapid installation whilst providing greater strength in walls and a clean, smooth aesthetic look.

Key Features

ThermoPanel is available is a range of colours with a variety of profile finishes, providing greater strength in walls and a clean, smooth aesthetic look.

  • A reduction of wet trades
  • Efficient concealed fixing system
  • Ease of cutting and trimming on site
  • Minimal mess on site
  • Compatibility with openings and design elements of the building
  • ThermoPanel has been Codemark certified. Please refer to Metalcraft for specific Codemark installation requirements
Scope of Use

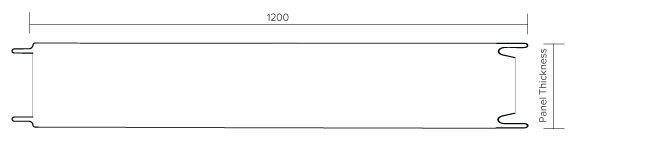

They are fully finished internal/external panels manufactured from a core of expanded polystyrene (EPS) sandwiched between 0.59mm layers of Colorsteel®.  Panels are available in a variety of colours and in the following thicknesses (mm): 50, 75, 100,150, 200, 250, 300.

Application include Wall cladding, Roofing depending on application. Contact Metalcraft Insulated Panels for more information.

Metalcraft Insulated Panel Systems supplies Thermopanel and Thermospan Insulated Panels for use as load bearing and non-load bearing wall and roofing panels.

Limitations on Use

Location

In all wind zones up to and included extra high as defined in NZS3604:2011 or up to a specifically designed maximum wind pressure (ULS) of 2.5kPa.

All corrosion zones as defined in NZS3604:2011. › Where the system is to be used in a micro-climate (as defined in clauses 4.2.2, NZS3604:2011),

Metalcraft Insulated Panel Systems is to be consulted.

In new buildings where the relevant part of the building complies with the NZ Building Code or in existing buildings where the designer and installer have assured themselves that the relevant part of the building is adequate for the intended building work.

  • Where the panels are to be located within 1m of a relevant boundary the system may only be used as a non-load bearing external wall cladding system.
  • Where fire resistance rating (FRR) is required, specific design is required.
  • A maximum building height of 10m.
  • Where the panels are to be used as roof panels, a minimum roof pitch of 3°.
  • In conjunction with a concrete, steel or timber sub-floor and flooring structure (where panels are to be load bearing).
  • In conjunction with steel or timber structural framing and concrete, steel or timber sub-floor and flooring structure (non-load bearing). Joinery that complies with NZS4211:2008.

All building uses,

  • Where material group 2 or more is required.
  • Colorsteel® CP-Antibacterial must be specified where the internal face must comply with G3.3.2(a).
NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
Statement of Building Code Compliance

B1 Structure: B1.3.1, B1.3.2, B1.3.3 (a), (b), (c), (f), (e), (g), (i), (j), (I), (m) & (q), B1.3.4 (a), (b), (c), (d) & (e)

PRODUCT CERTIFICATION CodeMark Certificate GM-CM30078-RevC 05/02/2020 GM-CM30078-RevC › CodeMark certificate issued by Global-Mark › Globa-Mark is an accredited product certification body under section 263 of the Building Act 2004 B2

Durability: B2.3.1 (a) C3 Fire affecting areas beyond the fire source: C3.4 (a)

E2 External Moisture: E2.3.1, E2.3.2, E2.3.3, E2.3.4, E2.3.7 (b) & (c)

E3 Internal Moisture: E3.3.1, E3.3.4, E3.3.5, E3.3.6

F2 Hazardous building material: F2.3.1 G3 Food Preparation & Prevention of Contamination: G3.3.2 (a) & (b) H1 Thermal Efficiency: H1.3.1 (a), (b), H1.3.2E, H1.3.3 (c) & (e)

B1 Structure compliant
Structure
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
CodeMark
CodeMark
Documents
CAD/PDF Link
Loadspan Graph and Fixing Table
Product Technical Statement
CodeMark

CM30078 Rev E

CodeMark Certificate of Conformity
CodeMark Specification Guide

V2 June 2020

Additional Information
Colour Chart
Environmental Category Brochure
CAD/PDF Details

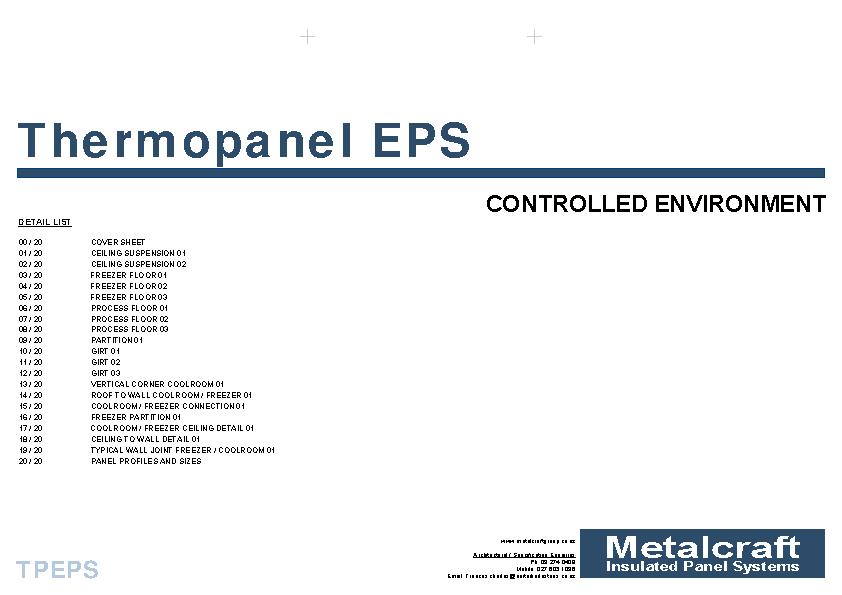

Controlled Environment Details

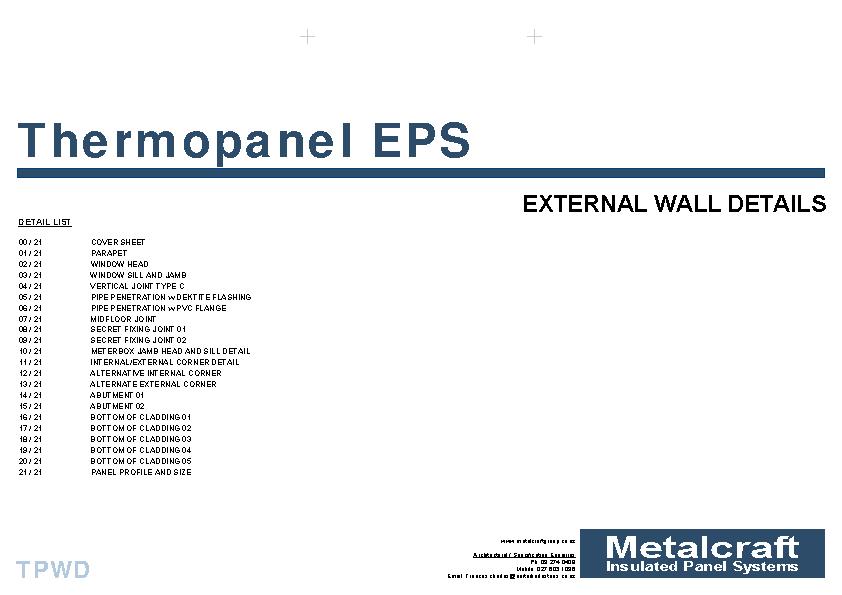

ThermoPanel External Wall Cladding Details

Metalcraft Insulated Panel manufacture a full range of panel solutions using various core technologies that meet the performance requirements of the external environment.
