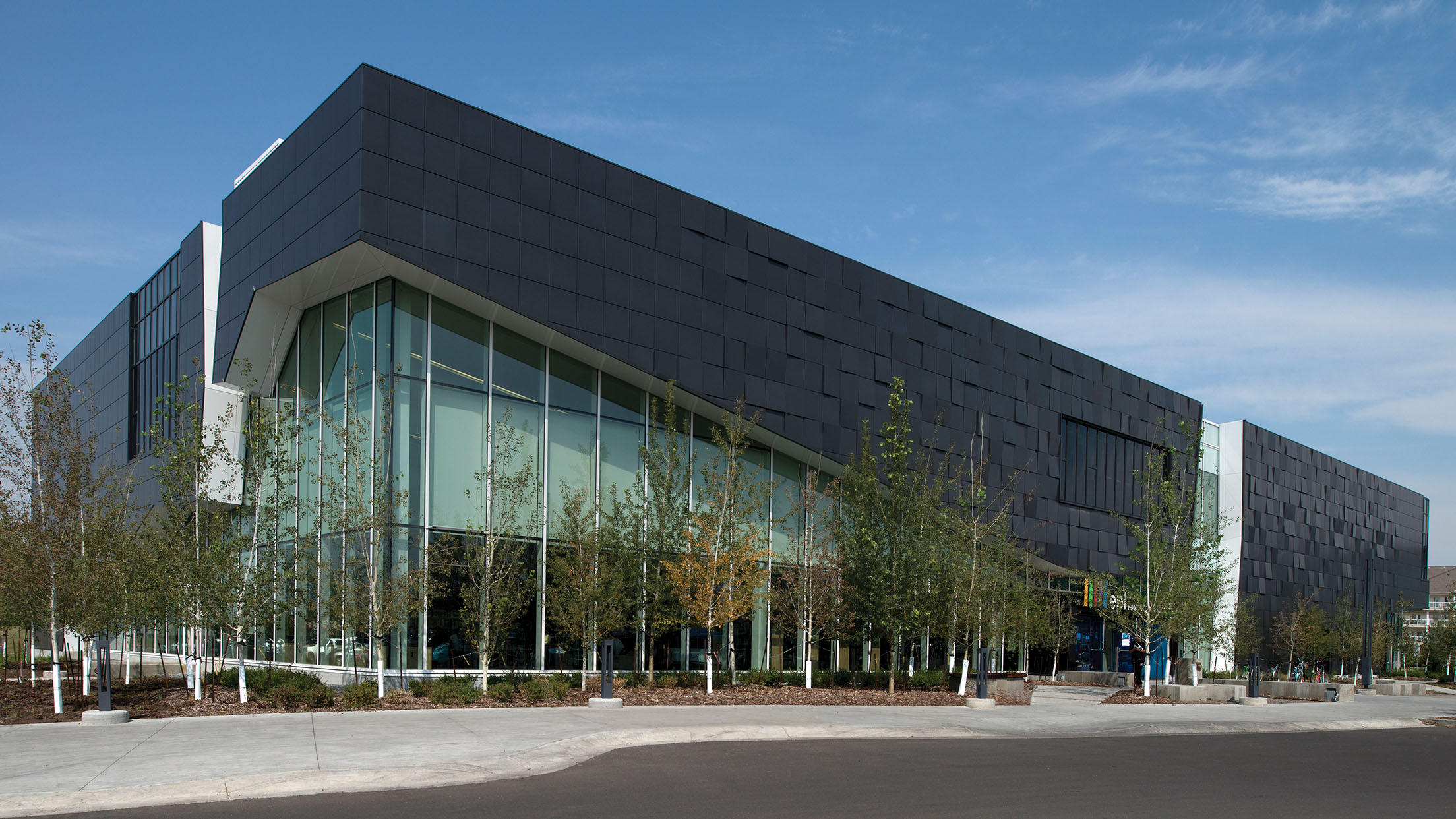

• An insulated wall panel system for use on residential, communal residential, communal non-residential, commercial, industrial buildings and outbuildings

All Kingspan panels, including Architectural Wall Panels, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, including Extra High wind zones.

Show more

Corrosion Exposure Zone B

Corrosion Exposure Zone C

Corrosion Exposure Zone D

High Earthquake Zone

Low Earthquake Zone

Medium Earthquake Zone

Very High Earthquake Zone

Extra High Wind Zone

High Wind Zone

Low Wind Zone

Medium Wind Zone

Specific Design Wind Zone

Very High WInd Zone

Architectural Wall Panels hold a CodeMark Certificate of Conformity stating the provisions of the Building Regulations 2008 (New Zealand) the product conforms to.

CodeMark Certificate of Conformity is certified under the name Kingspan Insulated Panels Architectural Wall Panels (AWP) and Evolution (EVO). Certificate number: CM20114 Rev V2.

For further details please contact the Kingspan Technical Service Department or alternatively refer to the MBiE — Product Certificate Register and search for 'Kingspan KS1000AWP'.

When designed, used, installed and maintained in accordance with Kingspan standard details, the Architectural Wall Panel is compliant with the following clauses on the NZBC:

• B1 Structure — B1.3.1; B1.3.2; B1.3.3(a, f, g, h, j); B1.3.4
• B2 Durability — B2.3.1(b)
• C3 Fire Affecting Areas Beyond the Fire Source — C3.4(a); C3.5; C3.7
• E2 External Moisture — (contributes to) E2.3.2; E2.3.7
• E3 Internal Moisture — E3.3.5
• F2 Hazardous Building Materials — F2.3.1
• H1 Energy Efficiency — (contributes to) H1.3.1

Codemark Certification demonstrates compliance to the NZBC equivalent of an Acceptable Solution. Some specialist buildings may fall partially or wholly outside of the scope of the Codemark Certificate, should this occur then please contact Kingspan Technical for assistance in demonstrating NZBC compliance via an Alternative Solution.

Show more

Structure

Durability

Protection from Fire

External Moisture

Internal Moisture

Energy Efficiency

CodeMark

Independent Assessment

Test Results

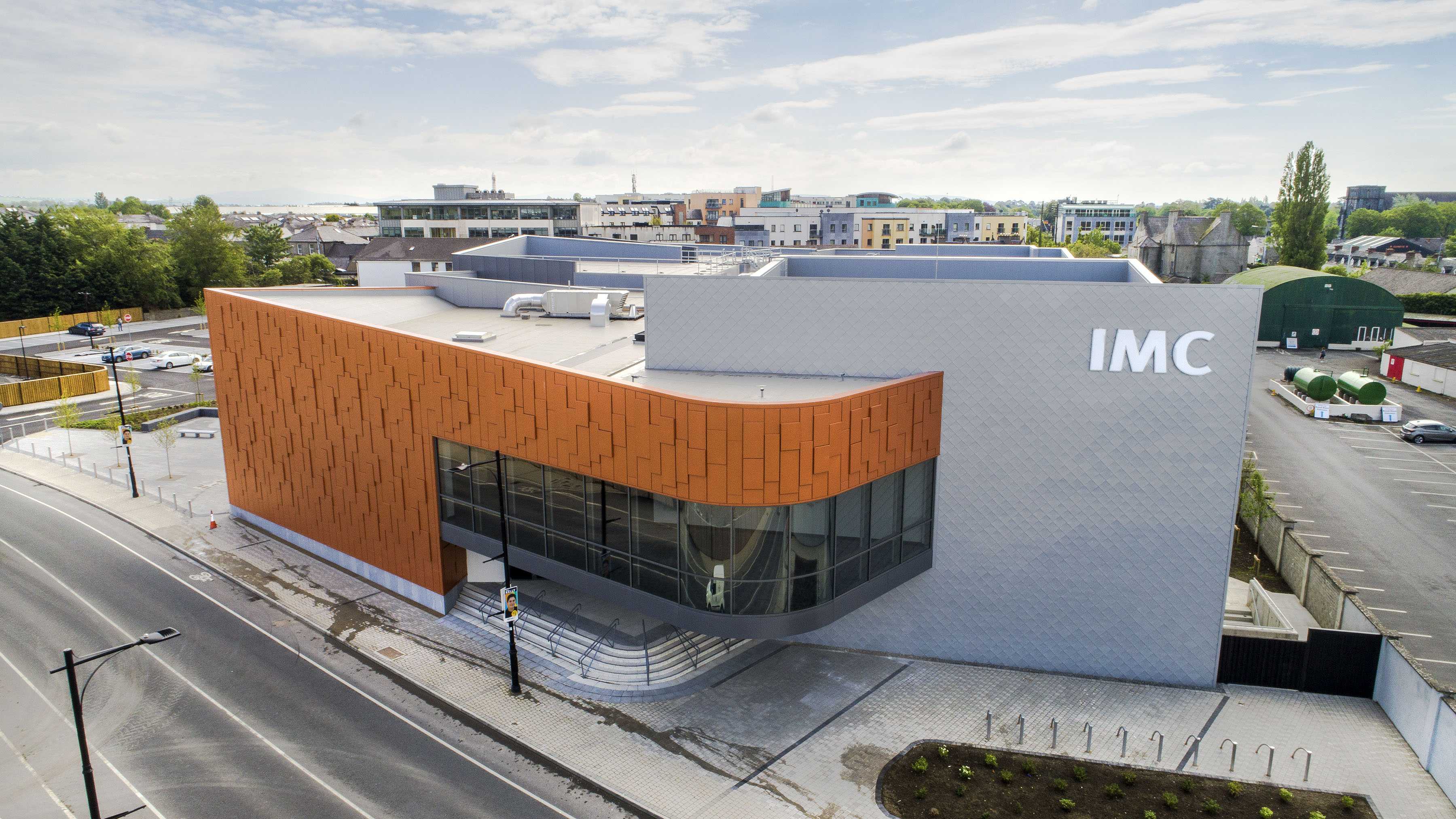

• A panelised façade system for use on residential, communal residential, communal non-residential, commercial, industrial buildings and outbuildings
• All Kingspan panels, including Evolution Panelised Façades, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, including Extra High wind zones
• Horizontal or vertical installation
• Wide selection of pre-formed corners are available; no need for bulky flashings
• Finishes suitable for standard and high humidity environments
• All Kingspan panels, including the Trapezoidal roof and wall panels, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, up to and beyond the Extra High wind zones

Show more

Corrosion Exposure Zone B

Corrosion Exposure Zone C

Corrosion Exposure Zone D

High Earthquake Zone

Low Earthquake Zone

Medium Earthquake Zone

Very High Earthquake Zone

Extra High Wind Zone

High Wind Zone

Low Wind Zone

Medium Wind Zone

Specific Design Wind Zone

Very High WInd Zone

Kingspan panels have been used around New Zealand, on many building types for in excess of 15 years.

The Evolution Panelised Façade holds a CodeMark Certificate of Conformity stating the provisions of the Building Regulations 2008 (New Zealand) the product conforms to.

CodeMark Certificate of Conformity is certified under the name Kingspan Insulated Panels Architectural Wall Panels (AWP) and Evolution (EVO). Certificate number: CM20114 Rev V2.

For further details please contact the Kingspan Technical Service Department or alternatively refer to the MBiE - Product Certificate Register and search for 'Kingspan KS1000AWP'.

When designed, used, installed and maintained in accordance with Kingspan standard details, the Evolution Panelised Façade is compliant with the following clauses on the NZBC:

• B1 Structure — B1.3.1; B1.3.2; B1.3.3(a, f, g, h, j); B1.3.4
• B2 Durability — B2.3.1(b)
• C3 Fire Affecting Areas Beyond the Fire Source — C3.4(a); C3.5; C3.7
• E2 External Moisture — (contributes to) E2.3.2; E2.3.7
• E3 Internal Moisture — E3.3.5
• F2 Hazardous Building Materials — F2.3.1
• H1 Energy Efficiency — (contributes to) H1.3.1

Codemark Certification demonstrates compliance to the NZBC equivalent of an Acceptable Solution. Some specialist buildings may fall partially or wholly outside of the scope of the Codemark Certificate, should this occur then please contact Kingspan Technical for assistance in demonstrating NZBC compliance via an Alternative Solution.
