Edgetec Atlantic and Malibu Hinges: The Premium Choice for Pool Gates

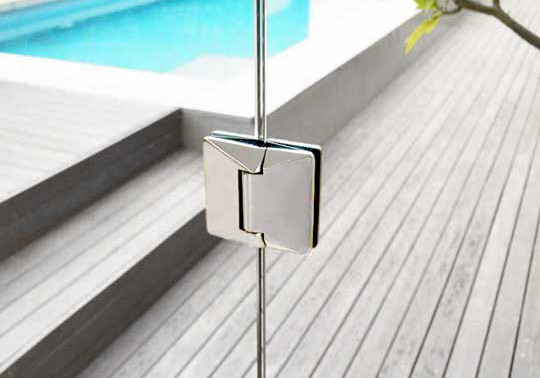

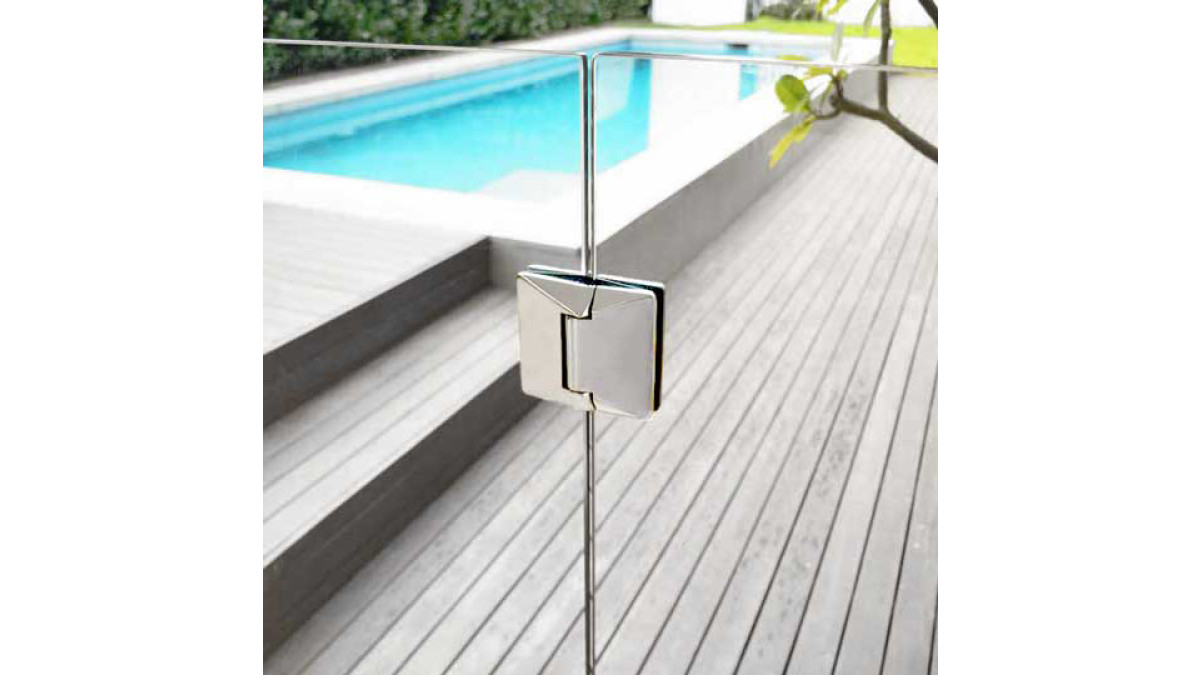

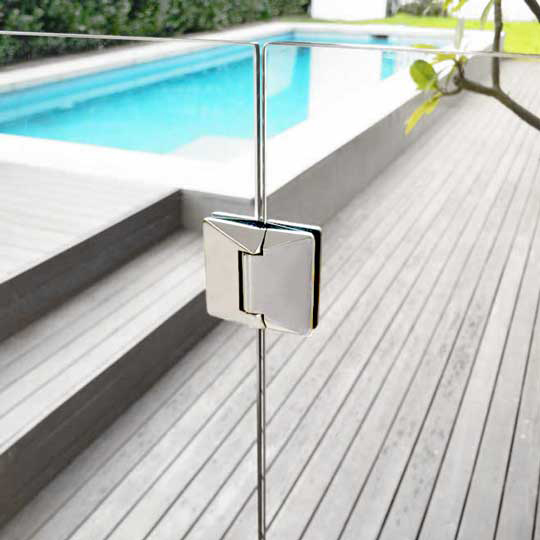

The newest addition to the Juralco range, Edgetec Atlantic and Malibu, are durable Duplex 2205 stainless steel hinges that offer a self-close, soft and non-hold action, for a glass pool gate system. They are suitable for all Juralco Frameless and Semi-Frameless glass balustrade systems.

The robust hinges can hold up to 70kg and the design has proven durability by passing a 640-hour salt spray test while presenting a contemporary look that will suit most design aesthetics. The self-close and non-hold action makes them perfect for a pool area.

The Producer Statement (PS1) is live, and alongside the technical manual, is available online.

Key features:

Self-close, soft action and non-hold action
Glass to Glass type, suitable for all Juralco Frameless Glass Pool systems — 10mm, 12mm Toughened Glass and 13.52mm SentryGlas
Wall or Post to Glass type, suitable for Juralco Edge Pool system — 10mm or 12mm Glass
Hinge standard finishes in Satin, Mirror Polish, Satin Black
Special order only finishes in Satin White and Satin Gold
Duplex 2205 stainless steel
The Structural Engineering design includes Building Code requirements, B1 Structure, B2 Durability, F2 Hazardous material and Clause F9
Verification Method B1/VM1, B2/AS1
Complies with NZS 4223.3.2016
A Producer Statement 1 (Design) is available
Easy Installation

Juralco Edgetec® Atlantic Hinges and Malibu Latch Glass Pool Gate System

Juralco Aluminium

View Product

The Juralco Edgetec® Atlantic Hinge and Malibu Latch Glass Pool Gate System can use 10mm and 12mm toughened Glass or 13.52mm SentryGlas® panels.

NZ-Owned Business

Suitable for all Juralco Frameless Glass Balustrade systems
Suitable with all Juralco Semi-Frameless Glass balustrade systems
10 or 12mm toughened glass and 13.52mm SentryGlas®
The manufacturers documents refer to the products and requirements in relation to fixing and surface finishings
Suitable for Glass-to-Glass gates: Juralco Mini Post and Infinity systems
Suitable for Post-to-Glass Juralco Edge system
The glass must have a minimum strength of 100MPaThe system utilises adjustable hydraulic self-closing hinges (non-hold open) and a magnetic latch
Complies with the structural requirements of the New Zealand Building Code and AS/NZS 1170 : 2002 occupancy A, A Other, and C3
NZS 3604 Low, Medium, High, Very High Wind Zone, max design wind pressure 2.04 kPa
Passed 640 hour salt spray test

The Juralco Edgetec Atlantic and Malibu Glass Pool Gate Systems have been reviewed by Lautrec Technology Group Ltd to demonstrate compliance with the structural requirements of the New Zealand Building Code and AS/NZS 1170: 2002 occupancy A, A Other and C3, NZS 3604 Low, Medium, High, Very High Wind Zone, max design wind pressure 2.04 kPa
The Structural Engineering design includes Building Code requirements, B1 Structure, B2 Durability, F2 Hazardous material and Clause F9
Verification Method B1/VM1, B2/AS1
Complies with NZS 4223.3.2016
A Producer Statement 1(Design) is available
Building Product Information Requirements (BPIR) document is available

Independent Assessment

Test Results
