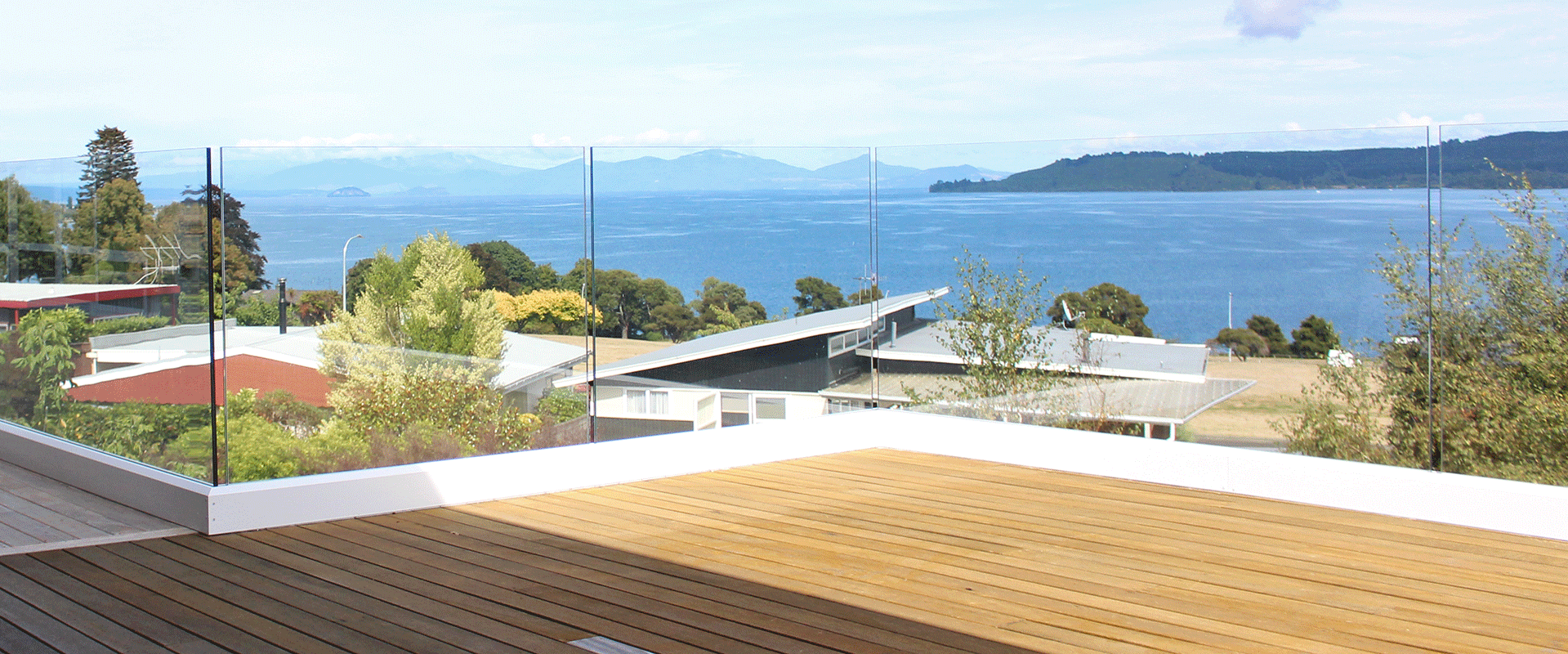

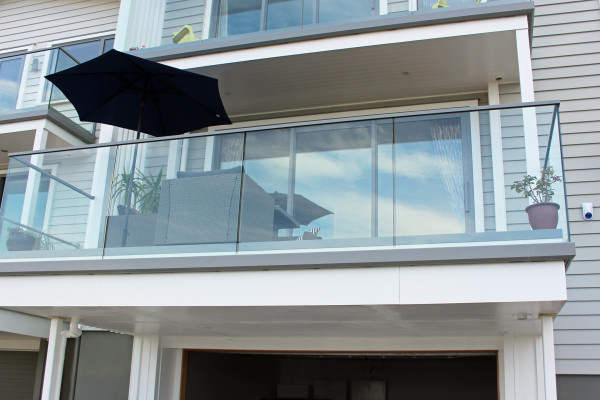

Edgetec Infinity® Balustrade is suitable for use on timber, concrete or steel and can be finished in a range of Dulux powder coat colours.

Complies with NZS1170, NZS4223.3.2016, NZBC Clause F9 & 162C of the Building Act (pool safety legislation)

• The Edgetec Infinity® Balustrade must only be installed in accordance with the Edgetec Infinity product manual
• Glass must have a minimum strength of 100MPa
• All glass edges must be polished
• All frameless balustrade must have top interlinking rail (as of June 1 2016)
• Any deviation from standard fabrication or installation must be accompanied by a site specific PS1, with site specific calculations and drawings. Juralco can help with arranging site specific — talk to Juralco for details.

• Designed and manufactured in New Zealand, the Edgetec Infinity balustrade system has been engineered and tested by independent engineers to comply with NZ standards AS/NZS1170 and NZS4223.3.2016, New Zealand Building Code B1, B2 and F4, NZBC Clause F9 & 162C of the Building Act (pool safety legislation)
• Edgetec Infinity balustrade is suitable for Occupancy A, B, E C3 Residential and C3 Commercial
• Residential balustrade installations up to 1200mm high, using 12mm thick glass, are achieved with 500mm clamp centres and Commercial B, E and C3 applications up to 1300mm high, 15mm thick glass requires 400mm clamp centres
• Any deviation from standard fabrication or installation must be accompanied by a site specific PS1, with site specific calculations and drawings

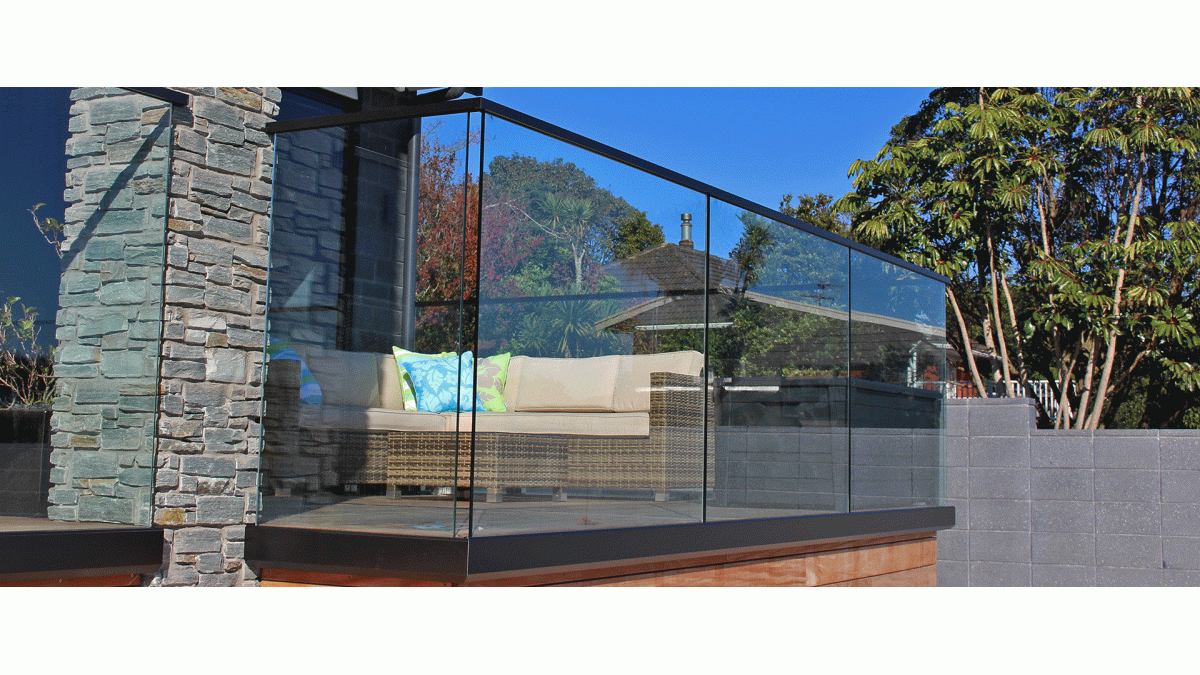

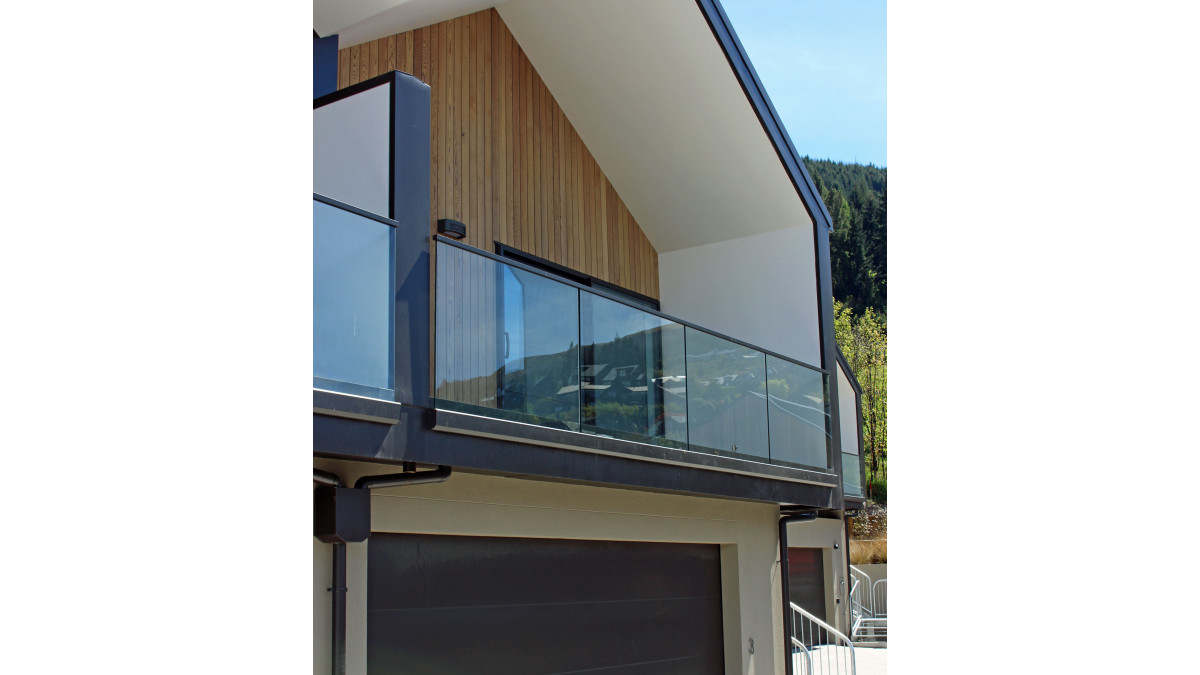

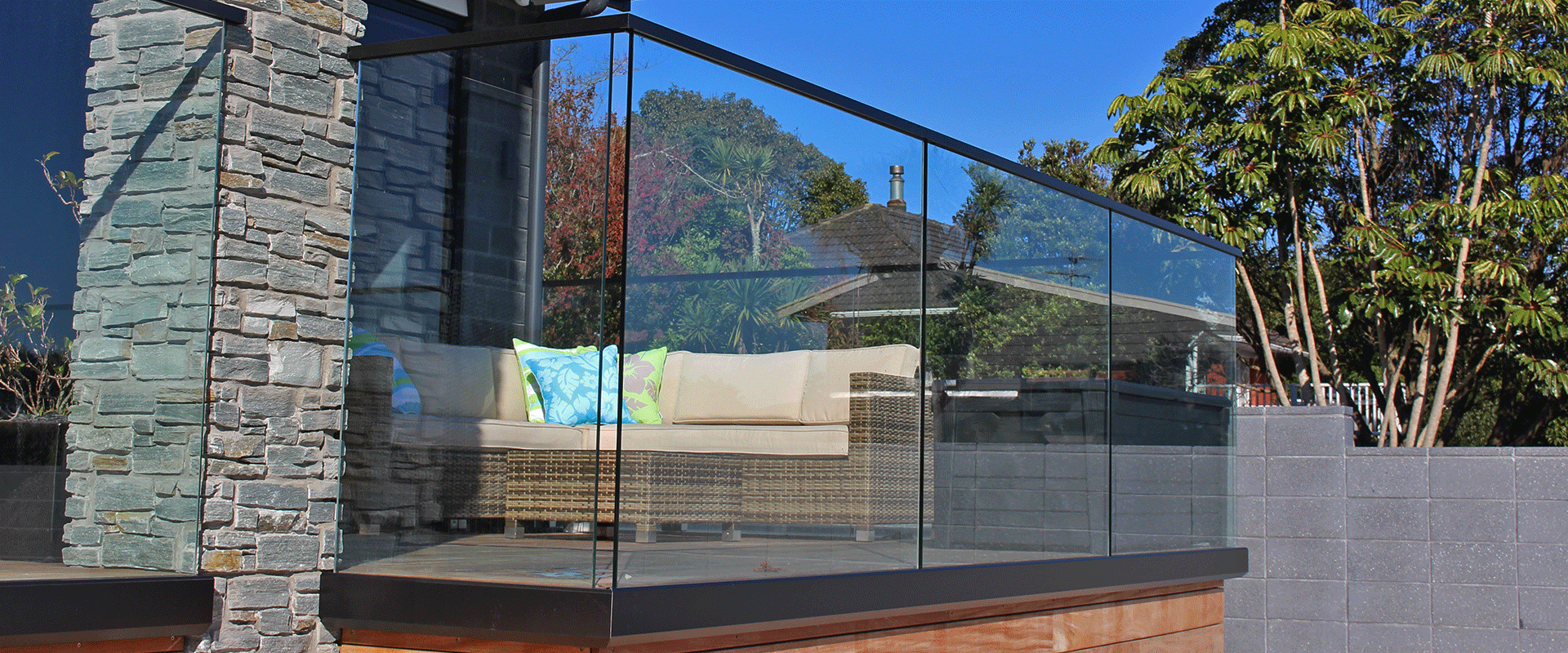

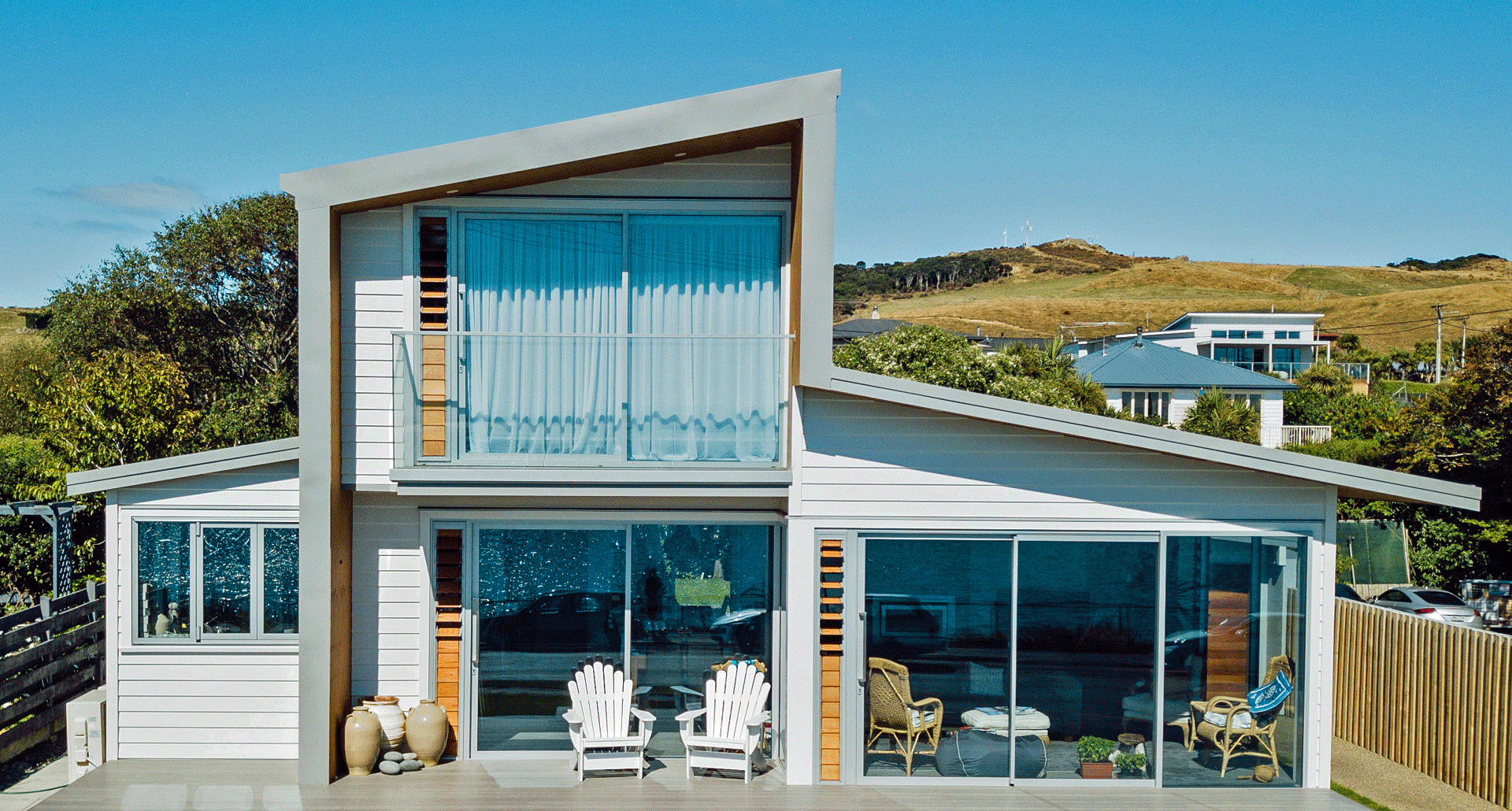

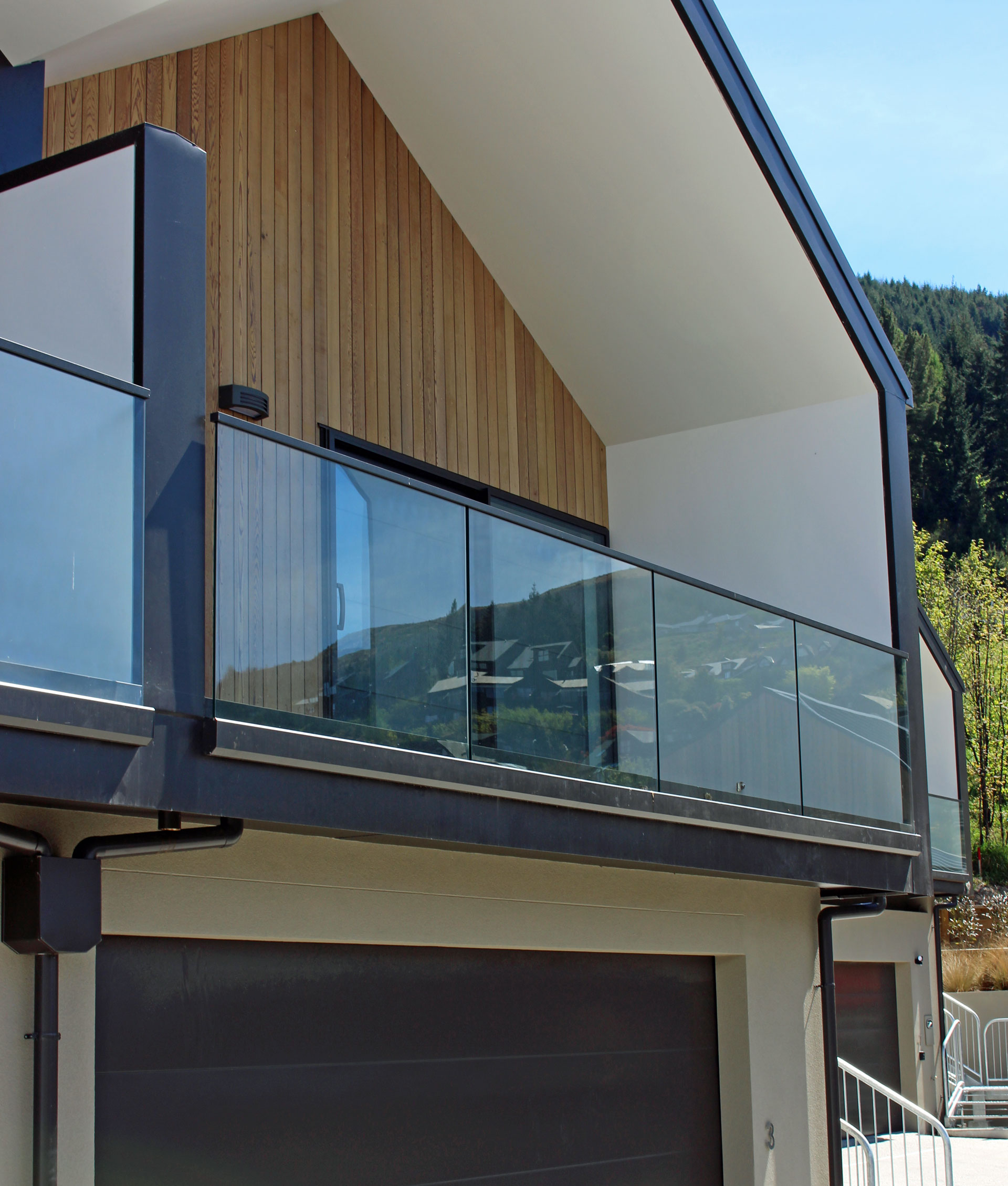

• An interlinking top rail has been incorporated into the Edgetec range to comply with new 2016 balustrade regulations — NZS4223.3.2016

Juralco has over 18 years experience designing and installing balustrades throughout NZ and continues to focus on supporting and developing its dealer network.

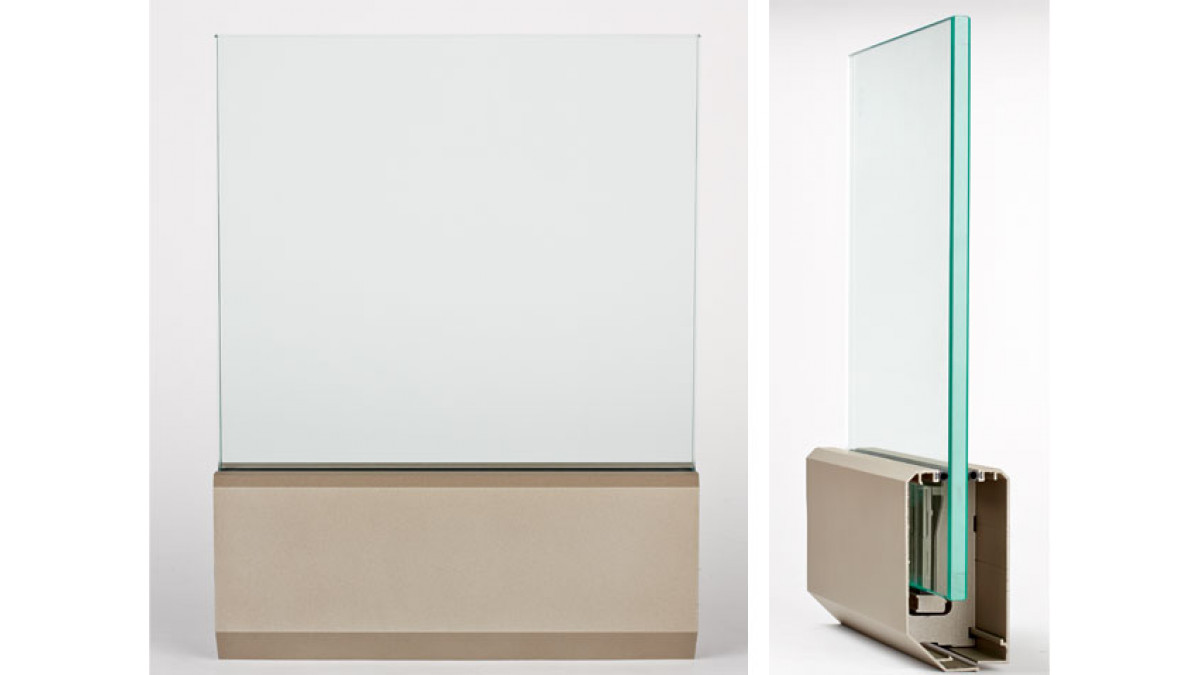

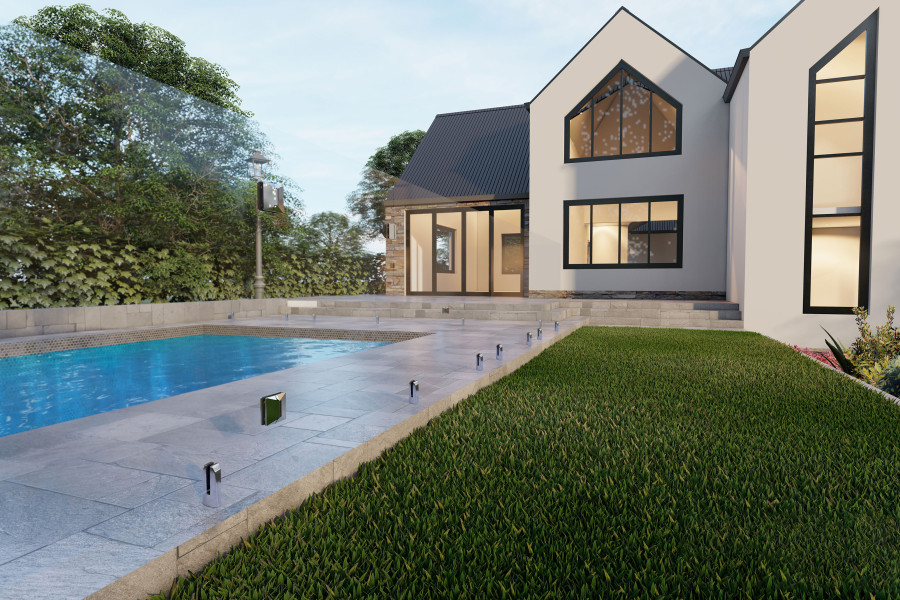

The Edgetec Infinity® Balustrade range was introduced in 2014 in response to demand for high quality and modern frameless glass balustrade systems. The Edgetec range uses toughened and laminated glass with a choice of fixing systems, including round disc (Double Disc Anchor), strut posts (Mini Post), rectangular clamps (JH Clamp), or a cantilevered channel balustrade (Infinity).

• All infill glass must be toughened safety glass, complying with AS/NZS 2208
• Dulux Duralloy powder coating is used for properties greater than 100 metres from high tide level, where AMA 2603 performance is required
• Dulux Duratec powder coating must be used for properties greater than 10 metres and up to 100 metres from high tide level where AMA 2604 performance is required

Warranty

• Five year warranty on balustrade
• 10 year warranty on powder coating
