Designing for Safety: Jesani Door and Shower Channels in School Wetrooms

Designed to address the critical concern of accidental overflows in bathrooms and wetrooms, JESANI's drainage channels are leaders in prevention. However, when tasked with setting up a school environment, the focus shifted to including security protocols. The plans specified the installation of JESANI door and vinyl clamping shower channels with securely locked grilles to ensure student and faculty safety and prevent deliberate flooding.

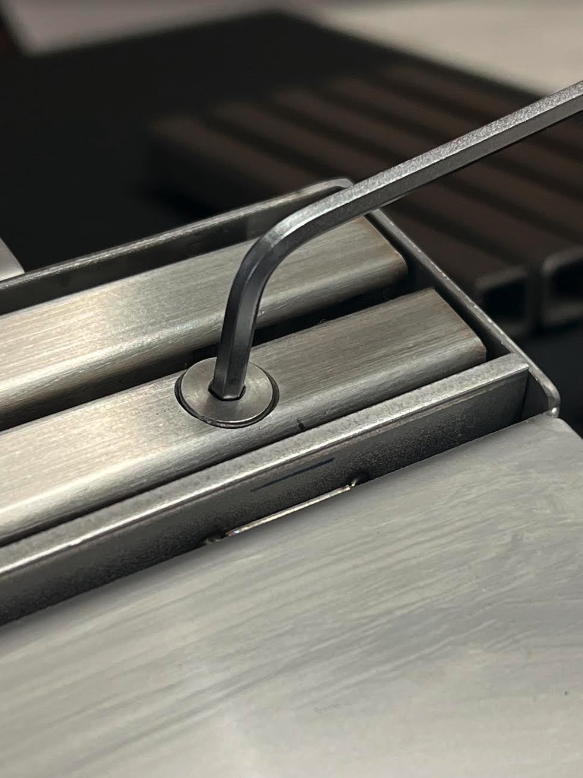

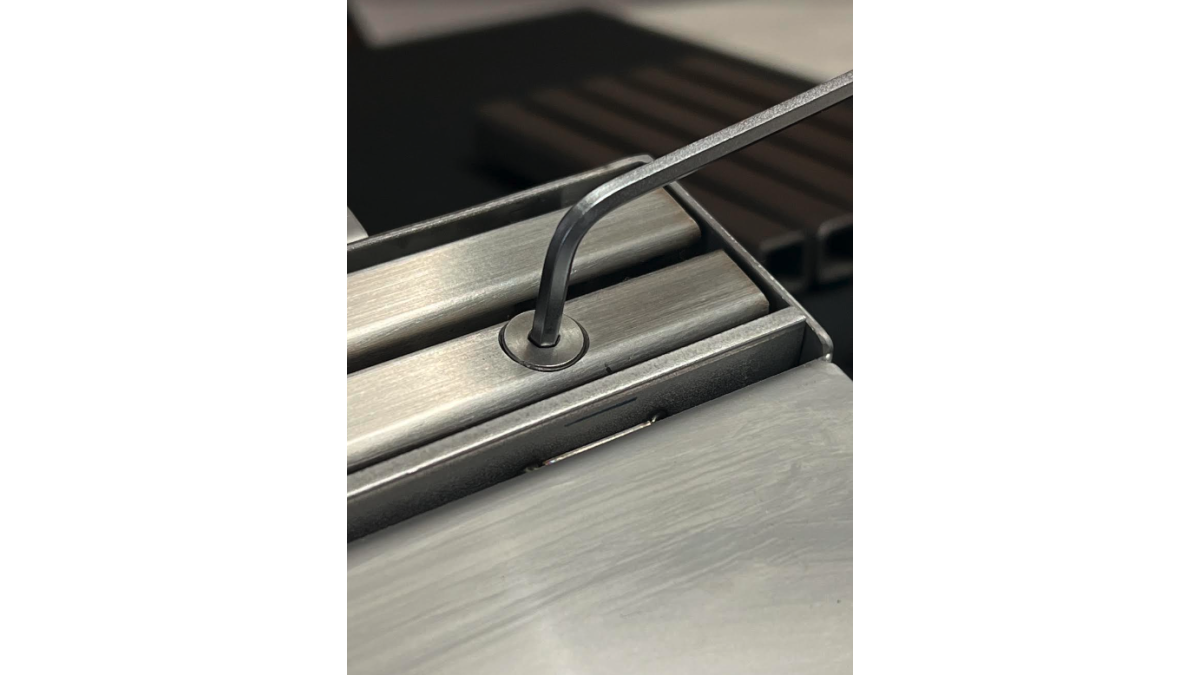

As a result, each grille features a unique security screw system, limiting access to the trough and drainage outlet to authorised personnel only. This is crucial for safety due to the solid stainless steel construction of the grille. With the security feature in place, JESANI channels boast a virtually unblockable configuration, thwarting attempts at obstruction.

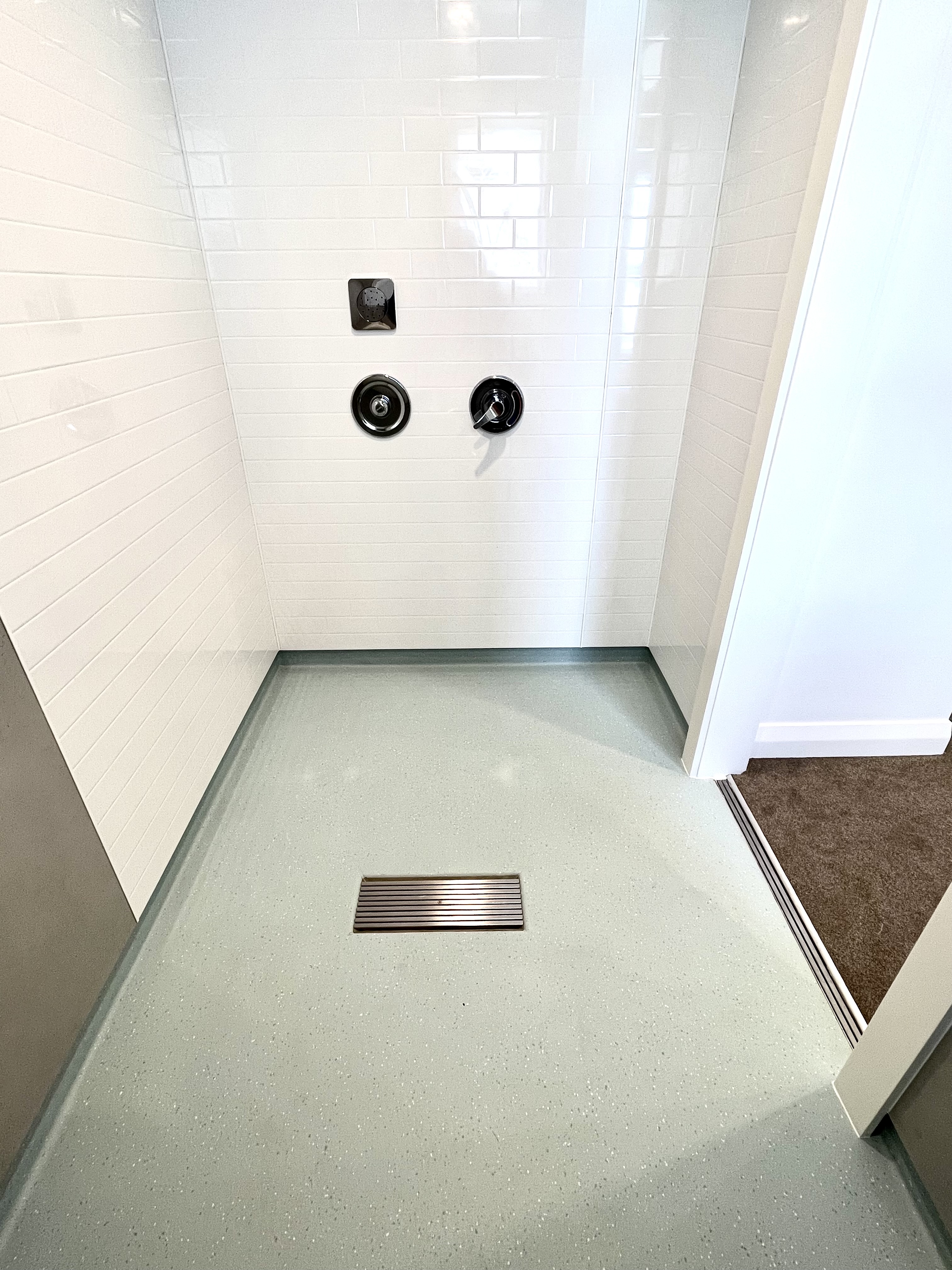

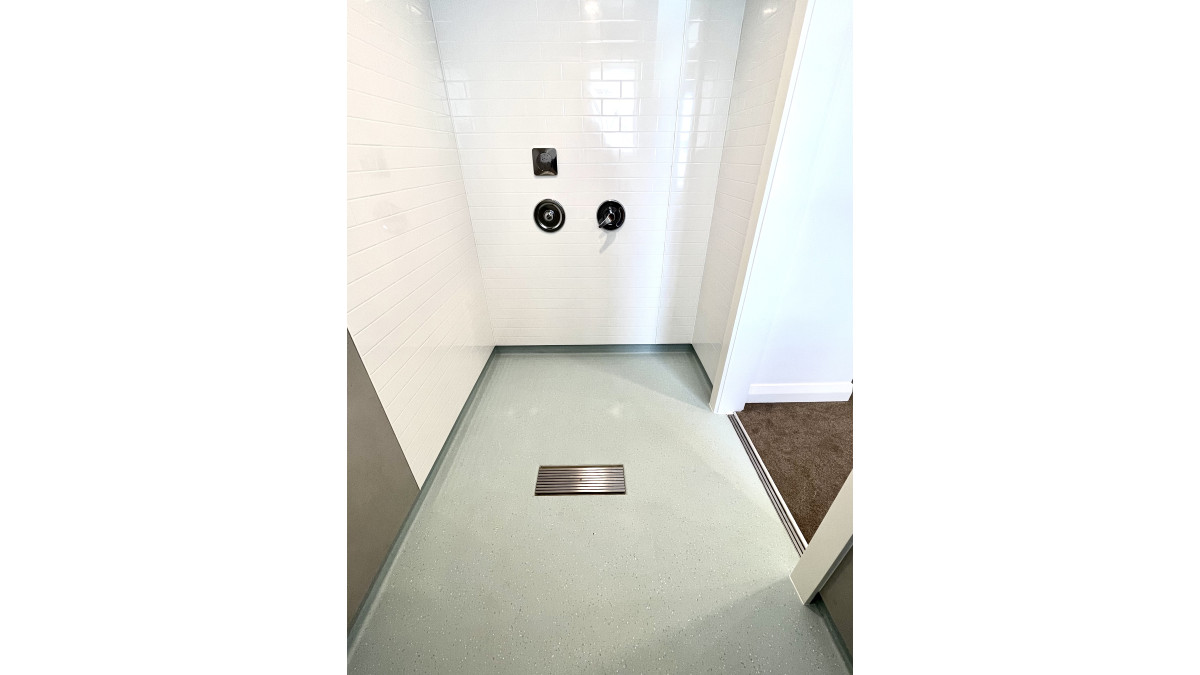

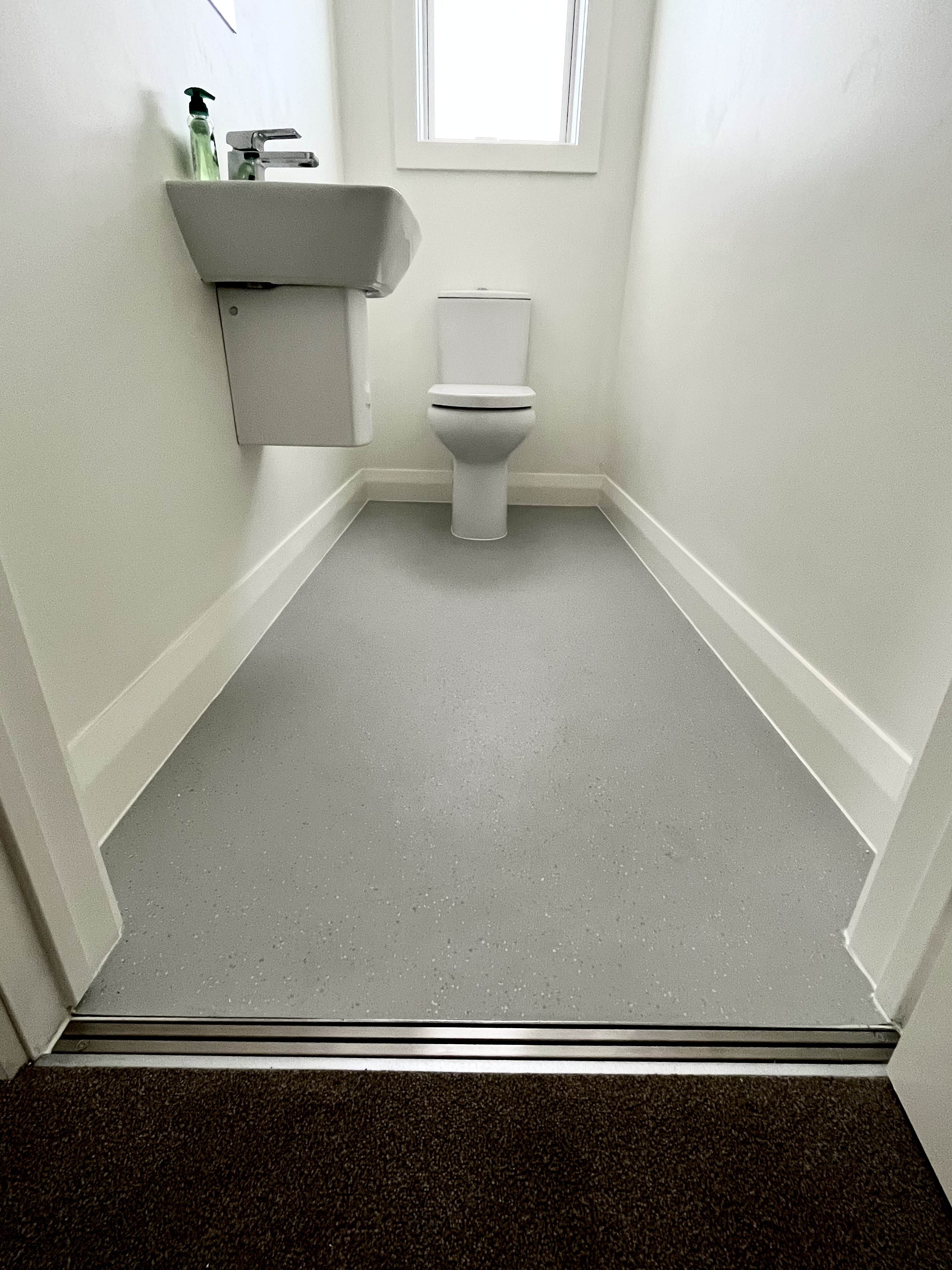

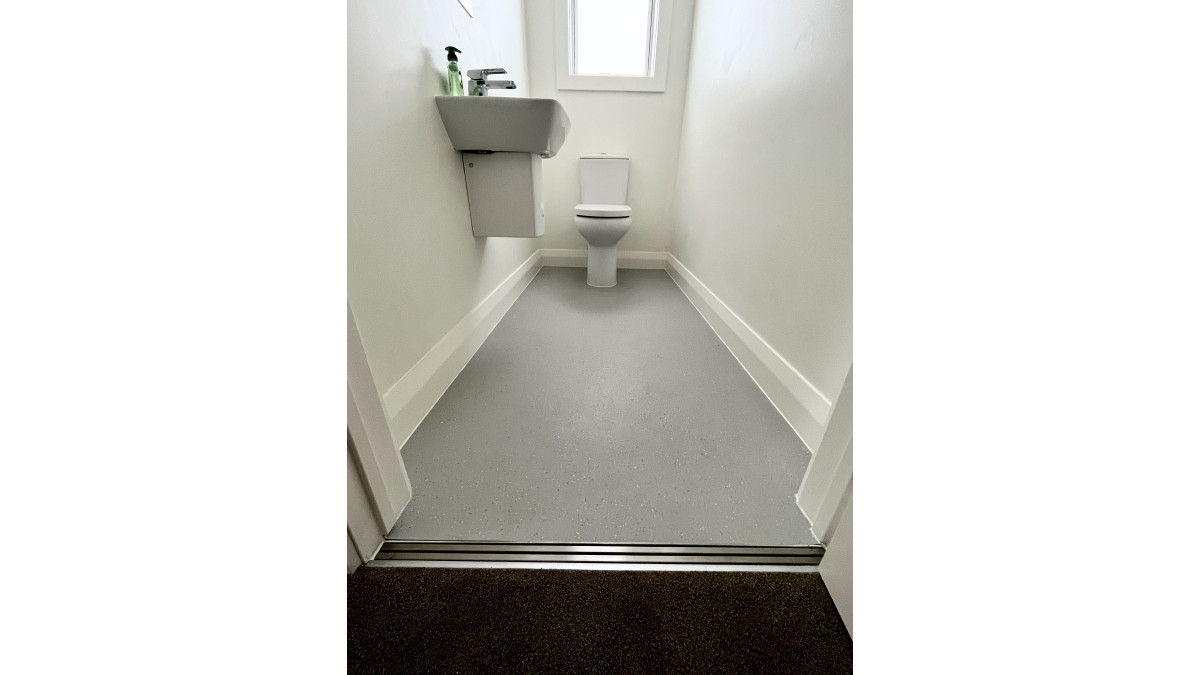

While the custom length vinyl clamping shower channels provided level entry access and effective high volume drainage, the JESANI Door Channel replaced the floor waste gully to meet Acceptable Solutions E3 Internal Moisture, Clause 3.2: Freewater from accidental overflow from sanitary fixtures or sanitary appliances must be disposed of in a way that avoids loss of amenity or damage to household units or other property. Unlike the traditional floor waste gully, the JESANI Door Channel cannot be removed, easily covered or deliberately blocked.

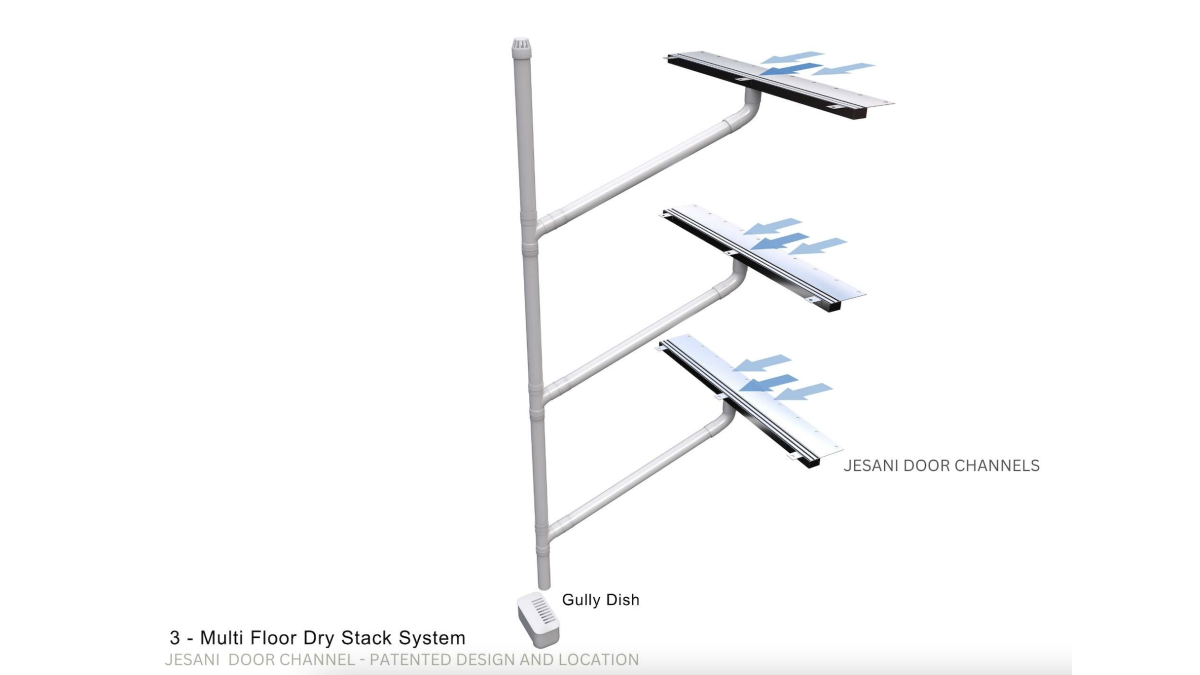

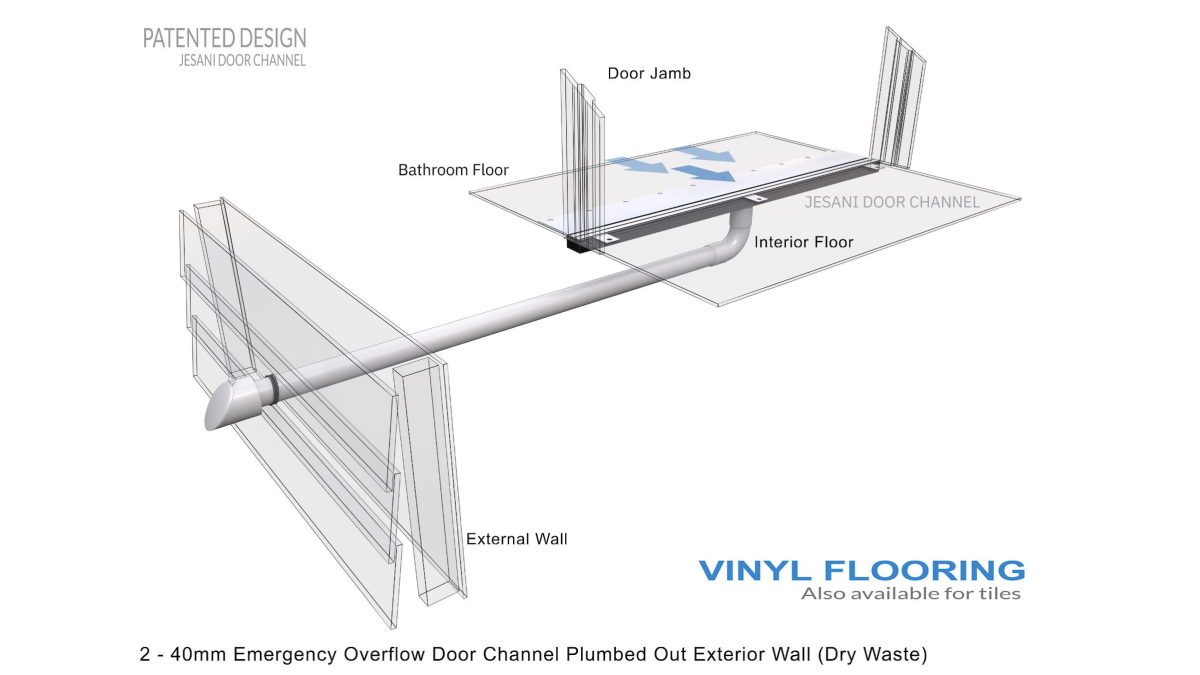

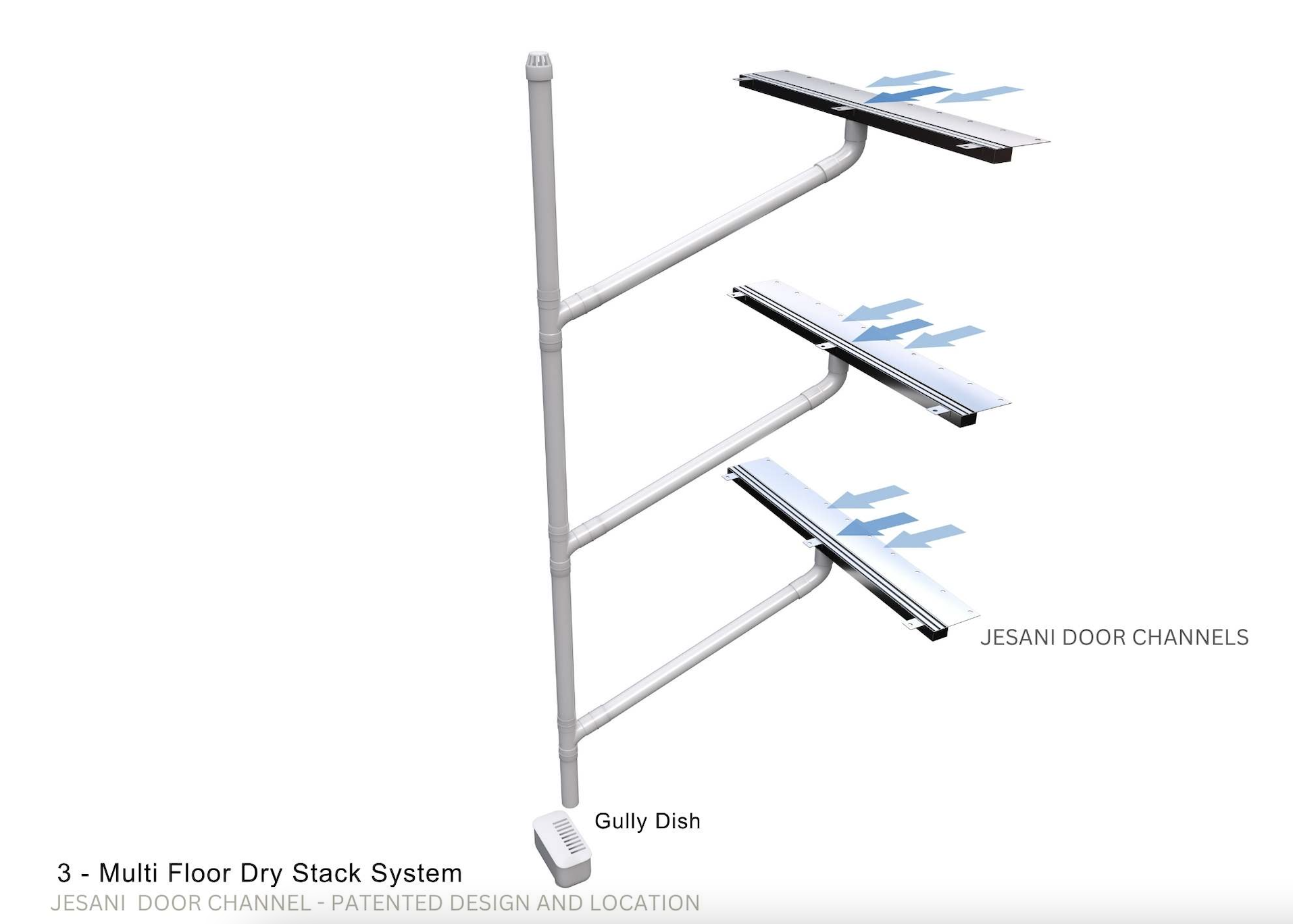

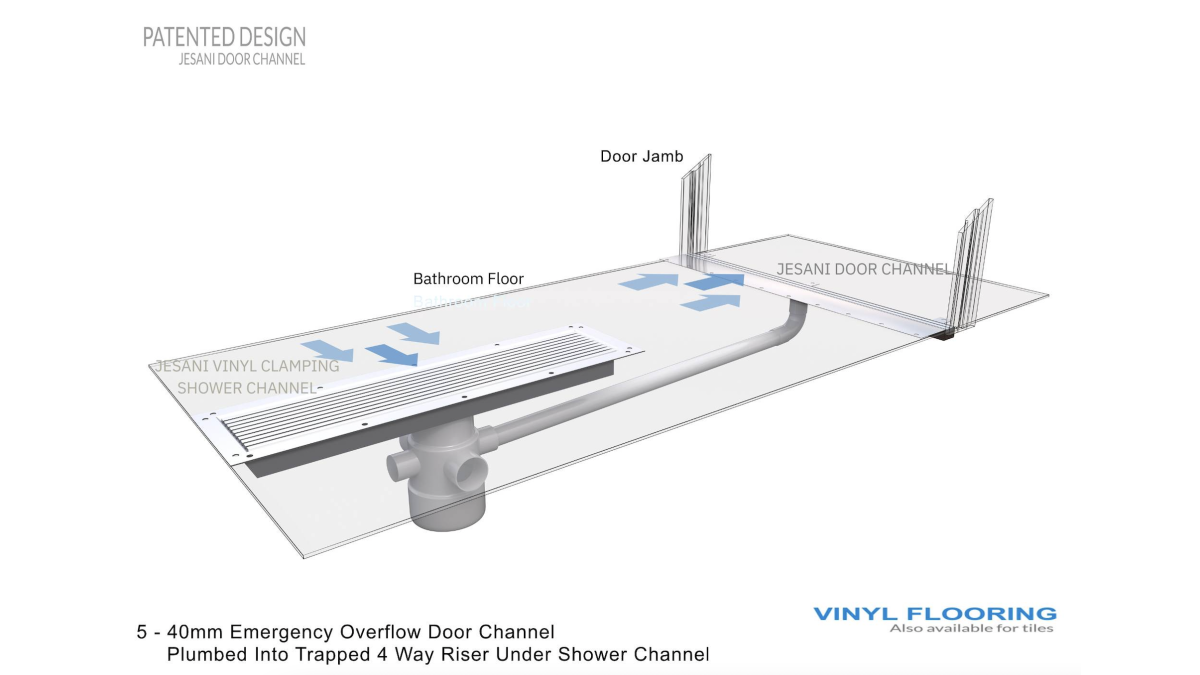

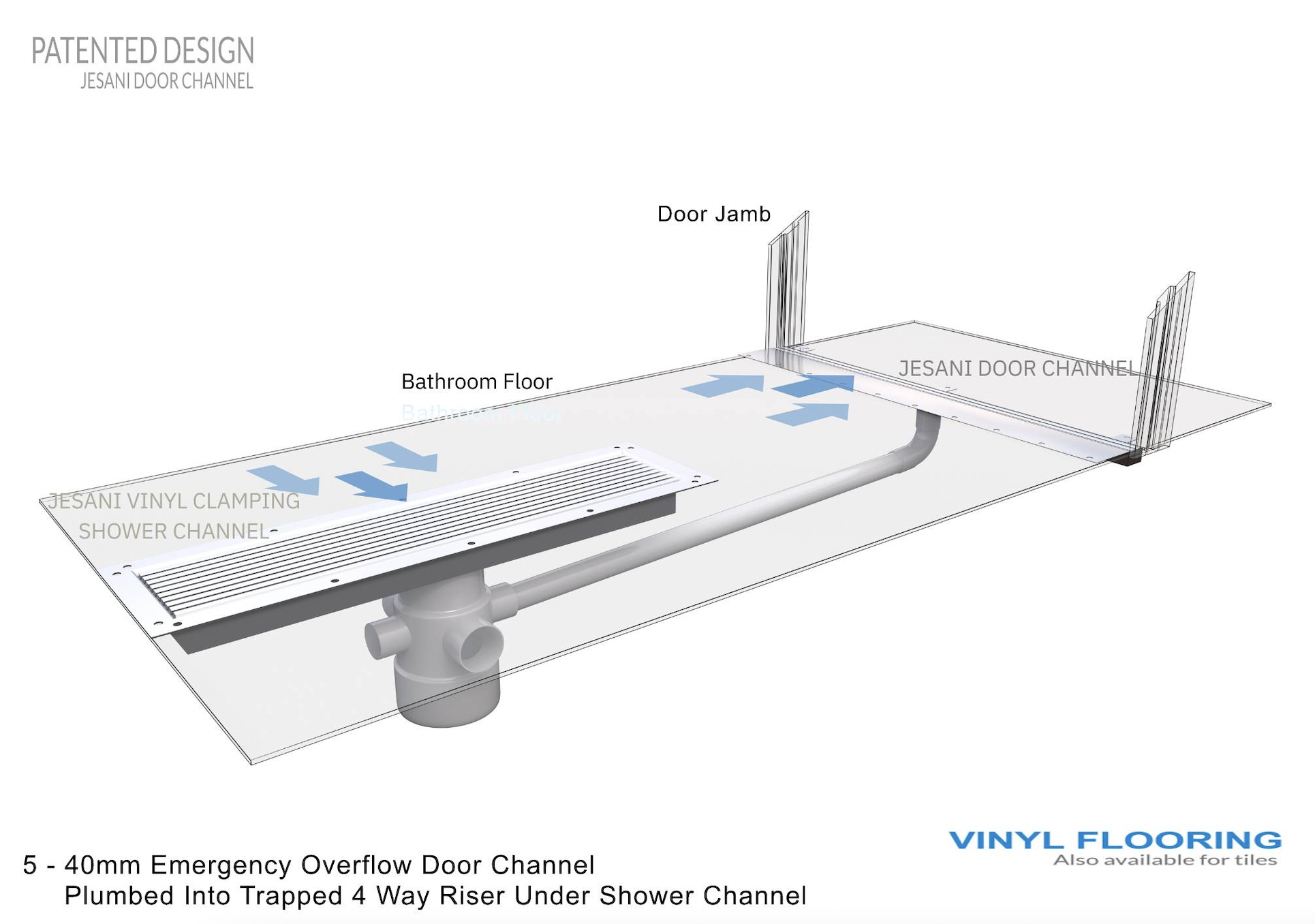

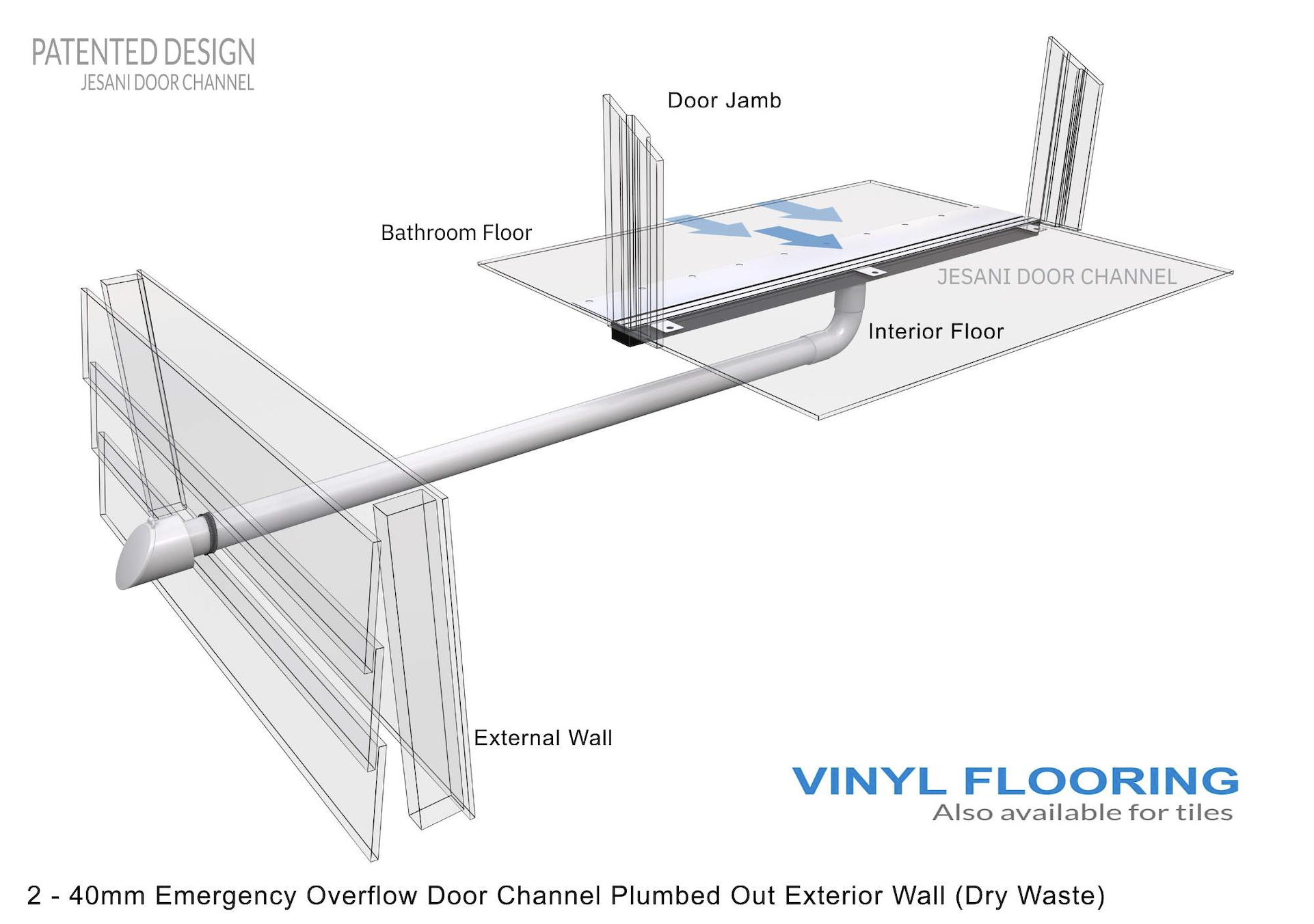

Positioned at this crucial juncture, the JESANI Door Channel is designed to drain the overflow directly outside via the exterior wall or soffit, into a dry stack in a multi level school facility, or into the grey water system as featured in the door channel and vinyl clamping shower channel.

In educational environments where both visual appeal and functional effectiveness matter, JESANI channels provide aesthetic flexibility. The grille can be powder-coated in any colour from the DULUX range to match tile or vinyl flooring, ensuring seamless integration into vibrant early childcare centres or matching the more muted university environments.

Designed to contribute to robust, cost-effective and accessible buildings, key benefits of JESANI stainless steel channels include:

New Zealand-made from 304 or 316 stainless steel
Suitable for residential and commercial new builds or renovations
Ideal for accessible bathrooms — level entry on all JESANI channel designs
Customisable design options
Optional security grille locking feature
Low maintenance, slip-resistant, durable, hygienic, recyclable, and sustainable
Often the most economical option when considering total life cycle cost.

The Jesani Door and Shower Channels stand as an easy to install testament to innovation in flood prevention, offering not only functional efficacy but also aesthetic enhancement in diverse educational, residential and commercial settings.

JESANI Vinyl Clamping Channel

JESANI

View Product

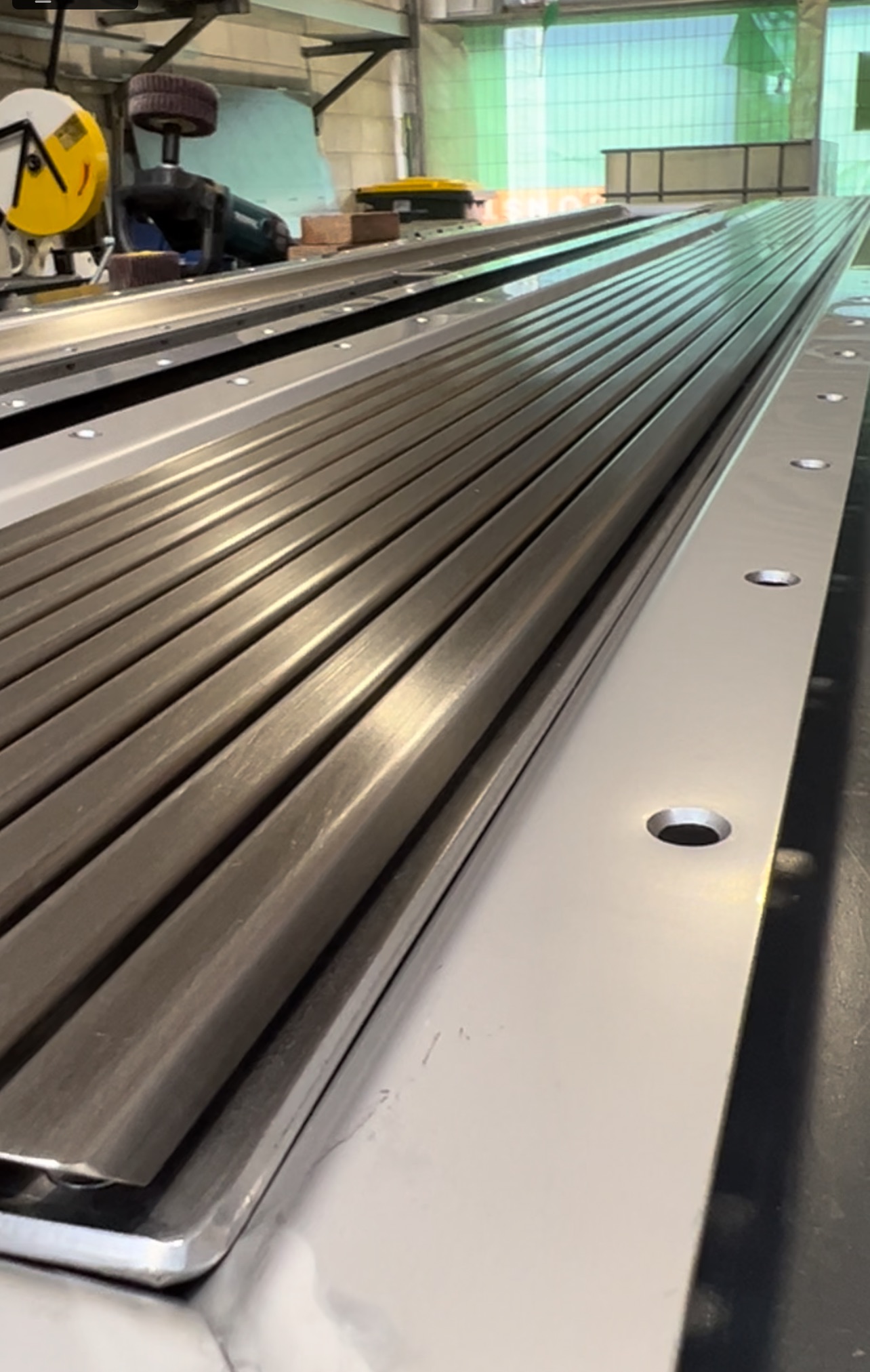

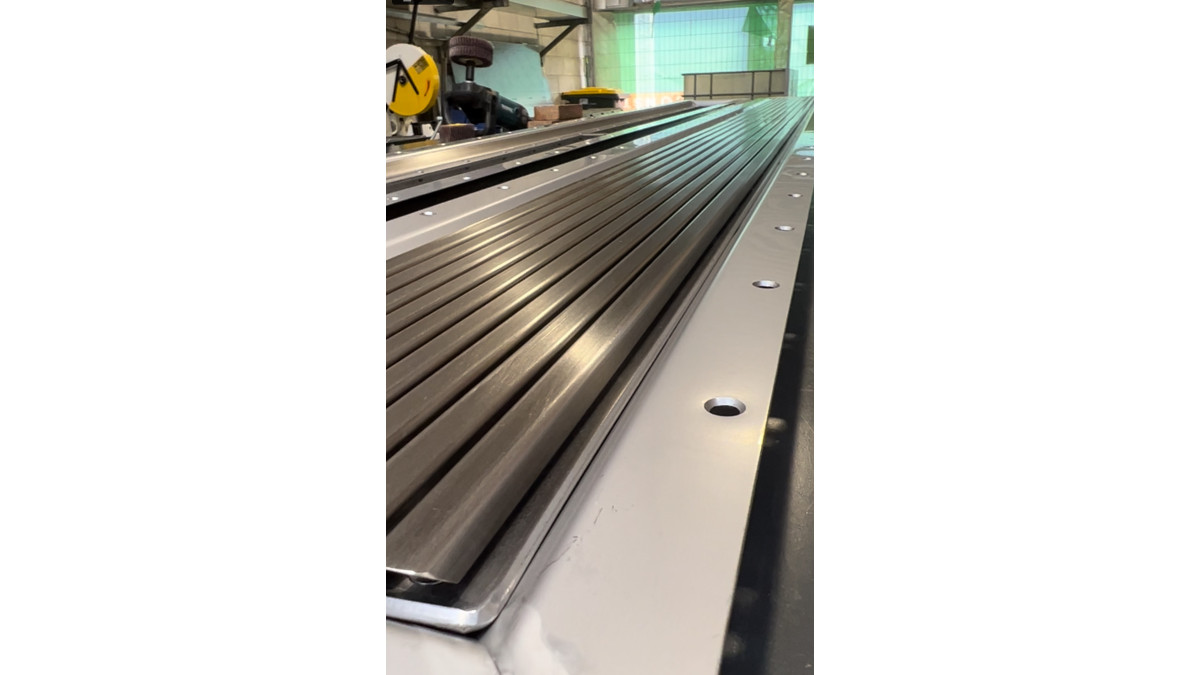

Custom made to suit project specifications, the JESANI Vinyl Clamping shower channel provides a robust and effective drainage solution in showers or wetrooms, and commercial premises with vinyl flooring.

Ideal for accessible bathrooms, commercial kitchens and laundries, rest homes, hospitals, public bathrooms, gyms/sports facilities
Vinyl flooring
Customised dimensions to suit the project — length, configuration (linear or L shaped), trough width, outlet size, and grill finish
Outlets to suit the plumbing configuration or client requirements — 50 to 100mm
Grill finish ranging from four to 12 bars, the grill can be left in its modern stainless steel finish or powder coated any colour to match the vinyl flooring
Lead time approximately 10-14 days

1.5mm 304 or 316 stainless steel
TIG welded and water tested

JESANI Door Channel

JESANI

View Product

The JESANI Door Channel is designed as a prevention for in-house flooding and will eliminate flooding between the wet and dry areas of the home.

Lifemark Product Partner

NZ Made

The JESANI Door Channel is suitable for use to contain accidental overflow from sanitary fixtures or sanitary appliances to meet NZBC Clause E3.3.2.

Overflow from:

Baths
Showers
Toilets
Vanities
Washing Machines
Dishwashers
Plumbed Fridges

The channel is installed along the threshold of interior doorways between wet and dry areas within the home/apartment/unit/holiday home, thus allowing the floor waste position to be located where water always finds its way out.

Suitable for standard door lengths, and in custom sizes:

40mm width trough
38mm threaded outlet
2 bar grill
Timber or concrete substrate
To suit various floor coverings, such as carpet to tile, and can accommodate underfloor heating

The Door Channel can also be classed as an Emergency Overflow, which allows an alternative option for the normal plumbing system.

See BRANZ Appraisal 934 for full information.

This product if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

Clause B2 Durability: Performance B2.3.1 (b), 15 years and B2.3.2
Clause E3 Internal Moisture: Performance E3.3.2 and E3.3.6
Clause F2 Hazardous Building Materials: Performance F2.3.1
Clause G13 Foul Water: Performance G13.3.1 (a), G13.3.1 (b) and G13.3.1 (d)

See BRANZ Appraisal 934 for full information.

BRANZ Appraised

JESANI Shower Channel — Central

JESANI

View Product

The channel is manufactured in Grade 304 Stainless Steel with a 10-40mm deep trough and extensive vertical and horizontal flanges.

Lifemark Product Partner

NZ Made

The JESANI Shower Channel — Centre has the ability to sit in a couple of locations in the shower area. It can sit across the shower between 2 walls, or alternatively as a level entry channel leading into the shower.

The level entry option eliminates the need for nib walls or step overs that can be potential hazards leading into the Shower.

The channels can be designed to any length, however, if a channel is designed to be 1800mm or longer, it is recommended to include 2 outlets.

50mm width trough
38mm threaded outlet
Timber or concrete substrate
To suit various floor coverings and can accommodate underfloor heating

See BRANZ Appraisal 934 for full information

Clause B2 Durability: Performance B2.3.1 (b), 15 years and B2.3.2
Clause E3 Internal Moisture: Performance E3.3.2 and E3.3.6
Clause F2 Hazardous Building Materials: Performance F2.3.1
Clause G13 Foul Water: Performance G13.3.1 (a), G13.3.1 (b) and G13.3.1 (d)

See BRANZ Appraisal 934 for full information.

BRANZ Appraised
