Description

Secure, leakproof drainage for vinyl floors in homes and commercial spaces.

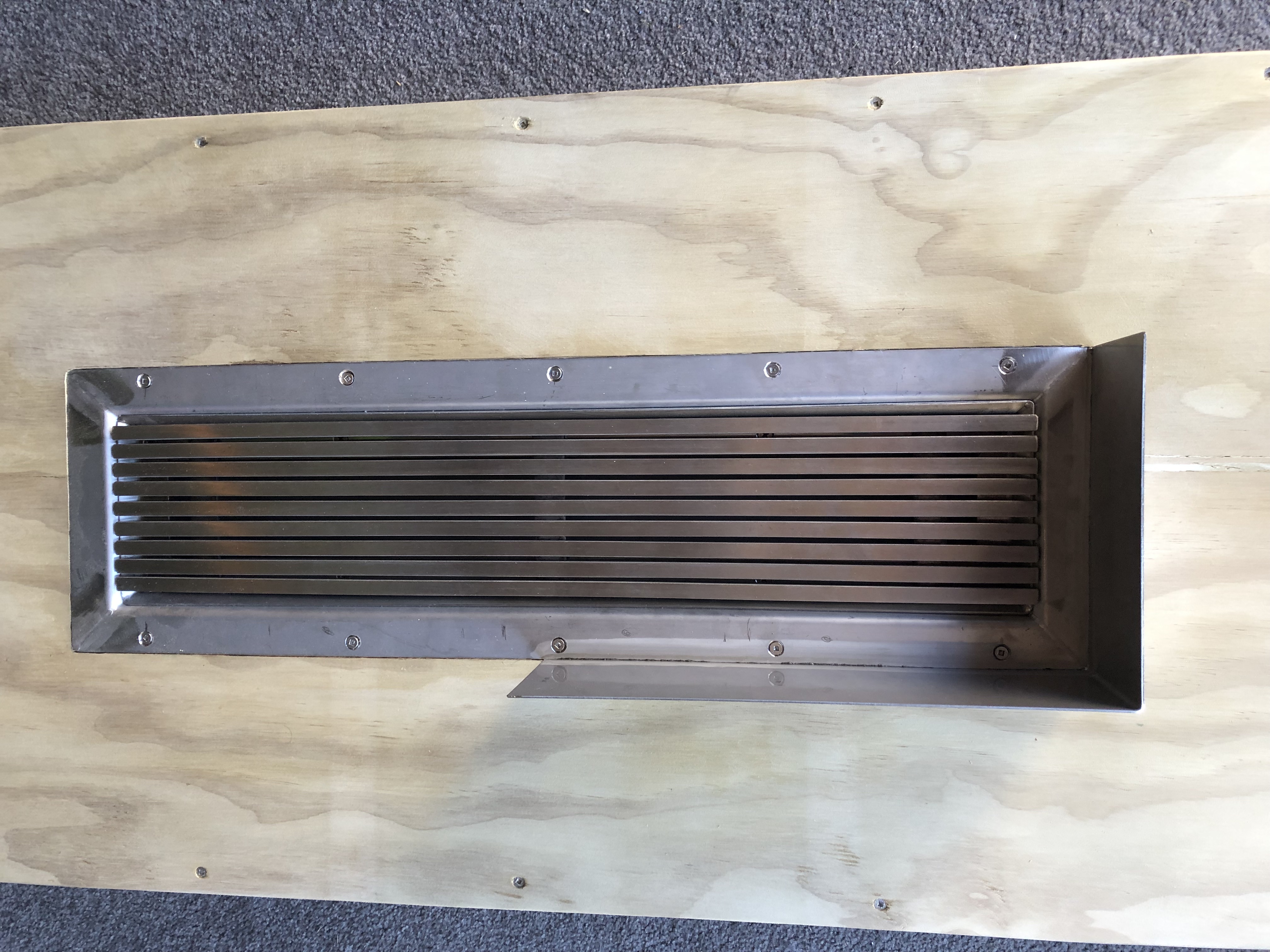

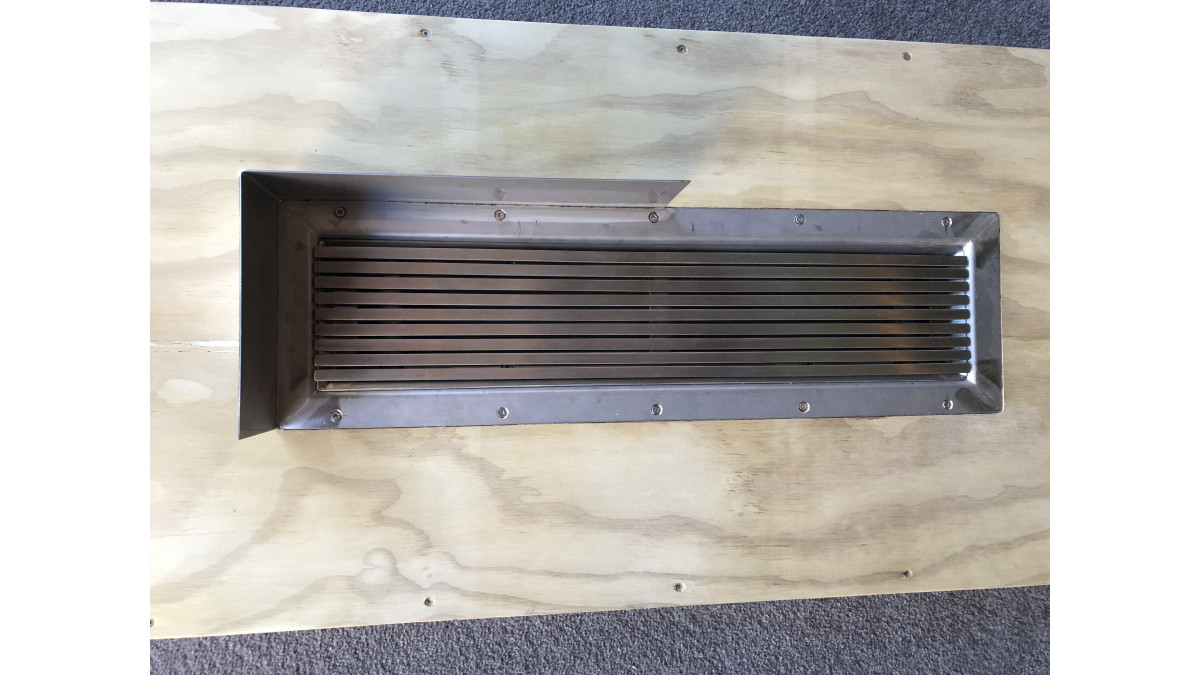

The Jesani Vinyl Clamp Channel is a high-performance stainless steel linear drainage system designed for vinyl floor finishes in wetrooms. Its unique clamp design ensures a secure, watertight seal between the vinyl flooring and channel, preventing leaks and water damage. With a low-profile, seamless finish, it integrates discreetly into modern spaces while enhancing drainage efficiency. Ideal for hospitals, aged care, and commercial applications, it ensures durability, hygiene, and compliance with safety standards.

Stainless steel, high-flow, easy to install, ideal for accessible and public wetrooms. Trusted for homes, hospitals, gyms and commercial kitchens.

Custom made to suit project specifications, the JESANI Vinyl Clamped channel provides a robust and effective drainage solution in showers or wetrooms, and commercial premises with vinyl flooring.

Combining maximum drainage capacity (up to 100mm outlet) and a sturdy stainless steel grill insert over the trough, the JESANI Vinyl Clamping Shower channel is ideal for use in accessible bathrooms, hospitals, sports facilities, rest homes, and schools.

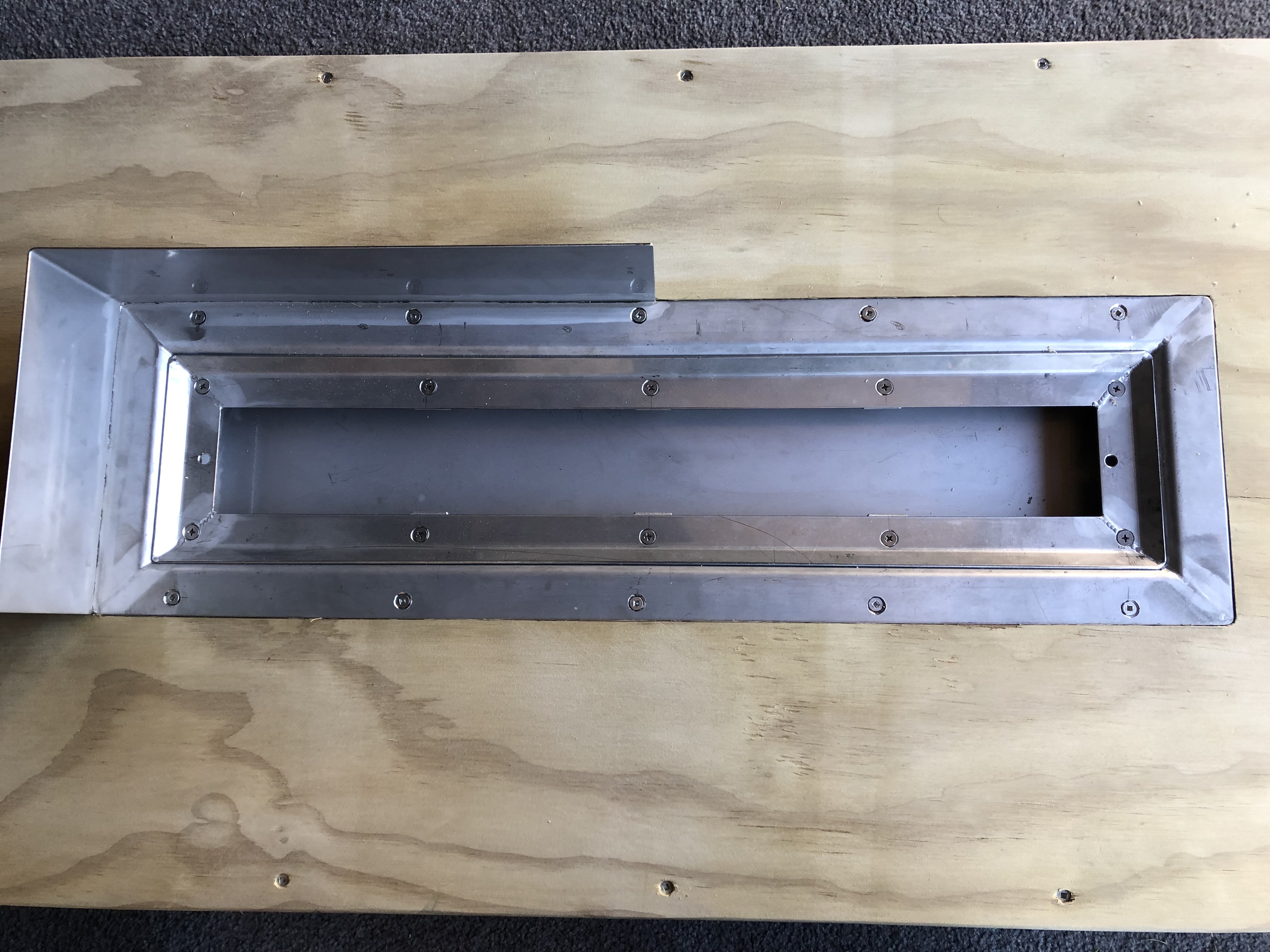

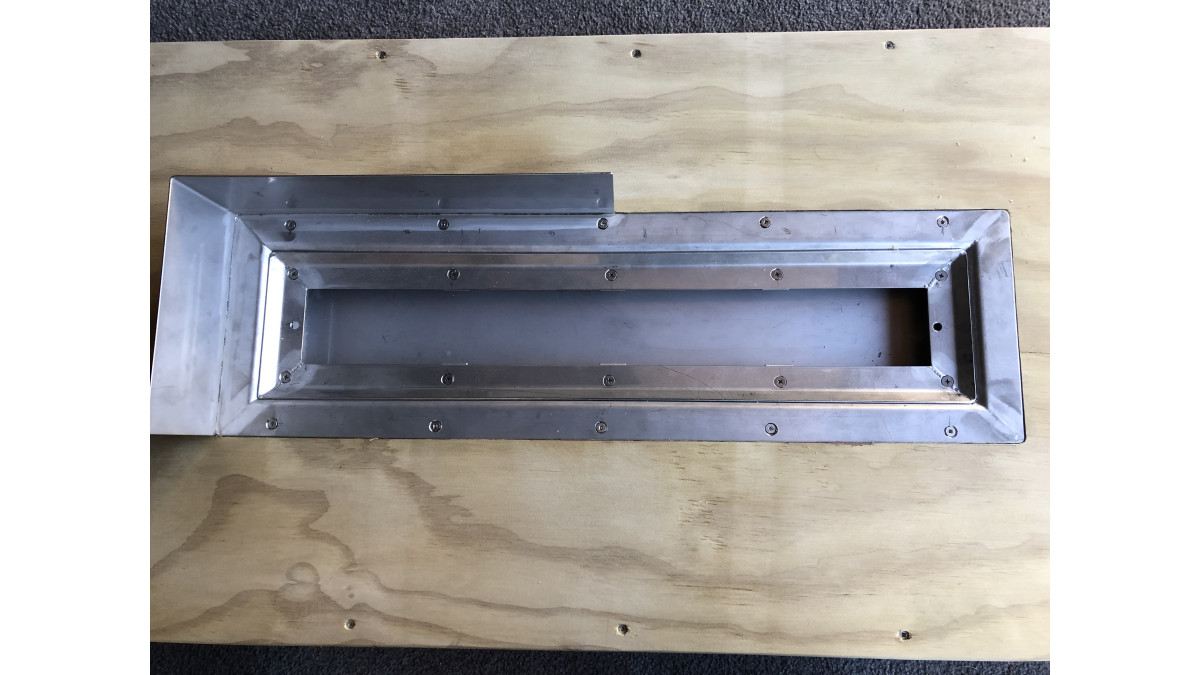

The unique JESANI vinyl clamping system for this channel provides effective and long lasting vinyl termination around the trough edge to ensure zero water ingress and the longevity of the vinyl flooring composition.

Key Features

Level-entry access — Designed for seamless integration with vinyl flooring, ensuring accessibility and compliance.
Compatible with all vinyl thicknesses — Accommodates various flooring specifications for flexibility in design.
Unique JESANI Vinyl Clamped design — Provides strong adhesion and secure vinyl termination at the drainage point, preventing water ingress and ensuring durability.
Customisable to project requirements — Available in various lengths, configurations, and outlet positions to suit individual specifications.
Up to 100mm drainage outlet — High-flow capacity prevents pooling and supports efficient water removal.
1.5mm 304 or 316 stainless steel — High-quality, corrosion-resistant material ensures long-term durability and hygiene in wet areas.
TIG welded & water-tested — Precision-engineered construction ensures leakproof performance and structural integrity.
Manufactured in New Zealand — Designed and produced to meet local building standards, ensuring compliance with NZBC durability and performance requirements.

Grille Options:

Standard: 4 -12 bar stainless steel grille
Custom: Powder-coated finishes available to match vinyl flooring for a seamless aesthetic
Security-locked grille option: Prevents unauthorised removal, ideal for public and high-use facilities

Ranges

JESANI Accessible Channels

Lifemark Product Partner

NZ Made

NZ-Owned Business

Post-Consumer Recyclable Content

Pre-Consumer Recycled Content

Scope of Use

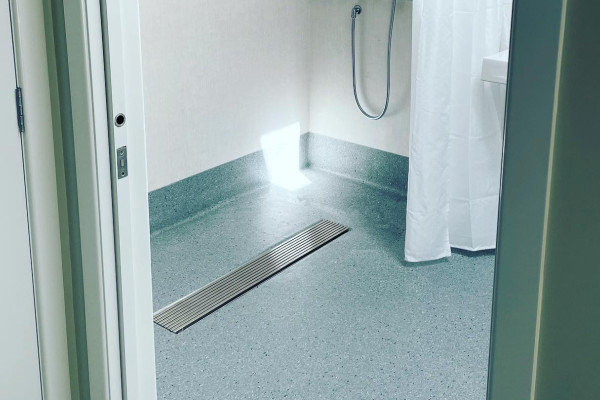

Designed for wet areas in residential, commercial, and public spaces, including accessible bathrooms, hospitals, rest homes, gyms, commercial kitchens, and laboratories. Provides secure, leakproof drainage for vinyl flooring, ensuring full compliance with wetroom standards and regulations. Ideal for both new builds and renovations.

Compatibility:

Fully compatible with vinyl flooring systems, integrating seamlessly for a watertight seal.
Drainage Systems: Works with standard plumbing connections, designed for high-flow efficiency
Jesani Products: Best paired with the Jesani Door Channel for comprehensive wetroom protection and overflow prevention.

Jesani Ultimate Floor Waste Gully:

Ideal for accessible bathrooms, commercial kitchens and laundries, rest homes, hospitals, public bathrooms, gyms/sports facilities
Vinyl flooring
Customised dimensions to suit the project — length, configuration (linear or L shaped), trough width, outlet size, and grill finish
Outlets to suit the plumbing configuration or client requirements — 50 to 100mm

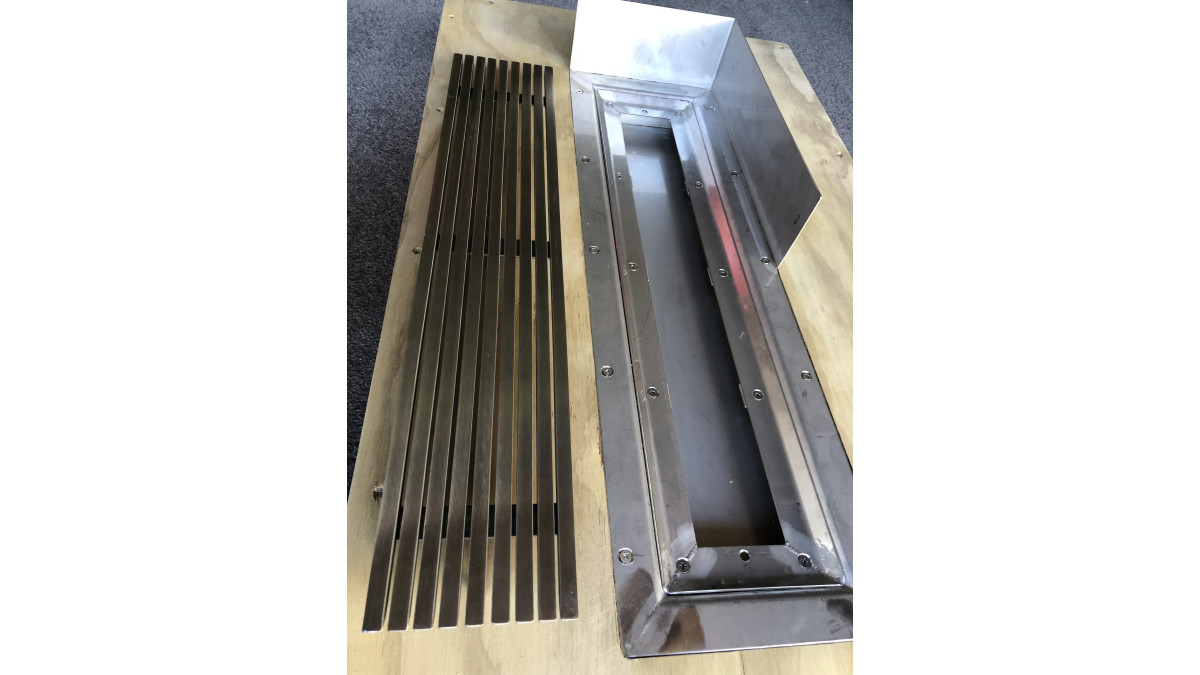

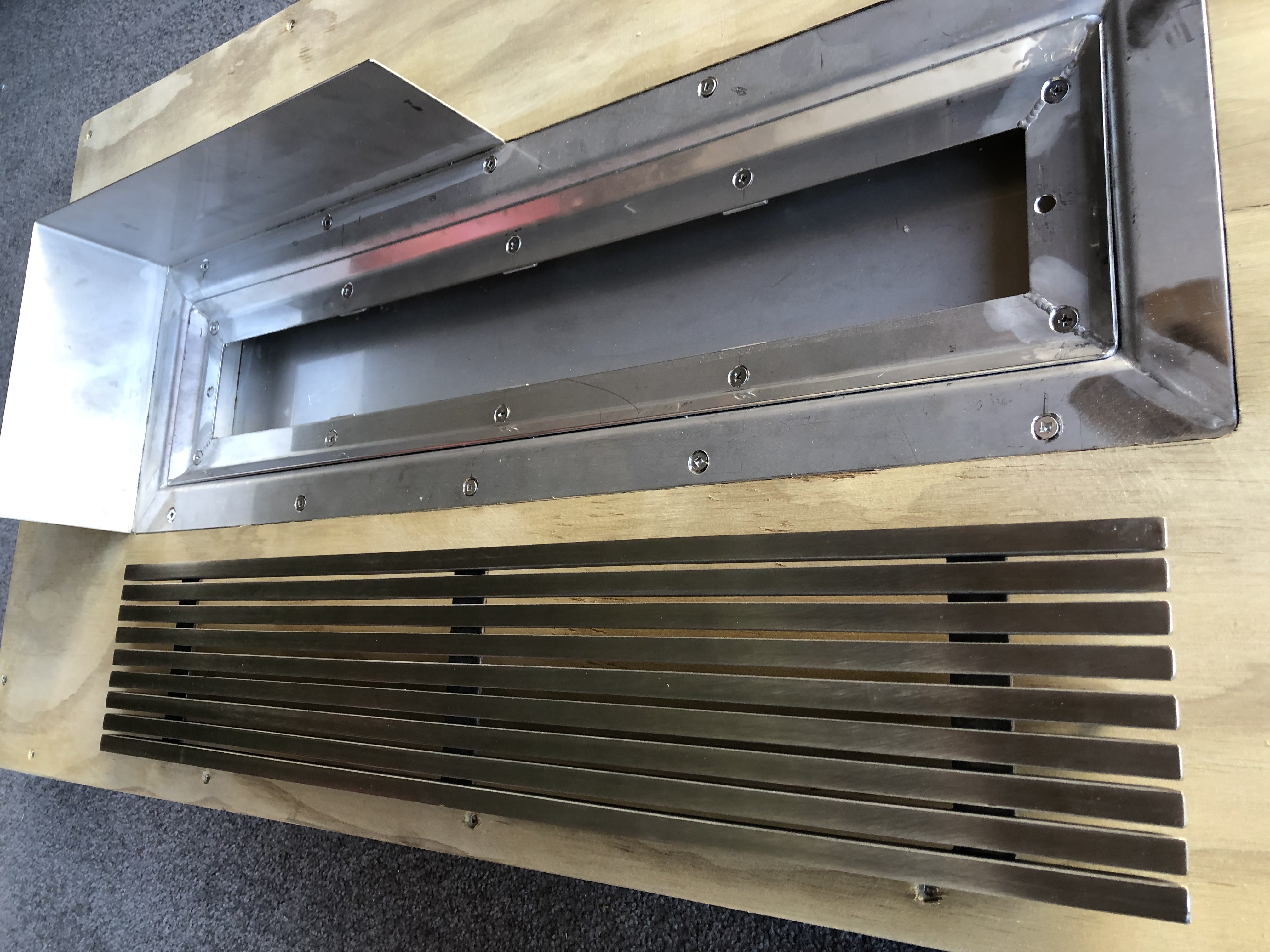

Grill finish ranging from four to 12 bars, the grill can be left in its modern stainless steel finish or powder coated any colour to match the vinyl flooring
Lead time approximately 10-14 days

Limitations on Use

Not suitable for non-vinyl flooring – Designed exclusively for vinyl flooring applications. For tiled wetrooms, consider Jesani’s other drainage solutions.
Must be installed with compatible vinyl – Ensure vinyl flooring meets the required thickness and compatibility for secure clamping.
Requires correct installation – Incorrect sealing or failure to secure the vinyl at the trough edge may result in leakage. Professional installation is recommended.
Not designed for primary wastewater drainage – Intended for wetroom surface drainage, not as a substitute for traditional wastewater systems.
Grille must be secured for public use – Security-locked option recommended for public and high-use areas to prevent tampering.
Standard outlet size considerations – Comes with up to 100mm outlet; verify compatibility with existing plumbing connections.

Statement of Building Code Compliance

The Jesani Vinyl Clamping Channel meets the relevant performance requirements of the New Zealand Building Code (NZBC), ensuring safe, durable, and compliant wetroom drainage solutions.

NZBC Compliance Clauses:

B2 Durability – Manufactured from high-grade stainless steel, ensuring long-term performance and resistance to corrosion in wet environments.
E3 Internal Moisture – Provides leakproof, high-flow drainage, preventing water damage and maintaining floor integrity in wet areas.
F2 Hazardous Building Materials – Made from non-toxic, non-hazardous materials, ensuring safety in residential, commercial, and healthcare applications.
G13 Foul Water – Efficient drainage integration with standard plumbing systems, ensuring compliance with waste disposal regulations.

All performance claims are supported by robust testing, industry standards, and real-world application evidence, ensuring reliability in homes, hospitals, aged care, gyms, and commercial kitchens.

In-Service History

The Jesani Vinyl Clamped Channel has been successfully used in residential, commercial, and public wetroom applications across New Zealand for over a decade. It is a trusted solution for secure, leakproof drainage in accessible bathrooms, hospitals, aged care facilities, gyms, laboratories, commercial kitchens, and high-density housing developments.

Proven Performance:

Healthcare & Aged Care: Specified in rest homes and hospitals, ensuring long-term hygiene and compliance with accessibility requirements.
Commercial Facilities: Installed in gyms, education facilities, and laboratories, providing high-flow drainage with robust stainless steel durability.
Residential Applications: Used in homes, apartments, and social housing, offering a reliable, aesthetic, and easy-to-install wetroom solution.

With a track record of durability and efficiency, Jesani’s Vinyl Clamping Channel continues to be the preferred choice for architects, builders, and developers seeking high-performance vinyl clamped wetroom drainage solutions.

Other Performance Attributes

Beyond NZ Building Code compliance, the Jesani Vinyl Clamped Channel offers several enhanced performance attributes that make it a superior choice for wetroom drainage solutions:

Corrosion Resistance – Crafted from high-grade stainless steel (304 or 316), ensuring long-term durability even in high-moisture environments such as hospitals and commercial kitchens.
Slip & Trip Prevention – Seamless integration with vinyl flooring creates a flush, level surface, reducing trip hazards and enhancing safety in accessible and public wetrooms.
Chemical & Heat Resistance – Designed to withstand exposure to harsh cleaning agents, disinfectants, and high-temperature environments, making it suitable for commercial kitchens and laboratories.
Low Maintenance & Hygiene-Focused – The minimalist design prevents debris buildup, reducing the need for frequent cleaning and ensuring optimal hygiene in healthcare and aged care settings.
Precision Engineering – 1.5mm stainless steel, TIG welded, and water-tested, guaranteeing structural integrity and leakproof performance in demanding environments.
