Hale Brings 'Floating' Front Partition Designs to the Fore

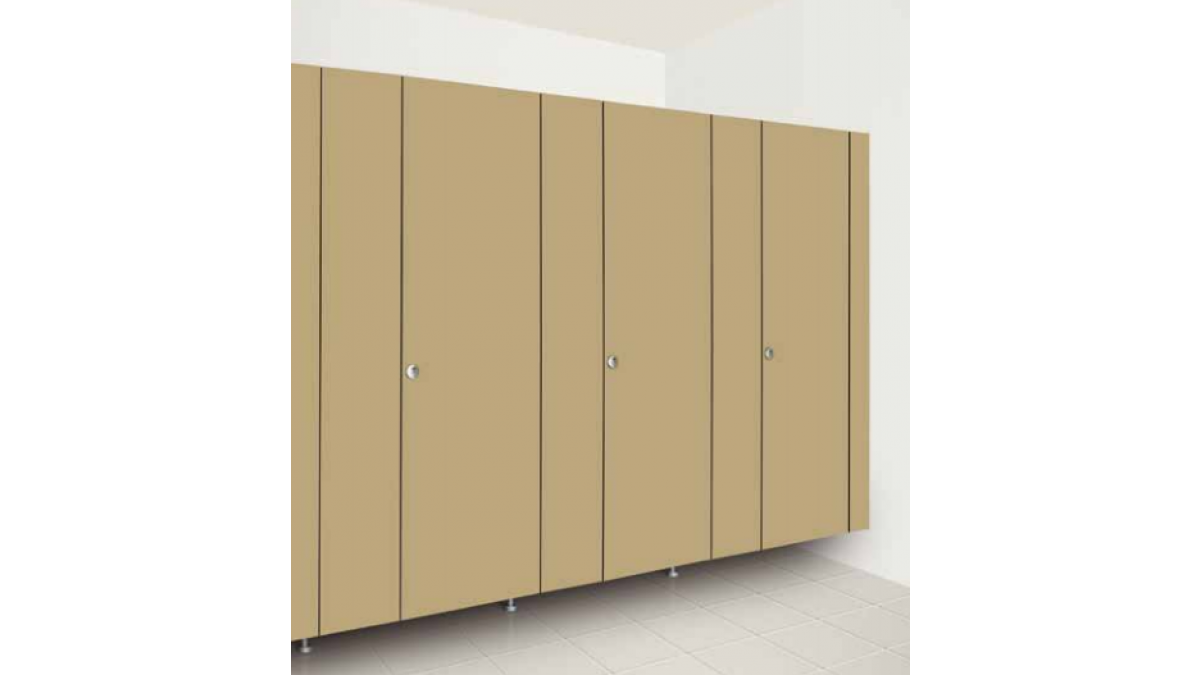

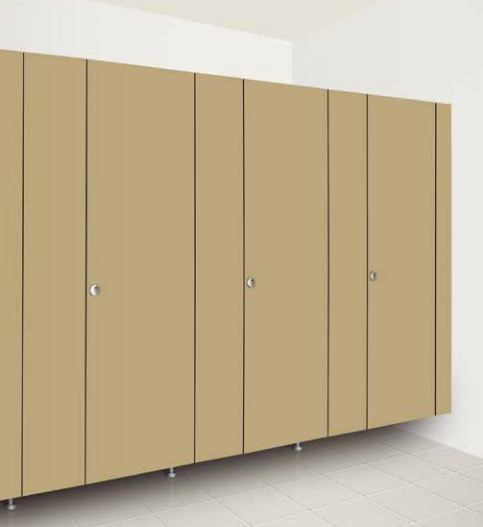

Simple and striking, the floating front design offers clean, modern lines, making a big impact. This floating front system has set back pedestals fixed to the partition dividers. This combined with the completely flush fitting front, gives the cubicle its floating appearance. The pedestals on the dividers can be fixed at the standard 150mm or at 50mm for a lower divider.

The floating front system features adjustable pedestals to suit uneven floors, and premium hardware. The hardware is sophisticated, stylish and durable enhanced by the satin chrome finish. The hardware range consists of the below components:

  • Avanti emergency lift-off gravity hinges: These rise and fall, concealed fixed hinges offer a modern finish, and due to the lift-off capability, allow for easy removal of the partition door for quick access to the cubicle, in case of emergencies.
  • Avanti indicator face plate: This concealed fixed face plate is oval in shape and features an internationally recognised red / green indication disc and emergency release function.
  • Wave lock and staple: The wave lock offers slide locking lift off staple for emergency access. Both of these components are surface mounted and concealed fixed.
  • Wave bumper: The wave bumper is a separate bumper, surface mounted and concealed fixed and features a rubber stop insert for soft closing.
  • Wave coat hook / door stop: This combination coat hook and door stop is surface mounted and concealed fixed and comes standard with a rubber stopper.

All Hale Manufacturing hardware and extrusions are fixed with stainless steel fixings.

Available in 13mm Antimicrobial Compact Laminate for high or low abuse, wet or dry areas such as toilets and showers or 18mm Structuralboard, pre-finished with 2mm ABS edging, matching the colour of the panel face, for low abuse, dry areas such as toilets.

The floating front design is available for the Multipurpose, Structuralboard, Swiss CDF, Stratos and Delta systems.

Talk to Hale about how they can customise their systems to suit specific requirements.

View more information on Hale Manufacturing, including contact details.
