Stacking Cavity Sliders Enable Flexible Use of Space in Childcare Centres

CS For Doors supplied CS OvertakingDoors cavity sliders for two new BestStart childcare centres in Auckland. The indoor environments have been designed to support the learning and development of different age groups — infants, toddlers and preschool. The large stacking door systems enable the flexibility to easily open up or close off the large central spaces as required.

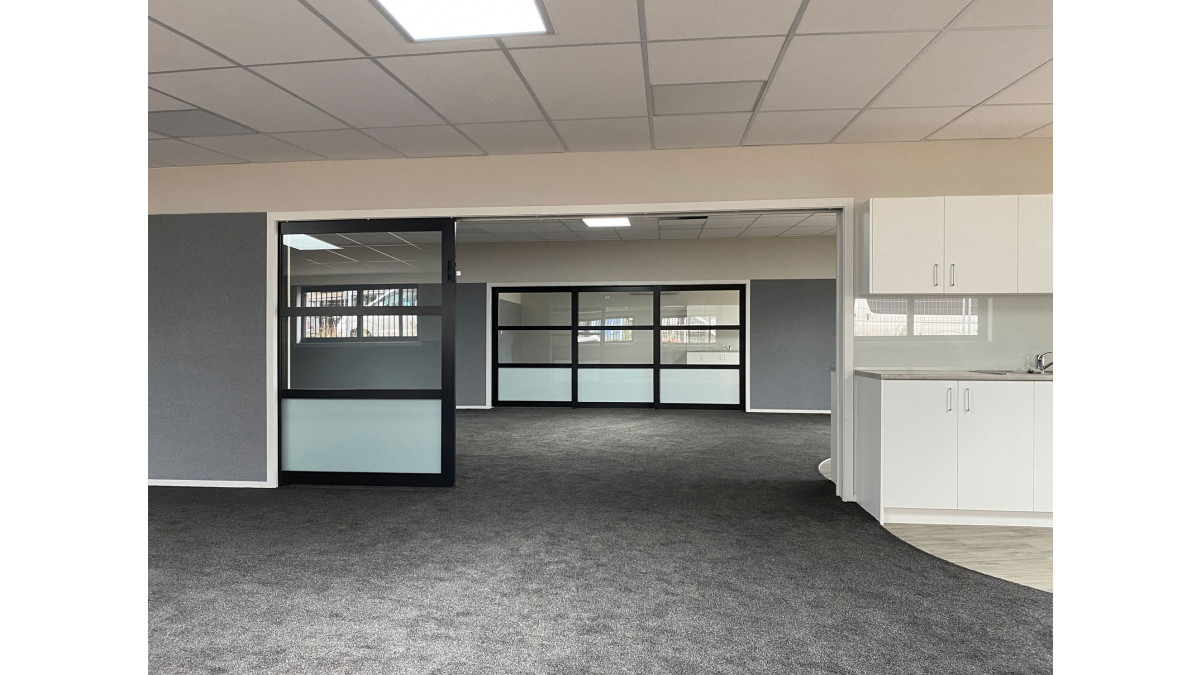

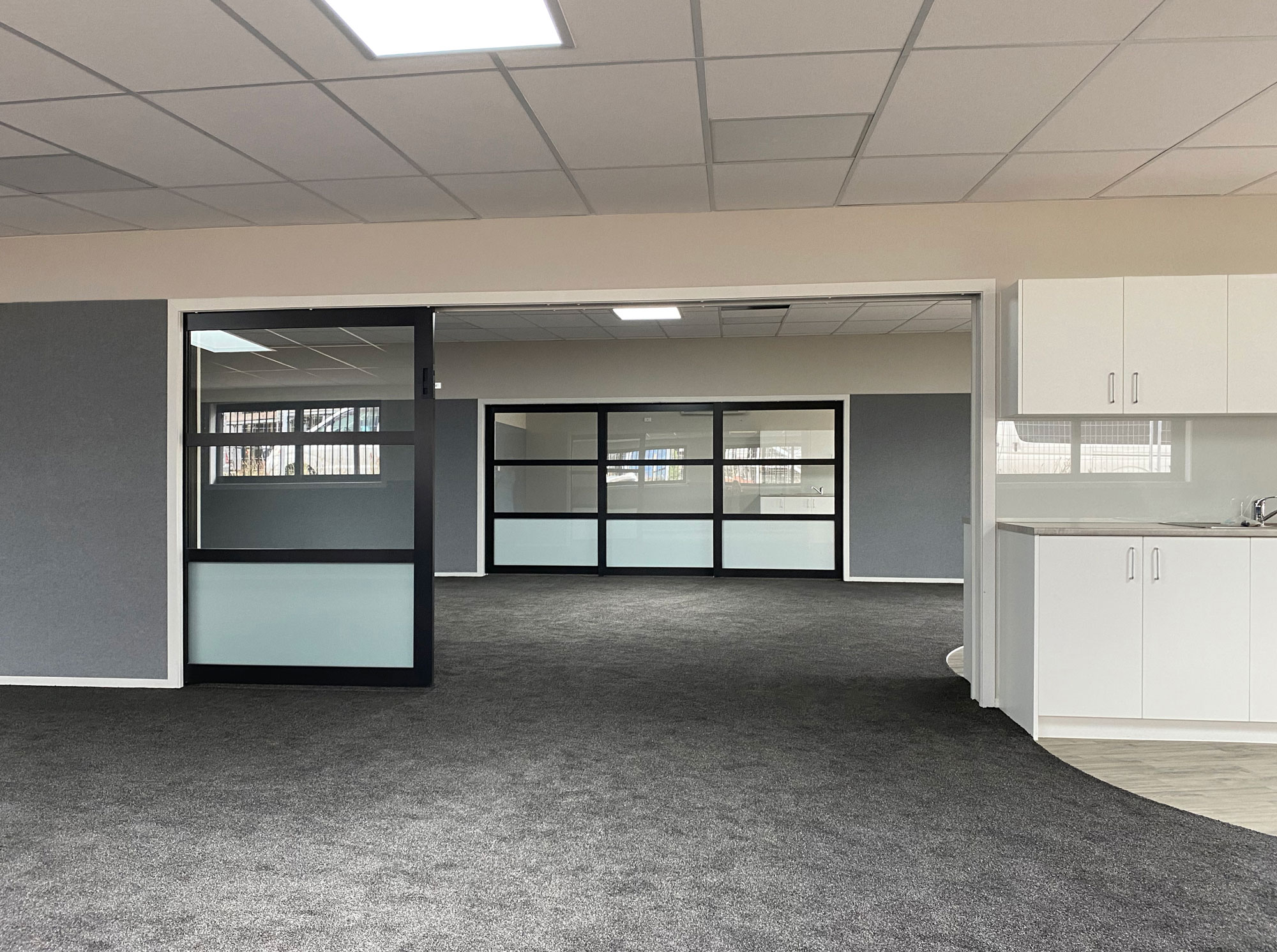

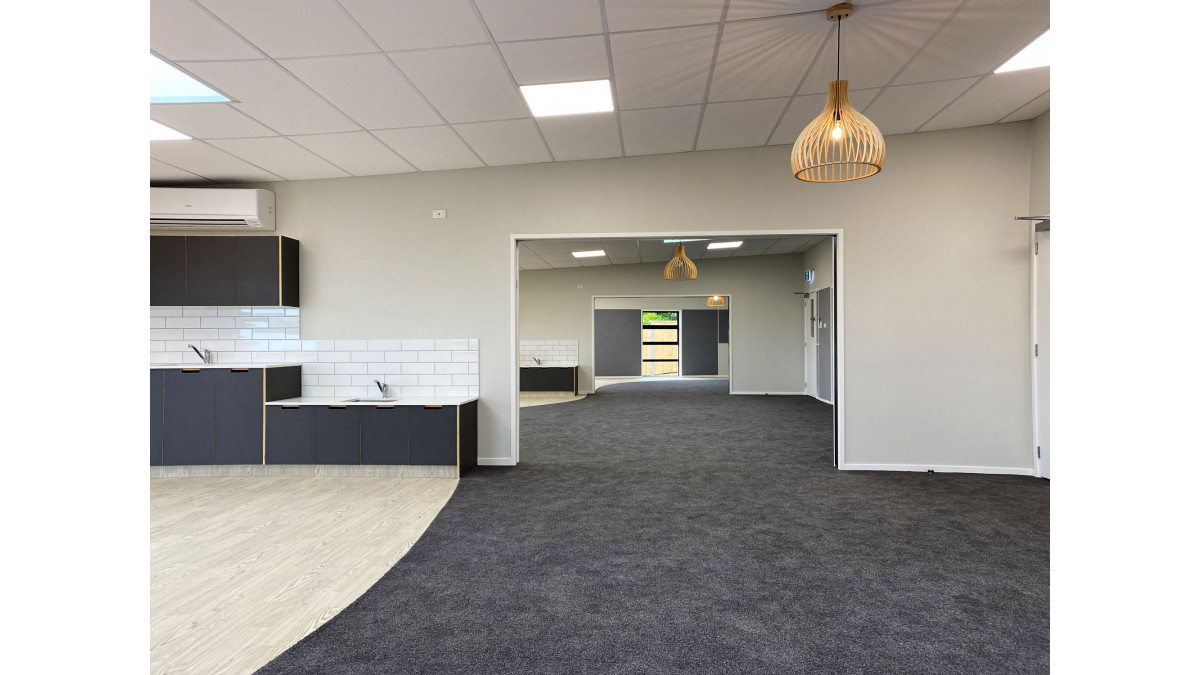

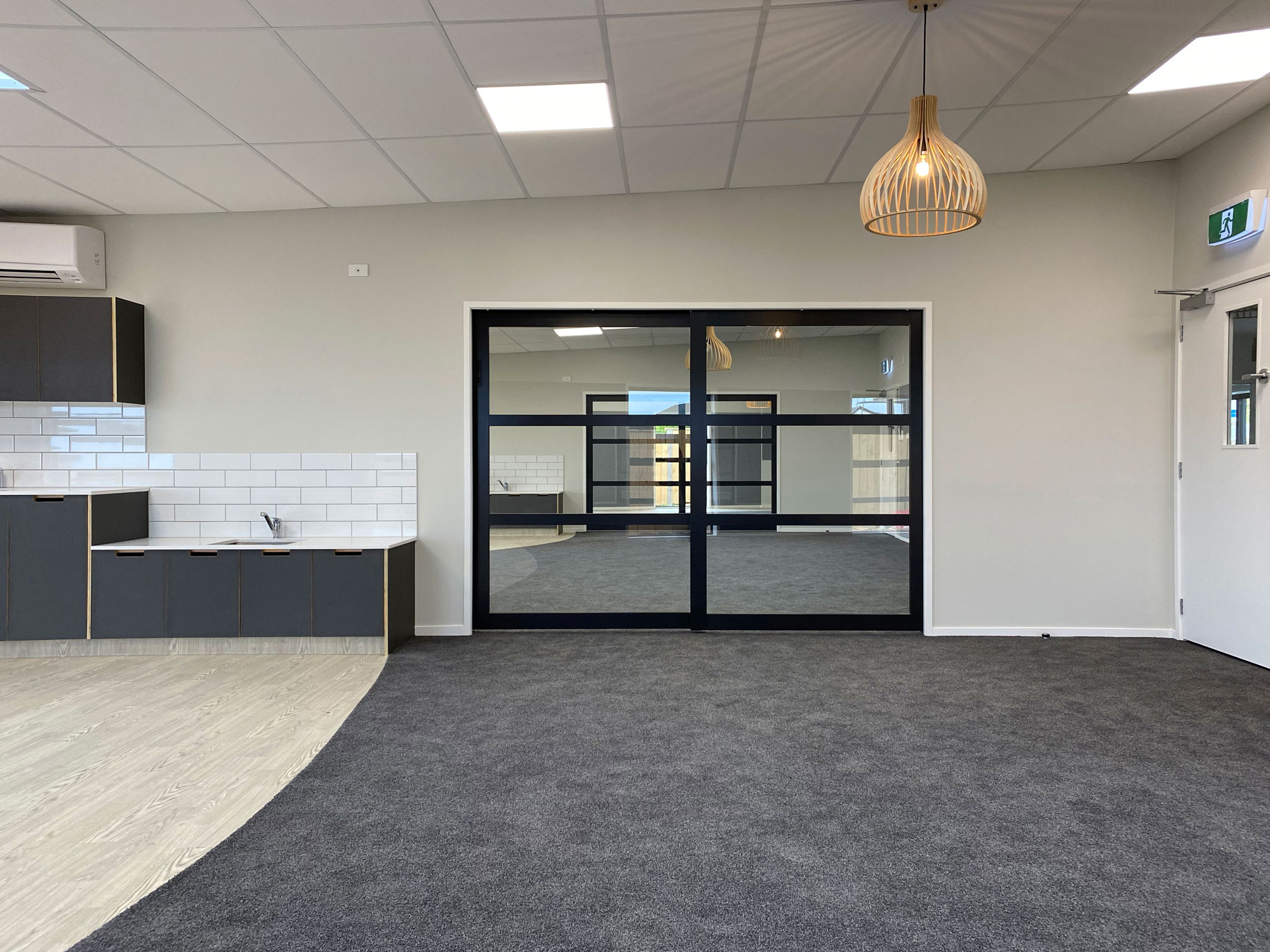

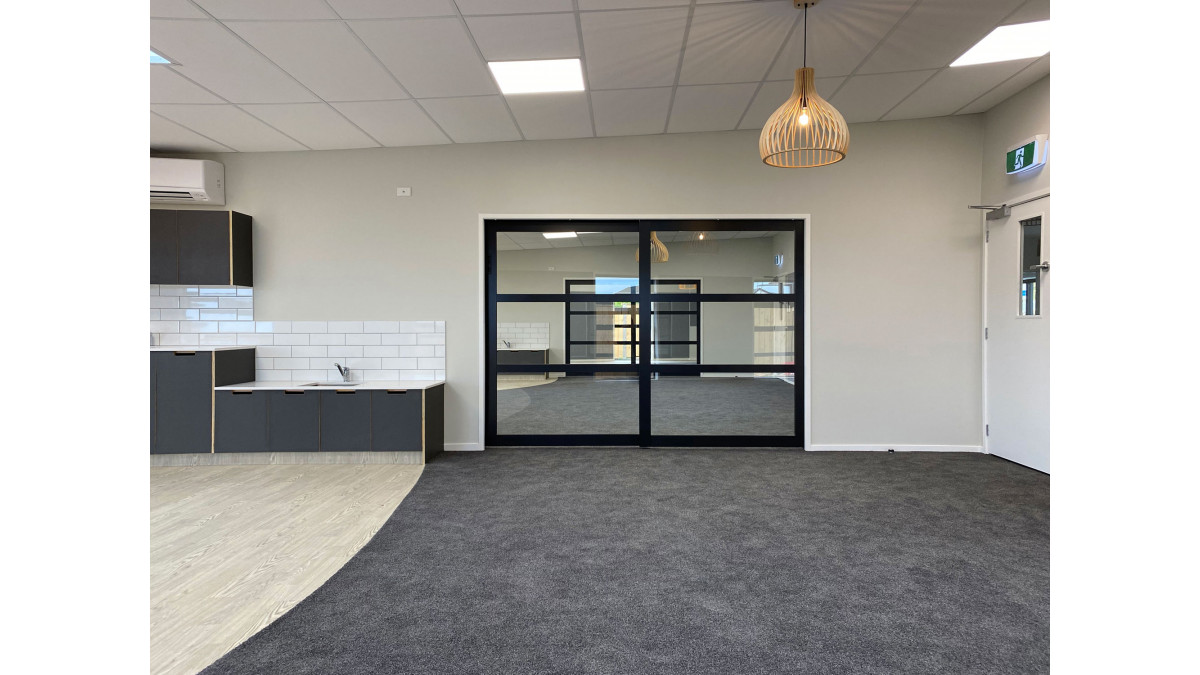

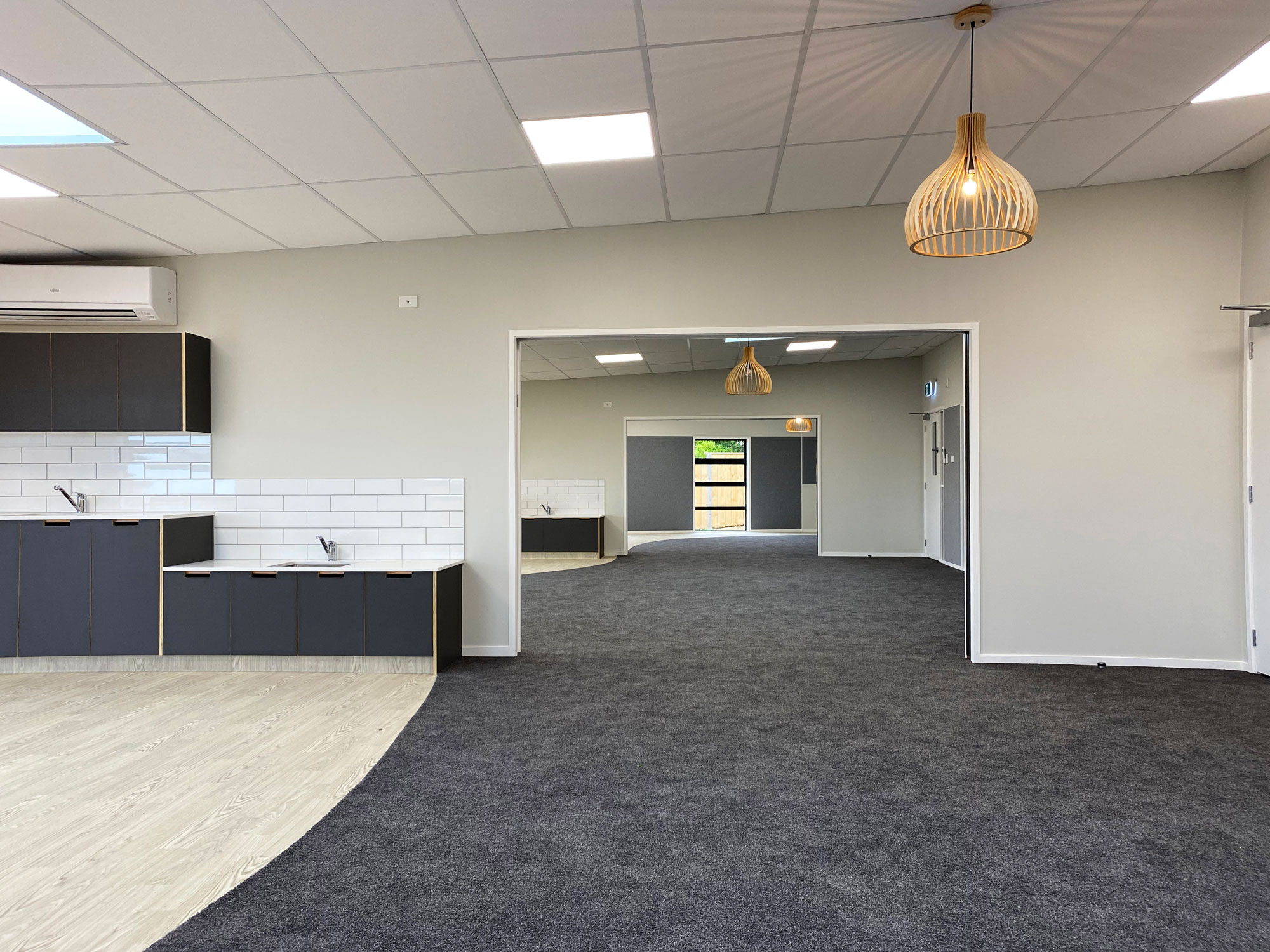

CS OvertakingDoors systems allow a series of doors (up to five) to stack side-by-side inside the pocket in the wall. This allows the width of the door opening to be maximised without requiring a large wall space either side of the opening.

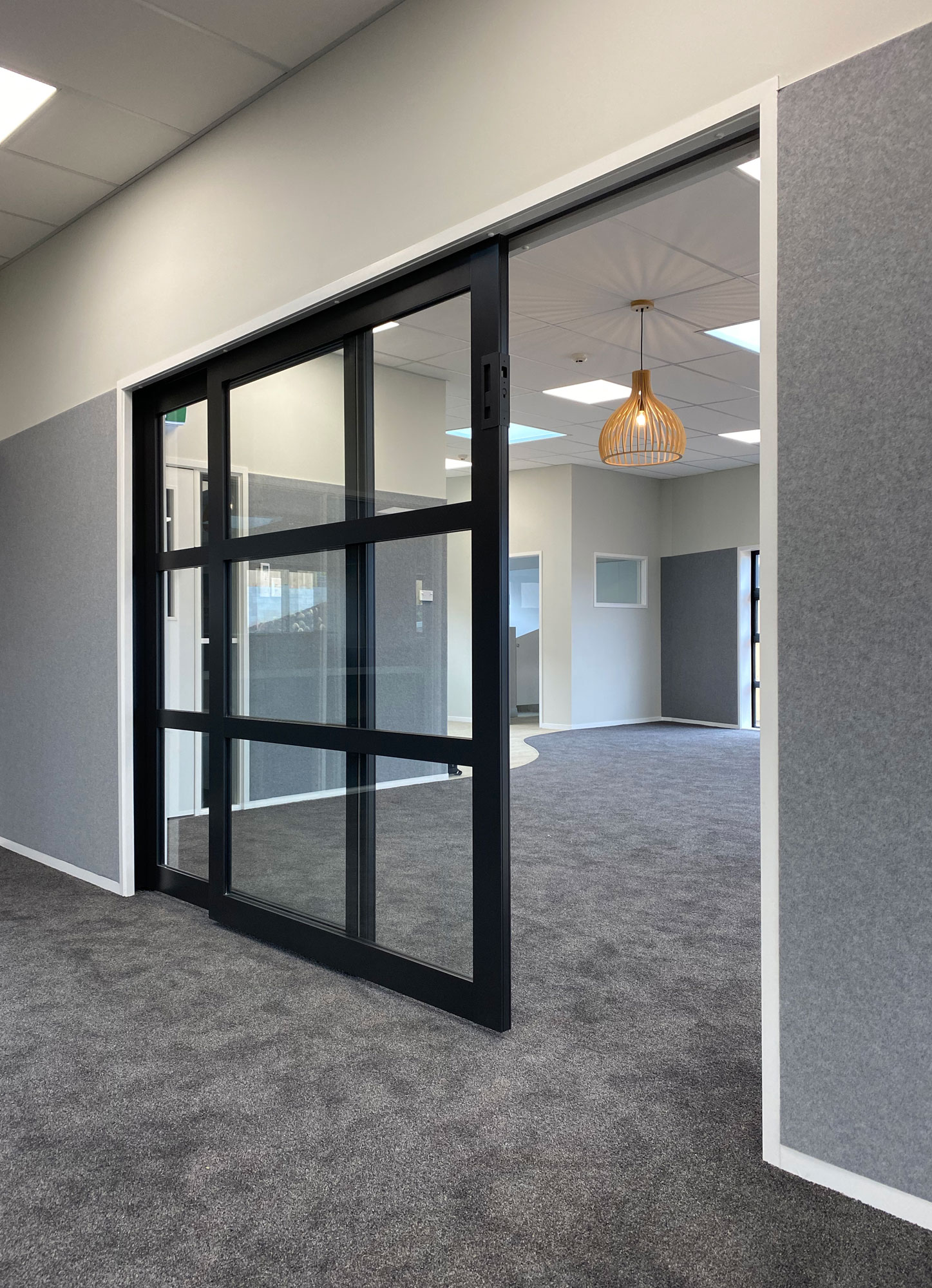

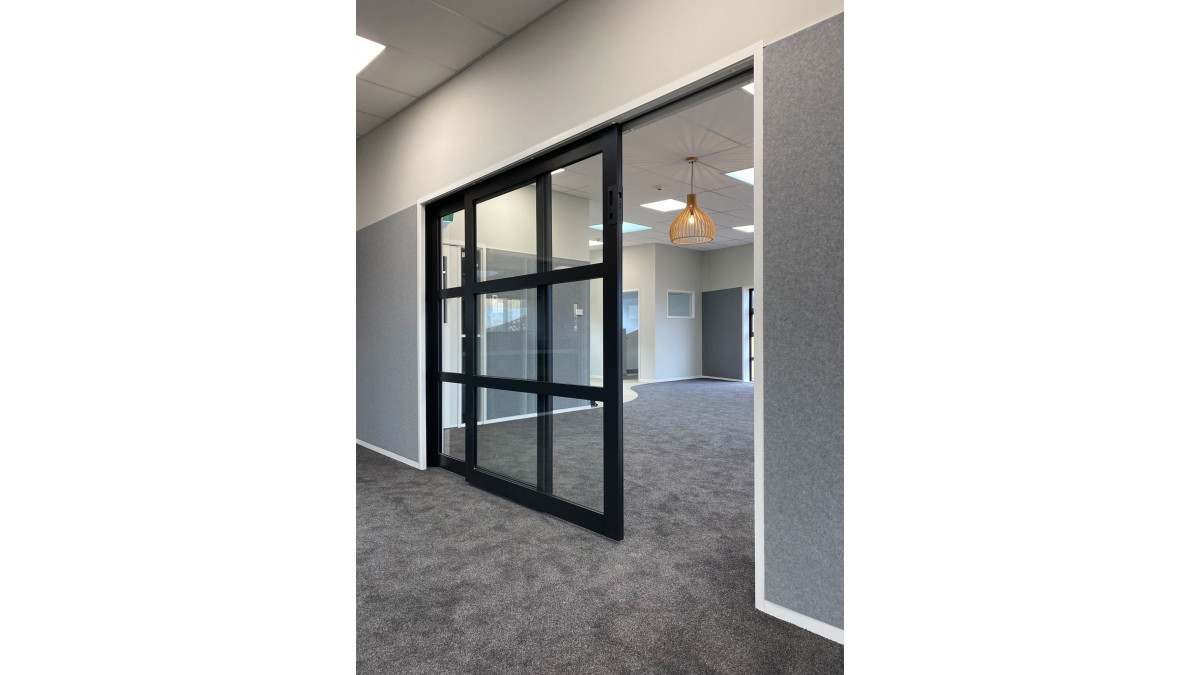

The CS NewYorker door leaf was used for both centres. These doors work well with the OvertakingDoors system and the doors are connected so that there is no need for floor tracks or guides through the opening.

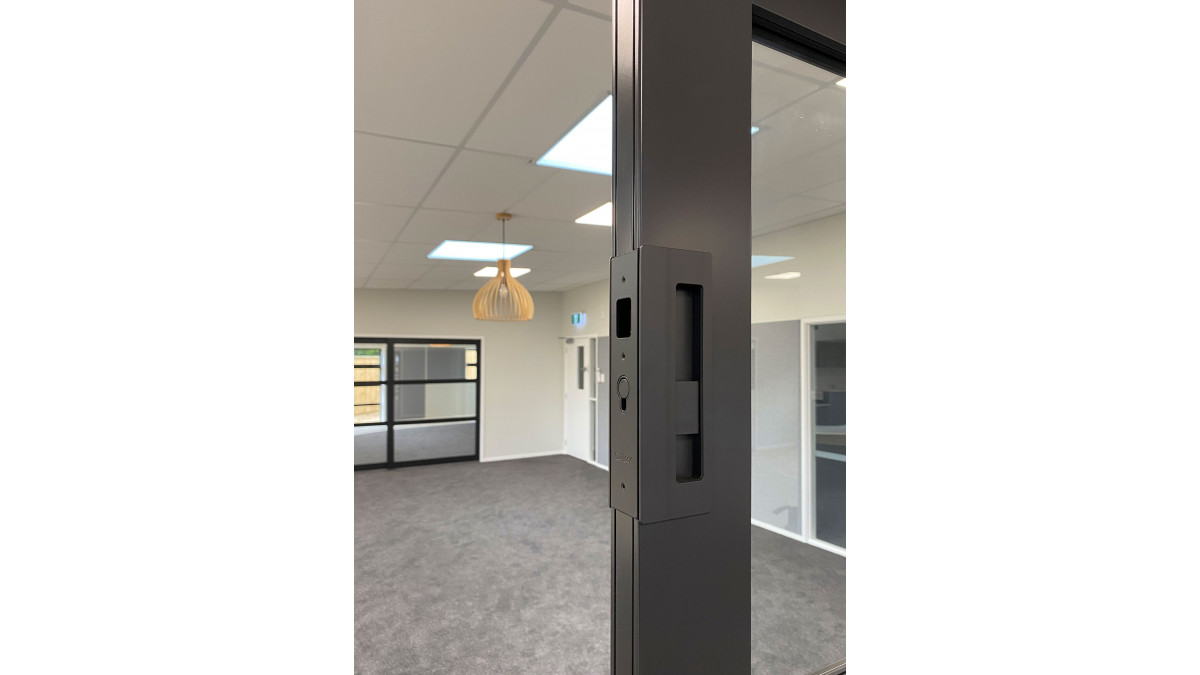

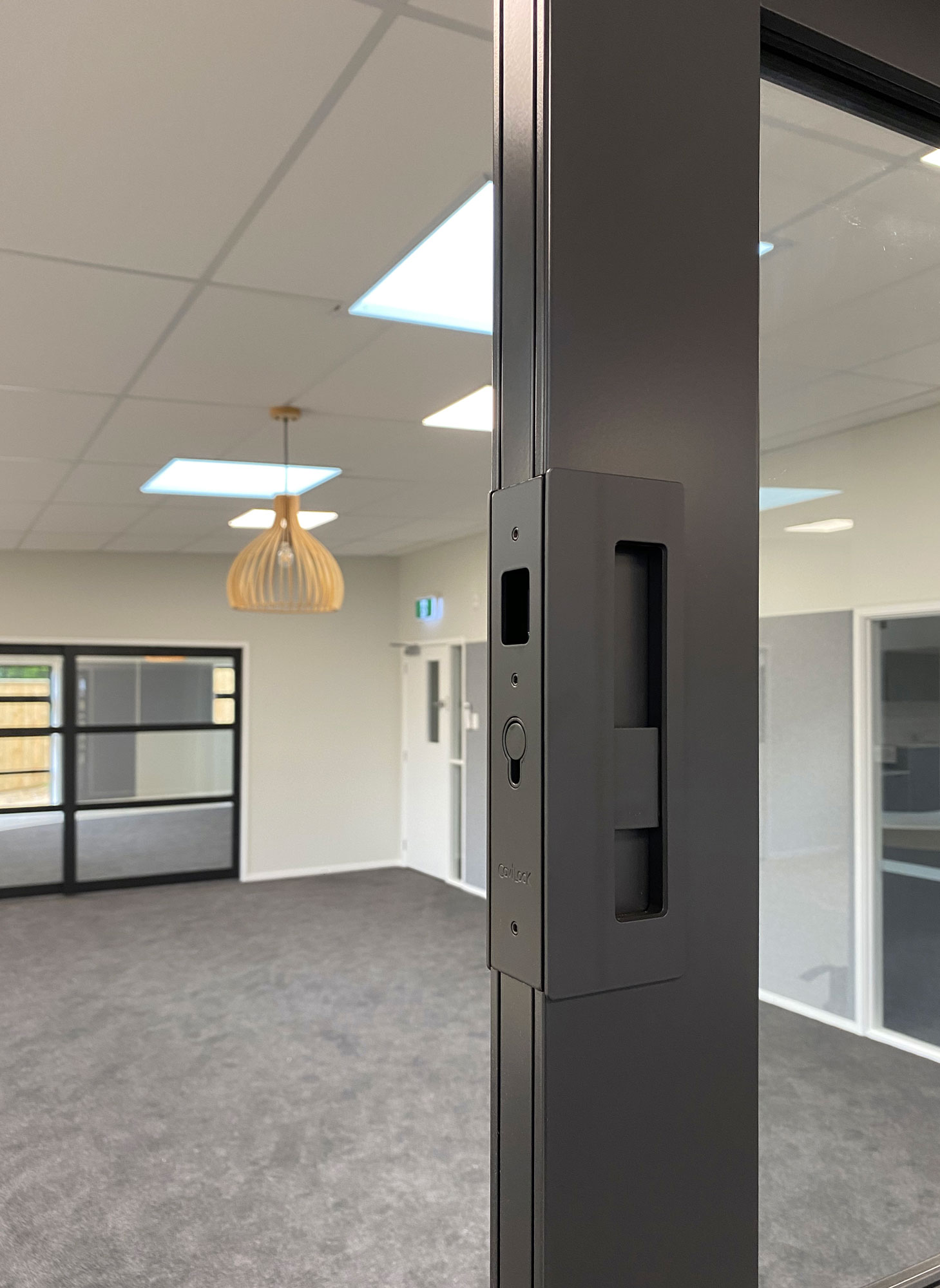

Clear glass has been fitted to the doors, allowing natural light flow and visibility for staff. The door frames are powder coated to complement the rest of the interior and fitted with custom finish CL400 Magnetic handles which can be latched closed if required.

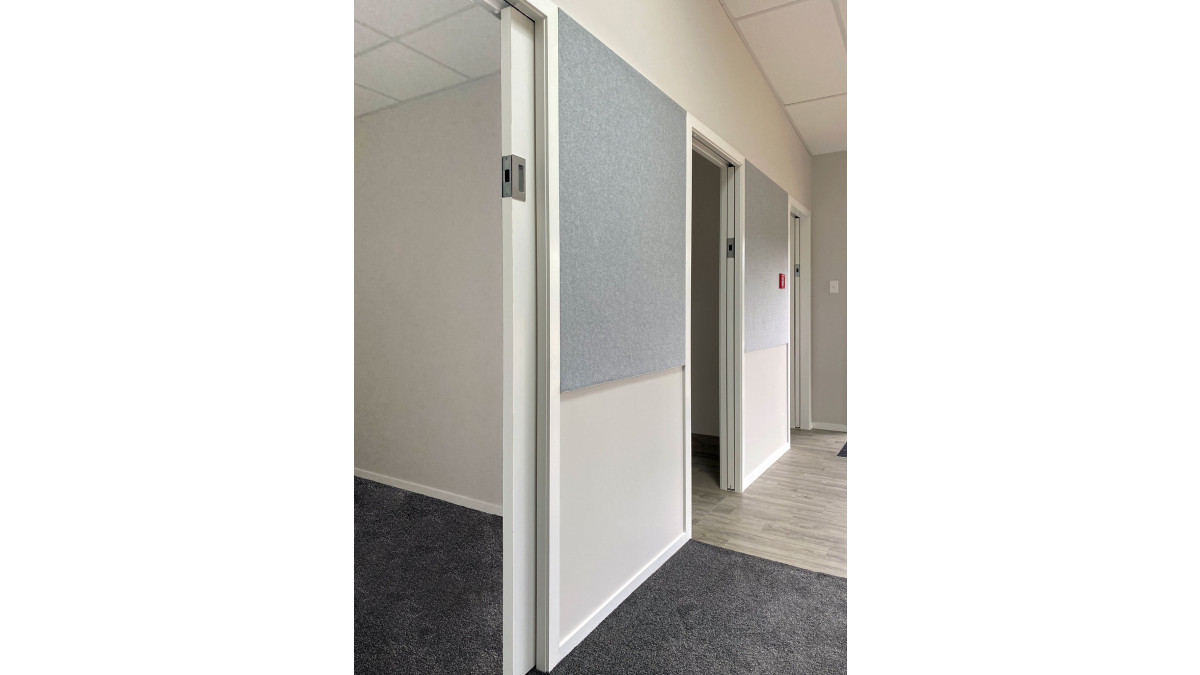

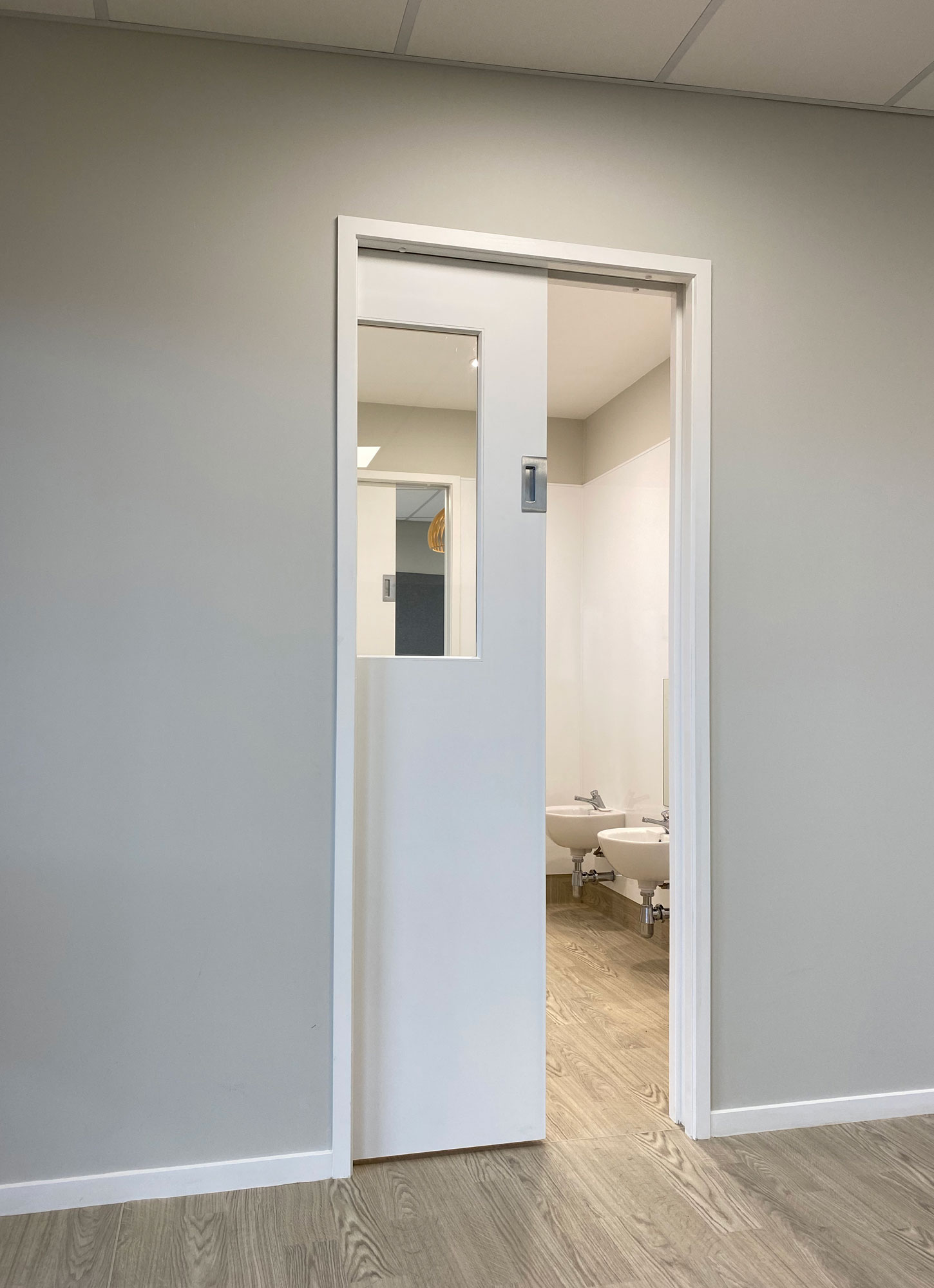

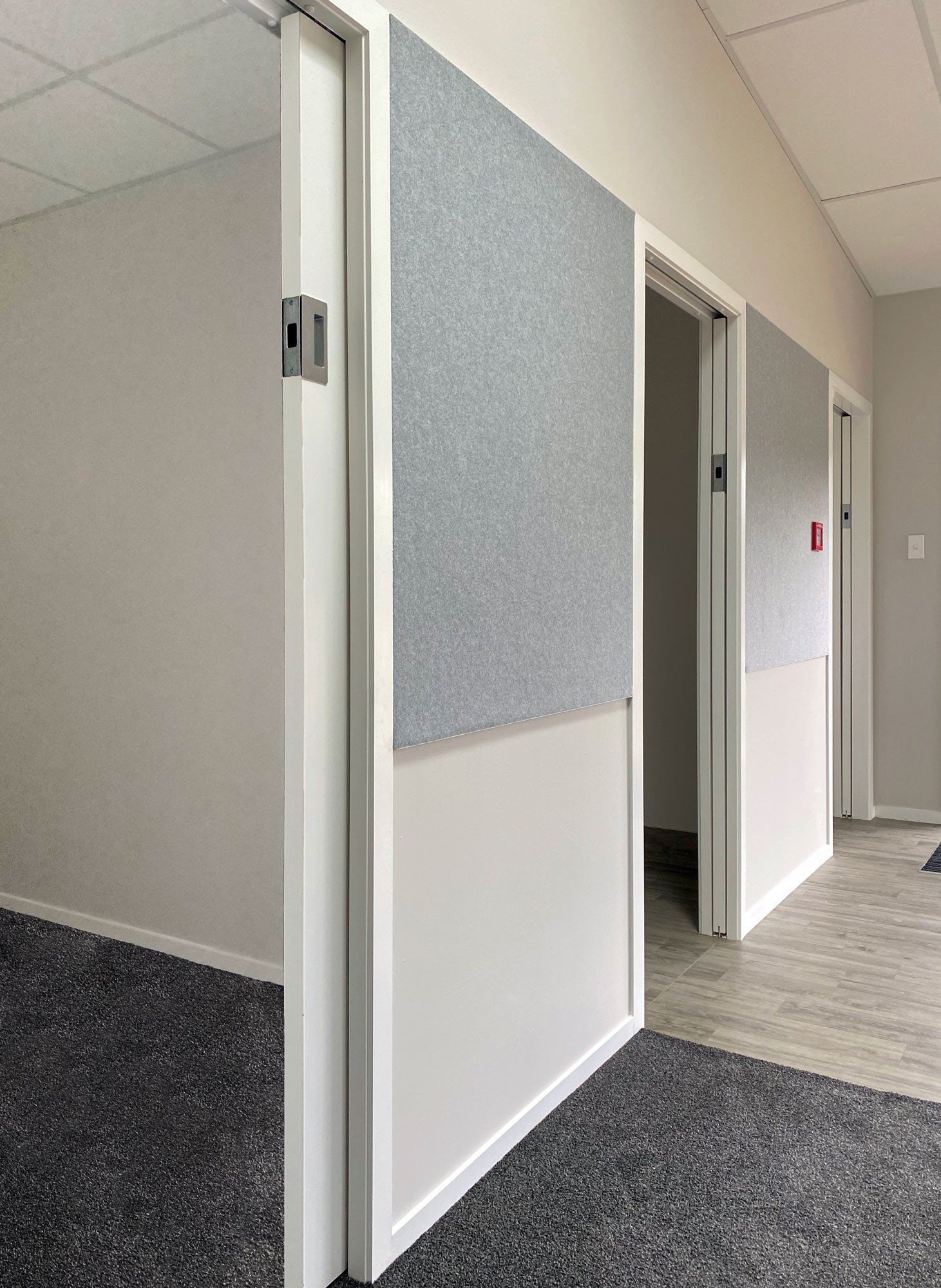

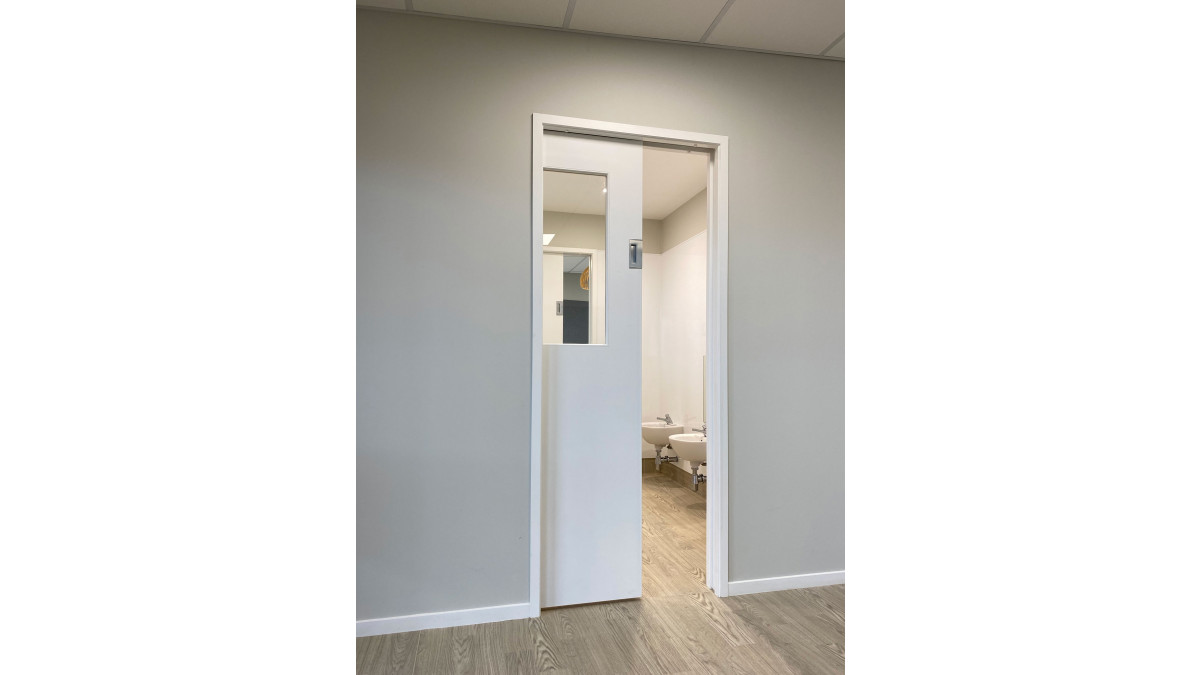

A number of standard cavity sliders were also supplied for the bathrooms and sleep areas. The addition of vision panels in the doors and CaviLock CL200 handles fitted higher than usual on the door ensure suitability for the location.

CL200 Hardware

CS Cavity Sliders (CS for Doors)

View Product

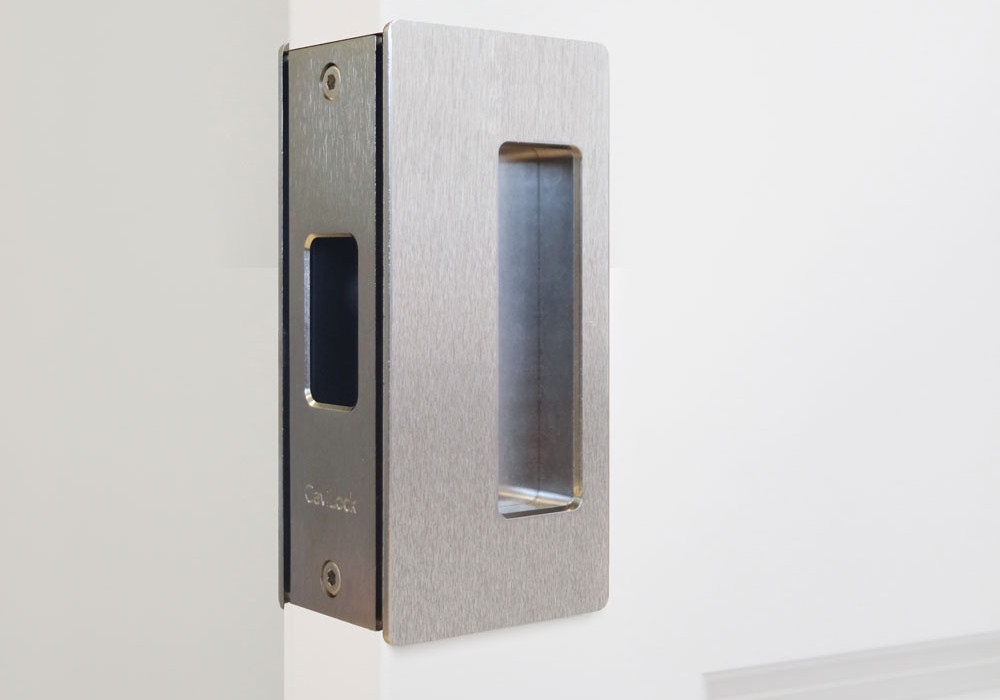

The CaviLock CL200 is a durable range of sliding door hardware suitable for residential, commercial, and hospitality applications.

NZ Made

Suitable for residential, hospitality applications, and light commercial use
Passage or privacy configurations are available for single or bi-parting doors
Suitable for door thicknesses 33-46mm
Suitable for timber or aluminium doors

Cavilock hardware has been used in residential and commercial projects in New Zealand since 1990.

CS NewYorker Door

CS Cavity Sliders (CS for Doors)

View Product

The CS NewYorker is a stylish pre-finished door frame that can be glazed using a wide range of materials, glass being the most popular.

NZ Made

CS Door Leaves are suitable for use in sliding, pivot or hinged applications in residential, commercial and light industrial buildings
Handles: A variety of handles can be factory fitted including a custom designed recessed leading edge pull
The CS NewYorker is 38mm thick, and has been purpose designed to work in conjunction with CS Cavity Sliders and CS Pre-Hung Jamb systems for a complete solution

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]].
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements.
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people.

BRANZ Appraised

CS OvertakingDoors Cavity Slider

CS Cavity Sliders (CS for Doors)

View Product

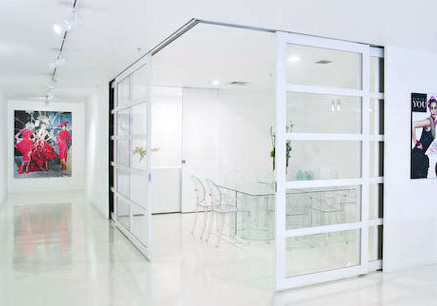

CS OvertakingDoors have an extra-thick cavity pocket, enabling a series of doors (up to five) to stack side-by-side inside the cavity pocket.

NZ Made

CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings.

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]]
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people

BRANZ Appraised

CL400 Magnetic

CS Cavity Sliders (CS for Doors)

View Product

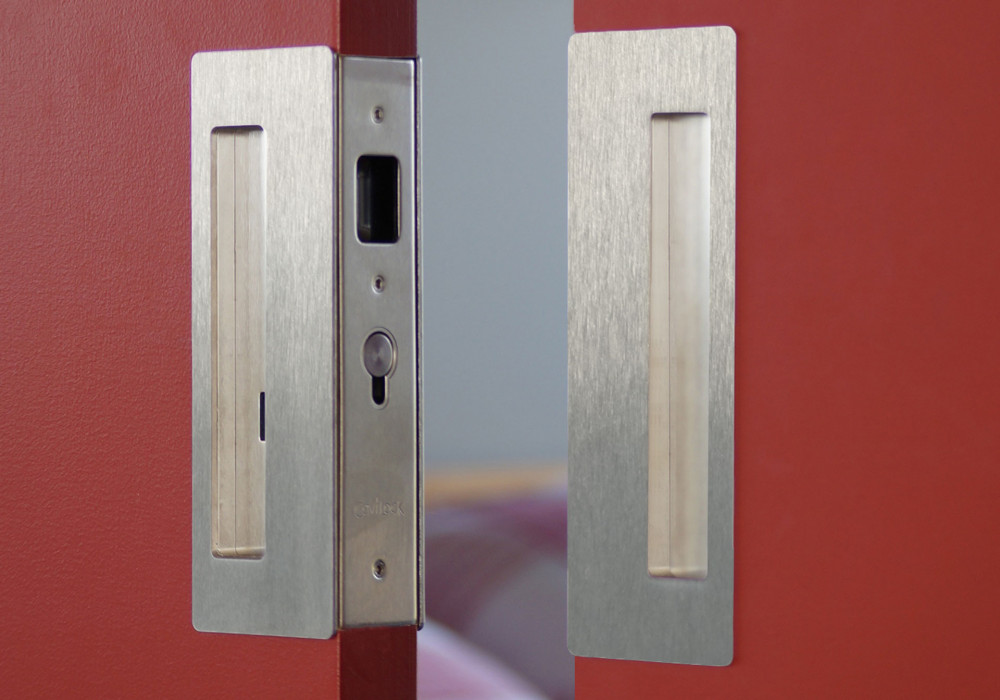

The CL400 Magnetic range features a patented magnetically activated catch and plunger system.

NZ Made

Suitable for residential or light commercial applications.

Suits doors from 34mm—52mm thick. (Thicker door options available on request)
Suitable for use on timber doors as well as the CS NewYorker or CS AluTec aluminium door

CaviLock sliding door hardware has been successfully used in commercial, residential and institutional projects in New Zealand and Australia since 1990. CaviLock handles are backed by a two year written guarantee.
