Description

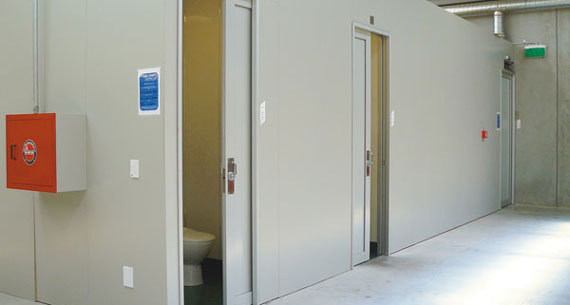

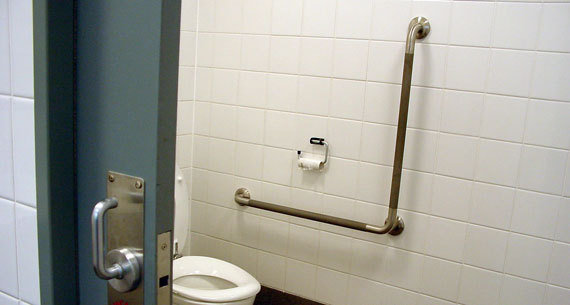

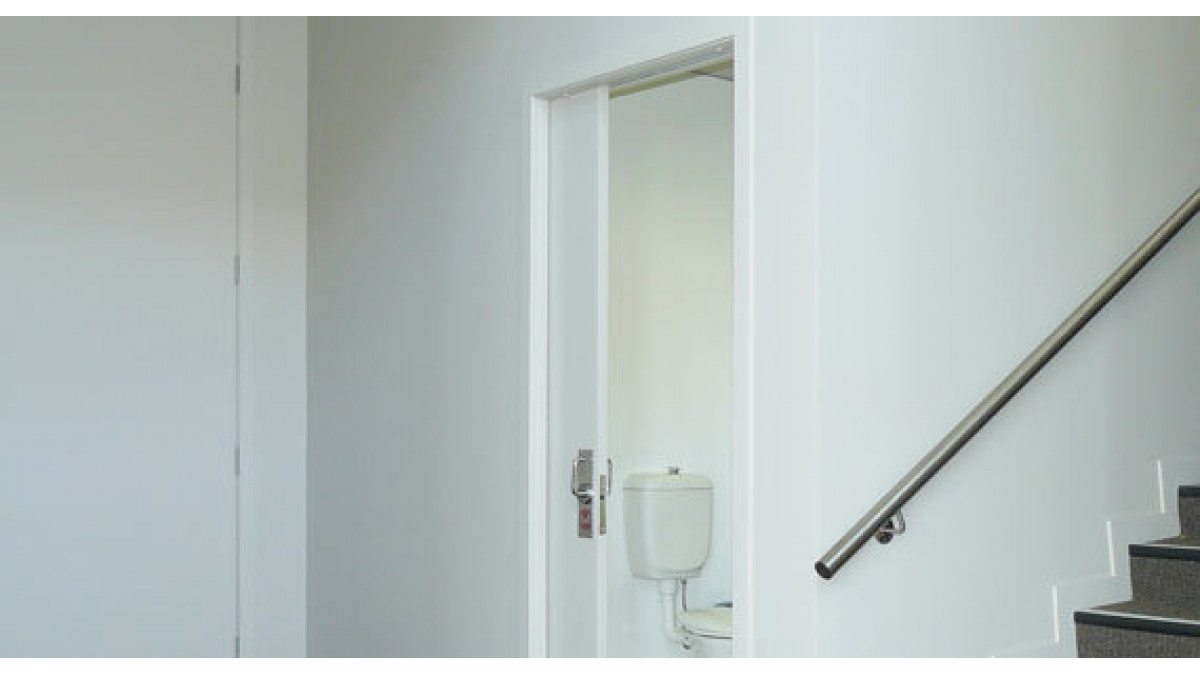

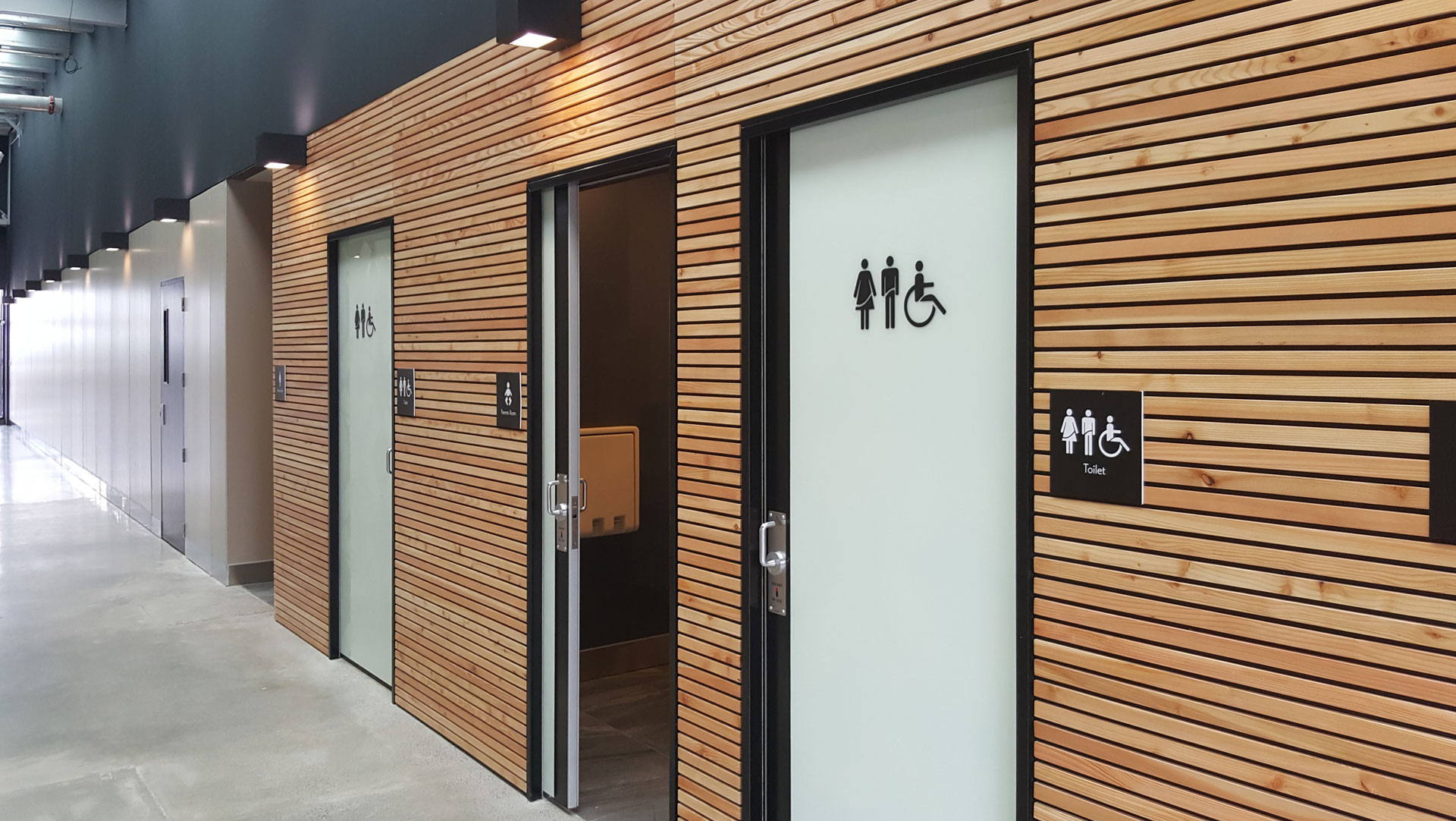

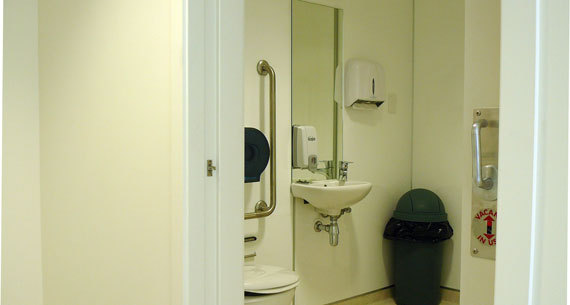

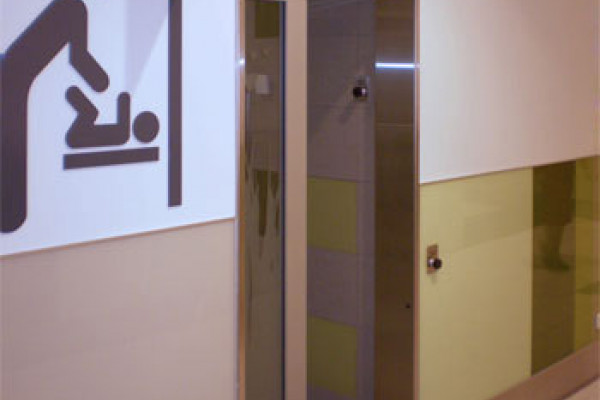

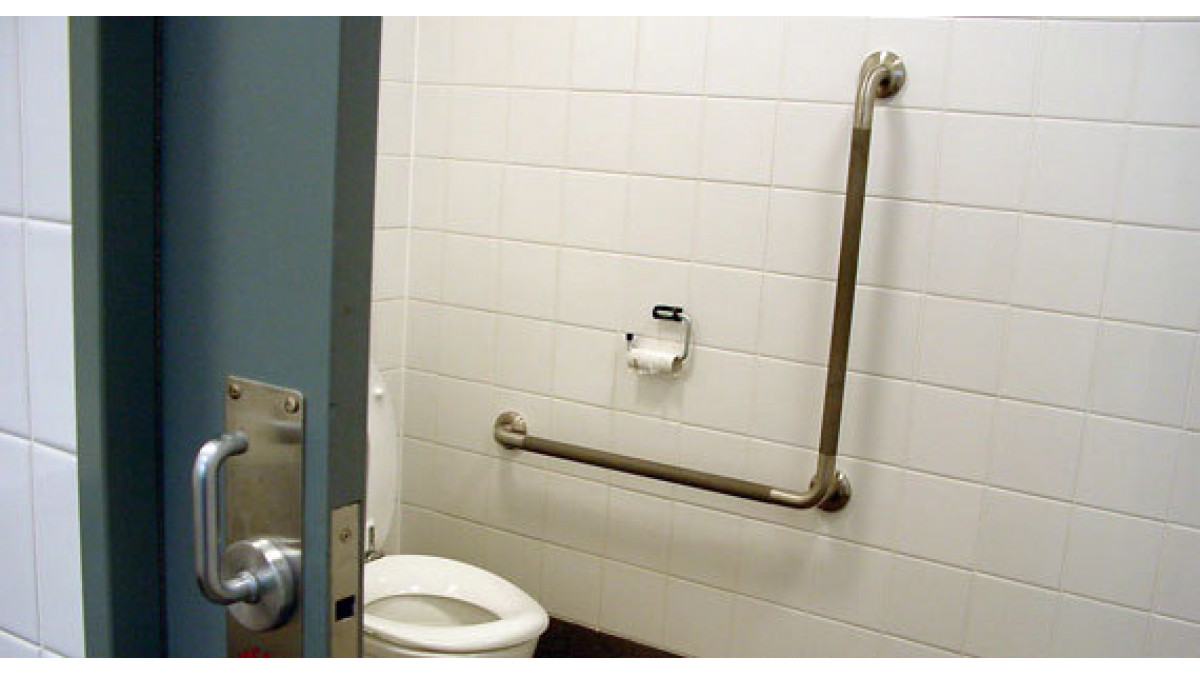

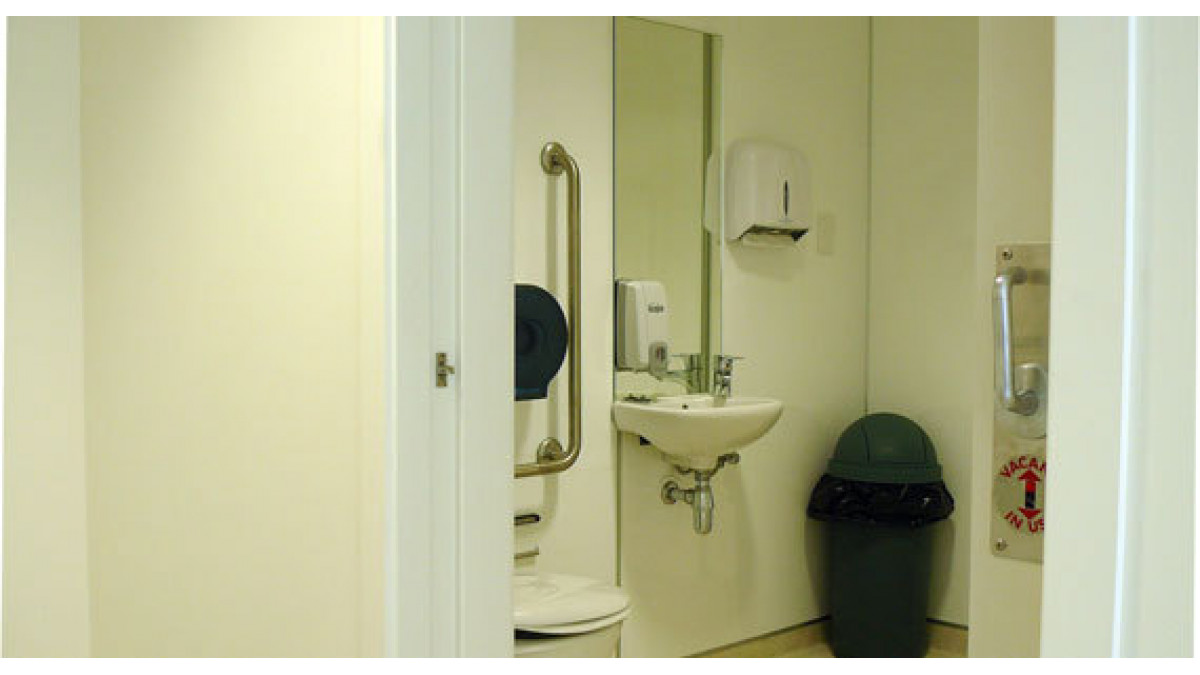

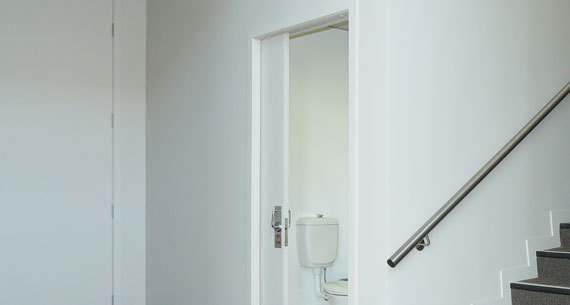

The CS EasyOpen WC system was initially developed to provide easy access to toilets for the disabled. Its popularity has grown such that it is now the benchmark for disabled accessways in commercial buildings and public spaces.

By specifying the EasyOpen WC with a door and disabled access 'code compliant' CL100 LaviLock or CL400 ADA (handle and lock), there is no need to have a separate toilet for disabled patrons. One toilet can effectively suffice for everyone, saving on space, fittings, and cleaning and servicing costs.

These units not only make specifying easy, but also save on site labour because they come with an institutional paint quality door (minimum 910mm wide) and the handle cutout pre-machined.

Key Features

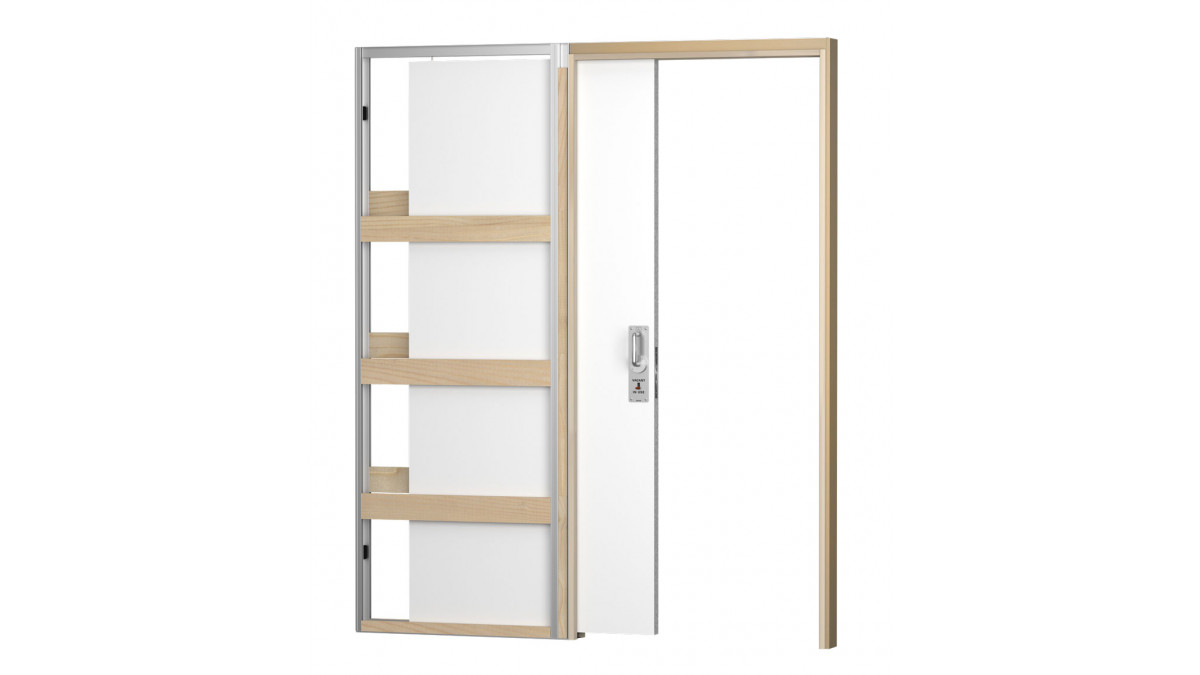

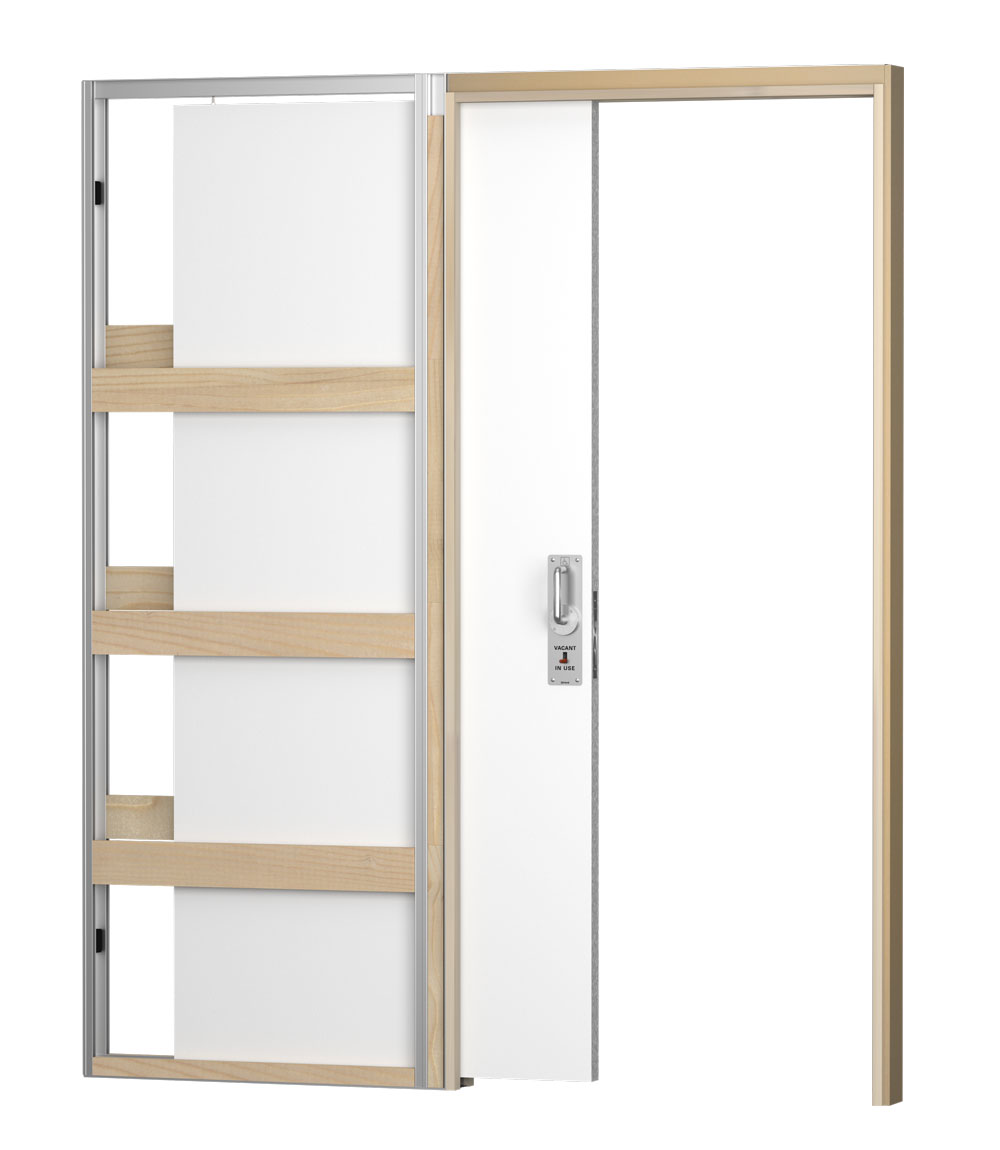

Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
Door and carriages can be removed without removing wall linings
Door cannot jump off the track
Fully compliant when specified with a 910mm wide door and CL100 LaviLock or CL400 ADA privacy hardware
Fits into a standard thickness wall (90 x 45 framing)
Supplied fully assembled for on-site installation
No visible floor guides

Detail Options

Incorporate any of the following architectural detail options with the CS EasyOpen WC cavity slider to create a specific look or to provide a unique solution:

Full-Height
No Closing Jamb
Shadow Line
Square Stop
Extra-Wide Jambs
Hi-Impact Jambs
Protrude 100

Ranges

CS Cavity Sliders

NZ Made

Scope of Use

CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings
Fully compliant for disabled access when specified with a 910mm wide door and CL100 LaviLock or CL400 ADA privacy hardware

Limitations on Use

Easyopen units require a minimum door width of 910 mm.
CS Cavity Sliders are not suitable for use with fire doors or smoke control doors.
CS Cavity Sliders are suitable for use in single detached dwellings (SH purpose groups). In all other purpose groups, CS Cavity Sliders are not permitted within or for providing access to exit-ways.

CL400 ADA Magnetic: To comply with NZS4121:2001 the offset handle option must be used. The centre of the handle should be positioned between 900mm and 1200mm (1000mm optimal) above finished floor level. The door needs to be at least 910mm wide to allow minimum clear walk through of 760mm. There must be a 45mm clear space from edge of pull handle to the nearest door jamb when the door is both fully open and completely closed. A flat closing jamb is recommended or CS can supply a recessed closing jamb to suit. The supplied ‘Down to Lock’ label must be positioned as close as possible to the handle. Consult local standards for guidelines relating to the specific project.

Statement of Building Code Compliance

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]].
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements.
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people.

The CS EasyOpen Cavity Slider can be manufactured to meet the requirements of NZBC 01.3.q (f).

In-Service History

CS Cavity Sliders have been successfully used in commercial, residential and institutional projects in New Zealand and Australia since 1986.

Other Performance Attributes

CS EasyOpen complies with minimum clear opening and door handle requirements of NZS q121:1985. The unit has a minimum clear opening width of 760 mm, the door handle is fitted by Cavity Sliders Ltd at a height between 900 mm and 1200 mm above the floor and is lever action with the end turned towards the door.

Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
Door cannot jump off the track
CS Cavity Sliders are backed by a 10 year written guarantee
