March 2011

CS for Doors Mount Track System + Cavity Sliders for Temporary Housing

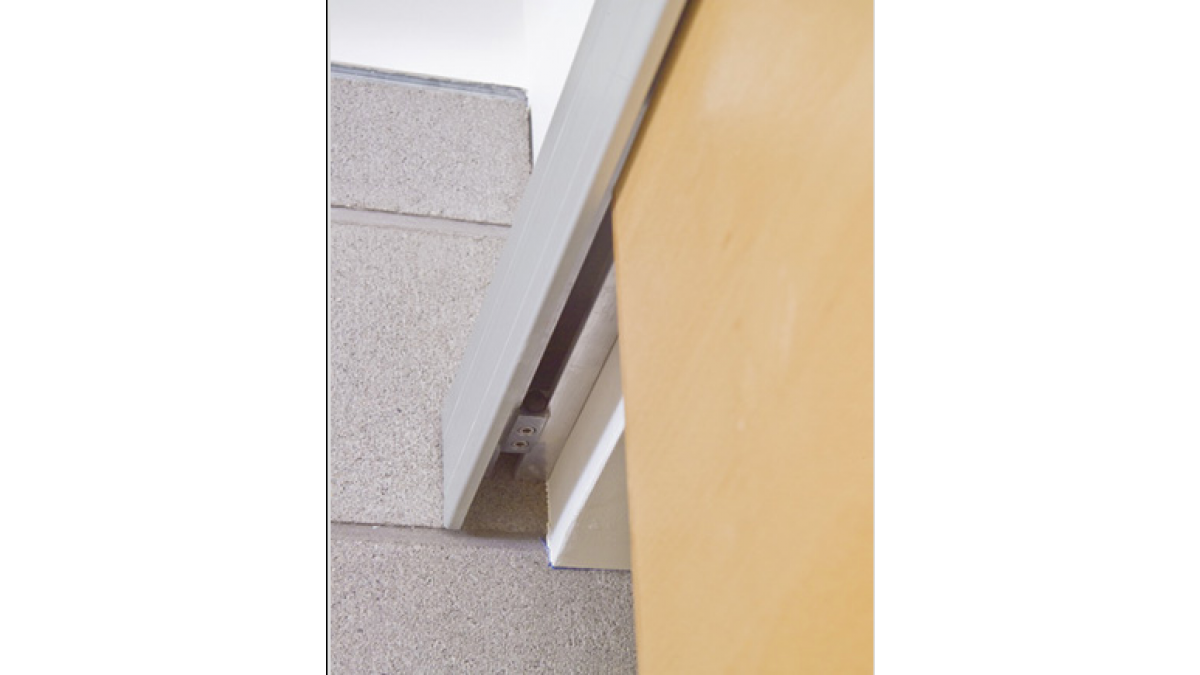

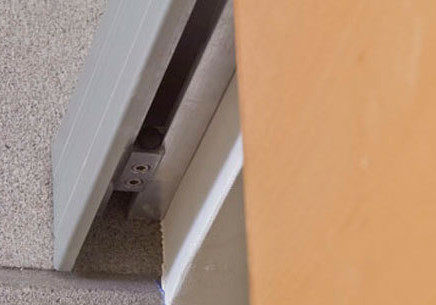

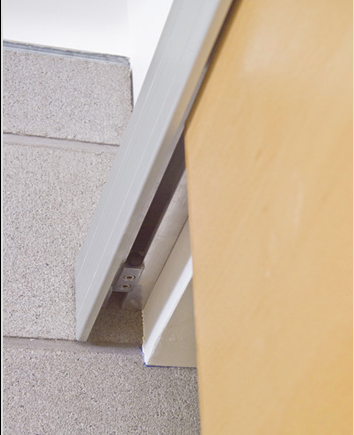

CS Wall Mount Track is suitable for surface sliding applications where there is enough strength in the wall to mount and support a side-track with door above the opening.

Installation is quick and easy as the track is supplied with pre-drilled fixing holes. The track comes with a pre-finished clip-on aluminium pelmet and end caps that neatly conceal the top of the door, track, and running gear.

CS FOR DOORS can supply CS Wall Mount Track with powder coated pelmet and standard sized Hollow Core, Paint quality, MDF Door, including hardware.

The clip-on aluminium pelmet is easily removable for cleaning, maintenance or servicing requirements

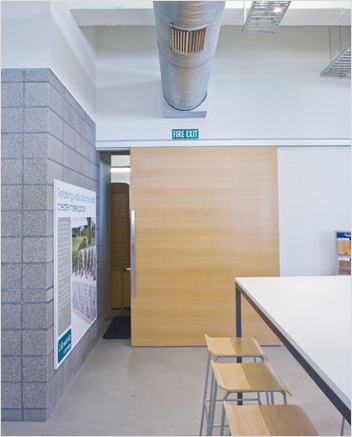

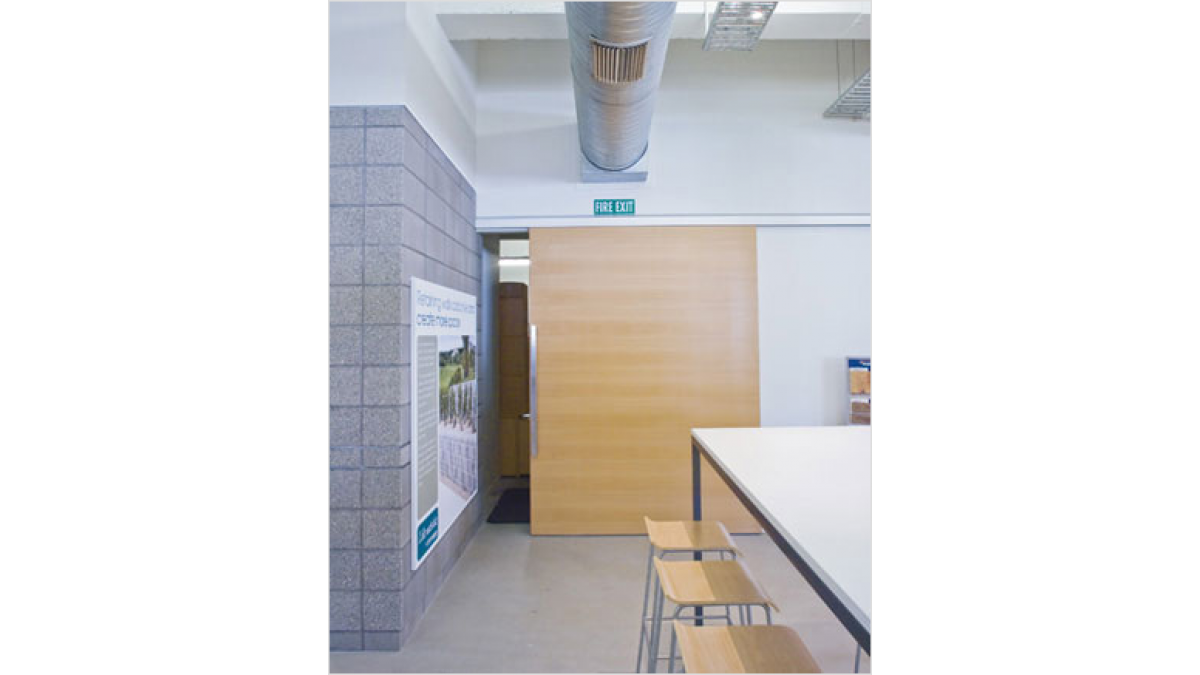

Sliding doors reduce the amount of wasted swing space required by pre-hung doors, allowing greater use of the limited space available in small dwellings. CS Wall Mount Track is particularly versatile, and can be used almost anywhere a surface sliding door is required. Tracks may be anodised or powder coated in a range of colour options.

This system is suitable for Single or Bi-Parting doors up to a maximum door thickness of 40mm and up to 250kg per door.

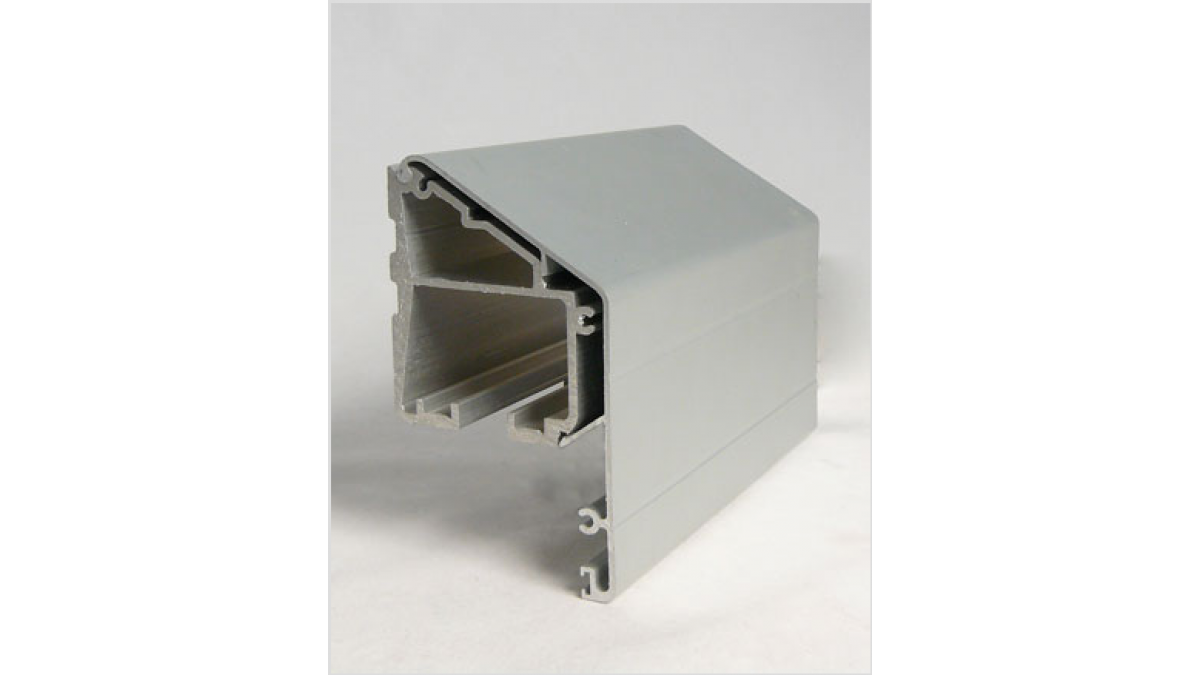

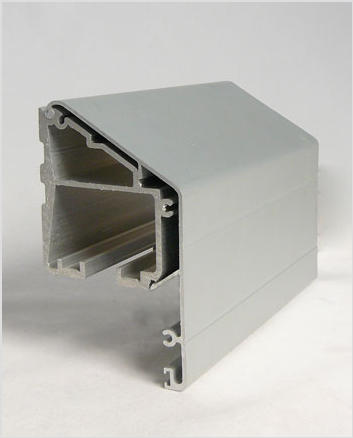

The high-quality heavy duty extruded aluminium track with patented CarriSnap quick release carriage system allows doors to be easily installed, adjusted or removed. The track will not rust in damp conditions, providing a quality long term solution.

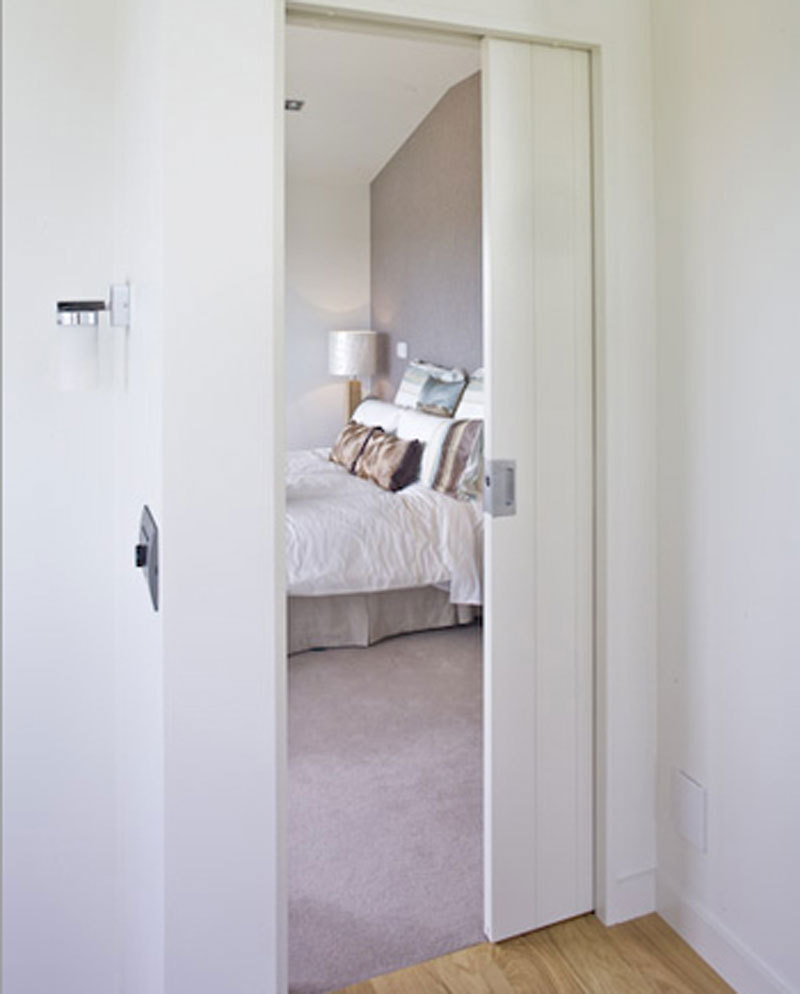

Cavity Sliders

  • 70mm “Slimslider” Cavity Slider System.

  • Straight forward /quick Installation (15 minutes) fits into  70mm framing (timber or steel).

  • Great space saver for smaller accommodation – ideal for temporary housing.

  • Under 30kg with door fitted.

  • 10 Year Warranty, maintenance free.

Return to housing product index



View more information on CS Cavity Sliders (CS for Doors), including contact details.
