Bracing Cavity Slider Used for Bracing Wall in Renovation

This home in Titirangi was completely modernised and renovated and a self contained unit was added underneath the existing home.

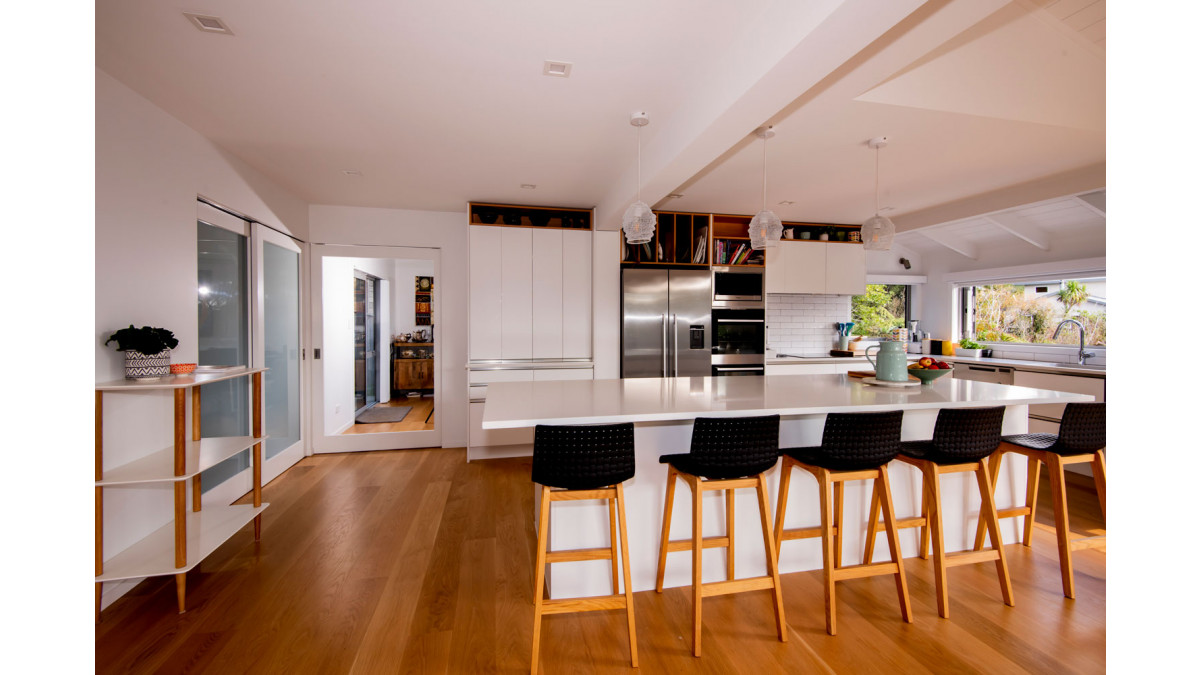

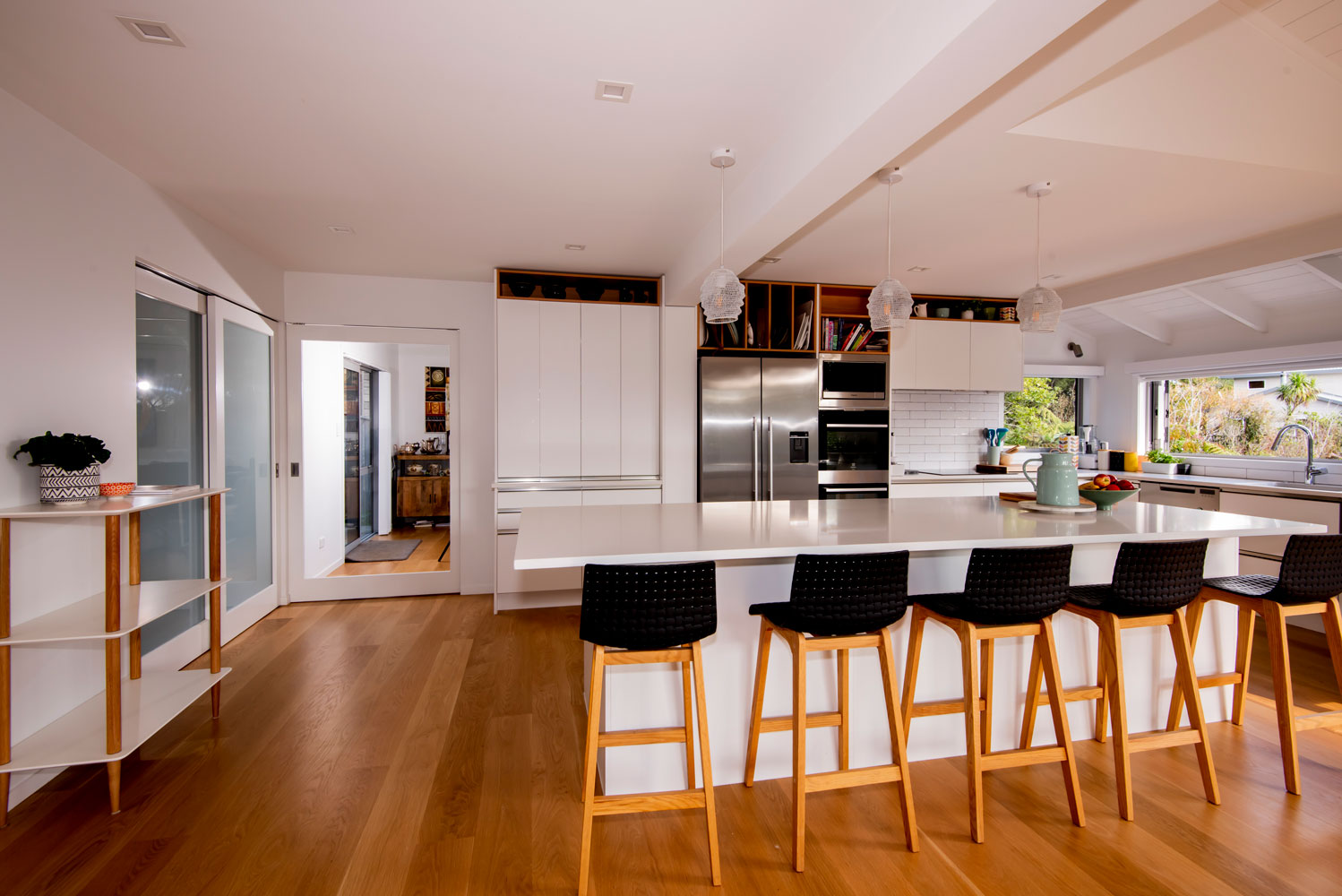

For the entrance to the kitchen area, a 2m high x 1.2m wide CS BraceWall Cavity Slider was used. This product can be used in walls where wall bracing is required and once installed and lined, the finished appearance is the same as that of a regular cavity slider. This unit was paired with a clear glass door, enabling the opening to be closed off for warmth and privacy without blocking light or sight lines. The addition of SofStop ensures the door is closed gently and quietly.

CS BraceWall is for areas where wall bracing is needed in conjunction with a cavity slider. This unit provides wall bracing in buildings within the scope of NZ 3604. The design complies with the P21 test for calculating bracing units in New Zealand. The solution enables all the standard benefits of the CS CavitySliders range. Once installed and lined, the finished appearance is the same as that of a regular cavity slider.

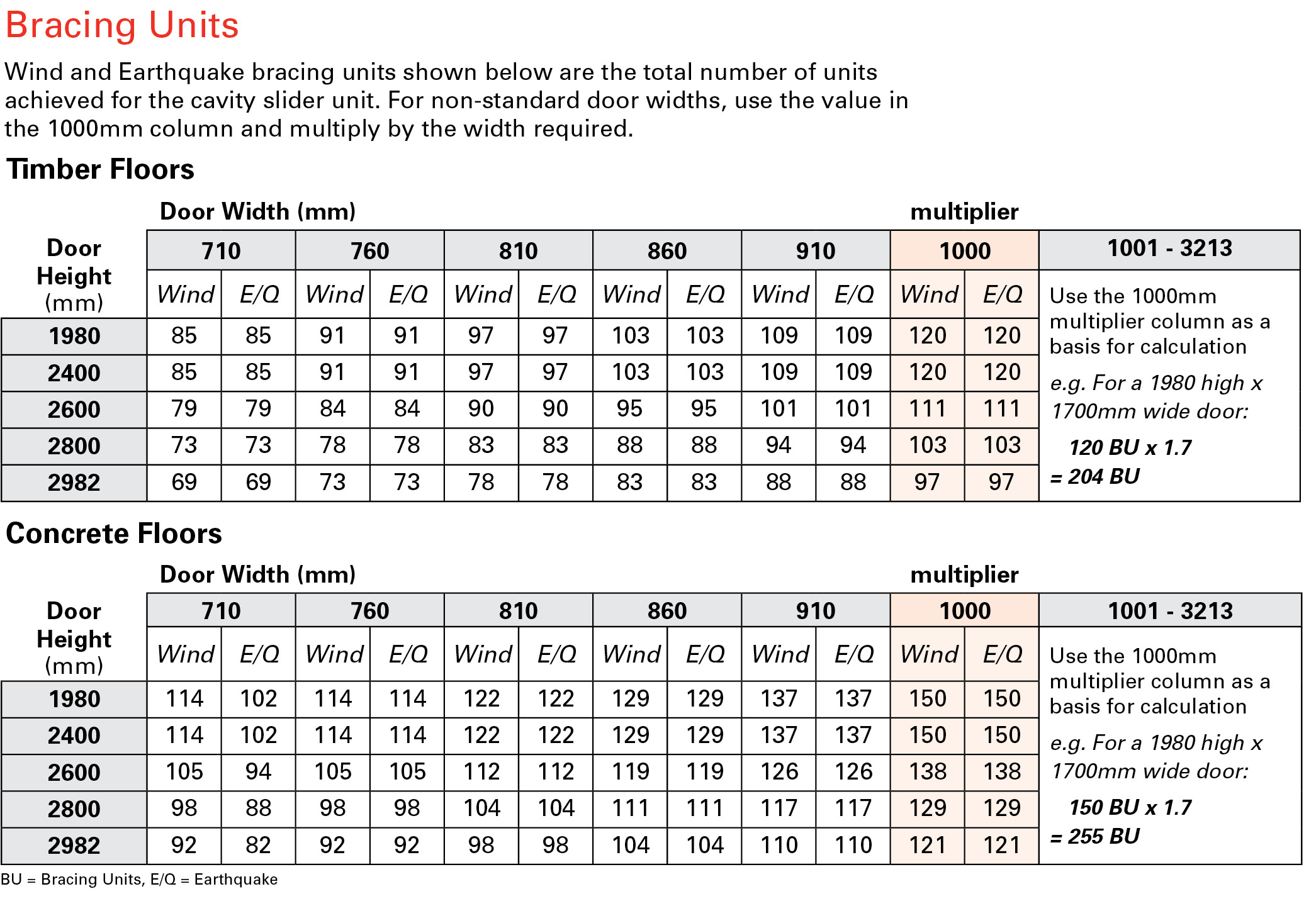

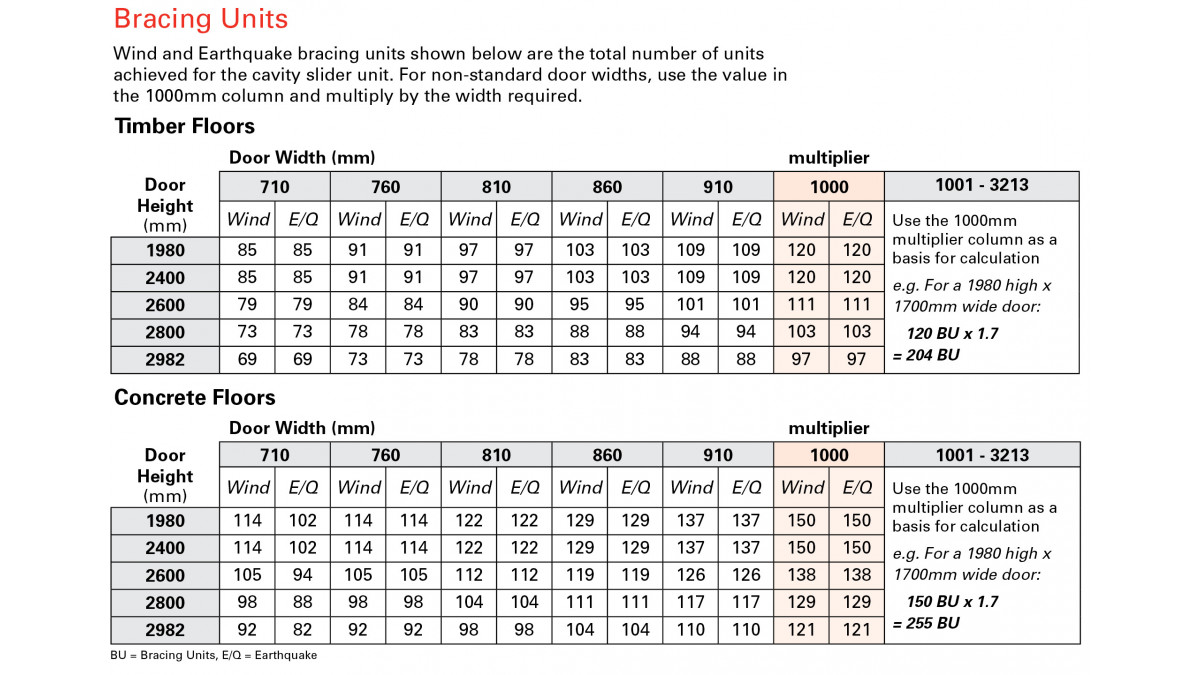

A calculator is available on CS For Doors website to work out how many bracing units can be achieved.

Contractor: Qualitas Builders

CS SofStop Cavity Slider

CS Cavity Sliders (CS for Doors)

View Product

Combining all the features of New Zealand’s highest quality cavity sliders with soft close technology, the CS SofStop is a must have wherever quiet and safety are priorities.

NZ Made

CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings
The SofStop mechanism is engineered to stop doors up to 100kg. A small amount of force is necessary to open the door

Best operating temperature: 10˚C to 40˚C
Minimum door width is dependant on door type
Maximum door weight is 100kg

Lintels over the full trim size (opening and pocket) should be sized to ensure that no load is applied to the door assembly
Lintels to NZS3604 are acceptable for door weights up to 75kg per metre width of door. Specific design required when the door weight exceeds 75kg per metre

Best operating temperature: 10˚C to 40˚C
Minimum door width is dependant on door type
Maximum door weight is 100kg

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]]
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people

BRANZ Appraised

CS BraceWall Cavity Slider

CS Cavity Sliders (CS for Doors)

View Product

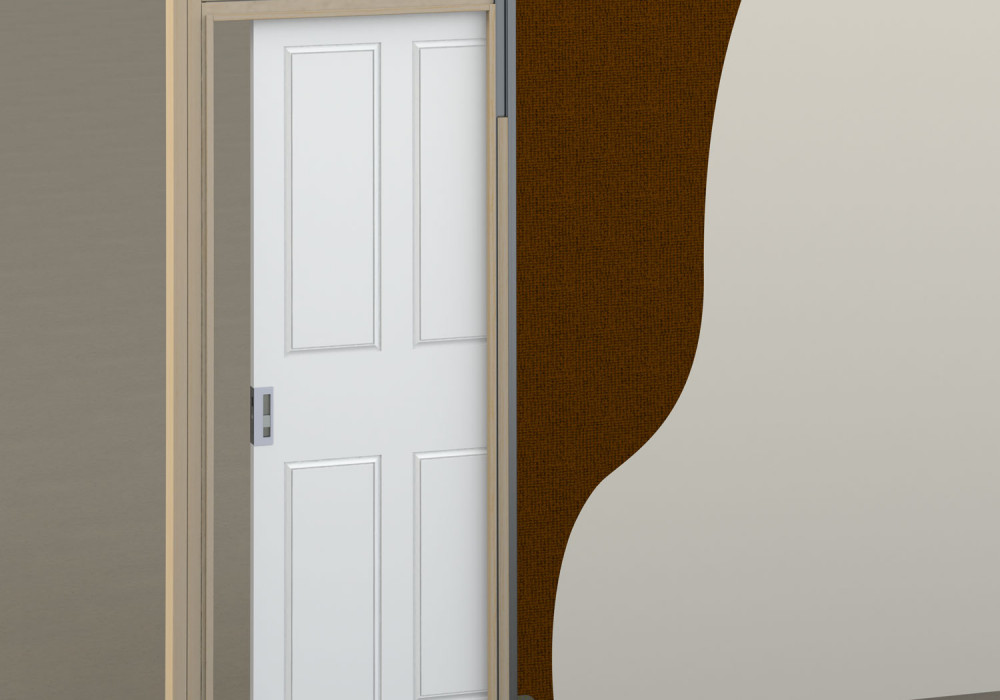

The CS BraceWall is a cavity slider designed for use in areas where wall bracing is required in conjunction with a cavity sliding door.

NZ Made

CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings.

Fits into a standard thickness wall (90 x 45 framing)

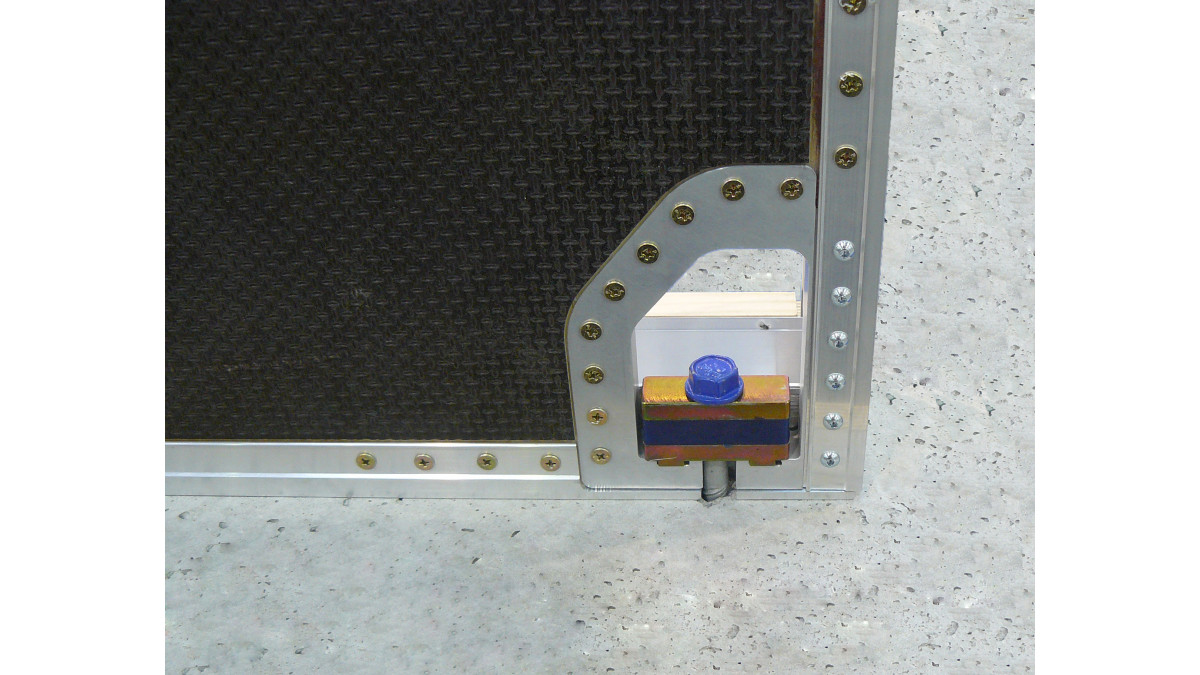

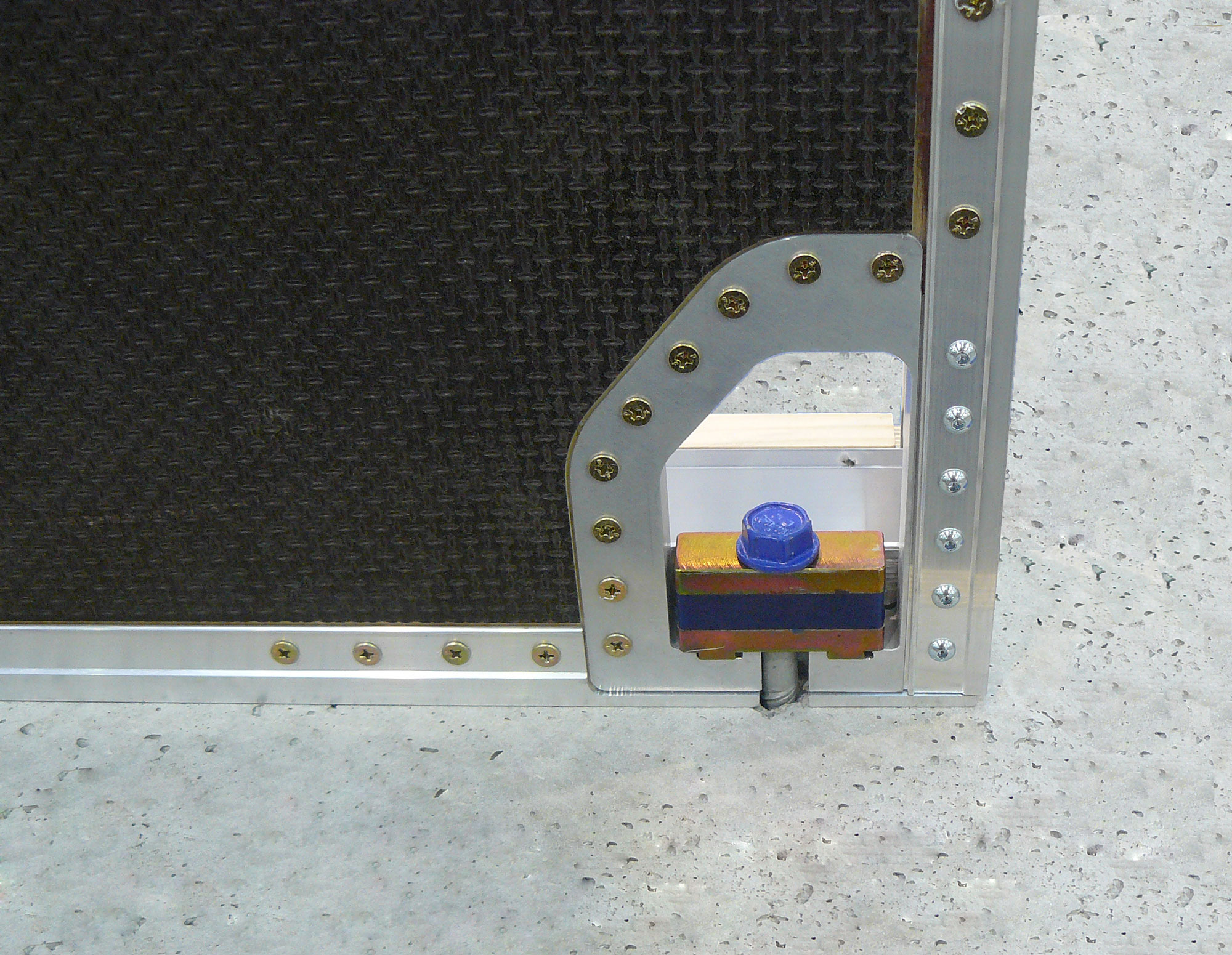

Install into a timber or concrete floor
Available with timber or aluminium jambs

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]]
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people

BRANZ Appraised
