Transform Rooftops into Vibrant Gardens with Allco

As the demand for locally grown produce and high density houses increases, urban communities are becoming more and more creative in finding ways to meet that demand. Urban agriculture can be as simple as windowsill herb gardens or as vast and vibrant as large community gardens that encompass entire city blocks.

The acres of unused building rooftops in these areas present the perfect environment to contribute substantially to the volume of locally grown produce in urban communities and provide the space, sunlight and fresh air plants need to thrive.

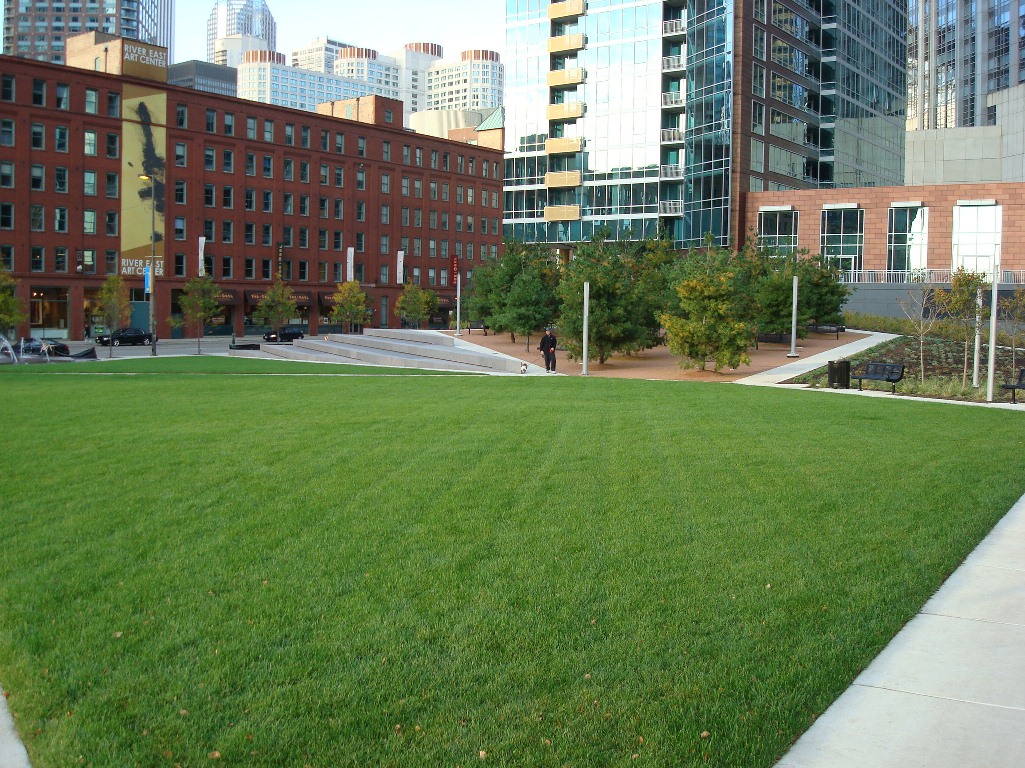

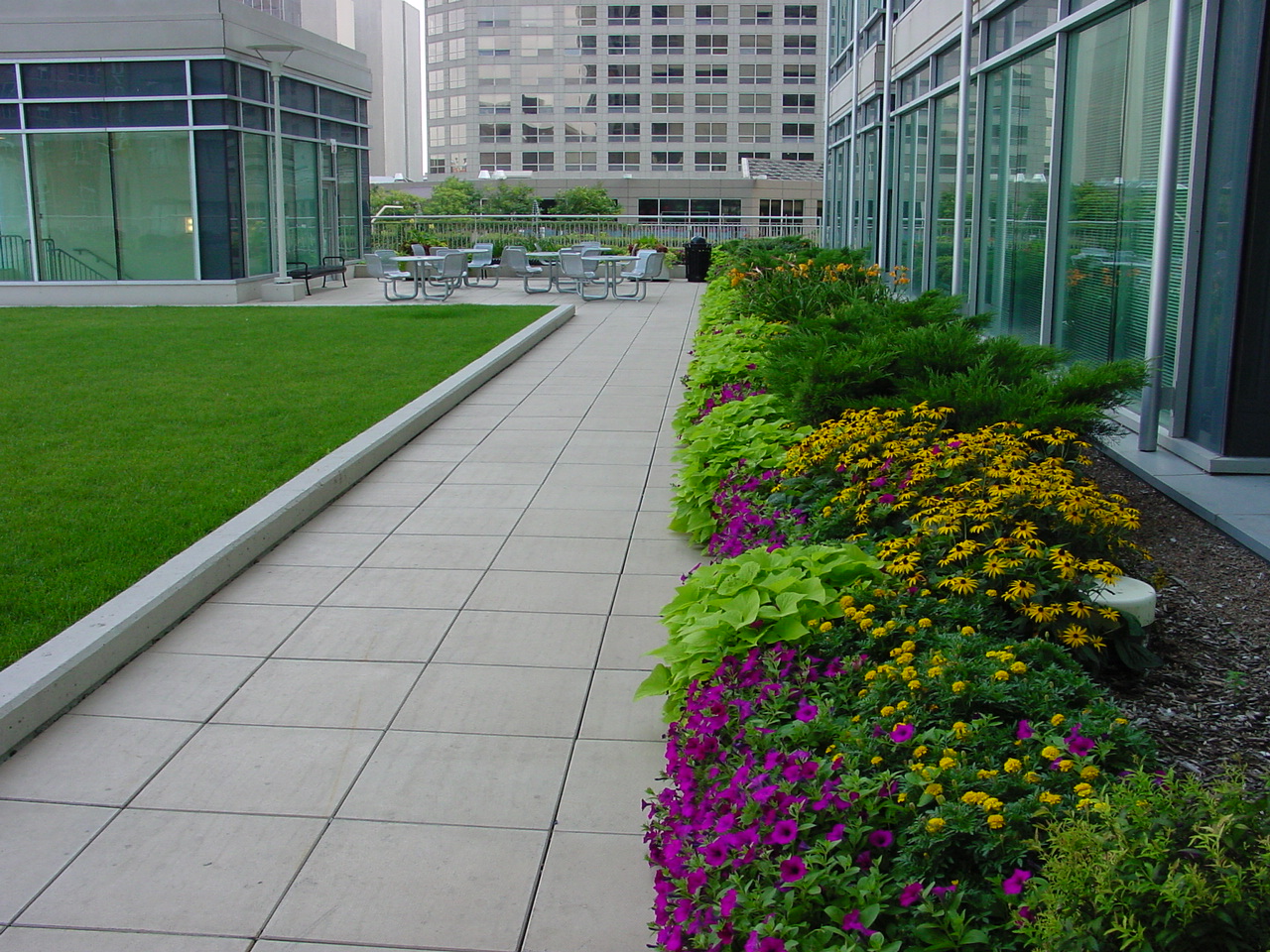

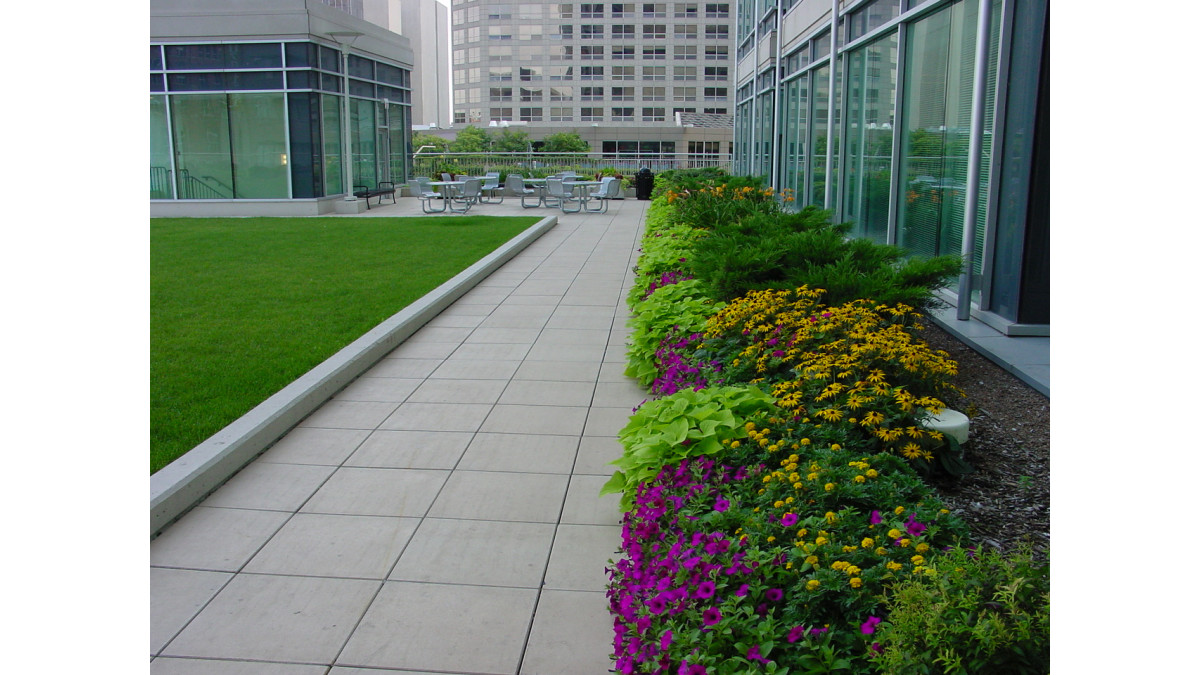

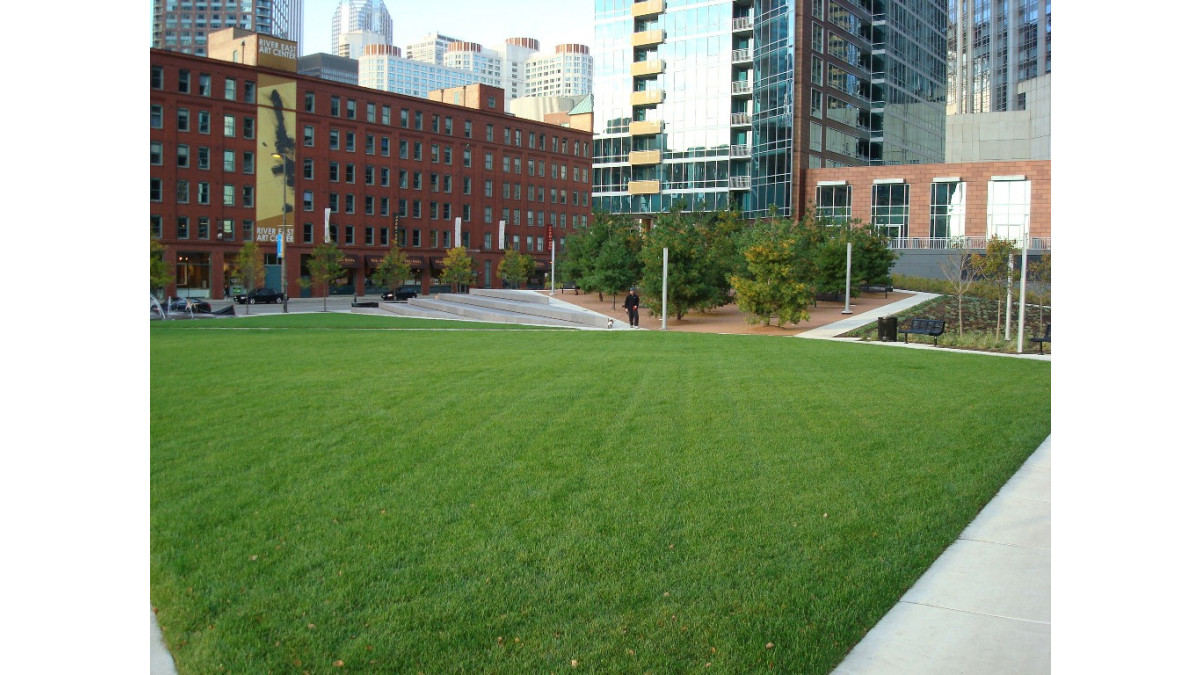

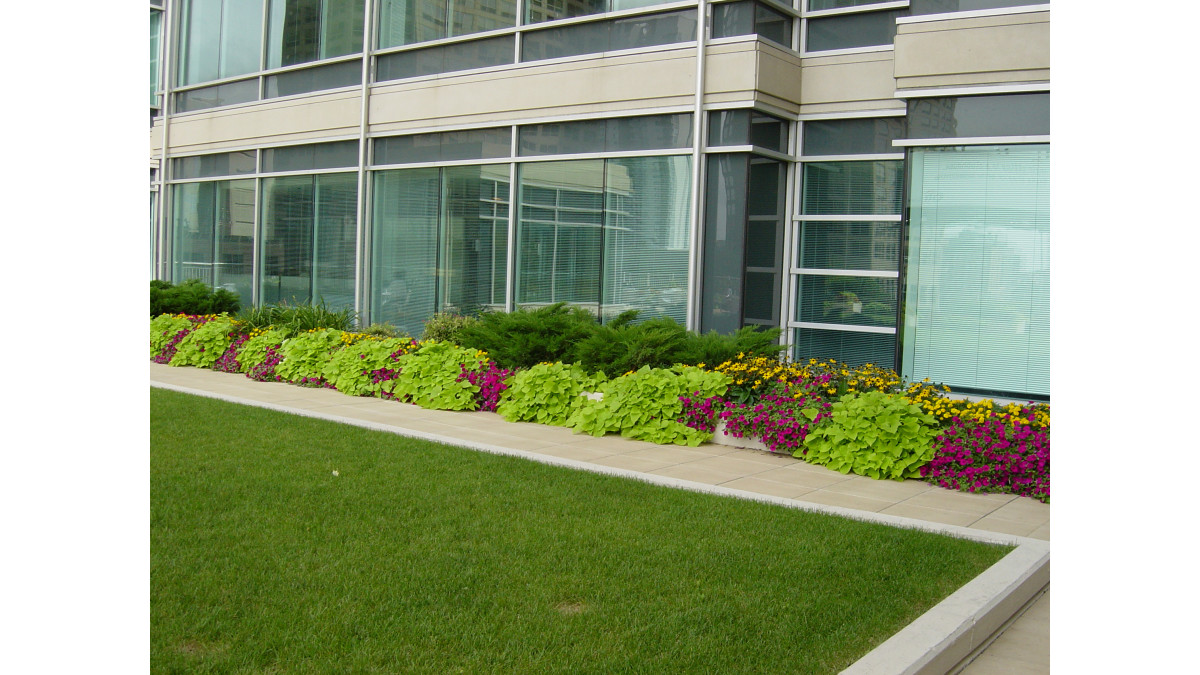

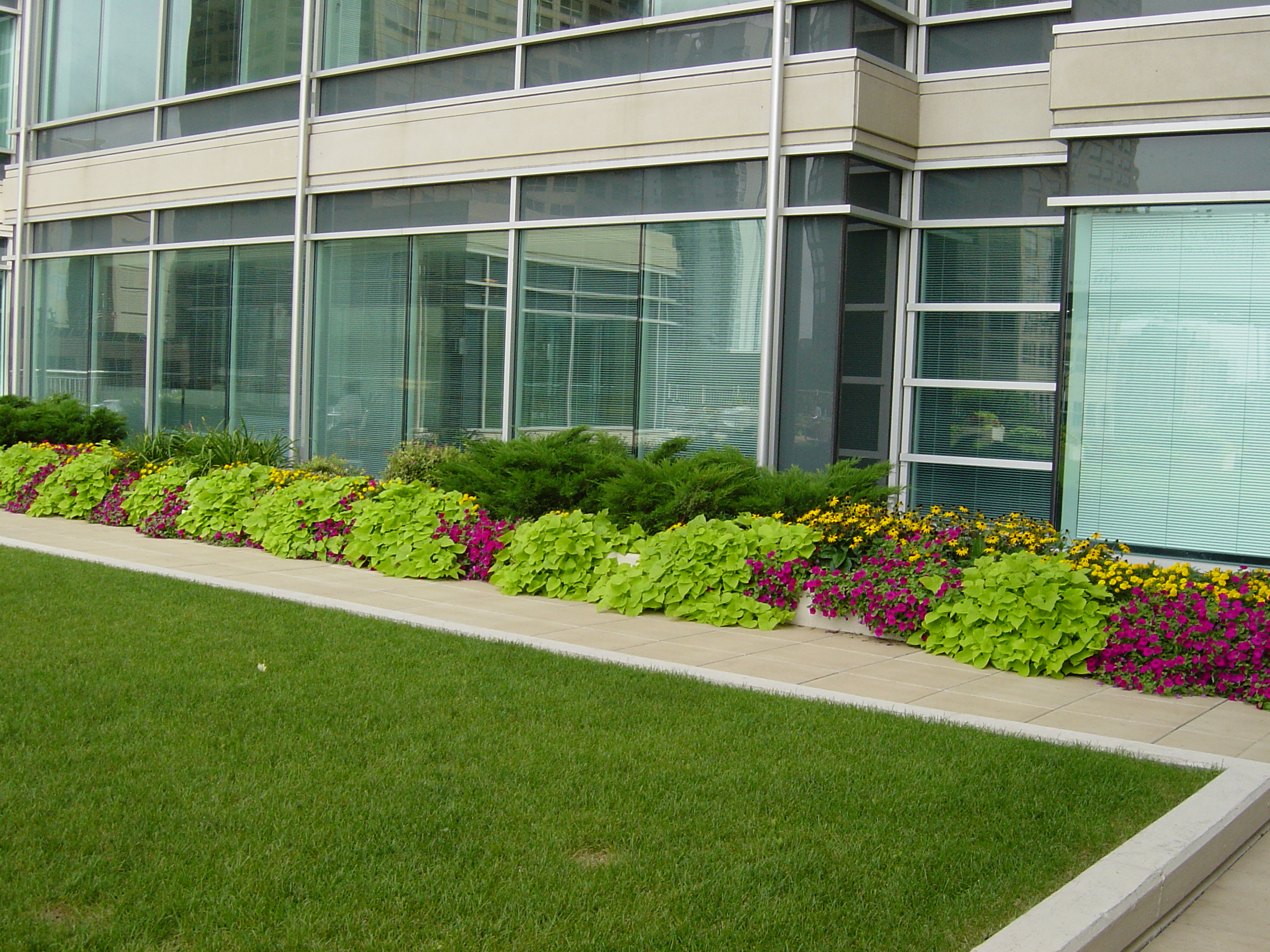

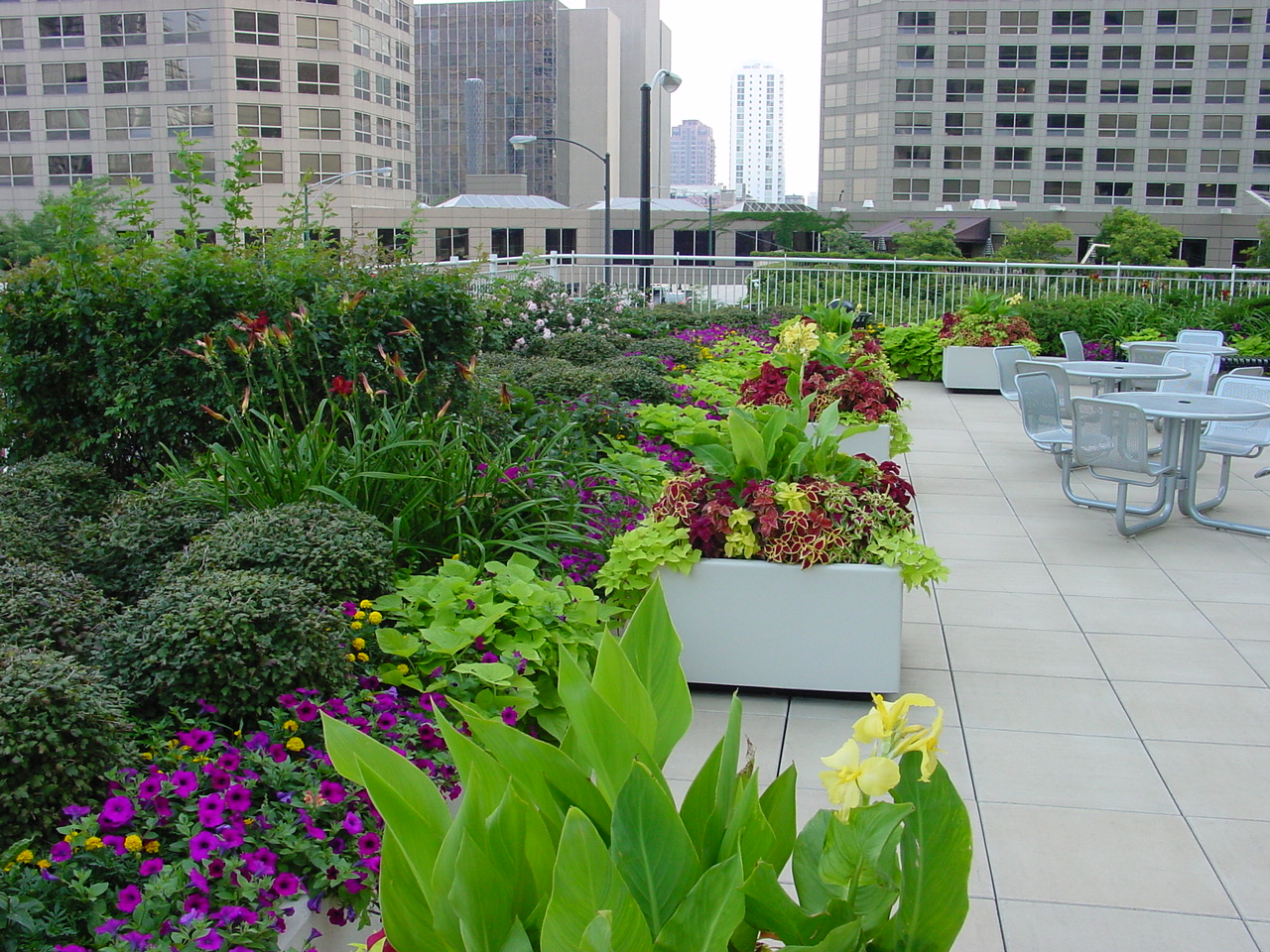

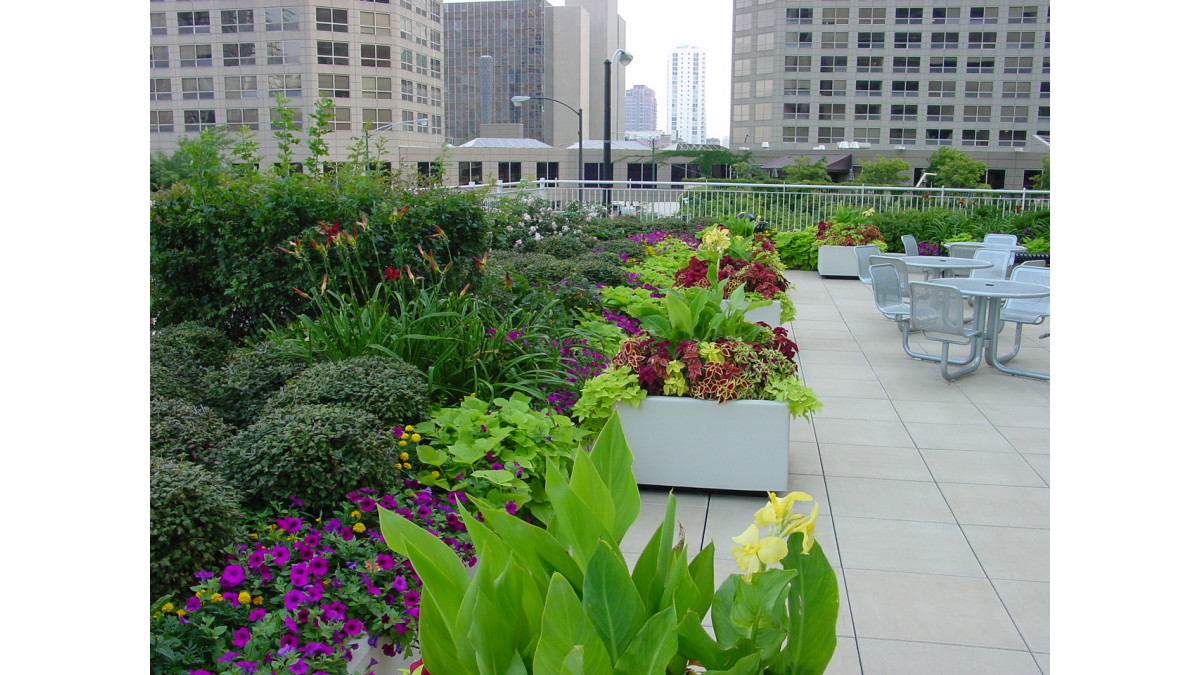

Allco's American Hydrotech Garden Roof Assembly starts with a hot rubberised asphalt waterproofing membrane and includes insulation, drainage/water retention components and soil. Using soil that is specially engineered for a lighter weight and optimum drainage allows it to be installed on a roof where weight can be a concern. This creates a gardening experience almost indistinguishable from one at ground level. Unlike a container garden, this type of built-up assembly allows nutrients and water to be shared across the roof and provides plenty of room both horizontally and vertically for the plants' roots to spread and grow.

Hydrotech Monolithic Membrane

Allco Waterproofing Solutions

View Product

Hydrotech Monolithic Membrane 6125 (MM6125) is a thick, tough, flexible, self-healing membrane for use in roofing applications.

1. Hydrotech (MM6125) membrane system has been assessed as a waterproofing membrane solution for use in cold roof and deck assemblies, and Protected membrane roof and deck (PMR) assemblies.

2. The system must always be protected as follows:

a) On PMR assembly: one of the following overlays must be installed over the insulation layer
- Pavers or floating timber deck on pedestals
- Ballast (graded stones)
- Green roof
- Concrete topping slab
b) On a trafficable cold roof/deck assembly: one of the overlays described in 2(a) must be used:
c) On a non-trafficable cold roof/deck assembly or where only maintenance related traffic is expected: the membrane must be protected with a layer of Hydroflex 30 or Casali Olympia.

Pavers or floating timber deck on pedestals
Ballast (graded stones)
Green roof
Concrete topping slab

3. The system will resist the effects of wind uplift likely to occur in practice. The effect of wind on the overlays described in 2(a) falls outside the scope of this certificate.

4. The system may be used on buildings within the following scope:

a) On new buildings or existing buildings in all exposure zones, excluding microclimates, as defined by NZS3604: 2011.
b) On reinforced concrete substrates with any pitch including zero pitch defined as less than 1:100/0.5, gutter fall must be maintained at a minimum of 1:100/0.5

See CodeMark certificate for full information.

If designed, used, installed and maintained in accordance technical literature and manufacturer's instructions Hydrotech Membrane (MM6125) System will comply with or contribute to comply with the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, B1.3.3 (b), (c), (f), (g), (h), (m), (n), (q), B1.3.4 (b), (c), (d), (e)
Clause B2 DURABILITY: Performance B2.3.1 (a) where ballast, green roof or concrete topping slab are used and B2.3.1 (b) where not, B2.3.2 (b)
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2, E2.3.7 (b), (c)
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1

See CodeMark certificate for full information.
