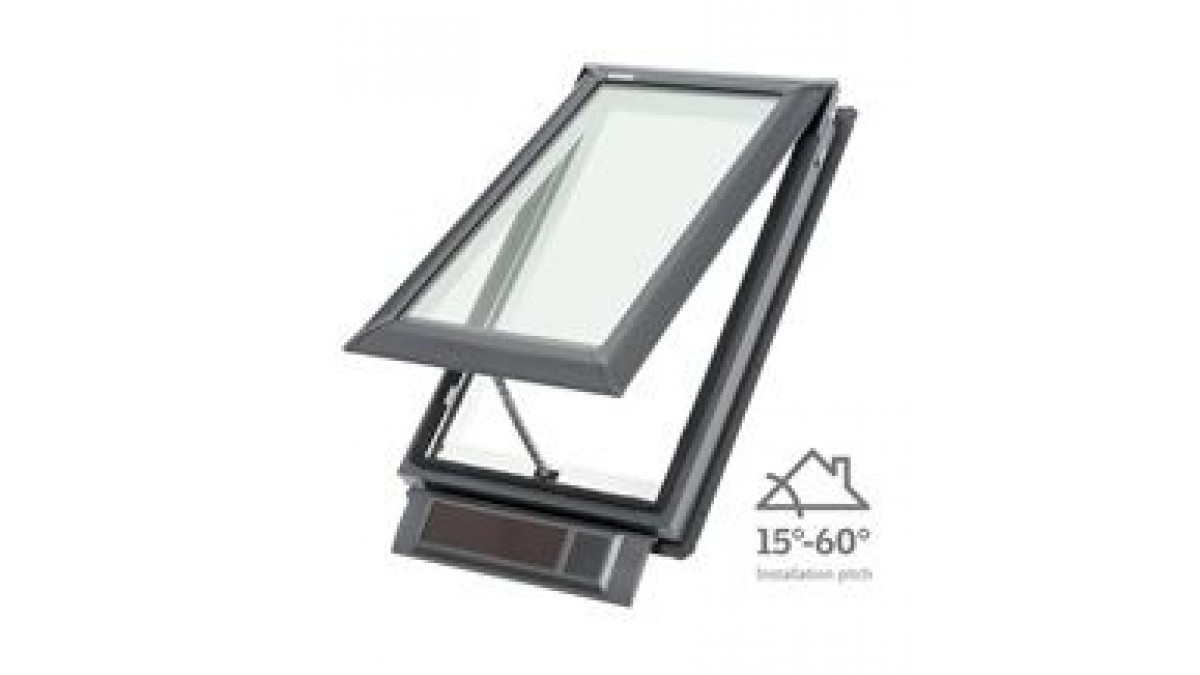

Solar Skylight - Pitched Roofs
Description

The VSS Solar Skylight is great for bathrooms, kitchens, laundries and any rooms needing a daylight and fresh air transformation. It has a solar panel that captures available daylight and uses it to recharge a highly efficient, fully concealed battery powered operator and control system. This operator is the power source that opens and closes the skylight which removes the need for wiring.

Key Features
  • Suitable for pitched roofs 15° to 60°
  • Laminated, argon fill, double glazing with Low-E3 coating
  • Includes removable insect screen
  • Exterior of aluminium in "grey friars" colour
  • R-value of 0.50 m2K/W for complete unit
  • Available in six sizes - 550x980, 780x980, 780x1180, 780x1400, 1140x700, 1140x1180
Scope of Use
  • Solar Skylight can be used on a roof pitch of between 15º to 60º.
Limitations on Use
  • Solar Skylight can not be used on low-pitch roofs less than 15º. Refer to low-pitch skylights for suitable options.
Statement of Building Code Compliance

BRANZ Appraised (Appraisal No.968)

Meets the New Zealand Building Code requirements for:

  • B2 - Durability (15 years)
  • C3 - Protection from Fire (classified as non-combustible)
  • E3 - External Moisture (tested to AS4285)
  • F2 - Hazardous Building Materials
  • G4 - Natural Ventilation (can be used to meet the G4 requirements)
  • G7 - Natural Light (can be used to meet the G7 requirements)
  • H1 - Energy Efficiency (exceeds the minimum R-value requirements for skylights in all climate zones)
Other Performance Attributes

SOLAR POWERED - No need for an electrician or power supply. The Solar skylight powers itself.

SMART - Programmable control pad and pre-installed rain sensors included

RAIN SENSOR - Pre-installed rain sensor automatically closes the skylight at the onset of rain giving you peace of mind

SIMPLE - Install it anywhere, in any roof, at any time with no electrician required

QUALITY - Stylish design, tested performance and dedicated local sales support

HEALTHY - Daylight boosts vitamin D levels during extended indoor times in winter and fresh air replaces damp, allergen filled stale air

Documents
Compliance Statement
Data Sheet
Size Chart
Independent Appraisal (BRANZ)
Test Results
CAD/PDF (link to page on supplier website)
Specification Clause/Guide
Installation and Operation
Maintenance Instructions
Warranty
VELUX ACTIVE brochure
Custom Flashing - Rooflink Article

VELUX are a supplier of skylights and roof windows and have been active in New Zealand since 1981.
