Residential Custom Windows
VANTAGE Windows & Doors
All products
For high-performance double-glazing, explore AGP’s product range available now Explore
COMBS 9124 Copy

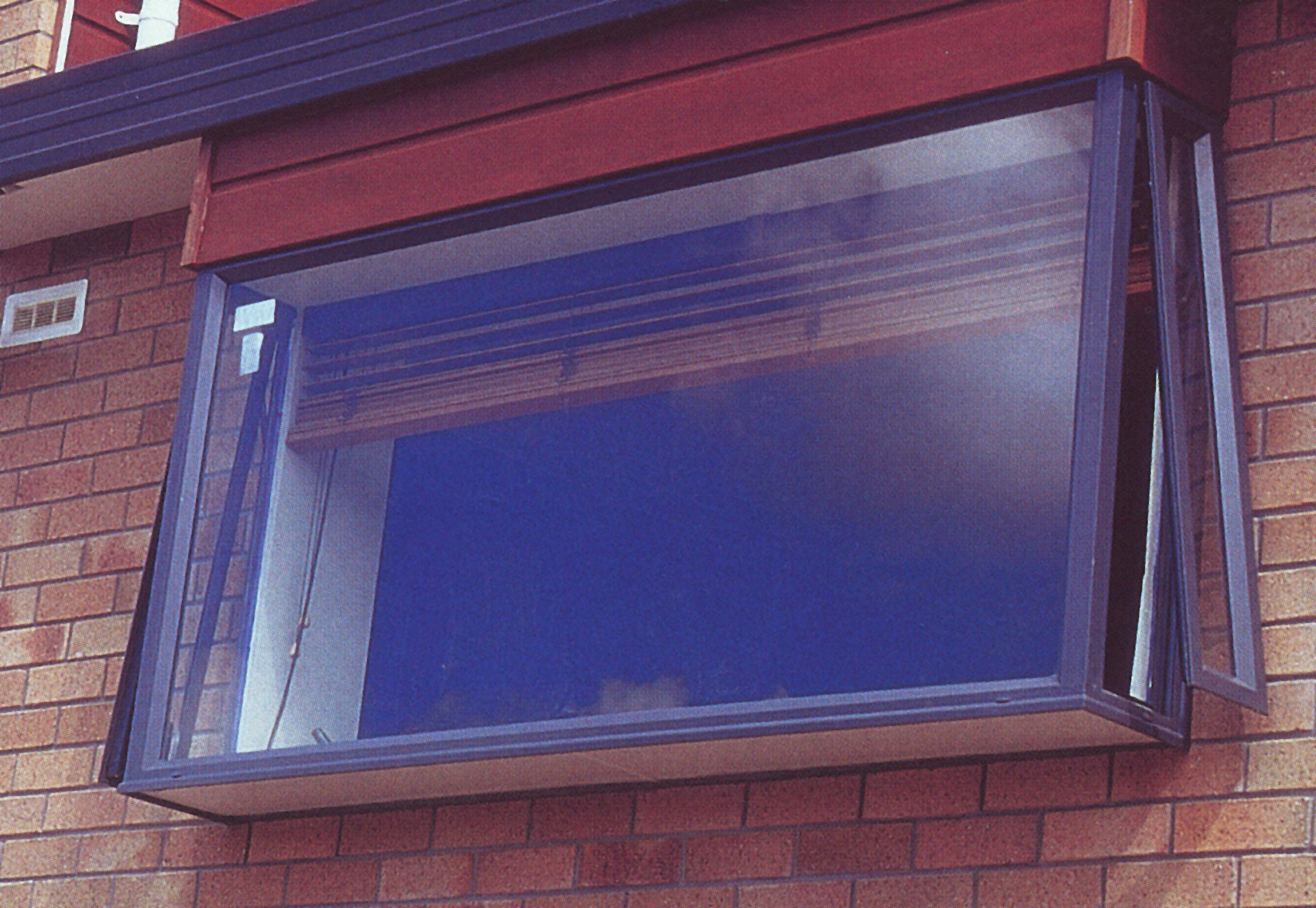

0626 001 Copy 3

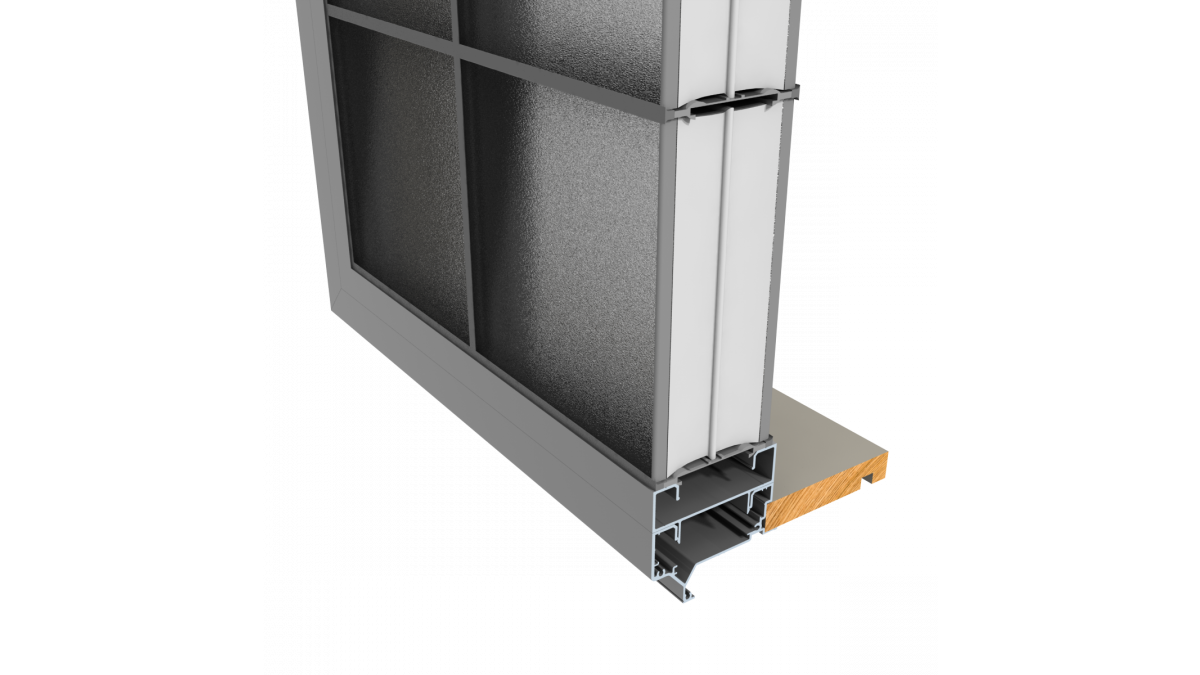

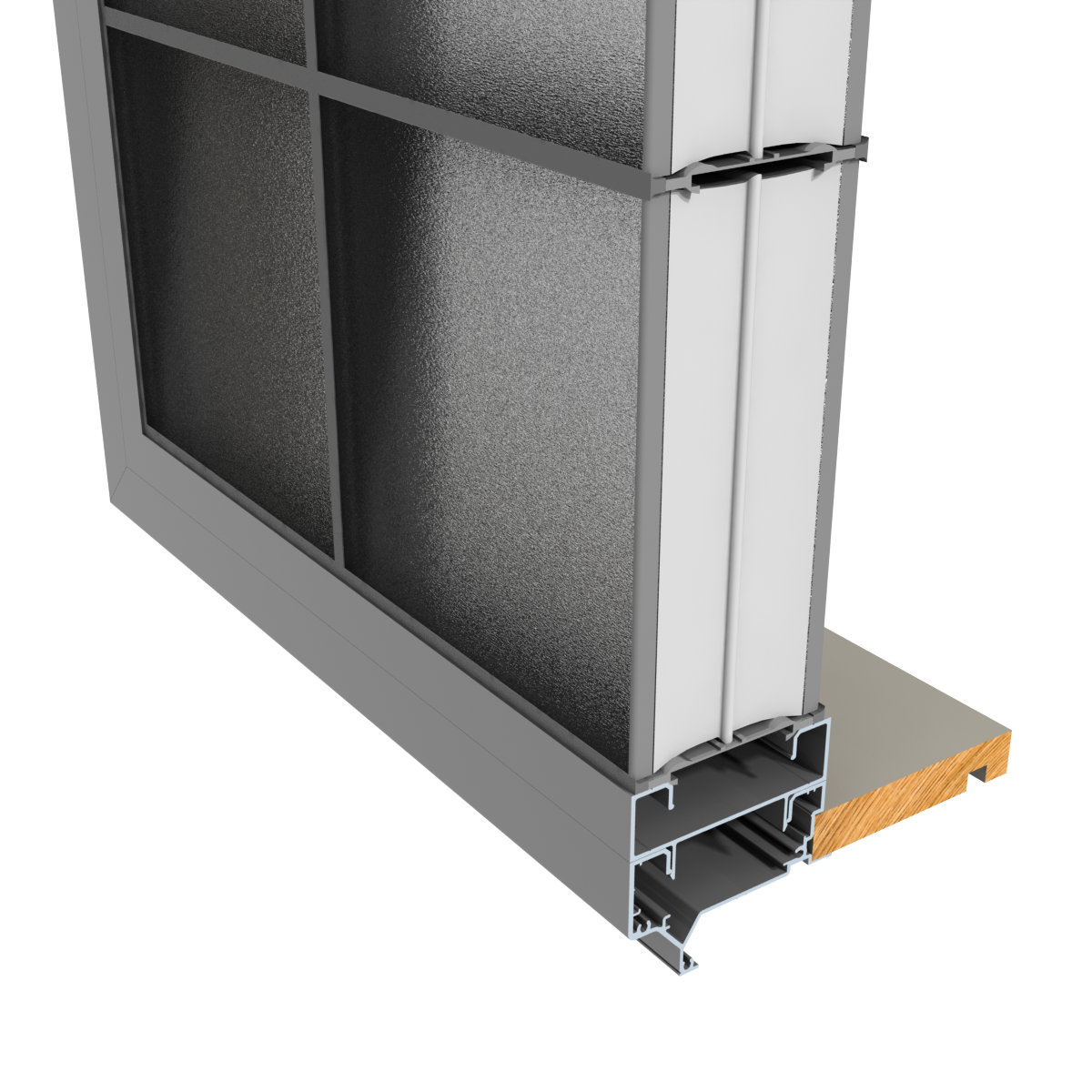

25 Glass Block Vantage

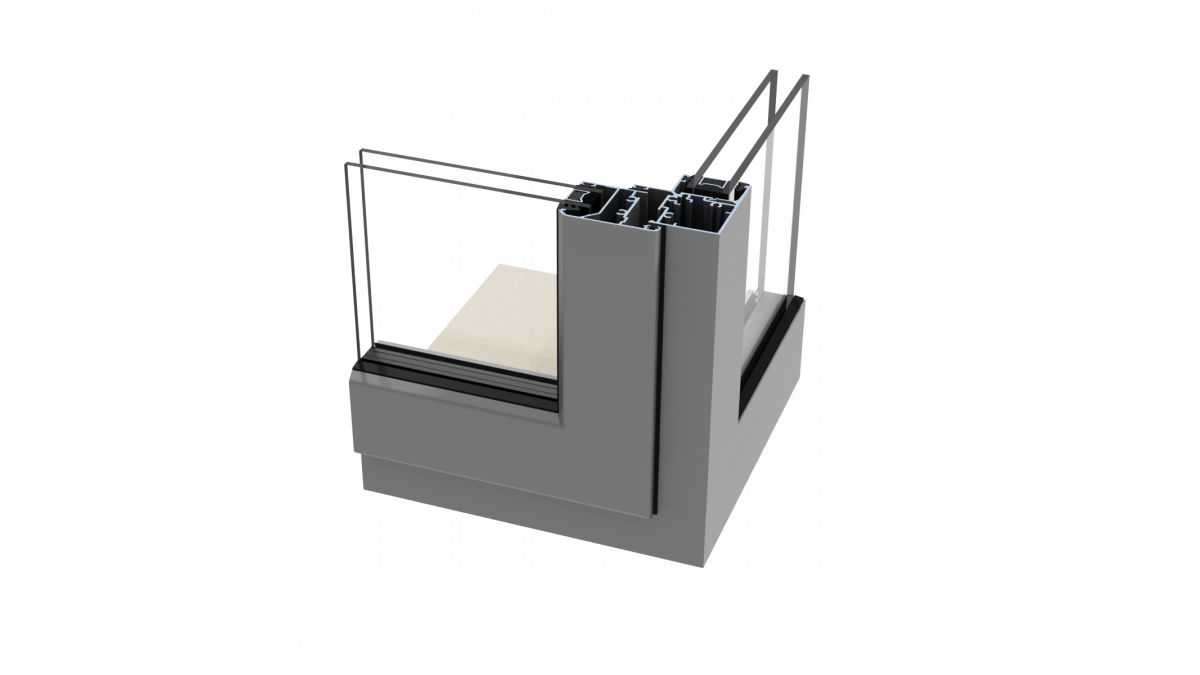

23 90 Greenhouse Corner w Sash New Frame

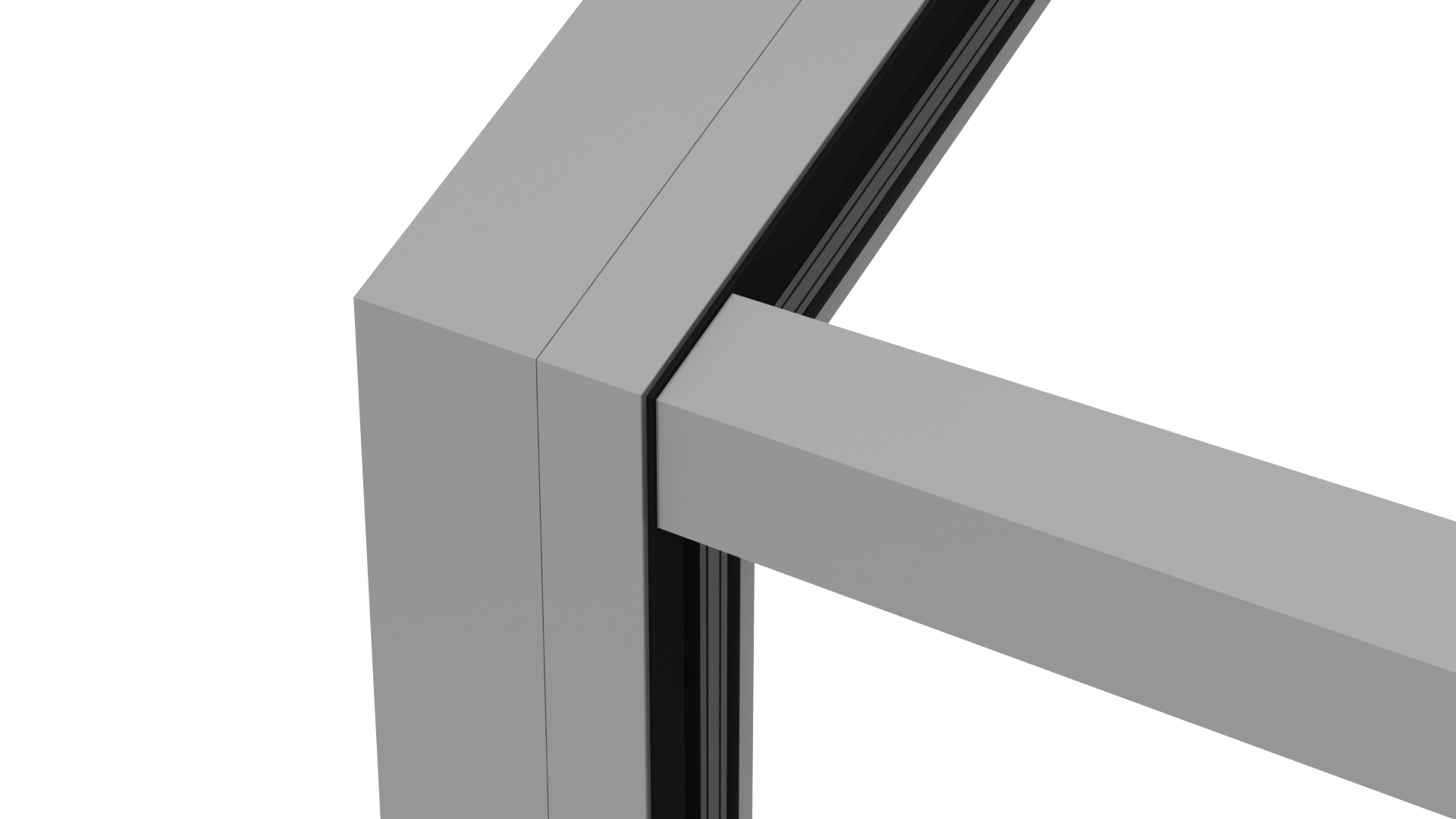

22 Greenhouse Window
Description

Custom windows can include raking or curved windows, greenhouse, box and bay formats and glass block windows. Windows made in shapes outside the square or rectangular are manufactured from Residential or upgrade frames (Metro Series, APL Architectural Series etc) and technical information on those suites should be consulted.

Key Features
  • Curving of windows in plane is possible in several suites but confirmation of desired frame should be sought before specifications are prepared
  • Greenhouse, box and bay windows all project from the wall of a house
  • Greenhouse windows normally have a sloped glass top while a box window is capped by the eaves
  • All three formats can be ventilated with awning, casement or sliding windows, while full-height bays can incorporate doors

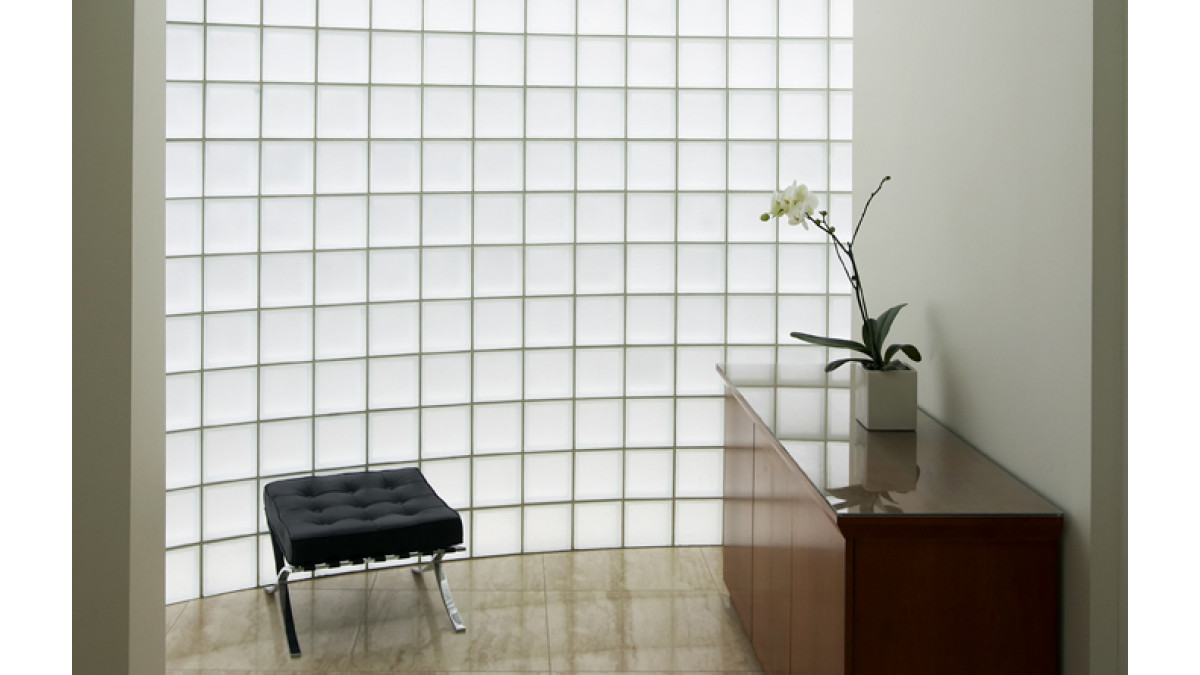

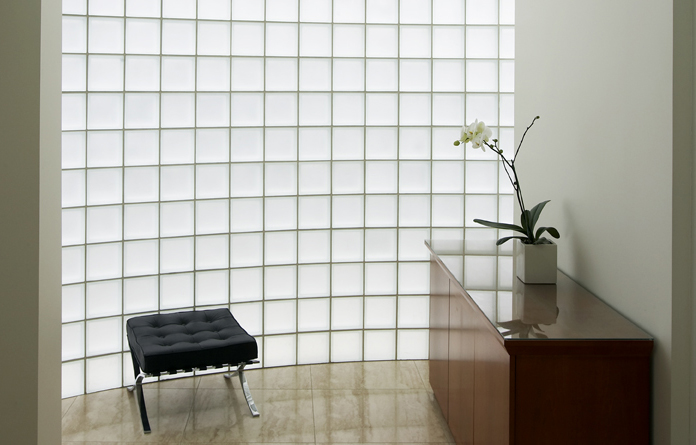

  • Glass block windows are available using an 80mm-thick block
  • A range of glass block patterns is available
  • Compatible with adjoining residential windows and doors through the use of a coupling bar
  • The glass block system has 90° or 135° corner posts available.
Categories
Awning and Casement Windows Translucent Blocks and Panels
Ranges
Residential Series
Scope of Use
  • A wide range of custom windows can be designed and manufactured, with most design requests capable of a solution
  • Need to be used in defined maximum sizes according to the wind exposure
Limitations on Use
  • Curved windows in plane are possible in several suites but confirmation of desired frame should be sought as well as information on radius limitations
  • Greenhouse windows require single glazing on the main face or acceptance of a double-glaze line at the glass join
  • Care needed if greenhouse or box windows project near walkways or decks.
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Custom windows have been widely used in residential projects throughout New Zealand for more than 40 years
  • Widely used by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • Case Studies
Documents
Data Sheet
pdf
Declare Label

2022

pdf
Specifier Guide
pdf
Vantage on Masterspec
URL
Manufacturer Contact List
URL
WGANZ Guide to E2/AS1

1 August 2019

pdf
Vantage Care, Maintenance & Warranty Brochure (with AGP)

2020

URL
Vantage Brochure
URL
AGP Cleaning & Maintenance
pdf
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
APL and Sustainability

2019

URL
CAD/PDF Details
View full
Full Set of Drawings
pdf

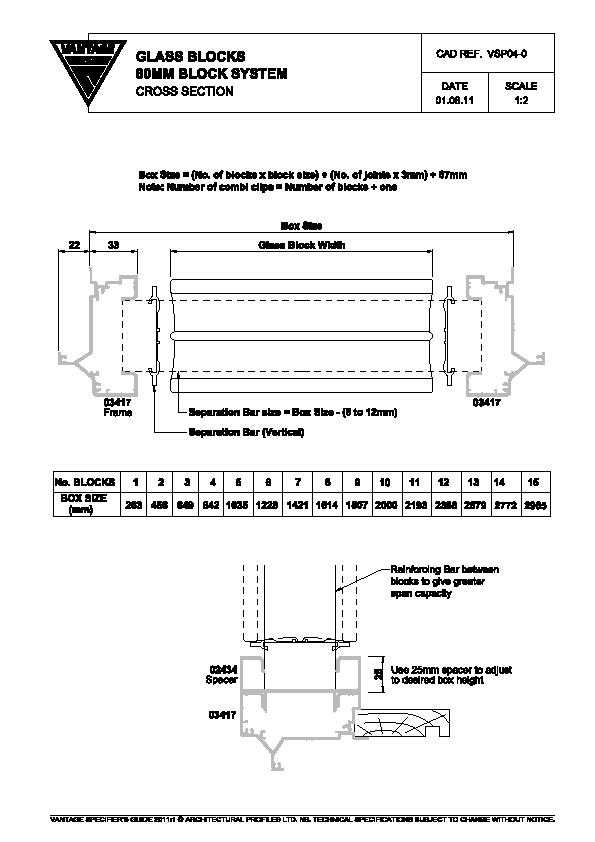

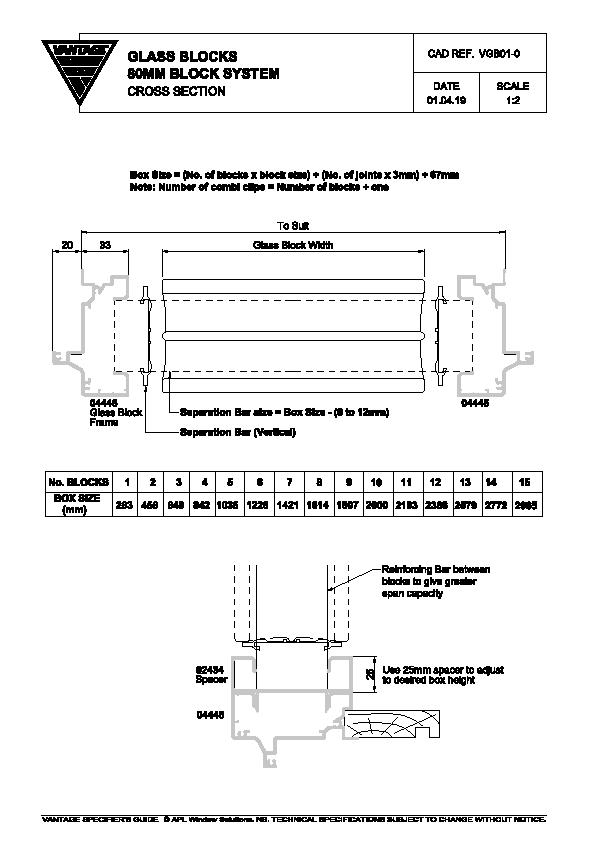

Vantage Residential Glass Blocks 80mm Block System

VGB01-0

dwf
dwg
dxf
pdf

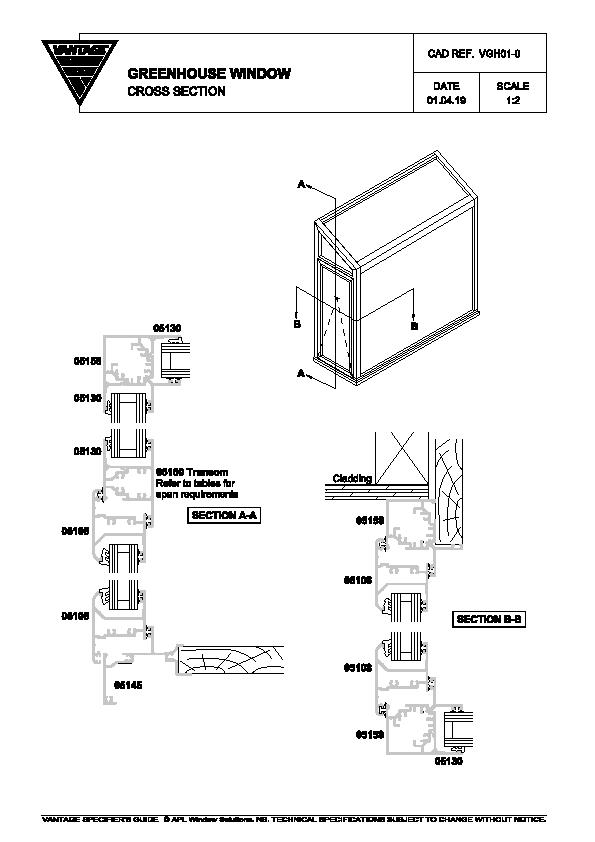

Vantage Residential Greenhouse Window Cross Section

VGH01-0

dwf
dwg
dxf
pdf

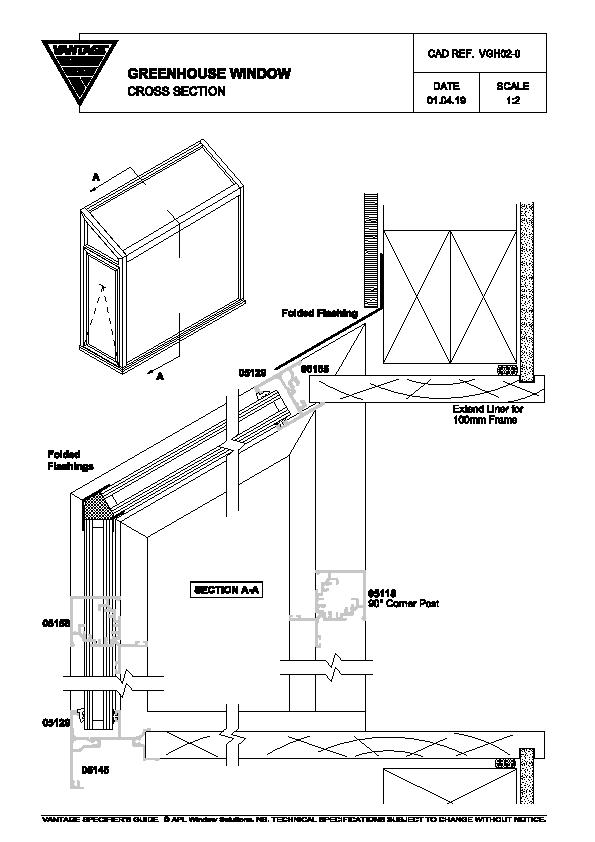

Vantage Residential Greenhouse Window Cross Section

VGH02-0

dwf
dwg
dxf
pdf

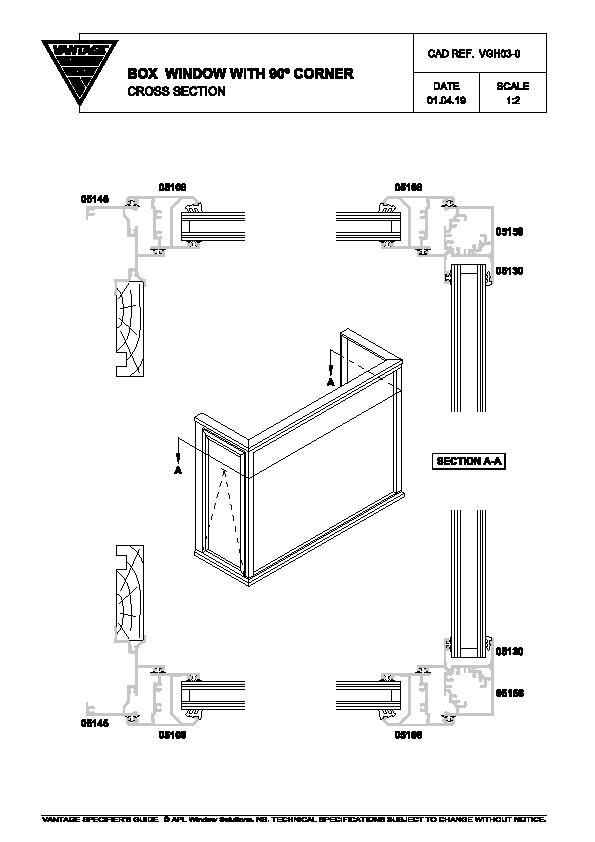

Vantage Residential Box & Bay Window with 90º Corner

VGH03-0

dwf
dwg
dxf
pdf

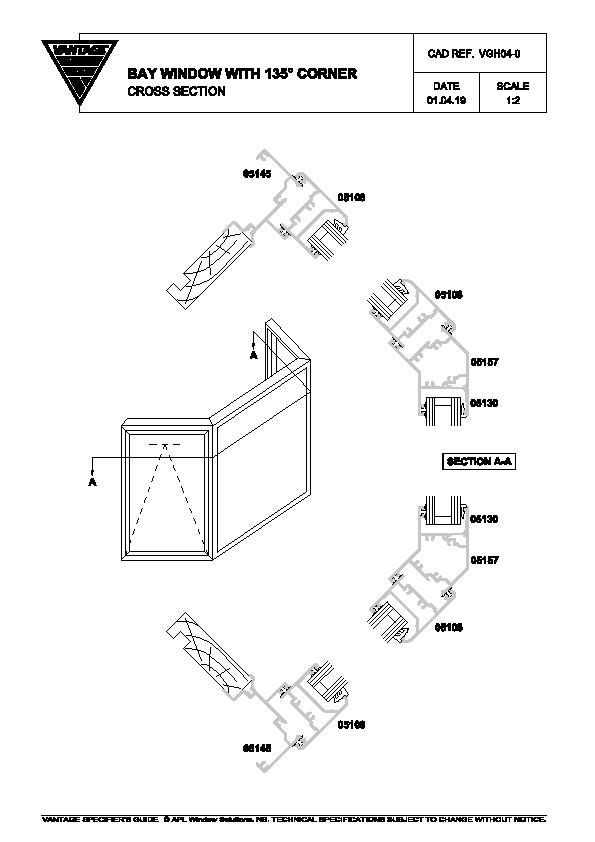

Vantage Residential Box & Bay Window with 135º Corner

VGH04-0

dwf
dwg
dxf
pdf
